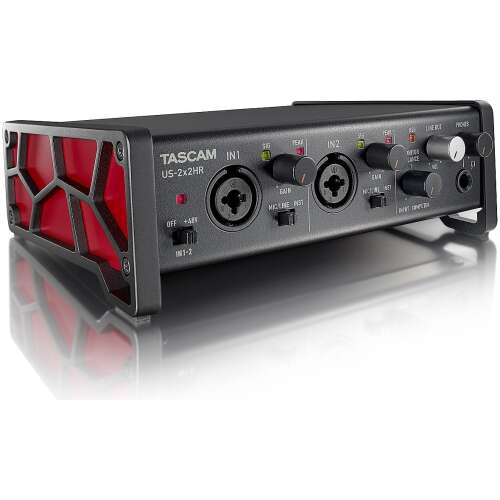

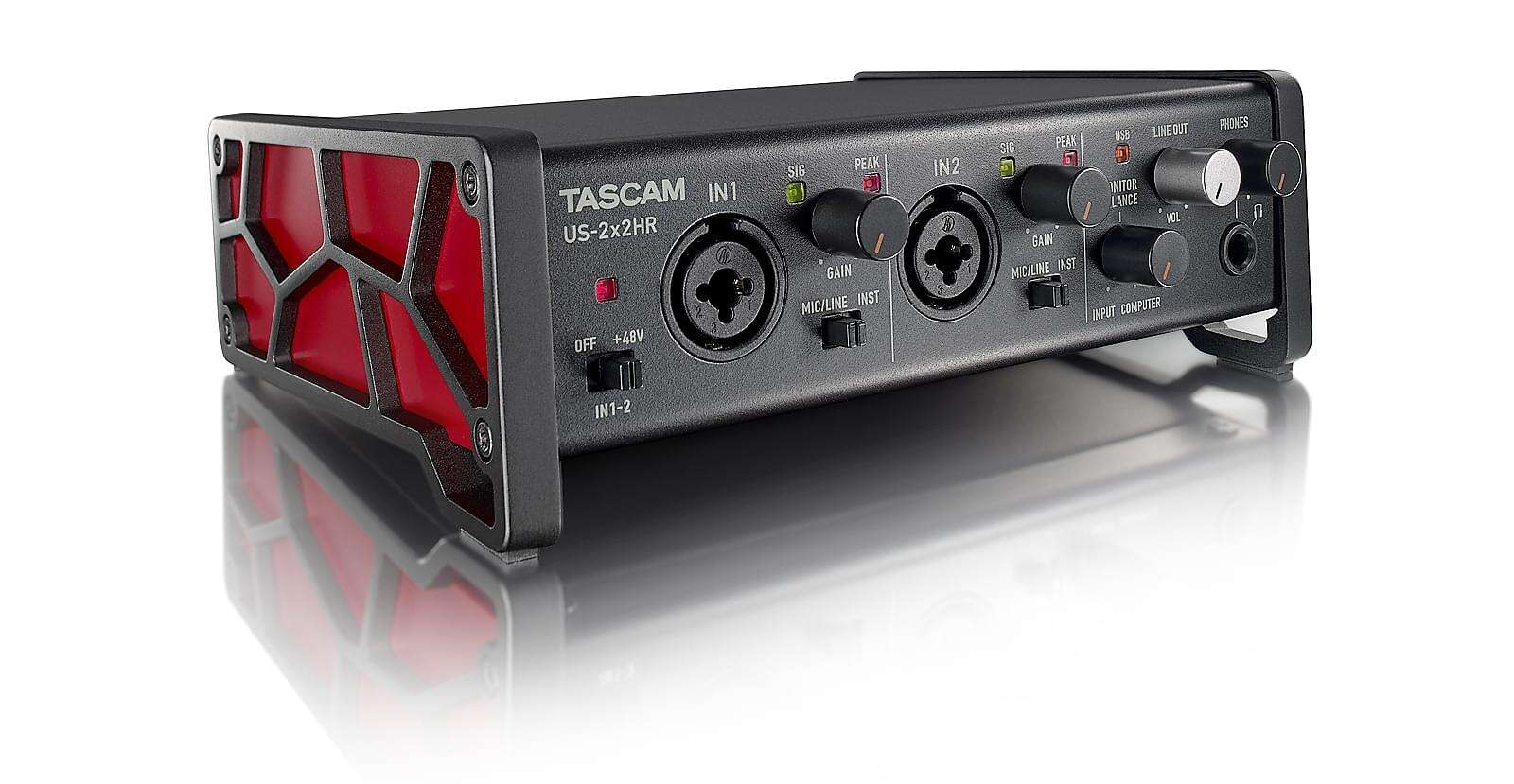

Tascam US-2x2HR High-Resolution USB Audio/MIDI Interface (2 in, 2 out)

The TASCAM US-2x2HR is a compact USB audio and MIDI interface for home recording, music production, podcasting and livestreaming. It features two Ultra-HDDA microphone preamps, MIDI connectivity and recording at up to 24-bit/192 kHz.

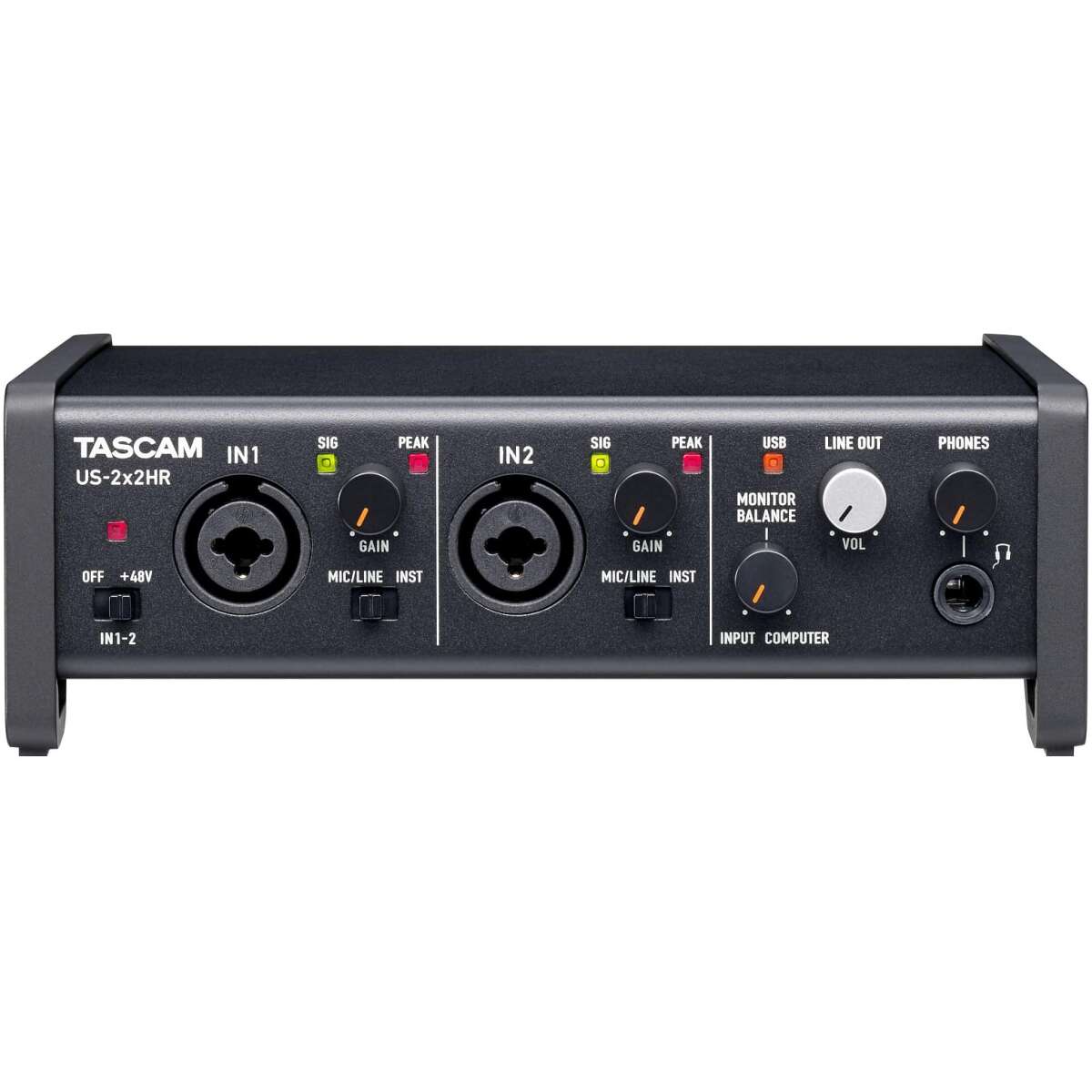

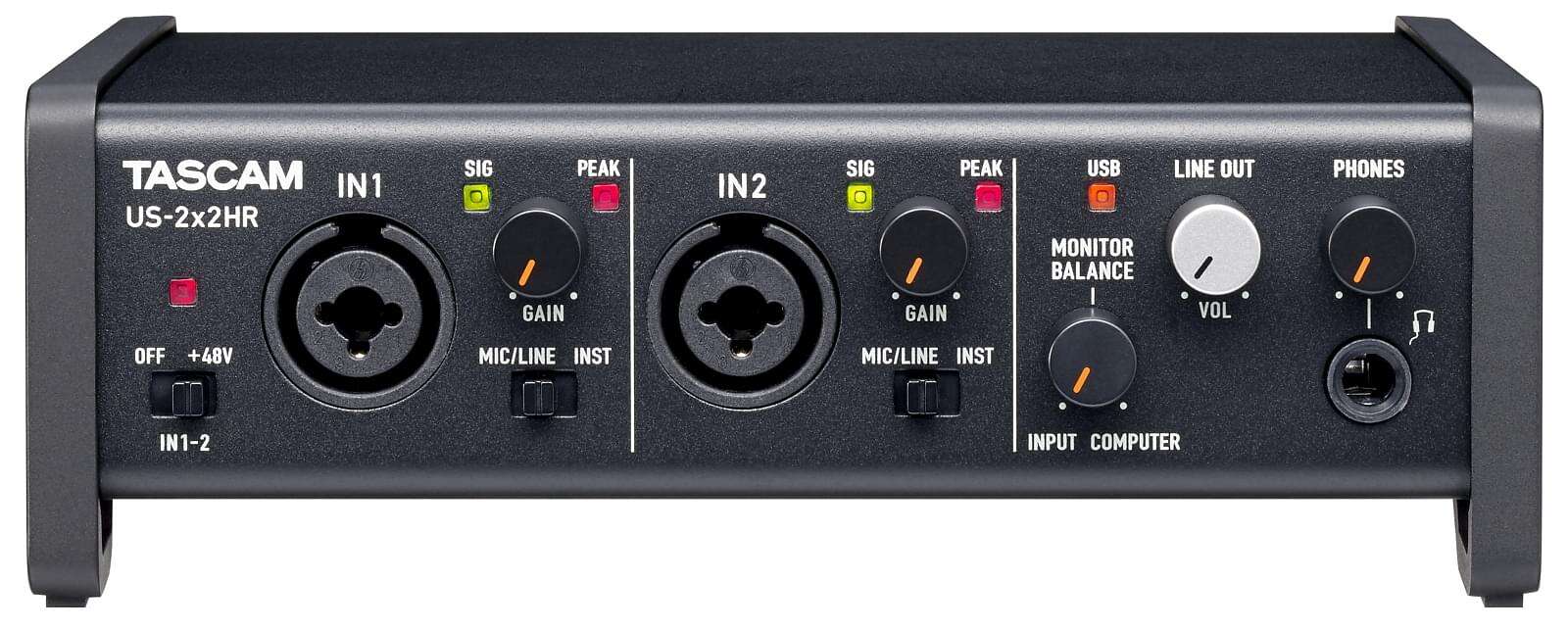

Inputs and preamps

• Audio Inputs: 2
• Input Connectors: Two XLR/6.35 mm TRS combo inputs
• Microphone Preamps: Two Ultra-HDDA preamps
• Input Modes: Microphone, balanced line or Hi-Z instrument
• Instrument Inputs: Both inputs can accept guitar or bass directly
• Preamp Gain Range: 56 dB
• Phantom Power: Switchable +48V for both XLR inputs
• Mic Input Impedance: 2.2 kΩ
• Line Input Impedance: 10 kΩ
• Instrument Input Impedance: 1 MΩ or higher.

Interface and recording

• Interface Type: USB audio and MIDI interface
• USB Audio Configuration: 2 inputs and 2 outputs
• Maximum Resolution: 24-bit/192 kHz
• Sample Rates: 44.1, 48, 88.2, 96, 176.4 and 192 kHz
• USB Connection: USB Type-C
• USB Standard: USB 2.0 High Speed
• Standalone Recorder: No—recording requires compatible software
• Standalone Operation: Can pass input signals to the outputs when powered by a suitable external adaptor.

Monitoring and streaming

• Direct Monitoring: Yes, with low-latency input monitoring
• Monitor Balance Control: Blends the direct input signal with computer playback
• Loopback: Yes, with mono and stereo modes for streaming and broadcasting
• Built-in Effects: No EQ, compressor, reverb or delay effects

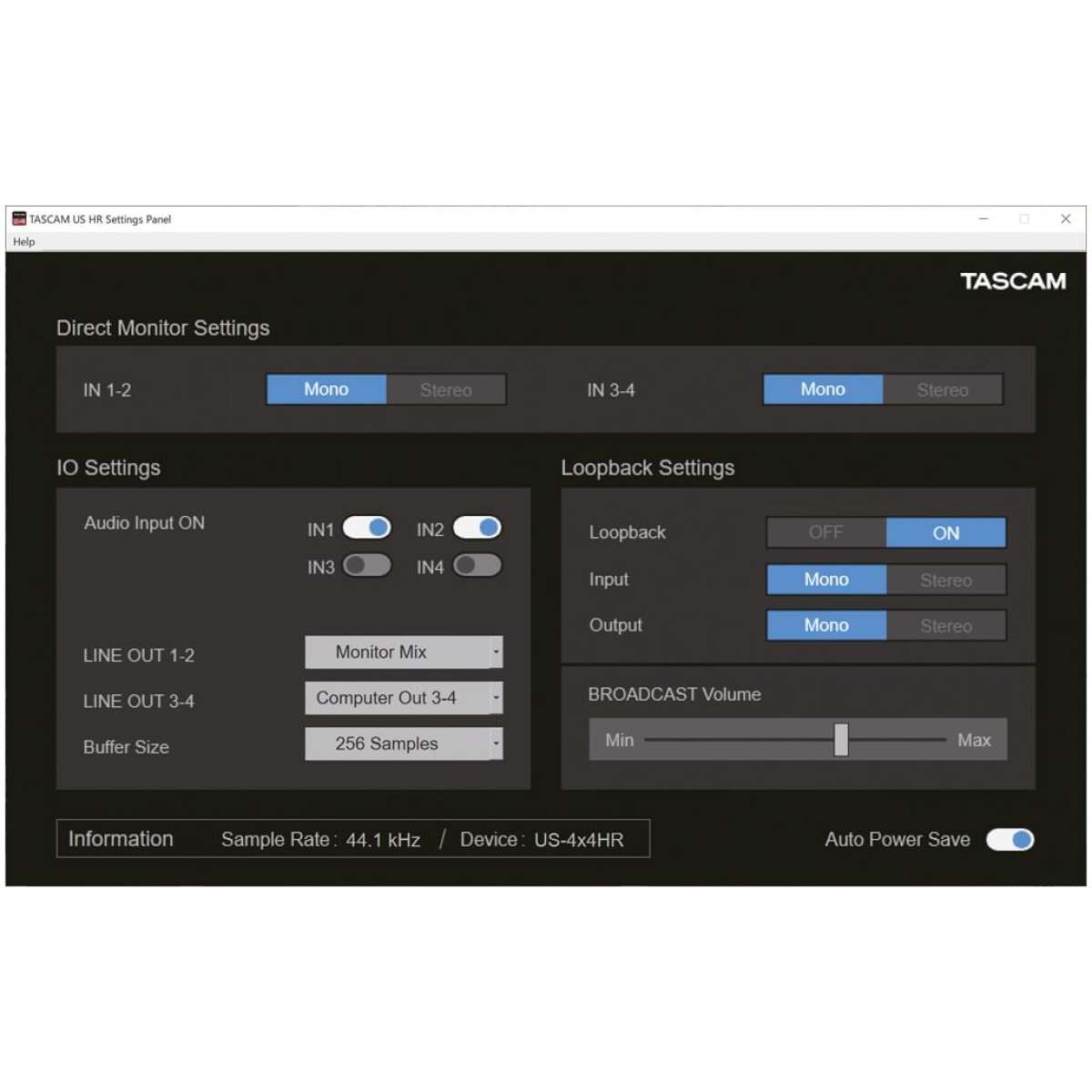

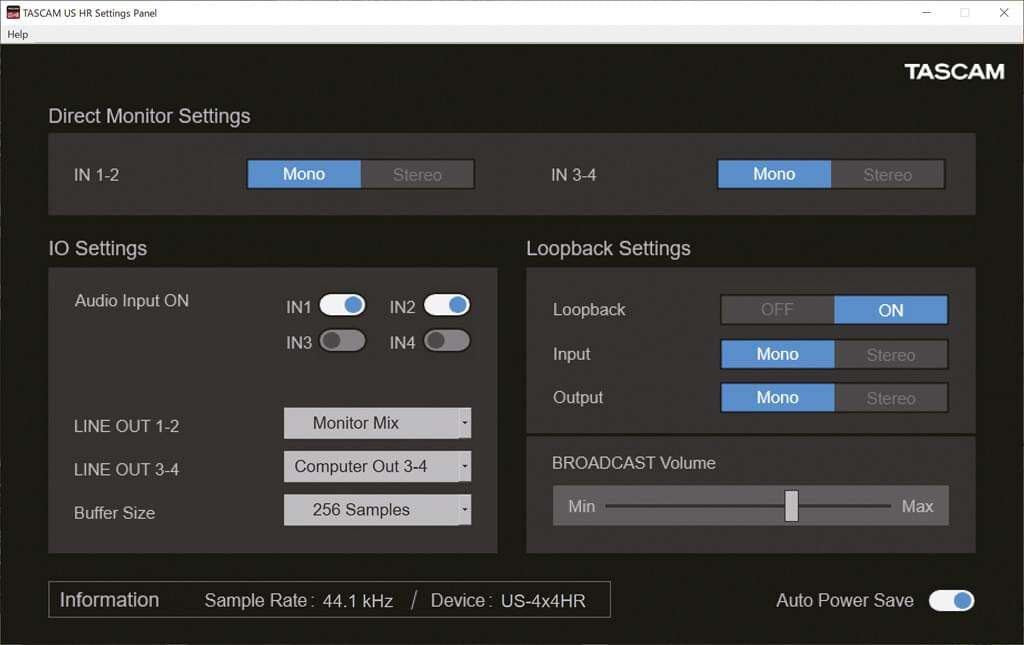

• Settings Software: TASCAM Settings Panel for routing and loopback configuration.

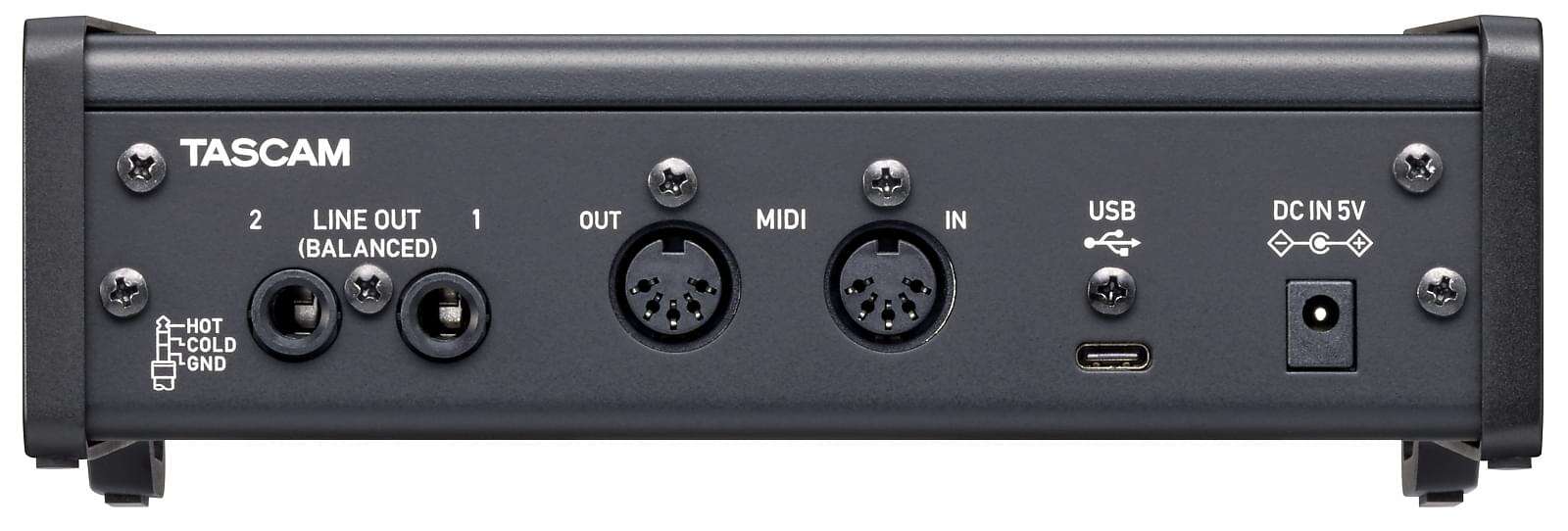

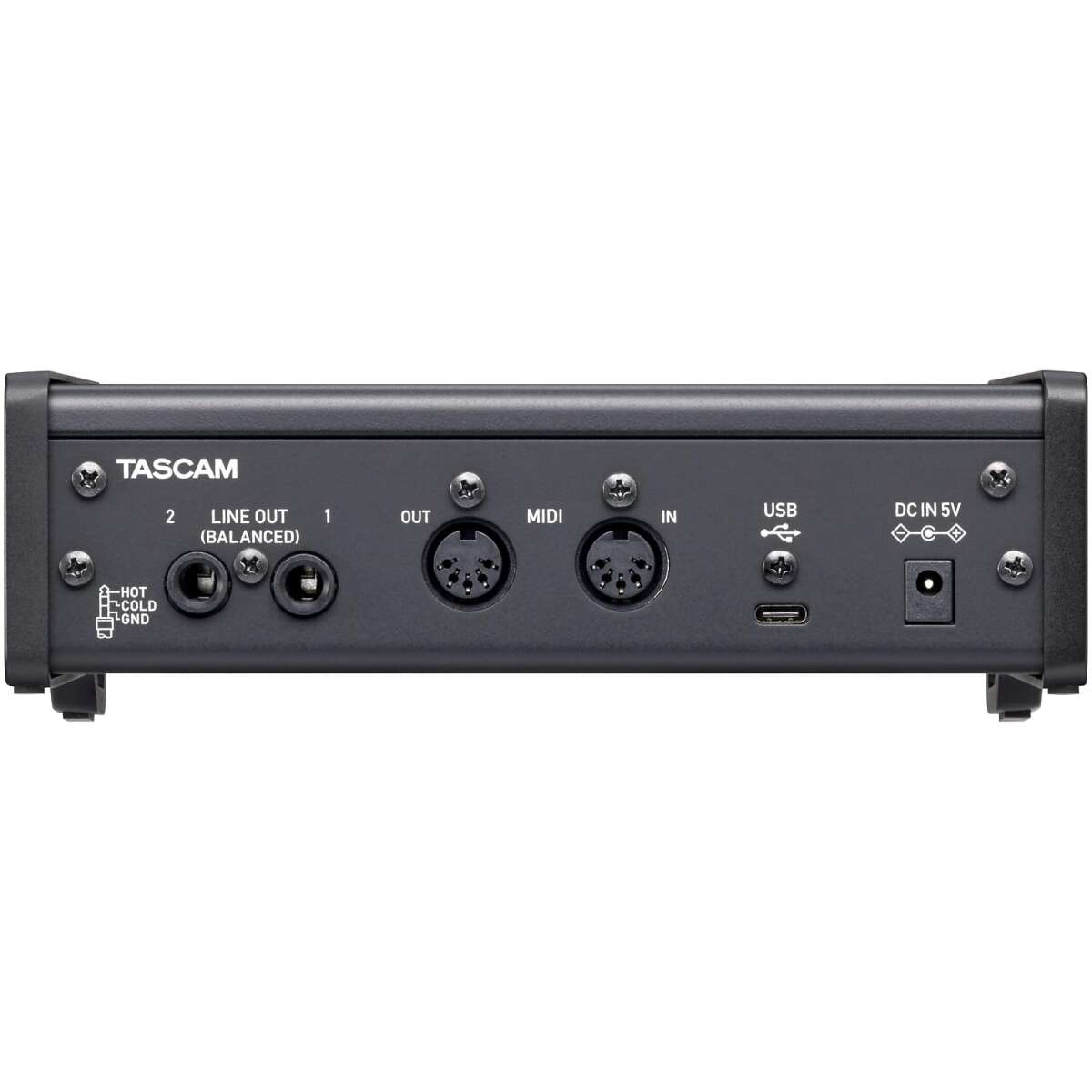

Outputs and MIDI

• Line Outputs: Two balanced 6.35 mm TRS outputs
• Maximum Line Output Level: +20 dBu
• Headphone Outputs: One 6.35 mm stereo output
• Headphone Output Power: At least 18 mW + 18 mW at 32Ω
• MIDI Connectivity: Five-pin MIDI input and output
• Bluetooth: No
• Network Capability: No Ethernet, Wi-Fi, Dante or AVB networking.
