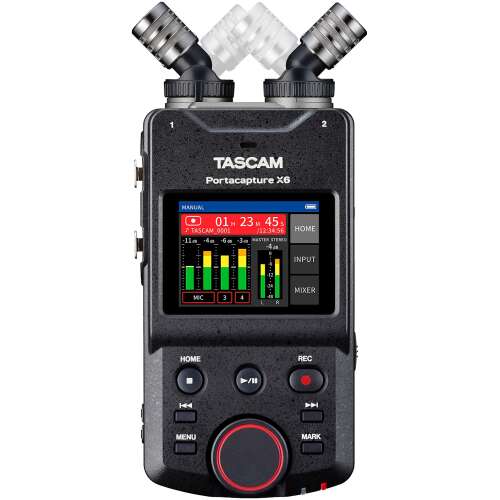

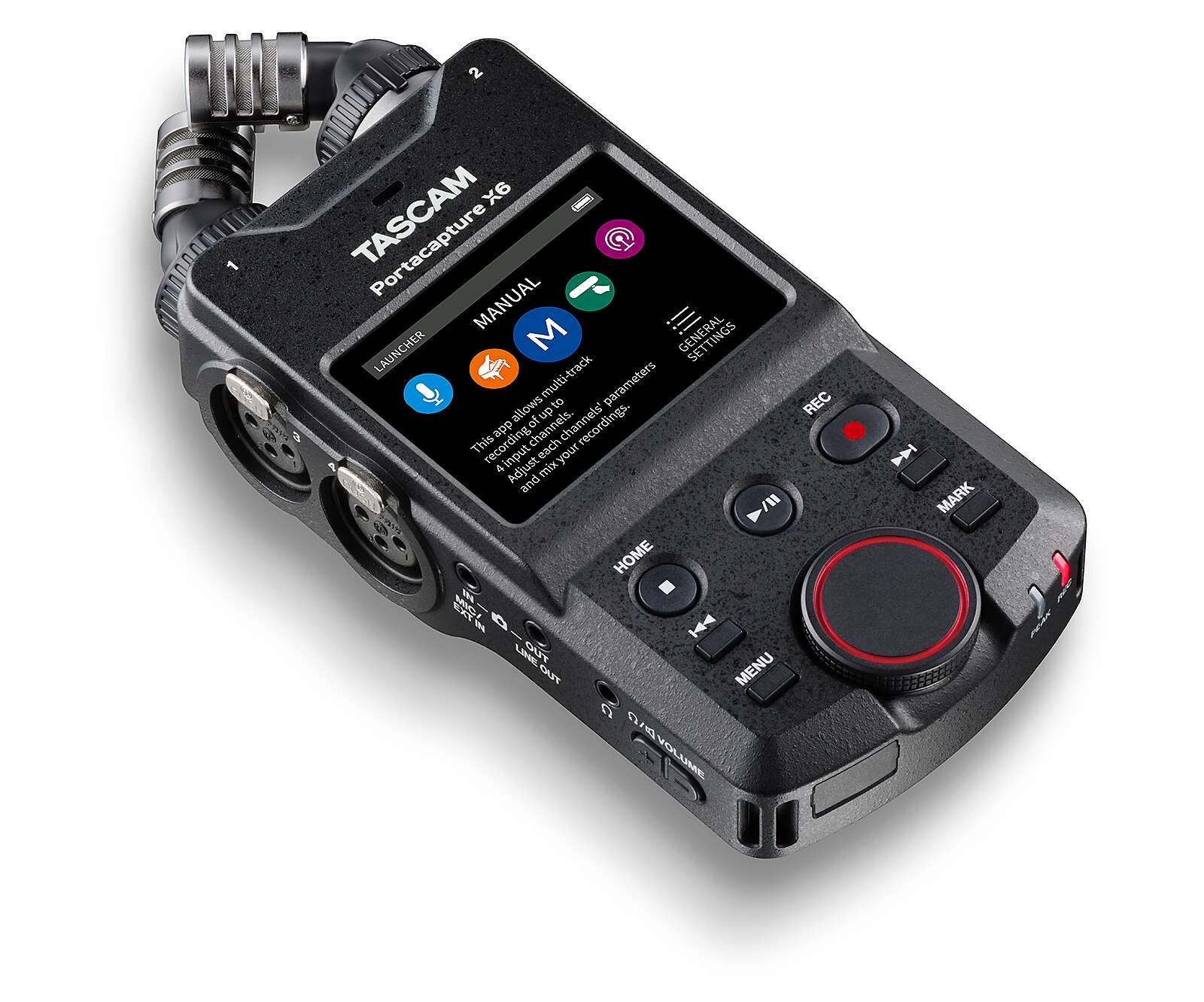

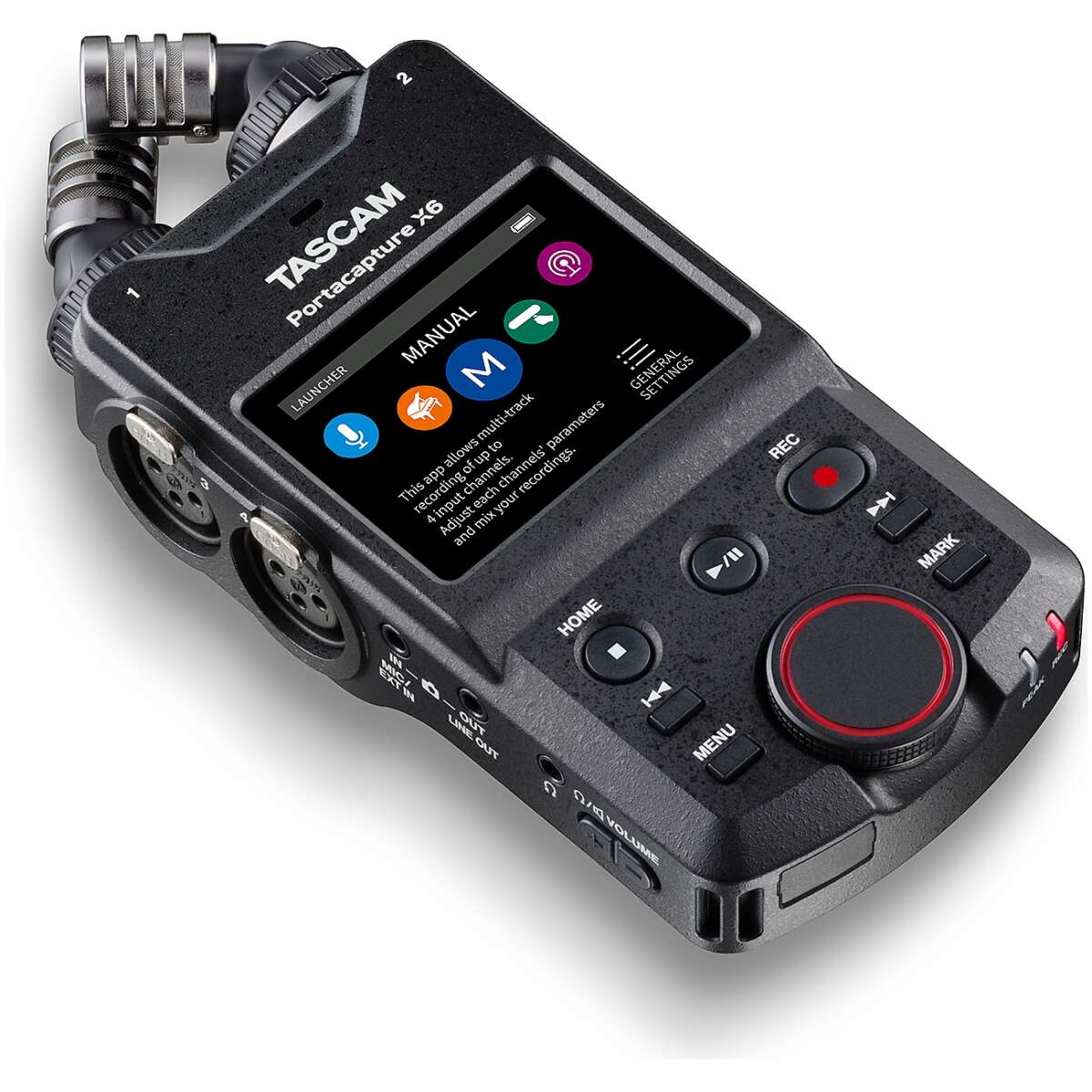

The TASCAM Portacapture X6 is a professional portable multi-track recorder designed for field recording, filmmaking, podcasting, interviews, music production, ASMR and content creation. It supports high-resolution recording at up to 96 kHz/32-bit float, providing an extended dynamic range that helps capture both quiet and extremely loud sounds without requiring precise level adjustment beforehand.

The recorder features two adjustable built-in condenser microphones that can be configured in either A-B or true X-Y stereo patterns. Two additional locking XLR mic/line inputs allow external microphones or line-level equipment to be connected, with individually selectable 24V or 48V phantom power.

A 2.4-inch colour touchscreen provides app-style operation, while dedicated recording presets simplify setup for different applications. The Portacapture X6 can simultaneously record four individual tracks plus a stereo mix and can also function as a 6-input/2-output USB audio interface.

Key Features

• Maximum recording resolution: 96 kHz/32-bit float
• Six-track simultaneous recording: four individual tracks plus stereo mix
• Two adjustable built-in condenser microphones
• Selectable A-B or true X-Y stereo microphone configuration
• Two locking XLR mic/line inputs
• Individually selectable 24V or 48V phantom power

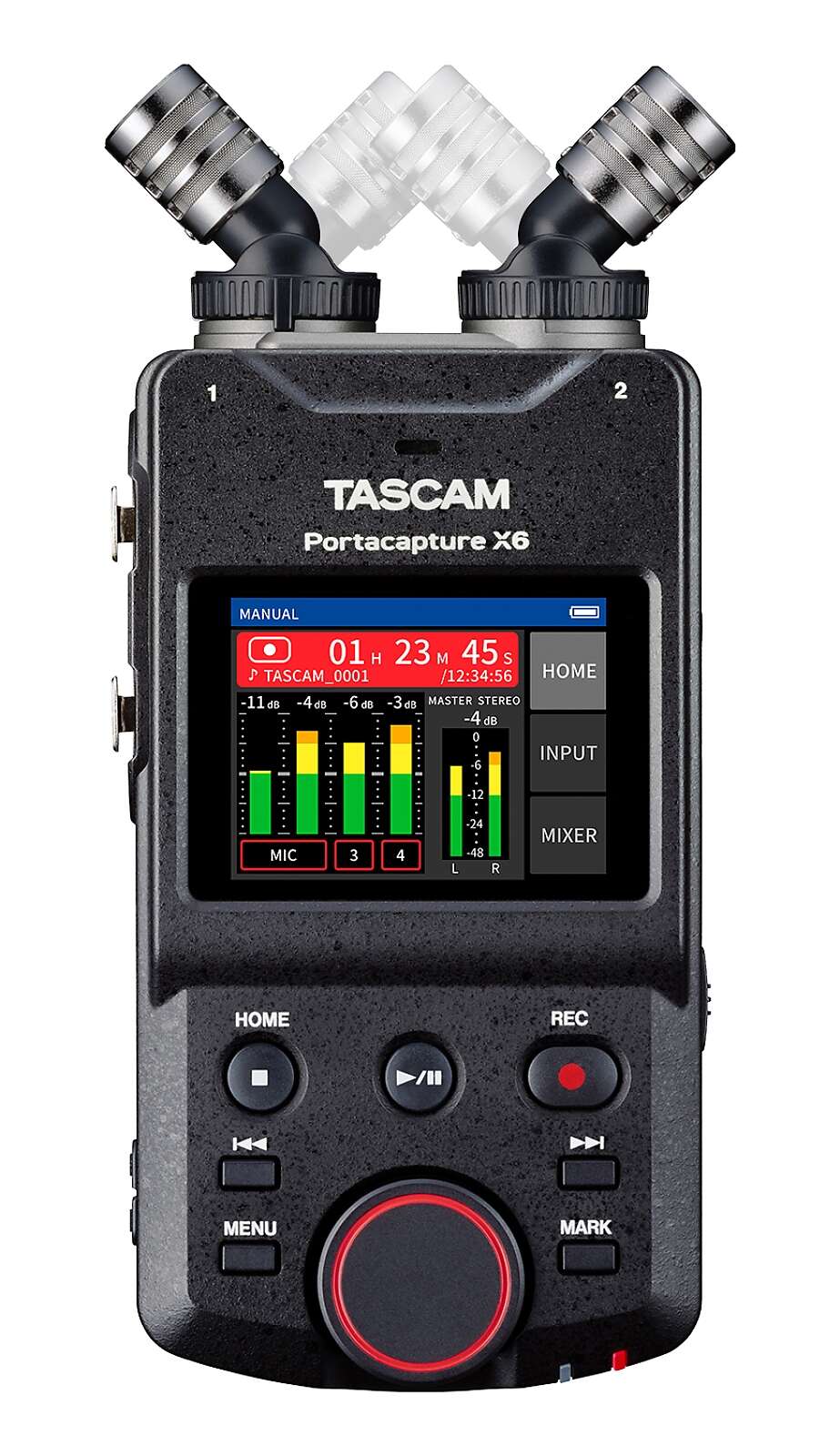

• 2.4-inch full-colour LCD touchscreen
• Built-in 6-input/2-output USB audio interface
• WAV/BWF and MP3 recording
• Built-in mixer with EQ, low-cut filter, compressor, limiter, noise gate and automatic gain control
• Pre-recording and automatic recording functions
• Dual-recording function
• Camera/line output with selectable attenuation
• Headphone output and built-in speaker
• Optional Bluetooth remote control using the TASCAM AK-BT1 adapter
• Wireless timecode synchronisation support
• Supports microSDXC cards up to 512 GB
• Powered by four AA batteries, USB bus power or an optional AC adapter

Recording Applications

• Manual multi-track recording
• Voice and interviews
• Podcasting
• Music recording
• Pocket Studio
• Field recording
• ASMR recording

Recorder Specifications

Recording media:

• microSD: 64 MB–2 GB
• microSDHC: 4–32 GB
• microSDXC: 48–512 GB

Recording formats:

• WAV/BWF: 44.1, 48 or 96 kHz
• WAV resolution: 16-bit, 24-bit or 32-bit float
• MP3: 44.1 or 48 kHz
• MP3 bit rates: 128, 192, 256 or 320 kbit/s

Maximum input channels: 4

Maximum recording tracks: 6 tracks
Four individual tracks plus stereo mix.

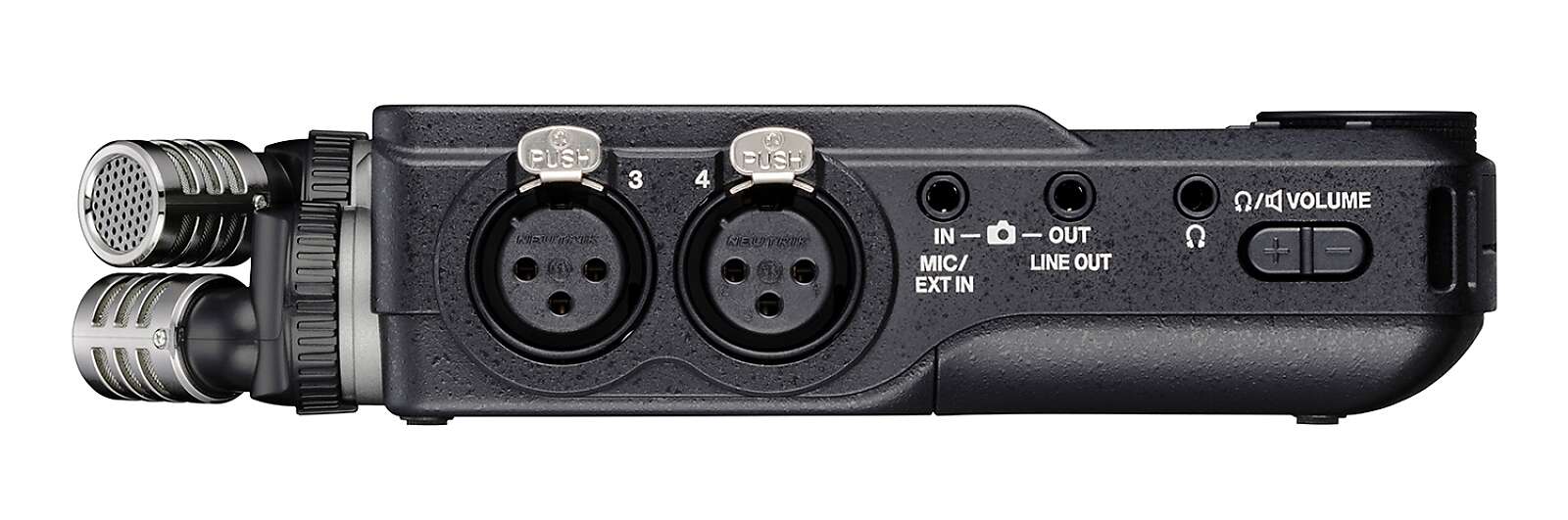

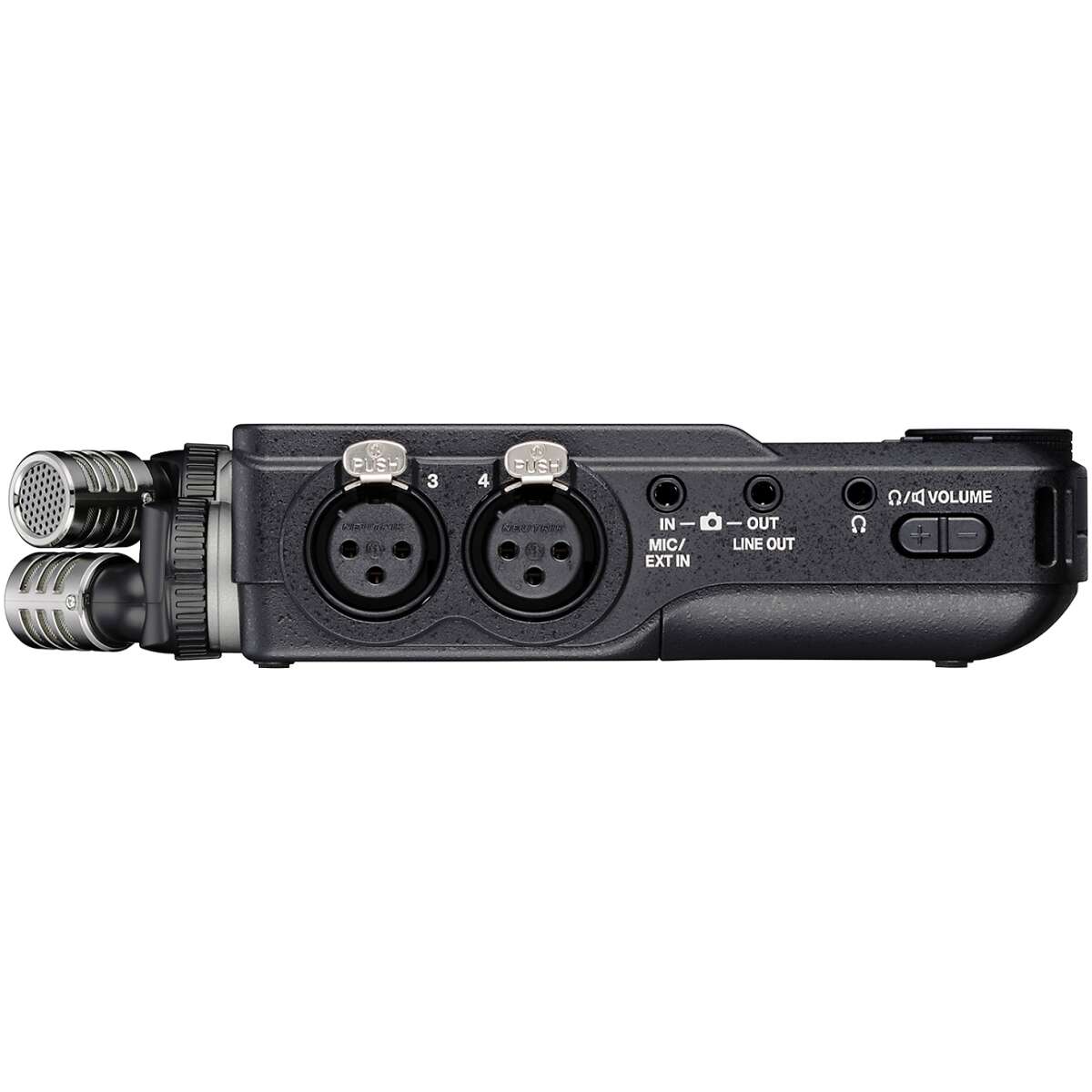

Inputs

Mic/line inputs 3–4:

• Connector type: Locking XLR
• Input type: Balanced
• Phantom power: 24V or 48V through XLR
• Microphone input impedance: 2.2 kΩ or higher
• Maximum microphone input level: +2 dBu
• Minimum microphone input level: −75 dBu
• Line input impedance: 9 kΩ or higher
• Maximum line input level: +24 dBu
• Minimum line input level: −53 dBu

MIC/EXT input:

• Connector: 3.5 mm stereo mini jack
• Supports plug-in power
• Maximum input level: 0 dBV
• Minimum input level: −67 dBV

Outputs

Line/camera output:

• 3.5 mm stereo mini jack
• Output impedance: 200 Ω
• Nominal output level: −14 dBV
• Maximum output level: +6 dBV

Headphone output:

• 3.5 mm stereo mini jack
• Maximum output power: 45 mW + 45 mW
• Supported headphone impedance: 16–400 Ω

Built-in speaker:

• 0.4W mono speaker

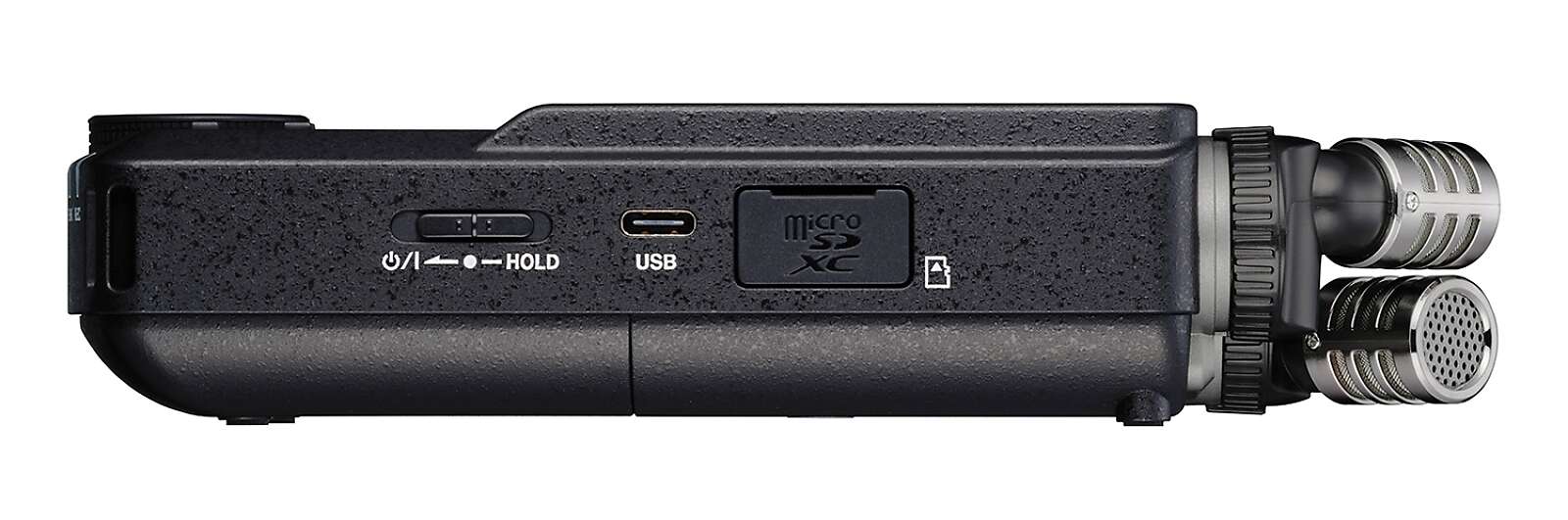

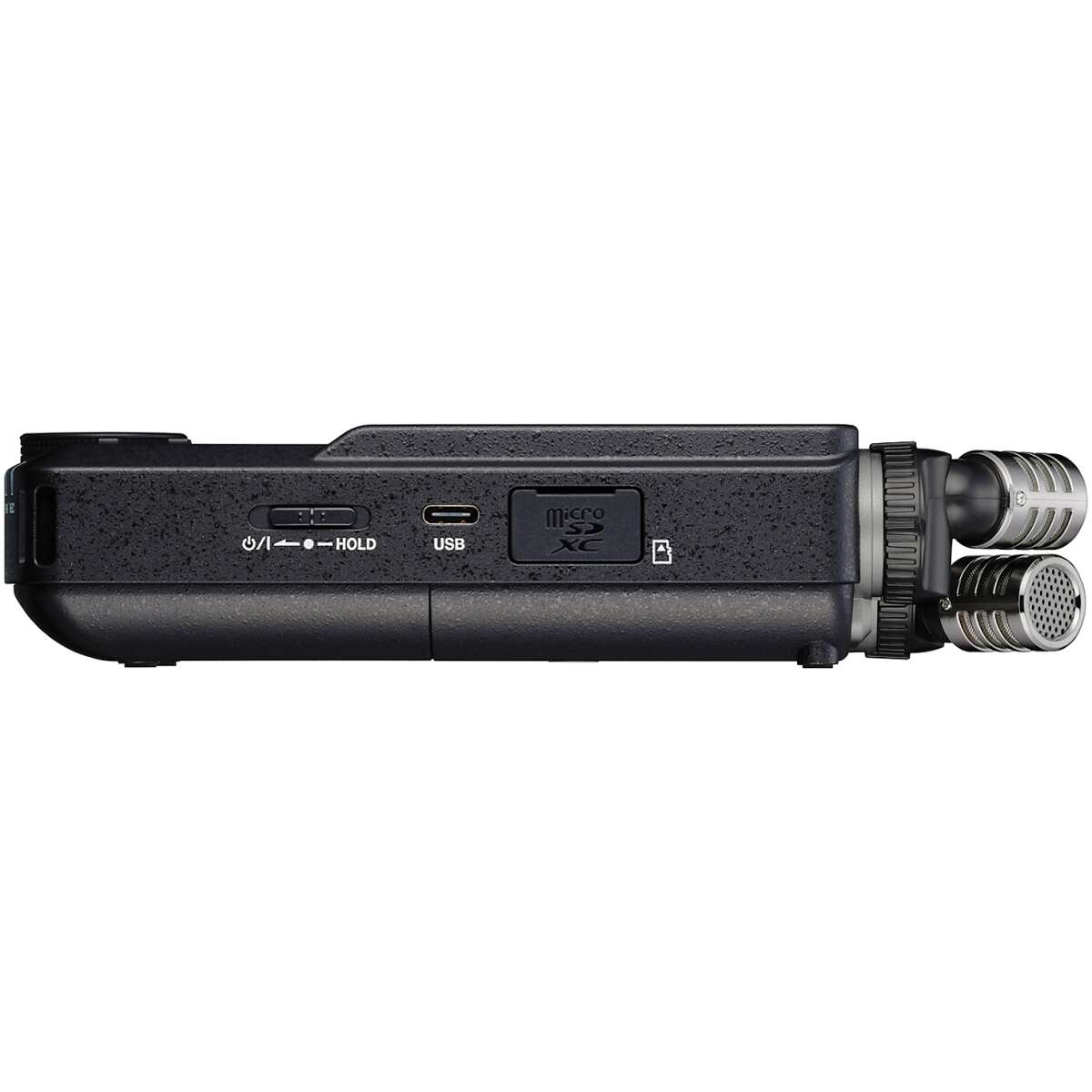

USB:

• USB Type-C
• USB 2.0 High Speed
• Mass-storage and USB audio-interface operation

Audio Performance

• Equivalent input noise: −125 dBu or lower
• Frequency response at 48 kHz: 20 Hz–20 kHz
• Frequency response at 96 kHz: 20 Hz–40 kHz
• Dynamic range: 112 dB or higher
• Signal-to-noise ratio: 112 dB
• Line-input THD+N: 0.008%
• Microphone-input THD+N: 0.006%

Power Requirements

• Four AA alkaline, Ni-MH or lithium batteries
• USB bus power
• Optional TASCAM PS-P520U AC adapter
• Maximum power consumption: 7.5W

Approximate operating time:

• Alkaline batteries: Up to 13.5 hours
• Ni-MH batteries: Up to 11 hours
• Lithium batteries: Up to 22 hours
