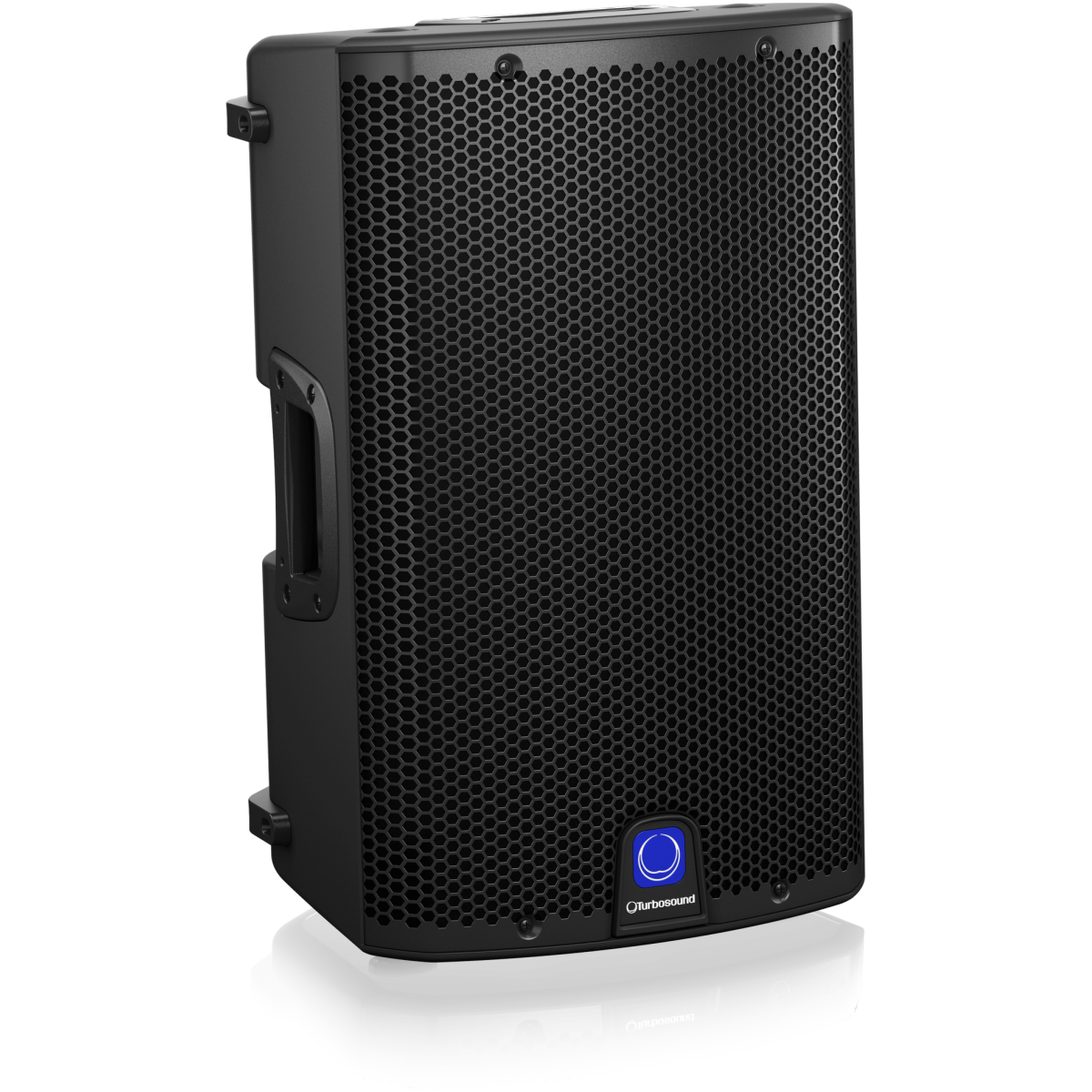

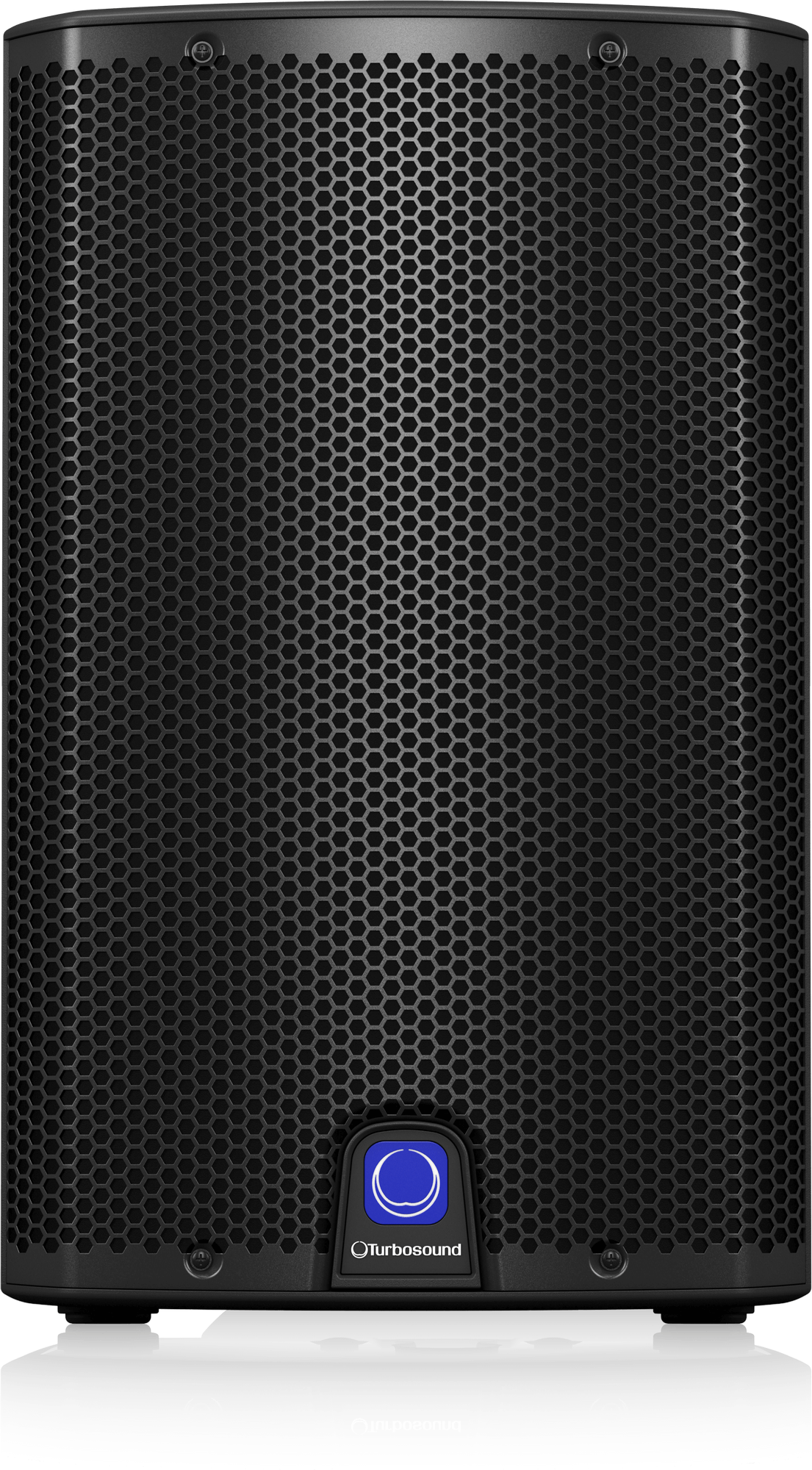

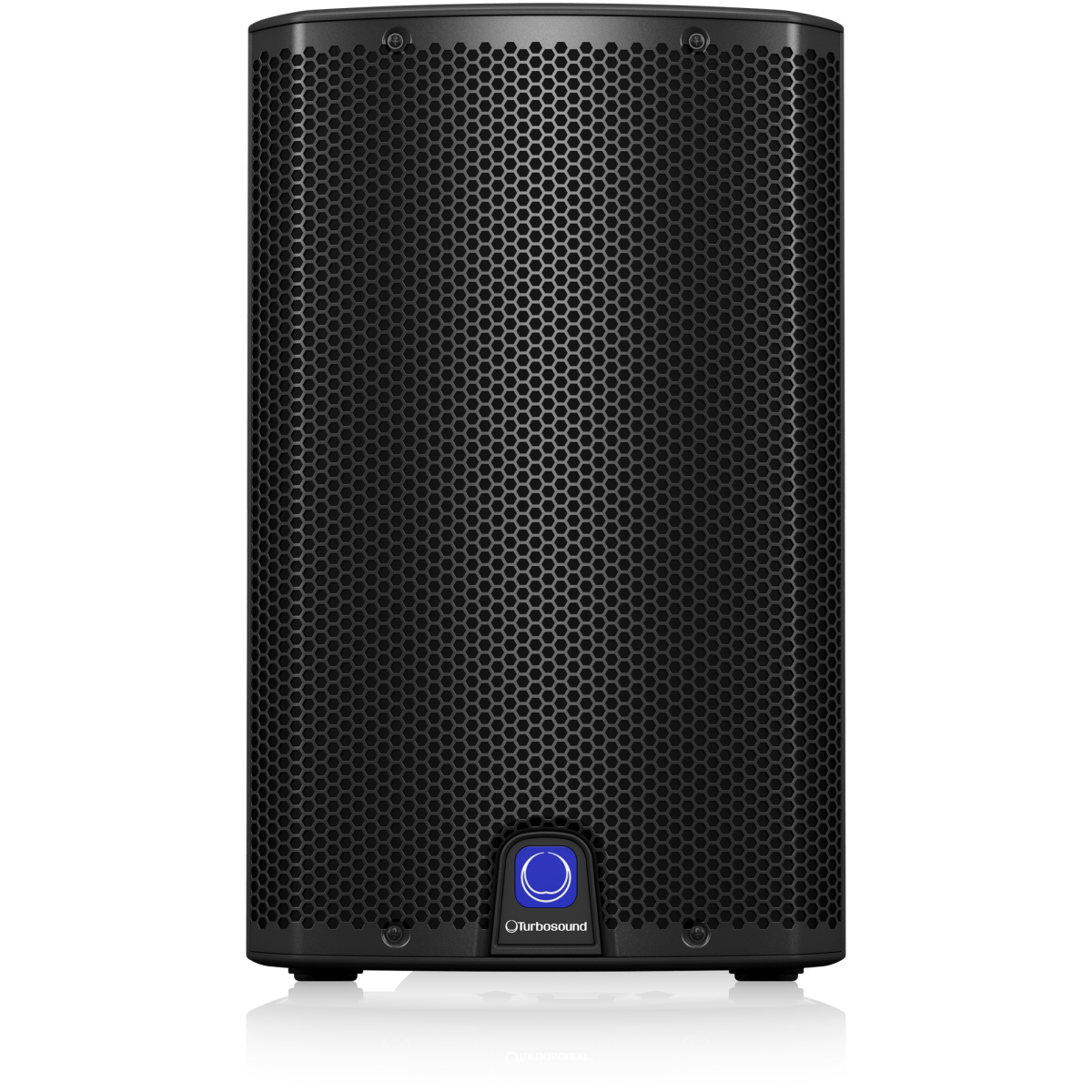

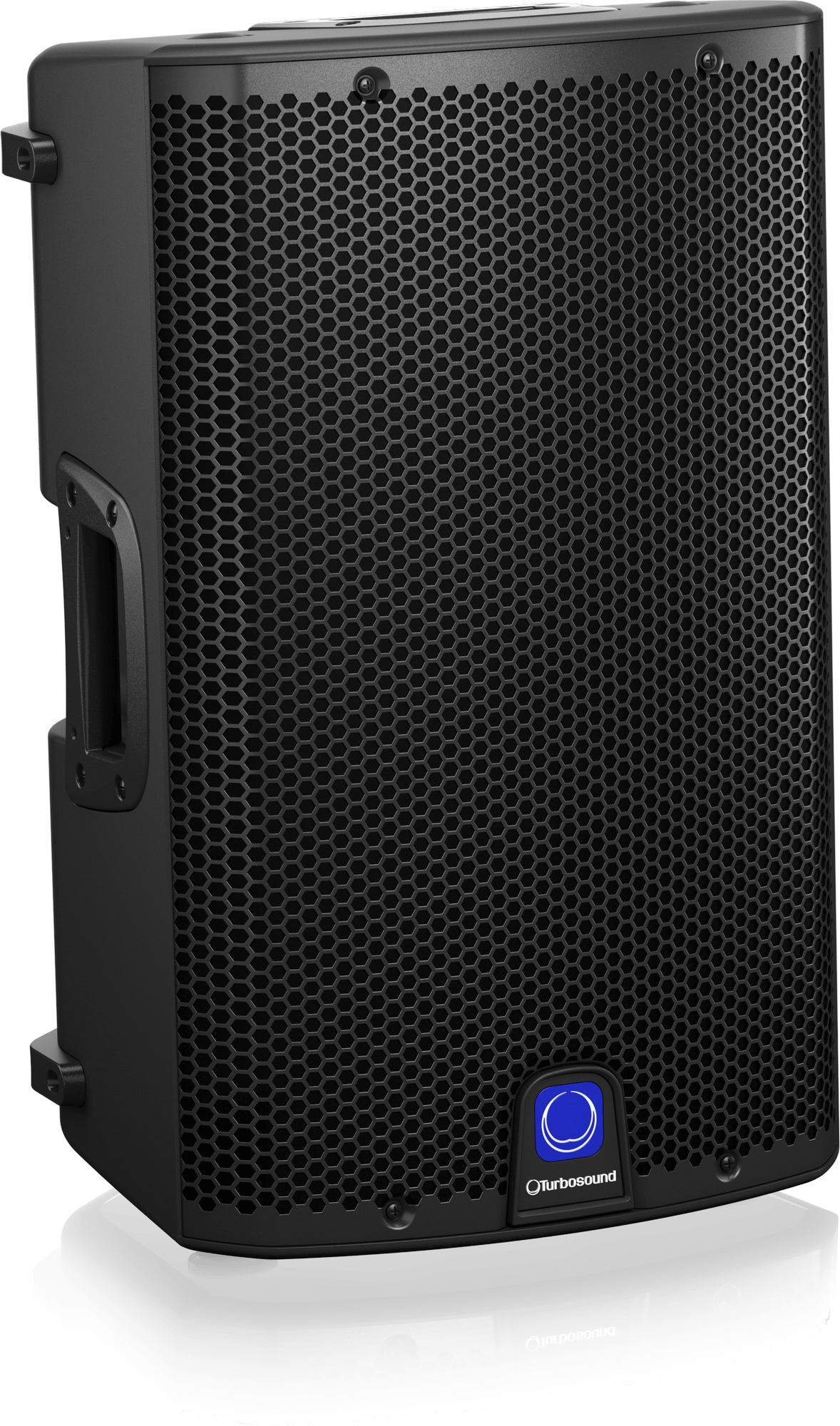

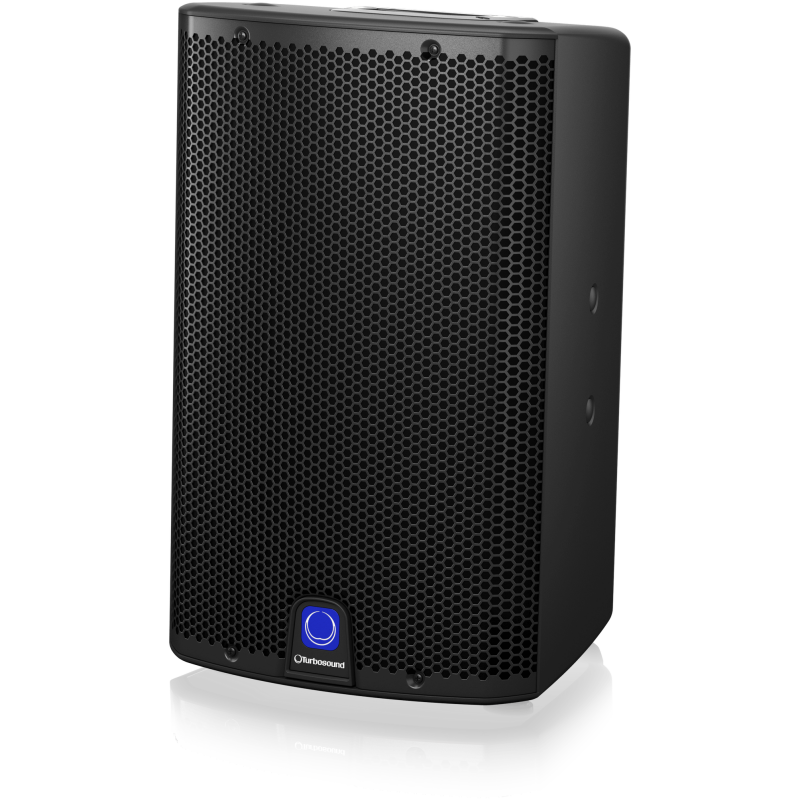

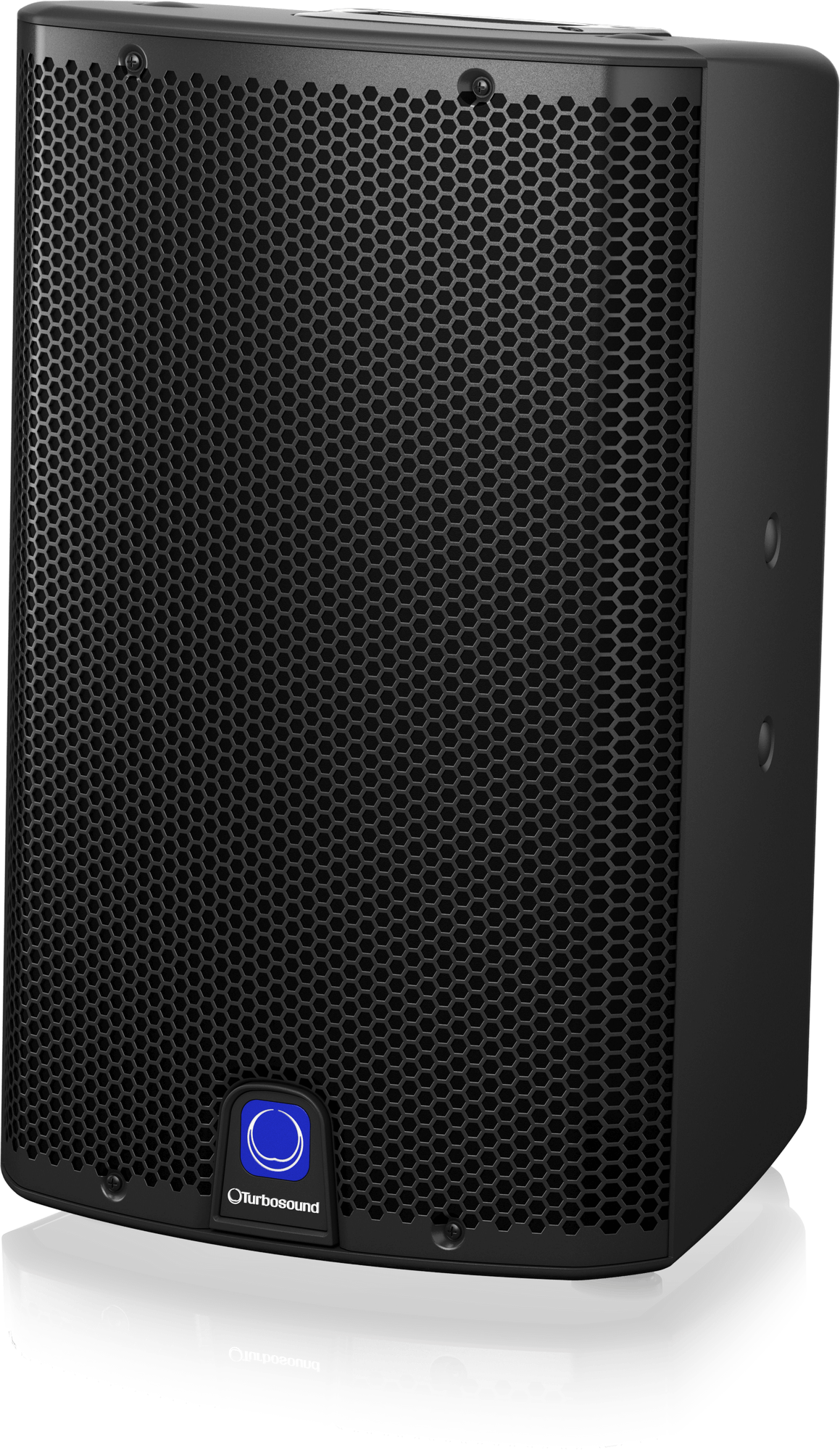

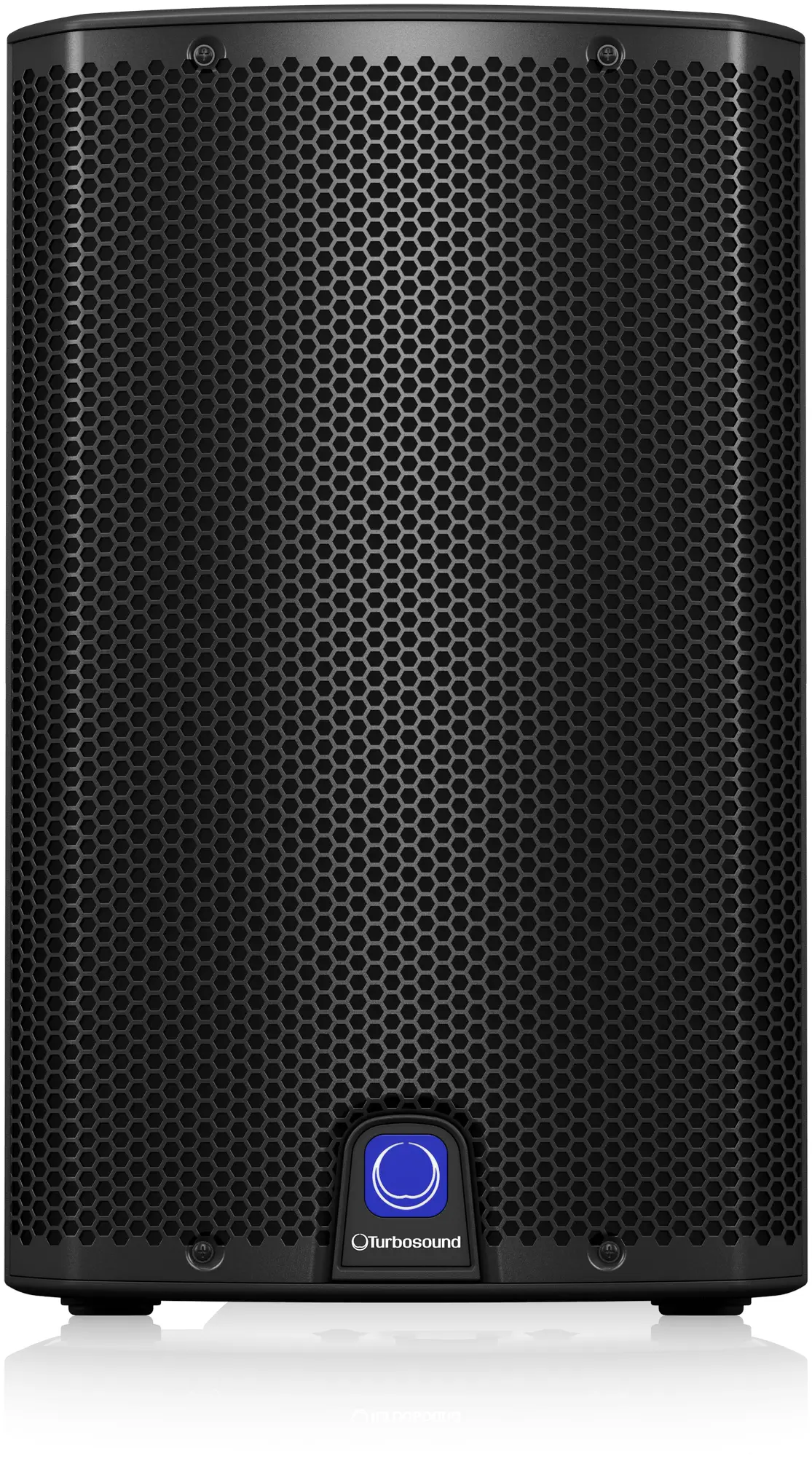

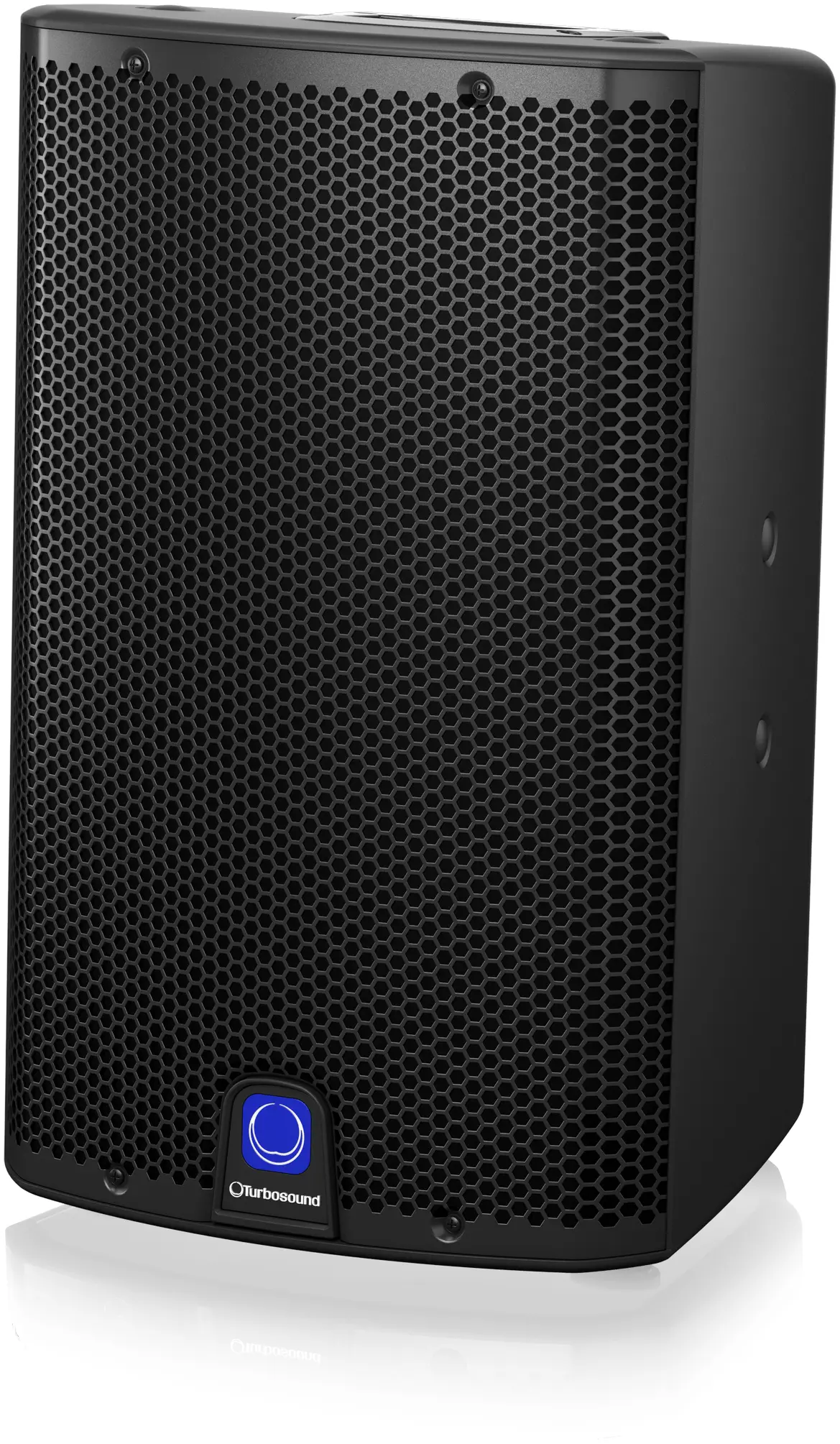

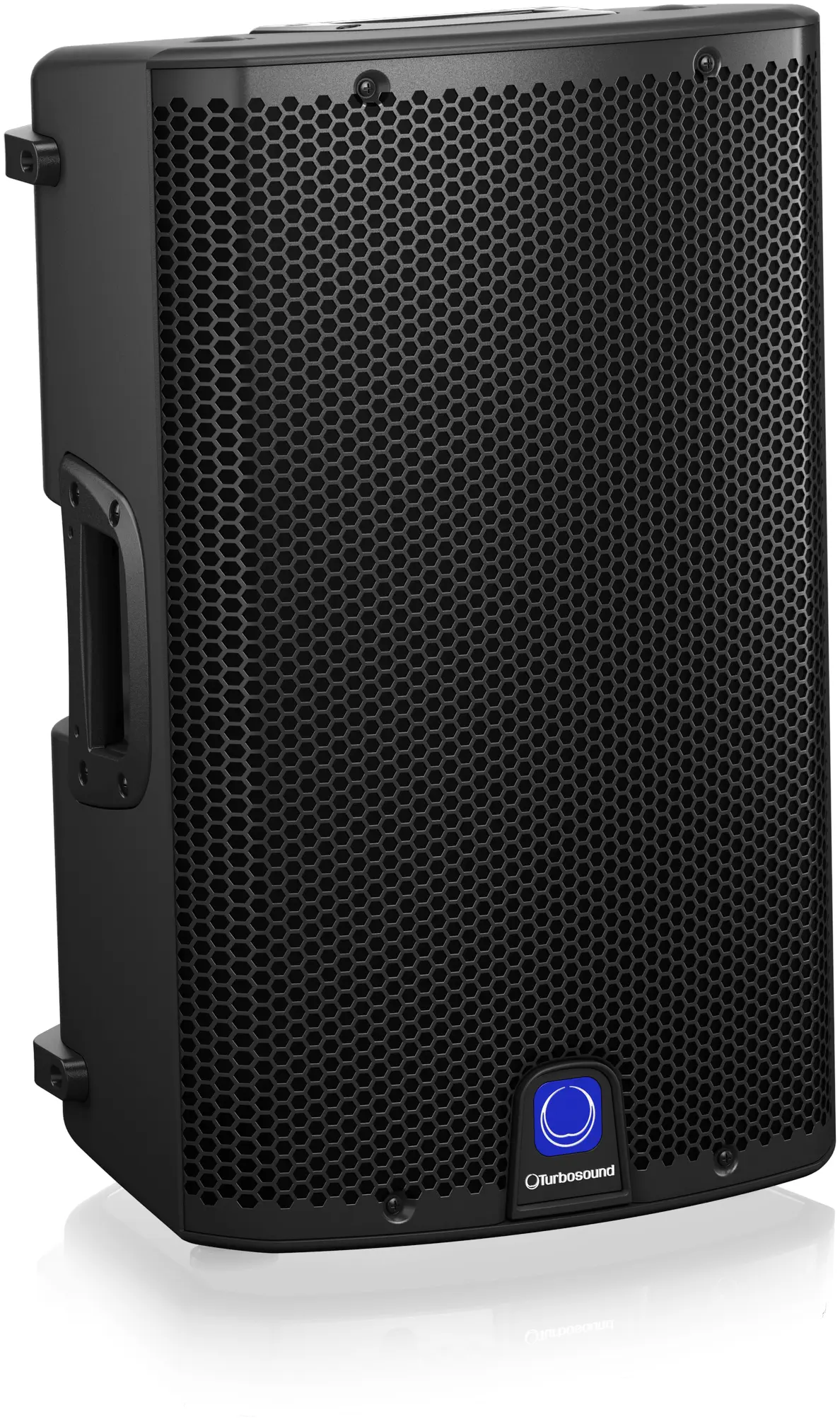

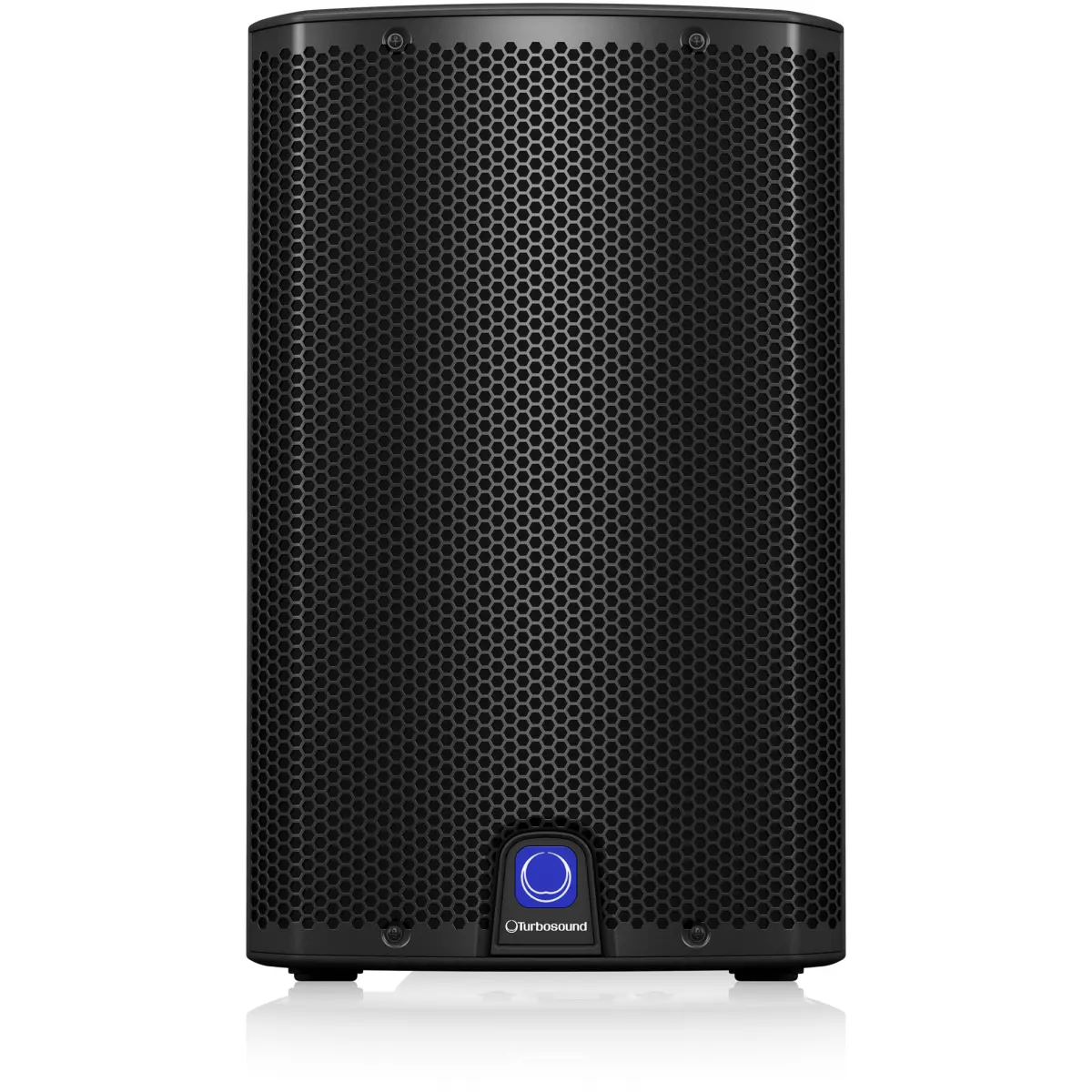

The Turbo Sound 2,500-Watt iQ10 is a powered two-way loudspeaker ideally suited for a wide range of portable and fixed installation, music and speech sound reinforcement applications. The driver complement includes an 10″ low frequency driver with a low mass voice coil for improved transient response, and a high temperature 1″ compression driver with copper-clad aluminium voice coil for extended high frequency reproduction.
Features
- 2 way full range loudspeaker for portable PA and installation applications
- 2,500 Watt power featuring KLARK TEKNIK Class-D technology
- KLARK TEKNIK Digital Signal Processing for total system control
- Speaker modelling includes accurate models of industry standard speakers
- SCC (Spatial Contour Control) compensates frequency response in relation to physical speaker placement
- ULTRANET digital audio networking connects to mixers and other sources
- 10″ low frequency driver with low mass voice coil for improved transient response
- High temperature 1″ compression driver with copper-clad aluminium voice coil for extended high frequency reproduction
- Fully featured user interface with LCD display for ease of navigation
- PC remote control software downloadable at turbosound.com
- Lightweight fibre glass reinforced composite enclosure
- Rugged powder coated perforated steel mesh grille
- Dual angle pole mount for accurate audience coverage
- Multiple internal rigging points for installation applications
- Mains input and link output on industry standard twist-lock power connector
Specification
System
| Frequency response | 55 Hz – 18 kHz ±3 dB 50 Hz – 20 kHz -10 dB |
| Nominal dispersion | 90° H x 60° V @ -6 dB points |
| Maximum SPL | 129 dB peak |
| Crossover type | Active |
| Transducers | 1 x 10″ (256 mm) LF driver 1 x 1″ (25.4 mm) HF compression driver |
| Limiter | Independent HF, LF, peak and rms |
-
Amplifier
Maximum output power* 2,500 W Type Class-D Protection Short circuit, open circuit, thermal Connectors

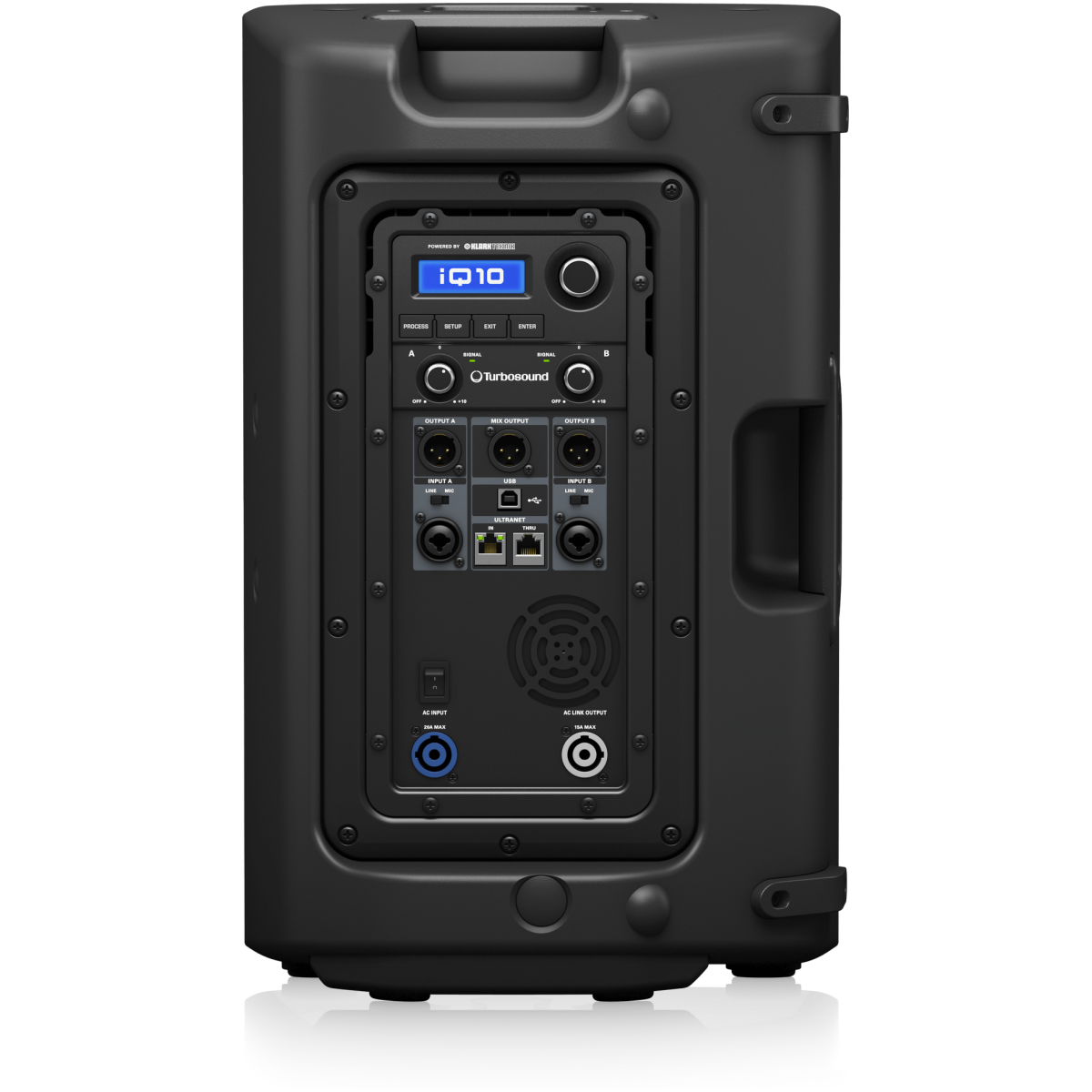

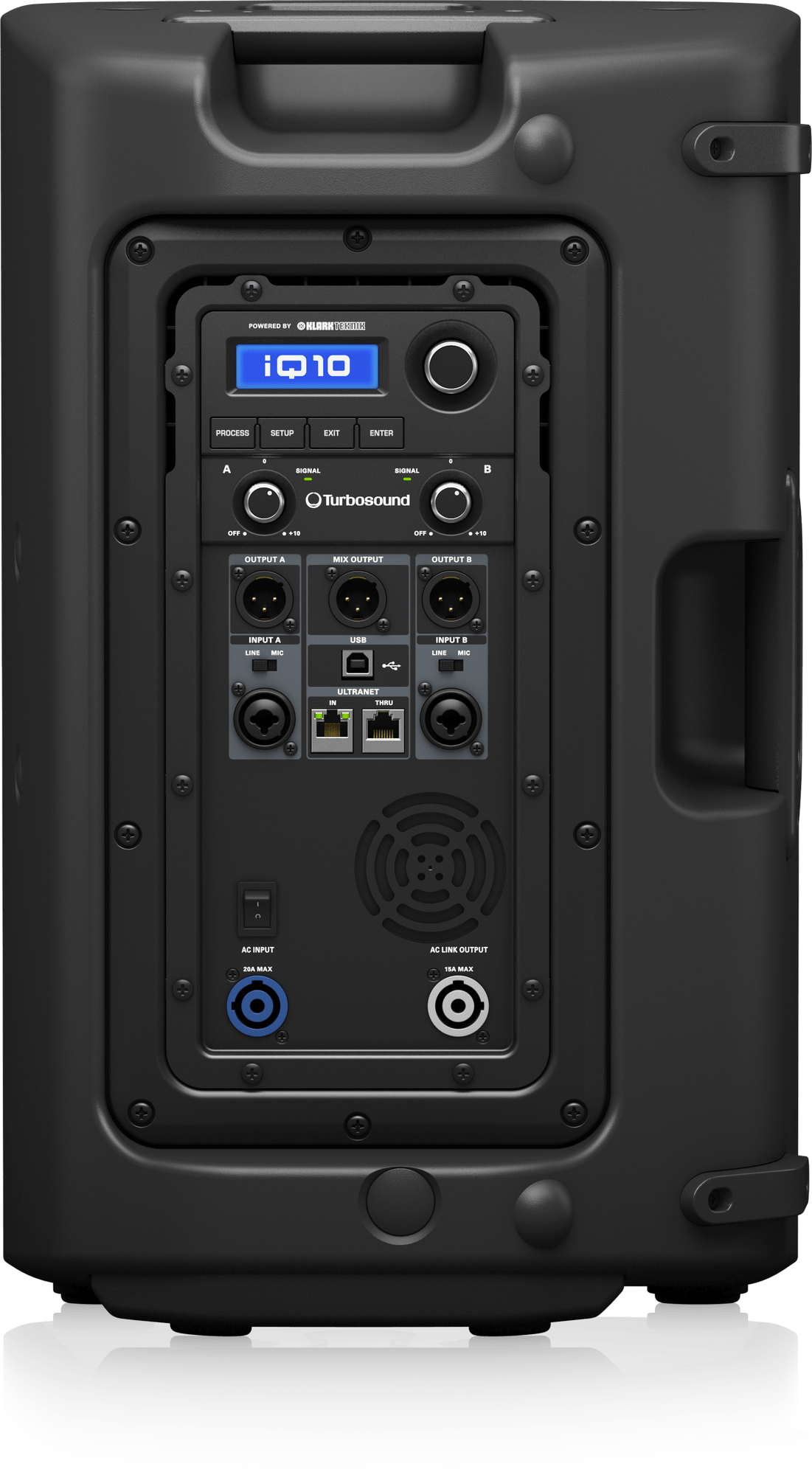

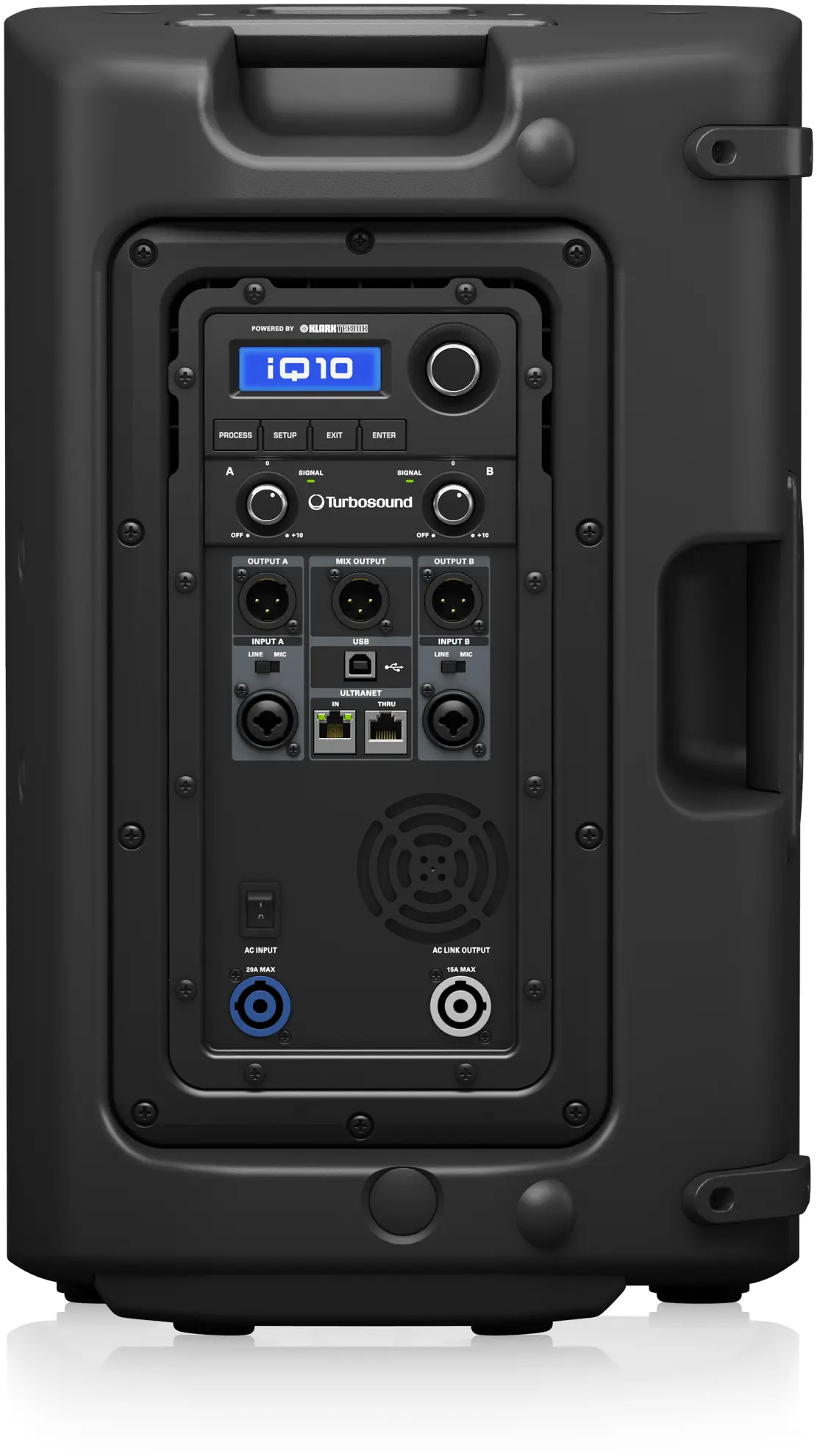

Input A / B 2 x combo jack/XLR Sensitivity Line +4 dBu, mic -22 dBu, switchable Input impedance 20 kO unbalanced, 40 kO balanced Maximum input level +21 dBu Output A / B 2 x XLR Linked to input Mix output XLR, balanced Output impedance 100 O unbalanced, 200 O balanced Ultranet input/link 2 x RJ45 Mains Supply Industry-standard twist-lock power 20A and Link 15A Controls
DSP Rotary push-encoder
Buttons for PROCESS, SETUP, EXIT, ENTERMixer section 2 x gain controls (channels A and B)
2 x Line/Mic switchUser DSP Functions
Factory EQ presets Positioning, Sound mode
Sound modeling, FBQDisplay LCD 128 x 32, blue backlit Delay 0 – 300 ms Equalisation High and low shelving EQ
2 x parametric EQLimiter Zero attack input limiter Presets 20 total presets, 19 user-definablenable Crossover High Pass L-R 24 dB/oct Protection Lock-out function for all settings Ultranet Digital Network
System Cabling Power Supply
Power consumption 150 W @ 1/8 max power Voltage (fuses) Enclosure
Dimensions HWD 526 x 324 x 316 mm(20.7 x 12.7 x 12.4″) Net weight 17.2 kg (38 lbs) Construction Injection-moulded polypropylene enclosure Finish Black painted Grille Powder coated perforated steel Flying hardware M10 x 3 points Accessories
IQ10-WB Steel wall bracket
