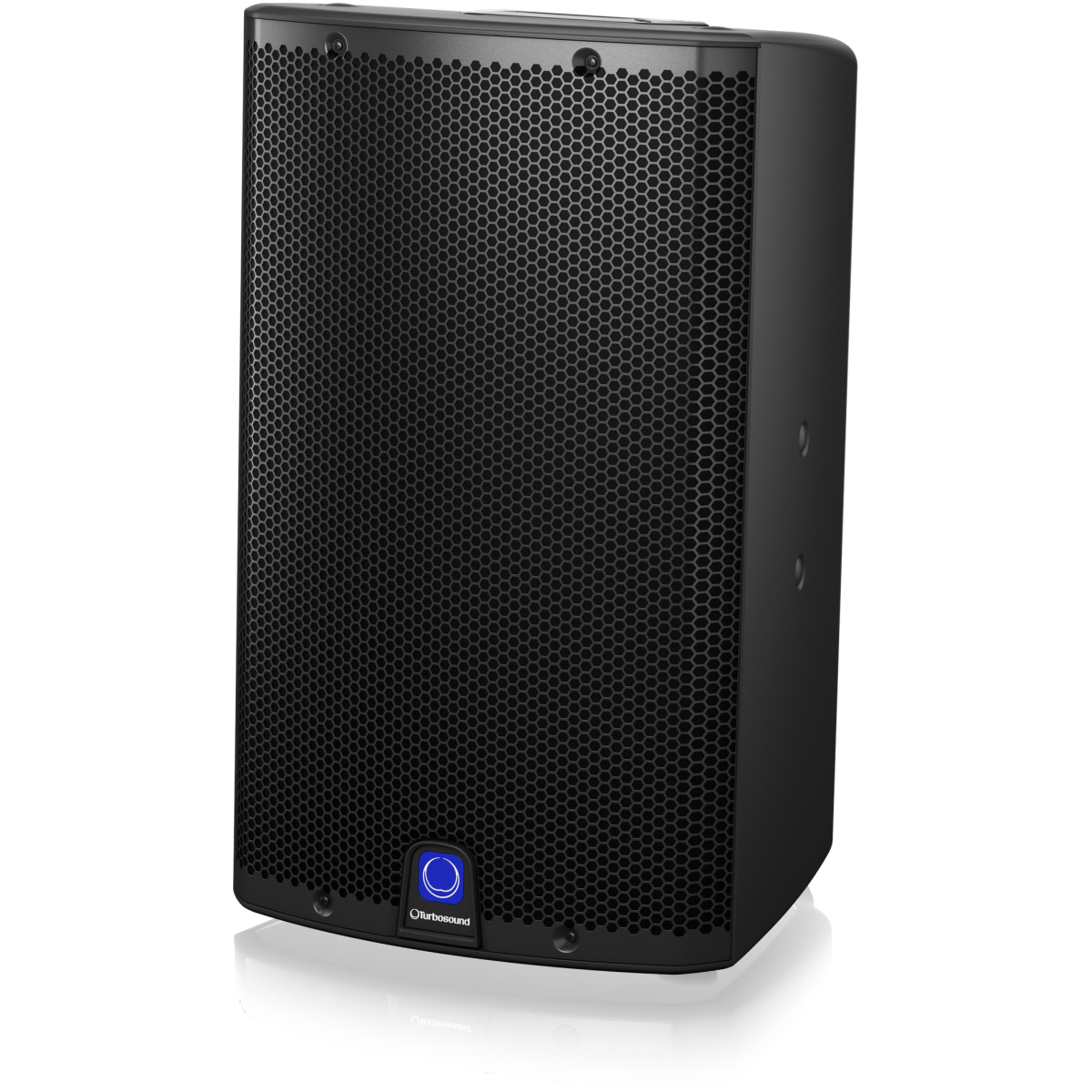

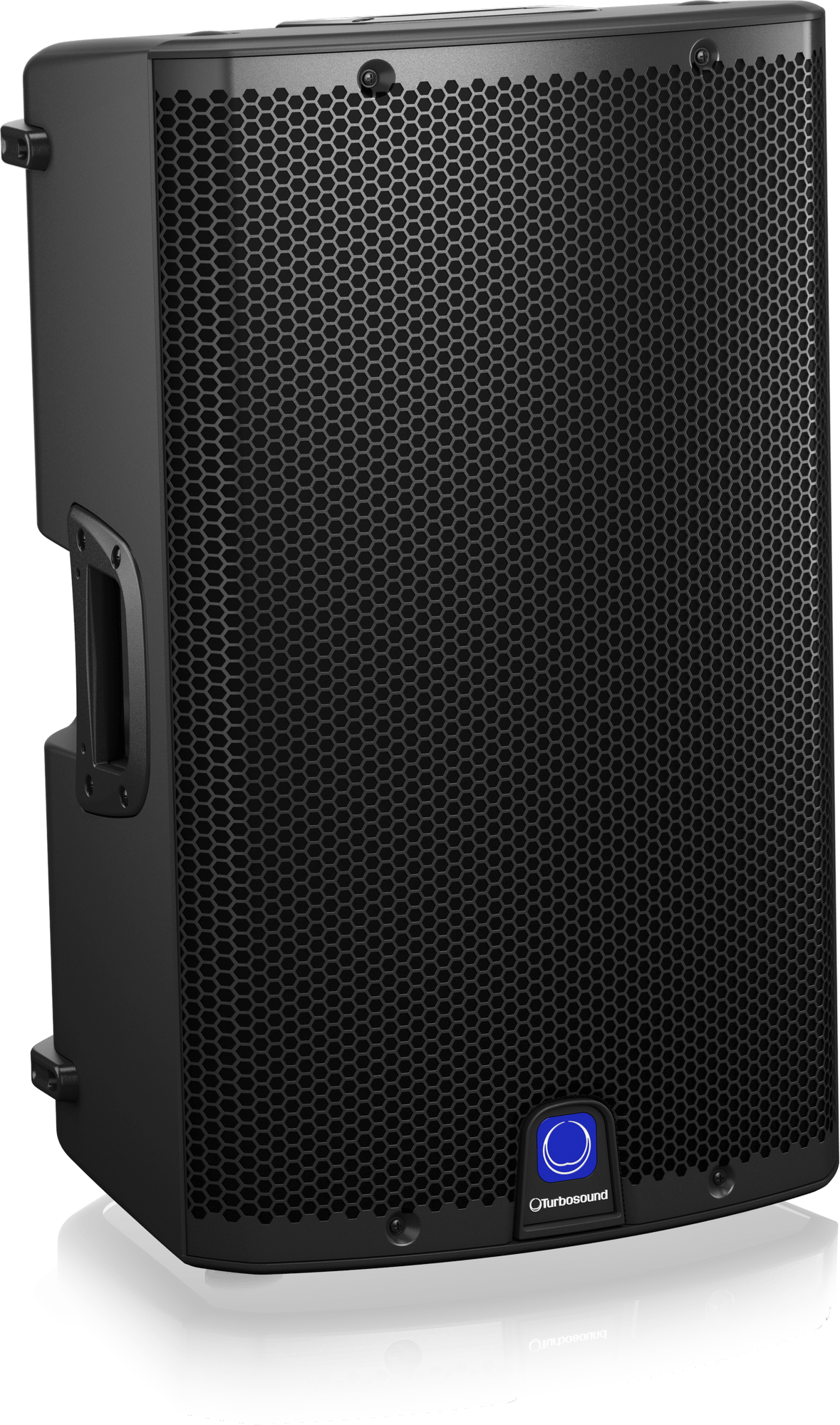

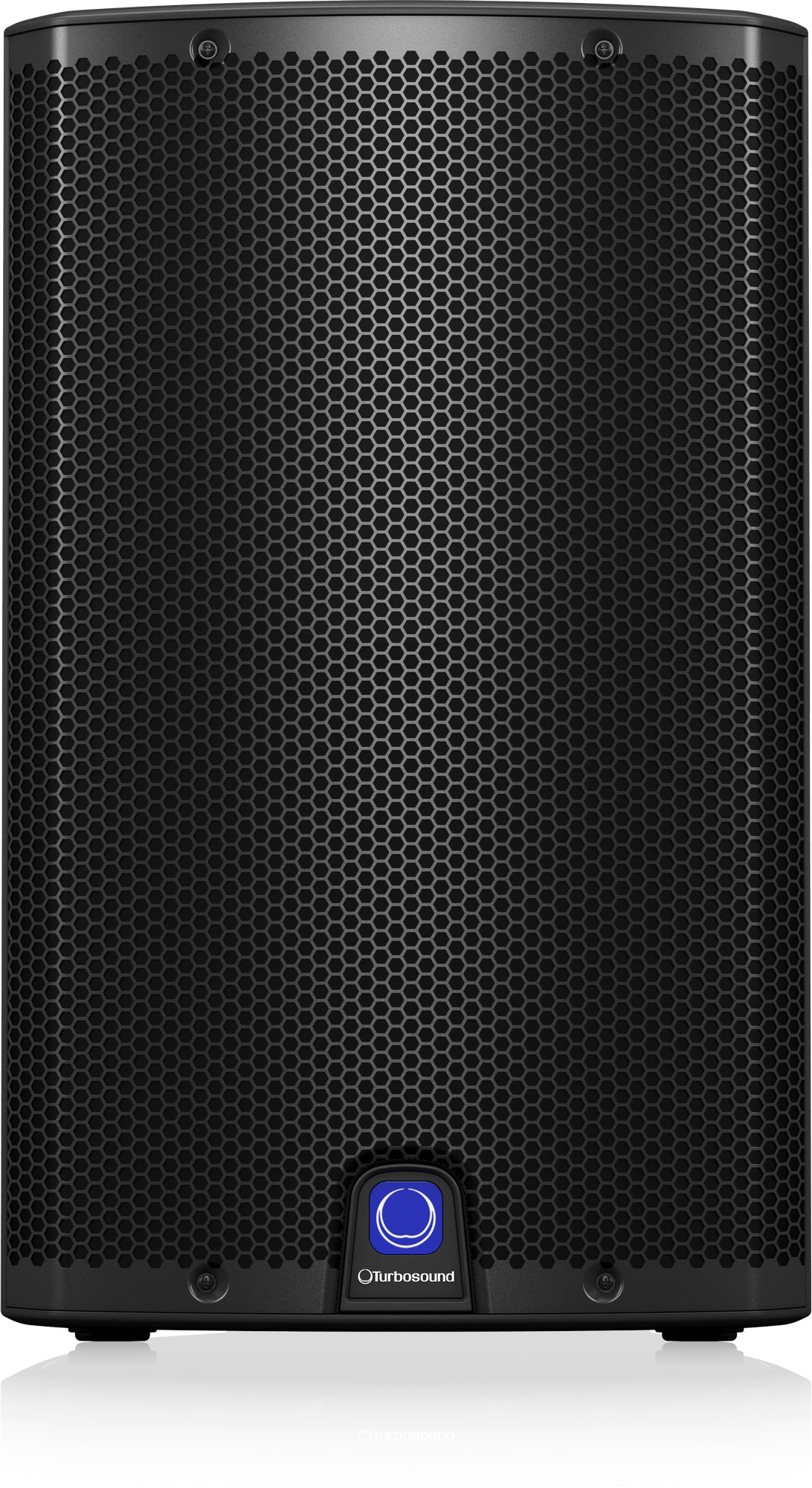

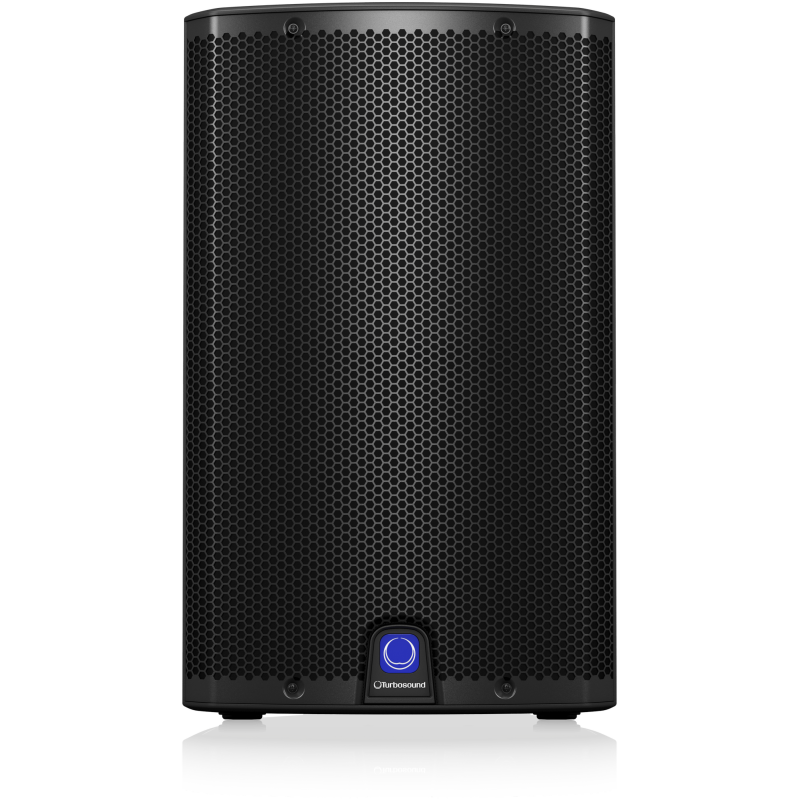

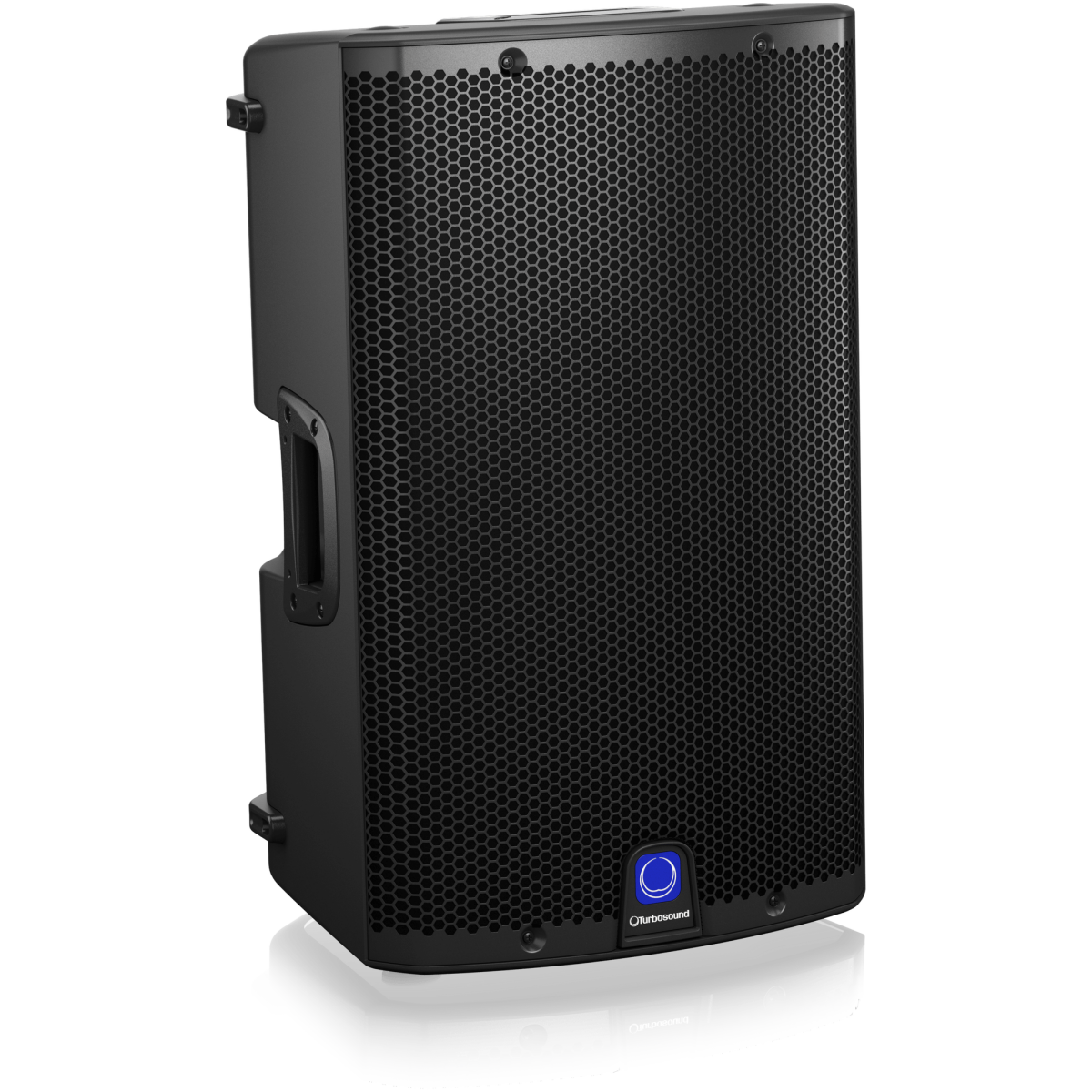

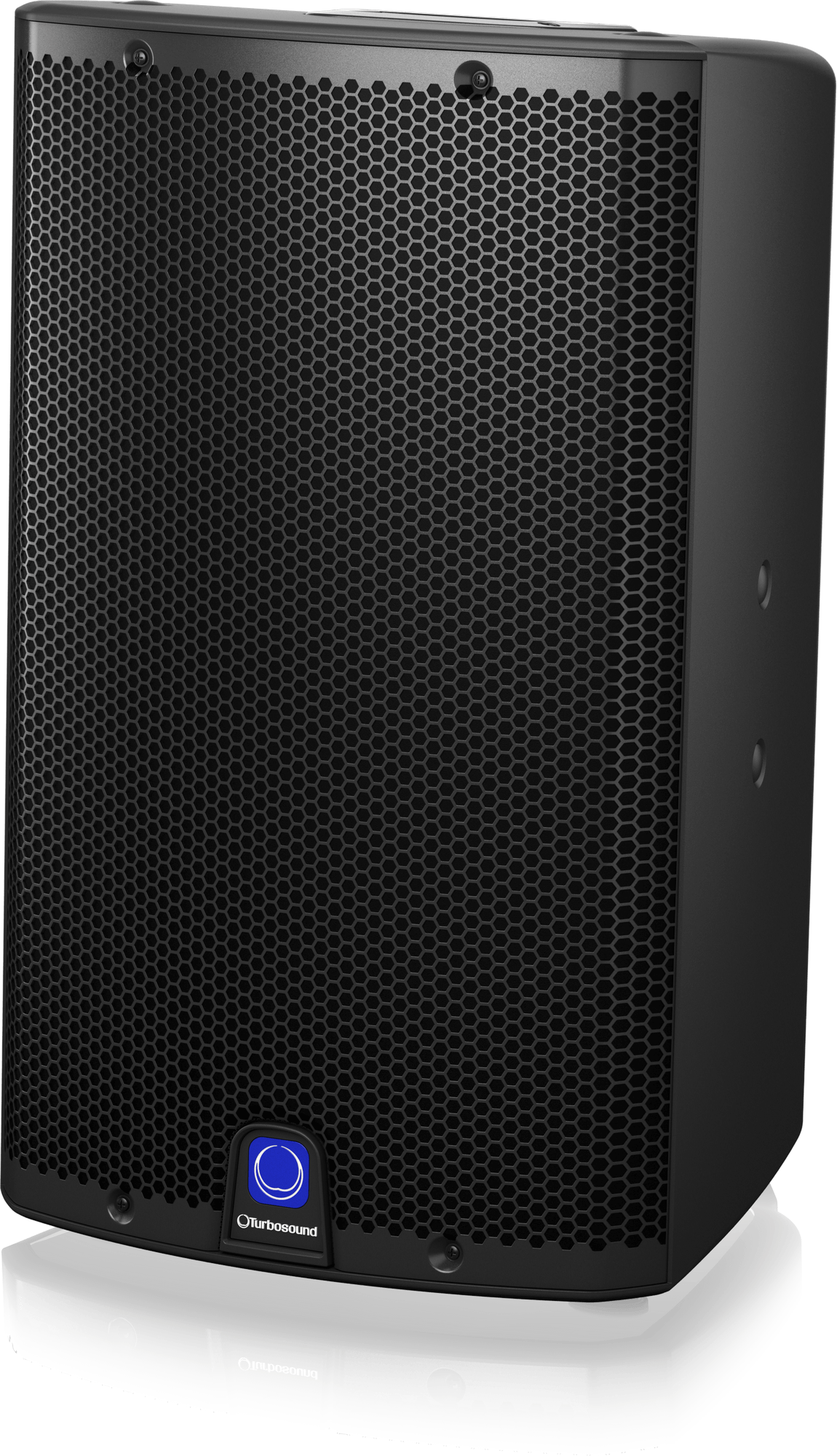

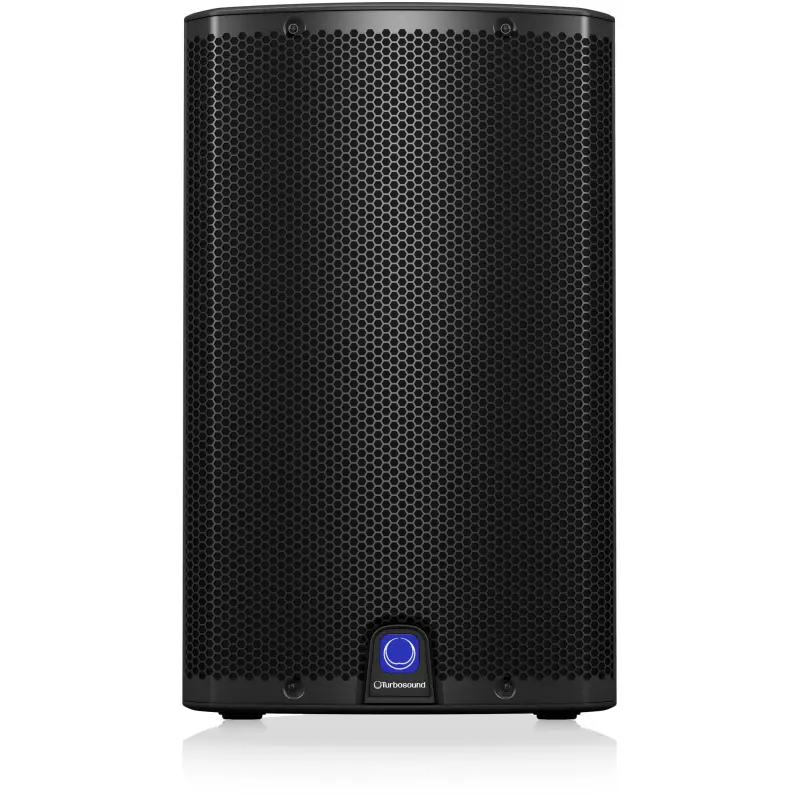

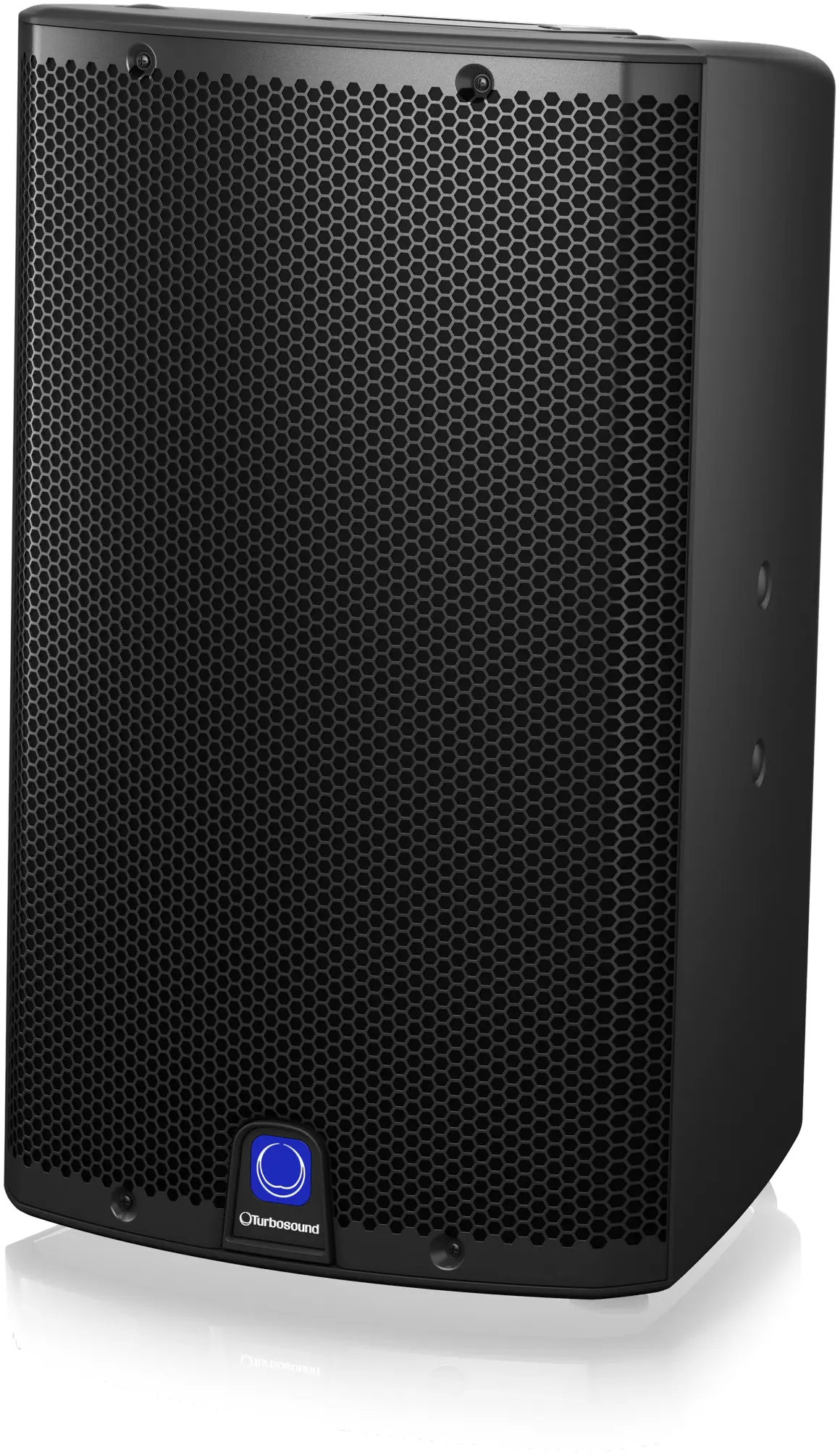

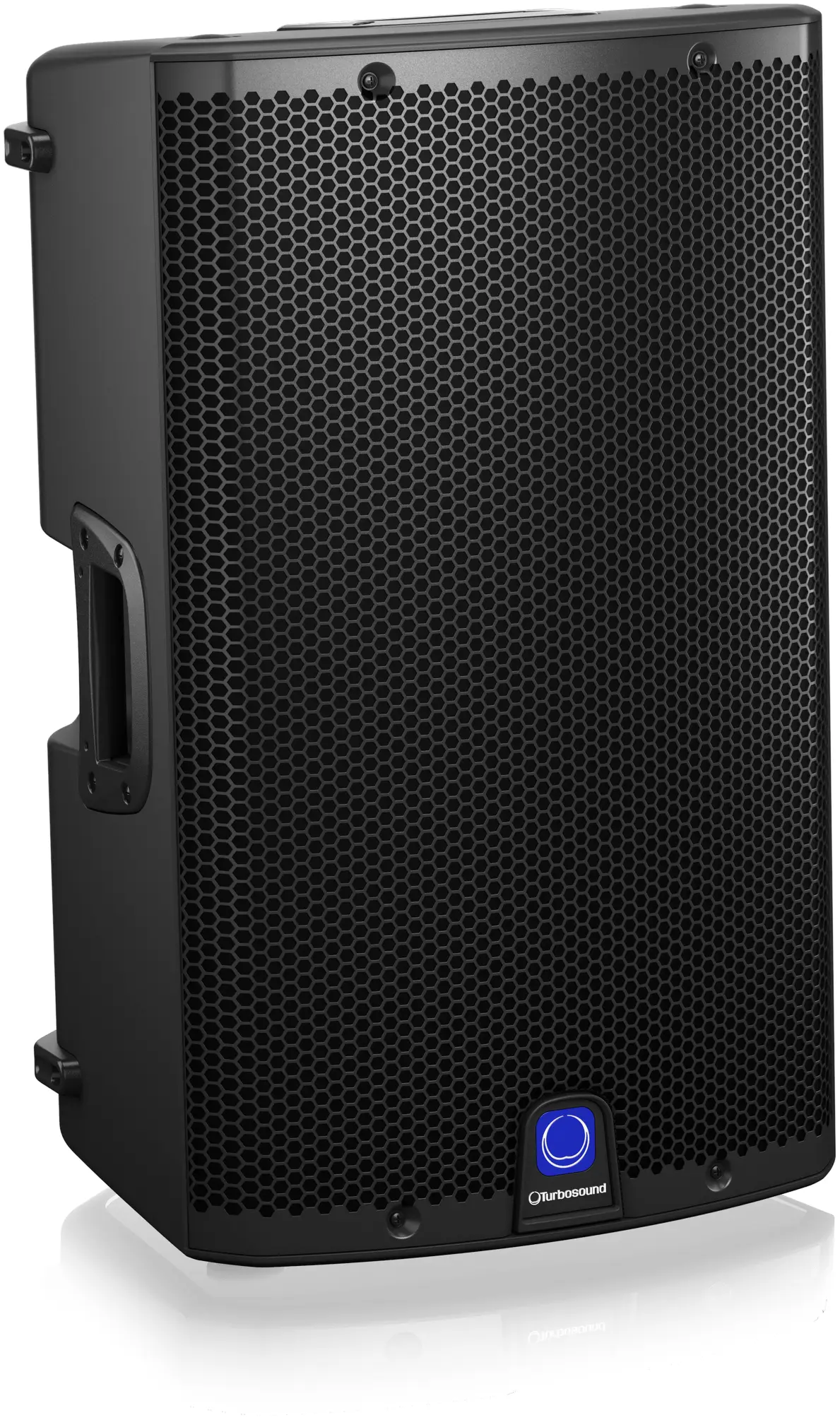

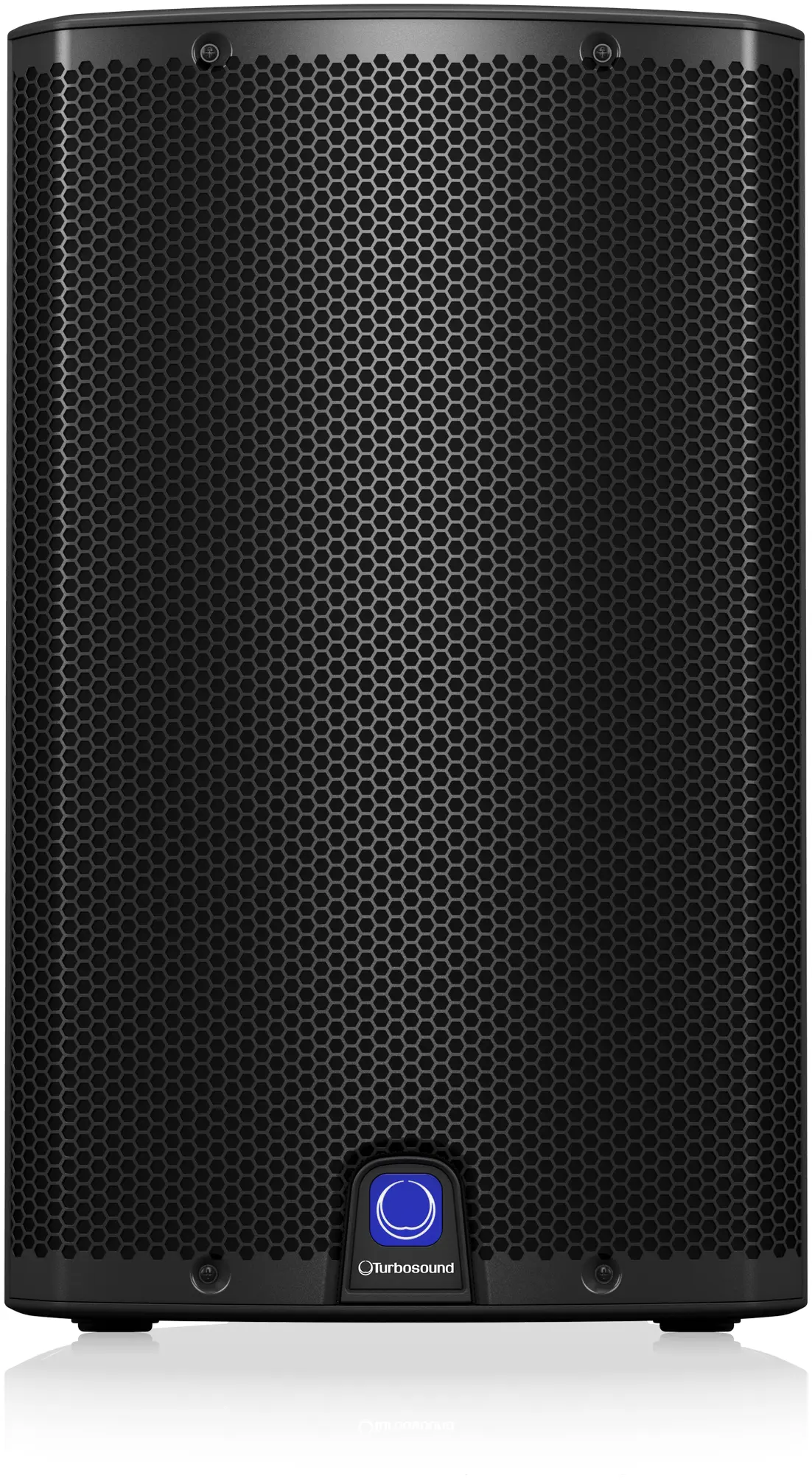

The Turbo Sound 2,500-Watt iQ12 is a powered two-way loudspeaker ideally suited for a wide range of portable and fixed installation, music and speech sound reinforcement applications. The driver complement includes an 12″ low frequency driver with a low mass voice coil for improved transient response, and a high temperature 1″ compression driver with copper-clad aluminium voice coil for extended high frequency reproduction.
- 2 way full range loudspeaker for portable PA and installation applications
- 2,500 Watt power featuring KLARK TEKNIK Class-D technology
- KLARK TEKNIK Digital Signal Processing for total system control
- Speaker modelling includes accurate models of industry standard speakers
- SCC (Spatial Contour Control)compensates frequency response in relation to physical speaker placement
- ULTRANET digital audio networking connects to mixers and other sources
- 12″ low frequency driver with low mass voice coil for improved transient response
- High temperature 1″ compression driver with copper-clad aluminium voice coil for extended high frequency reproduction
- Fully featured user interface with LCD display for ease of navigation
- PC remote control software downloadable at turbosound.com
- Lightweight fibre glass reinforced composite enclosure
- Rugged powder coated perforated steel mesh grille
- Dual angle pole mount for accurate audience coverage
- Multiple internal rigging points for installation applications
- Mains input and link output on industry standard twist-lock power connectors
Specification
System
| Frequency Response | 52 Hz – 18 kHz ±3 dB 45 Hz – 20 kHz -10 dB |
| Nominal Dispersion | 80° H x 60° V @ -6 dB points |
| Maximum SPL | 130 dB peak |
| Crossover type | Active |
| Transducers | 1 x 12″ (308.5 mm) LF driver 1 x 1″ (25.4 mm) HF compression driver |
| Limiter | Independent HF, LF, peak and rms |
Amplifier
| Maximum output power* | 2,500 W |
| Type | Class-D |
| Protection | Short circuit, open circuit, thermal |

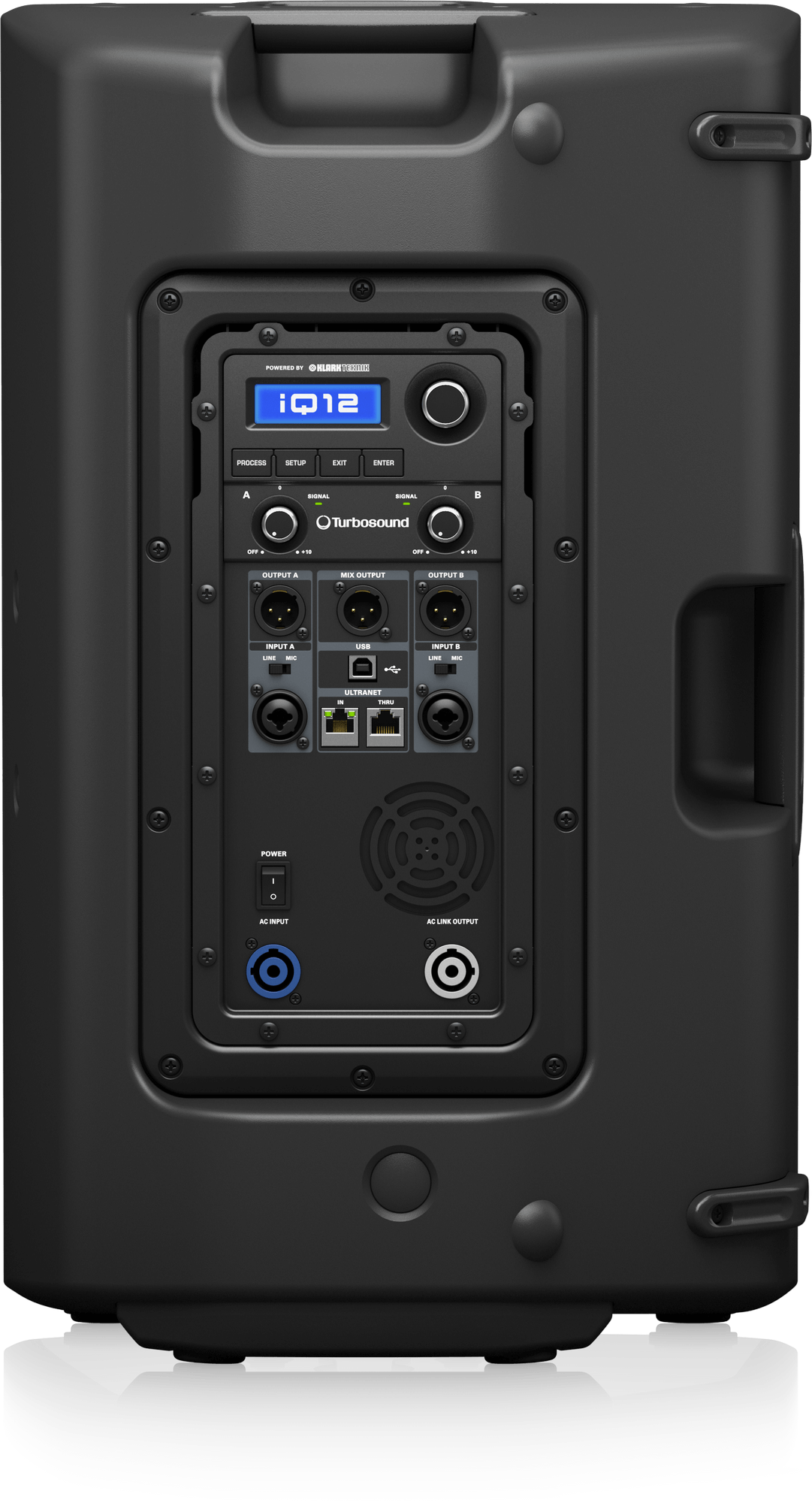

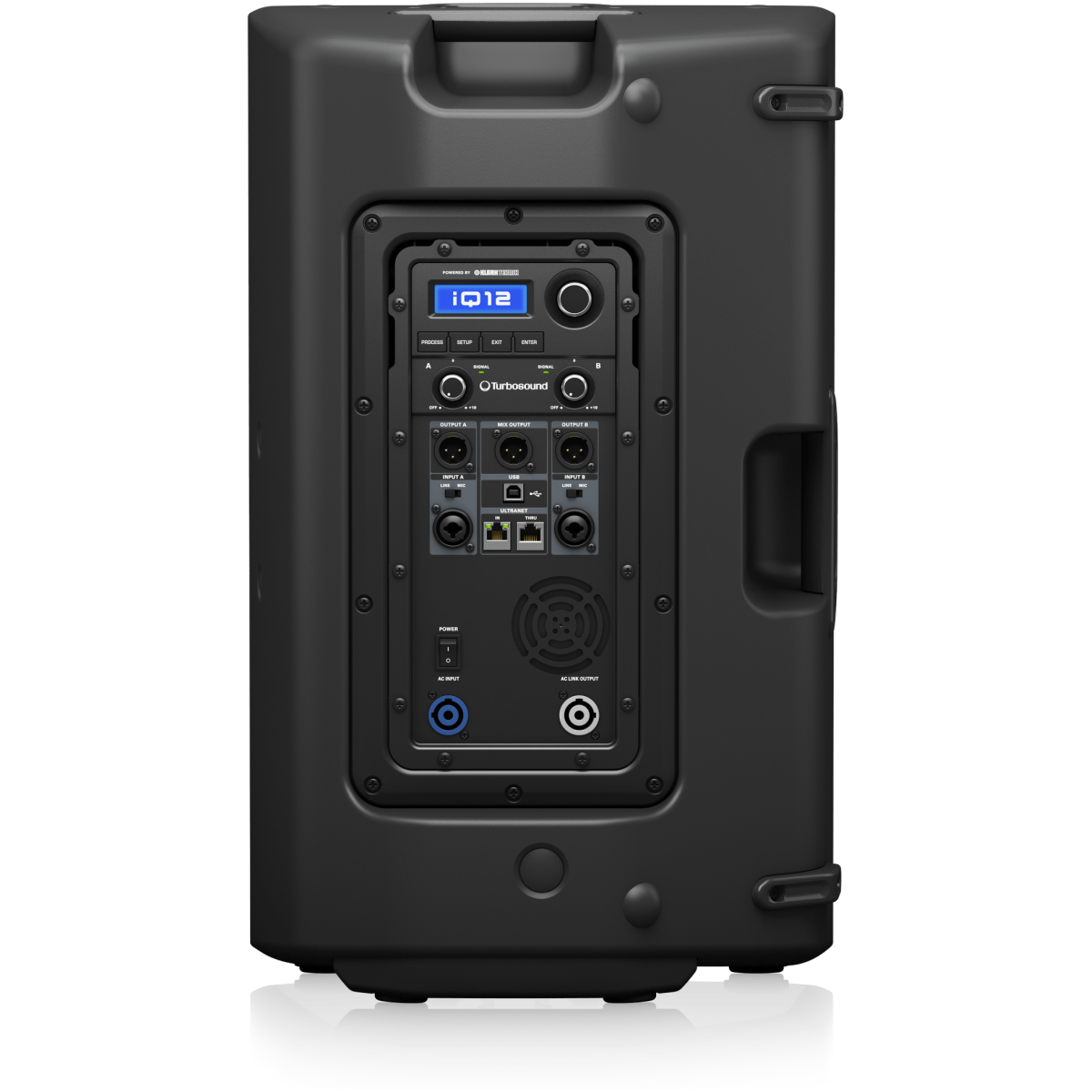

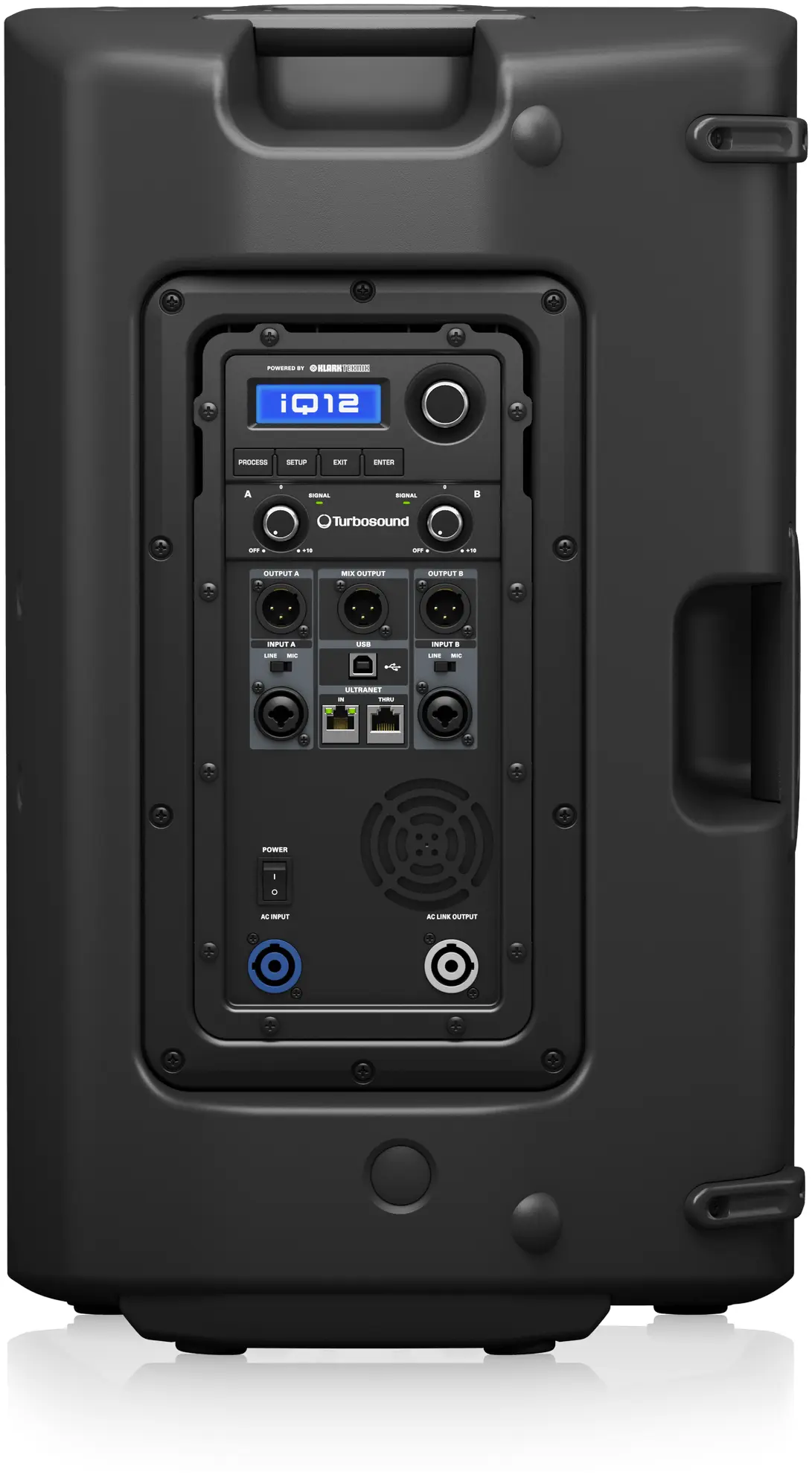

Connectors
| Input A / B | 2 x combo jack/XLR |
| Sensitivity | Line +4 dBu, mic -22 dBu, switchable |
| Input impedance | 20 kO unbalanced, 40 kO balanced |
| Maximum input level | +21 dBu |
| Output A / B | 2 x XLR Linked to input |
| Mix output | XLR, balanced |
| Output impedance | 100 O unbalanced, 200 O balanced |
| Ultranet input/link | 2 x RJ45 |
| Mains Supply | Industry-standard twist-lock power input 20A and link 15A |
Controls
| DSP | Rotary push-encoder Buttons for Process, Setup, Exit, Enter |
| Mixer section | 2 x gain controls (channels A and B) 2 x Line/Mic switch |
User DSP Functions
| Factory EQ presets | Positioning, Sound mode, Sound modeling, FBQ |
| Display | LCD 128 x 32, blue backlit |
| Delay | 0 – 300 ms |
| Equalisation | High and low shelving EQ 2 x parametric EQ |
| Limiter | Zero attack input limiter |
| Presets | 20 total presets, 19 user-definable |
| Crossover | High Pass L-R 24 dB/oct |
| Protection | Lock-out function for all settings |
