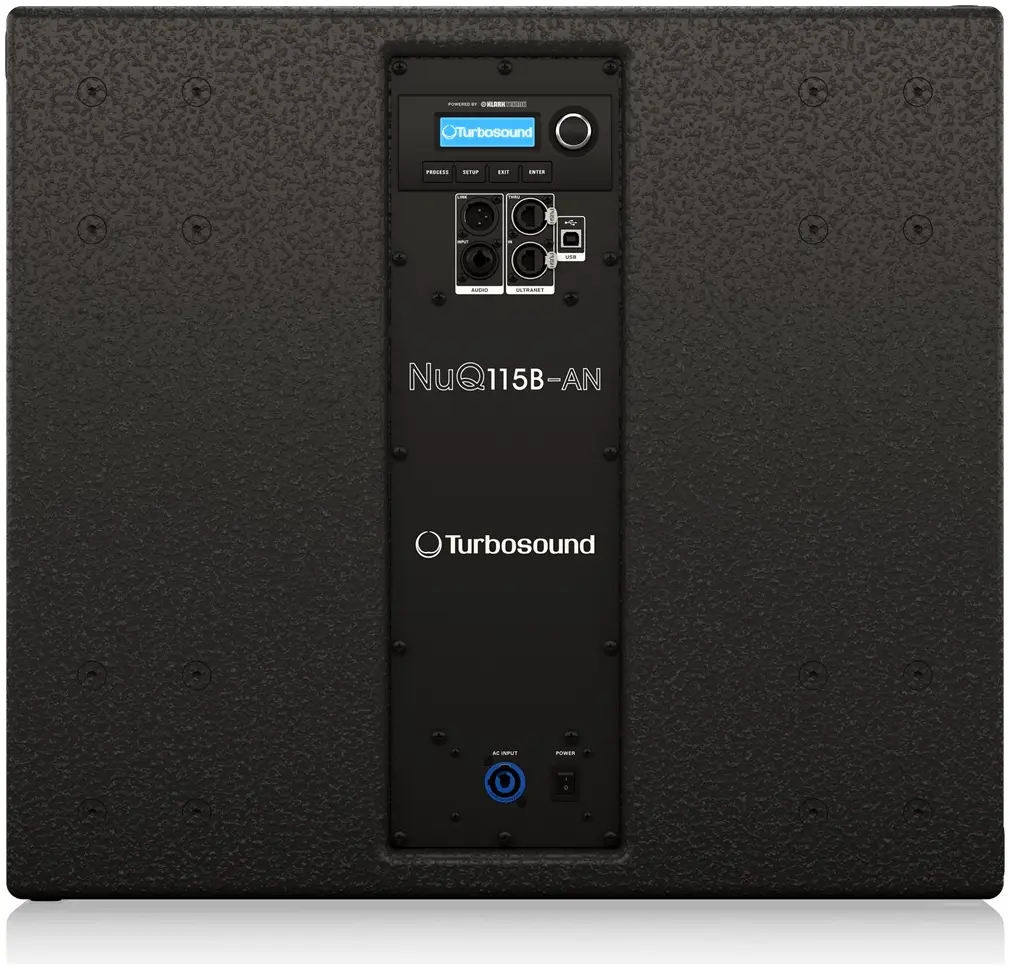

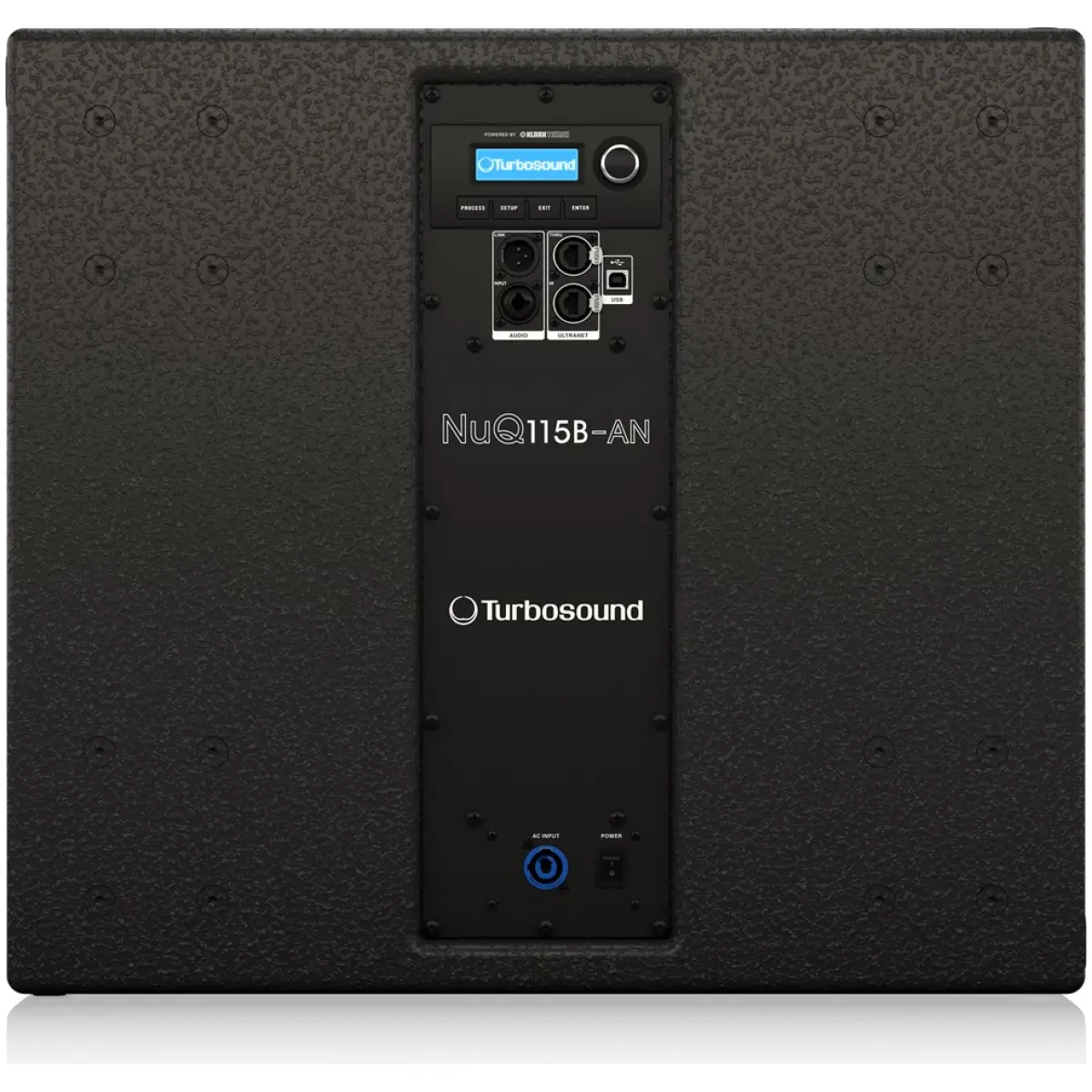

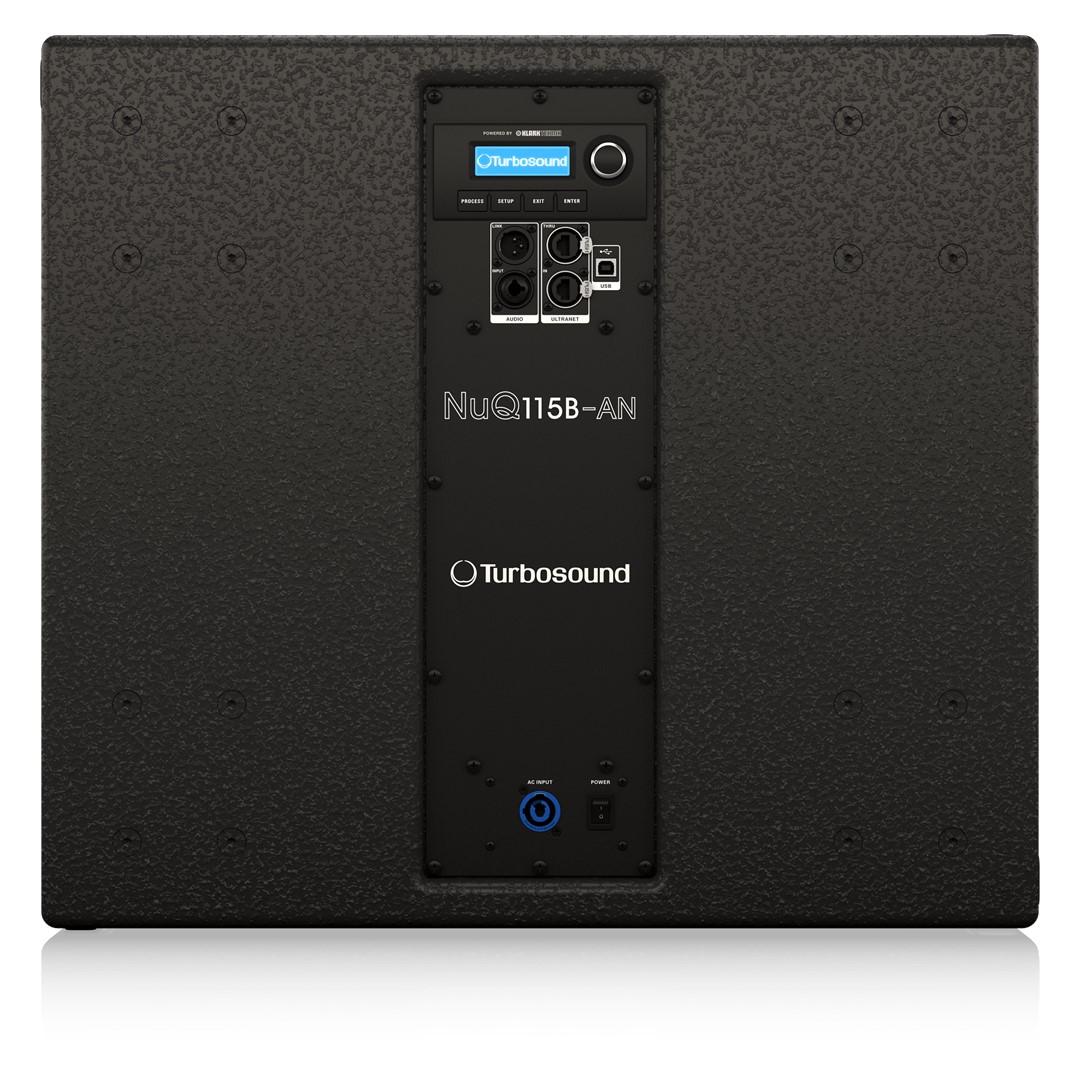

On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, crossover alignment and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active subwoofers, or for use with active full range satellite speakers. An onboard USB port provides access for remote control of the NuQ115B-AN via PC computer, as well as DSP firmware updates.
ULTRANET connectivity is provided by two locking RJ45 connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.

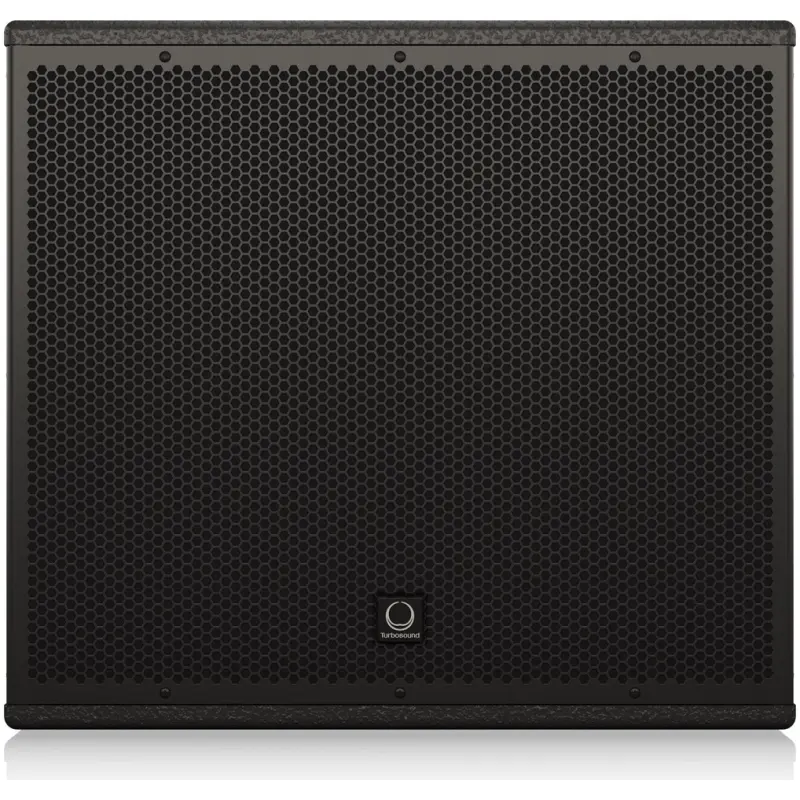

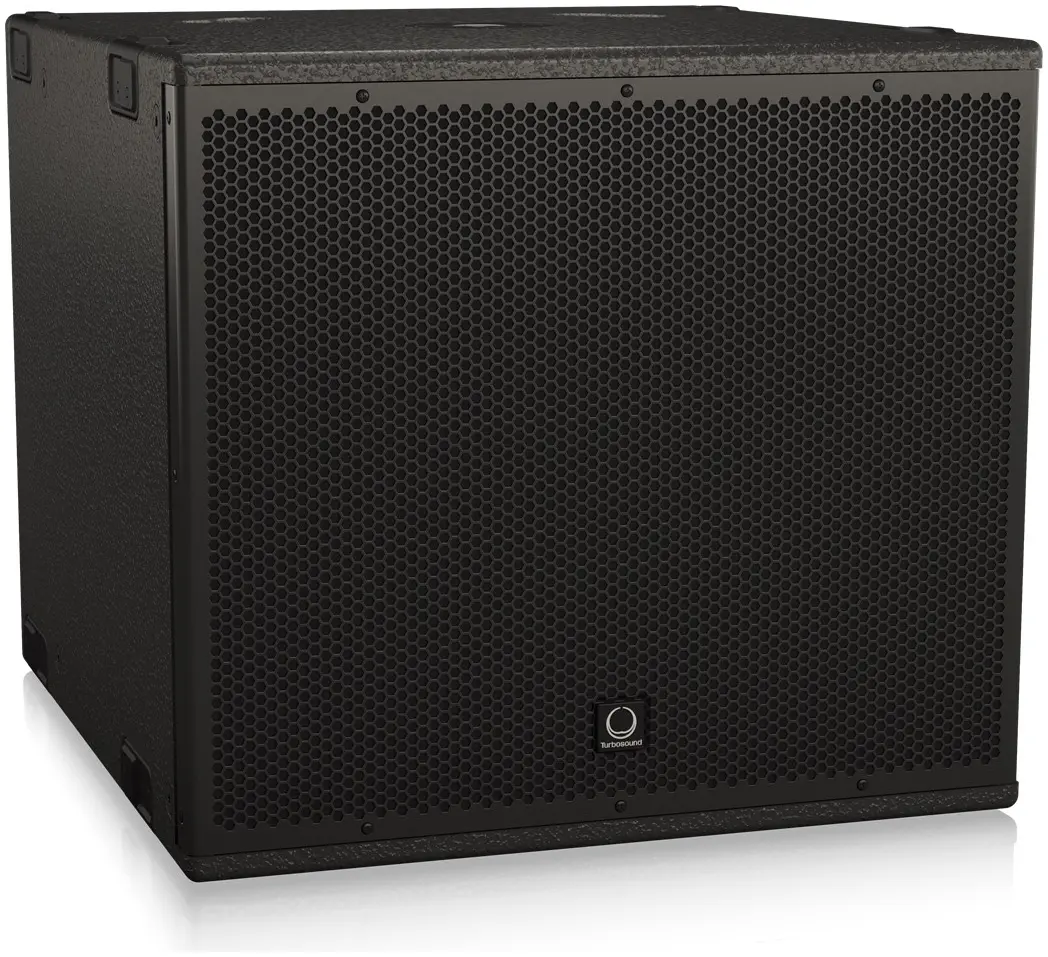

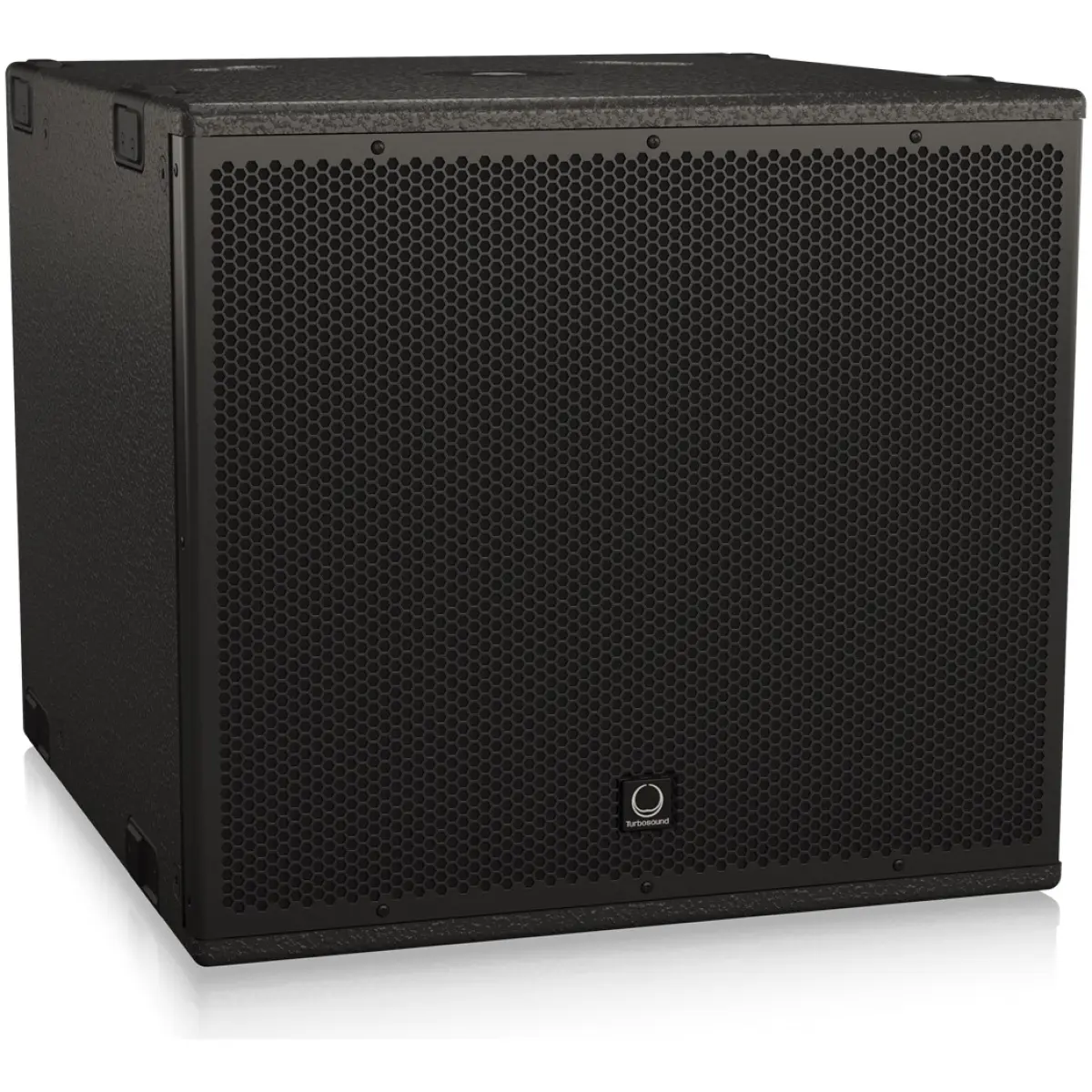

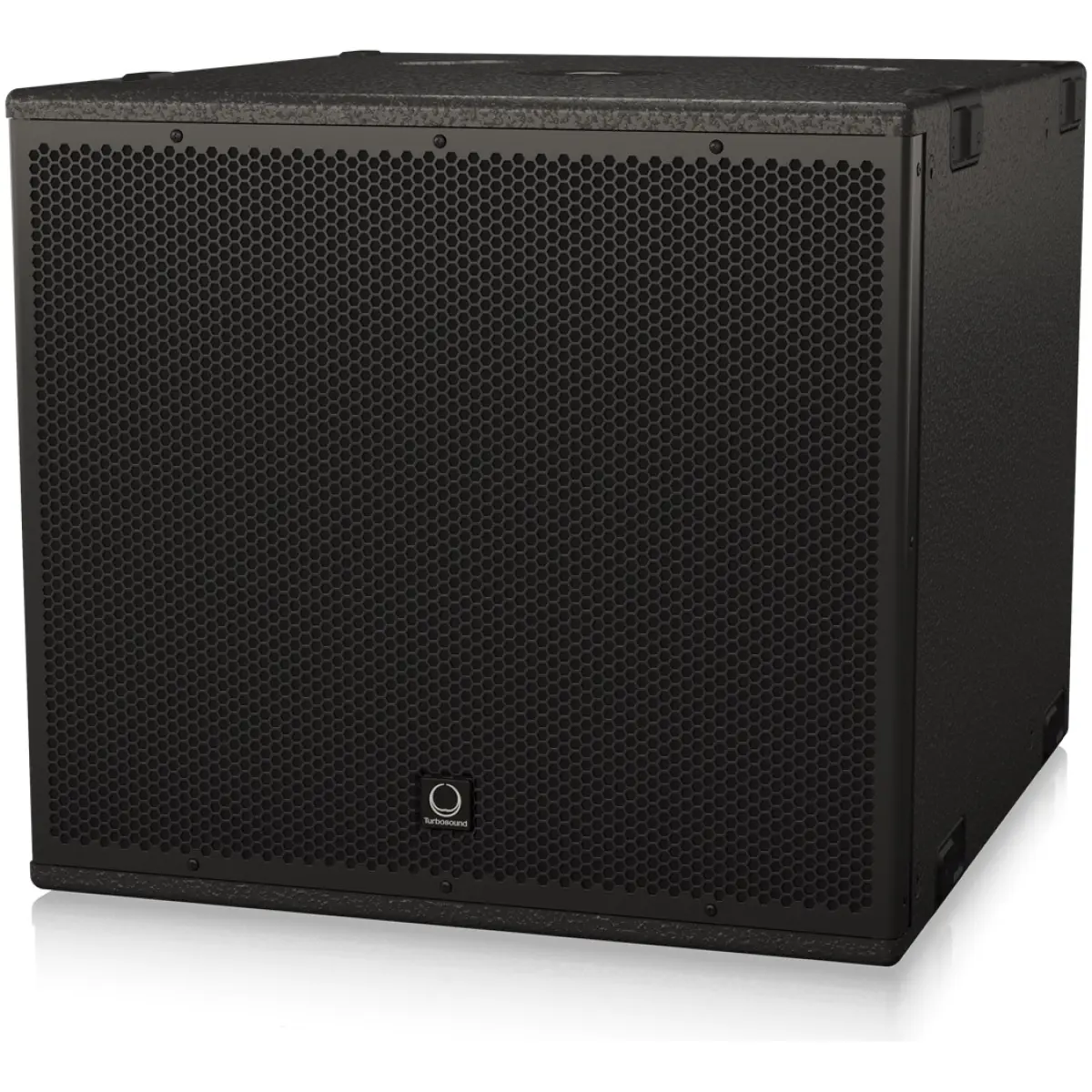

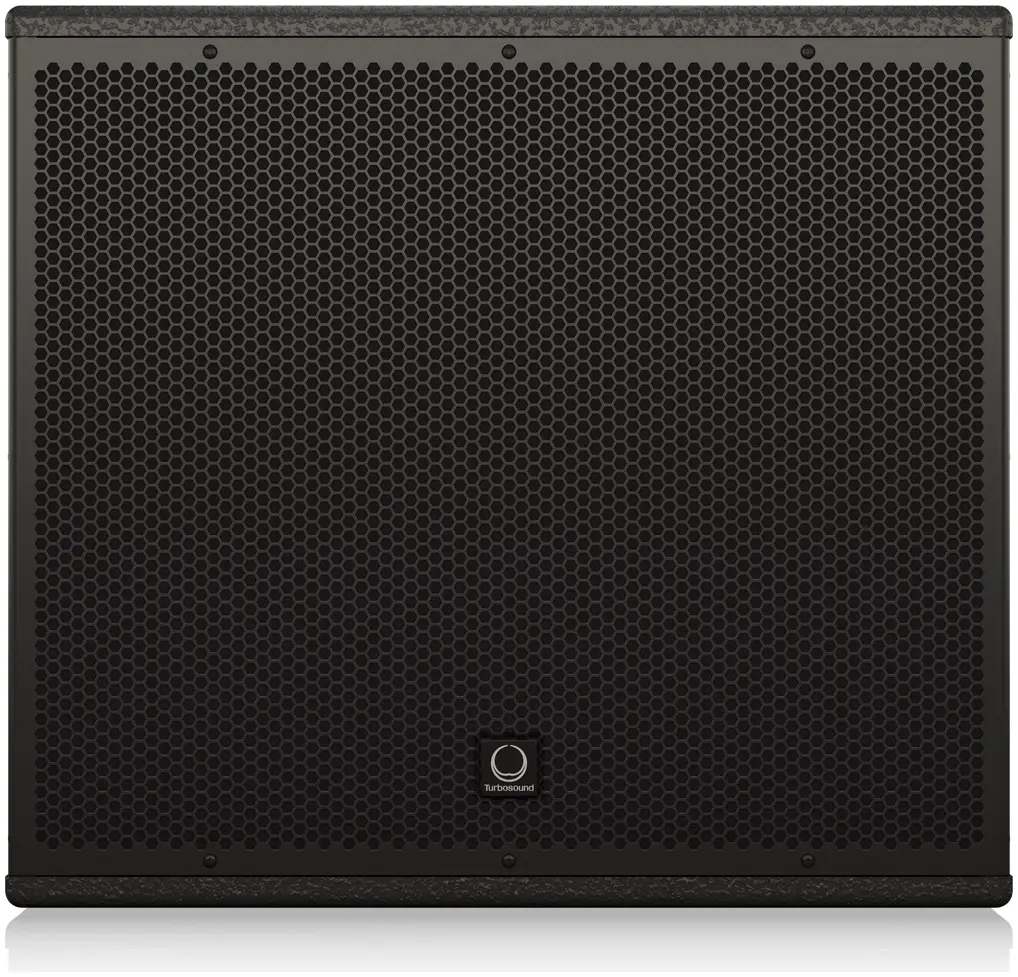

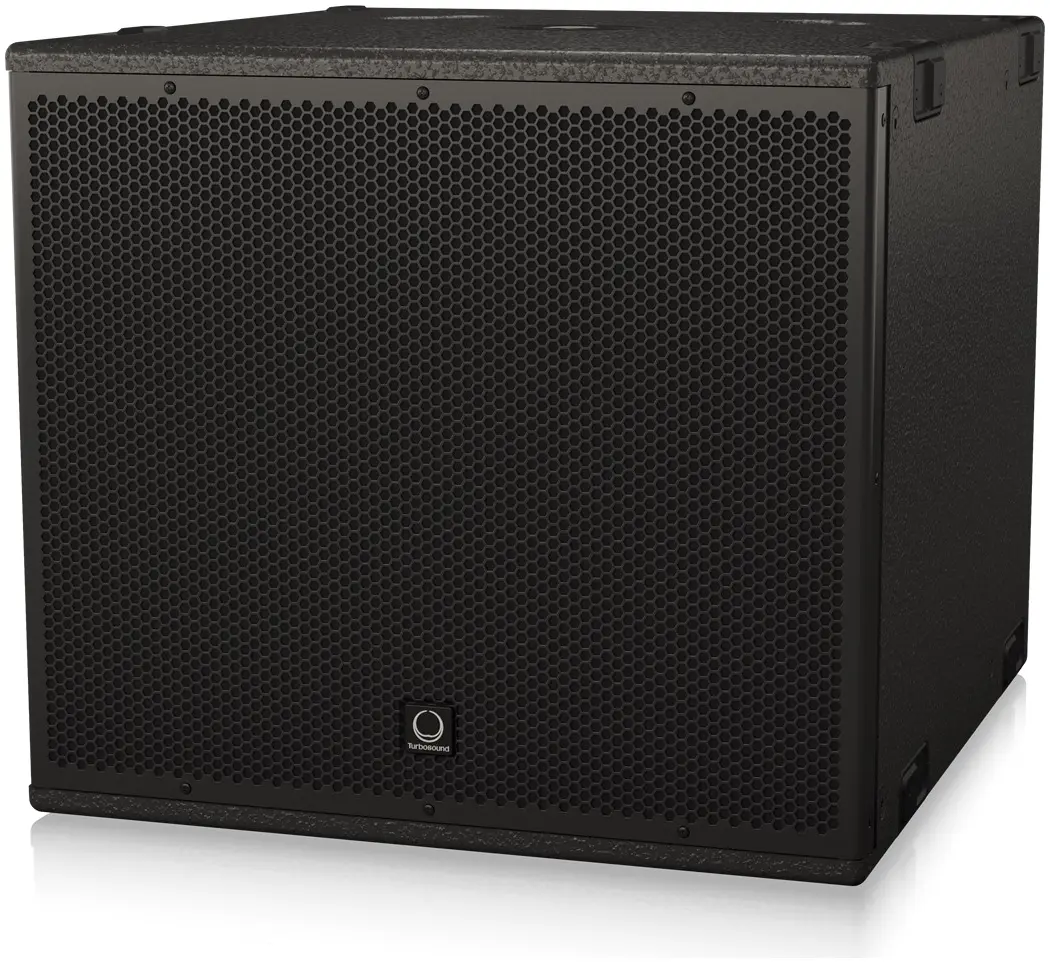

Finished in a highly durable semi matt black paint, the cabinet is constructed from 18 mm (¾ “) birch plywood and includes – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam; multiple M10 threaded rigging points; a 35 mm pole socket for satellite speaker mounting; integrated carry handles for convenient transport – and high impact interlocking corners for ground stacking stability. Mains power input is provided via an industry-standard twist-locking power connector.
On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, crossover alignment and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active subwoofers, or for use with active full range satellite speakers. An onboard USB port provides access for remote control of the NuQ115B-AN via PC computer, as well as DSP firmware updates.
ULTRANET connectivity is provided by two locking RJ45 connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.
Finished in a highly durable semi matt black paint, the cabinet is constructed from 18 mm (¾ “) birch plywood and includes – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam; multiple M10 threaded rigging points; a 35 mm pole socket for satellite speaker mounting; integrated carry handles for convenient transport – and high impact interlocking corners for ground stacking stability. Mains power input is provided via an industry standard twist-locking power connector.
Product Features
- Front loaded powered subwoofer for portable PA and installation applications
- 3,000 Watt power featuring Klark Teknik Class-D technology
- Klark Teknik Digital Signal Processing for total system control
- ULTRANET digital audio networking connects to mixers and other sources
- Double suspension 15″ low frequency driver with inside/outside wound coil
- Fully featured user interface with LCD display for ease of navigation
- PC remote control software downloadable at turbosound.com
- Low distortion bass reflex port design
- 18 mm (3/4″) birch plywood enclosure with hard wearing semi matt black paint finish
- Integral M10 rigging points for ease of installation
- 35 mm pole mount to support satellite speaker
- Mains input on industry standard twist-lock power connector
Specification
System
| Frequency Response | 55 Hz – 18 kHz ±3 dB 50 Hz – 20 kHz -10 dB |
| Nominal Dispersion | 70° H x 70° V @ -6 dB points |
| Maximum SPL | 133 dB peak |
| Crossover Type | Active |
| Transducers | 1 x 15″ (393.5 mm) LF driver 1 x 1″ (25.4 mm) HF compression driver |
| Limiter | Independent HF, LF, peak and rms |
Amplifier
| Maximum Output Power* | 2,500 W |
| Type | Class-D |
| Protection | Short circuit, thermal |
Connectors
| Input/link | 1 x Combo Jack/XLR 1 x XLR |
| Ultranet input/link | 2 x RJ45 |
| Mains Supply | Industry-standard twist-lock power 20A† |
Controls
| DSP | Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter |
User DSP Functions
| Factory EQ Presets | Positioning, Sound mode, FBQ |
| Display | LCD 128 x 32, blue, backlit |
| Delay | 0 – 300 ms |
| Equalisation | High and low shelving EQ 2 x parametric EQ |
| Limiter | Zero attack input limiter |
| Presets | 20 total presets, 19 user-definable |
| Crossover | High Pass L-R 24 dB/oct |
| Protection | Lock-out function for all settings |
Ultranet Digital Network
| Digital processing | |
| System | |
| Cabling |
Power Supply
| Power consumption | 90 W @ 1/8 max power |
| Voltage (fuses) |
Enclosure
| Dimensions HWD | 712 x 430 x 385 mm (28.0 x 16.9 x 15.2″) |
| Net weight | 23.6 kg (52.0 lbs) |
| Construction | 15 mm (5/8″) birch plywood |
| Finish | Semi matt black paint |
| Grille | Powder coated perforated steel |
| Flying hardware | M10 x 8 points |
Accessories
| NUQ152-FY flying yoke for NuQ152 |
