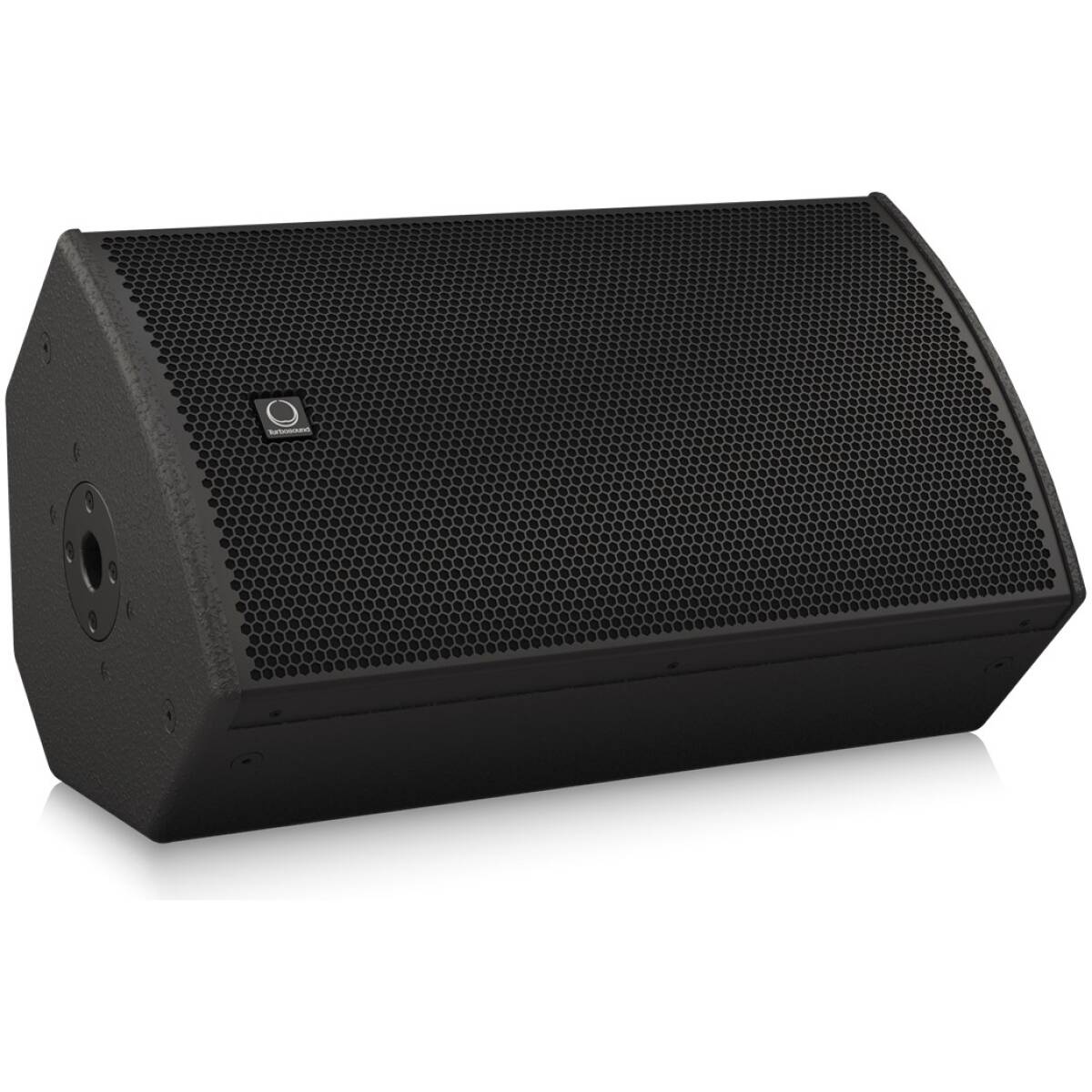

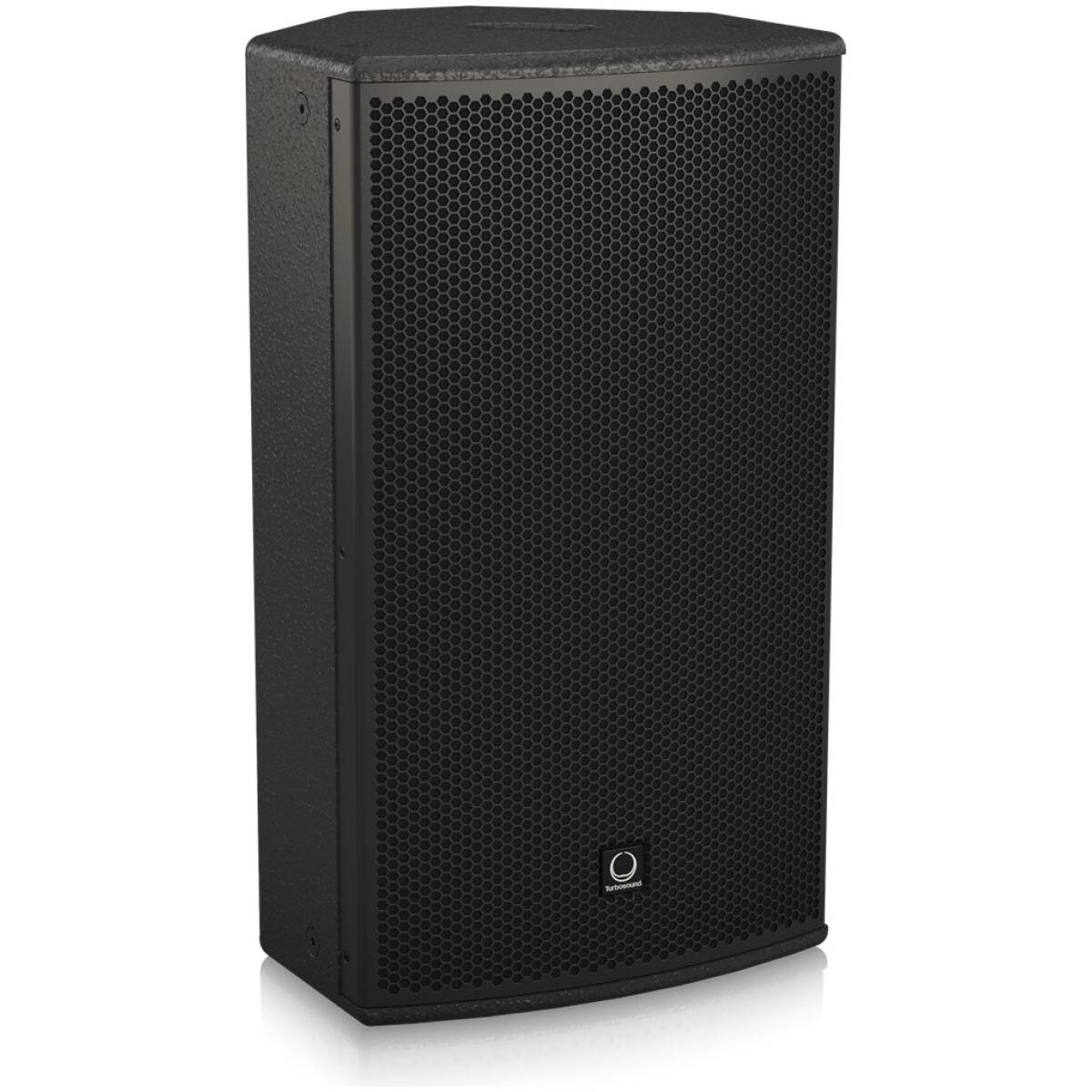

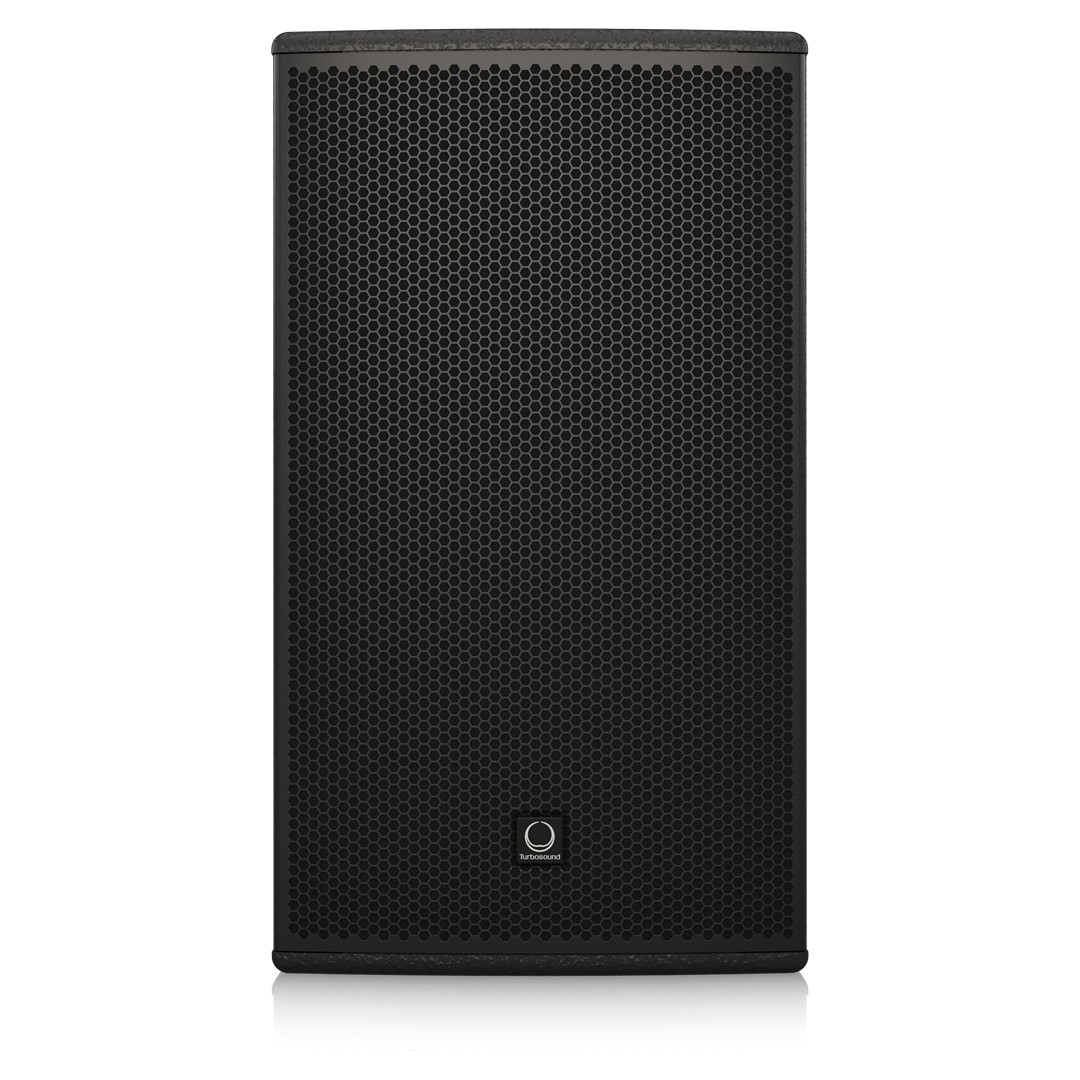

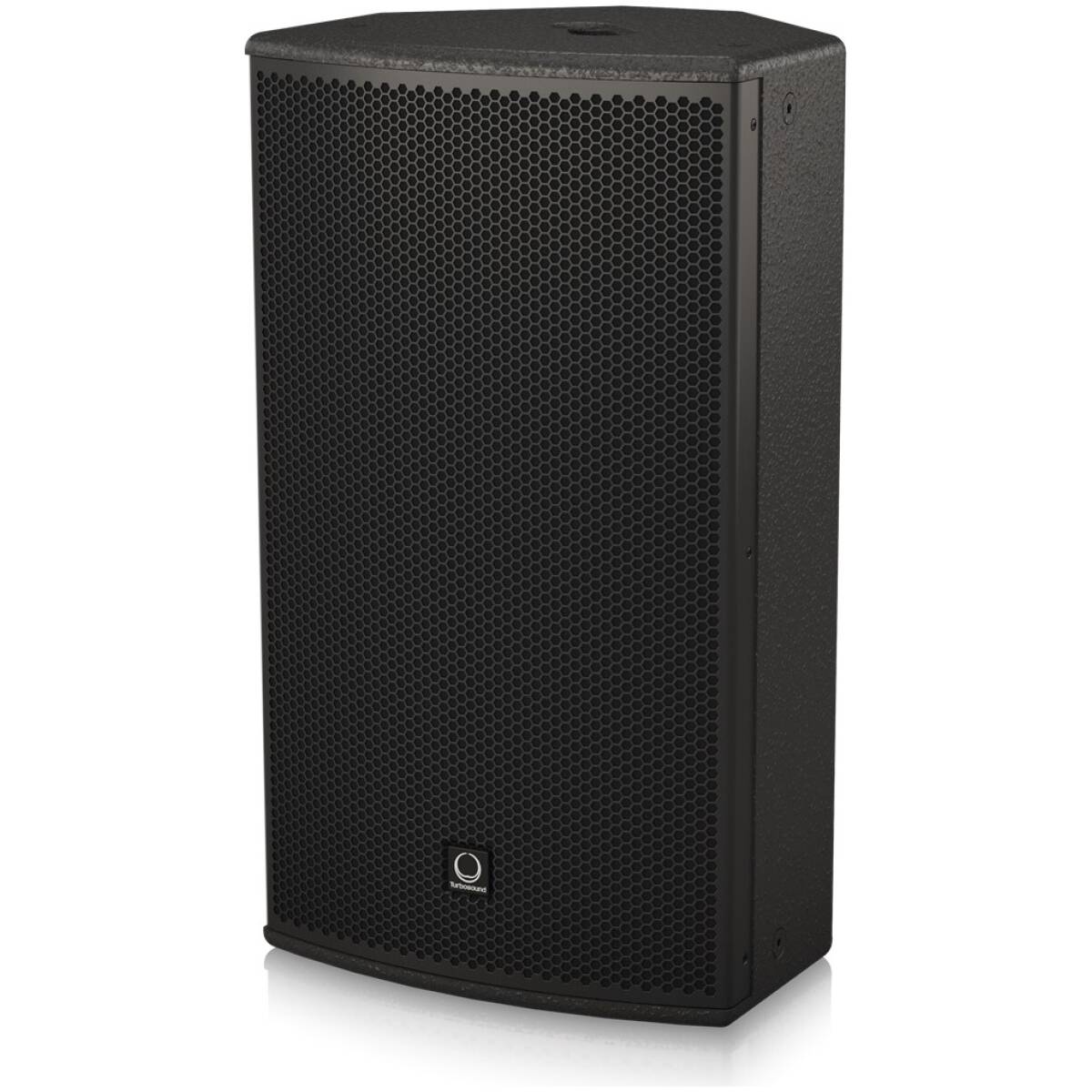

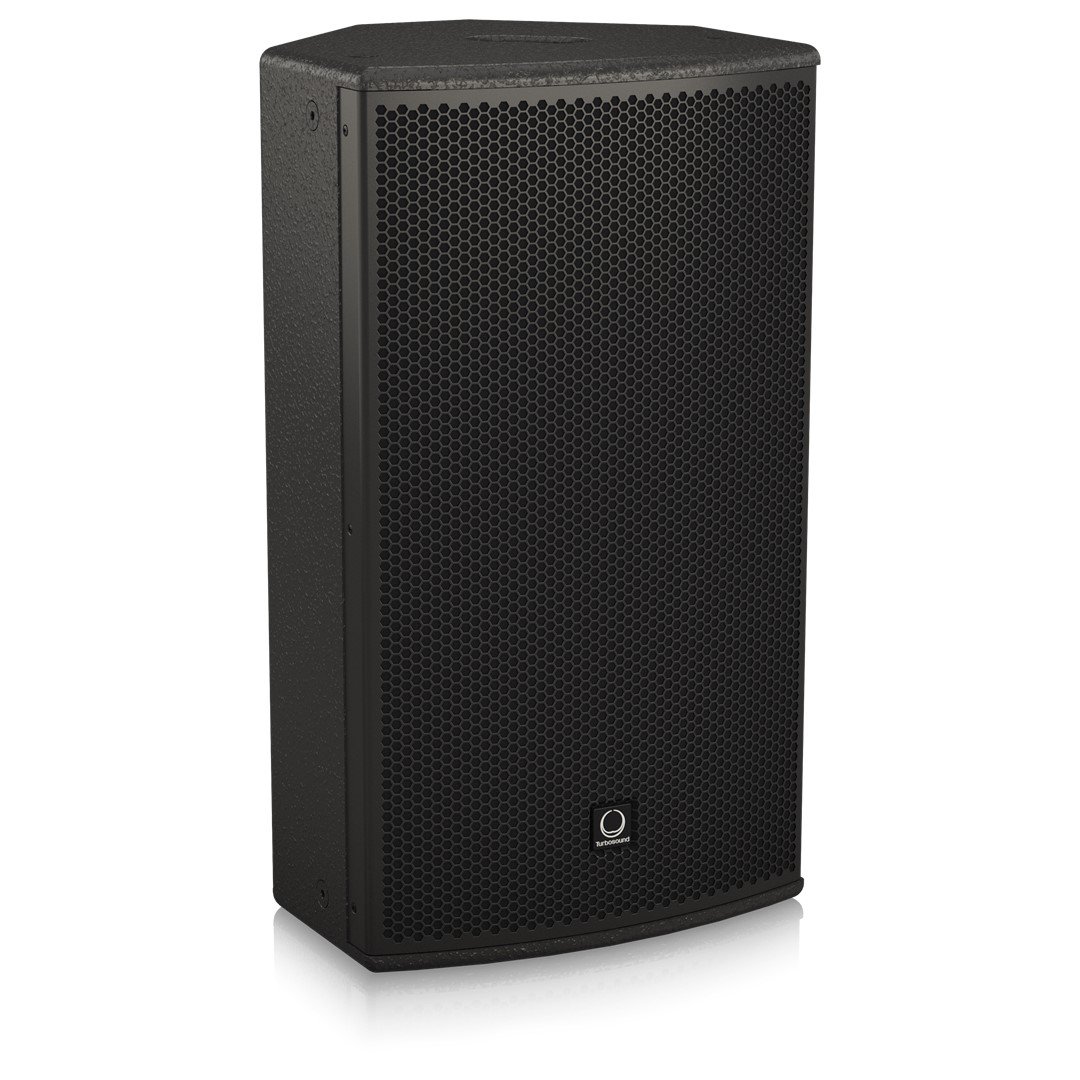

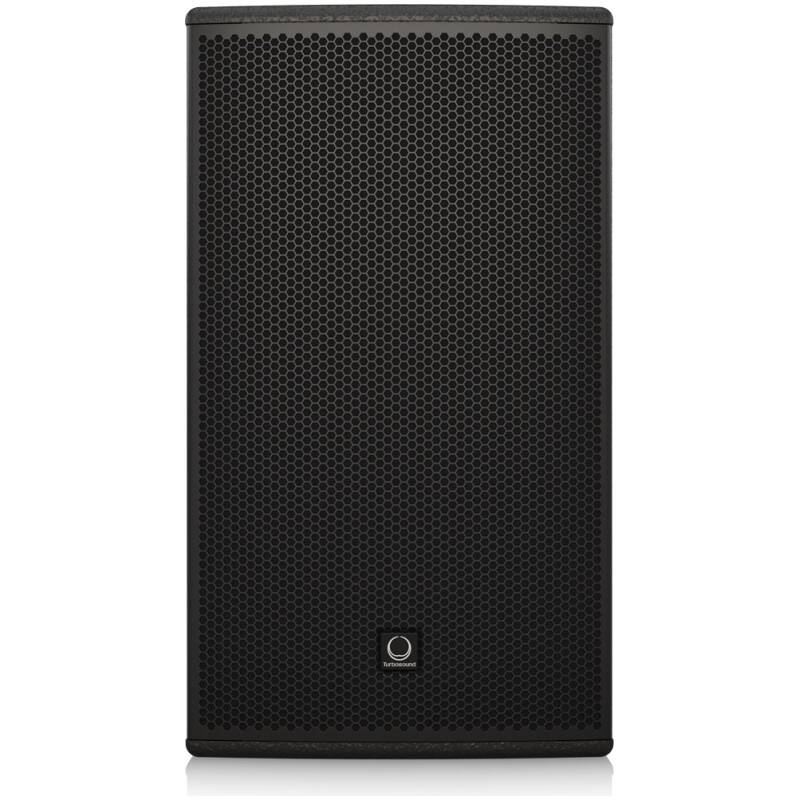

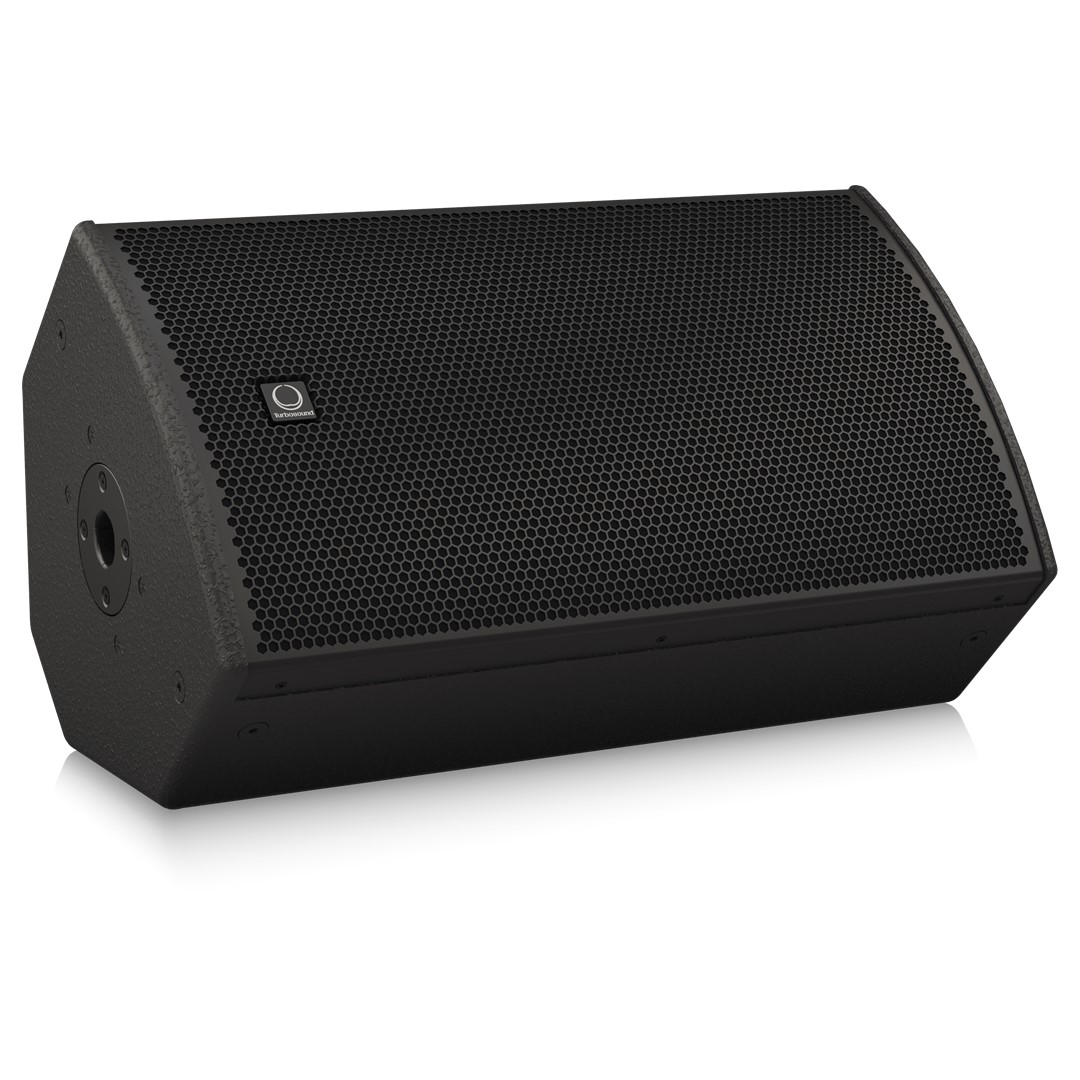

The Turbo Sound 2 way full range NuQ152-AN is a 2,500 Watt 15″ powered loudspeaker system that is ideally suited for a wide range of portable and fixed installation speech and music sound reinforcement applications. Designed to work individually without a controller, the NuQ152-AN provides optimal performance for FOH, sidefill and delay line loudspeakers, and is an exceptional choice for wedge monitoring applications. It also offers the flexibility to accommodate venue-specific requirements for install applications.
The NuQ152-AN loudspeaker features a carbon fibre loaded 15″ low frequency driver with a low mass voice coil for improved transient response and an aluminium dome 1″ neodymium high frequency compression driver, which is mounted on a 70° horizontal by 70° vertical dispersion low distortion waveguide.
Output power for the NuQ152-AN is provided by means of an efficient and lightweight Klark Teknik 2,500-Watt Class-D power amplifier. A sophisticated, but easy to use Klark Teknik Digital Signal Processor (DSP) provides dynamic EQ for impressive full range response at low volume levels and transparent limiting for clarity at high output levels – and for long-term reliability.
On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, subwoofer integration and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the NuQ152-AN via PC computer, as well as DSP firmware updates.
ULTRANET connectivity is provided by two locking RJ45 connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.

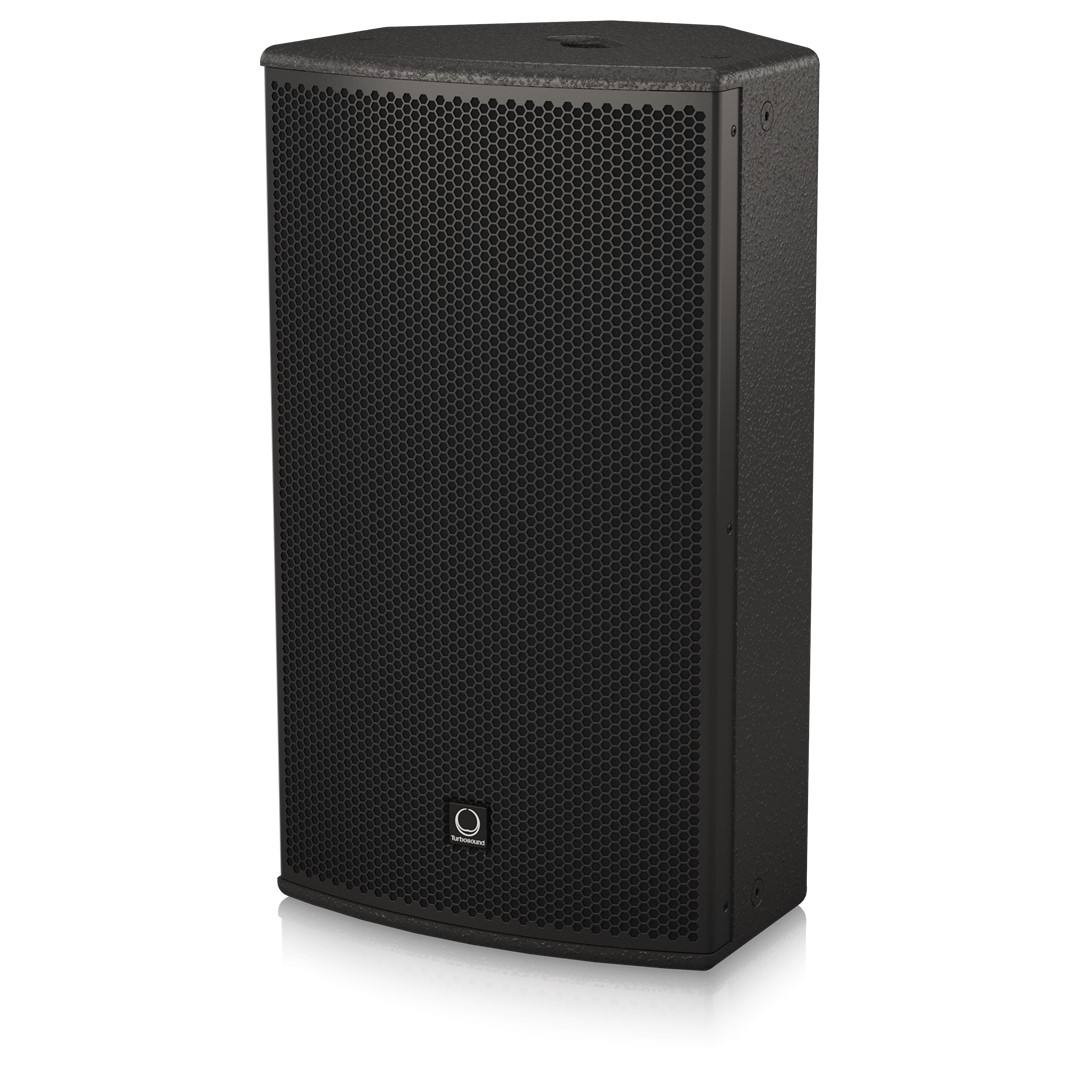

Finished in a highly durable semi matte black paint, the trapezoidal cabinet is constructed from 15 mm (5⁄8″) birch plywood – and includes a rugged powder coated perforated steel mesh grille. Multiple threaded rigging points are provided for suspension in any orientation. The NuQ152-FY flying yoke kit provides added flexibility in permanent install applications (available separately). The NuQ152-AN also features a 35 mm socket for standard pole mounting – plus integrated handles for convenient transport. Mains power input is provided via an industry-standard twist-locking power connector
Product Features
- 2 way full range powered loudspeaker for portable PA and installation applications
- 2,500 Watt power featuring Klark Teknik Class-D technology
- Klark Teknik Digital Signal Processing for total system control
- ULTRANET digital audio networking connects to mixers and other sources
- Carbon fibre loaded 15″ low frequency driver with inside/outside coil
- Aluminium dome 1″ neodymium motor compression driver
- Low distortion waveguide provides 70° H x 70° V dispersion
- Fully featured user interface with LCD display for ease of navigation
- PC remote control software downloadable at turbosound.com
- 15 mm (5/8″) birch plywood enclosure with hard wearing semi matt black paint finish
- Rugged powder coated perforated steel mesh grille
- Integral 35 mm pole mount and handles
- Multiple internal rigging points allow bracket mount and suspension in any orientation
Specification
System
| Frequency Response | 55 Hz – 18 kHz ±3 dB 50 Hz – 20 kHz -10 dB |
| Nominal Dispersion | 70° H x 70° V @ -6 dB points |
| Maximum SPL | 133 dB peak |
| Crossover Type | Active |
| Transducers | 1 x 15″ (393.5 mm) LF driver 1 x 1″ (25.4 mm) HF compression driver |
| Limiter | Independent HF, LF, peak and rms |
Amplifier
| Maximum Output Power* | 2,500 W |
| Type | Class-D |
| Protection | Short circuit, thermal |
Connectors
| Input/link | 1 x Combo Jack/XLR 1 x XLR |
| Ultranet input/link | 2 x RJ45 |
| Mains Supply | Industry-standard twist-lock power 20A† |
Controls
| DSP | Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter |
User DSP Functions
| Factory EQ Presets | Positioning, Sound mode, FBQ |
| Display | LCD 128 x 32, blue, backlit |
| Delay | 0 – 300 ms |
| Equalisation | High and low shelving EQ 2 x parametric EQ |
| Limiter | Zero attack input limiter |
| Presets | 20 total presets, 19 user-definable |
| Crossover | High Pass L-R 24 dB/oct |
| Protection | Lock-out function for all settings |
Ultranet Digital Network
| Digital processing | |
| System | |
| Cabling |
Power Supply
| Power consumption | 90 W @ 1/8 max power |
| Voltage (fuses) |
Enclosure
| Dimensions HWD | 712 x 430 x 385 mm (28.0 x 16.9 x 15.2″) |
| Net weight | 23.6 kg (52.0 lbs) |
| Construction | 15 mm (5/8″) birch plywood |
| Finish | Semi matt black paint |
| Grille | Powder coated perforated steel |
| Flying hardware | M10 x 8 points |
Accessories
| NUQ152-FY flying yoke for NuQ152 |
