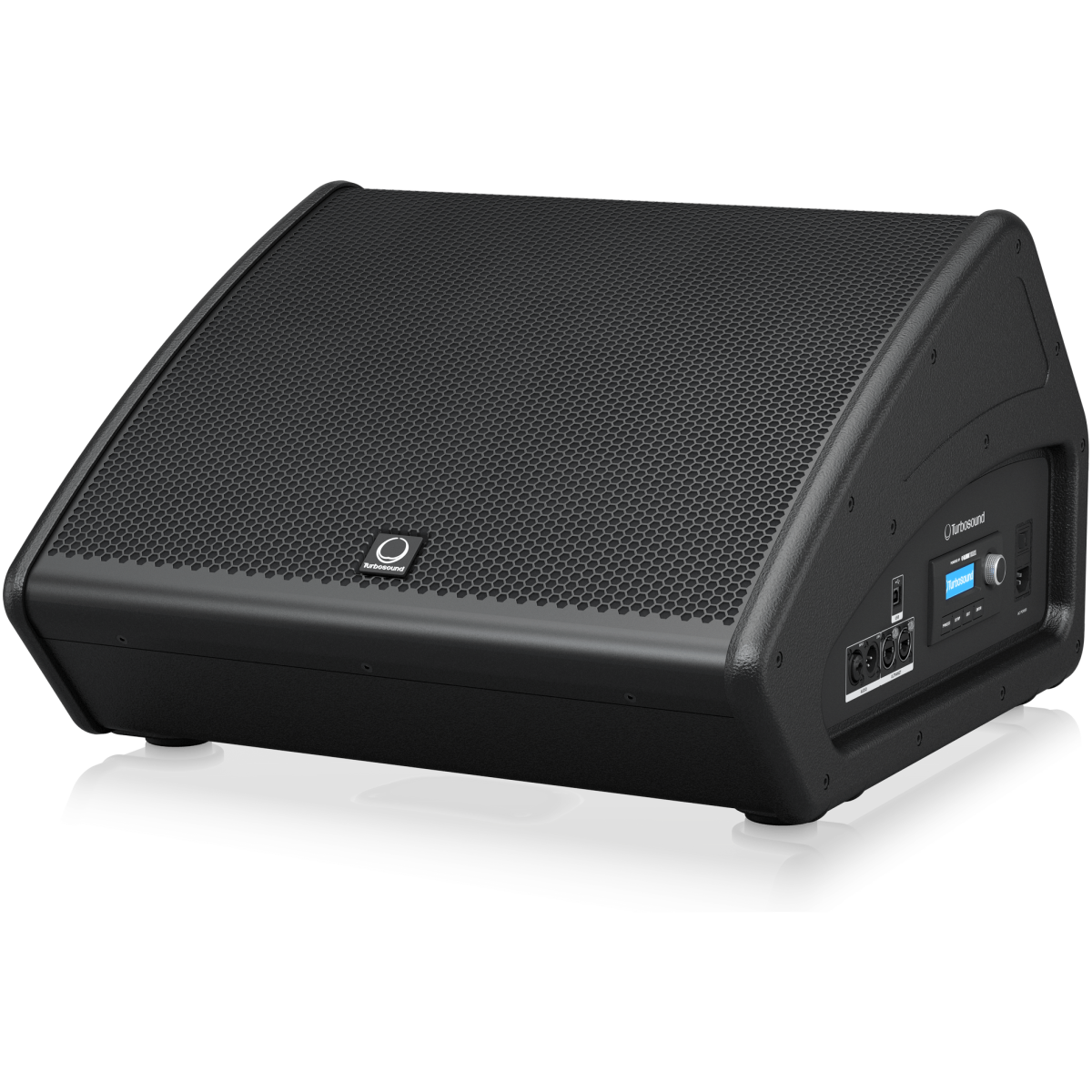

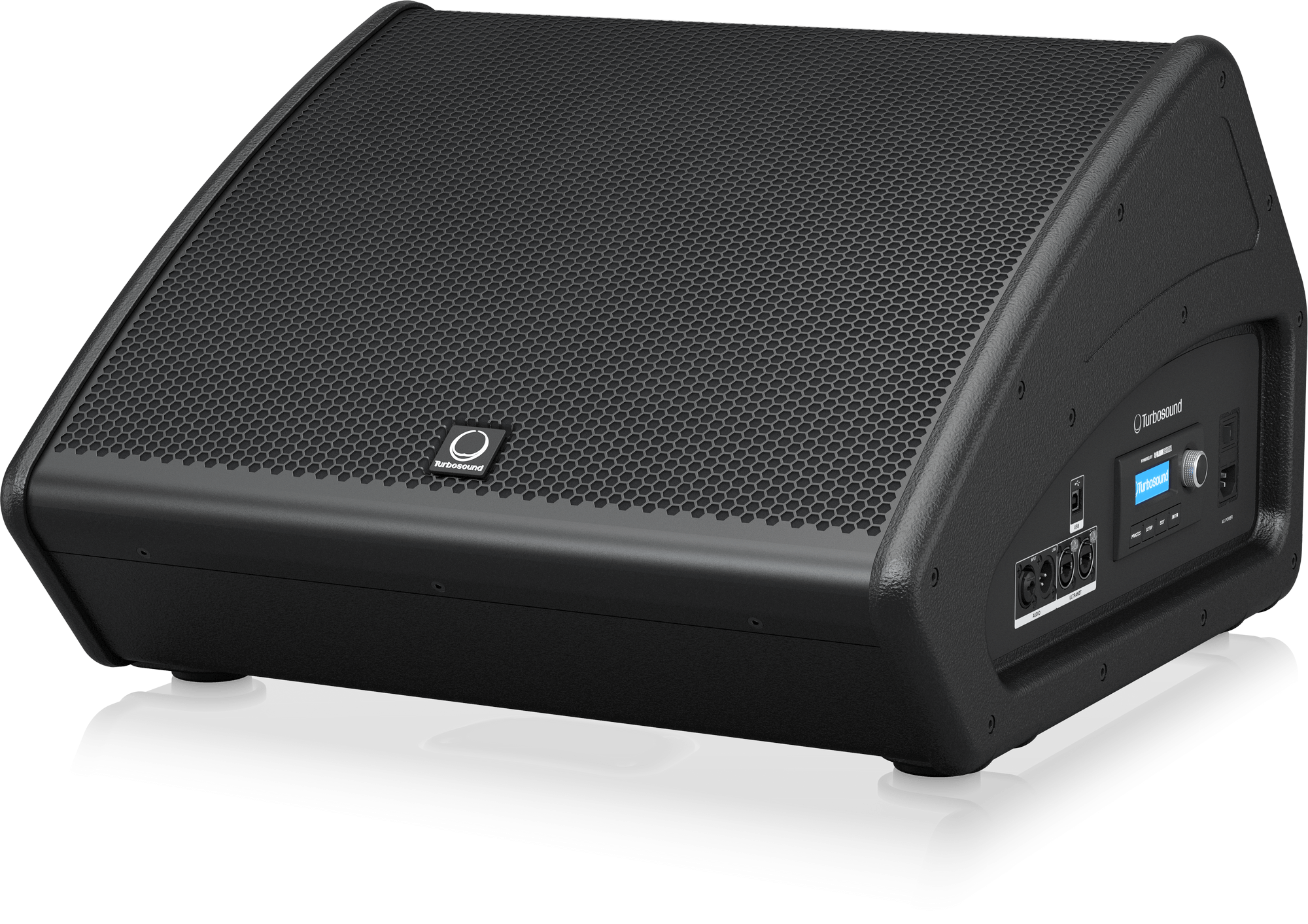

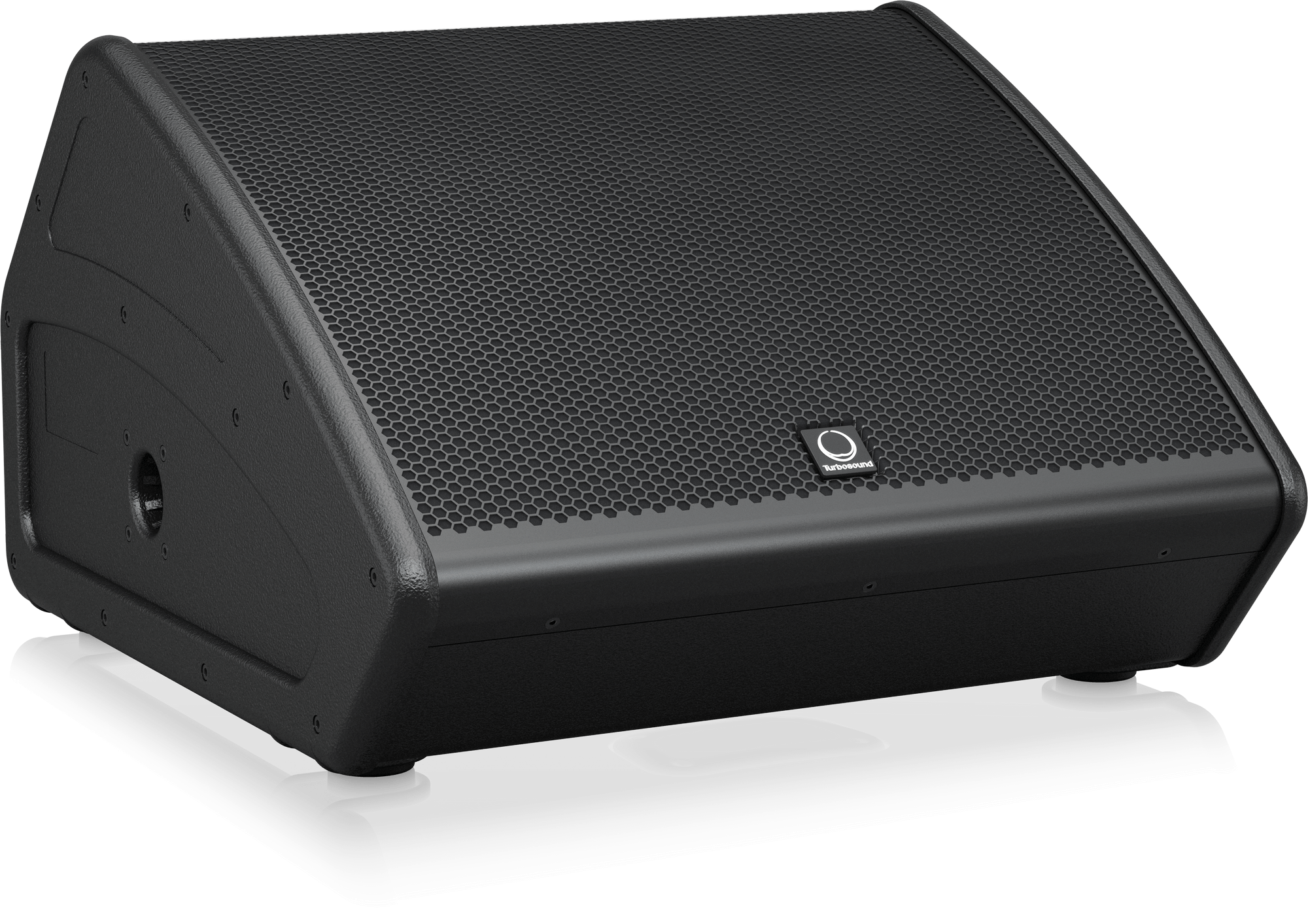

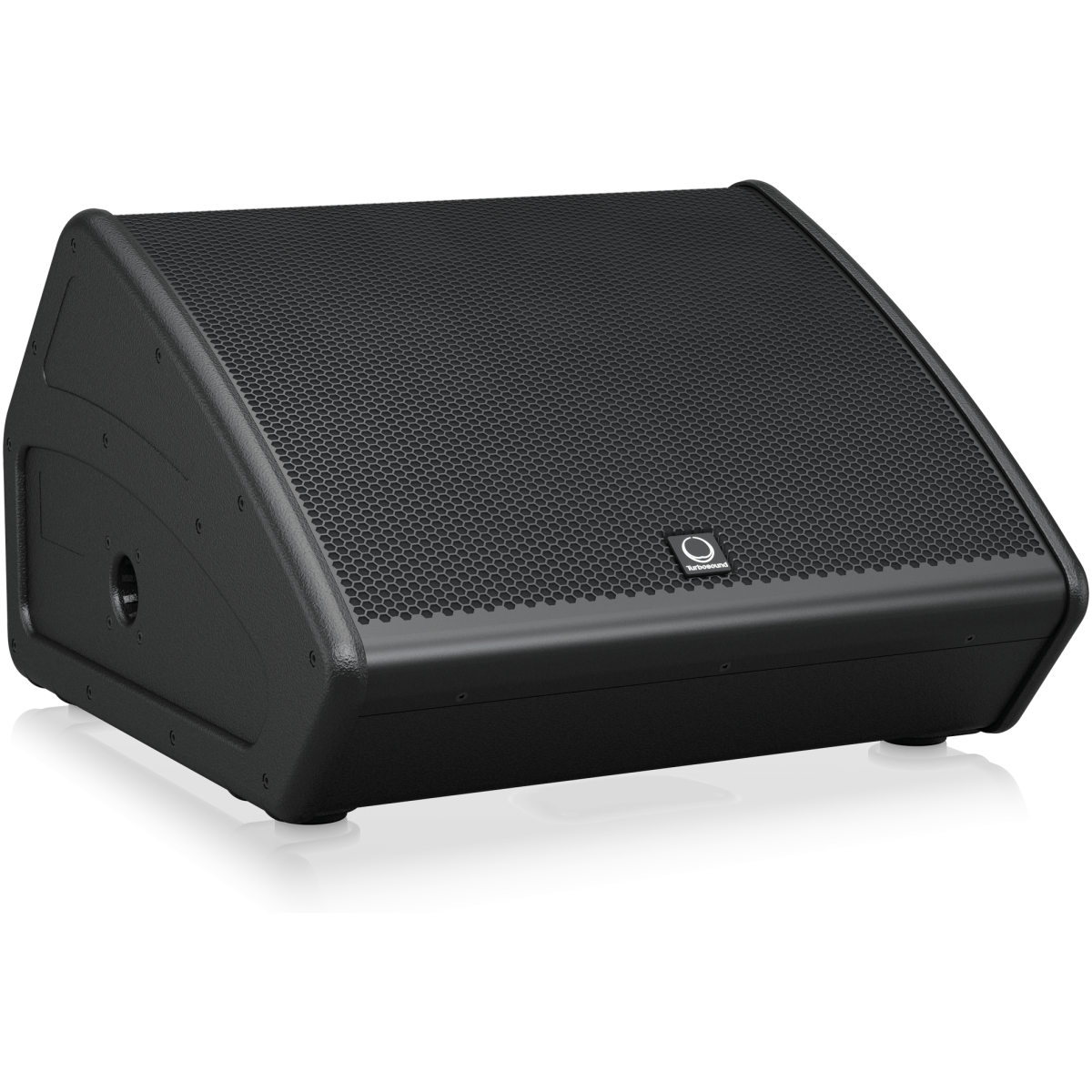

The Turbo Sound 2-way full range TFX152M-AN is a 1,100 Watt 15″ powered loudspeaker system that is ideally suited for a wide range of portable speech and music sound reinforcement applications. Designed to work individually without a controller, the TFX152M-AN provides optimal performance for wedge monitoring and is an exceptional choice for FOH, sidefill and delay line applications.
Product Features
- 2 way stage monitor for portable applications
- 1,100 Watt power featuring Klark Teknik Class-D technology
- Klark Teknik Digital Signal Processing for total system control
- ULTRANET digital audio networking connects to mixers and other sources
- High excursion 15″ low frequency driver with low mass voice coil for improved transient response
- Titanium dome 1″ compression driver with extended high frequency reproduction
- Low profile design to maximise audience sight lines
- Low distortion waveguide provides 60° H x 40° V dispersion
- Fully featured user interface with LCD display for ease of navigation
- PC remote control software downloadable at turbosound.com
- 15 mm (5/8″) plywood enclosure with fibre glass reinforced composite end cheeks
- Hard wearing semi matt black paint finish

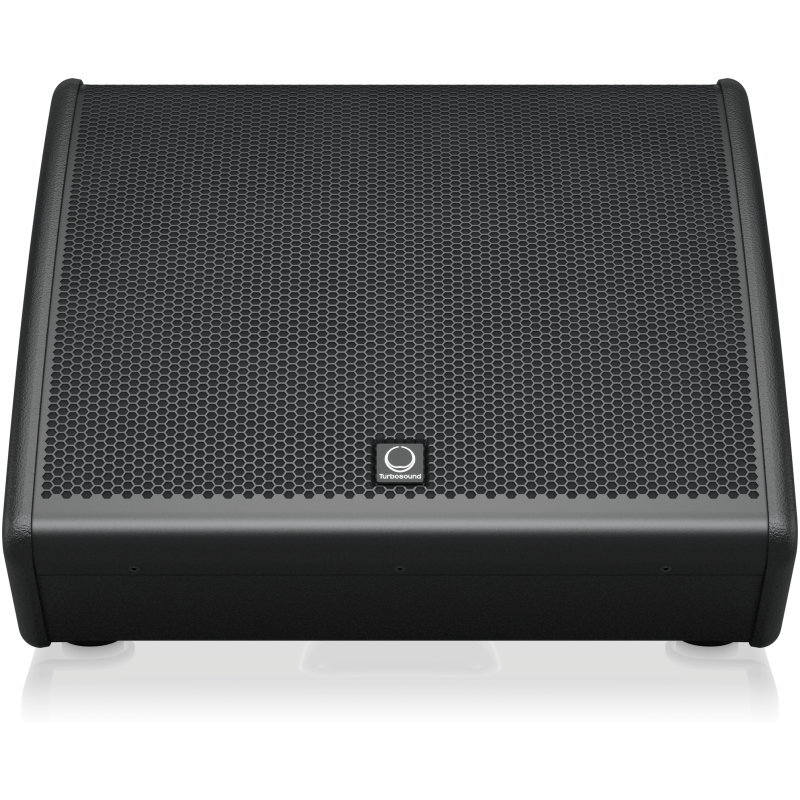

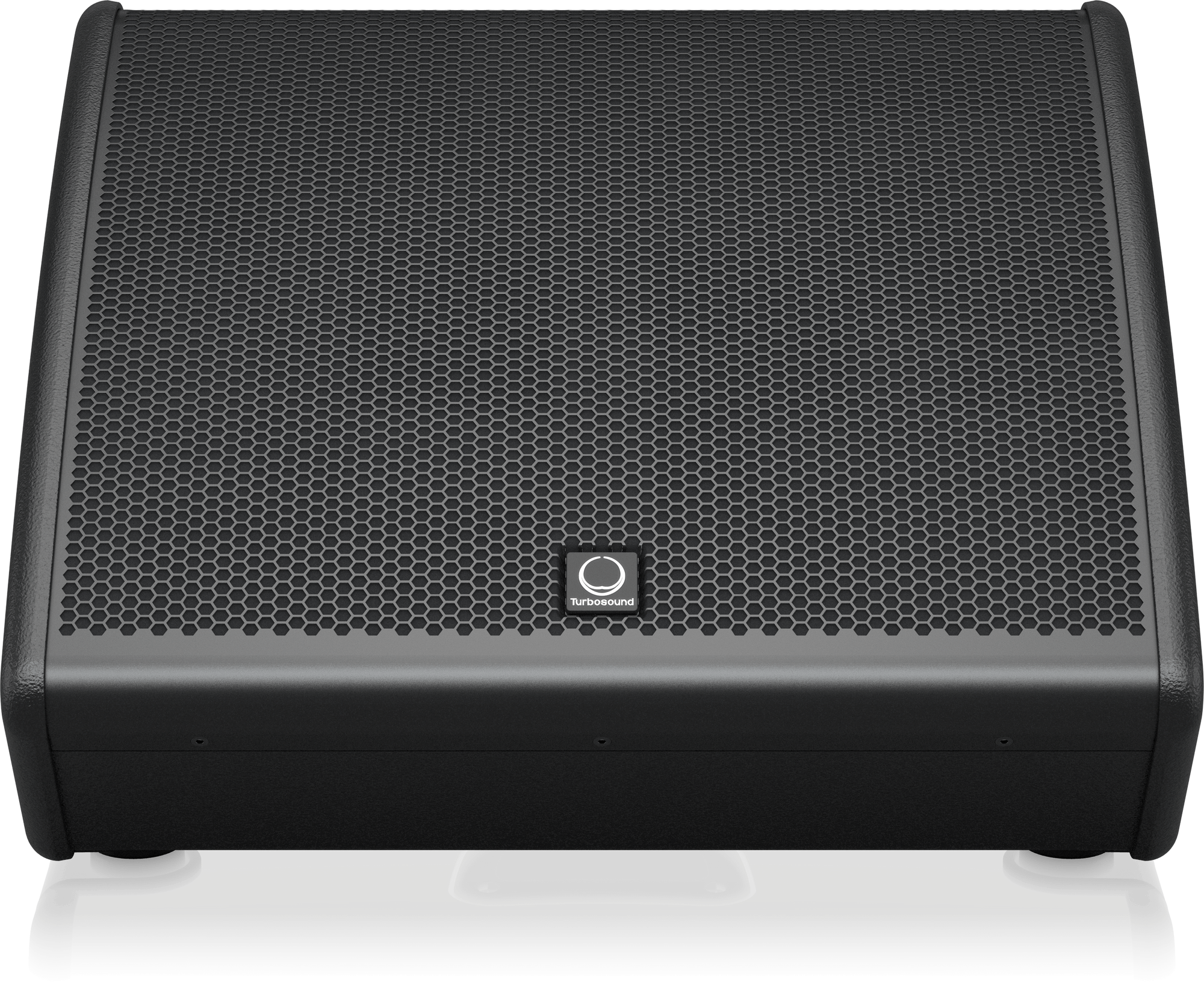

- Rugged powder coated perforated steel mesh grille
- Durable handle for easy lifting and carrying
Specifications
Core Specs & Power
-
Power Rating: 1,100 W Class-D amplifier (peak) with Klark Teknik DSP
-
Maximum SPL: 127 dB peak @ 1 m
-
Drivers: Custom-engineered 15″ LF with low-mass voice coil; 1″ titanium-dome HF on a 60° H × 40° V waveguide
DSP & Controls
-
DSP Features: Klark Teknik dynamic EQ, transparent limiting, delay, crossover, and user-adjustable settings via a 128×32 backlit LCD and encoder
-
Presets: 20 total (19 user-customizable)
-

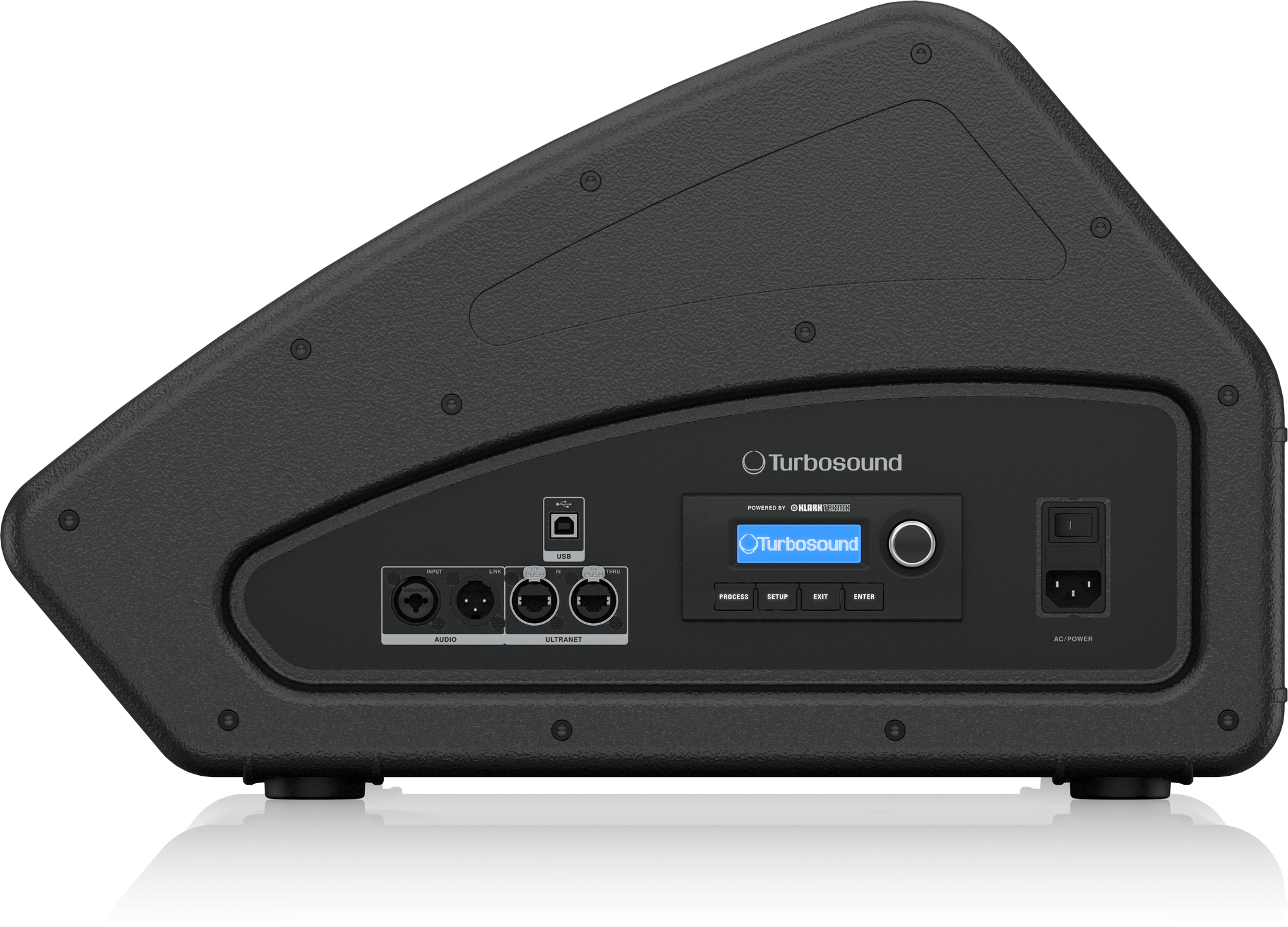

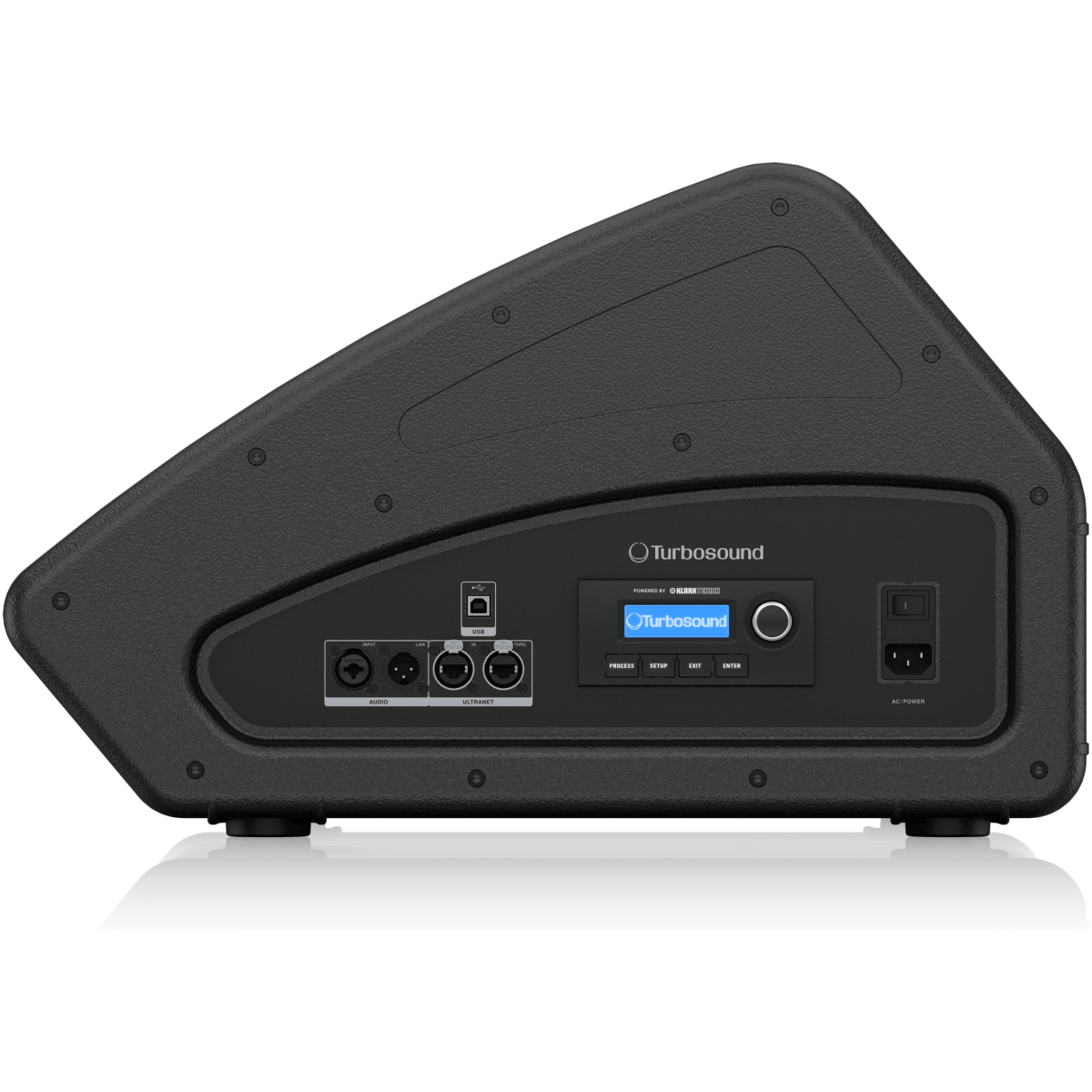

Connectivity: Combo XLR/TRS input, XLR link output, USB port for firmware and remote control
-
Networking: Dual ULTRANET (EtherCON RJ45) for 16-channel digital audio daisy-chaining
Physical & Build Details
-
Enclosure: Low-profile wedge, 15 mm birch plywood with fiberglass-reinforced composite ends, black semi-matte paint, steel grille
-

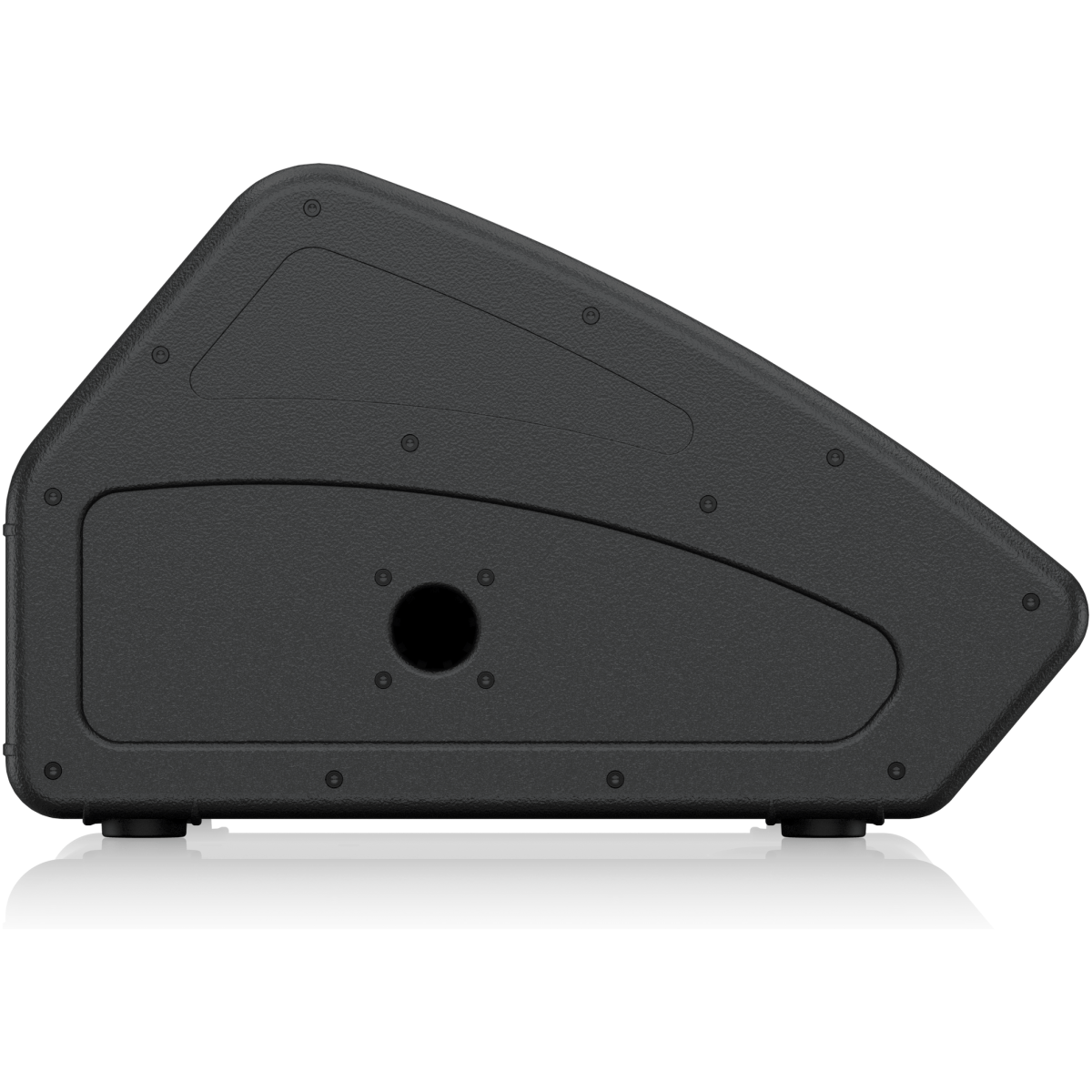

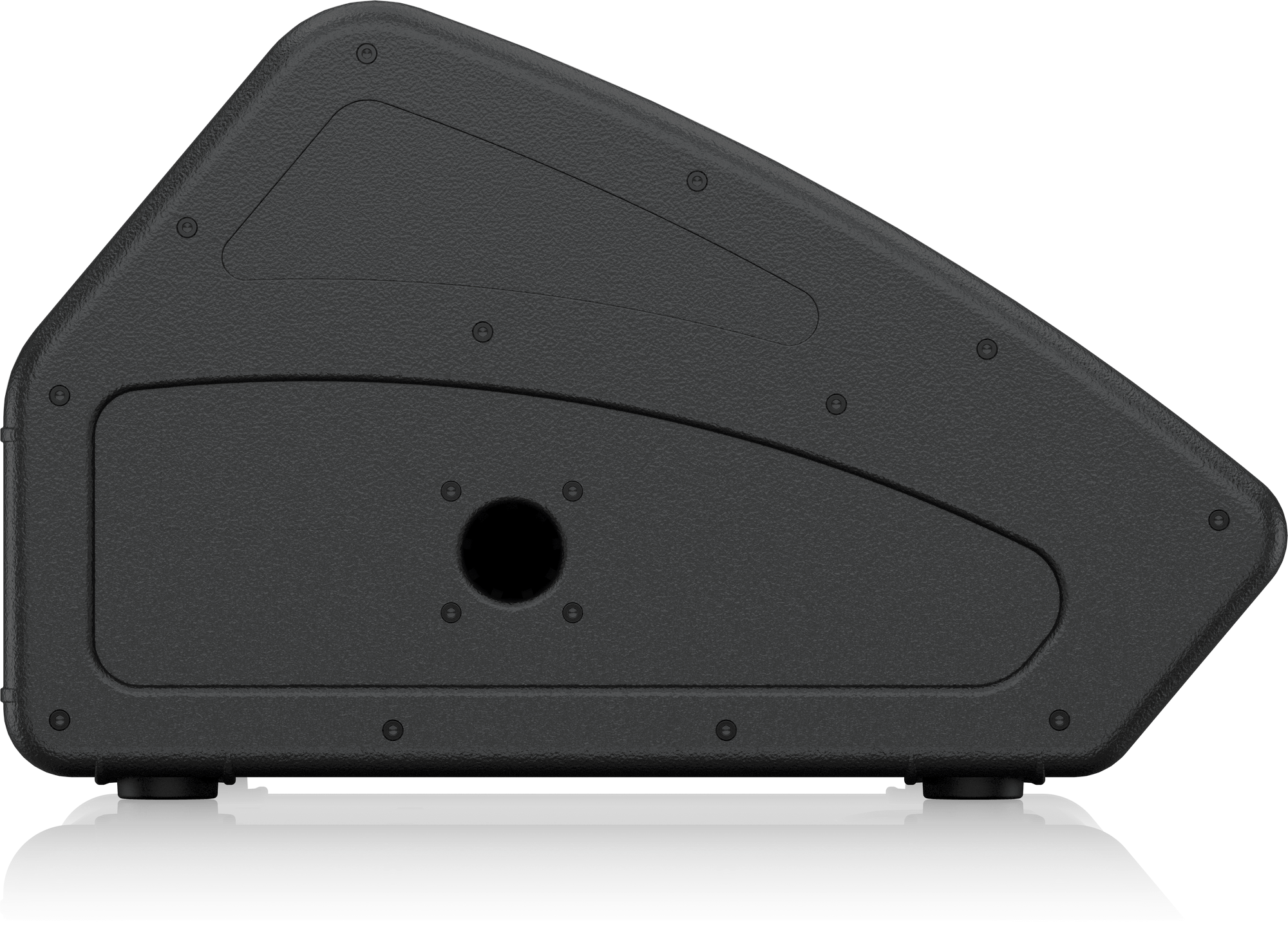

Pole Mount Socket: 35 mm for stand use
-
Handle: Rugged integrated carry handle
-
Dimensions (HxWxD): 351 × 530 × 565 mm (13.8″ × 20.9″ × 22.3″)
-
Weight: 21.5 kg (47.3 lb)
Summary Table
| Specification | Value |
|---|---|
| Power | 1,100 W peak Class-D |
| Max SPL | 127 dB peak @ 1 m |
| Drivers | 15″ LF + 1″ HF coaxial with waveguide |
| DSP Functions | EQ, limiting, delay, crossover, presets |
| Connections | Combo input, link output, USB, dual ULTRANET |
| Dimensions (HxWxD) | 351 × 530 × 565 mm |
| Weight | 21.5 kg |
| Enclosure | 15 mm plywood, composite ends, pole socket, handle |
