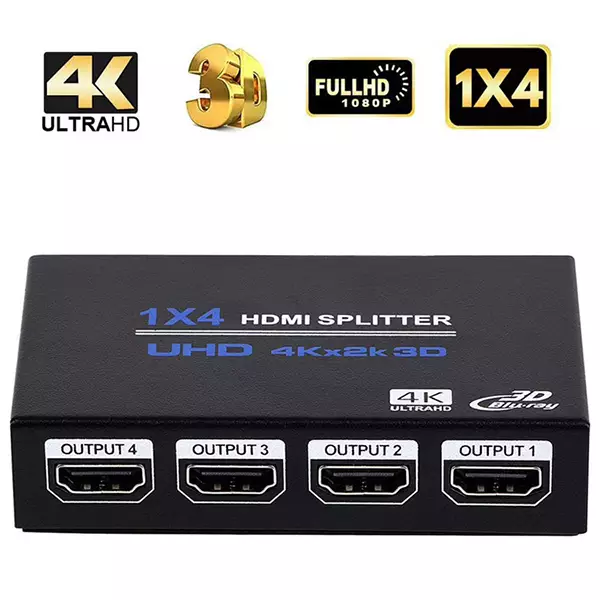

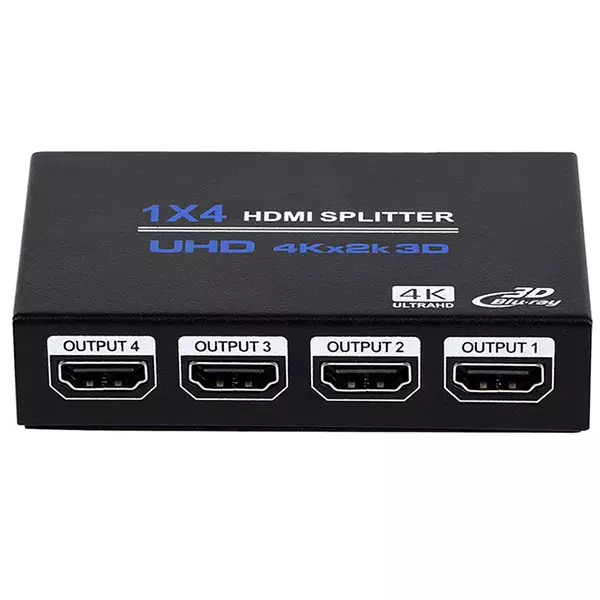

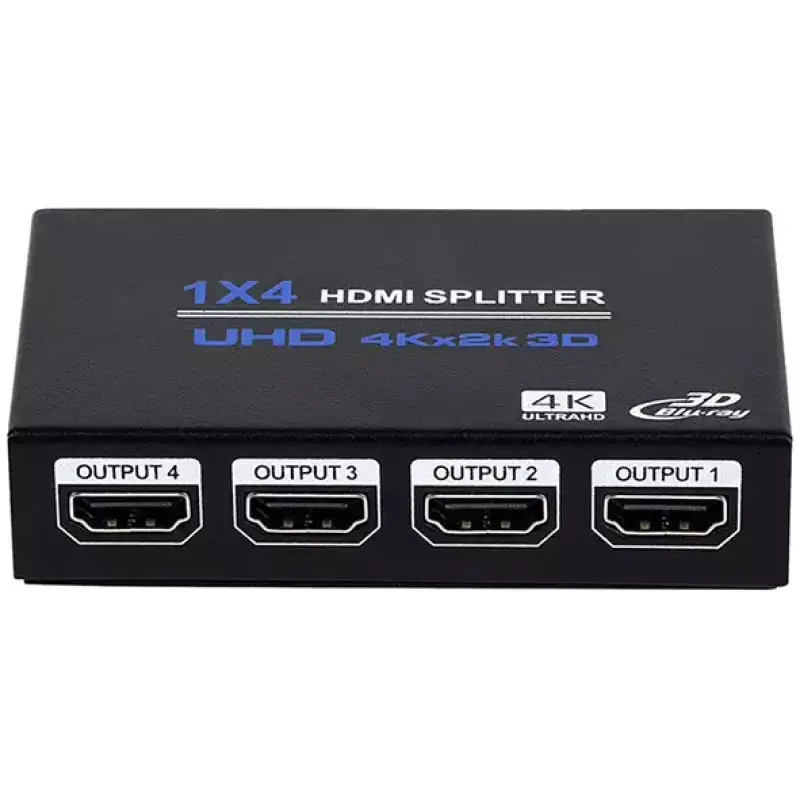

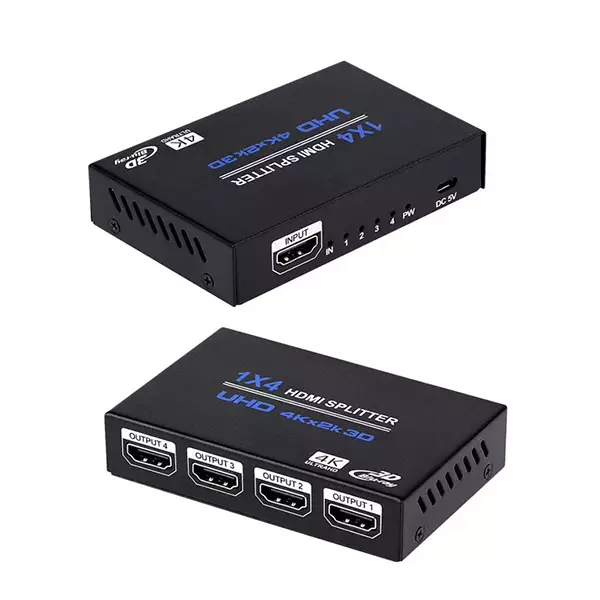

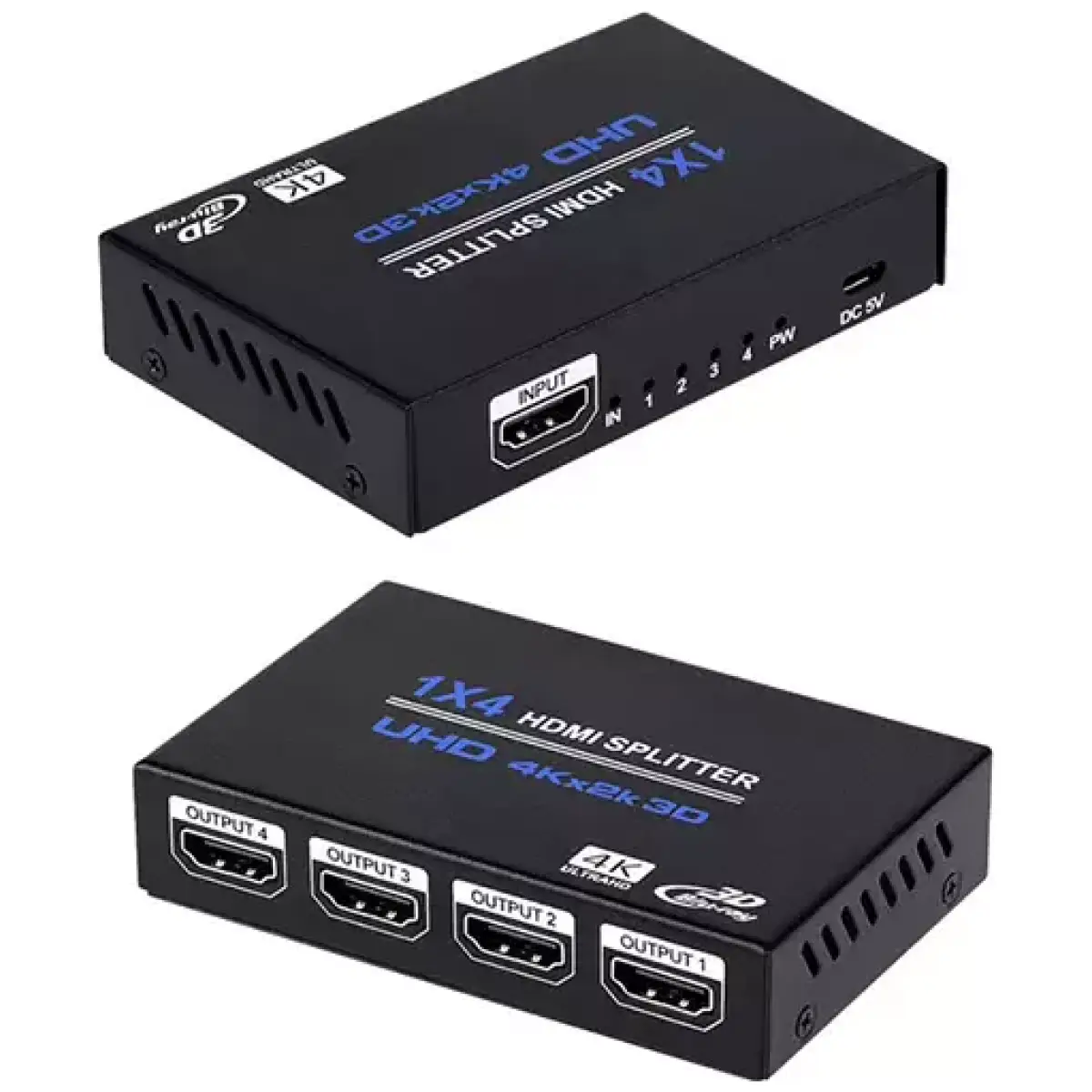

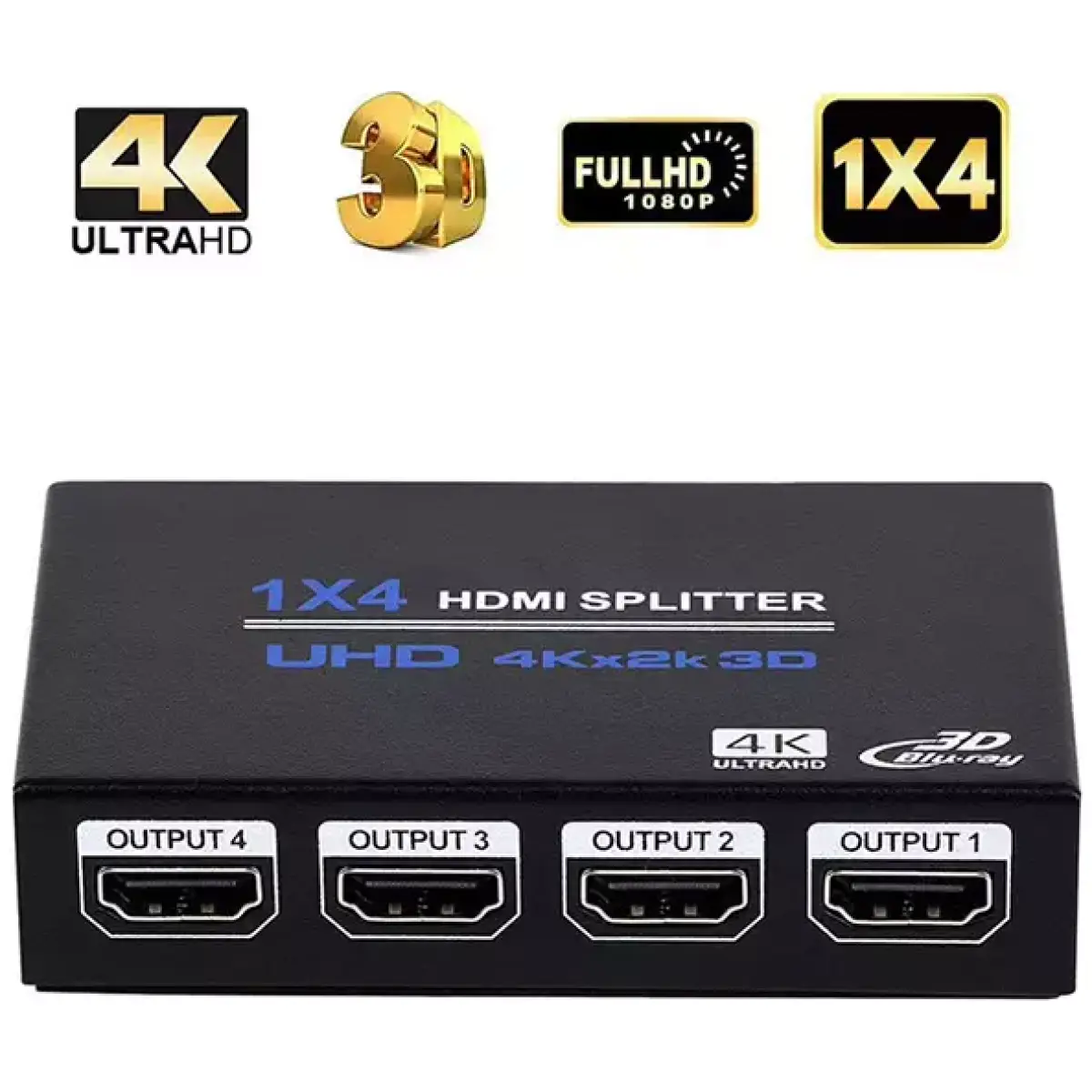

Tva – 1X4 Hdmi Splitter

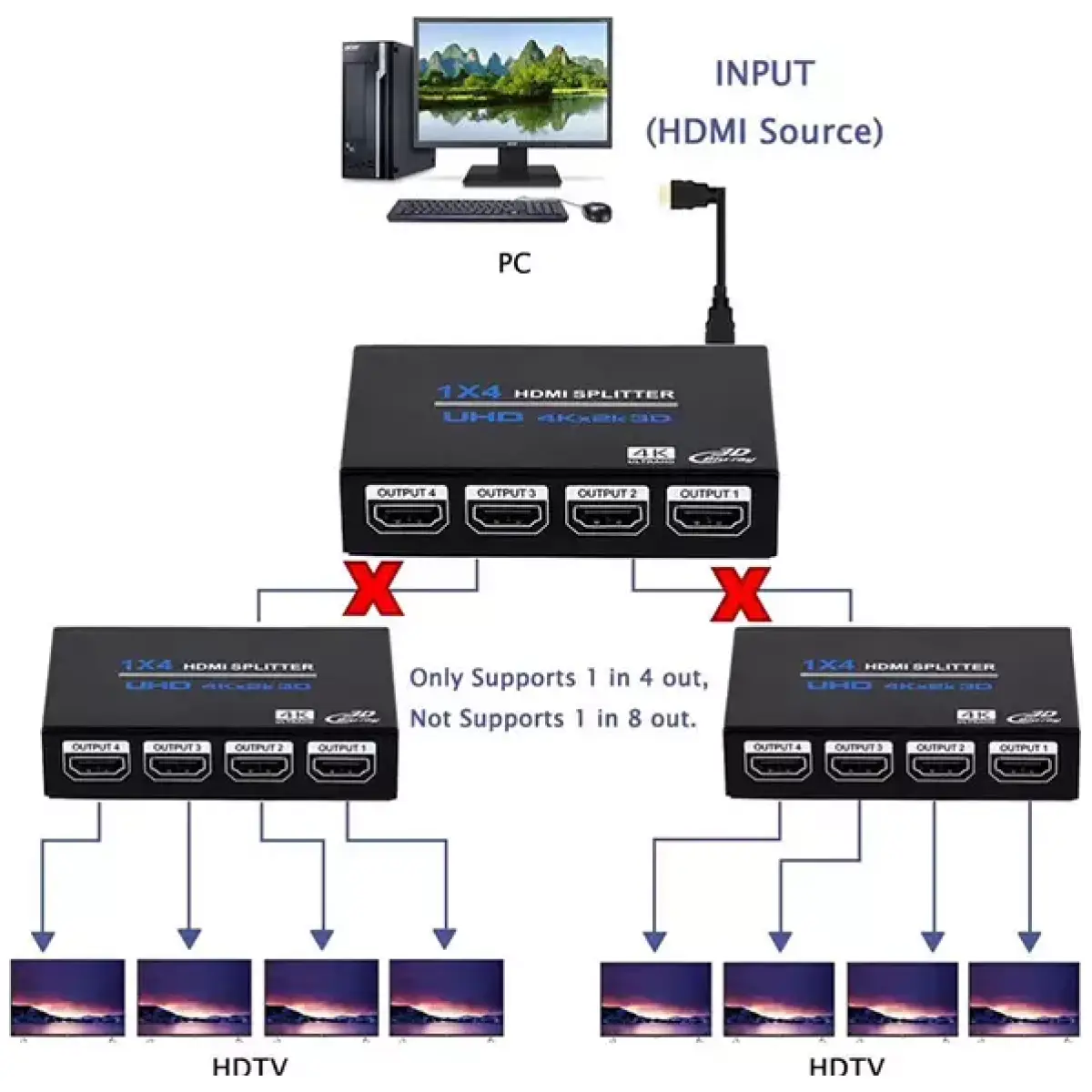

4K HDMI splitter to connect a single HDMI source to multiple displays at the same time. Use with HDMI cables of a combined 25m per output for HD resolution, or a combined 16m per output for 4K.

Features:

• Simple connection and installation
• Gold plated HDMI connectors for optimum signal transfer
• Supports HDMI v1.4b resolutions up to 3840 x 2160 @ 30Hz
• Power adaptor supplied
• Ideal for entertainment, hospitality and other commercial venues requiring multiple display feeds from a single HDMI source
• Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats

Specifications:

• HDMI version: v1.4b
• Video resolution: Up to 3840 x 2160 @ 30Hz
• Display colours: 8/10/12bit deep colour
• Audio format: DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
• Max. bandwidth: 340MHz
• Max. baud rate: 3.4Gbps

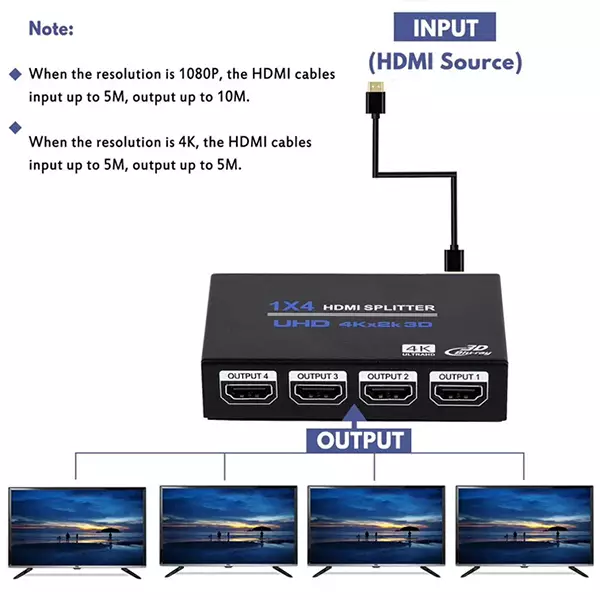

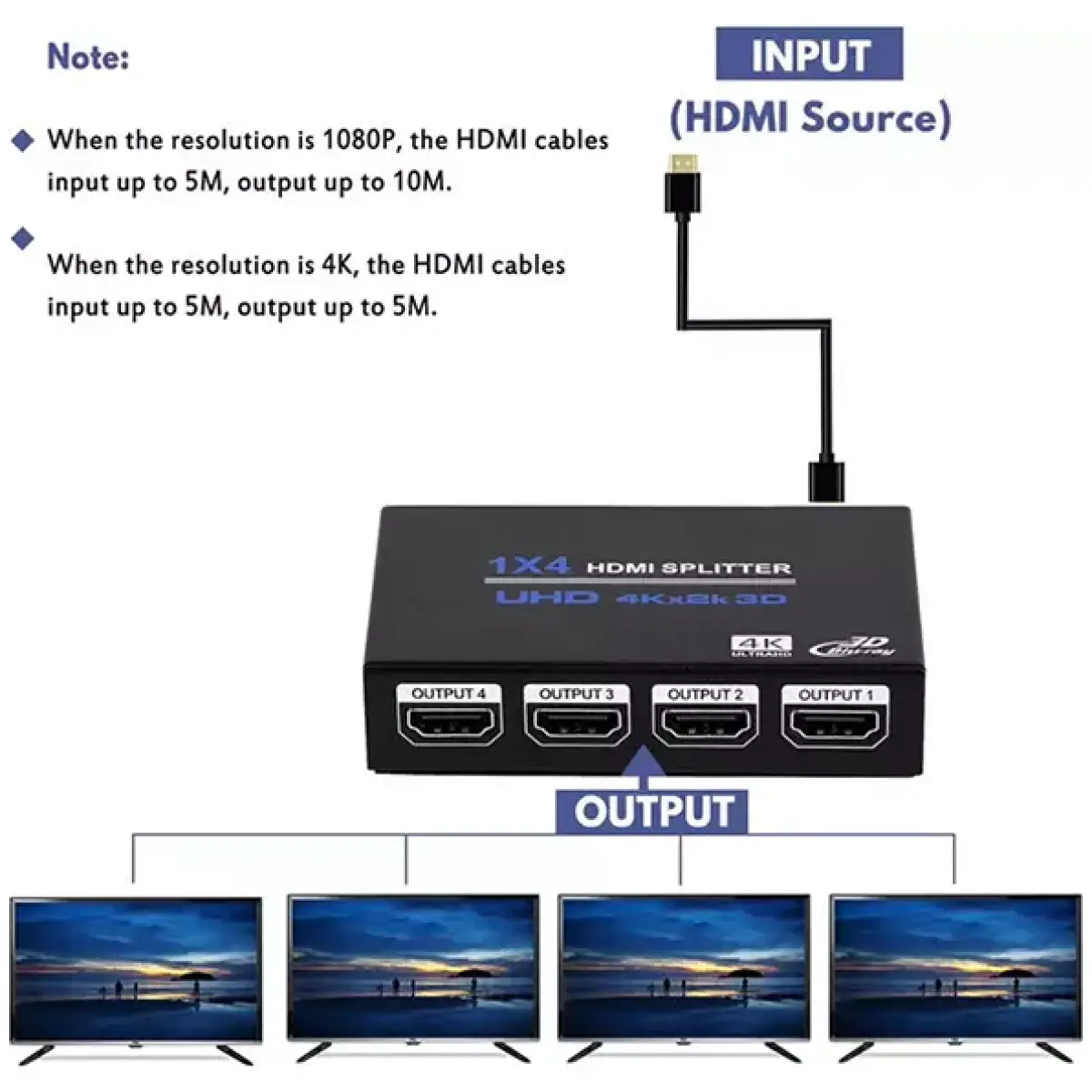

• Transmission distance: 25m max HD or 16m max 4K (15m input/10m output @ 1080p and 8m input/output @ 4K)
• Operating temperature range: -15°C to +55°C
