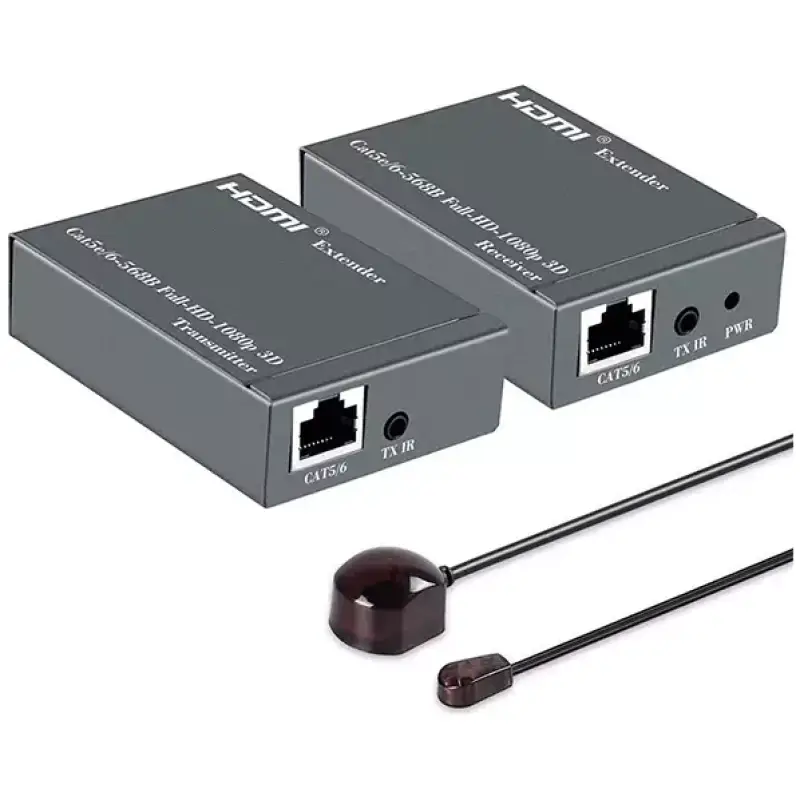

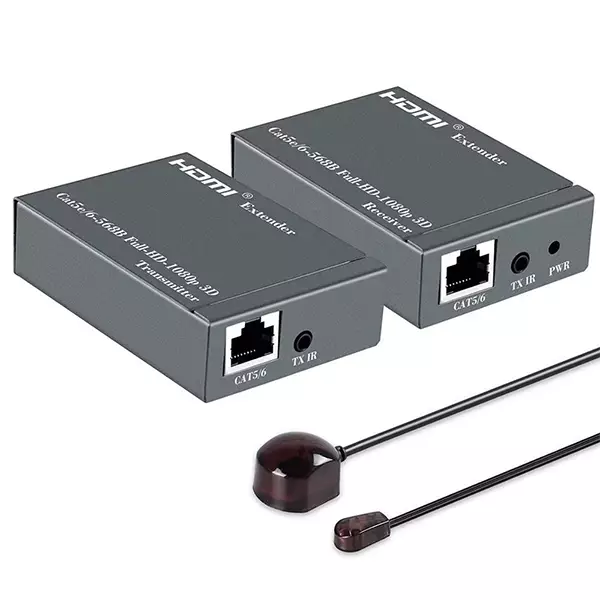

Tva – Hdmi Over CAT5/6 Extender

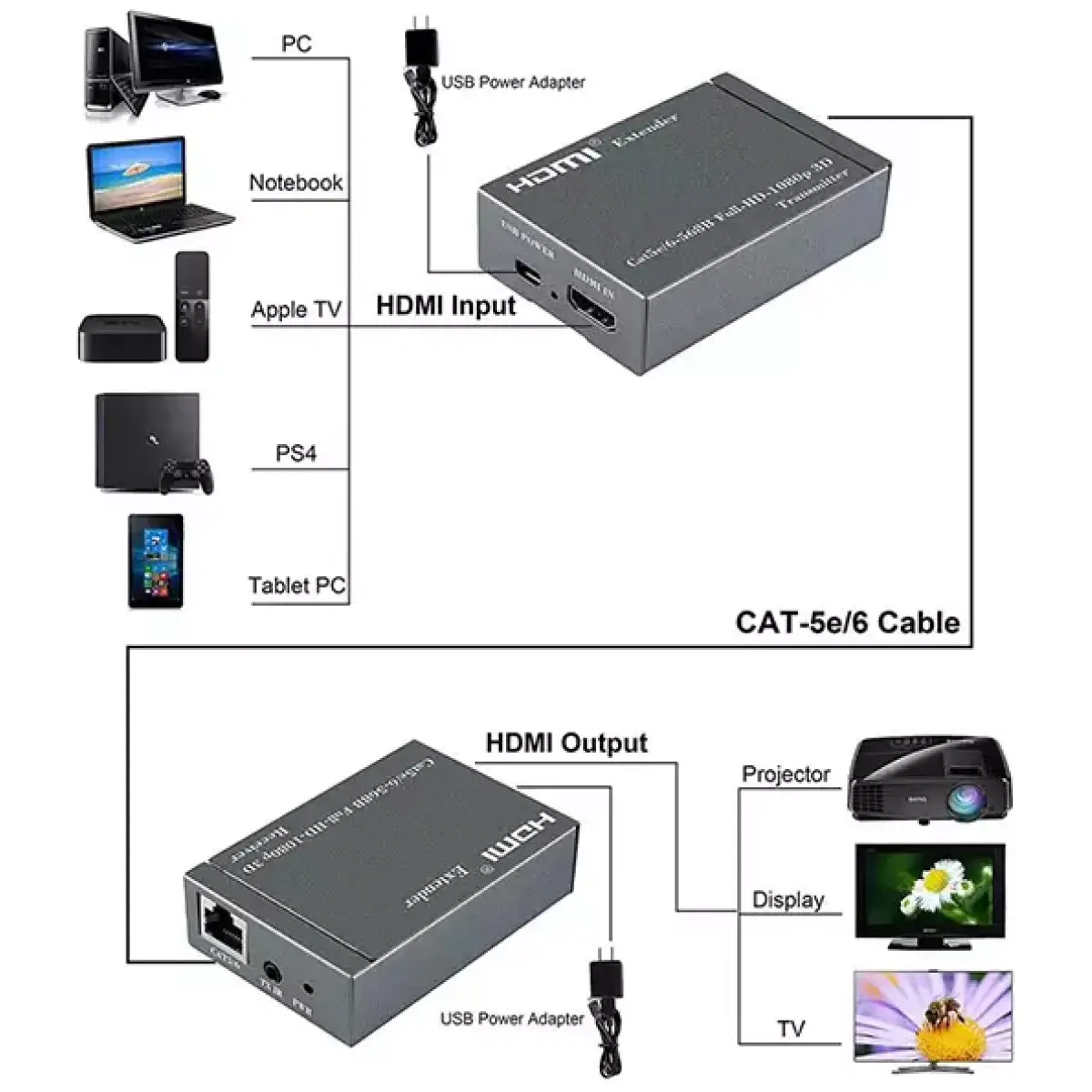

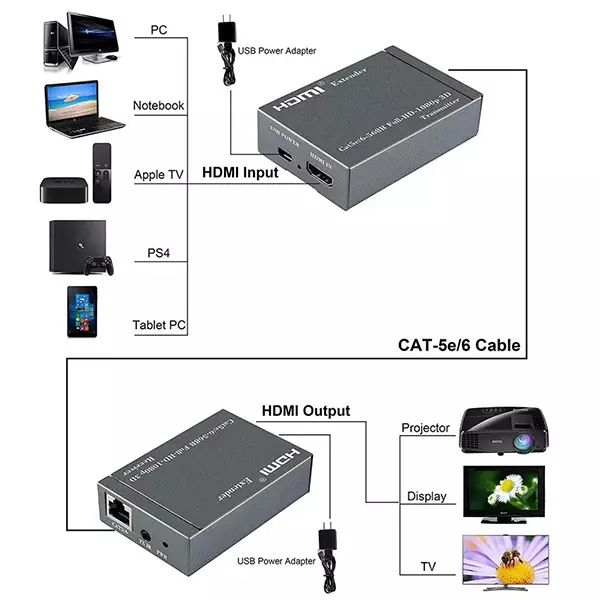

The extender uses single cat-5E or cat-6 (recommended) cables instead of HDMI cable to transmit high definition signal up to 60m, cutting down the cost. It is designed to supply long distance transmission of high definition signal. A solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features:

• Support HDMI 1.4a
• Support 3D
• Support highest video resolution 1080p/60Hz
• Support 1.65Gbps data rate and tmds clock up to 165MHz
• Support 8/10/12 bit deep color
• Support AWG26 HDMI standard cable, input up to 15m, output up to 20m

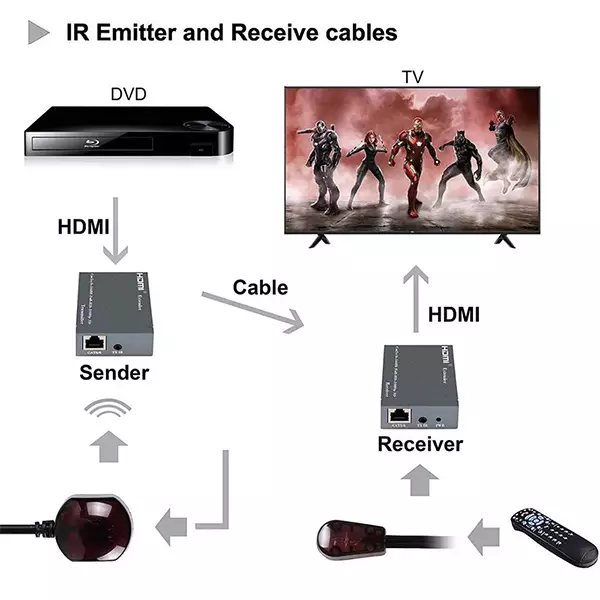

• Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to
• 60m between TX and RX
• No loss of quality
• 5V/1A power supply included

Specifications:

• HDMI Input: 24/50/60fs/1080p/1080i/720P//576p/576i/480P/480i
• Support Audio Input: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
• HDMI Output: 24/50/60fs/1080p/1080i/720P//576p/576i/480P/480i
• Support Audio Output: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
• Max bandwidth: 165MHz
• Max baud rate: 1.65Gbps
• Input video signal: 0.5-1.5 Volts pp
• Output DDC signal: 5Volts p-p (TTL)
• Temperature: -15 degree to +55 degree
• Using humidity: 5% to 90% RH (no condensation)
• TX Max working current: 510mA
• RX Max working current: 100mA
• Power adapter format: Input: AC (50Hz, 60Hz) 100V-240V; Output:DC 5V/1A
• Dimensions(L*W*H): 81X43X22mm
• TX weight: 100g
• RX weight: 120g
