Audio-Technica VM520EBH

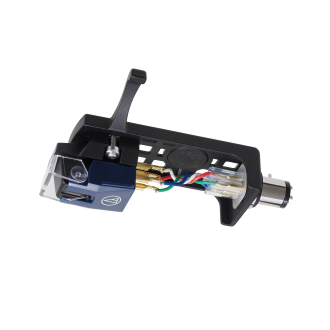

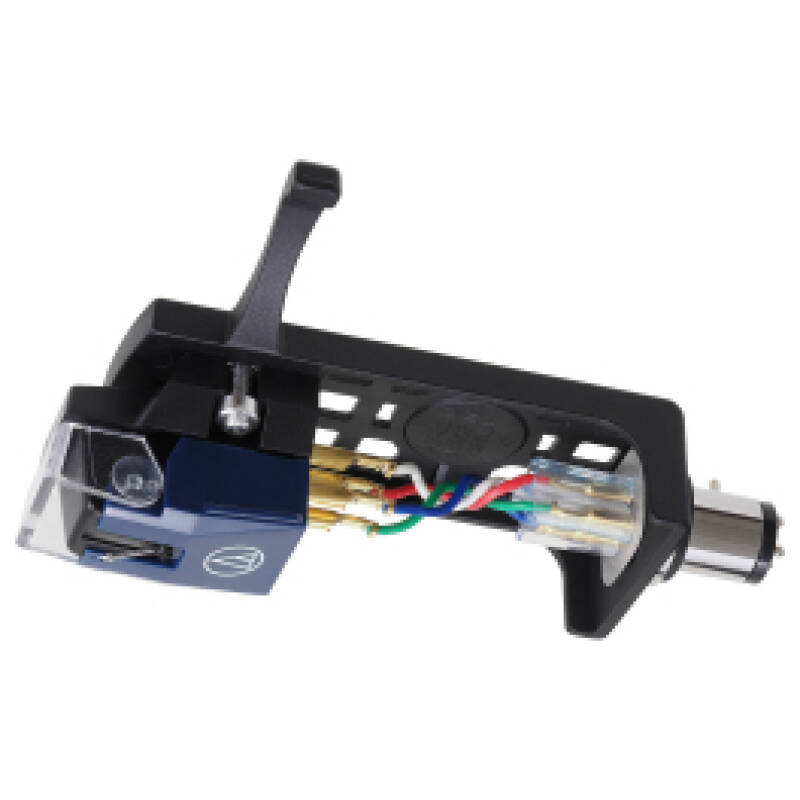

The VM520EB/H combo kit includes the VM520EB elliptical bonded dual moving magnet cartridge premounted on the AT-HS10BK universal 1/2″-mount headshell.

The VM520EB is part of the 500 Series in Audio-Technica?s new VM cartridge line ? a line that harks back to A-T?s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today?s advanced technology. Like all VM cartridges, the VM520EB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge?s 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Includes mounting hardware.

Specifications:

Frequency Response
20-23,000 Hz

Channel Separation
27 dB (1 kHz)

Vertical Tracking Angle
23?

Vertical Tracking Force
1.8-2.2 g (2.0 g standard)

Stylus Construction
Bonded round shank

Recommended Load Impedance
47,000 ohms

Coil Impedance
2,700 ohms (1 kHz)

DC Resistance
800 ohms

Coil Inductance
460 mH (1 kHz)

Recommended load capacitance
100-200 pF

Output
4.5 mV (at 1 kHz, 5 cm/sec)

Channel Balance
1.5 dB (1 kHz)

Stylus Shape
0.3 x 0.7 mil elliptical

Cantilever
Aluminum pipe

Static Compliance
35 x 10-6 cm/dyne

Dynamic Compliance
8 x 10-6 cm/dyne (100 Hz)

Mount
Half-inch

Weight
Cartridge 6.4 g (0.2 oz); Cartridge & Headshell 16.8 g (0.6 oz)

Dimensions
Cartridge 17.3 mm (0.7″) H x 17.0 mm (0.7″) W x 28.2 mm (1.1″) D; Cartridge & Headshell 21.3 mm (0.8″) H x 21.0 mm (0.8″) W x 60.4 mm (2.4″) D

Replacement Stylus
VMN20EB
