Key Features:
- Stereo Power Output (RMS):
- 8 Ω x 2: 1000 W
- 4 Ω x 2: 1500 W
- Bridged Mono Power Output (RMS):
- 8 Ω: 3000 W
- Frequency Response: 20 Hz – 30 KHz
- Topology: Class H
- Inputs: 2 x XLR
- Outputs: 2 x NL4, 2 x binding posts, 2 x XLR
- Input Sensitivity & Impedance:
- Sensitivity: 0 dBu (0.775 Vrms)
- Balanced XLR input: 20 KΩ
- Maximum Input Level: 22 dBu (9.7 Vrms)
- Voltage Gain: 42 dB
- Slew Rate: >40 V/µs
- Crosstalk: <-75 dB
- Signal-to-Noise Ratio (S/N): >100 dB
- Distortion (1 W): <0.02%
- Damping Factor: >300
- Controls:

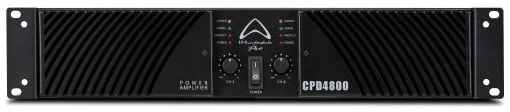

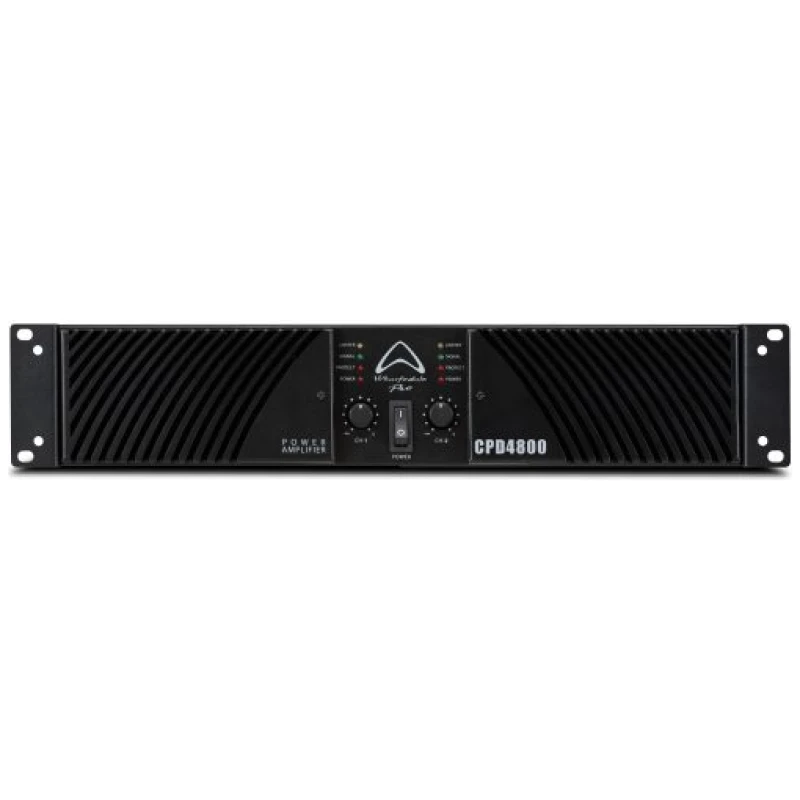

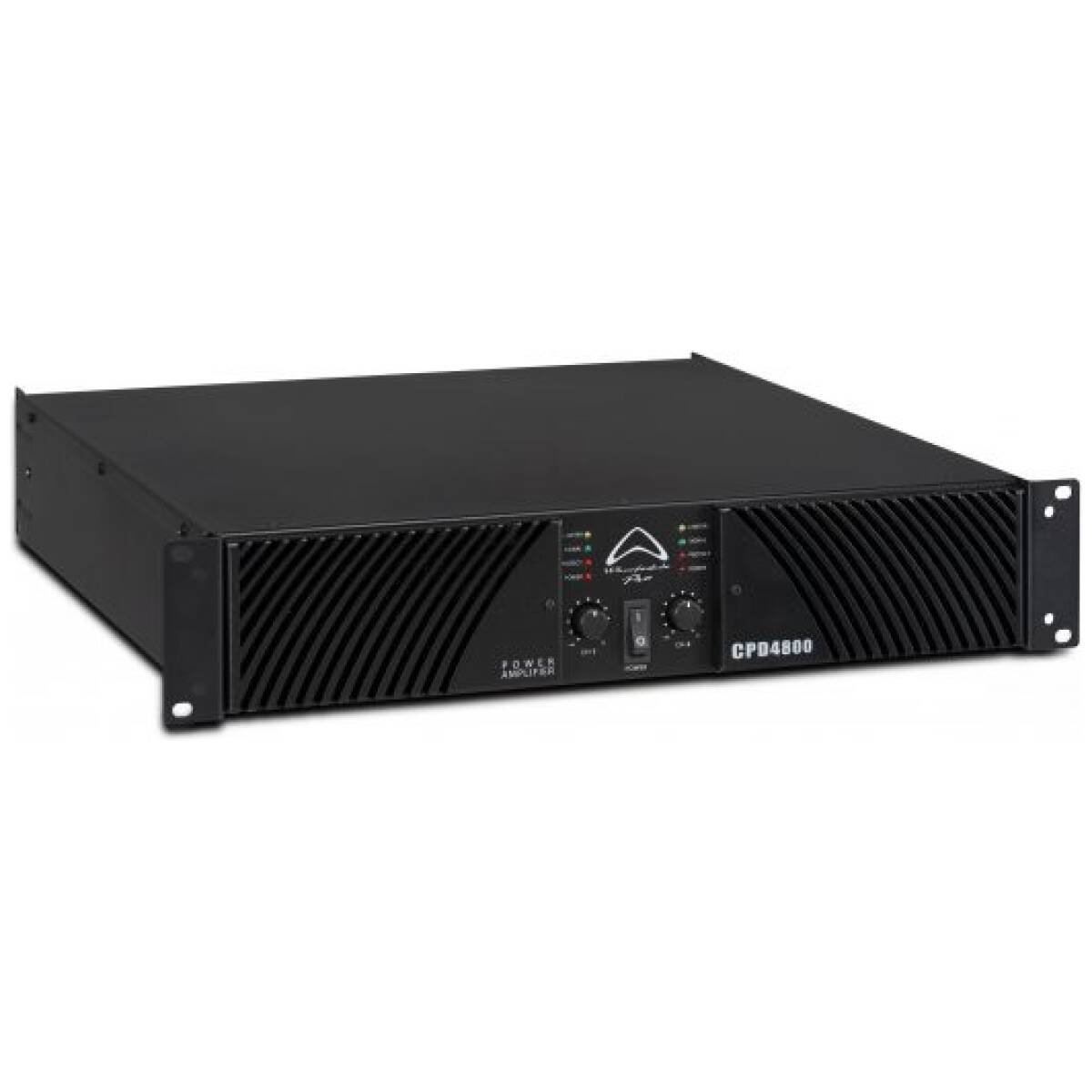

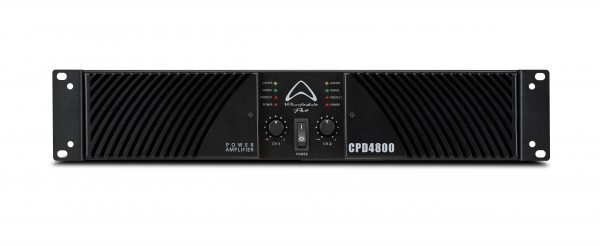

- Front panel: AC Switch, CH 1 and CH 2 Gain Knobs

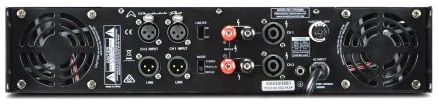

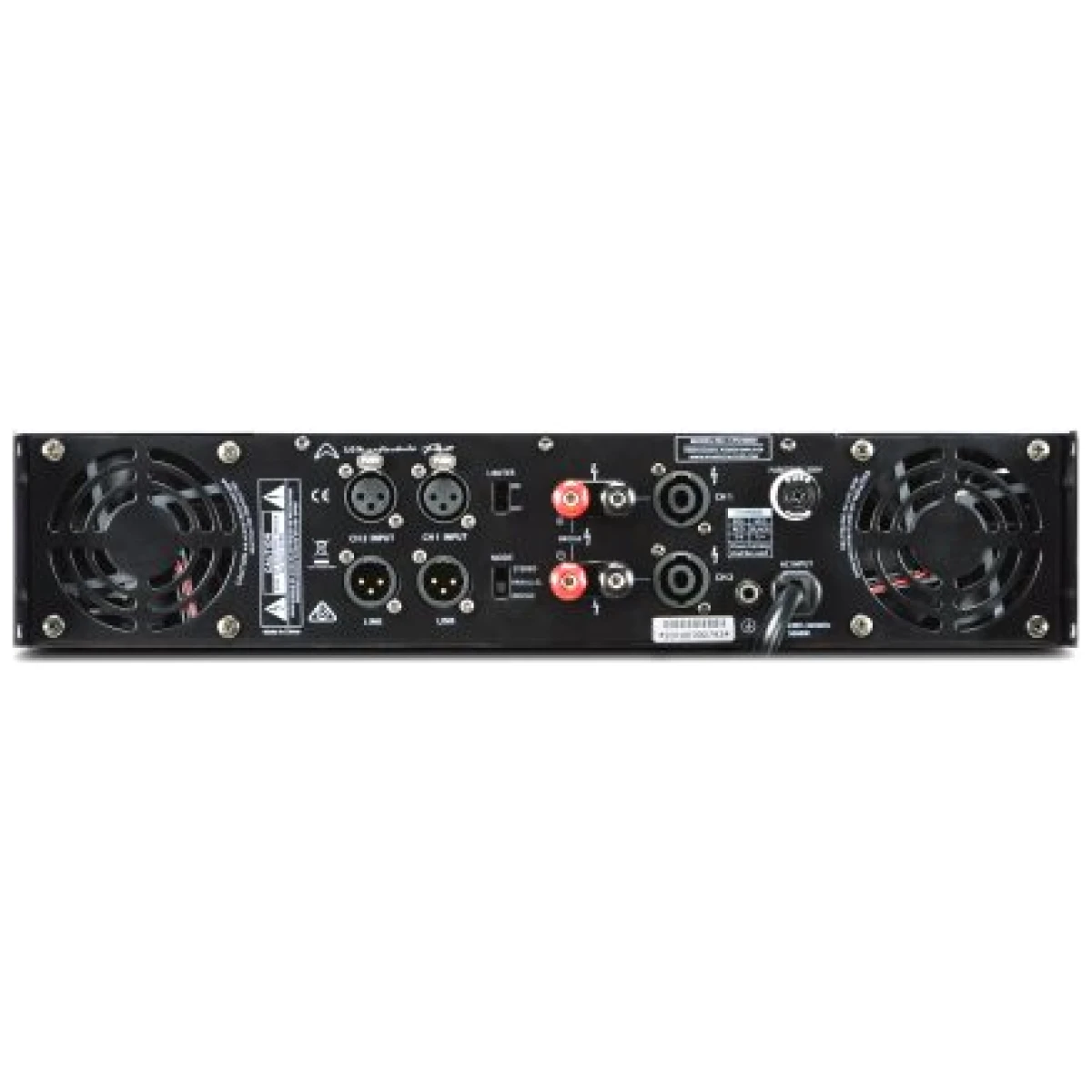

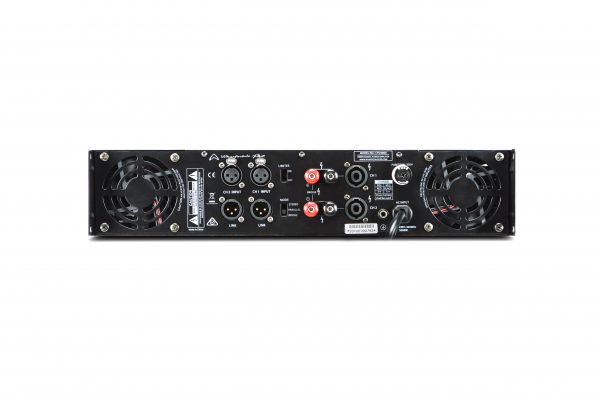

- Rear panel: Parallel, Stereo & Bridge Mode Switch; Limiter Switch
- Protections: Thermal, Over-current, Output DC, Output short, Power on/off mute
- Indicators: Power, Protect, Signal, Peak
- Cooling: Variable Speed Fan
- Dimensions: 88 x 483 x 450 mm
- Net Weight: 23.5 kg
- Gross Weight: 27 kg
