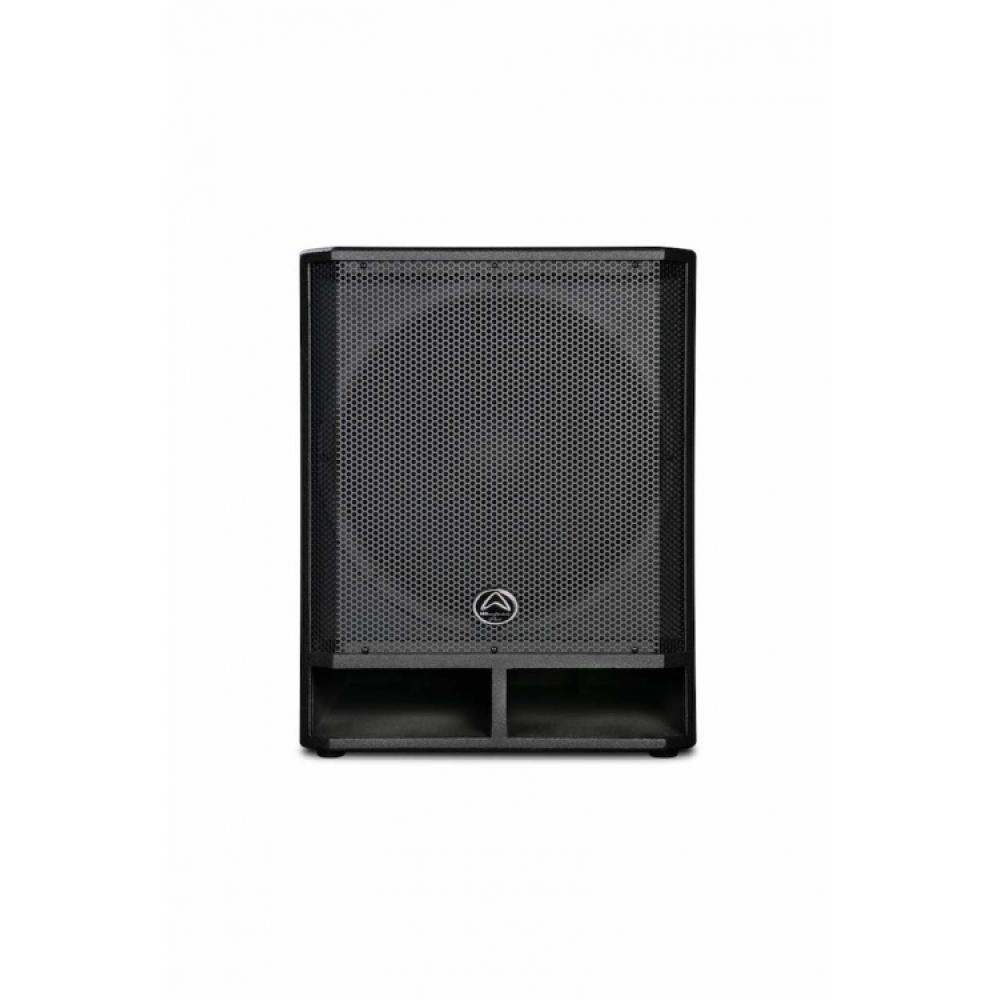

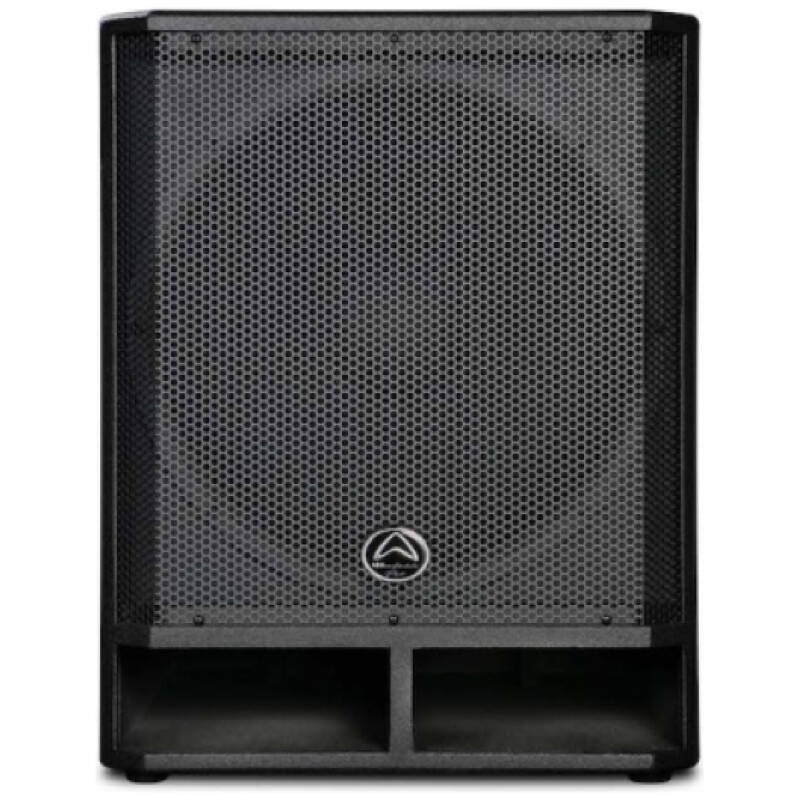

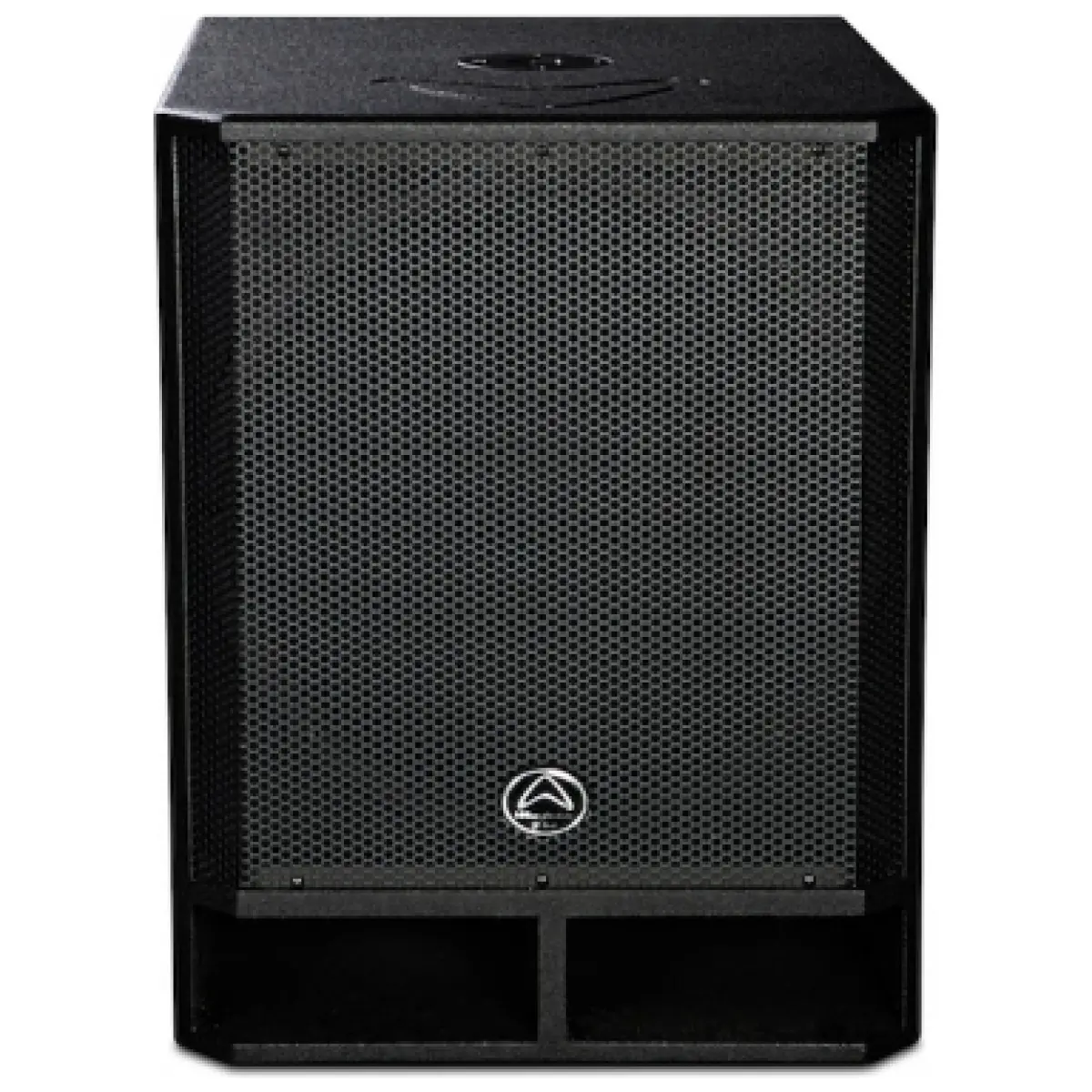

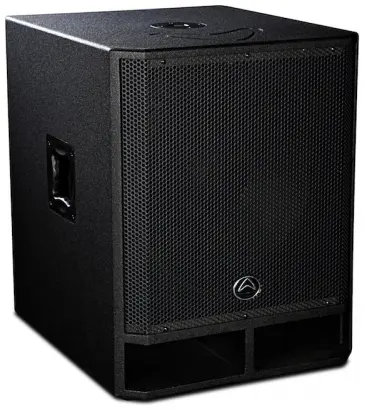

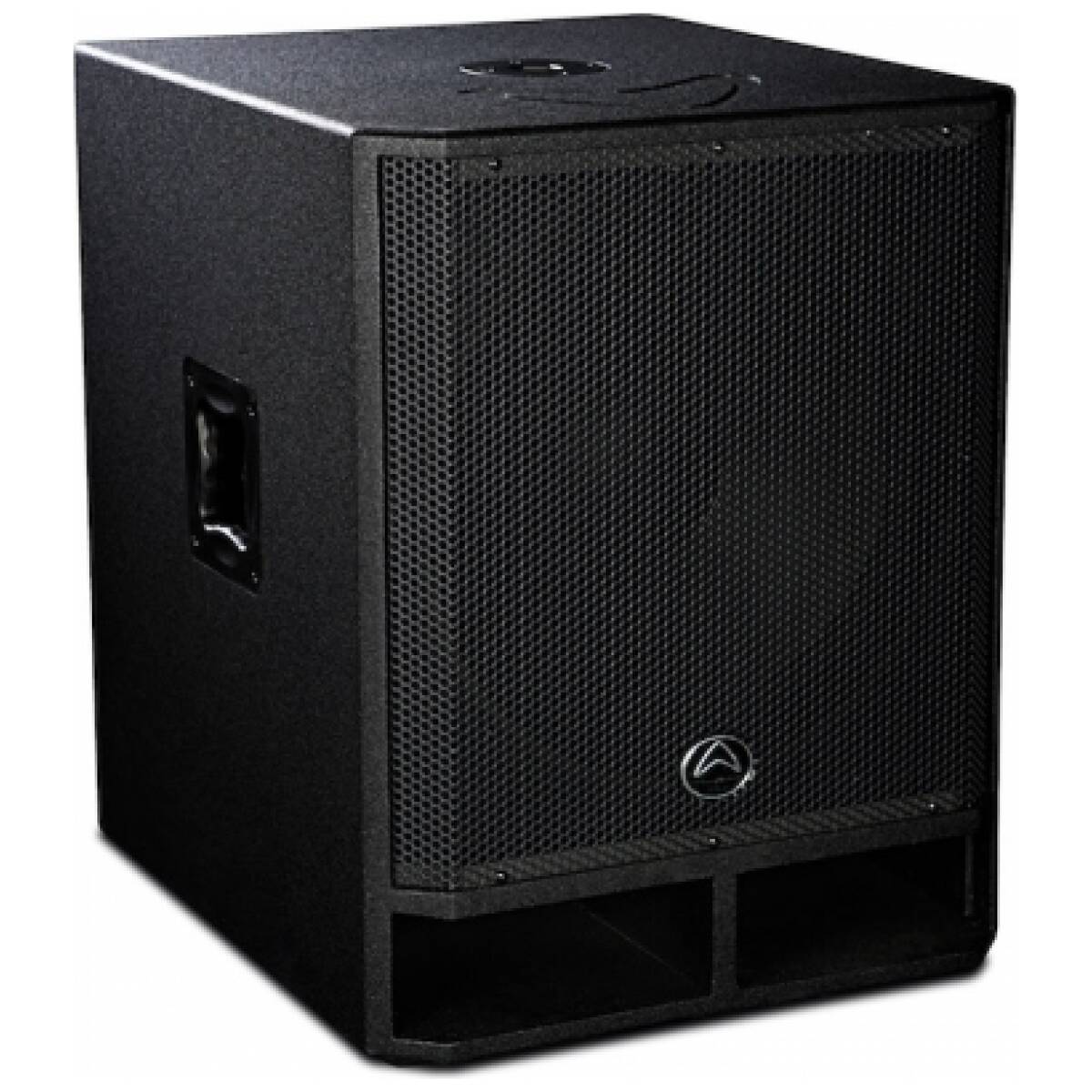

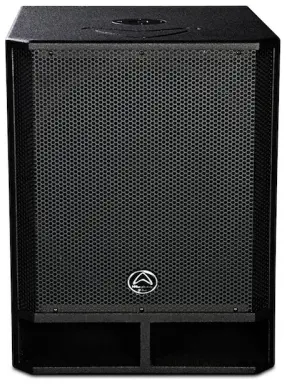

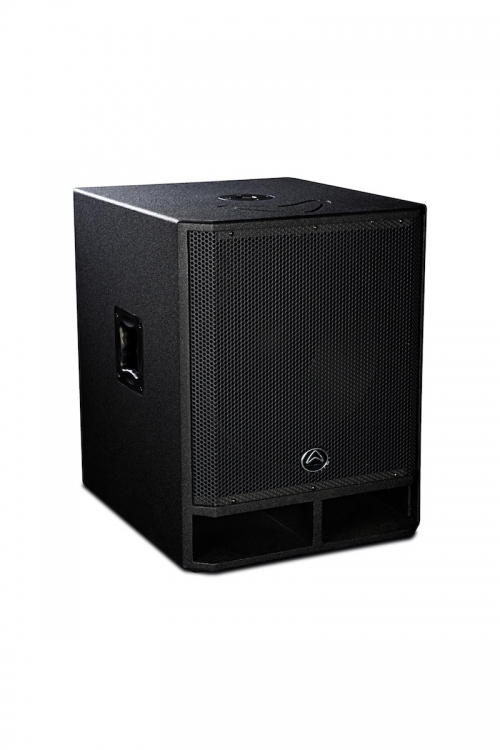

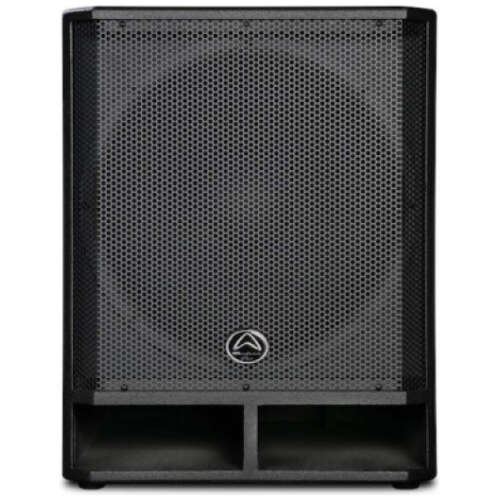

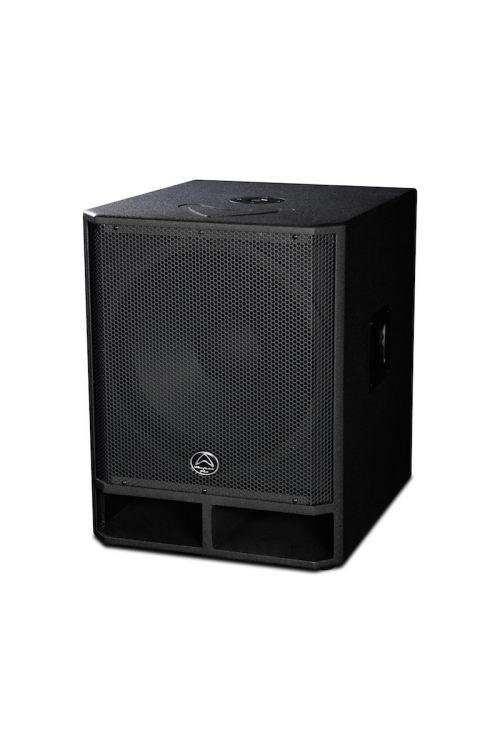

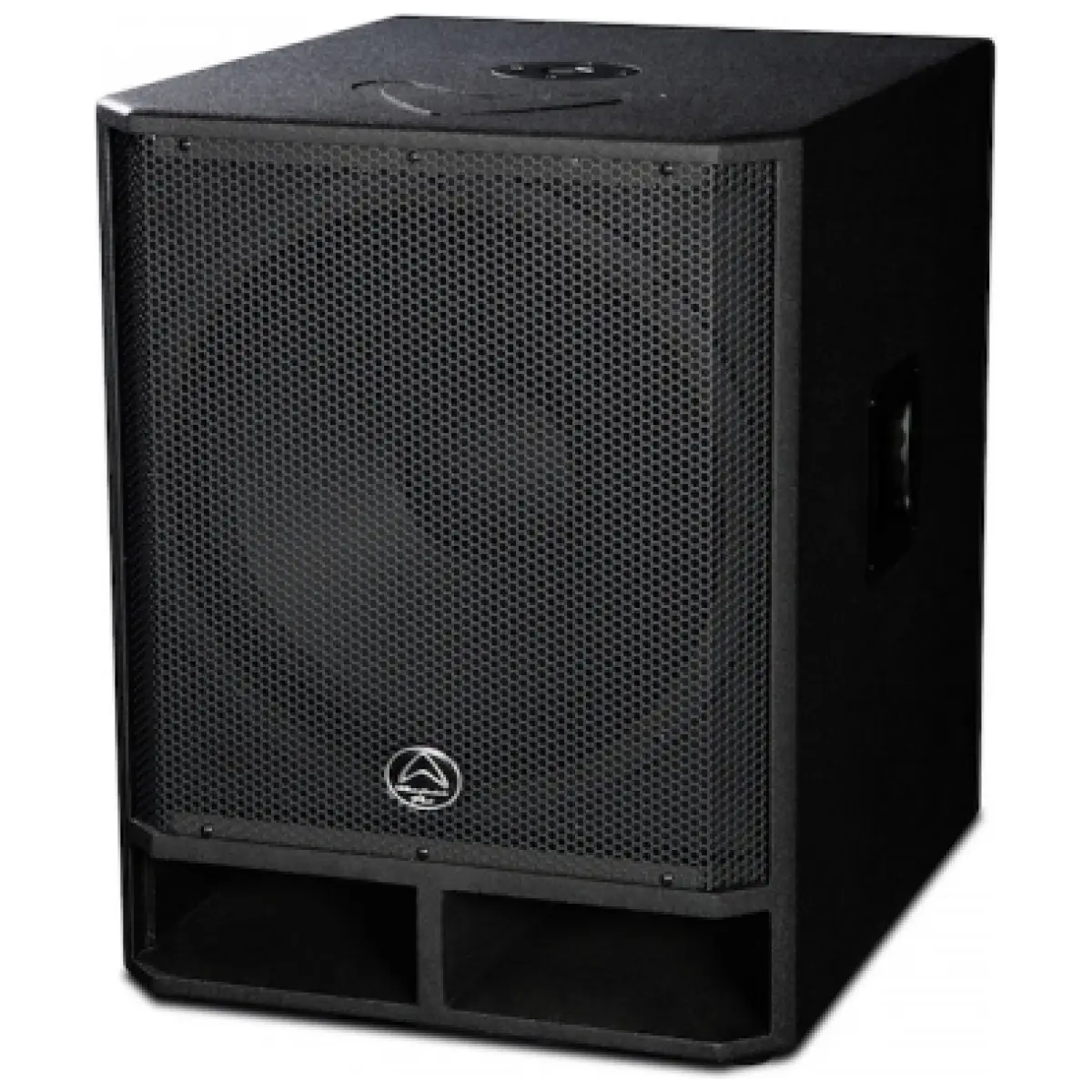

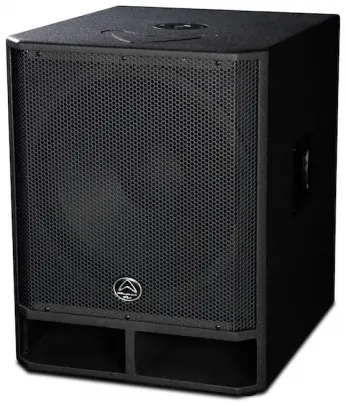

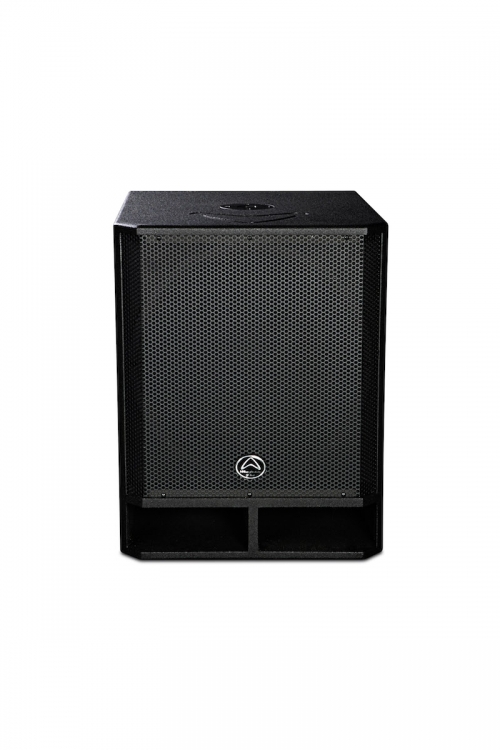

Wharfedale EVO-X18B 18″ Passive Bass Bin

The Wharfedale Evox18B is a high-performance 18″ passive bass bin designed to deliver powerful and precise low-frequency reinforcement for professional sound systems. Built for durability and acoustic excellence, this bass bin is the perfect addition to any PA setup, whether for live events, touring, or fixed installations.

Key Features:

• 18″ High-Performance LF Driver: Delivers deep, punchy bass for impactful sound reproduction.
• Rugged Construction: Built with durable materials to withstand the demands of live performances and road use.
• Impressive Sound Output: Ensures clear, rich low-end frequencies that enhance the overall audio experience.
• Seamless Integration: Designed to pair perfectly with other Wharfedale Pro speakers for a balanced, full-range system.
• Versatile Application: Ideal for concerts, outdoor events, clubs, and installations requiring professional-grade sound.

SPECIFICATIONS

Model name : EVO-X18B
System Type : Passive
Configuration : Subwoofer
Frequency Response (+/-3dB) : 35Hz-250Hz
Frequency Range (-10dB) : 30Hz-250Hz
Sensitivity (2.83v/1m) : 100dB
System rated impedance : 4Ω
Calculated Maximum SPL @1m : 134dB

Low Frequency Transducer
Size : 470mm / 18″
Voice coil size : 76.2mm / 3″
Rated impedance : 4Ω
LF Power (re:AES-2012) : 600w

Power
System continuous power : 600w
System programme power : 1200w
System peak power : 2400w
Crossover Frequency : 150Hz

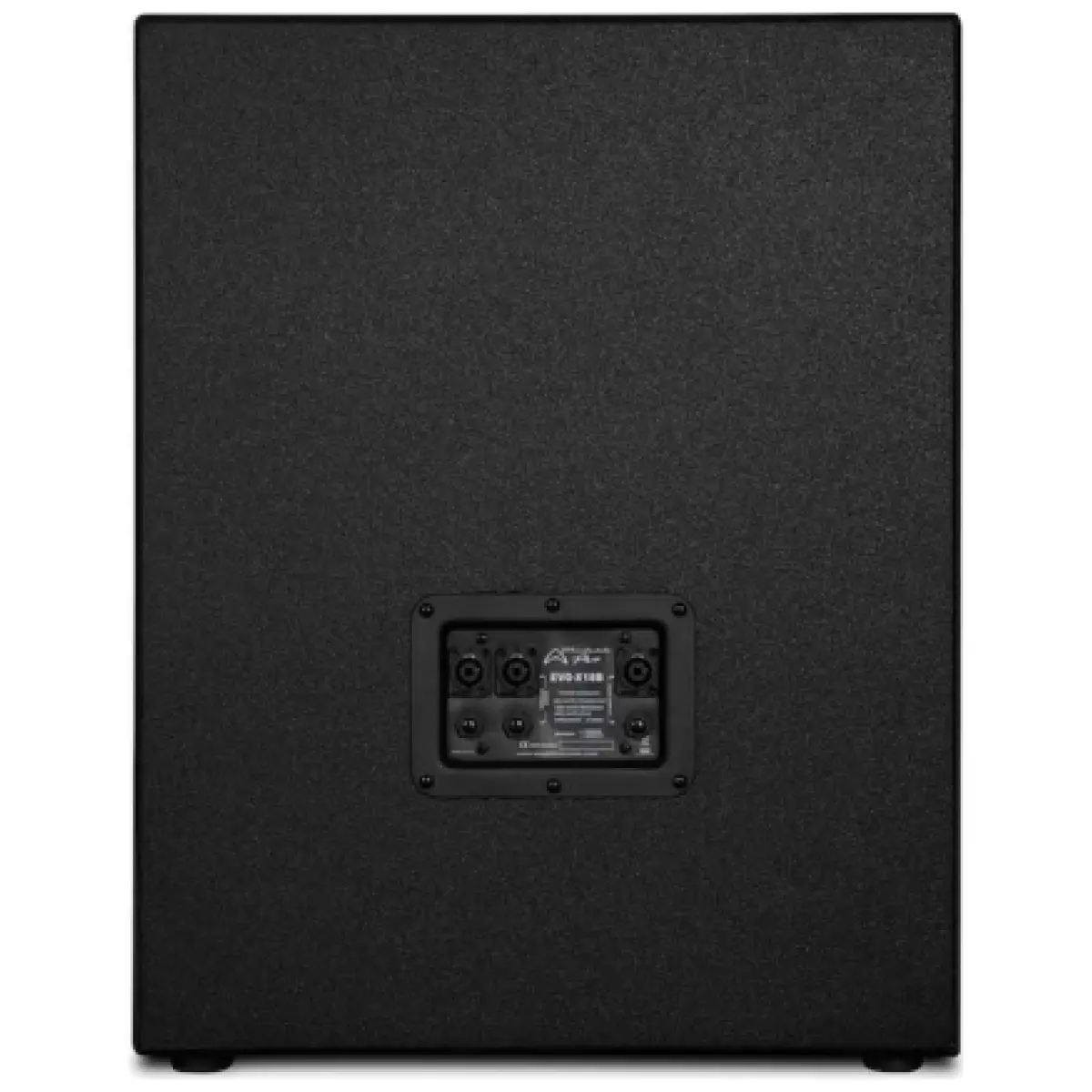

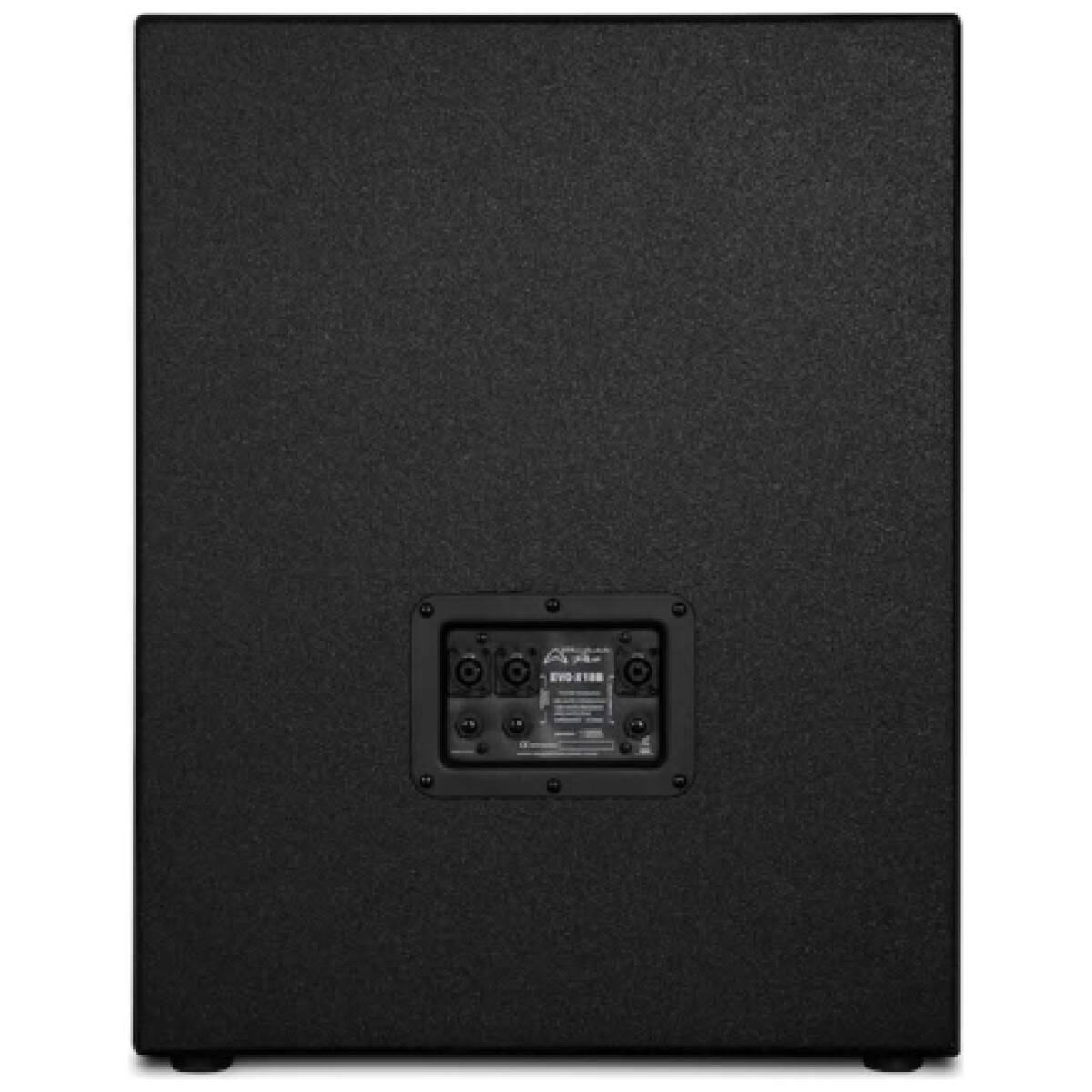

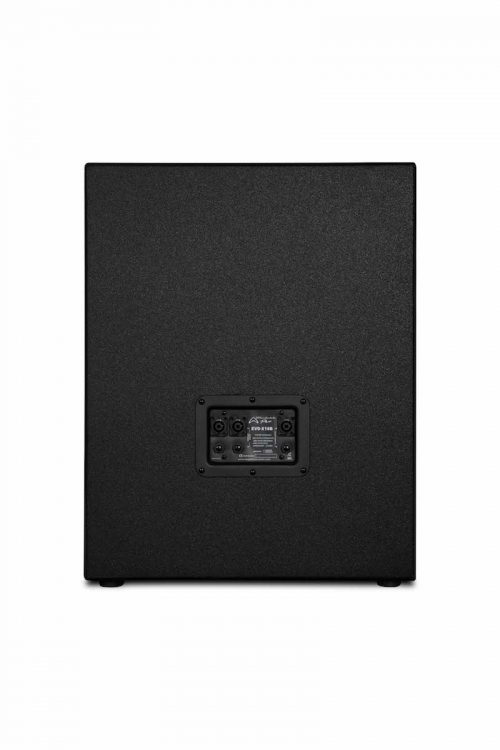

Input connectors : 2 x NL4 (speakON Compatible) + 2 x 1/4″ Jacks

Hardware

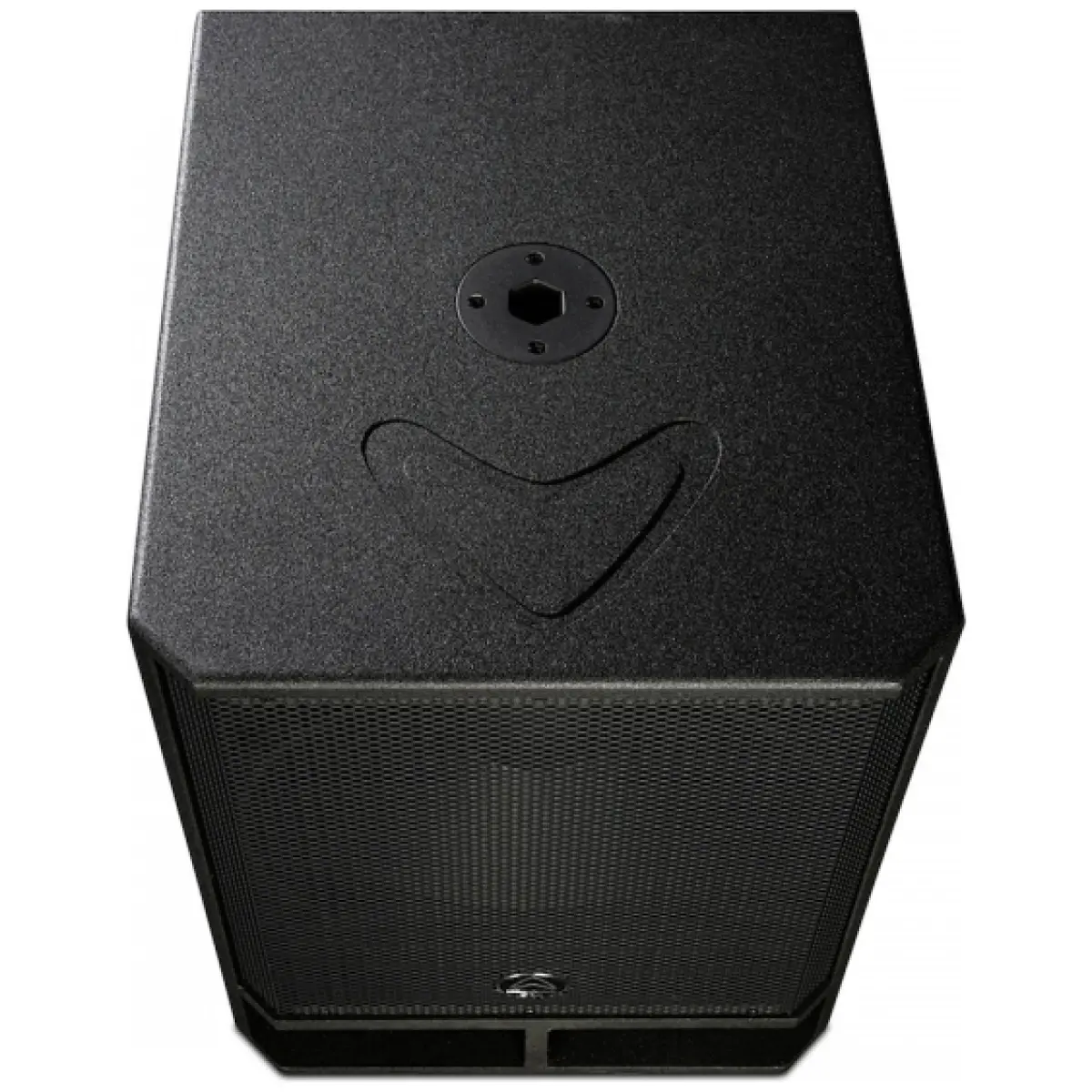

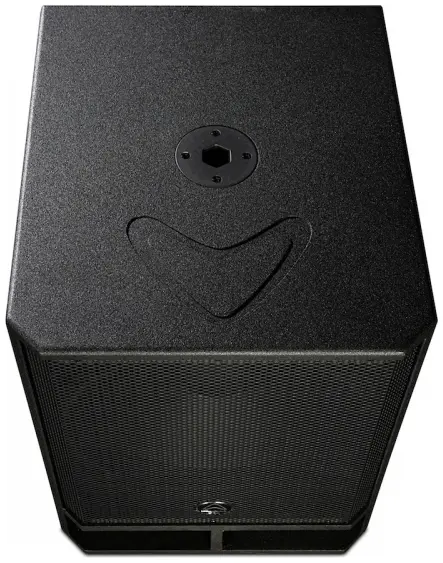

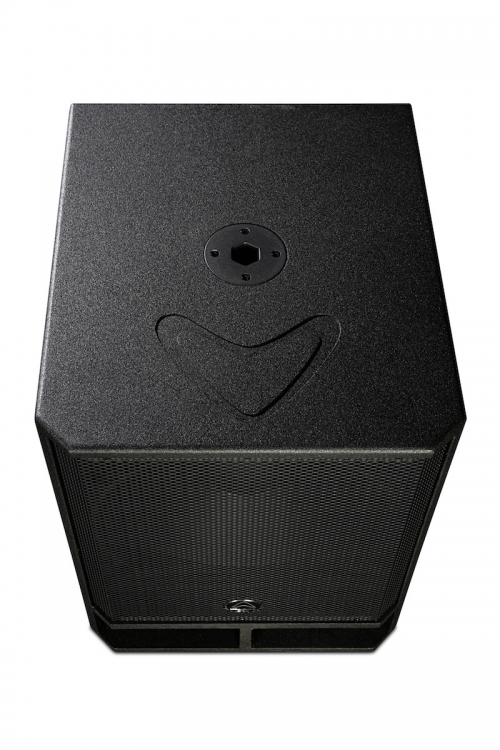

Pole mount : 35mm pole socket
Handles : 2 on sides

Enclosure
Enclosure material : MDF
Finish : Rhino rock paint
Grille material and finish : 1.2mm steel

Dimensions – unpacked
Height : 650mm / 24.02″
Width front : 522mm / 20.55″
Width rear : 522mm / 20.55″
Depth : 610mm / 24.02″

Dimensions – packed
Height : 715mm / 28.15″
Width front : 656mm / 25.83″
Width rear : 656mm / 25.83″
Depth : 568mm / 22.36″

Weight
Net weight : 40.1kg / 88.2lbs
Gross weight : 45.2kg / 99.4lbs
