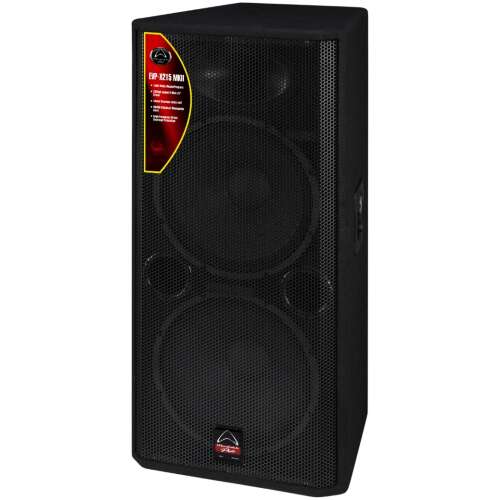

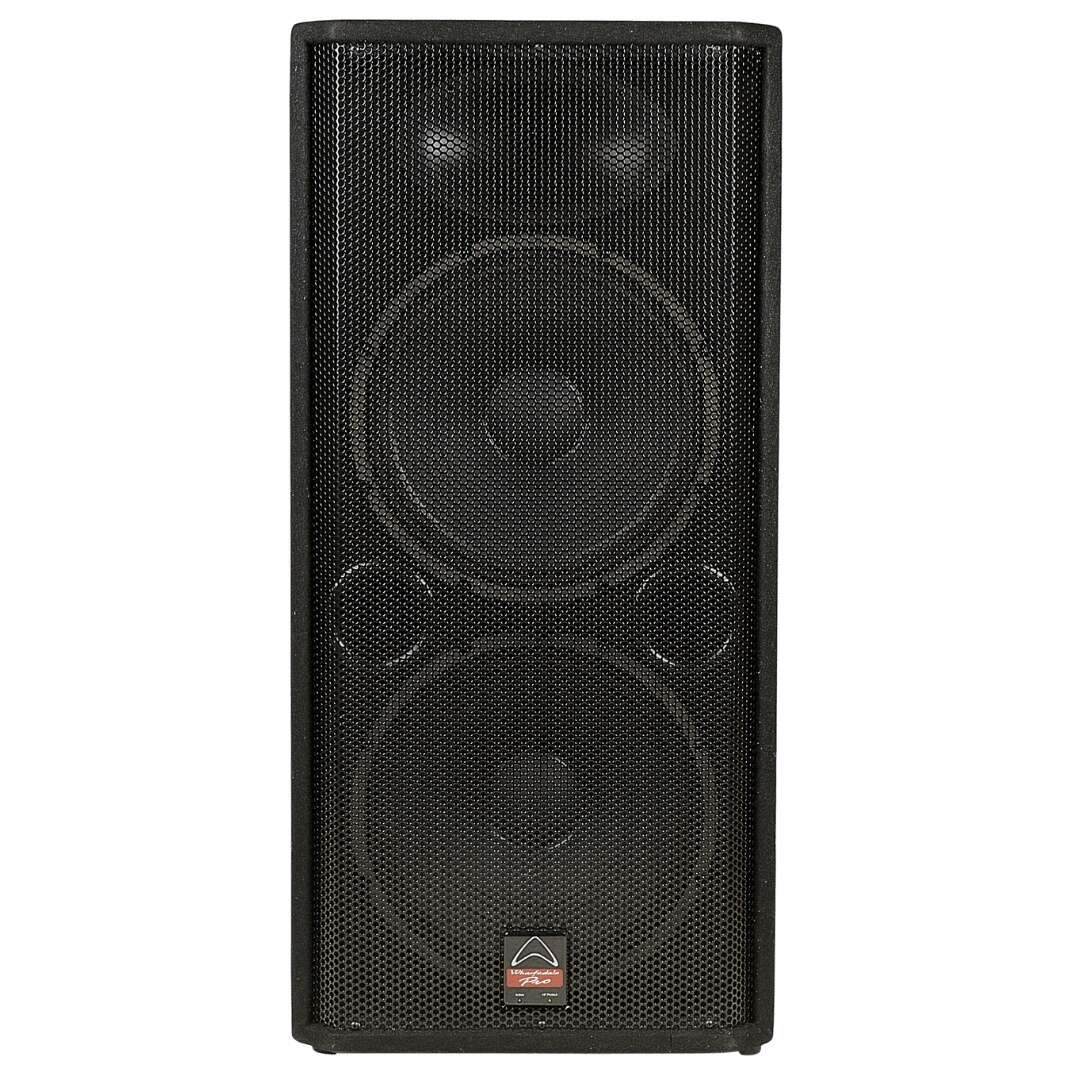

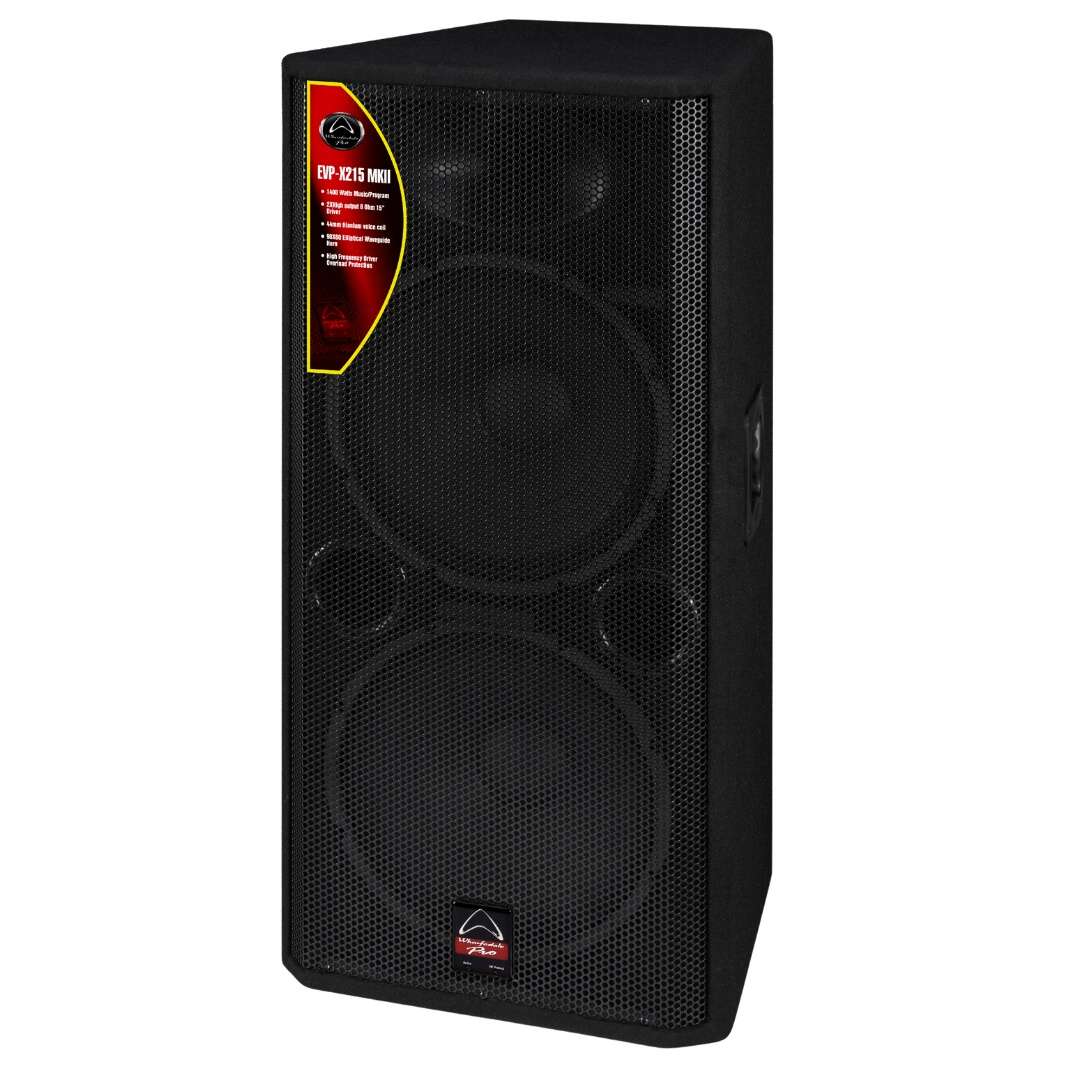

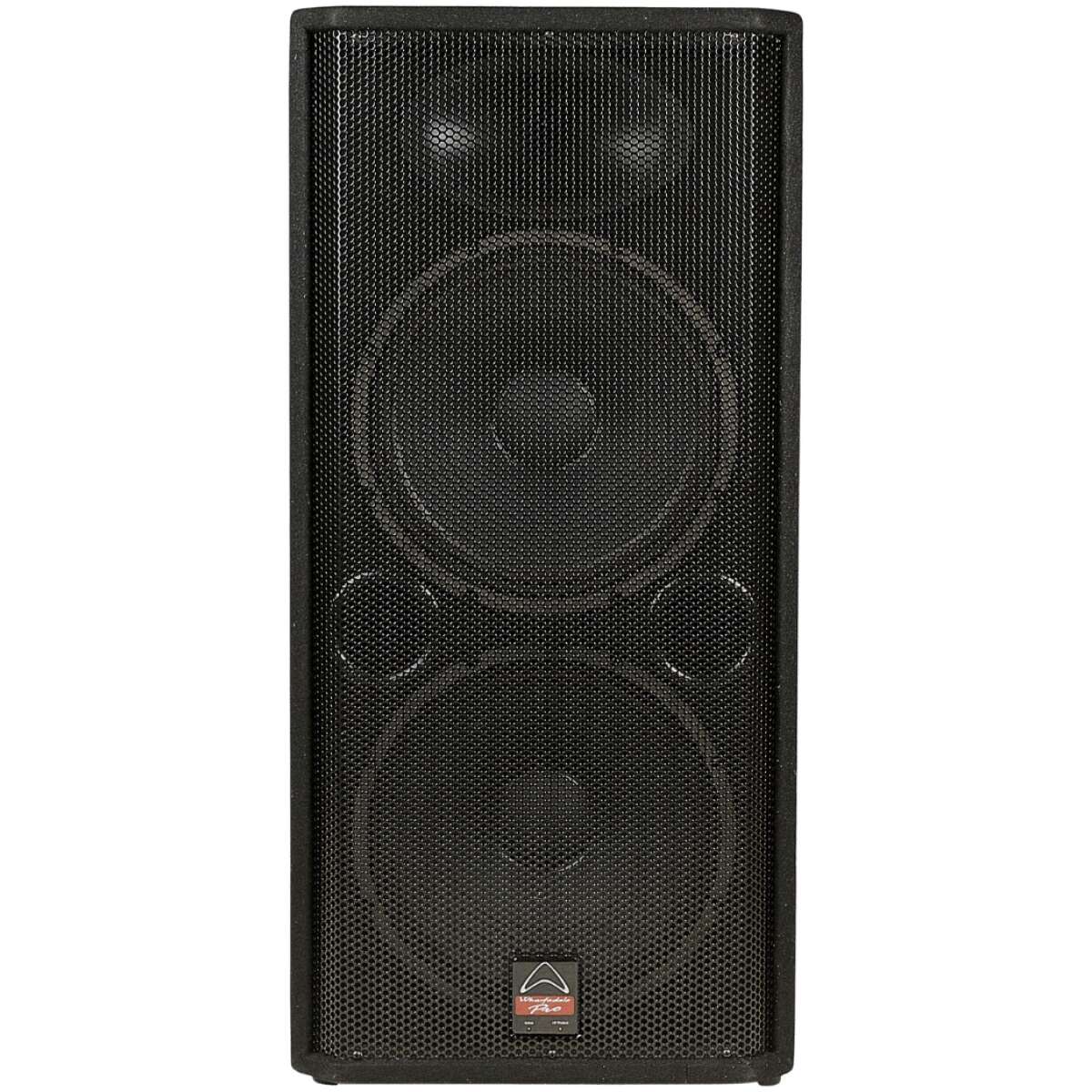

This Wharfedale Pro dual 15-inch passive speaker is a powerful quasi three-way sound reinforcement system designed for live performances, DJs, houses of worship, venues, schools and event applications.

The elliptical waveguide provides 90° horizontal by 60° vertical coverage, helping distribute sound evenly across the listening area. The enclosure is manufactured from particle board and finished in durable black carpet, with a black steel grille protecting the speaker components.

Key Features

• Passive full-range speaker
• Quasi three-way configuration
• Two 15-inch low-frequency drivers
• 1-inch exit titanium compression driver
• 700W continuous power handling
• 1400W programme power
• 2800W peak power
• Maximum SPL of 135 dB
• High 100 dB sensitivity
• Full 40 Hz to 20 kHz frequency response
• 90° × 60° sound coverage
• Elliptical high-frequency waveguide
• 4Ω system impedance
• Durable black carpet finish
• Black steel protective grille
• Two integrated carrying handles
• Suitable for ground deployment
• Speaker connector and 6.3 mm jack inputs

Specifications

• Brand: Wharfedale Pro
• Product Type: Passive Full-Range Speaker
• System Type: Full-Range
• Configuration: Quasi Three-Way
• Active or Passive: Passive
• System Continuous Power: 700W
• System Programme Power: 1400W
• System Peak Power: 2800W
• Maximum SPL at 1 m: 135 dB
• Sensitivity: 100 dB, 2.83V at 1 m
• Frequency Response: 40 Hz – 20 kHz, ±3 dB
• Frequency Range: 35 Hz – 20 kHz, -10 dB
• System Rated Impedance: 4Ω
• Crossover Frequency: 2.3 kHz
• Recommended High-Pass Filter: 35 Hz, Butterworth 18 dB/octave
• Preset Library: Yes
• IP Rating: None

Low-Frequency Drivers

• Driver Brand: Wharfedale Pro
• Driver Configuration: 2 × 15-inch
• Voice-Coil Size: 2.5 inches
• Rated Impedance: 8Ω per driver
• AES Power Handling: 2 × 350W

High-Frequency Driver

• Driver Type: Compression Driver
• Voice-Coil Size: 1.75 inches
• Diaphragm Material: Titanium
• Exit Size: 1 inch
• AES Power Handling: 40W
• Rated Impedance: 8Ω
• Waveguide Type: Elliptical
• Nominal Coverage: 90° horizontal × 60° vertical
