Key Specifications:
-
System Type: Passive
-
Configuration: Dual 18″ Subwoofer
-
Frequency Response (±3dB): 35Hz – 1.2kHz
-
Frequency Range (-10dB): 30Hz – 1.5kHz
-
Sensitivity (2.83V/1m): 101dB
-
Maximum SPL @1m: 137dB
-
System Rated Impedance: 4Ω
Low Frequency Transducer:
-
Size: 2 x 470mm (18″)
-
Voice Coil Size: 65mm (2.5″)
-
Rated Impedance: 2×8Ω
-
LF Power (AES2-2012): 2x500W
Power Handling:
-
Continuous Power: 1000W
-
Programme Power: 2000W
-
Peak Power: 4000W
Enclosure:
-
Material: 18mm MDF
-
Finish: Black paint
-
Grille: Steel
Dimensions (Unpacked):
-
Height: 554mm (21.81″)
-
Width (Front/Rear): 1222mm (48.11″)
-
Depth: 606.5mm (23.88″)
Weight:
-
Net Weight: 78.9kg (173.58lbs)
-
Gross Weight: 83.1kg (182.8lbs)
Additional Features:
-

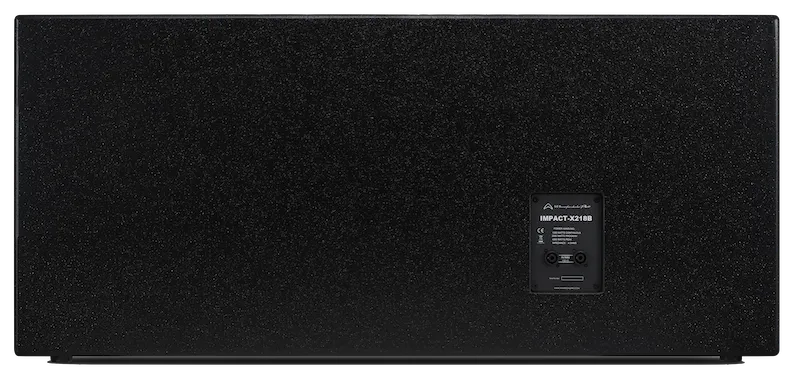

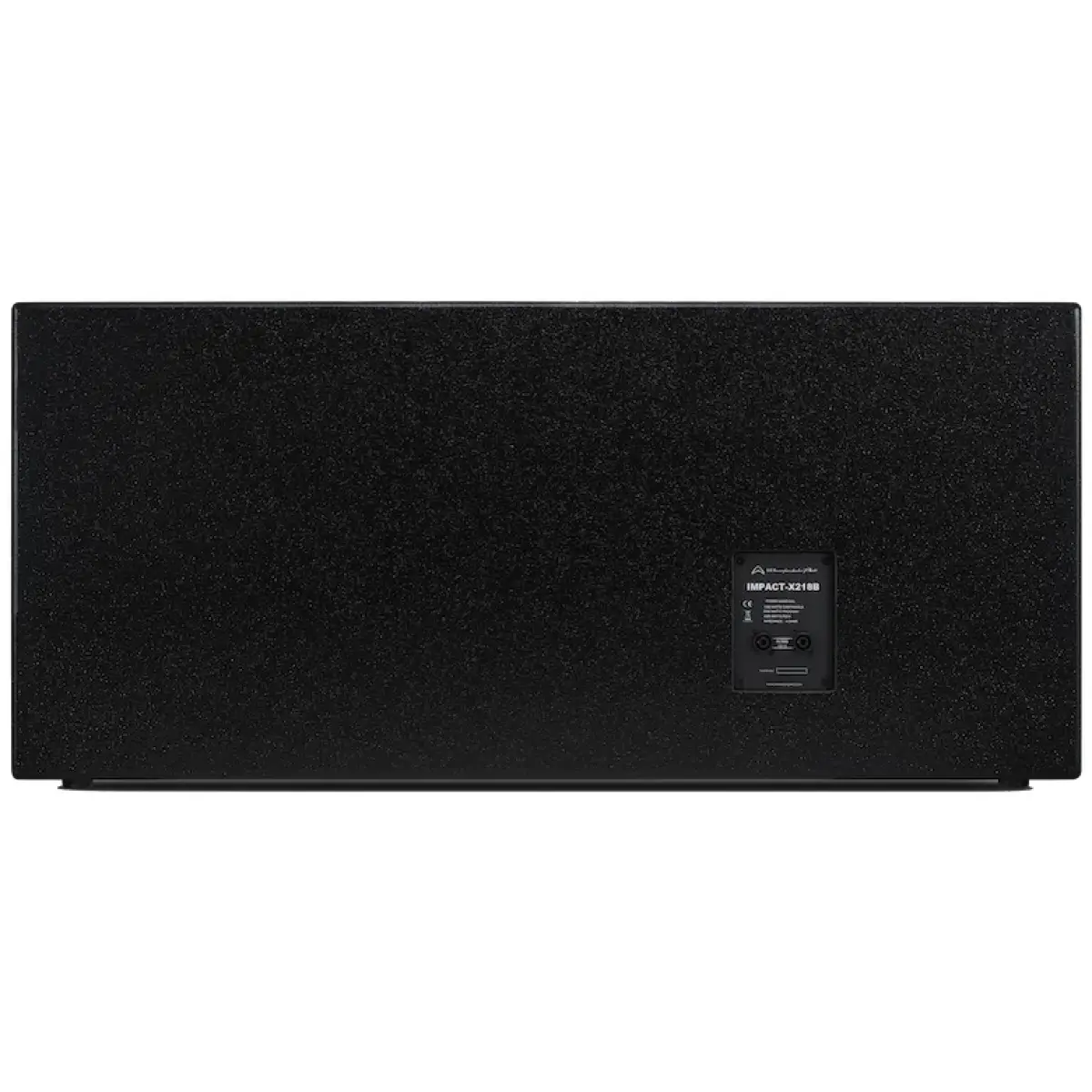

Input Connector: 2 x NL2 combo jack (speakON compatible)
-
Hardware: 2 carry handles

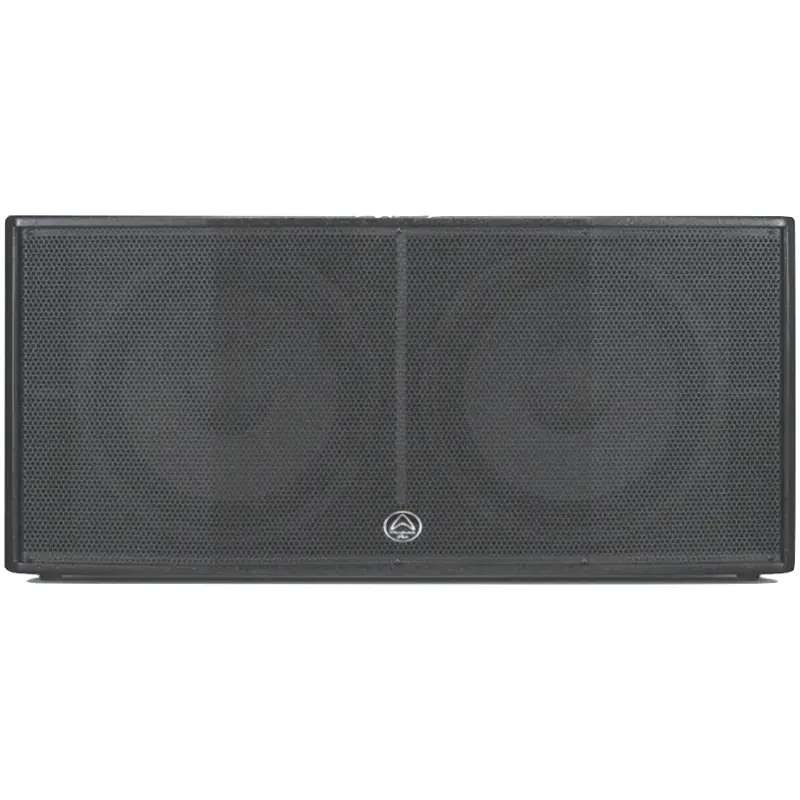

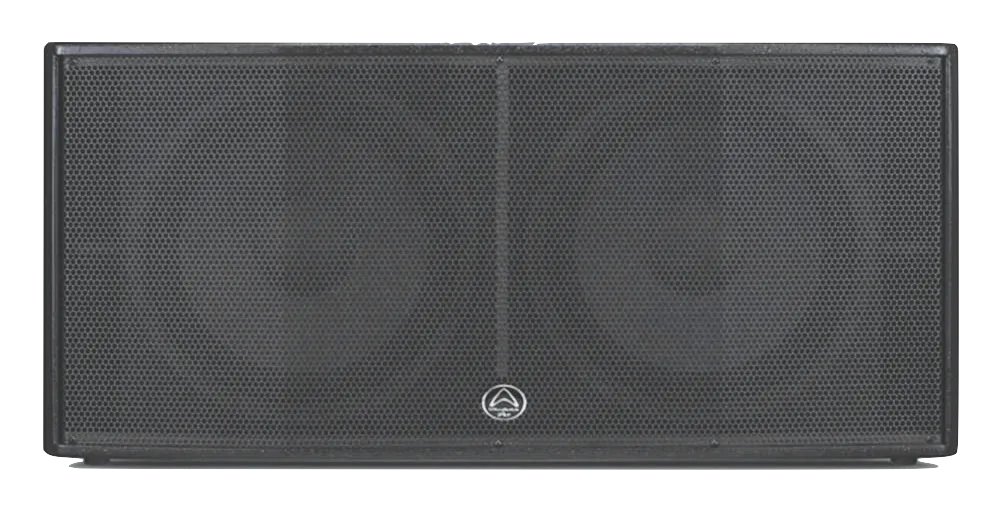

The IMPACT-X218B is designed for high-power low-frequency reproduction, making it suitable for large-scale audio systems requiring robust bass performance.
