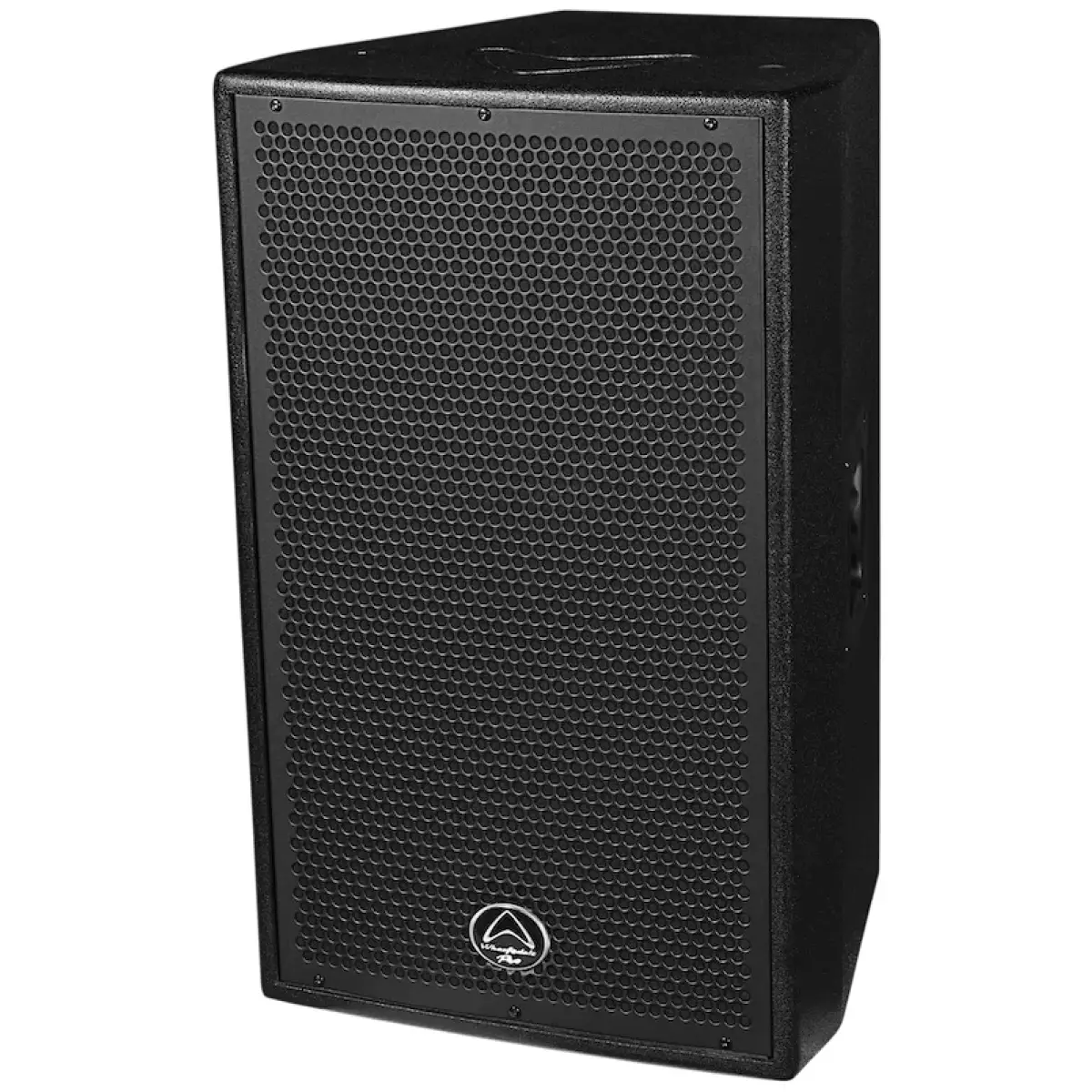

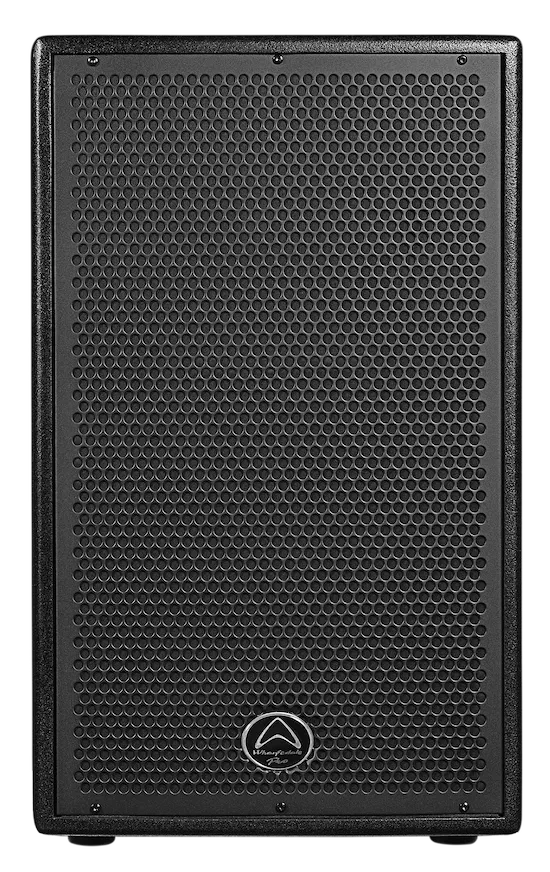

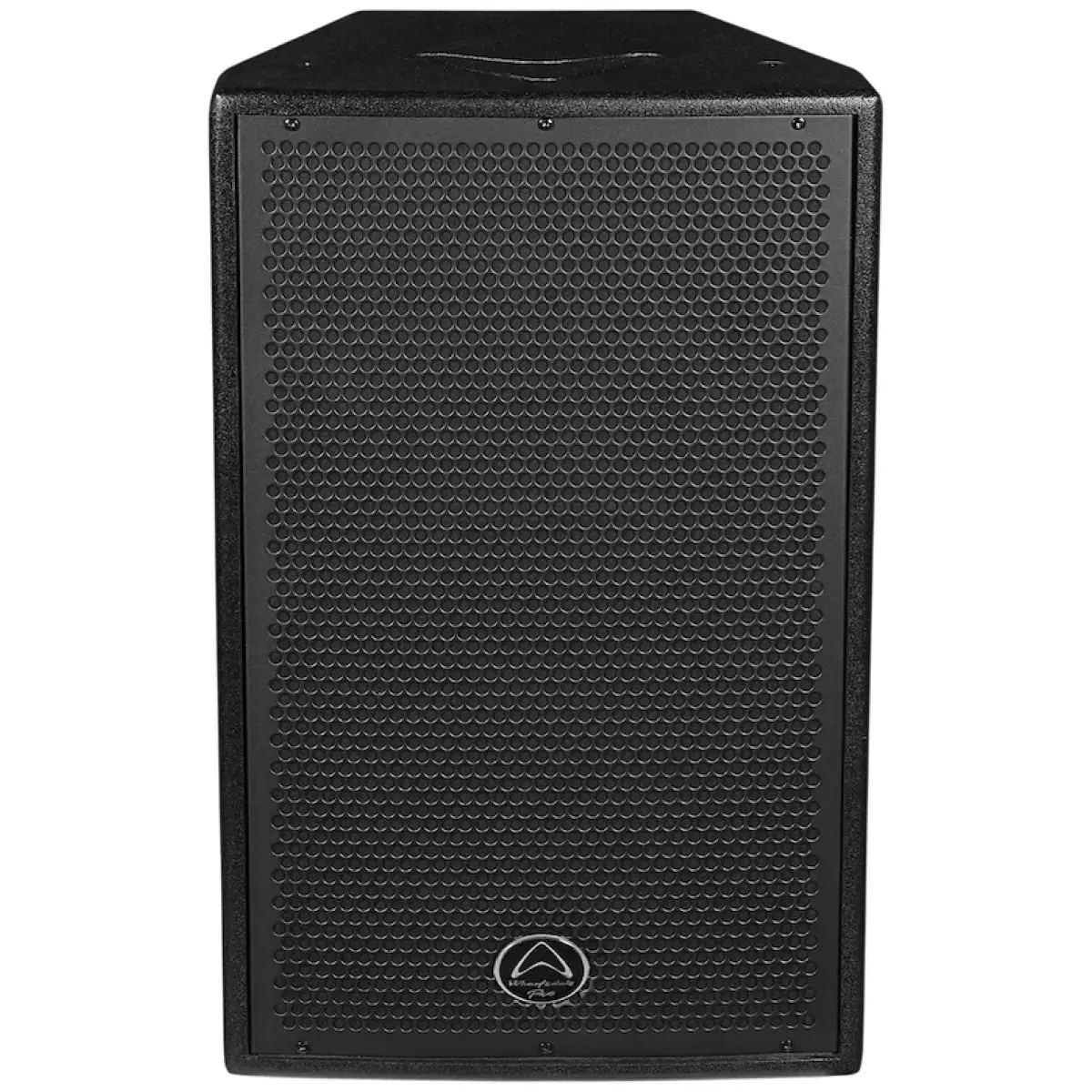

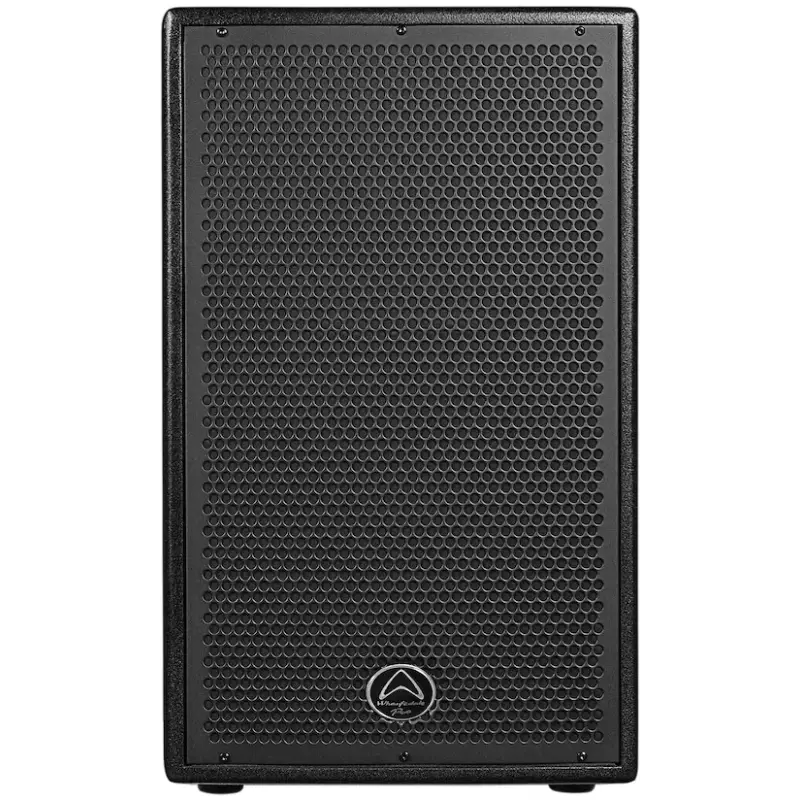

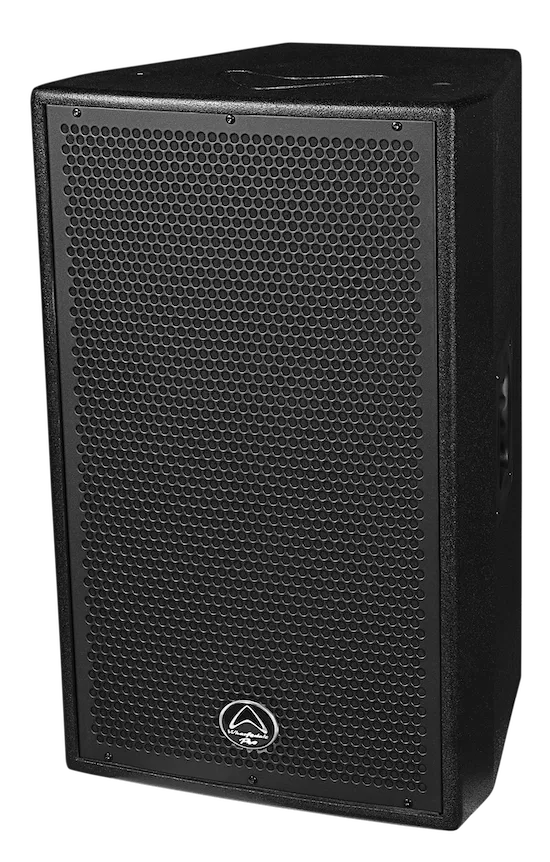

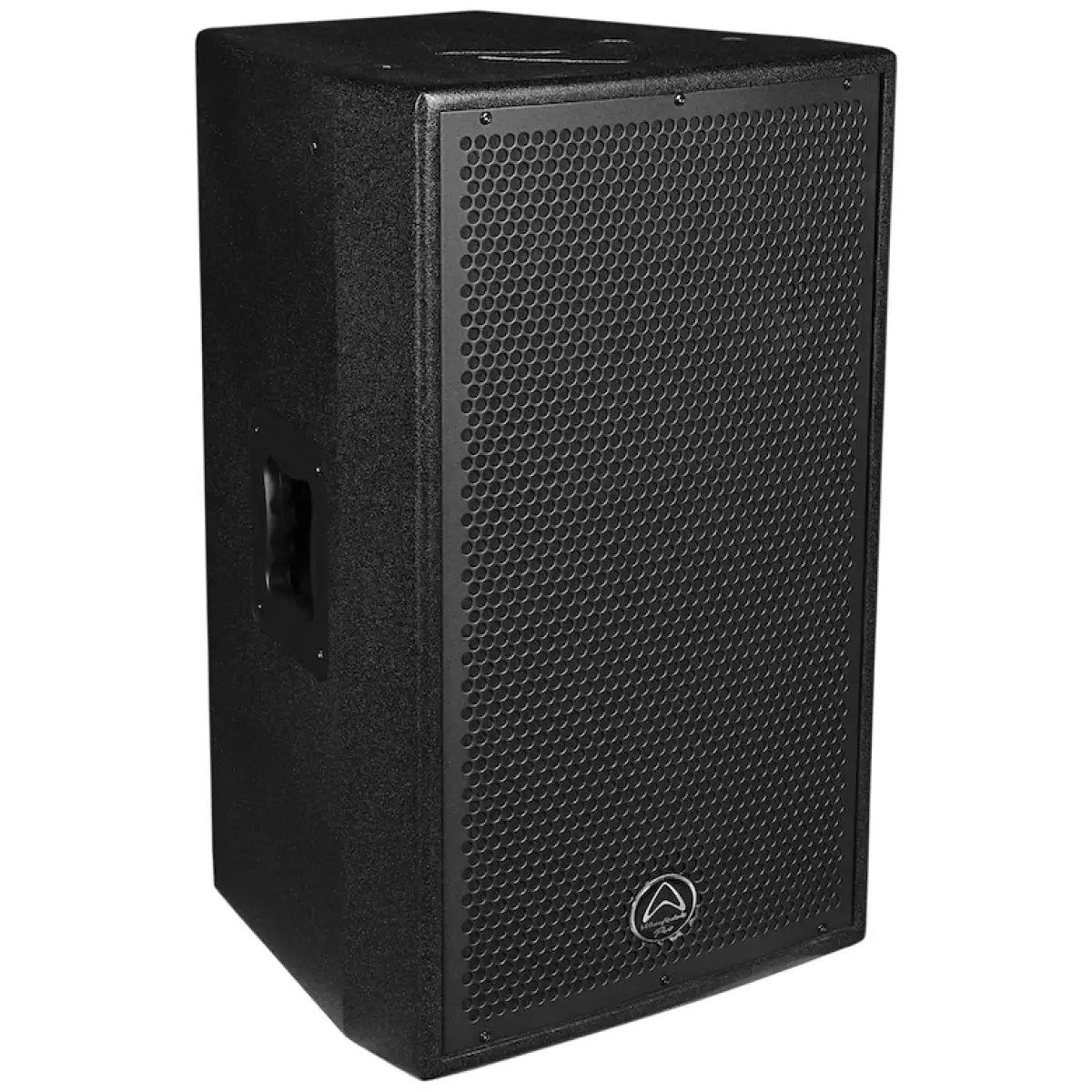

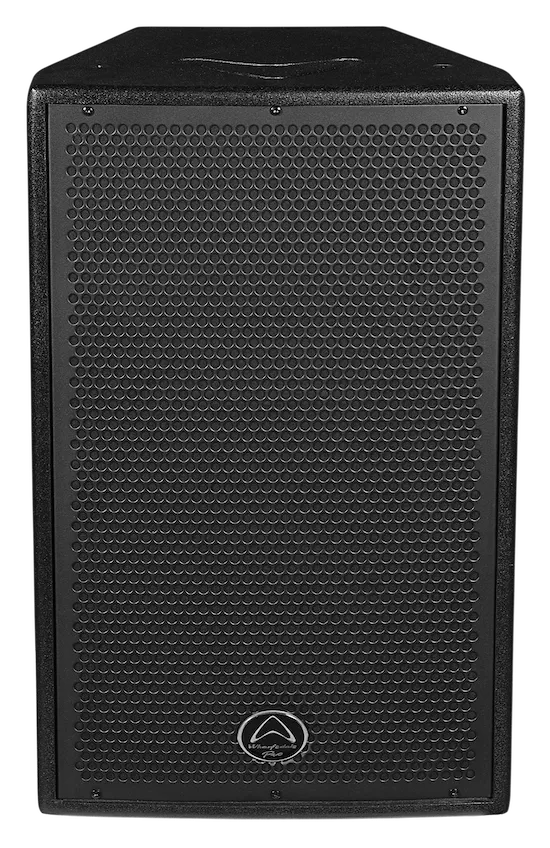

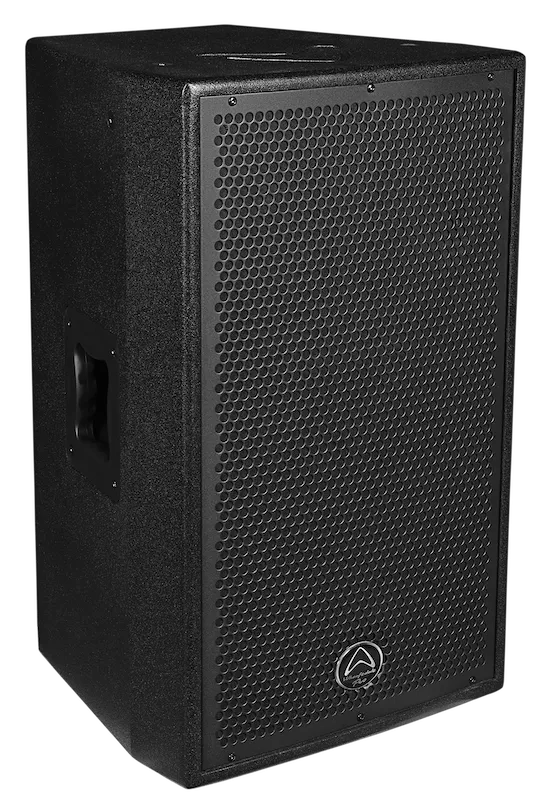

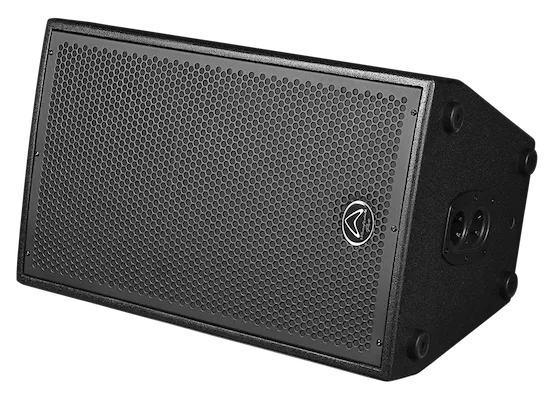

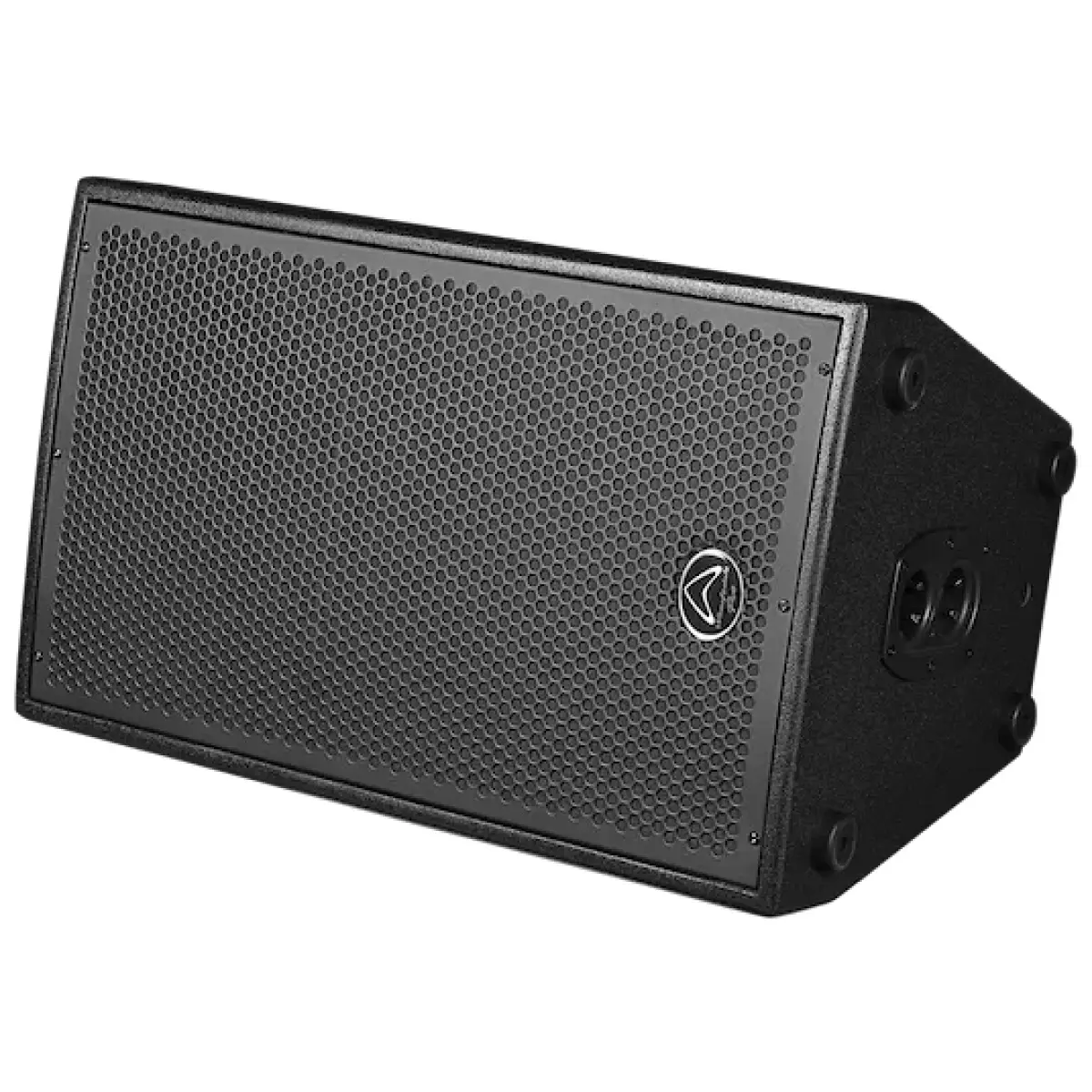

Wharfedale Pro DELTA-AXF12 12″ Active Speaker

DELTA-AXF12

System Type: Active 12″ 2-Way Bi-Amplified Loudspeaker
Key Features:

• Power: 800W Continuous, 1600W Peak

• Frequency Response: 60Hz – 20kHz (±3dB), 55Hz – 20kHz (-10dB)

• Max SPL: 130.5 dB @ 1m

• Dispersion: 90° x 45°

• Drivers:

  • LF: 12″ (332mm) with 3″ (75mm) voice coil, 4Ω

  • HF: 2″ (51.2mm) titanium compression driver, 1.4″ (35.6mm) exit, 8Ω

• Amplifiers: Class D

  • LF: 700W Continuous / 1400W Peak

  • HF: 100W Continuous / 200W Peak

• Protection: Thermal shutdown, clip limiter (~600W activation), DC/short protection.

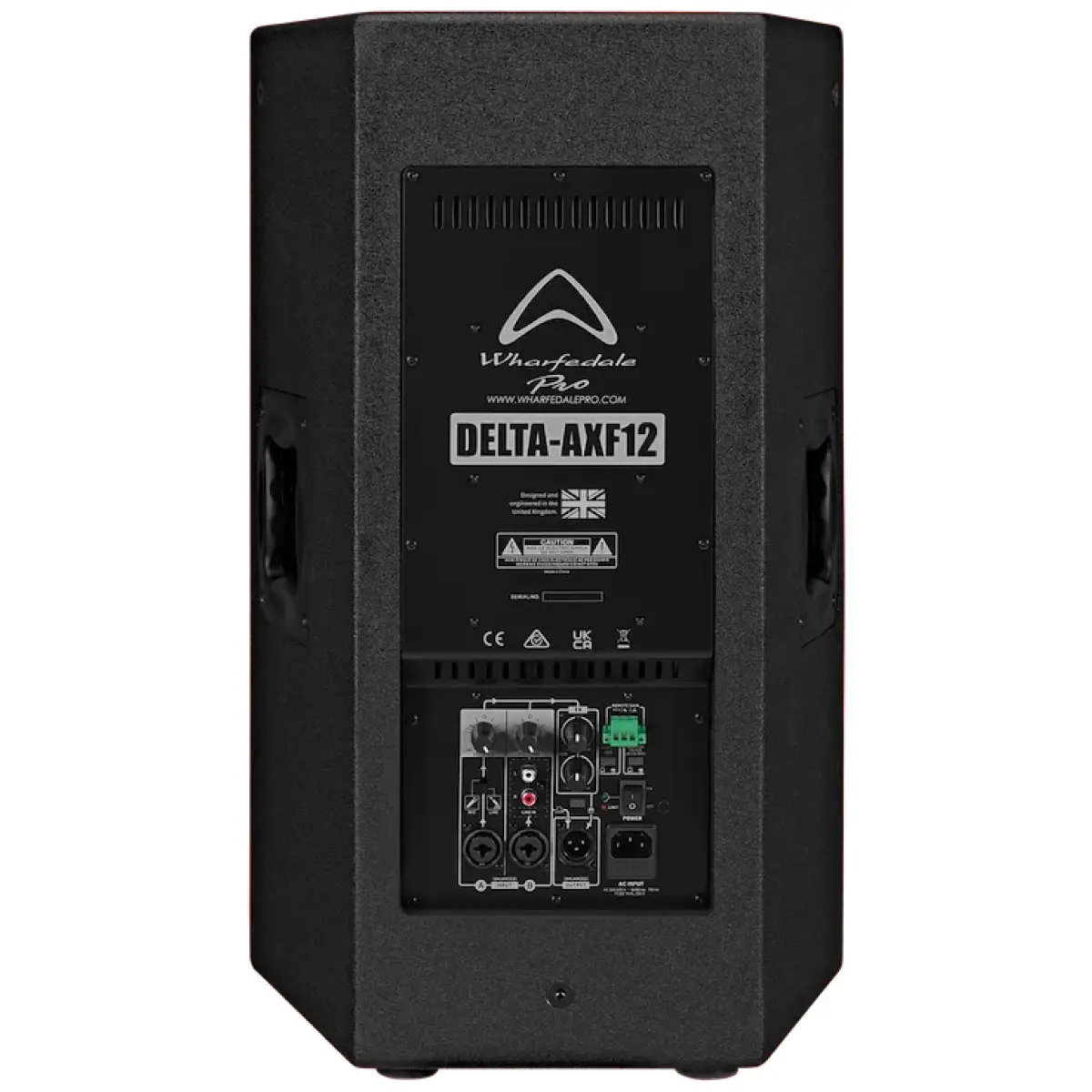

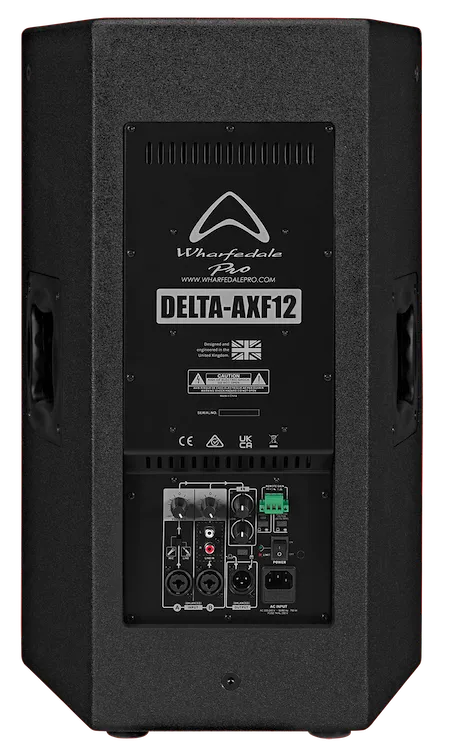

• Inputs:

  • XLR/TRS combo (balanced), RCA L/R (summed to mono), mic/line switchable.

  • Sensitivity: Mic -40dBu, Line +4dBu; Max input: +22dBu.

• Controls:

  • Volume, HI/LOW EQ (±12dB), 90Hz monitor filter, front LED defeat.

• Output: XLR line-level (LOOP/MIX switchable).

• Power Supply: 100-120V~/220-240V~, 50/60Hz.

• Dimensions (HxWxD):

  • Unpacked: 640mm x 390mm x 373mm (25.2″ x 15.35″ x 14.69″)

  • Packed: 745mm x 566mm x 464mm (29.3″ x 22.3″ x 18.3″)

• Weight:

  • Net: 26.5kg (58.8 lbs), Gross: 30.0kg (66.0 lbs).
