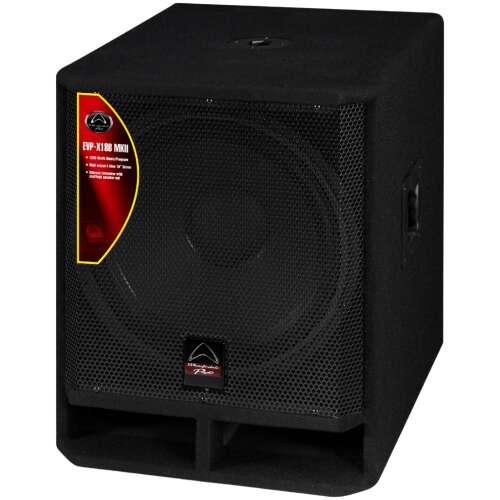

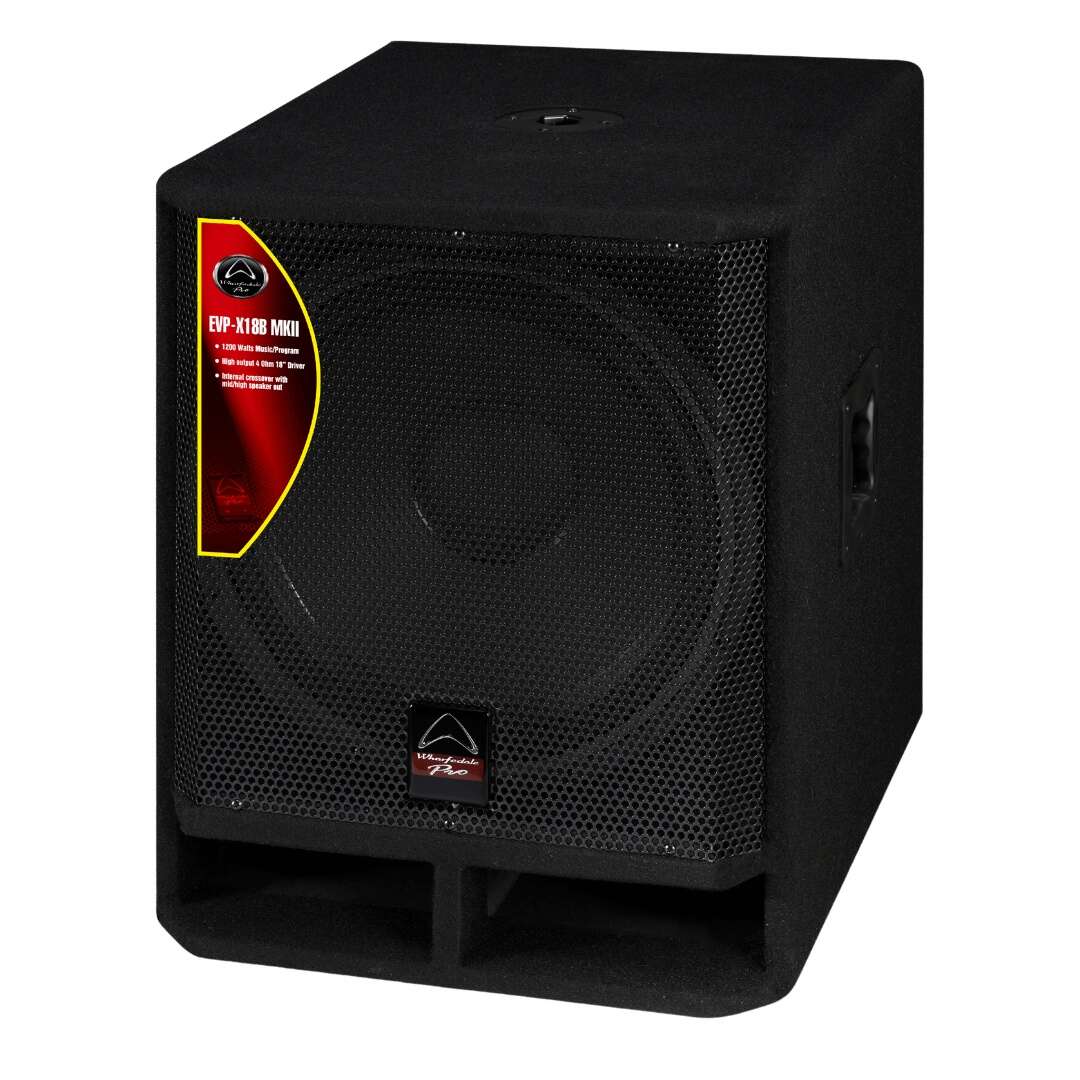

Wharfedale Pro EVP-X18B MKII 18″ Passive Subwoofer

The Wharfedale Pro EVP-X18B MKII is a powerful 18-inch passive subwoofer designed to add deep, controlled low-frequency reinforcement to professional PA systems.

It features a custom Wharfedale Pro 18-inch low-frequency driver with a heavy-duty 3-inch voice coil. The subwoofer handles 600W continuous power, 1200W programme power and up to 2400W peak power, making it suitable for DJs, live bands, houses of worship, schools, venues and rental sound systems.

With a maximum output of up to 134 dB SPL at one metre, the EVP-X18B MKII produces strong bass for live music, dance music, playback and event applications. Its 4Ω impedance allows it to draw substantial power from a compatible professional amplifier.

The bass-reflex enclosure is constructed for regular professional use and features a durable black carpet finish, protective steel grille and integrated carrying handles.

Key Features

• 18-inch passive subwoofer
• Bass-reflex enclosure design
• Custom Wharfedale Pro low-frequency driver
• Heavy-duty 3-inch voice coil
• 600W continuous power handling
• 1200W programme power
• 2400W peak power
• Maximum SPL of 134 dB at 1 metre
• 4Ω rated impedance
• Deep and powerful low-frequency reproduction
• Built-in passive crossover
• High-pass output for connecting compatible full-range speakers
• Locking speaker and 6.3 mm jack connections
• Durable black carpet finish
• Suitable for mobile and installed sound systems

Specifications

• Brand: Wharfedale Pro
• Model: EVP-X18B MKII
• Active or Passive: Passive
• System Type: Subwoofer
• Enclosure Type: Bass Reflex
• Driver Configuration: 1 × 18-inch low-frequency driver
• Low-Frequency Voice Coil: 3 inches
• Power Rating Continuous: 600W
• Power Rating Programme: 1200W
• Power Rating Peak: 2400W
• Maximum SPL at 1 m: 134 dB
• Frequency Response: Approximately 35 Hz – 250 Hz
• System Rated Impedance: 4Ω
• Crossover Frequency: 150 Hz
• Input Connectors: 2 × locking speaker connectors and 2 × 6.3 mm jacks
• High-Pass Output: 1 × locking speaker connector
• Pole Mount: Yes
• Finish: Black carpet
• Grille: Black steel
• External Amplifier Required: Yes
