Key Specifications:
-
System Type: Passive
-
Configuration: 15″ 2-Way Stage Monitor
-
Frequency Response (±3dB): 55Hz – 18kHz
-
Frequency Range (-10dB): 50Hz – 20kHz
-
Sensitivity (2.83V/1m): 98dB
-
Maximum SPL @1m: 130dB
-
System Rated Impedance: 8Ω
Transducers:
Low Frequency:
-
Size: 381mm (15″)
-
Voice Coil Size: Dual-layer 65mm (2.5″)
-
LF Power (AES2-2012): 350W
High Frequency:
-
Driver Type: Compression Driver
-
Voice Coil Size: 44mm (1.75″)
-
Diaphragm Material: Titanium
-
Exit Size: 25mm (1″)
-
HF Power (AES2-2012): 40W
-
Nominal Coverage (H×V): 90° × 60°
Power Handling:
-
Continuous Power (RMS): 350W
-
Programme Power: 700W
-
Peak Power: 1400W
-
Crossover Frequency: 2.2kHz
Enclosure:
-
Material: MDF
-
Finish: Black paint
-
Grille: Steel
-
Design: Angled for stage monitoring
Dimensions (Unpacked):
-
Height: 645mm (25.39″)
-
Width: 445mm (17.52″)
-
Depth: 505mm (19.9″)
Weight:
-
Net Weight: 21.9kg (48.2 lbs)
-
Gross Weight: 25.4kg (55.9 lbs)
Connections & Hardware:
-
Input Connectors: 2 × NL2 combo jack (speakON & 1/4″ jack compatible)
-
Handles: 2 carry handles
Key Features:
✔ Designed as a stage monitor for clear artist foldback
✔ Dual-layer voice coil for improved power handling
✔ Titanium HF diaphragm for crisp high frequencies
✔ Compact angled enclosure fits in tight stage spaces
✔ High SPL output (130dB max) for live applications

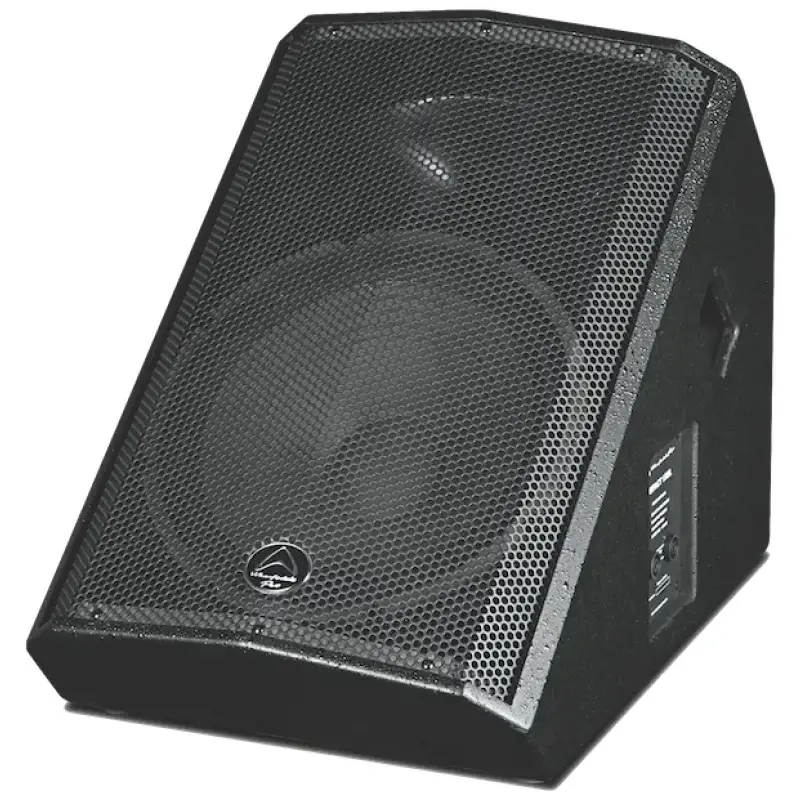

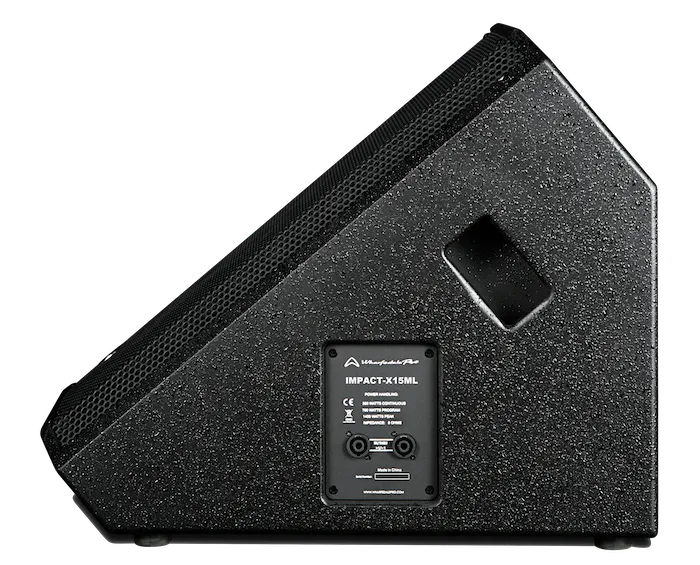

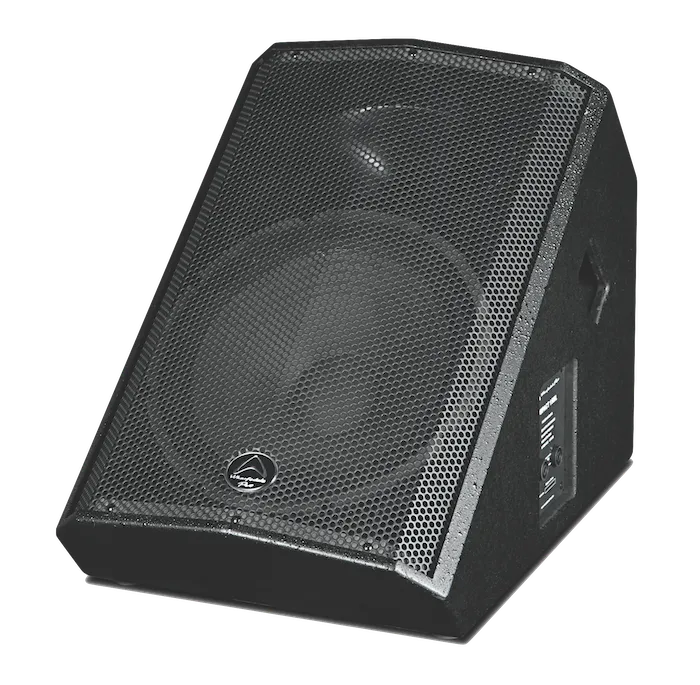

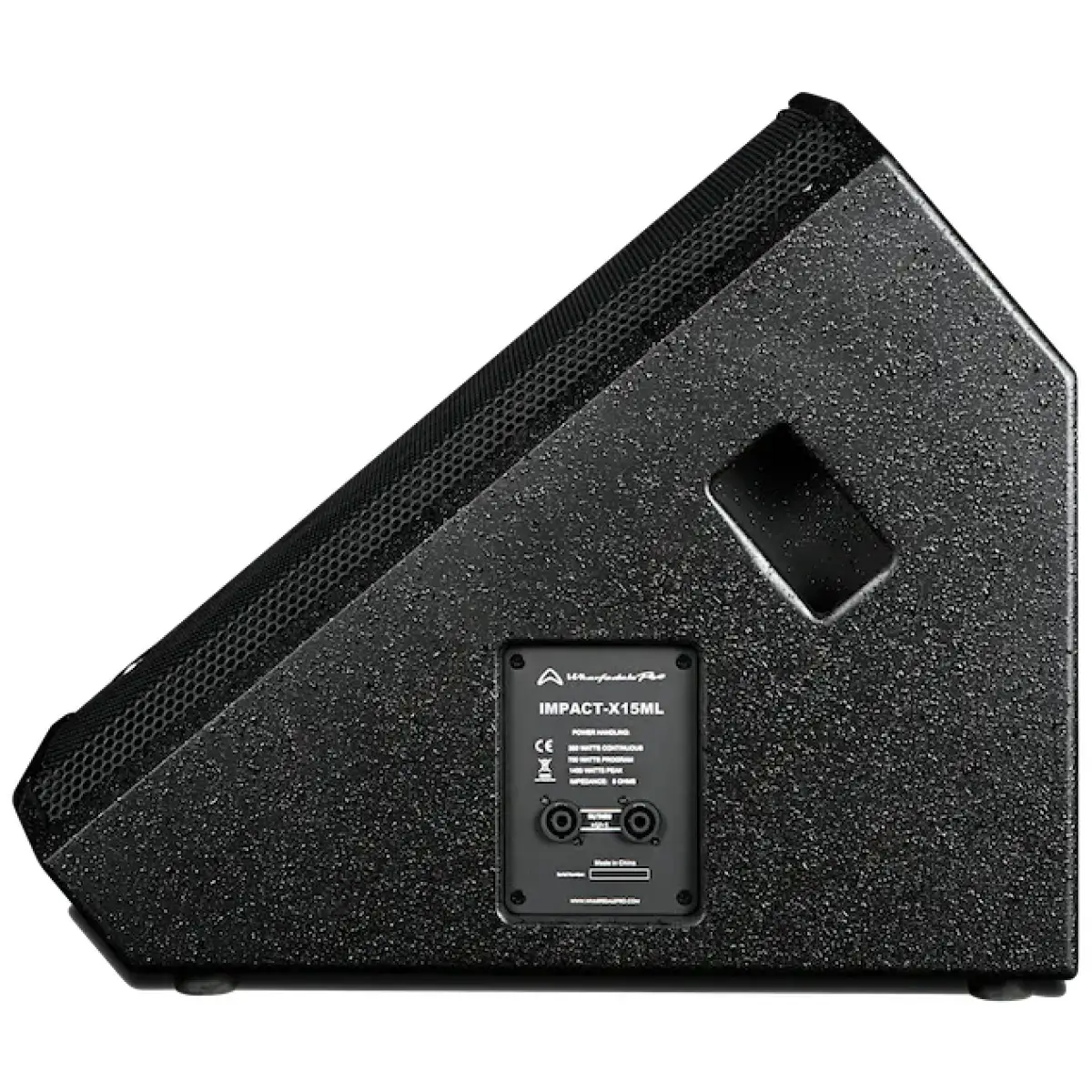

The IMPACT-X15ML is optimized for stage monitoring, providing performers with clear, high-power sound reinforcement while maintaining a compact, road-ready design.
