Key Specifications:
-
System Type: Passive
-
Configuration: 18″ Subwoofer
-
Frequency Response (±3dB): 40Hz – 220Hz
-
Frequency Range (-10dB): 30Hz – 250Hz
-
Sensitivity (2.83V/1m): 100dB
-
Maximum SPL @1m: 133dB
-
System Rated Impedance: 4Ω
Low Frequency Transducer:
-
Size: 470mm (18″)
-
Voice Coil Size: 65mm (2.5″)
-
Rated Impedance: 4Ω
-
LF Power (AES2-2012): 500W
Power Handling:
-
Continuous Power (RMS): 500W
-
Programme Power: 1000W
-
Peak Power: 2000W
Enclosure:
-
Material: MDF
-
Finish: Black paint
-
Grille: Steel
Dimensions (Unpacked):
-
Height: 526mm (20.71″)
-
Width (Front/Rear): 611mm (24.06″)
-
Depth: 606.5mm (23.88″)
Weight:
-
Net Weight: 34.52kg (75.9 lbs)
-
Gross Weight: 41.2kg (90.6 lbs)
Additional Features:
-

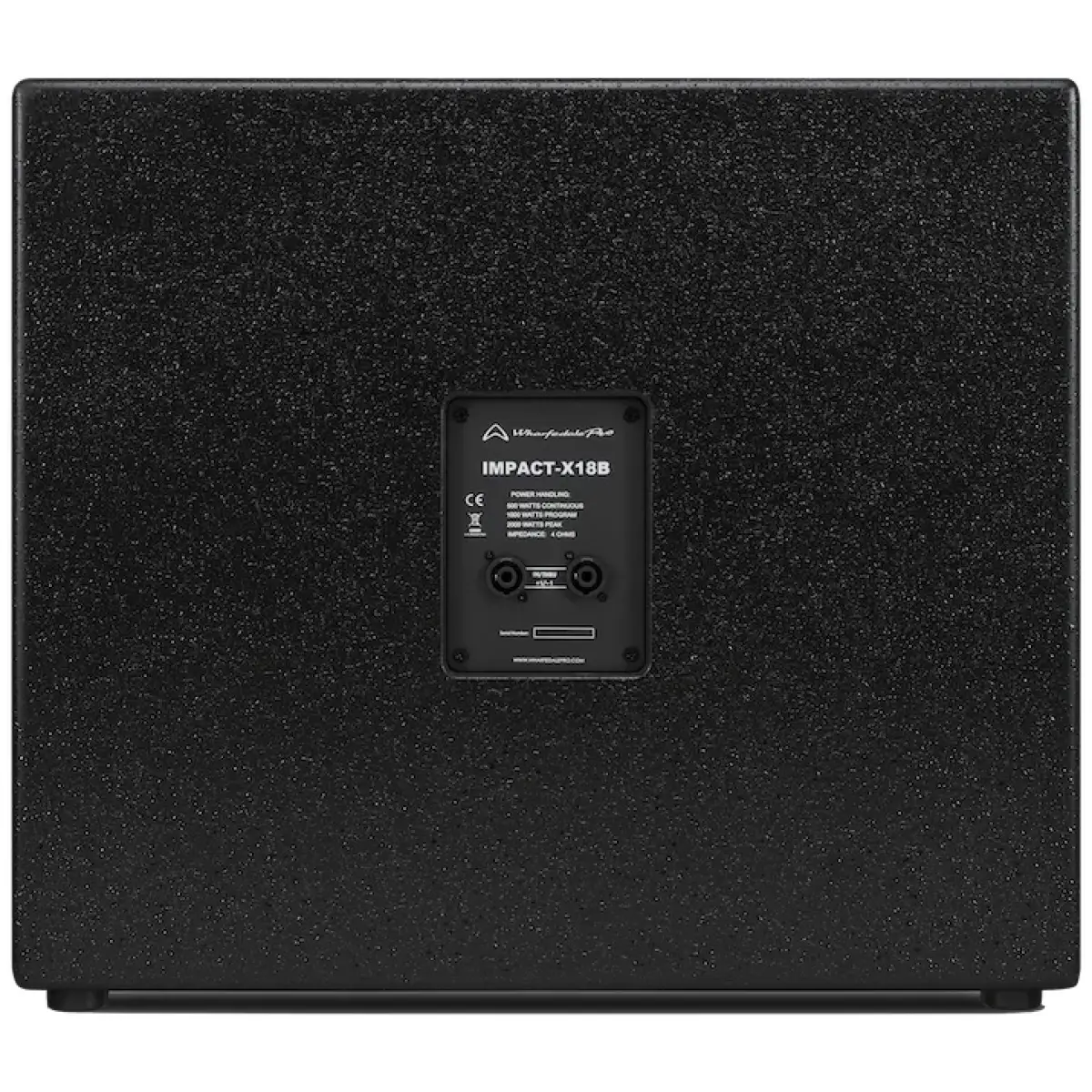

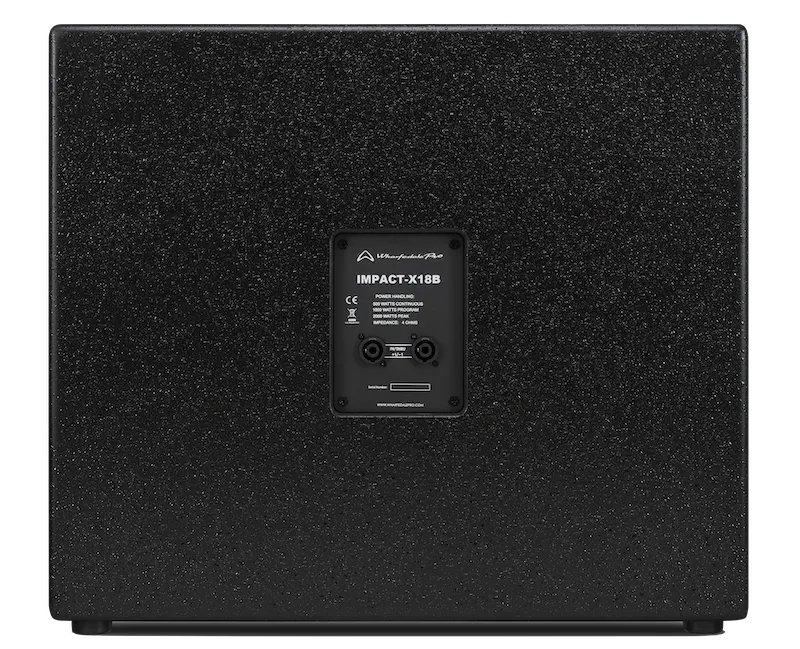

Input Connector: 2 x NL2 combo jack (speakON compatible)
-
Hardware: 35mm pole socket (for mounting satellite speakers) & 2 carry handles

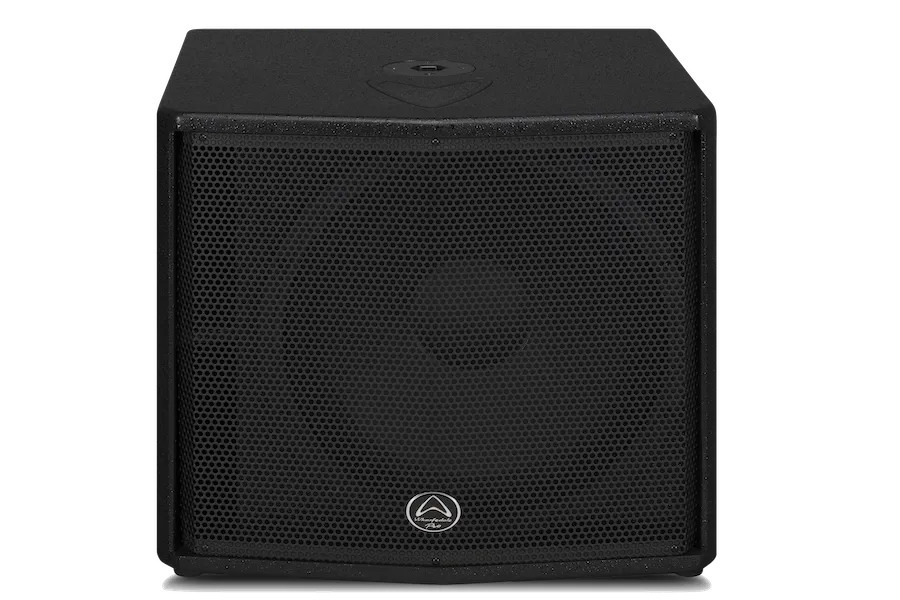

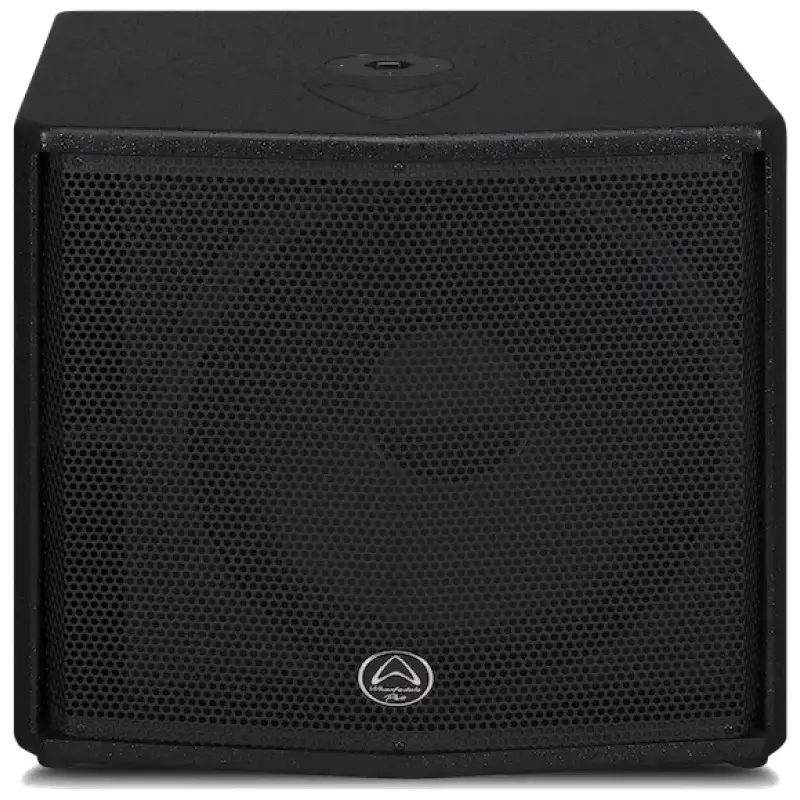

The IMPACT-X18B is designed for deep bass reproduction, making it ideal for live sound, DJ setups, and installations requiring powerful low-frequency output.
