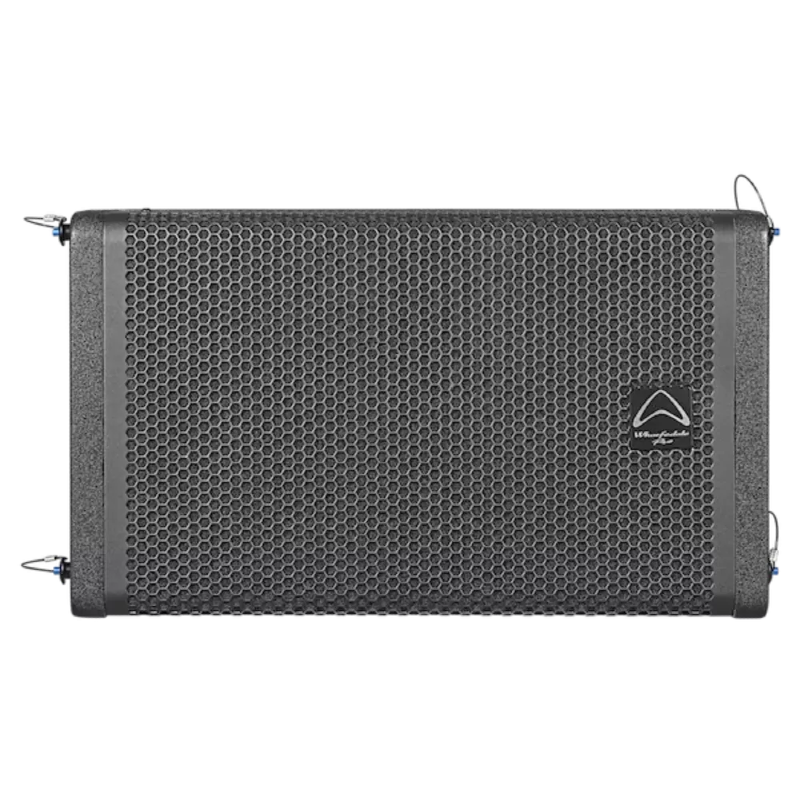

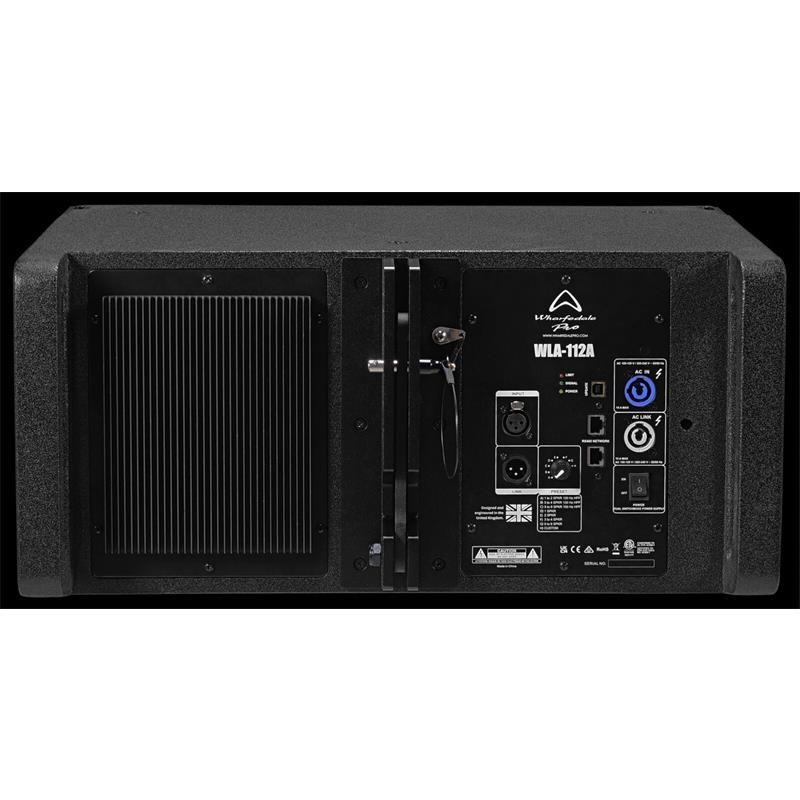

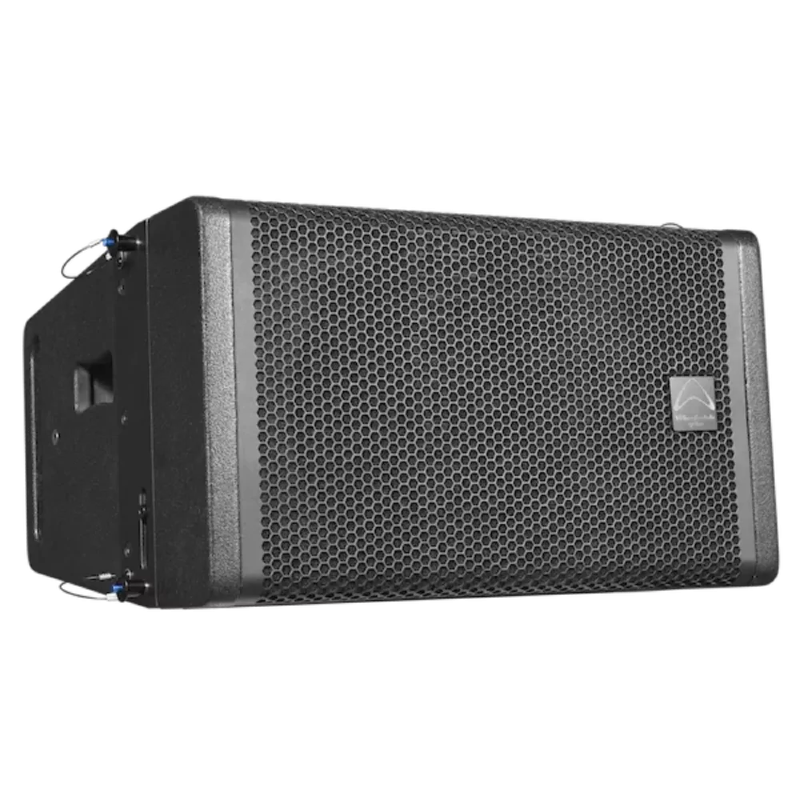

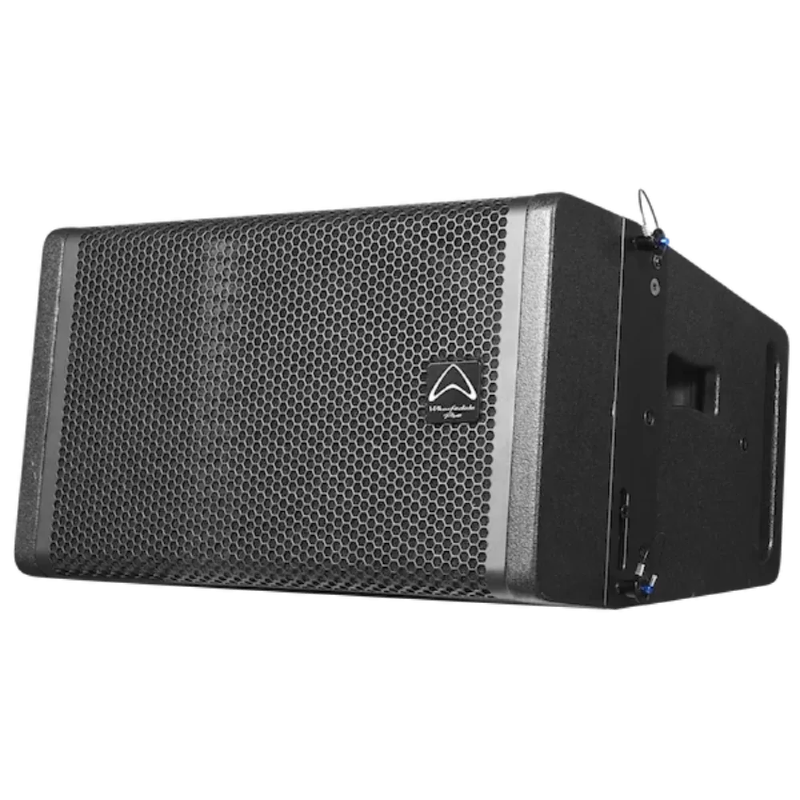

Wharfedale WHAR-WLA 112A 12″ Active Line Array Speaker

The Wharfedale Pro WLA-112A is a 12″ active 2-way line array loudspeaker designed for professional touring, concerts, and fixed installations. Delivering 1000W RMS of Class-D bi-amplified power and featuring an advanced 96 kHz / 24-bit DSP, it offers outstanding clarity, high SPL performance, and precise system control. Built with a robust birch plywood cabinet and integrated rigging hardware, the WLA-112A is ideal for large-scale live sound applications and works seamlessly with Wharfedale’s WLA subwoofers such as the WLA-118SUBA and WLA-121SUBA.

Key Features:

• Active 12″ 2-way line array speaker with Class-D bi-amped amplification
• Total power: 1000 W RMS / 2000 W Peak
• Frequency response: 48 Hz – 20 kHz
• Max SPL: 132 dB
• LF driver: 12″ Wharfedale custom woofer with 3″ voice coil
• HF driver: 3″ titanium compression driver for powerful and detailed highs
• Integrated 96 kHz / 24-bit DSP with EQ, crossover, delay, limiter, and phase settings
• Four DSP presets: LIVE, SPEECH, MONITOR, and CUSTOM modes
• Balanced XLR inputs and link outputs for daisy-chaining
• Neutrik powerCON TRUE1 in/out connectors for power linking
• Rugged 18 mm birch plywood cabinet with Rhino Rock textured black finish
• Integrated rigging hardware for flying or ground stacking
• Designed to pair with WLA-118SUBA or WLA-121SUBA subwoofers

Specifications:

• Configuration: Active bi-amped line array element
• LF Driver: 12″ Wharfedale custom woofer (3″ voice coil)
• HF Driver: 3″ titanium compression driver
• Amplifier Type: Class-D, bi-amplified
• Power Output (RMS / Peak): 1000 W / 2000 W
• Frequency Response: 48 Hz – 20 kHz
• Max SPL: 132 dB
• Input Connectors: 2 × XLR/TRS combo (balanced)
• Output Connectors: 2 × XLR link outputs
• Power Connections: powerCON TRUE1 in/out
• DSP Control: 96 kHz / 24-bit processor with multiple EQ modes
• Enclosure Material: 18 mm birch plywood
• Finish: Black Rhino Rock textured paint
• Rigging: Integrated steel hardware (fly or stack)
