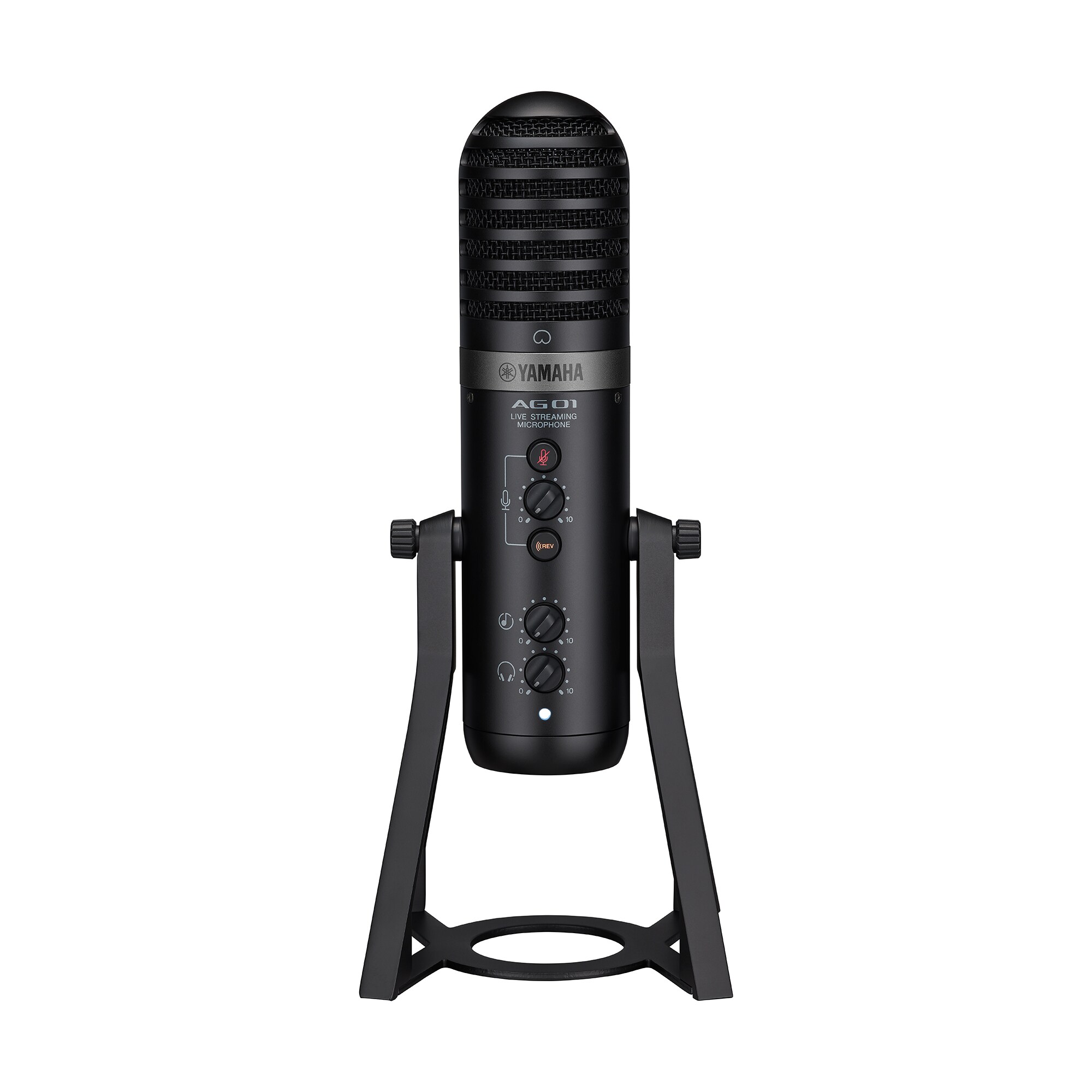

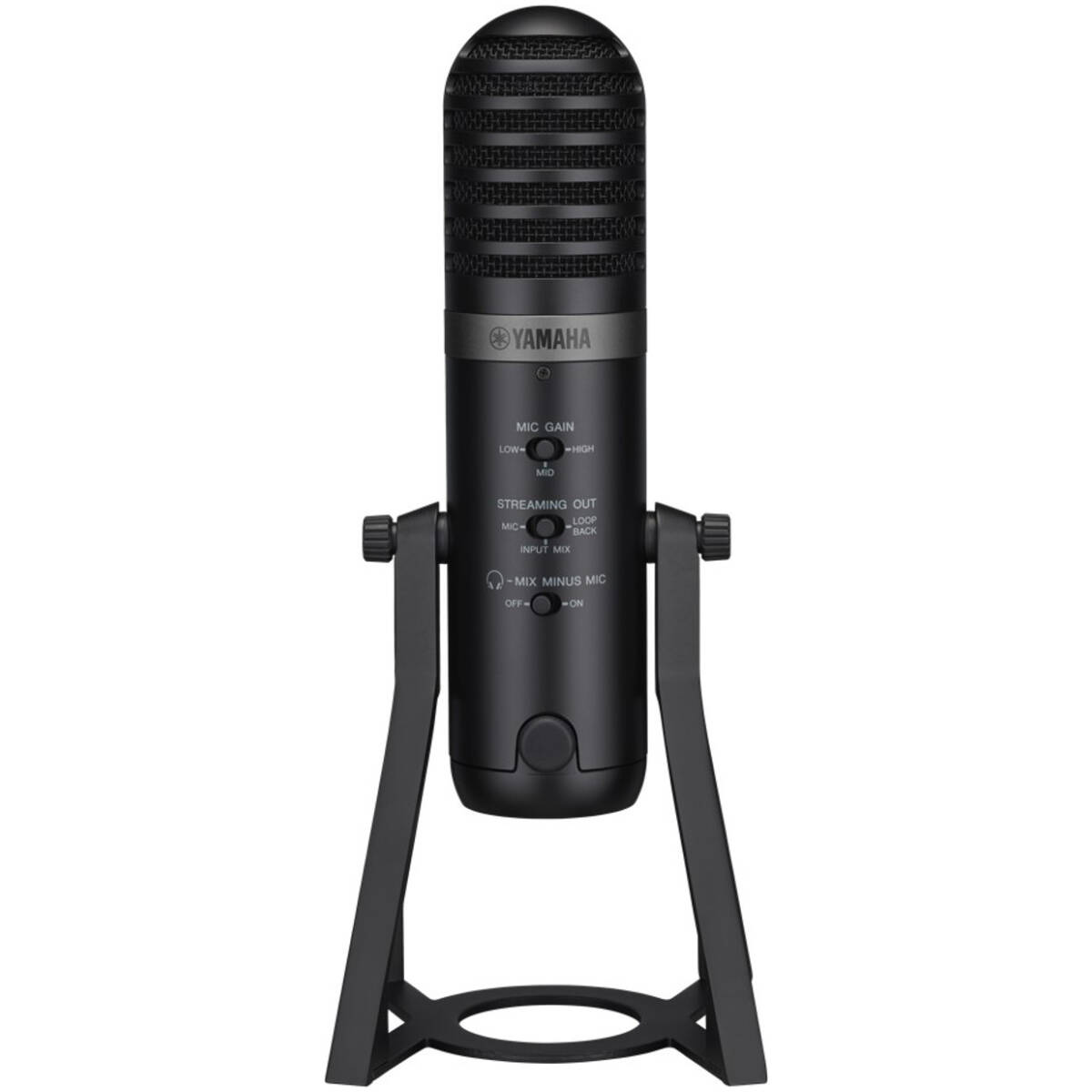

he AG01 is a Live Streaming USB microphone integrated with high performance mixer with onboard DSP effects, a LOOPBACK function, flexible input connectivity, and a simple, intuitive mixer for effortless management of your audio and stress-free operation of your streaming. Simply connect to your computer or iOS/Android (via the 1/8″” 4-pole mini jack (TRRS) connection) device along with the headphones of your choice, then set your levels and you’ve got a fully operational streaming station that can be up and running within minutes. Ideal for live streamer that requires a high quality all-in-one solution.
- Main Features:
- Live streaming microphone integrated with a high-performance mixer
- Offers flexible connectivity and powerful onboard zero latency DSP effects and LOOPBACK function
- Features a studio-quality condenser microphone
- High resolution (24-bit, 192kHz)
-
Tech Specs
- Microphone Type:Back Electret Condenser
- Polar Pattern:Cardioid
- Frequency Response:30Hz-20kHz
- A/D Resolution:24-bit/192kHz
- Max SPL:110dB SPL
- Sensitivity:-34dB ±3dB
- Color:Black
- Features:Mute Button, Loopback Function

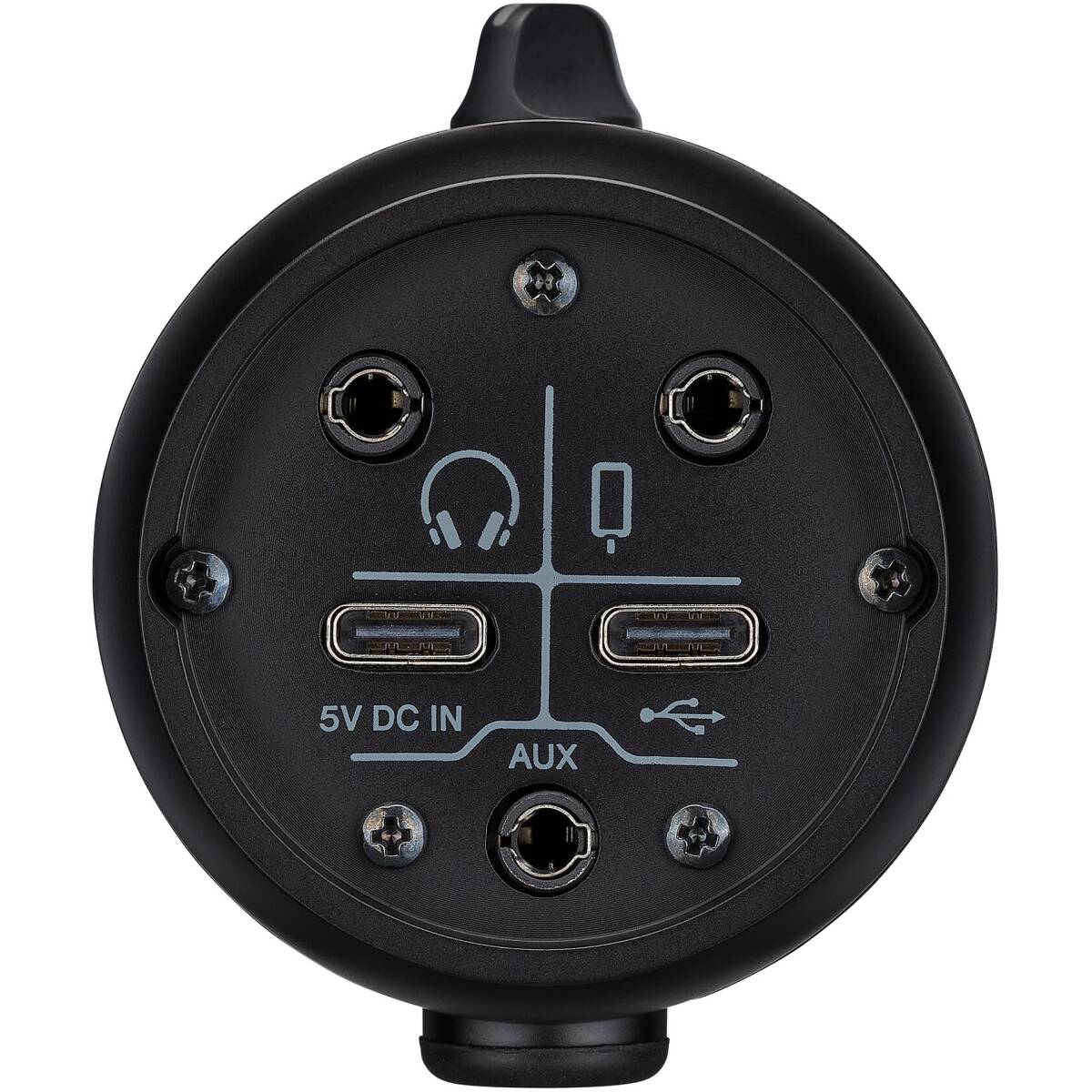

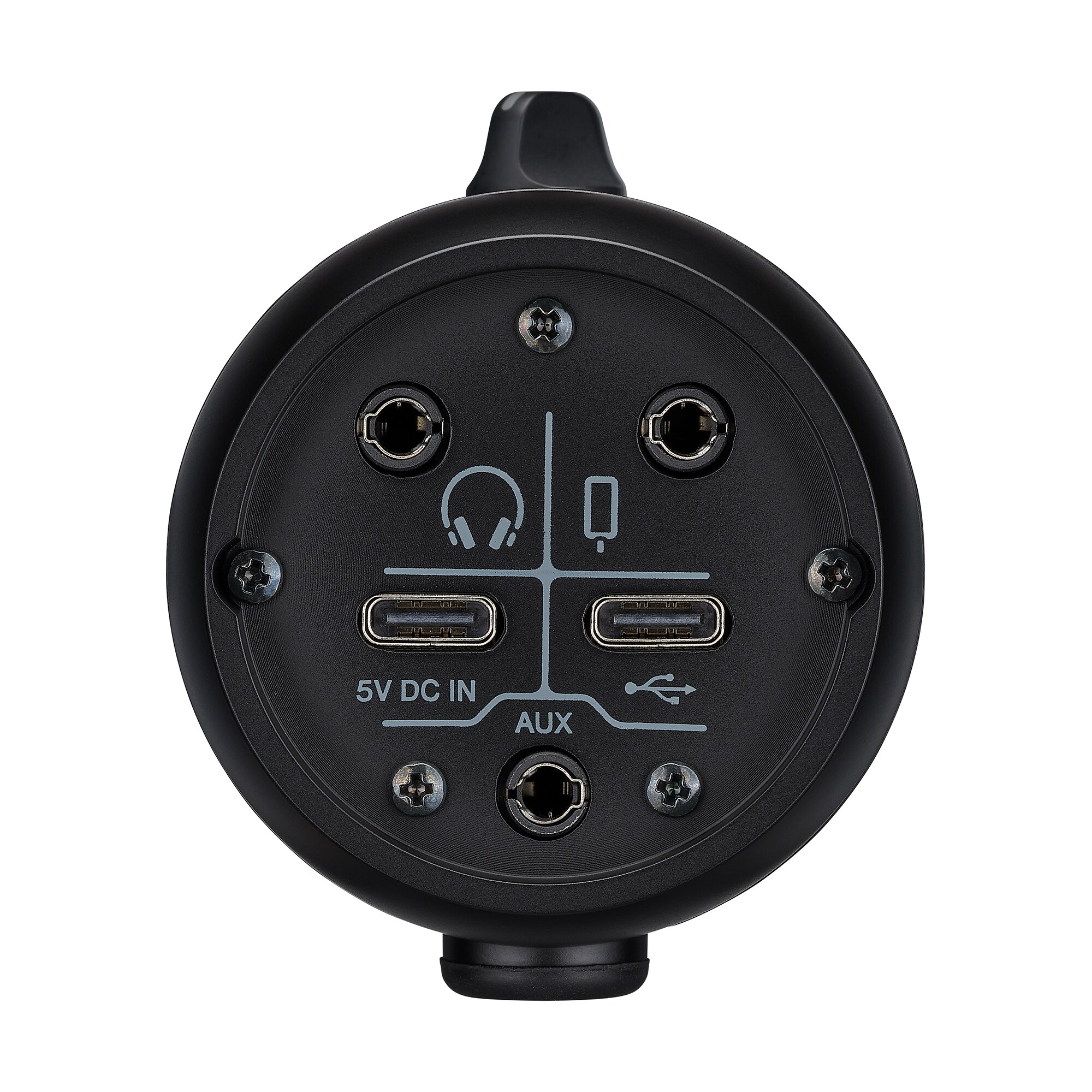

- Connector:2 x USB-C (host, 5V power), 1 x 1/8″ TRRS (in/out), 1 x 1/8″ (aux), 1 x 1/8″ (headphones)
- Software:AG Controller, Cubase AI, WaveLab Cast, Cubasis LE, Rec’n’Share
- Power Source:USB bus powered / 5V USB power adapter (sold separately)
- Dimensions:11.1″ x 4.6″
- Weight:2.6 lbs.
- Included Accessories:USB Cable
- Manufacturer Part Number:AG01 B
