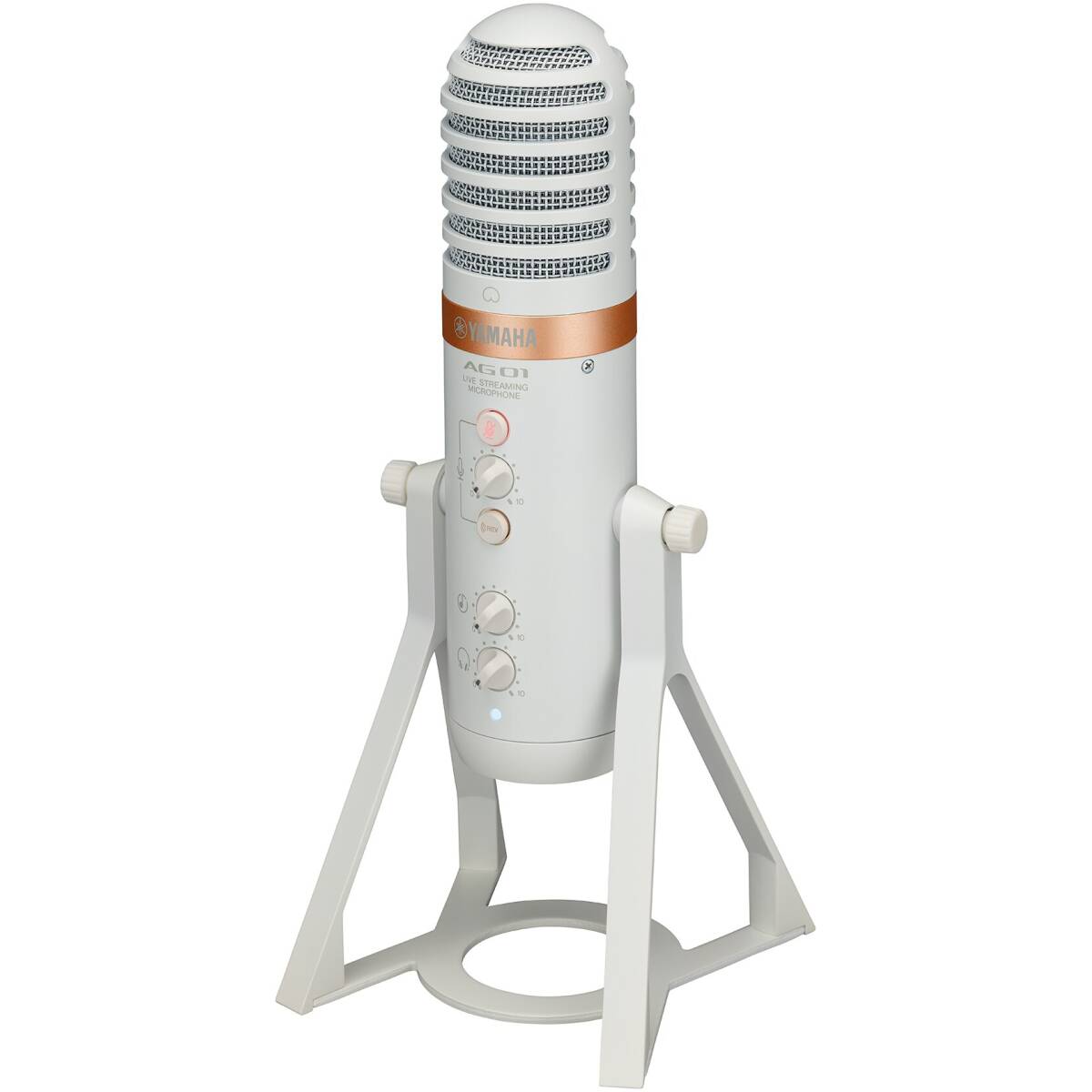

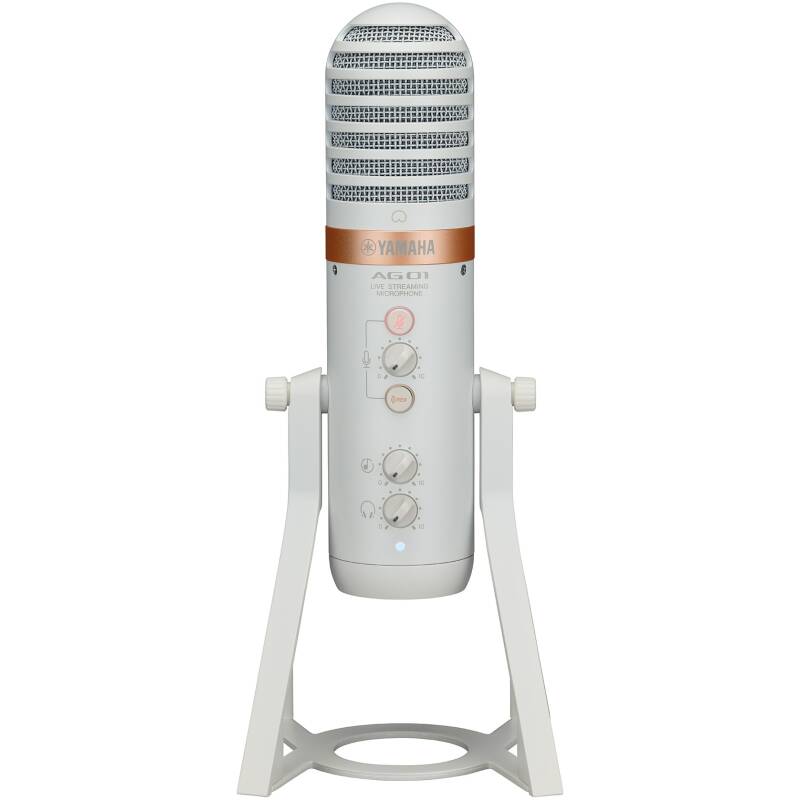

A Live Streaming USB Microphone With Integrated High-Performance Mixer.
- Studio-Quality USB Condenser Microphone
- Modern And Retro Design With Two Models In Black And White
- High Resolution (24-Bit, 192 Khz) 2-Track Audio Recording And Playback
- 4-Pole Mini Input/Output (TRRS) To Support New Streaming Applications
- Flexible LOOPBACK Function Ideal For Live Streaming Or Live Recording
- Mute Button For Convenience During Live Streaming
- Easy Control And Pro Sound With COMP/EQ And 1-TOUCH REVERB
- AG Controller (Windows/Mac/Ios) For Precise Parameter Control
- Windows/Mac Support By USB-C Connection
- Ios Connectivity Via Apple Camera Adapter (Requires External USB Power Supply)
- Android Supported By 4-Pole Mini Input/Output (TRRS)
- USB-C Power Input (5 V DC, 900 Ma)
- 3/8″ Screw Hole For Mic Stand (With Protective Cap)
- Cubase Al, Wavelab Cast, Cubasis LE And Rec’n’Share Are Available
Specifications |
AG01 | |
| Microphone | ||
| Microphone Unit | Back Electret Condenser Type | |
| Polar Pattern | Cardioid | |
| Adress Type | Side | |
| Frequency Response | 30 Hz – 20 Khz | |
| Max Input SPL | 110 Db (THD ≦1.0% At 1 Khz) | |
| Sensitivity | -34 Db ± 3 Db (0 Db=1 V/Pa, At 1 Khz) | |
| Connector | USB Type-C | |
| Outline | ||
| Input Channels | Microphone | 1 (Mono Condenser Microphone) |
| AUX | 1 – Stereo Mini | |
| Smartphone | 1 – 4-Pole Mini Input/Output (TRRS) | |
| USB | 1 | |
| Output Channels | PHONES | 1 – Stereo Mini |
| Smartphone | 1 – 4-Pole Mini Input/Output (TRRS) | |
| USB | 1 | |
| Bus | 1 Stereo | |
| Functions | MIC GAIN (HIGH / MID / LOW), MUTE Button X 1, STREAMING OUT (MIC / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF) | |
| On-Board Processors | DSP | COMP/EQ, REVERB (SPX Reverb) *Detail Is Controlled On AG Controller |
| USB | USB Audio | 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 Khz, Bit Depth: 24-Bit, Type-C |
| USB DC Power Input | 1 – Type-C, 5 V DC, 900 Ma | |
| General Specifications | ||
| Power Requirements | 5 V DC, 900 Ma | |
| Power Consumption | Max. 4.5 W | |
| Dimensions | W | 116 Mm (4.6″) |
| H | 281 Mm (11.1″) | |
| D | 118 Mm (4.6″) | |
| Net Weight | 1.2 Kg (2.6 Lbs) | |
| Included Accessories | USB2.0 Cable (1.5 M), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information | |
| Others | Operating Temperature: 0 To + 40 ℃ | |
