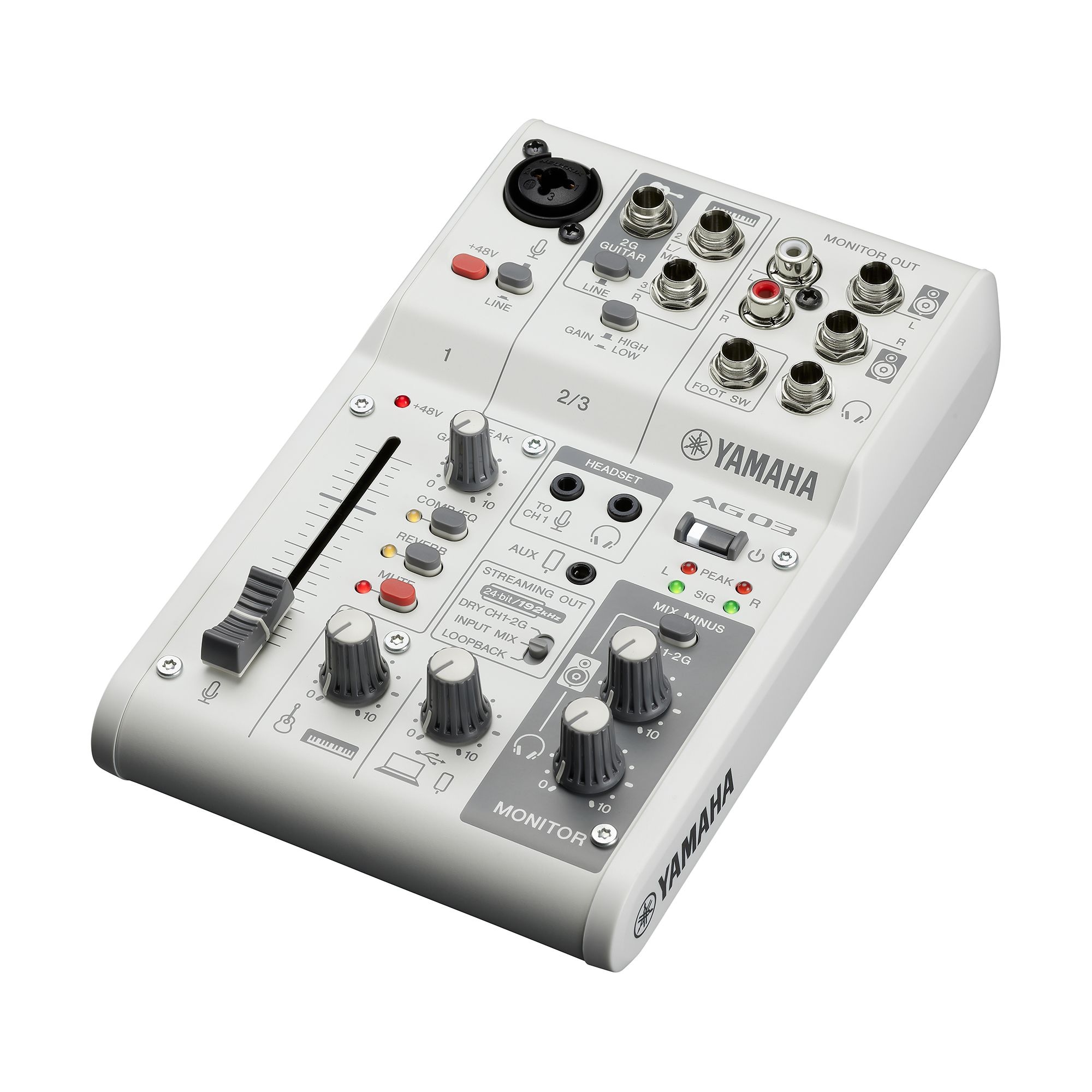

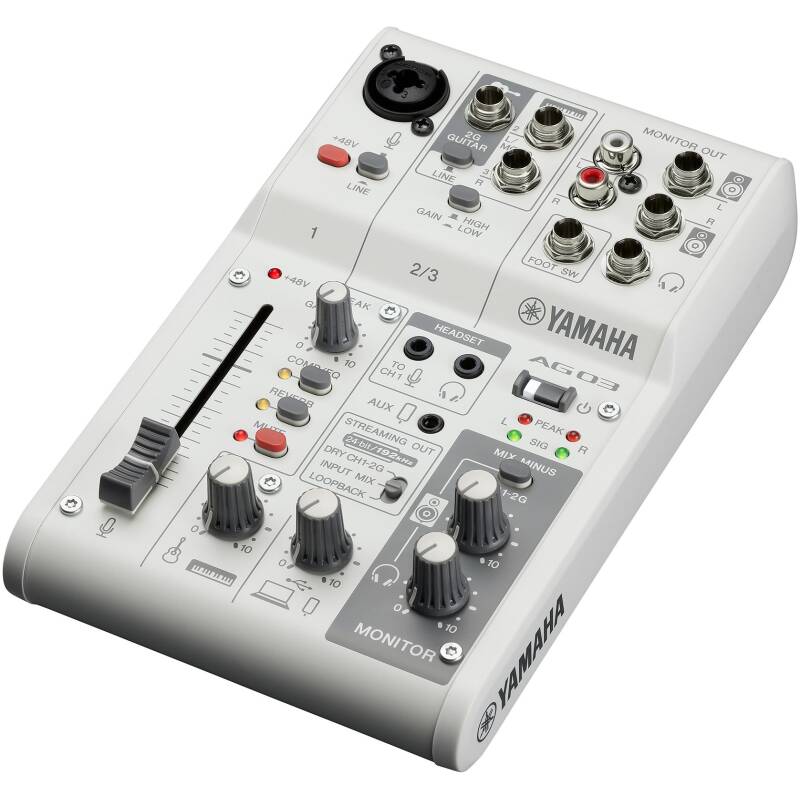

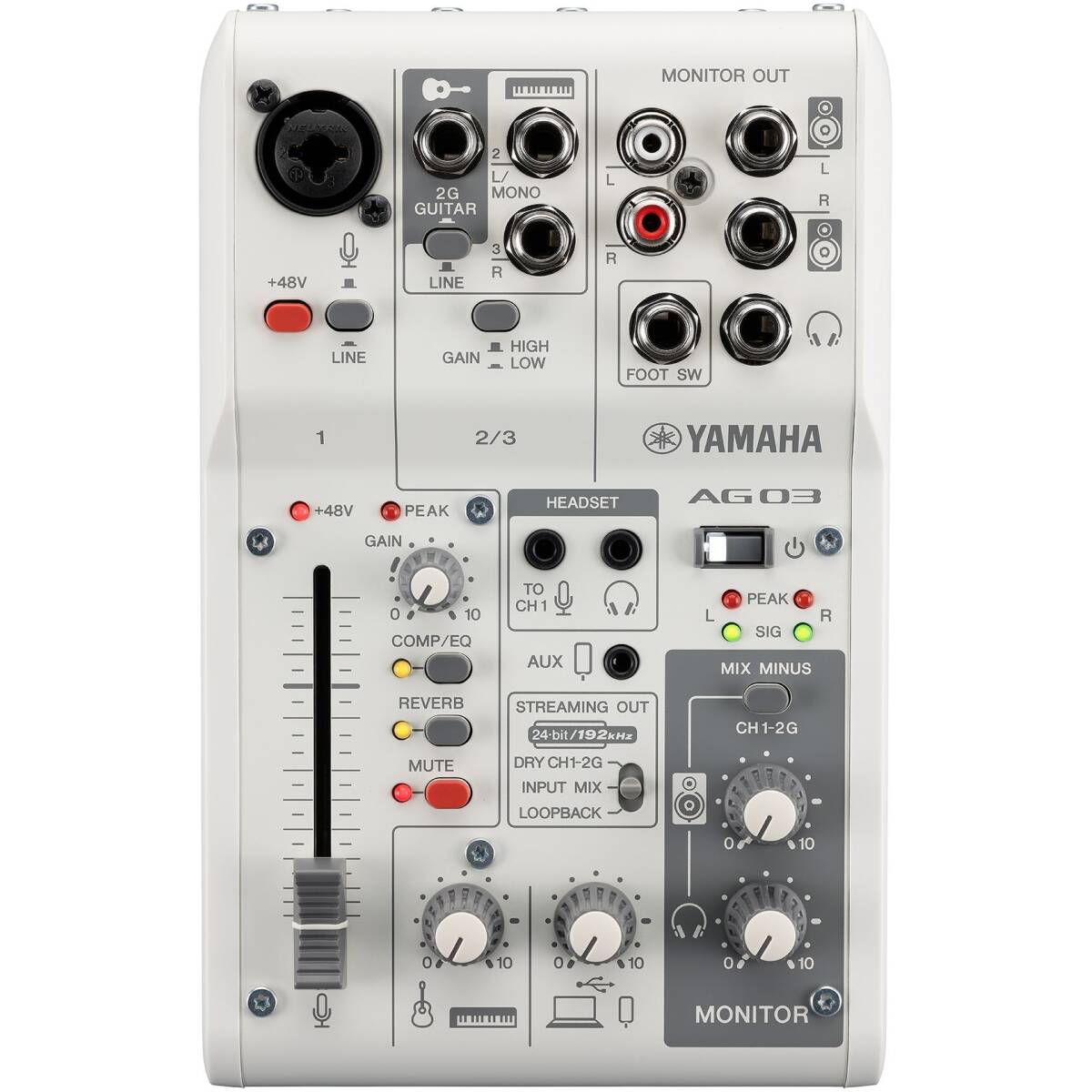

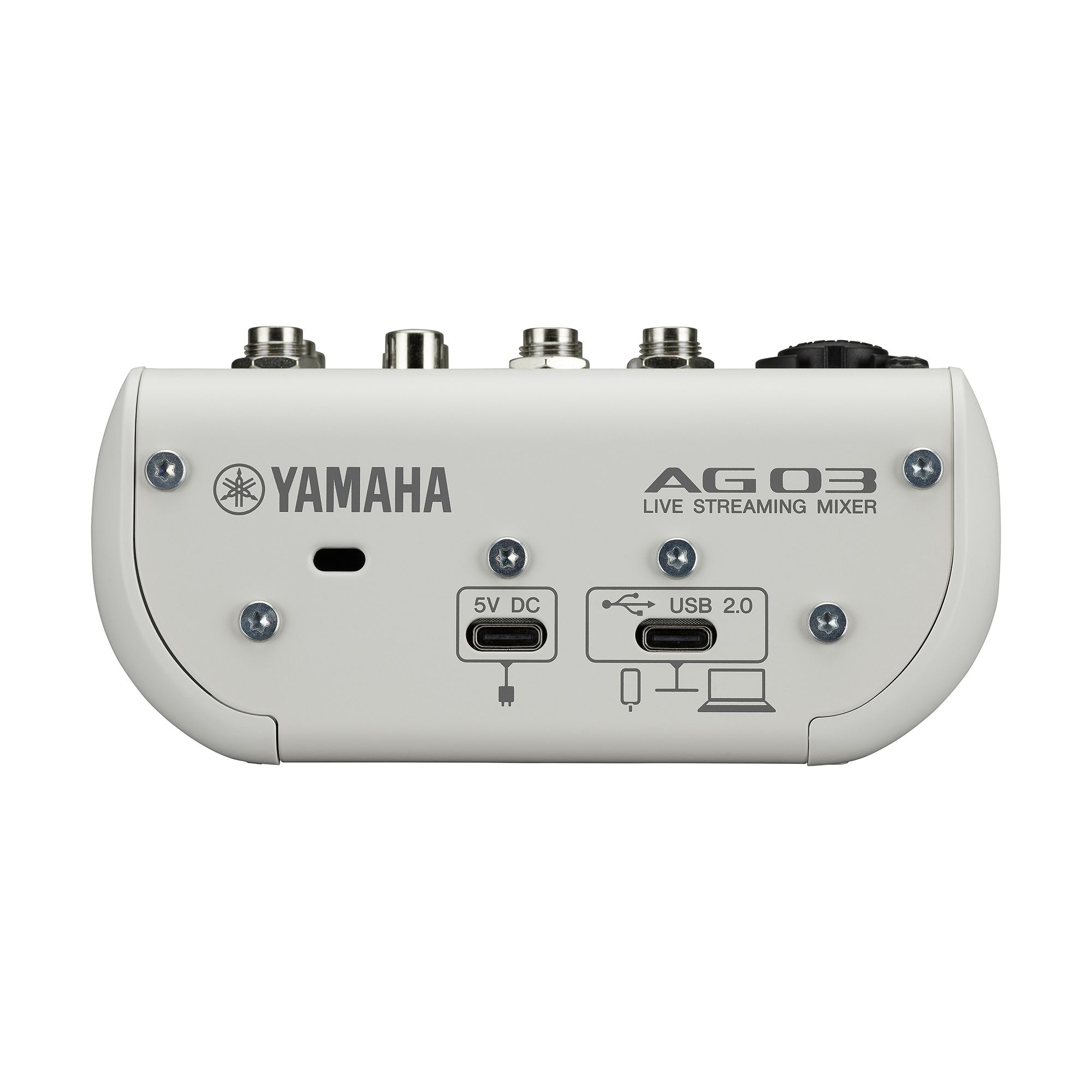

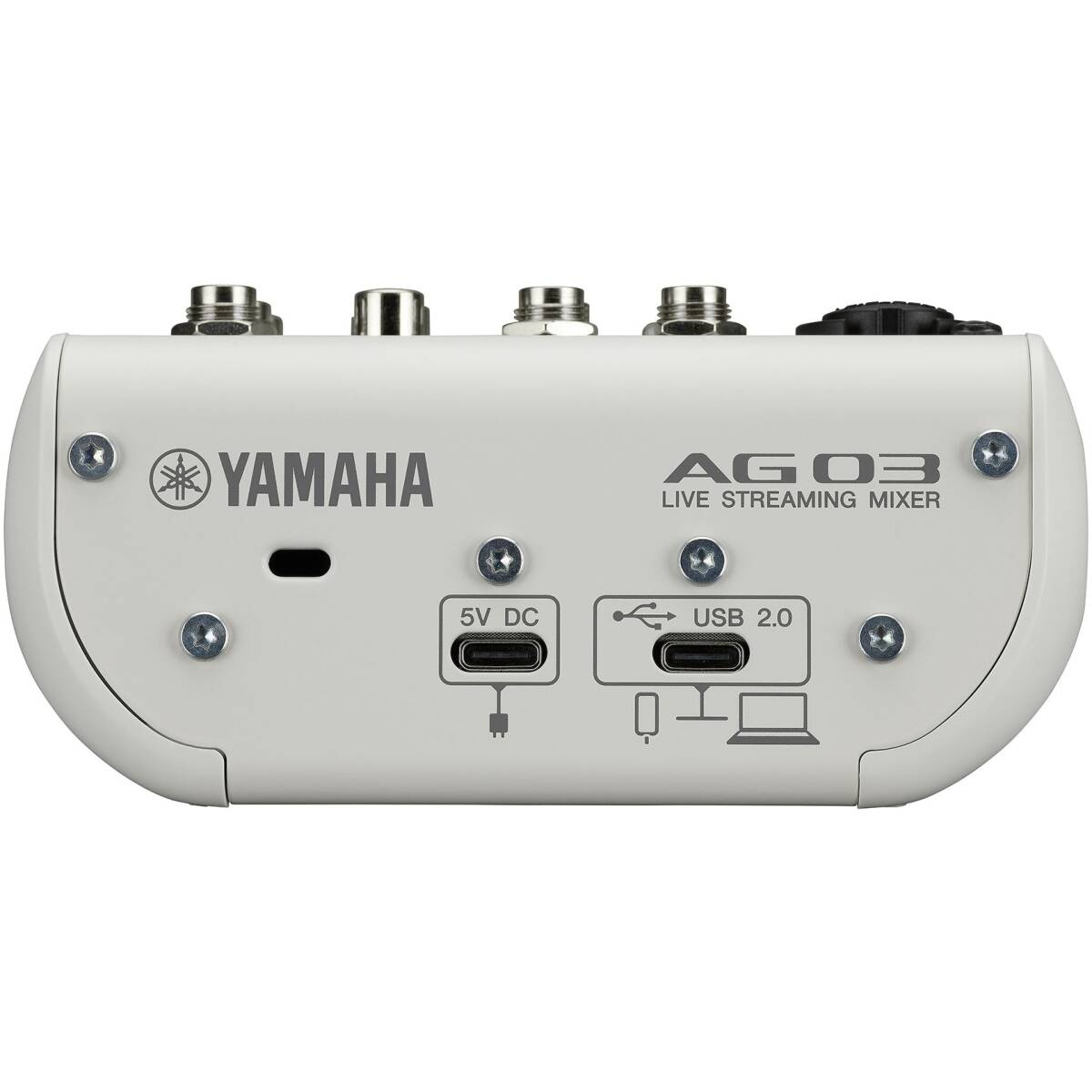

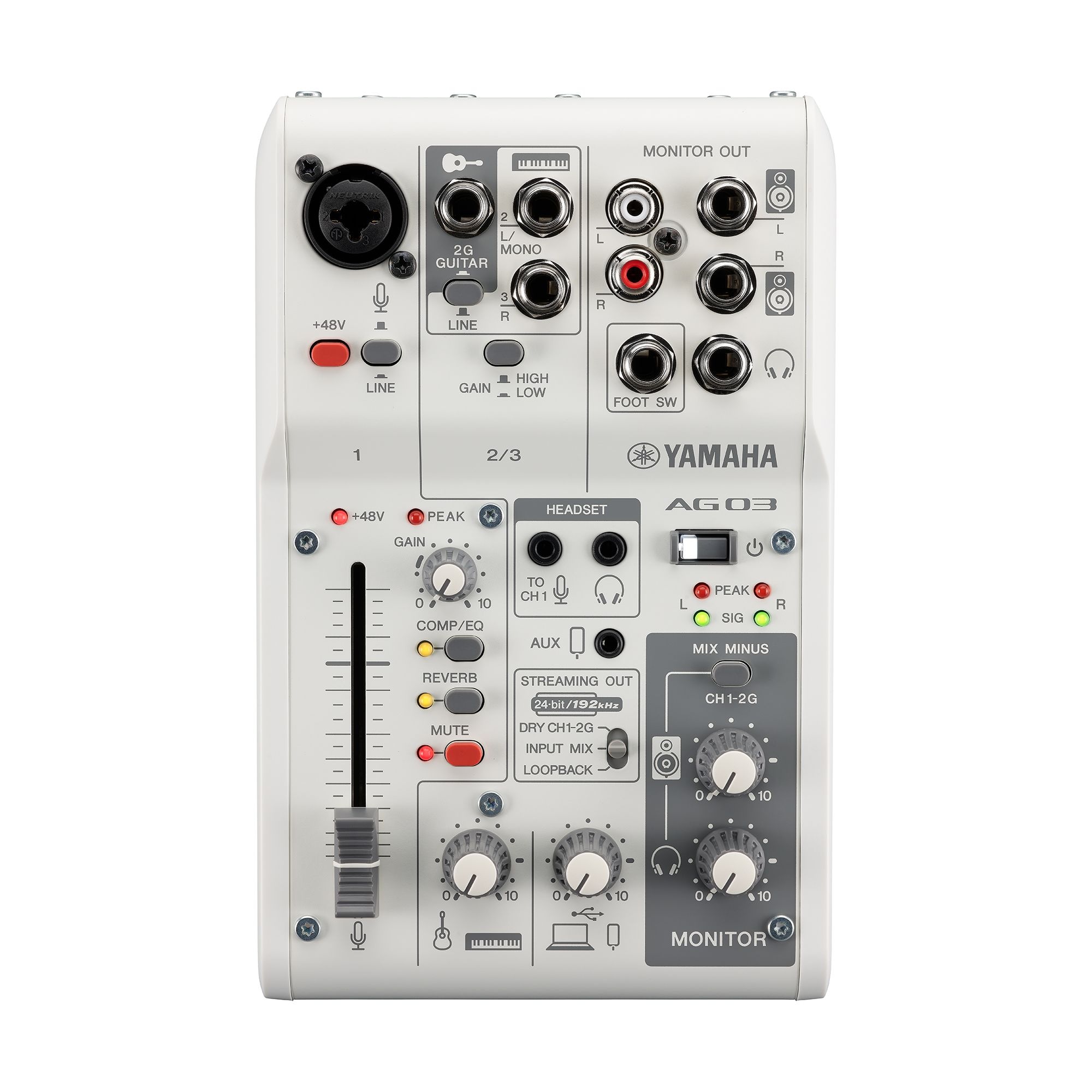

The significance of streaming can’t be overstated. With new forms of content accessible from a myriad of devices, it’s crucial to maintain a high standard when it comes to your audio. Raise the bar with the Yamaha AG03 Mk2, a revamped 3-channel mixer that is a master of multiplicities designed to accommodate streams for gaming, webcasting, live music, and so much more. This robust mixer aims to pair flexibility with opportunity, boasting 24-bit/192kHz audio quality, USB connectivity, onboard DSP effects, and loopback functionality. The Mk2 introduces a 1/8-inch, 4-pole mini I/O to enable a variety of streaming options, a mute button, and a swath of improvements to the build, design, internal circuitry, and overall performance — all to ensure optimized, intuitive control with no sacrifice in quality. Pick up a Yamaha AG03 Mk2 at Music Experience today.
Yamaha AG03MK2 Live Streaming Mixer at a Glance:
- 60 mm faders for mic CH1
- +48 V phantom power on CH1 input for condenser mics or Dl boxes
- Hi-Z input for guitars on CH2
- High resolution (24-bit, 192 kHz) 2-track audio recording and playback
- 4-pole mini input/output (TRRS) to support a wider range of streaming applications
- Flexible inputs and LOOPBACK function ideal for live streaming or recording
- Mute button for convenient live streaming
- Easy control and pro sound with Amp Simulator and 1-TOUCH COMP/EQ, REVERB
- AG Controller (Windows/Mac/iOS) for precise parameter control
- Windows/Mac support by USB-C connection
- iOS connectivity via Apple Camera Adapter (requires external USB power supply)
- Android supported by 4-pole mini input/output (TRRS)
- USB-C power input (5 V DC, 900 mA)
- Cubase Al, WaveLab Cast, Cubasis LE and Rec’n’Share are available
Yamaha AG03MK2 Live Streaming Mixer Features:
- USB connectivity means easy use for a variety of streaming needs
- 3-channel mixer enables opportunity for numerous microphone and instrument inputs
- 24-bit/192kHz audio resolution guarantees high-quality output
- Built-in DSP provides onboard FX and control, including compression, EQ, filtering, and reverb
- Precision interfacing tools let you stay in control of what gets heard and how, including the built-in loopback mode that allows you to supplement your inputs with audio from your Mac/PC
- Class compliance mode for iPad connection permits for even more control options, including the Cubasis LE production app, and the AG DSP Controller app
- iOS connectivity incorporates use of apps such as Zoom, Skype, Teams, and FaceTime into your live stream, all from your device
- +48V phantom power option is ideal for use of a condenser microphone, if needed
- 1/8-inch/3.5mm 4-pole mini I/O jack supplies more opportunities for audio inclusion, including sound effects, cues, and background music from another device — with a dedicated mix control
| Type | Analog Mixer with USB |
|---|---|
| Channels | 3 |
| A/D Resolution | 24-bit / 192kHz |
| Faders | 1 x 60mm |
| Inputs – Mic Preamps | 1 x XLR-1/4″ combo |
| Phantom Power | +48V |
| Inputs – Line | 3 x 1/4″ TRS, 1 x 1/8″ |
| Outputs – Main | 1 x Dual RCA Stereo, 2 x 1/4″ TS |
| Headphones | 1 x 1/4″ TRS, 1 x 1/8″ |
| Computer Connectivity | 1 x USB-C |
| Other I/O | 1 x 1/4″ (footswitch) |
| Effects | Loopback function, one-touch Reverb |
| Software | Cubase Al, WaveLab Cast, Cubasis LE, Rec’n’Share |
| Power Source | USB bus powered (5V DC) |
| Height | 2.48″ |
| Width | 4.96″ |
| Depth | 7.91″ |
| Weight | 1.76 lbs. |
| Manufacturer Part Number | AG03MK2 W |
