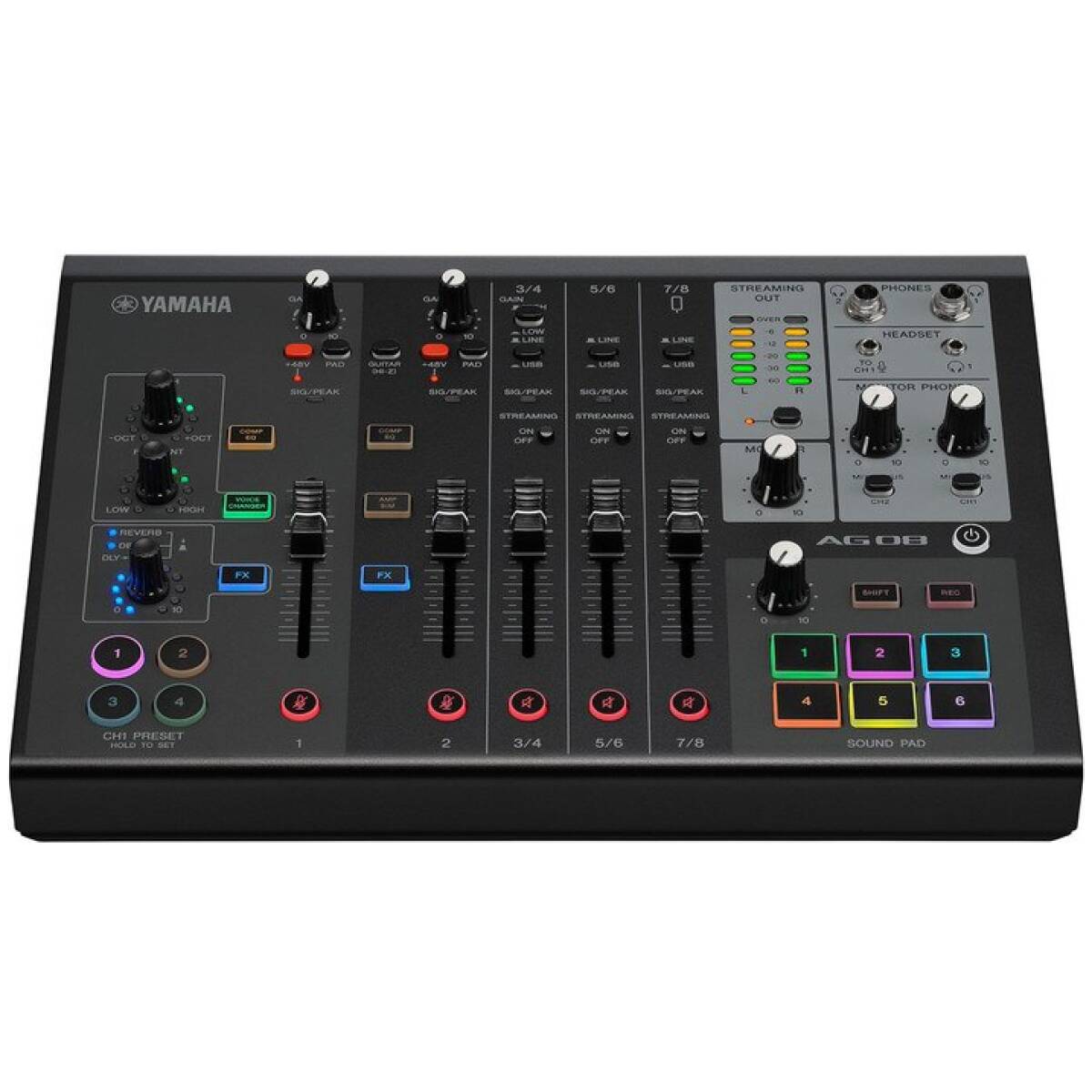

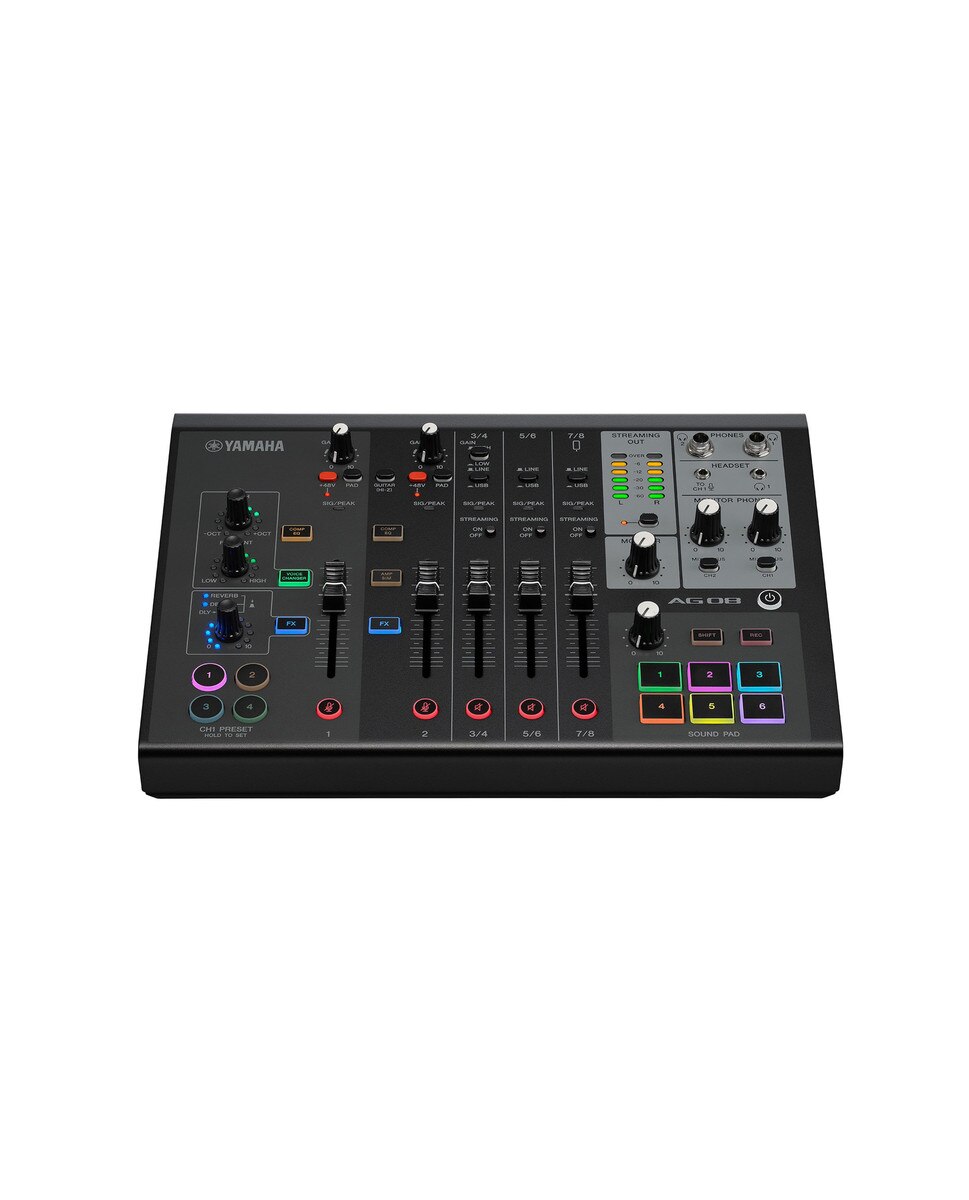

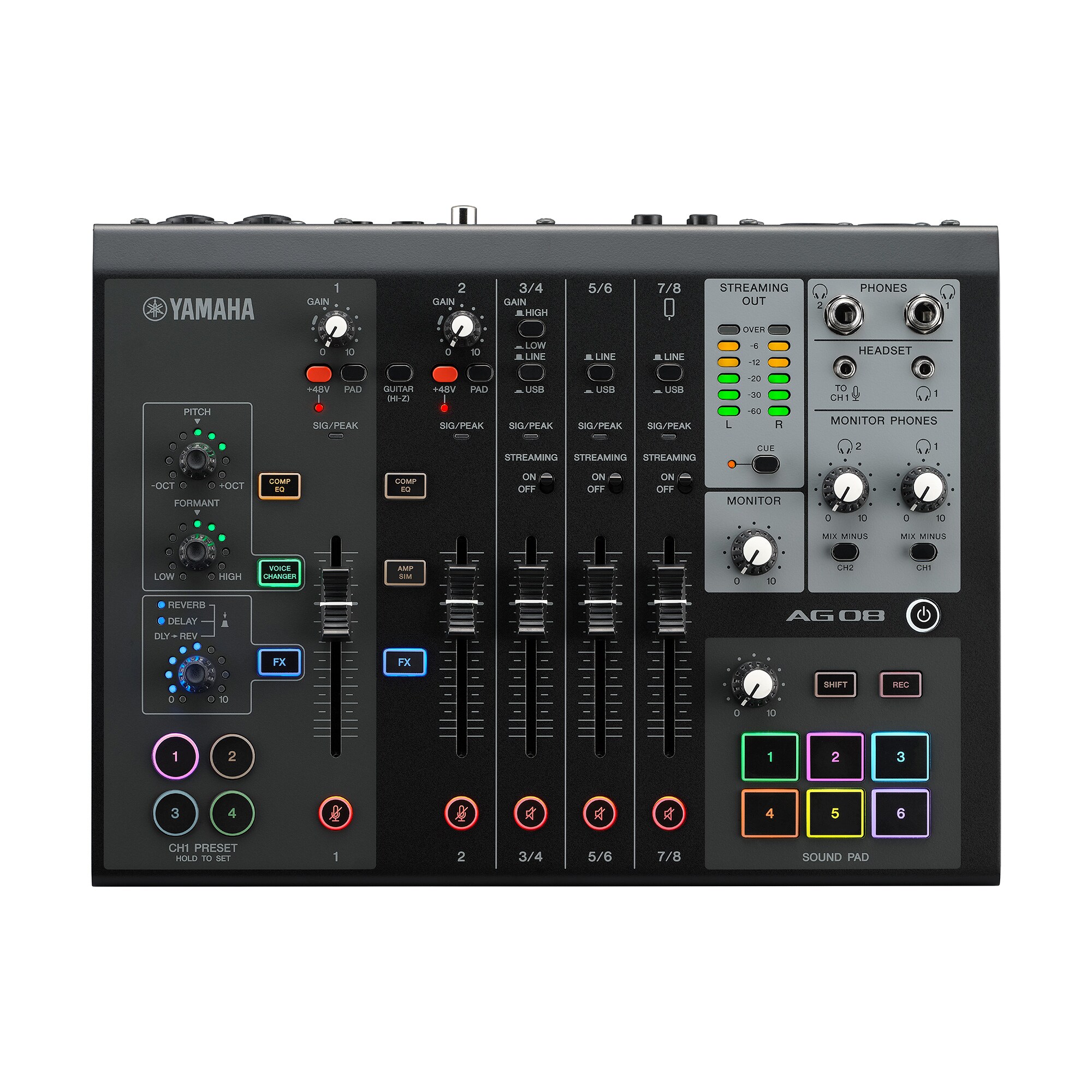

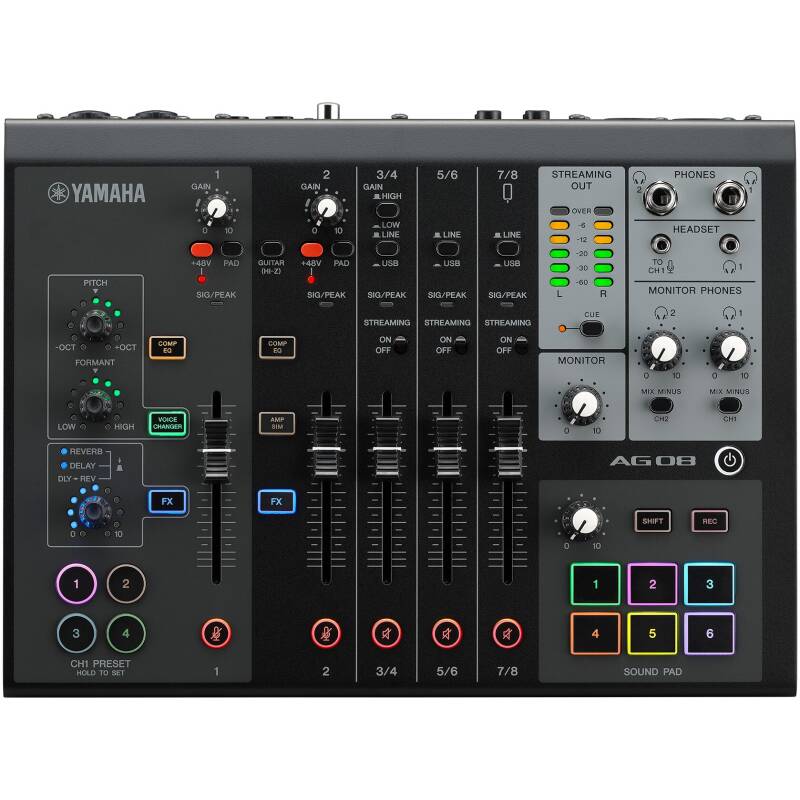

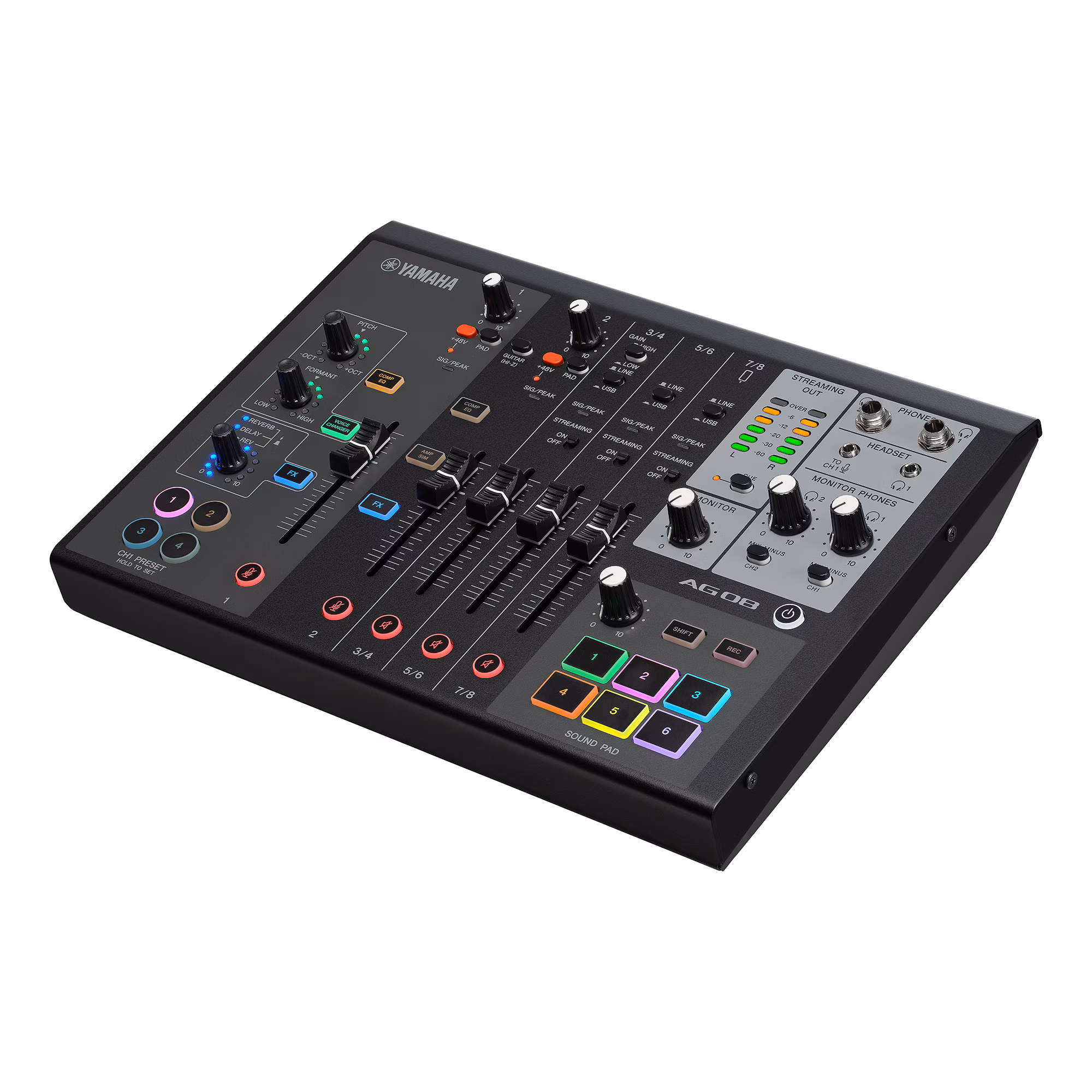

As the flagship model of Yamaha’s second-generation AG series lineup, the AG08 Mixer combines all the essential functionality of its predecessors with a versatile selection of practical new features to give you a powerful all-in-one streaming station. By integrating more flexible I/O and USB routing options, expanded footswitch functionality, additional DSP effects, and improved internal circuitry for class-leading sound, the AG08 is able to support an impressive array of live-streaming applications, offline audio-content creation—including single- and multiple-user talking—gaming, ASMR, voice acting applications, and vocal/instrument performances.
Key Features
- Two mic/line inputs and two headphone outputs can be used simultaneously
- +48V phantom power on CH1 and two for condenser mics or Dl boxes
- Four FX preset buttons for CH1, Hi-Z input for guitars on CH2
- Three stereo inputs with assignable faders, switchable input source for line/sub
- 3.5mm TRRS input/output for smartphone on CH7/8

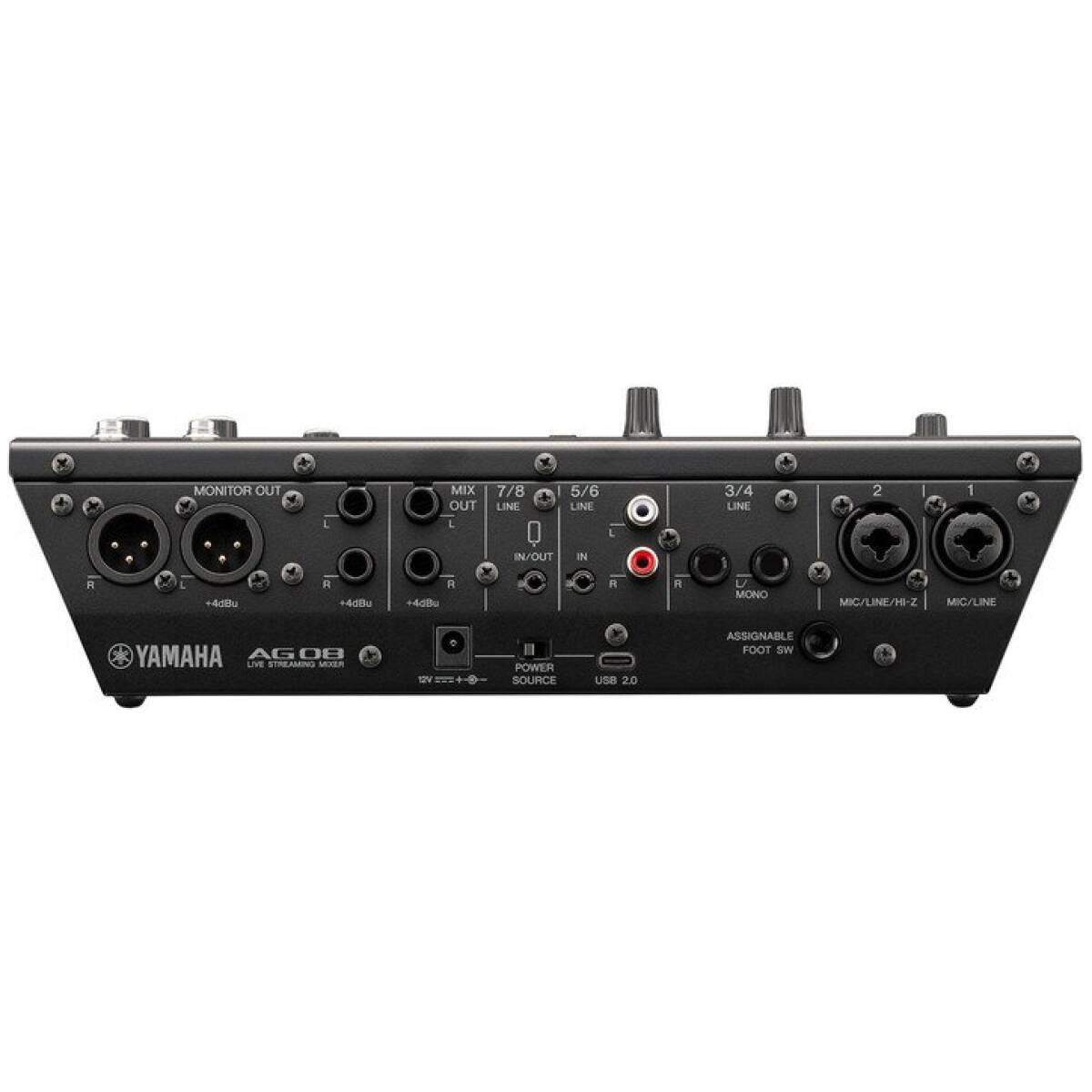

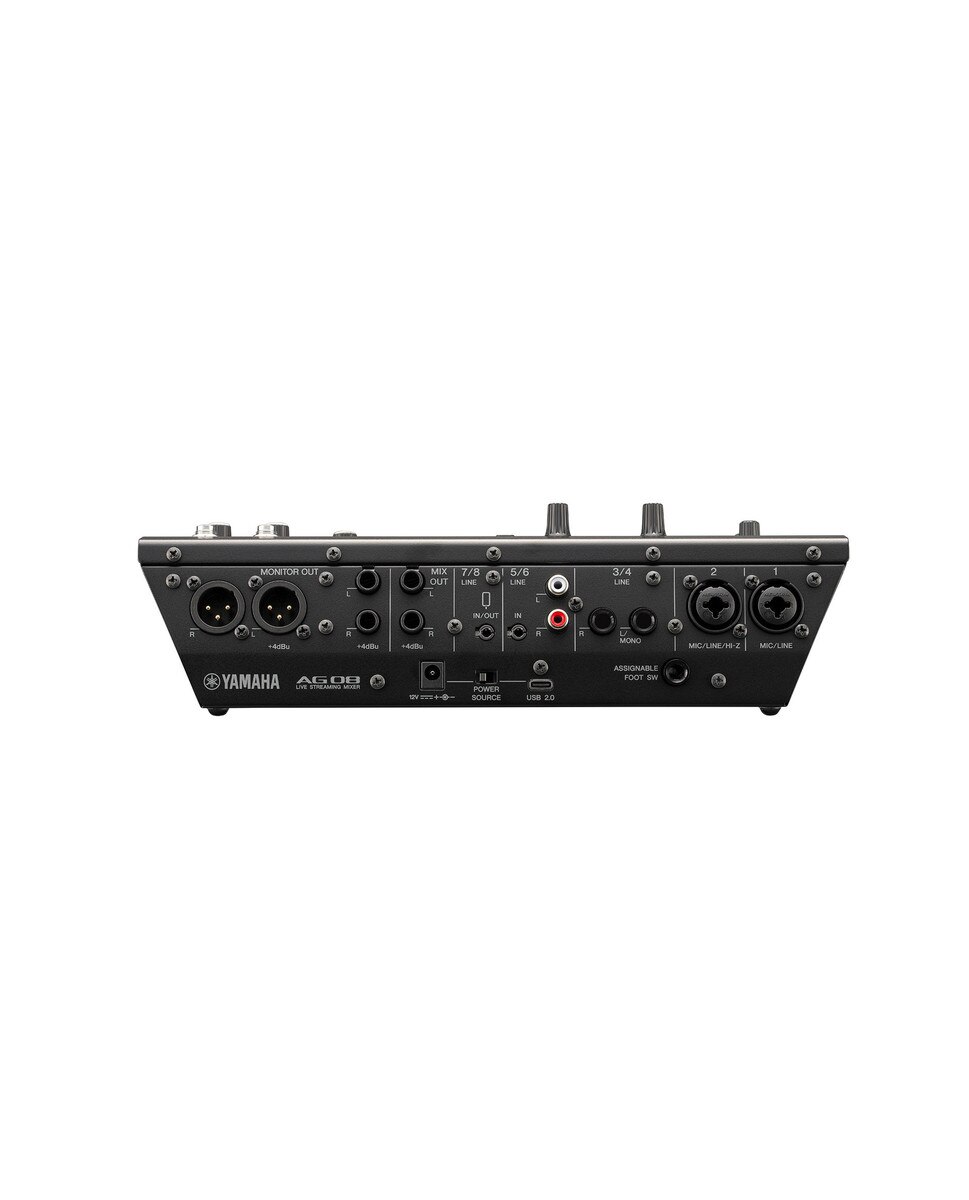

- Monitor outputs (XLR + TRS) and mix outputs (TRS)
- Six sound pads trigger audio samples in real time to add color to live streams
- Internal circuitry delivers highest sound-quality in the AG series
- 24-bit, 48 kHz multichannel audio recording and playback
- Flexible inputs and outputs ideal for live streaming
- DSP effects (Voice Changer, Amp Simulator, Comp, EQ, Reverb, Delay, Ducker, Maximizer)
- AG08 Controller (Windows/Mac/iOS) for precise parameter control and detailed audio management
- 60mm faders and mute buttons for each input
- Footswitch functionality for more versatile system control
- Windows/Mac support via USB-C connection
- iOS connectivity via Apple Camera Adapter (available separately)—requires external USB power supply
- Android supported via 3.5mm TRRS input/output connector
- Power input (AC/DC adapter 12 V, 1.5 A / USB-C 5 V, 1.5 A)
- Bundled with Cubase Al, WaveLab Cast, Cubasis LE
| Number of Analog Input Channels | 8 (2 Mono / 3 Stereo) |
| Number of Mic Preamps | 2 |
| Analog Output Channels | 2 x Stereo Headphone Output 1 x Stereo Aux Send Output 1 x Stereo Master Output 1 x Stereo Control Room/Monitor Output |
| Mix Routing | 4 x Stereo Aux Bus/Subgroup |
| Faders & Level Adjustment | 5 x 2.4″ / 60 mm Channel Fader |
| Meters | LED |
| Dynamic Processing | Compressor |
| EQ | None |
| Built-In Effects | Reverb Delay Amp Simulator Vocal Effect |
| Sample Rates | 48 kHz |
| Bit Depth | 24-Bit |
| Analog Inputs | 2 x Combo XLR-1/4″ Balanced Mic/Line/Hi-Z Input 2 x 1/4″ Stereo Line Input 1 x Stereo RCA Stereo Line Input 1 x 1/8″ / 3.5 mm Stereo Line Input 1 x 1/8″ / 3.5 mm TRRS Stereo Line Input |
| Analog Outputs | 2 x 1/4″ Stereo Headphone Output 1 x 1/8″ / 3.5 mm TRRS Stereo Line Output 2 x Combo XLR-1/4″ TRS Balanced Stereo Monitor Output 2 x 1/4″ TRS Stereo Main Output |
| Phantom Power | +48 V |
| Digital I/O | None |
| MIDI I/O | None |
| USB | USB-C (Audio Streaming, Host Connection) |
| USB I/O Capacity | 8 x Input / 14 x Output |
| Bluetooth | None |
| OS Compatibility | macOS Windows iOS *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| DC Input Power | 5 VDC at 1.5A (USB Bus Power) |
| Power Supply Output | 12 VDC at 1.5 A (Included) |
| Power Consumption | 7.5 W (Maximum) |
| Rack Mountable | No |

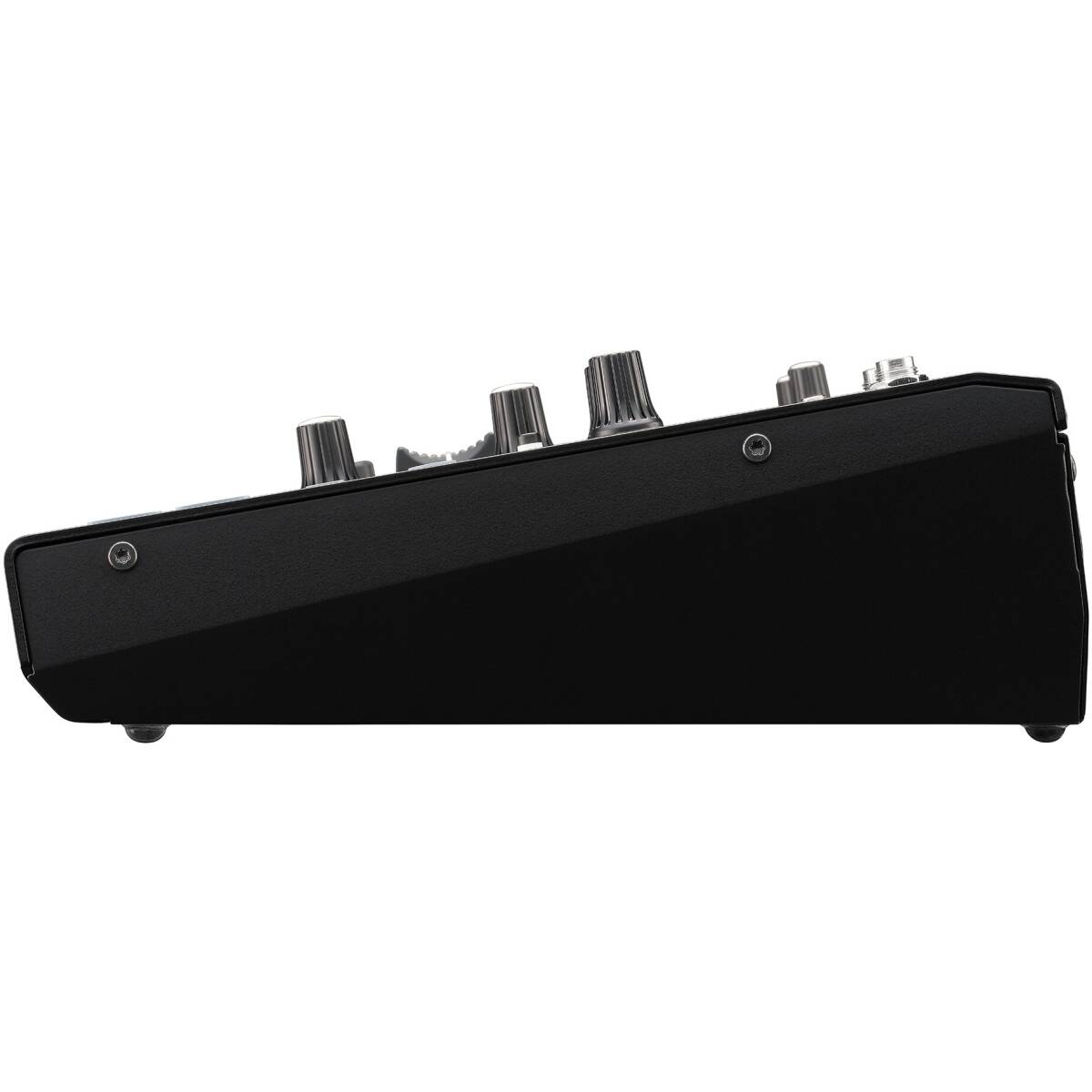

| Dimensions | 11.4 x 3.5 x 8.7″ / 29 x 8.8 x 22.2 cm |
