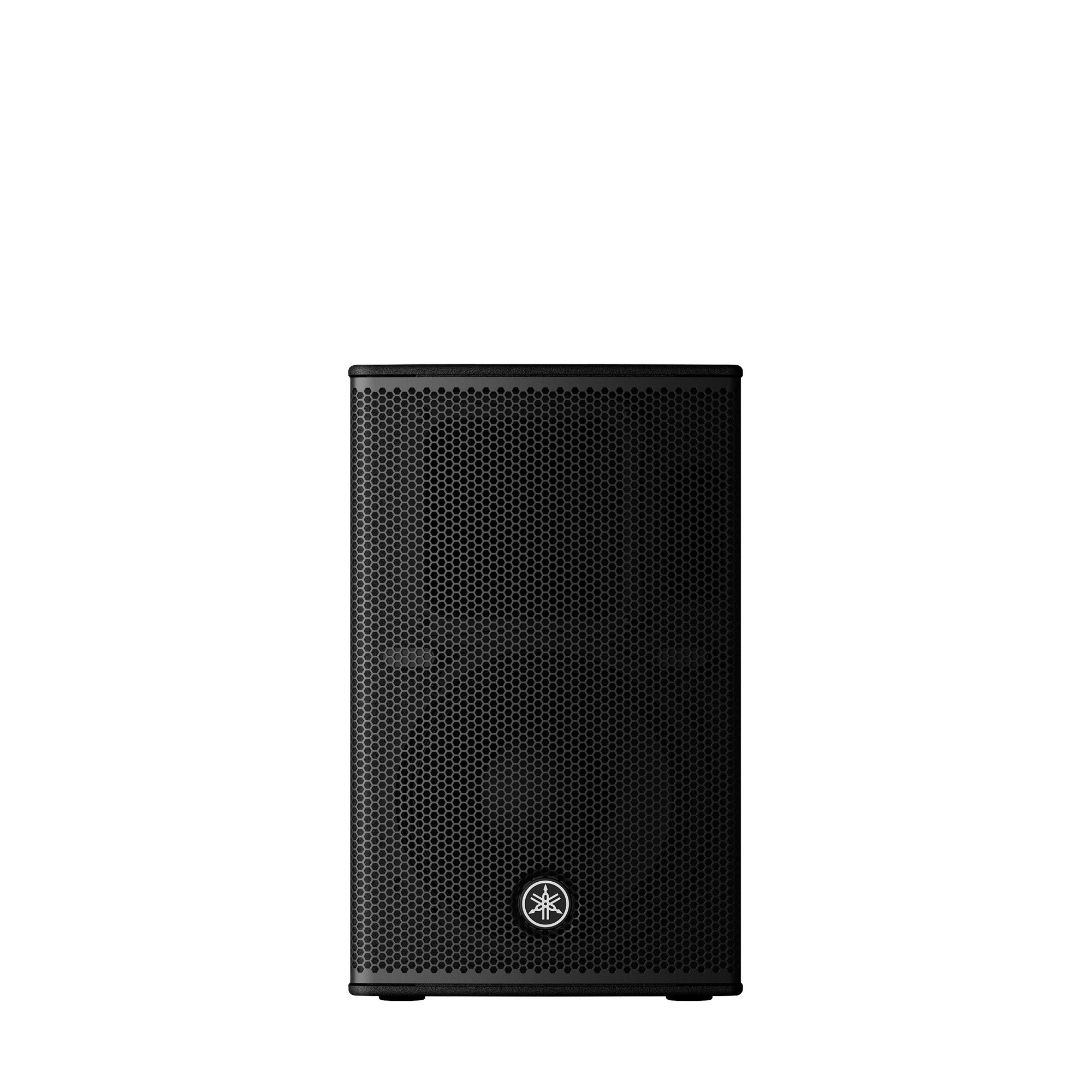

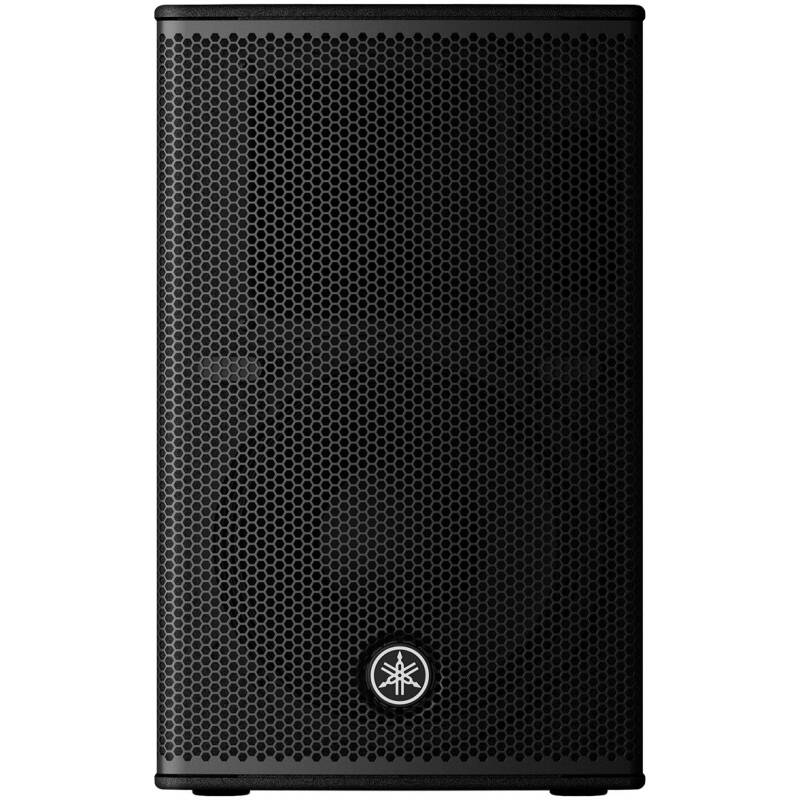

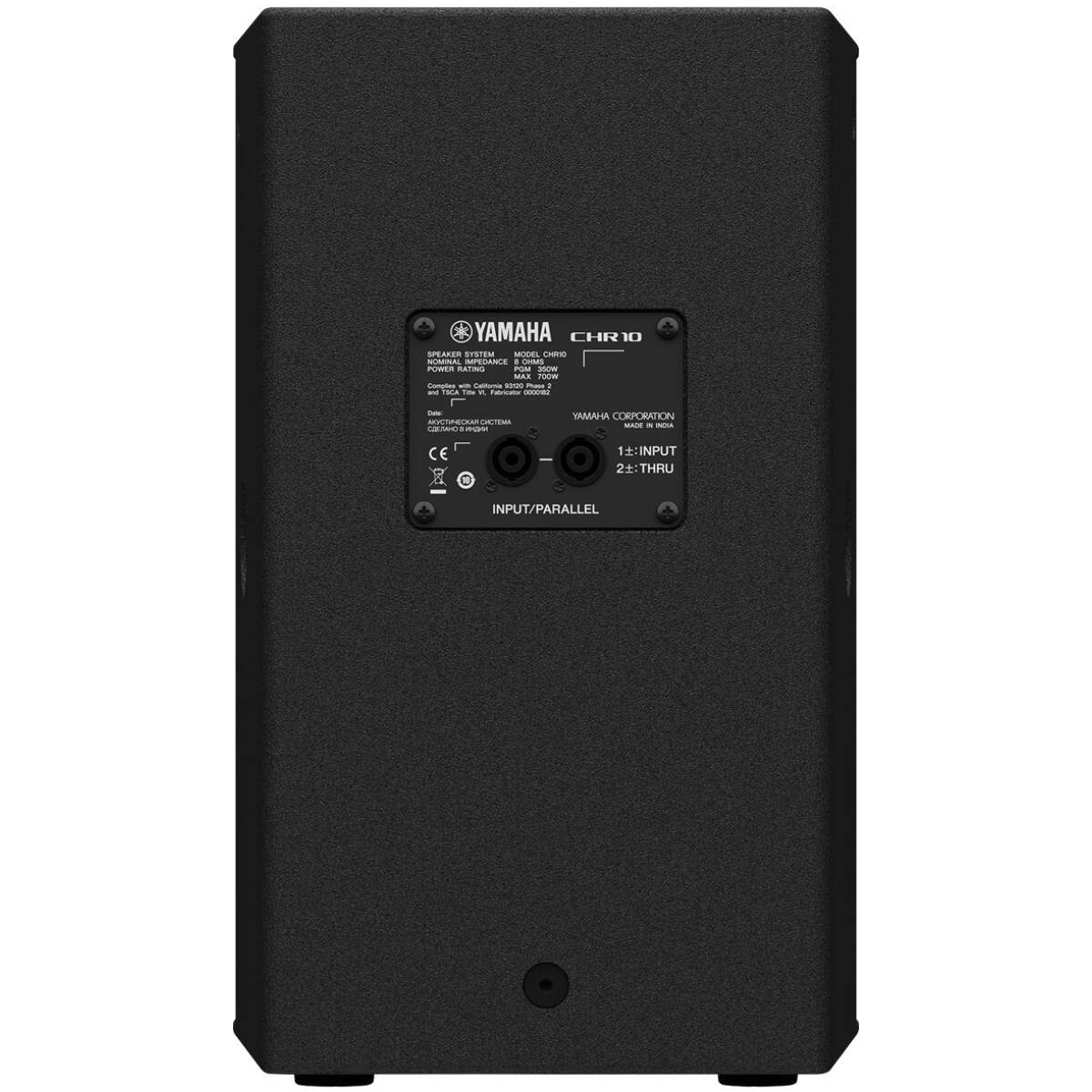

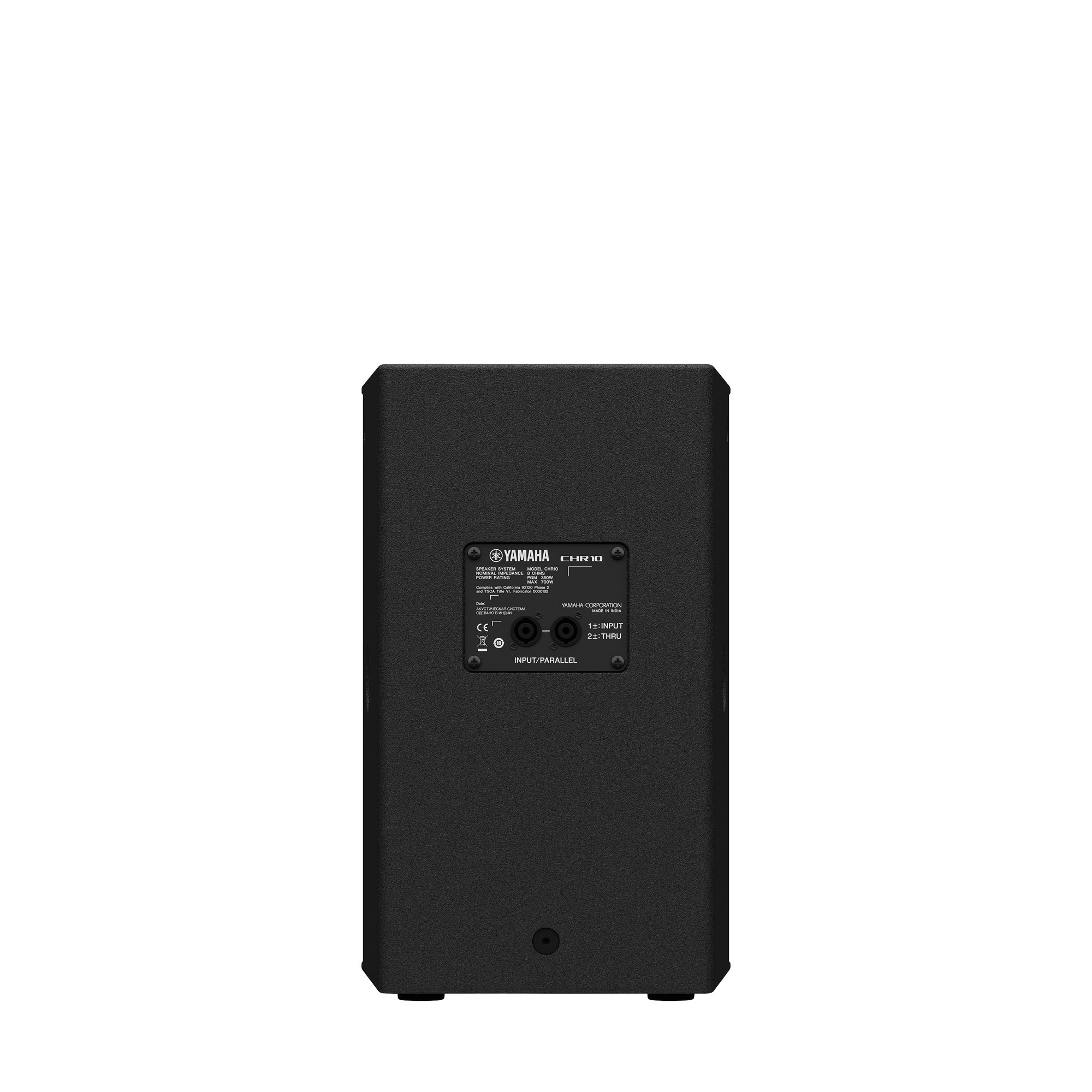

The Yamaha CHR10 is a compact 10-inch 2-way passive loudspeaker, part of Yamaha’s CHR Series. Designed for fixed installations and portable live sound reinforcement, it delivers high-quality audio in a lightweight, durable cabinet.
Key Features
-
2-way passive loudspeaker
-

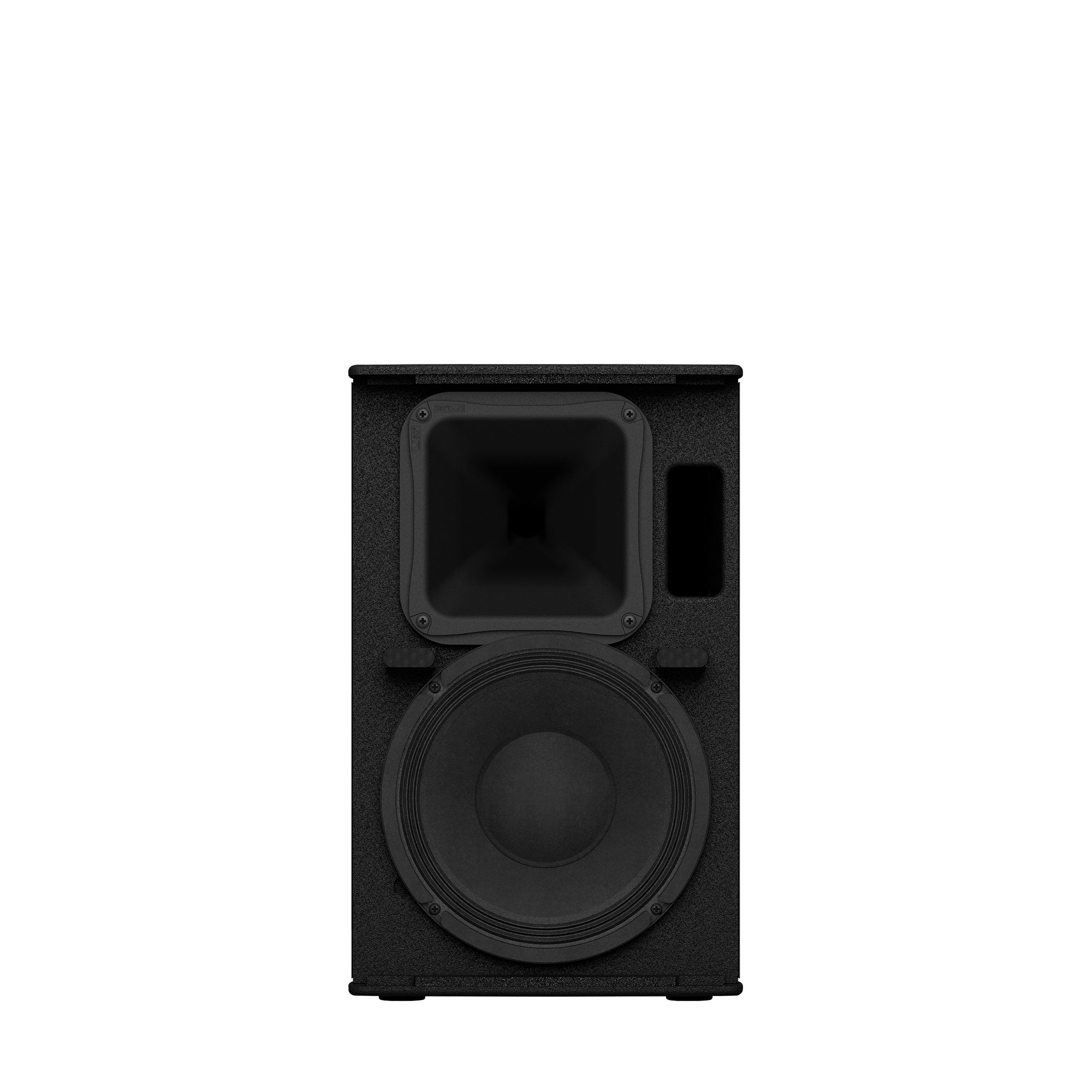

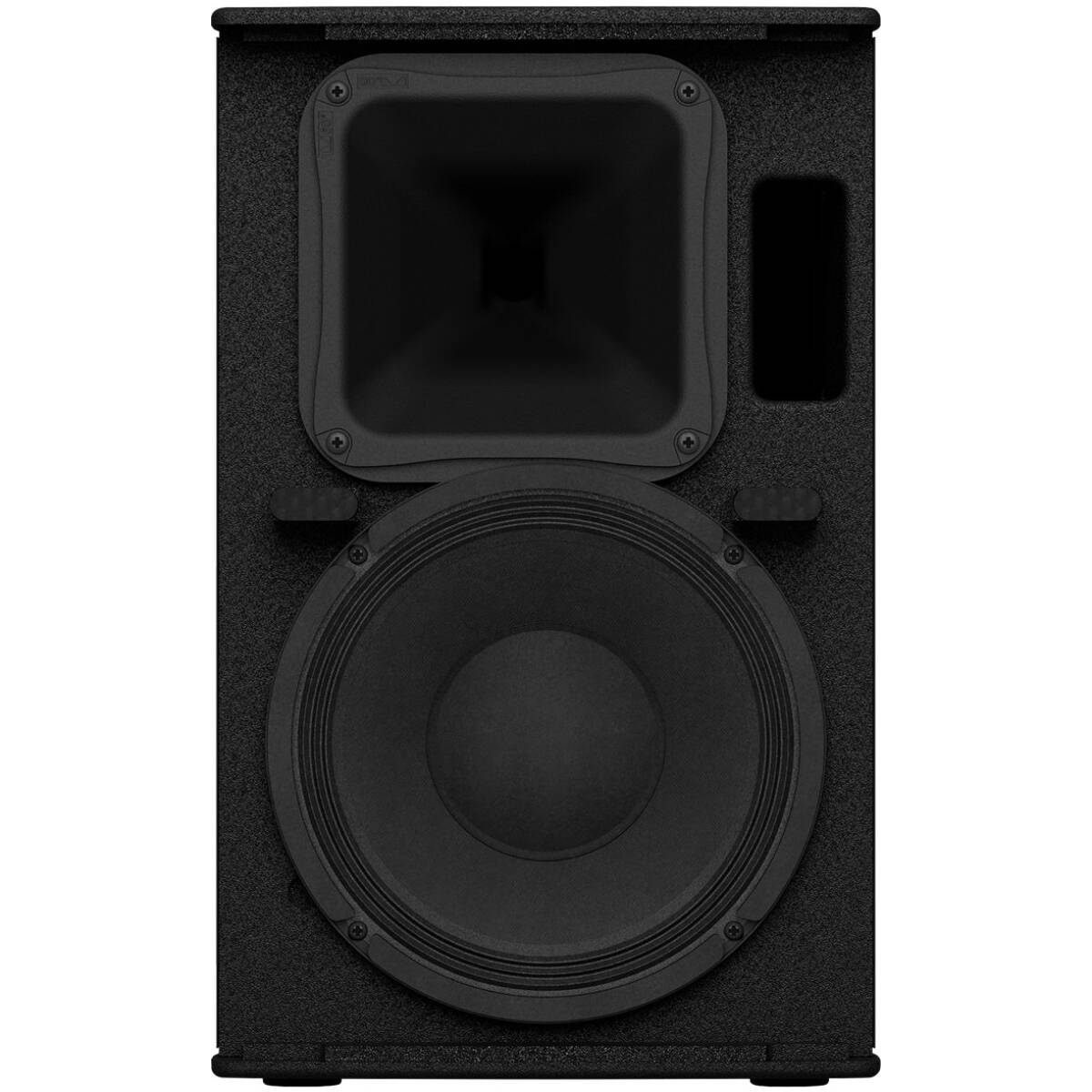

10″ woofer + 1.4″ HF compression driver
-
Frequency response: 59 Hz – 20 kHz (-10 dB)
-
Power handling: 700W program / 1400W peak
-
Sensitivity: 93 dB SPL (1W/1m)
-
Max SPL: 125 dB peak
-
Nominal coverage: 90° × 60° (rotatable horn)
-
Impedance: 8Ω
-
Cabinet: Plywood enclosure with durable polyurea coating
-
Mounting options: Pole mount socket, rigging points, and floor monitor angle
