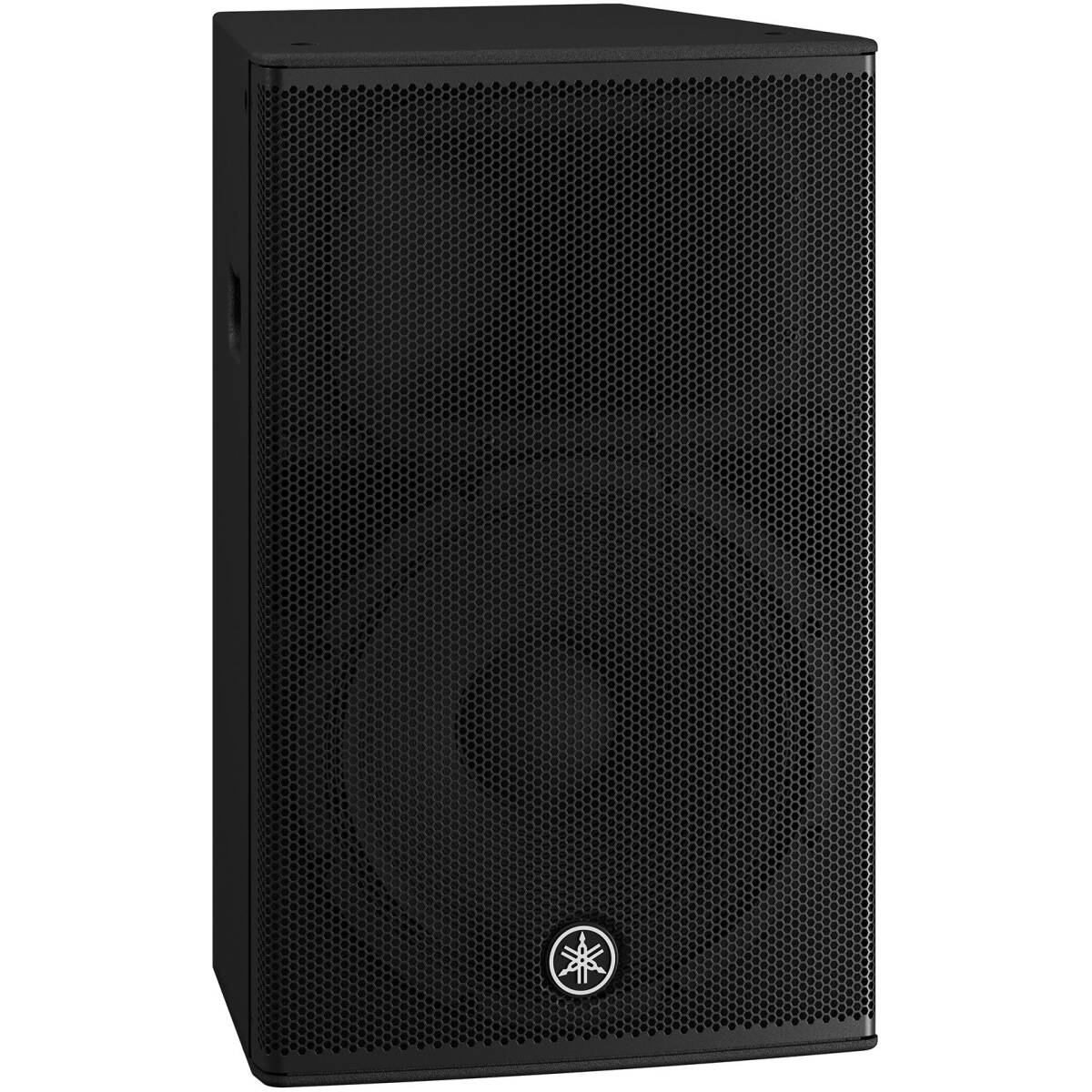

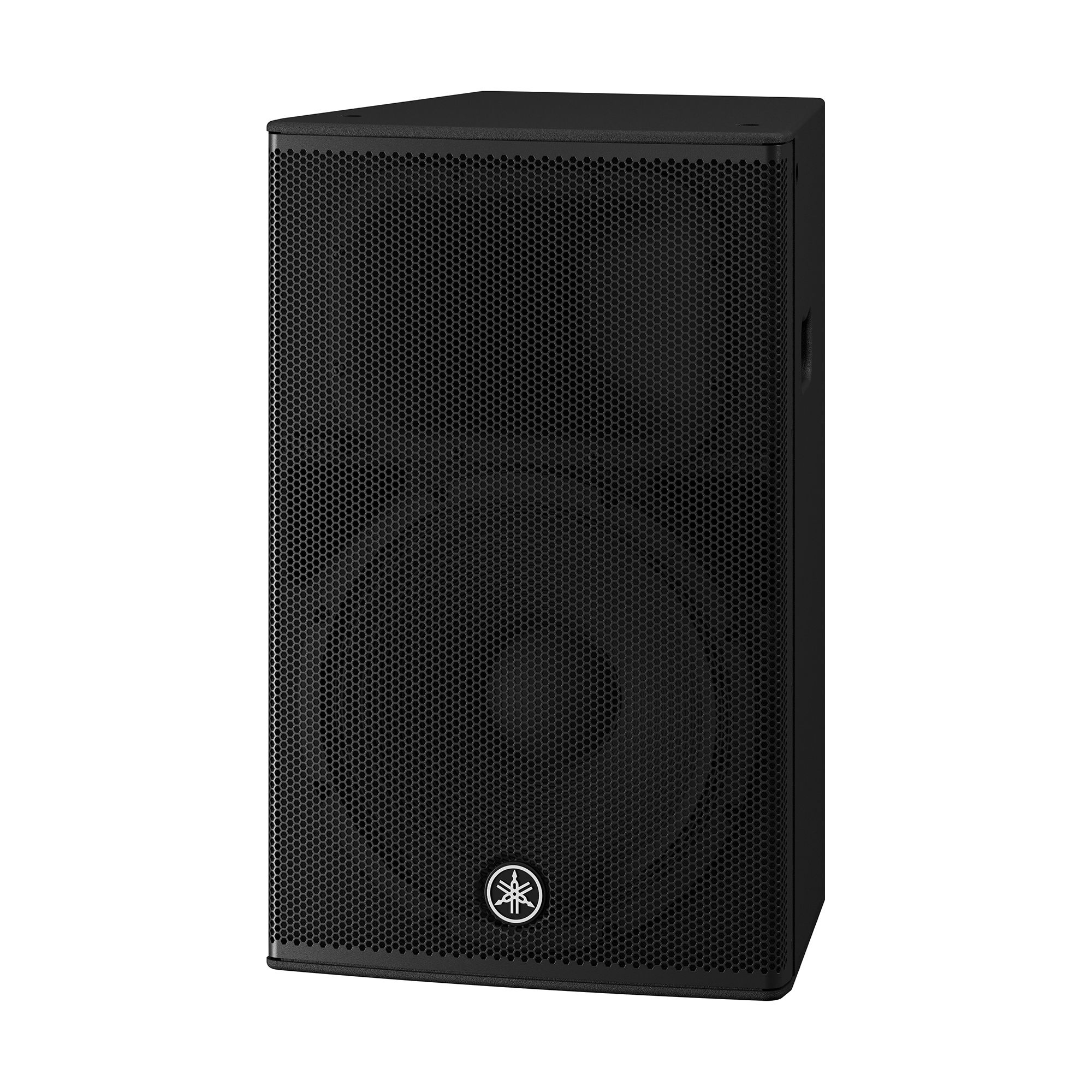

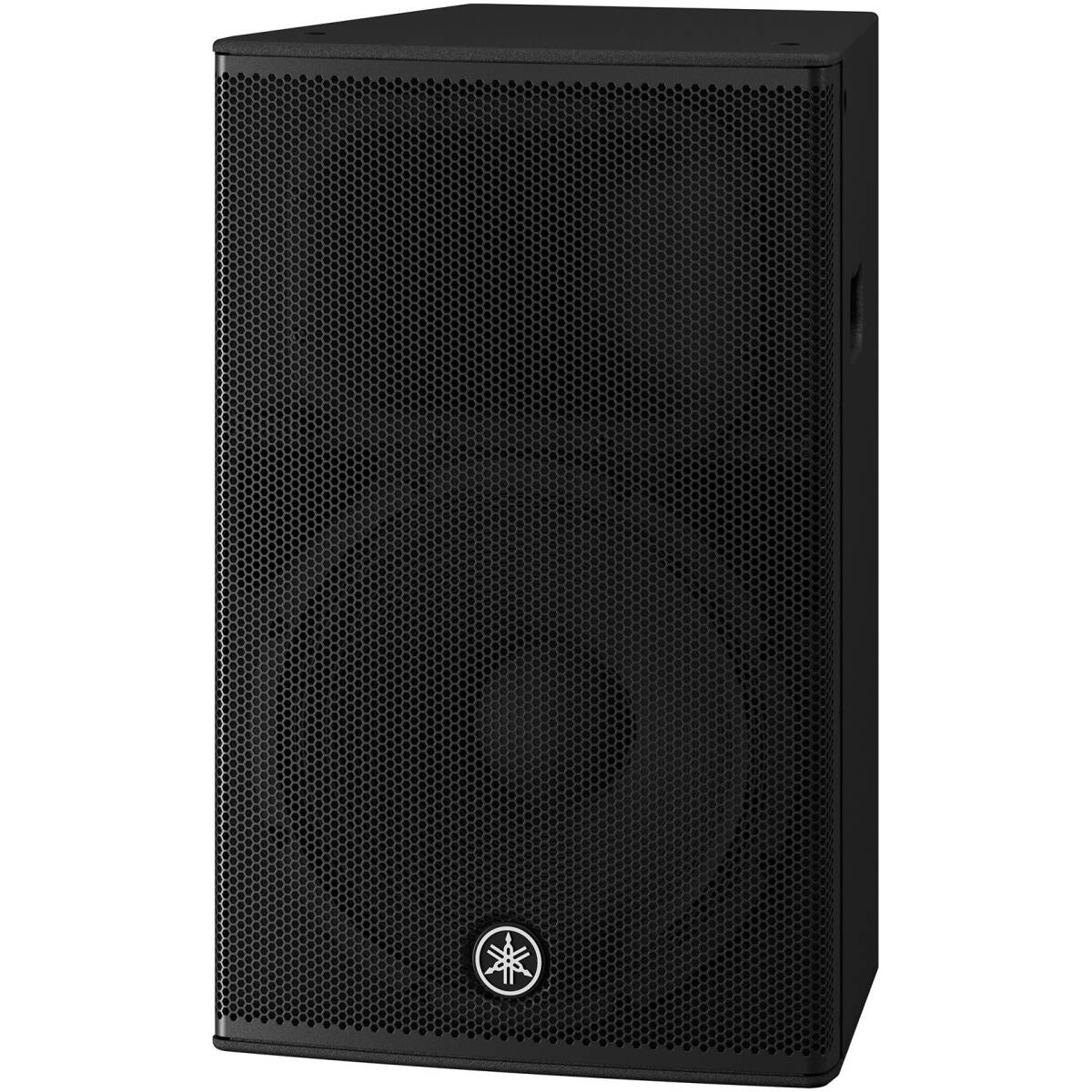

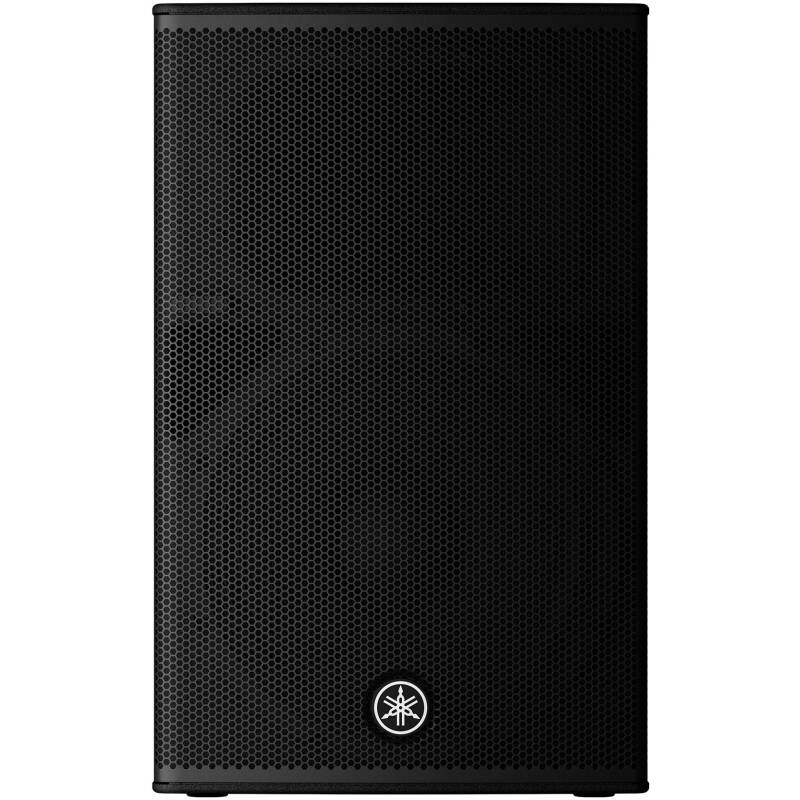

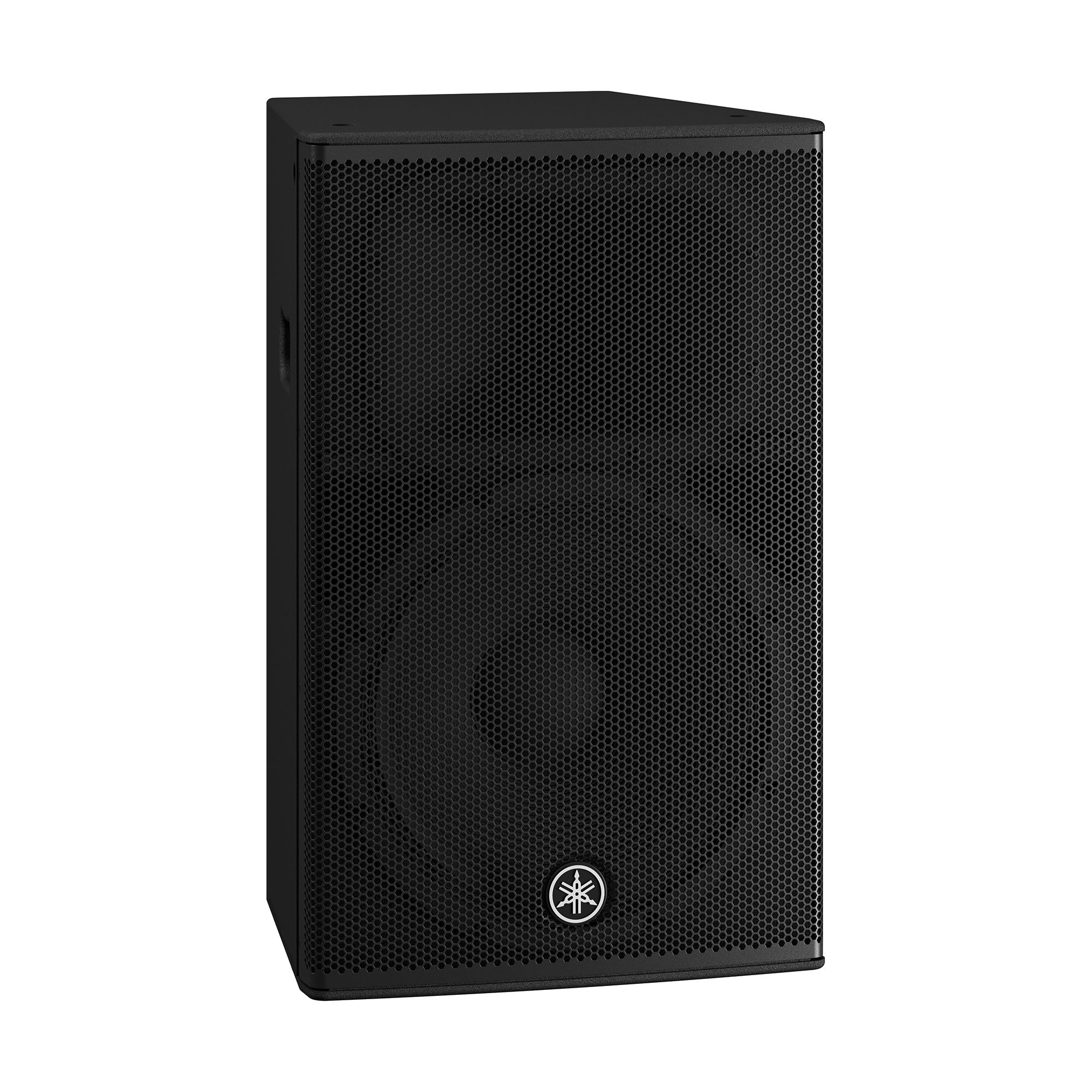

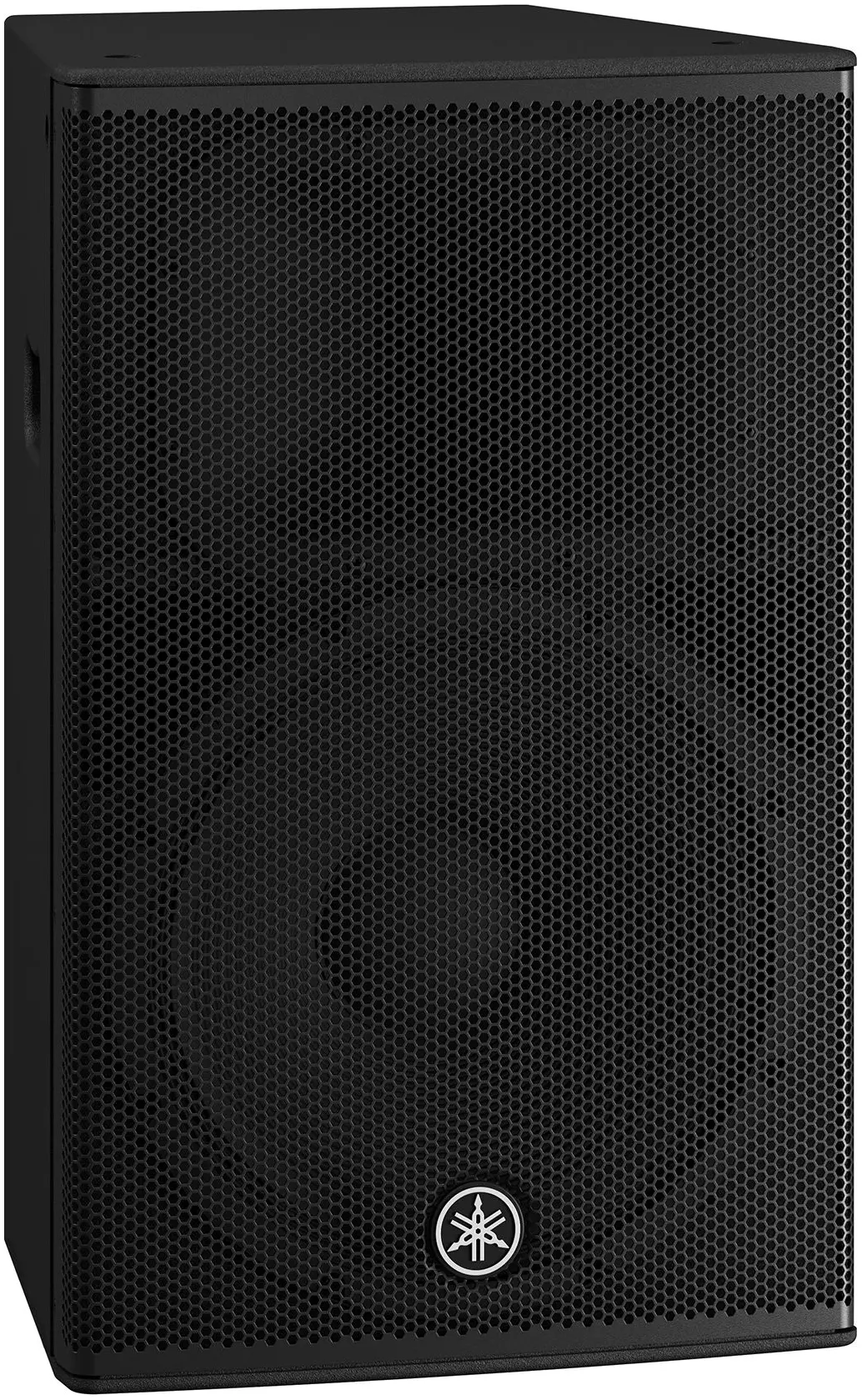

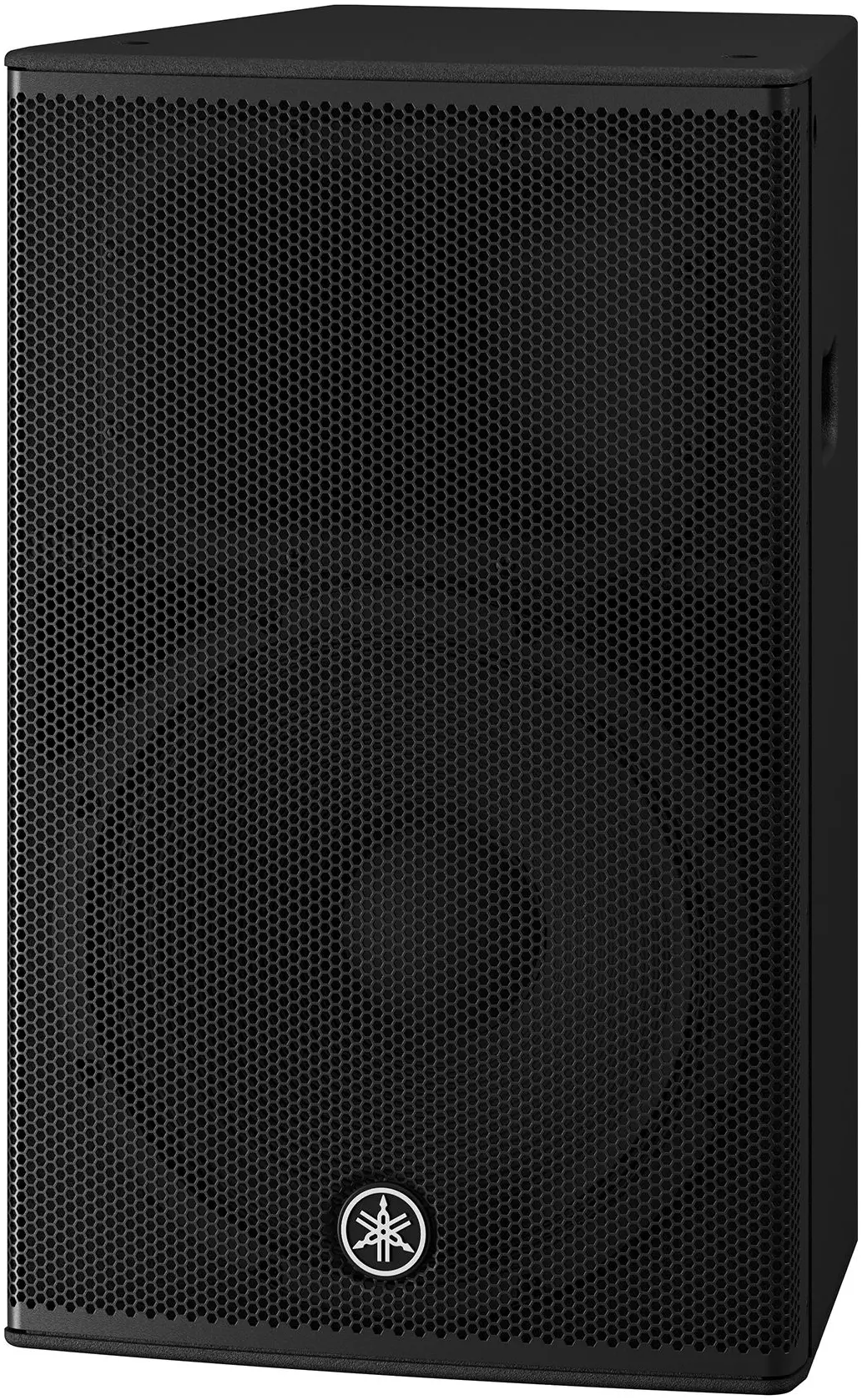

Yamaha CHR15 Passive Loudspeaker

The Yamaha CHR15 is the largest model in the CHR Series, a 15-inch 2-way passive full-range loudspeaker designed for live sound reinforcement, portable PA setups, and installations where strong bass presence and high SPL are required.

Key Features

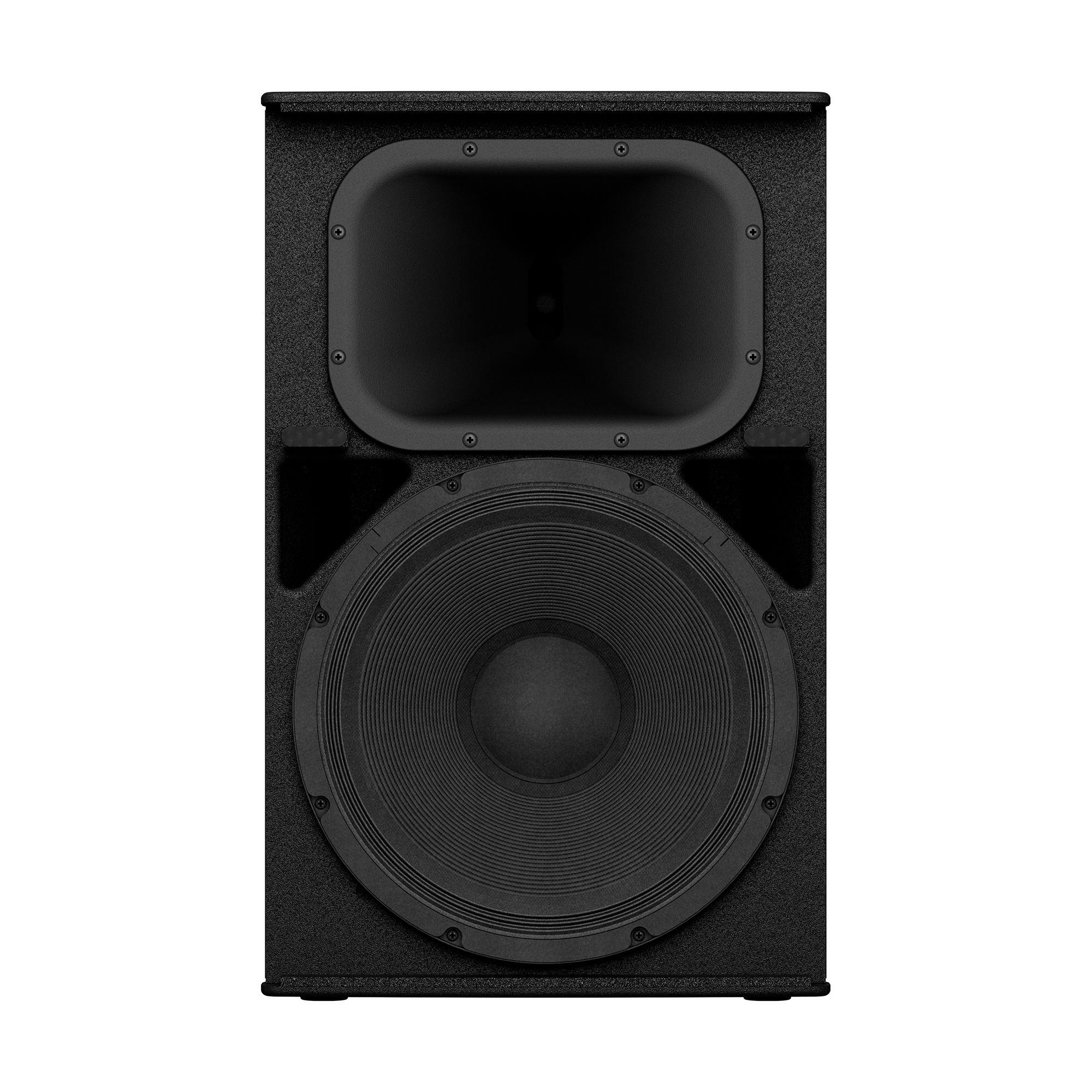

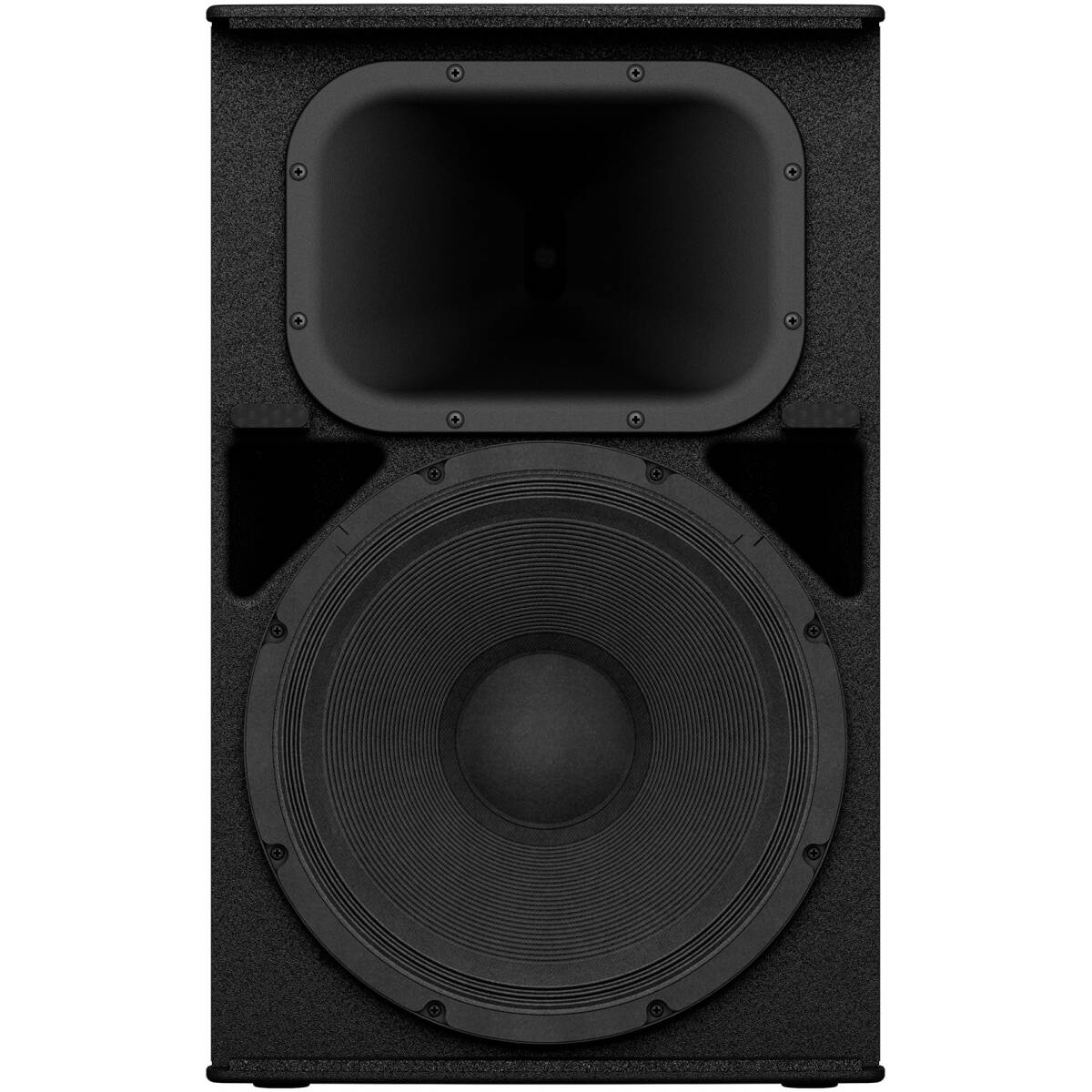

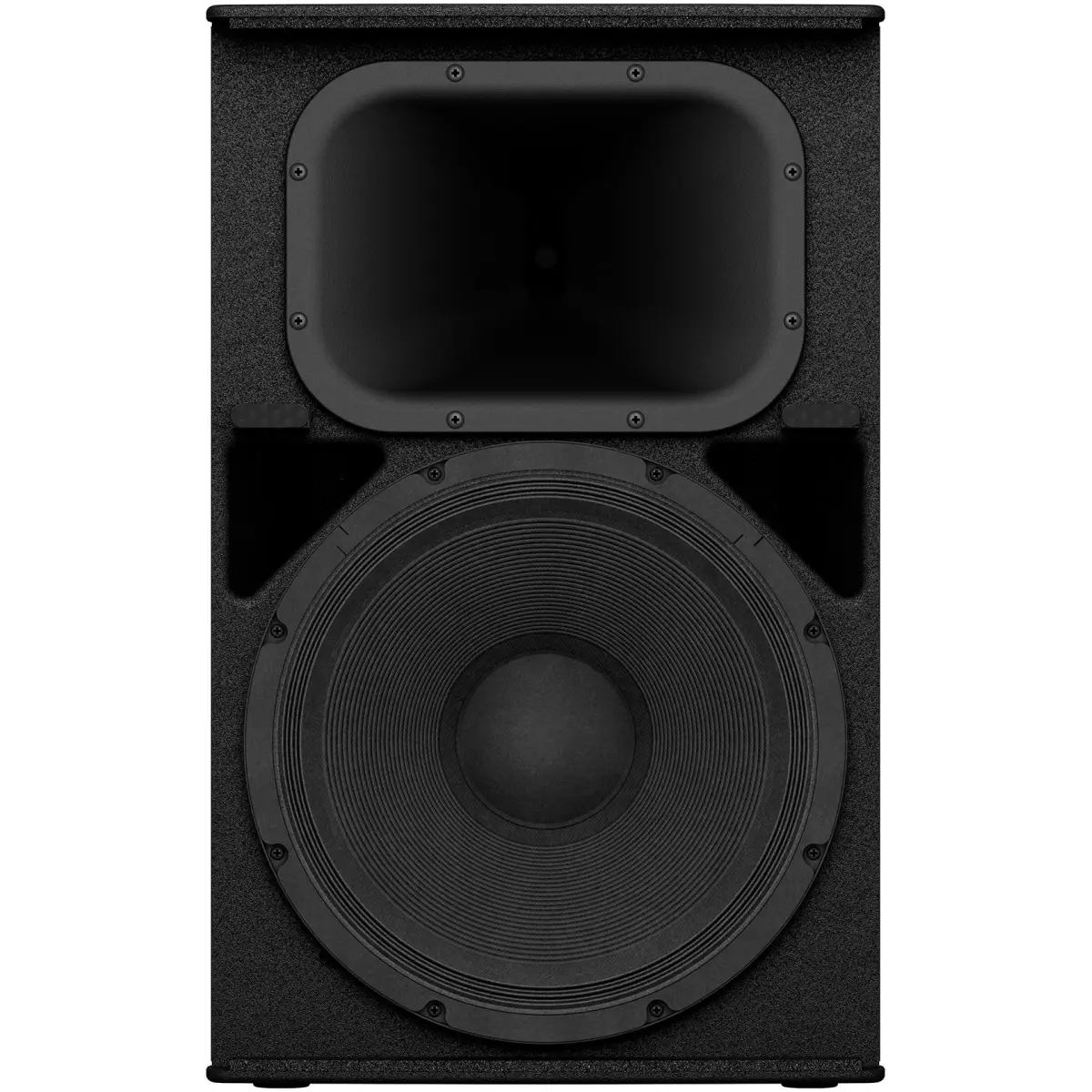

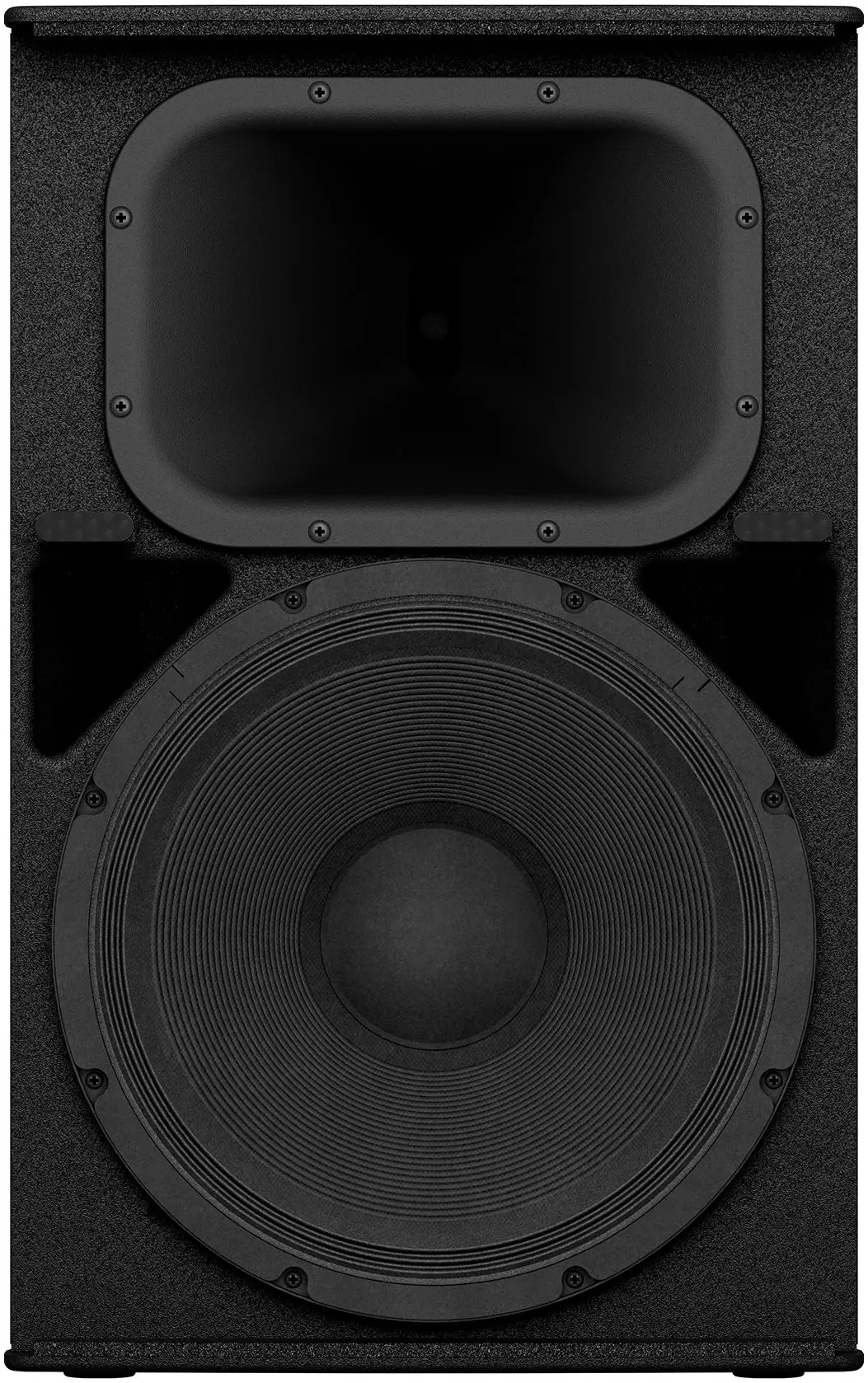

• 15″ LF woofer + 1.4″ HF compression driver

• Frequency response: 49 Hz – 20 kHz (-10 dB)

• Power handling: 1000W program / 2000W peak

• Sensitivity: 97 dB SPL (1W @ 1m)

• Max SPL: 129 dB peak

• Nominal coverage: 90° × 60° rotatable horn

• Impedance: 8Ω

• Enclosure: Plywood with durable polyurea coating

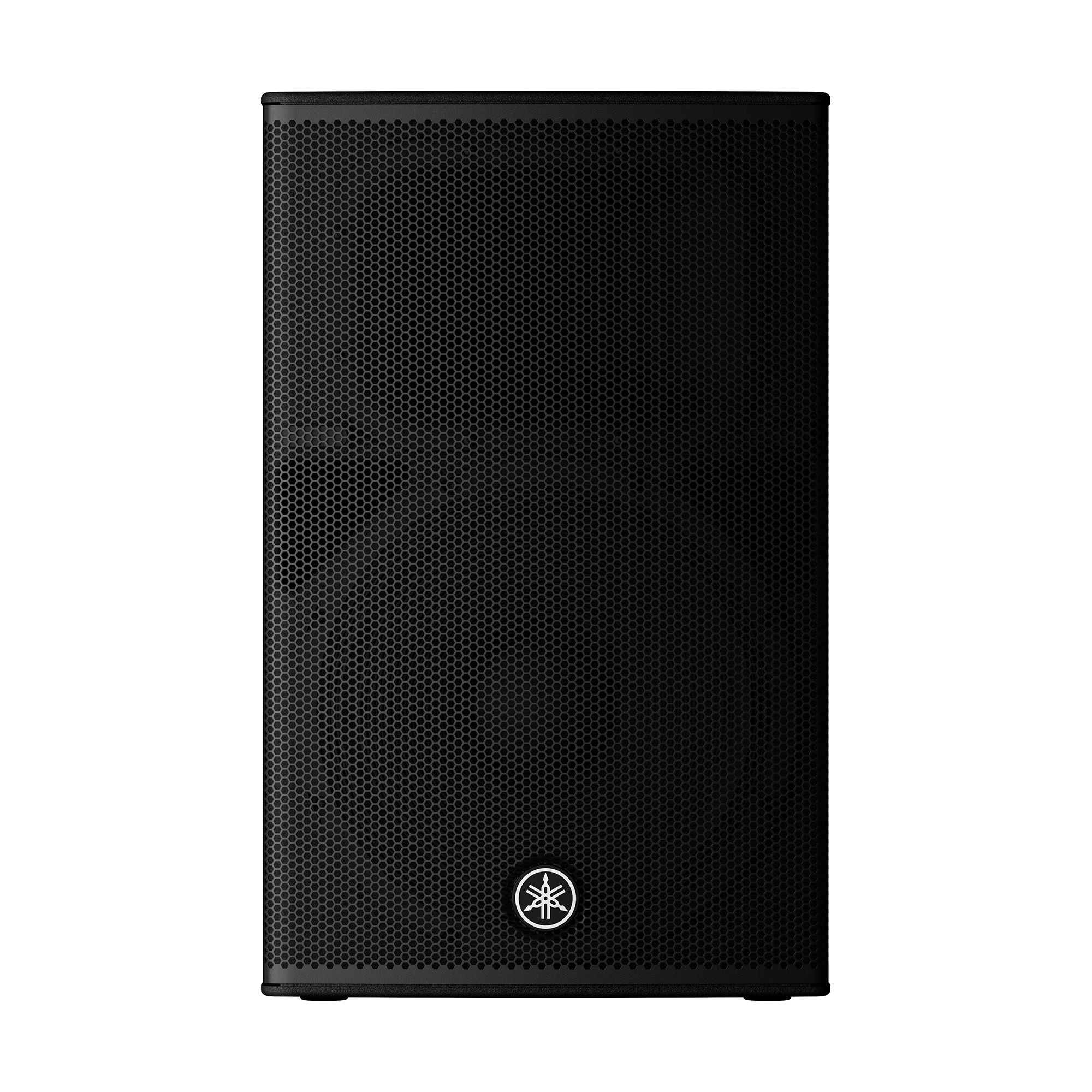

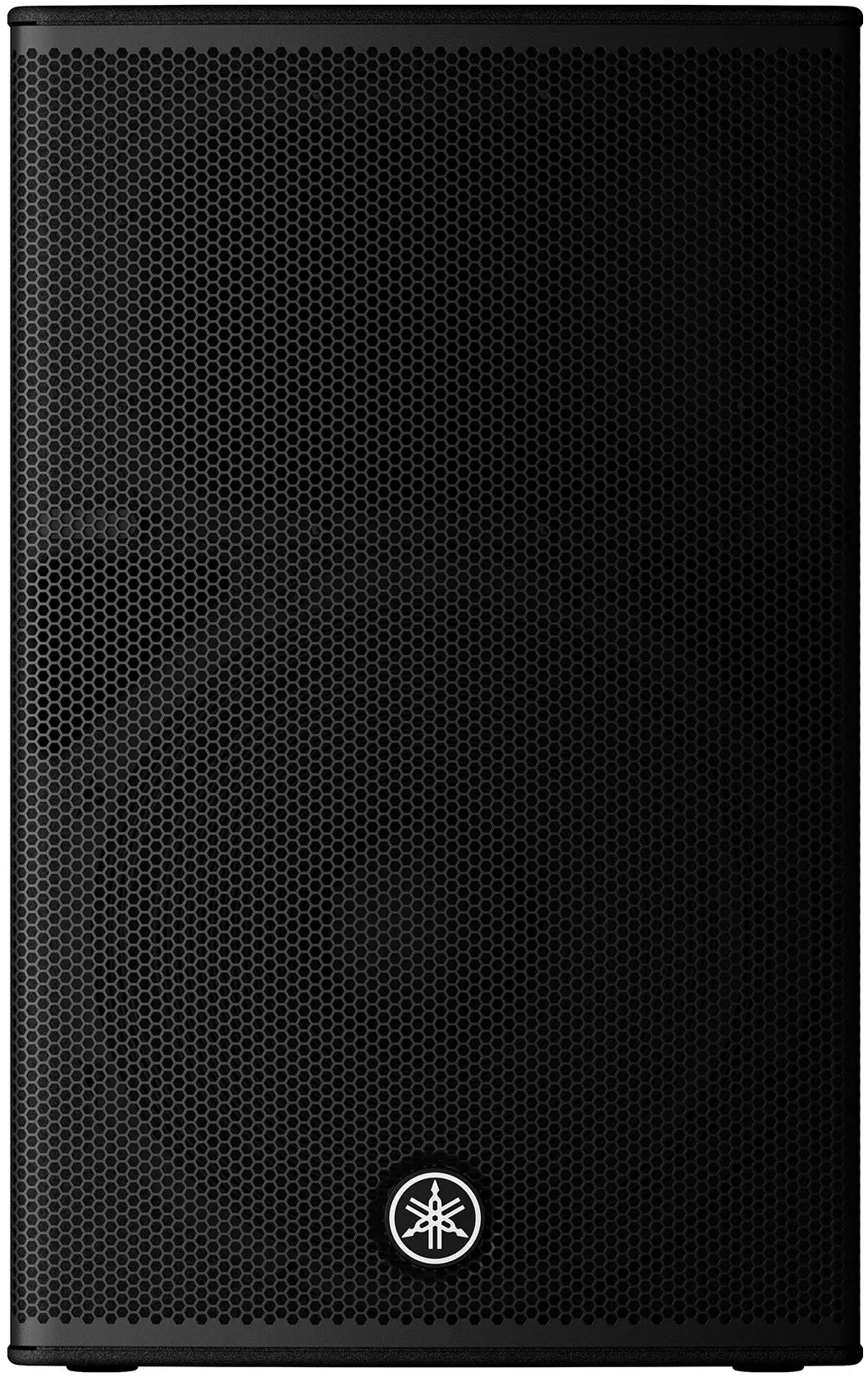

• Grille: Heavy-duty perforated steel with acoustic cloth backing

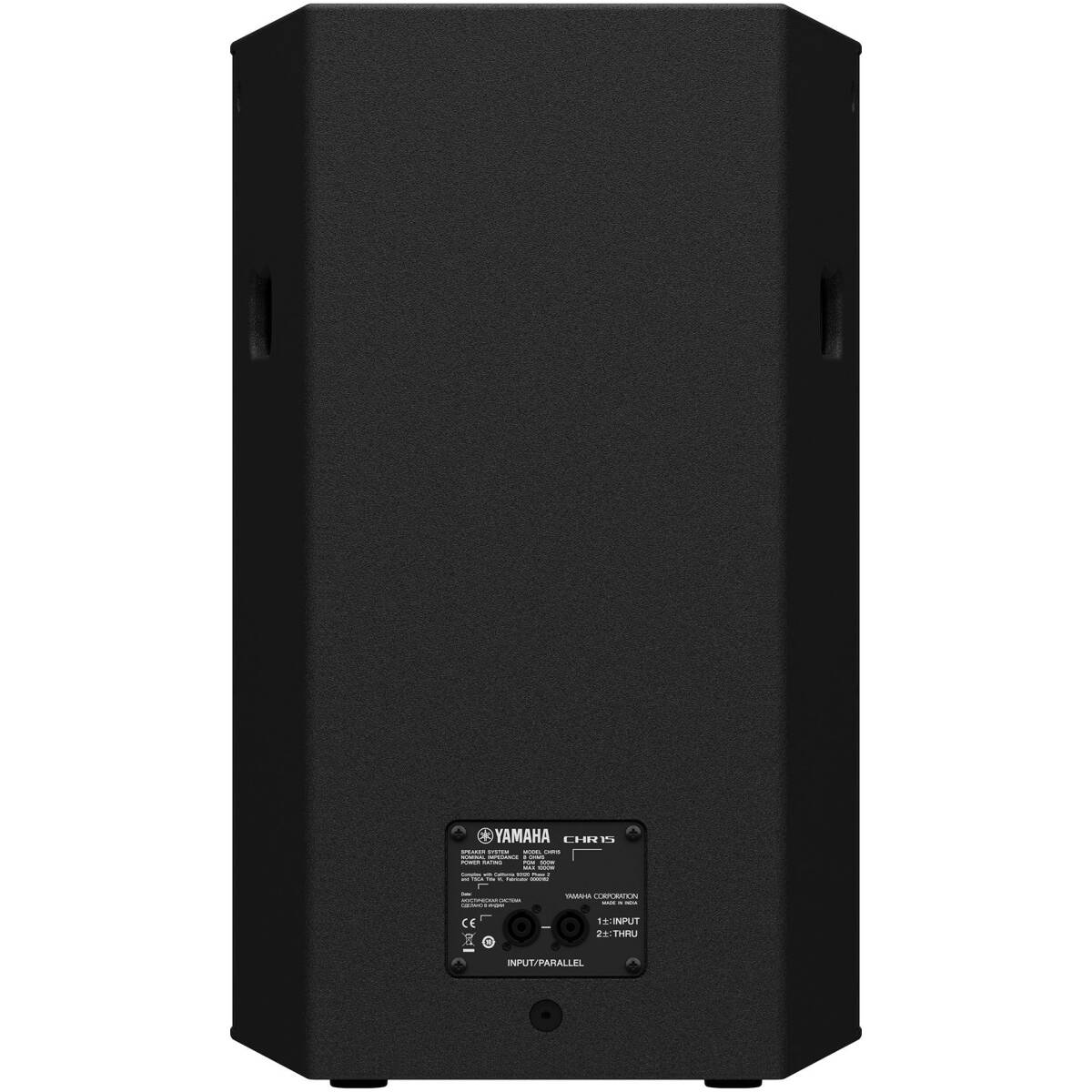

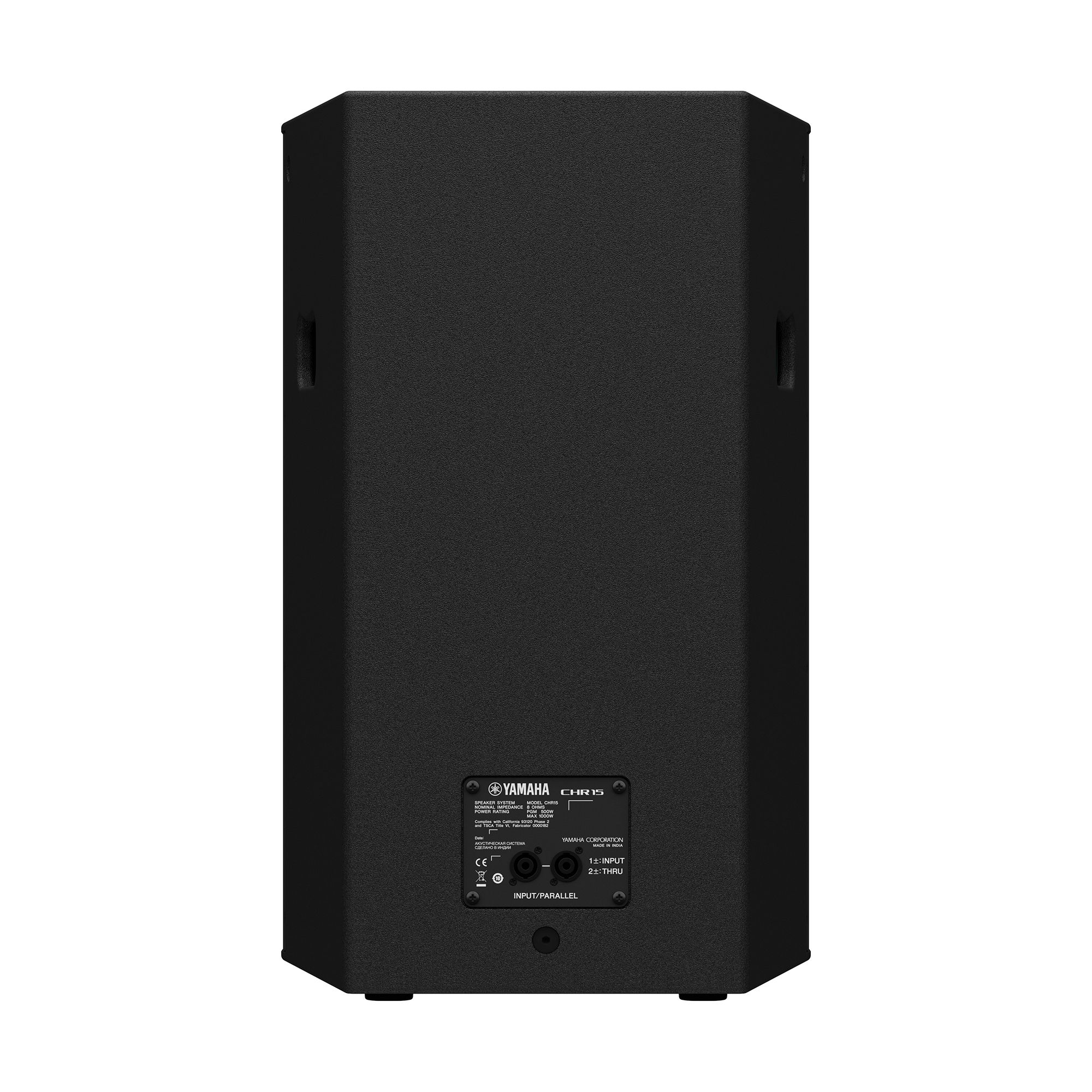

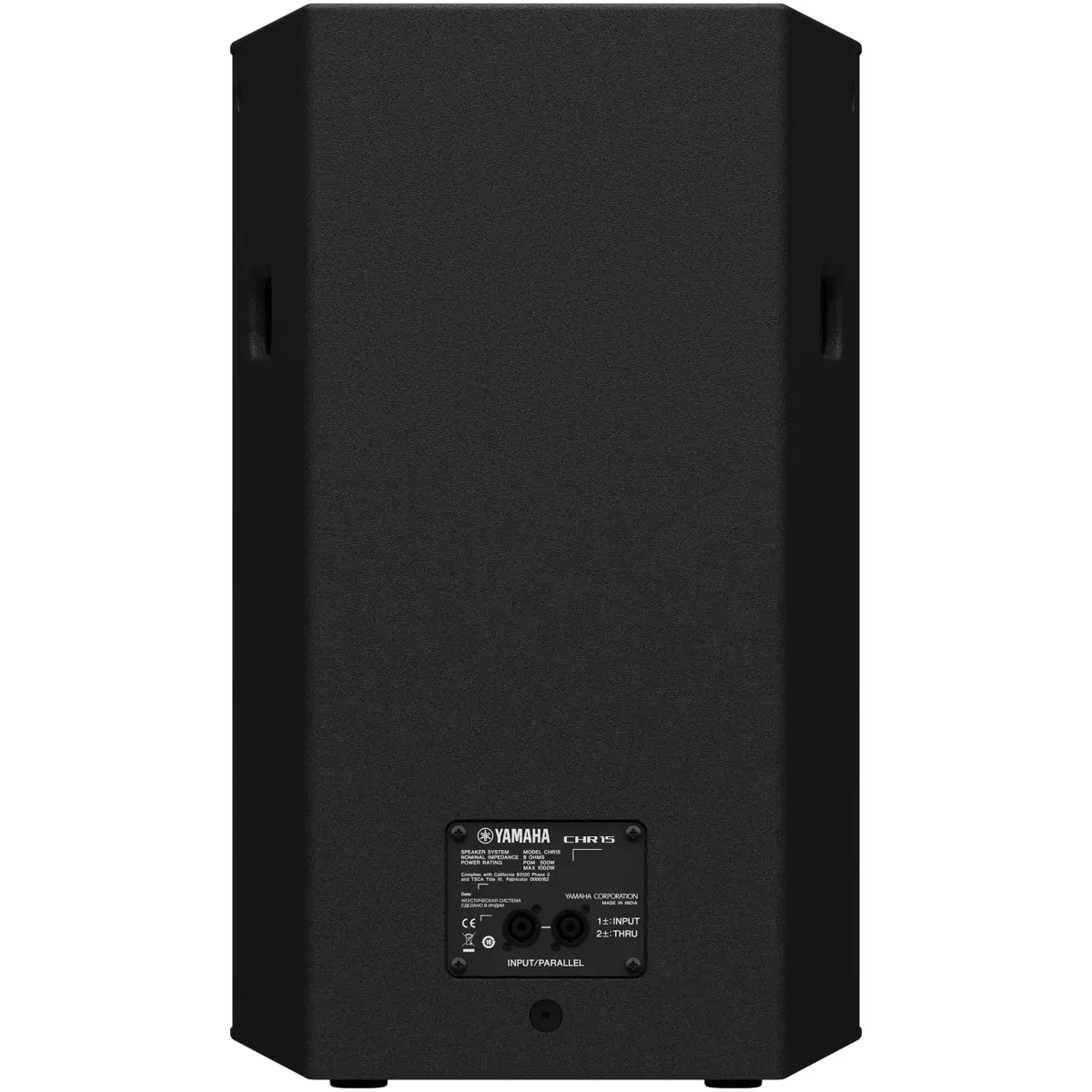

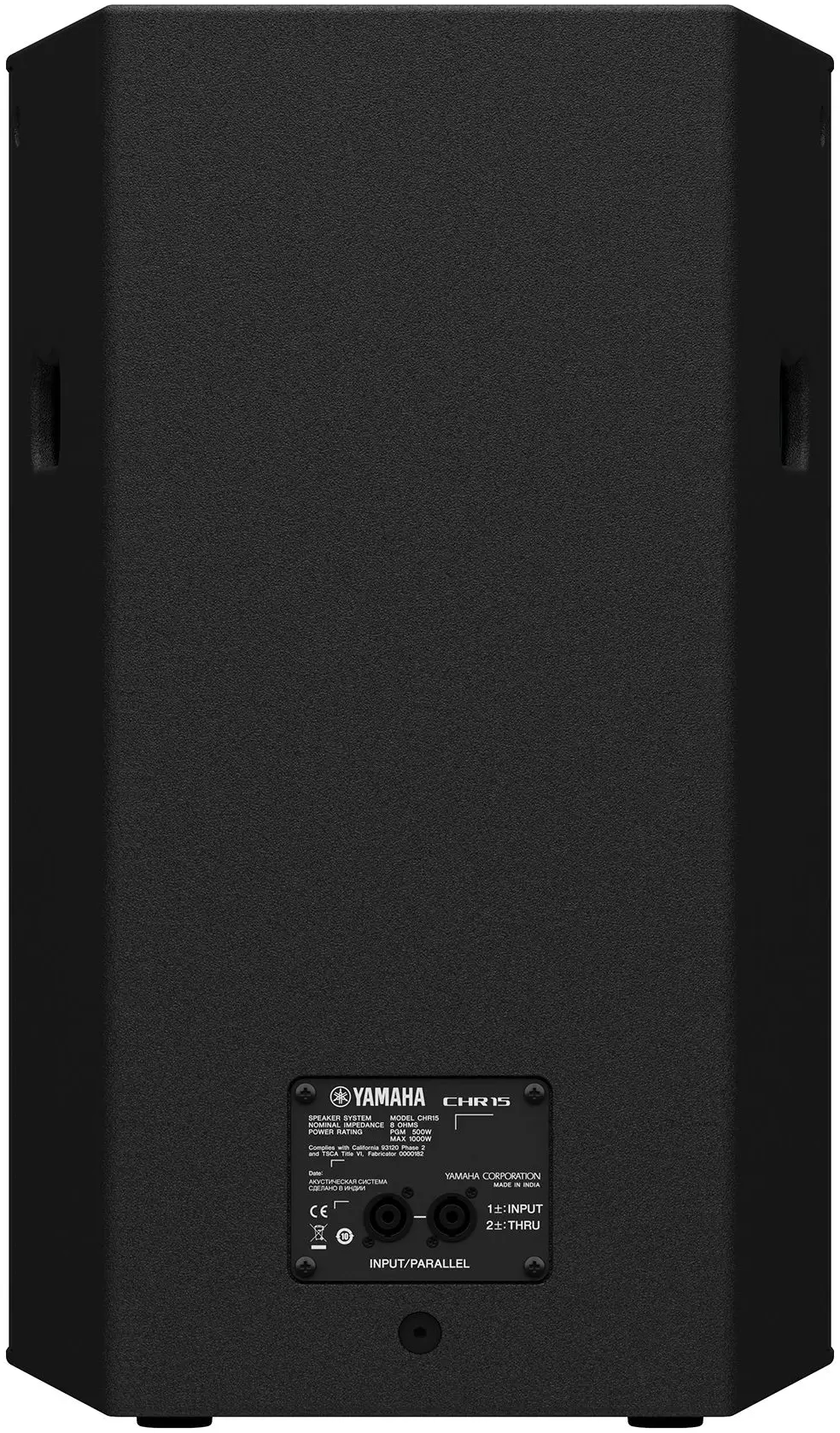

• Connectors: 2 × NL4 Speakon (parallel)

• Mounting options: Pole socket, rigging points, and floor monitor angle
