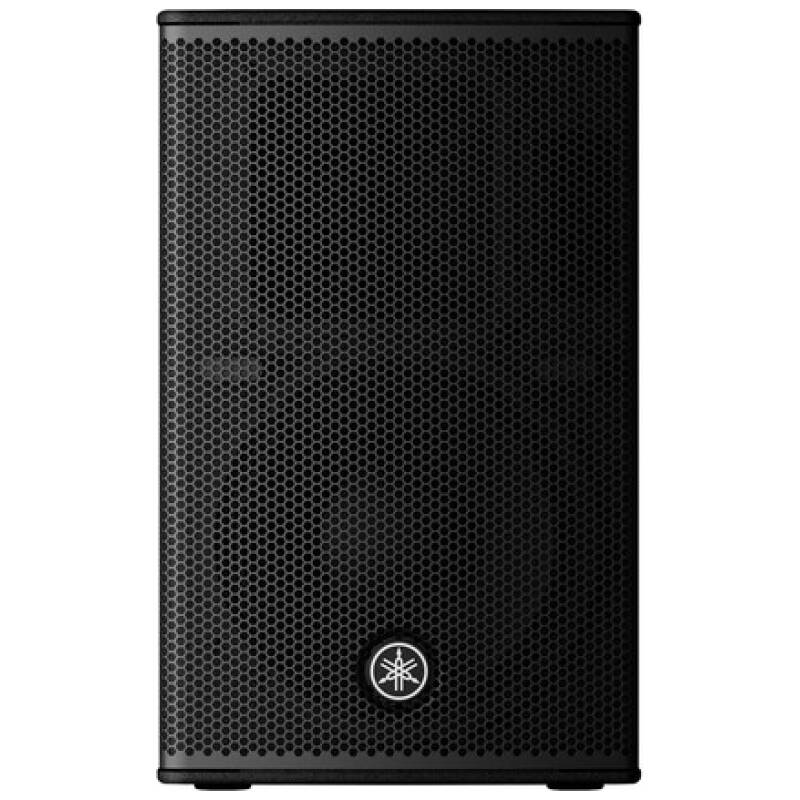

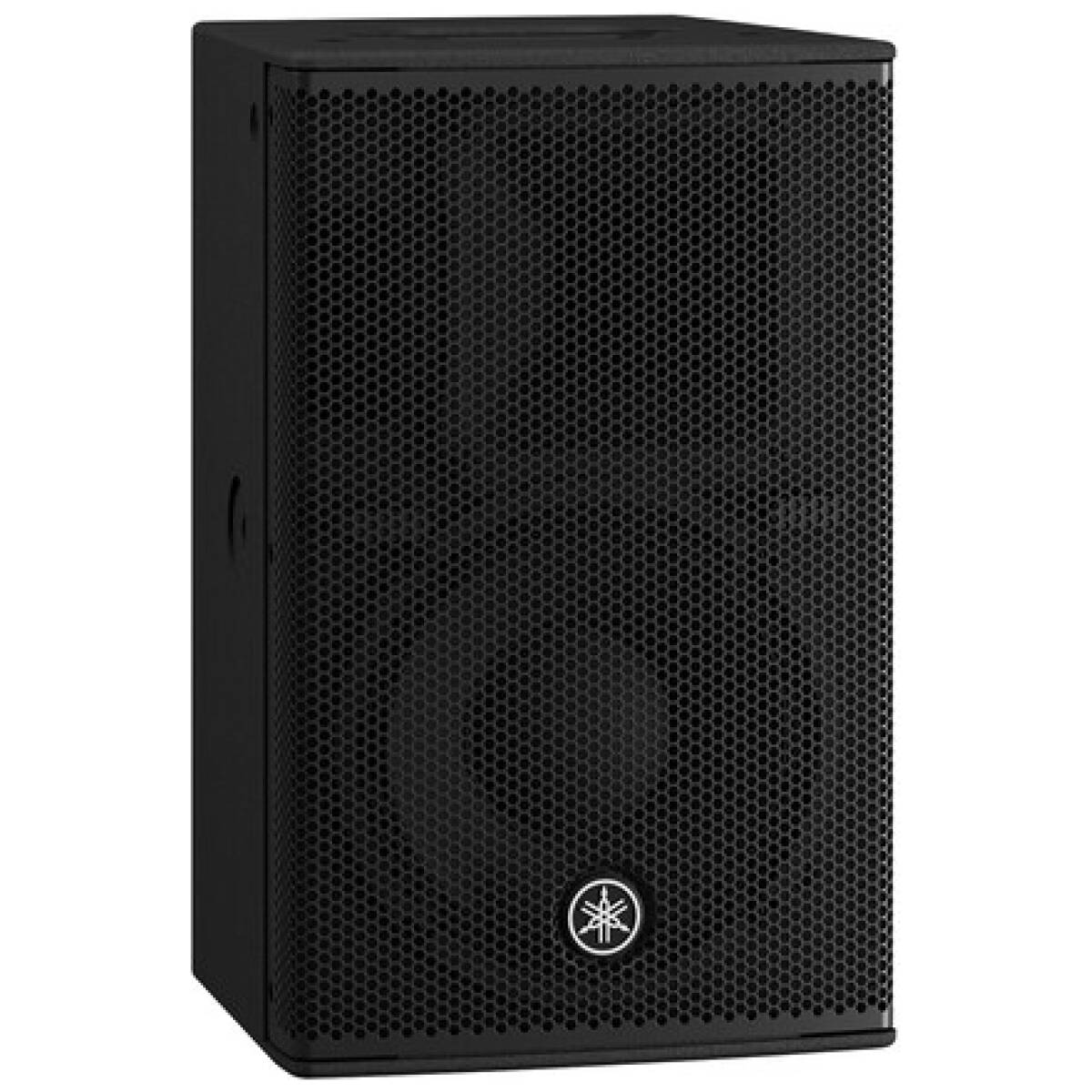

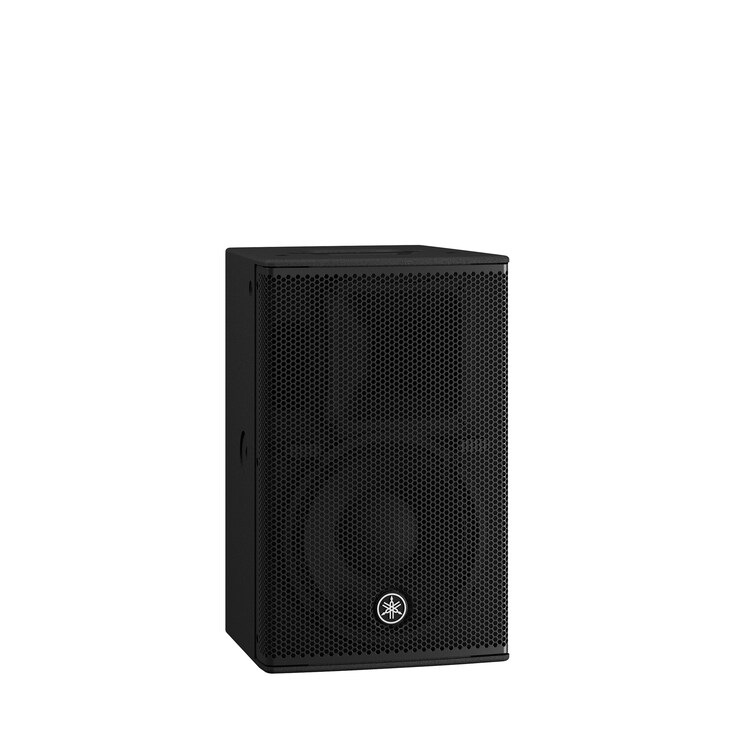

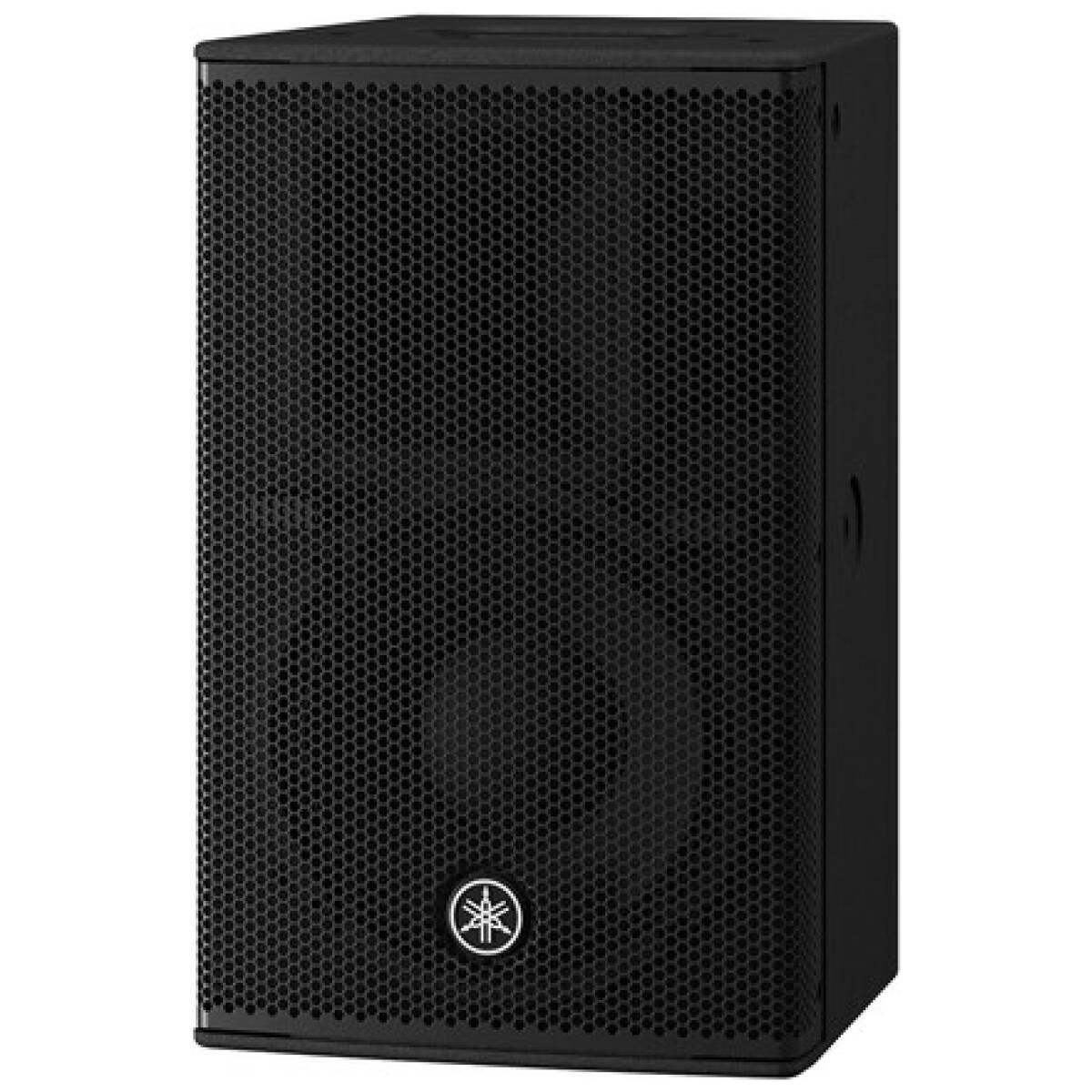

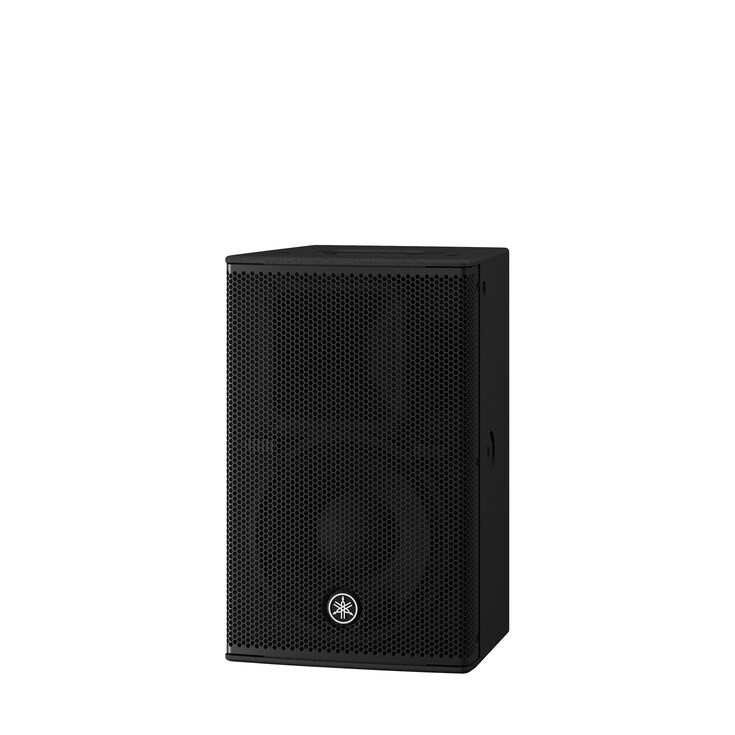

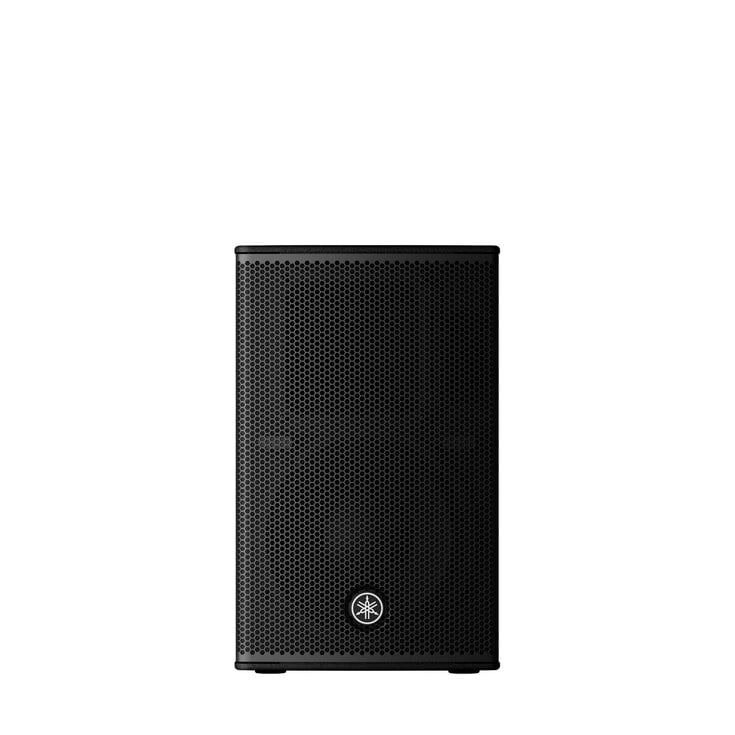

Yamaha DHR10 10″ Powered Loudspeaker

The Yamaha DHR10 is a compact and powerful 2-way powered loudspeaker designed mainly for fixed installations. Although it uses a smaller 10-inch speaker, it still delivers clear, strong sound. As a result, it works well in venues that need reliable audio every day.

Because Yamaha built the DHR10 with a 700W Class-D amplifier and advanced DSP, it produces clean sound with low distortion. In addition, the solid plywood cabinet improves sound quality while reducing unwanted vibration.

Clear Sound for Professional Use

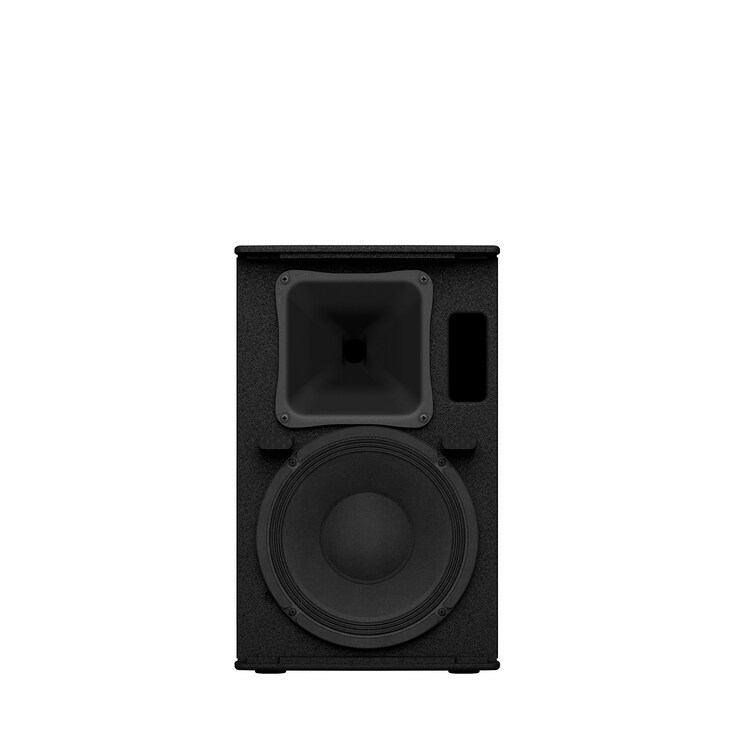

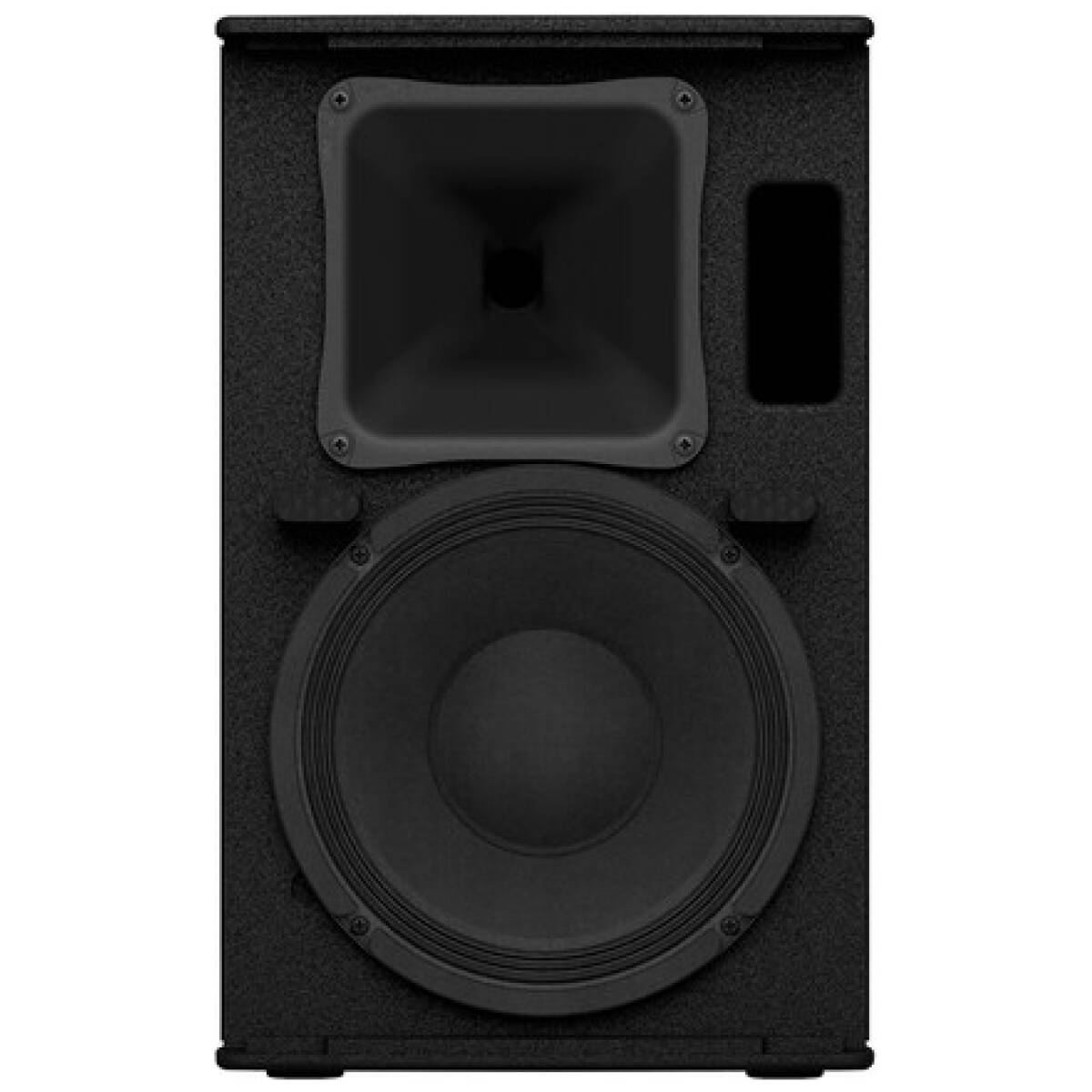

The DHR10 uses a 10″ low-frequency driver and a 1.4″ high-frequency compression driver. Therefore, vocals stay clear while music sounds full and balanced. Moreover, Yamaha’s FIR-X™ tuning keeps the sound smooth and natural across all frequencies.

Since the HF horn can rotate, you can install the speaker vertically or horizontally. This flexibility makes it ideal for churches, restaurants, conference rooms, and retail spaces.

Strong and Durable Cabinet

Unlike many speakers in this class, the DHR10 uses a plywood cabinet instead of plastic. As a result, it delivers tighter sound and lasts longer. In addition, the polyurea coating protects the cabinet from scratches and daily wear.

Because of its compact size, the DHR10 fits easily into fixed setups without drawing attention.

Smart DSP and Built-In Protection

The DHR10 includes high-quality DSP processing that keeps the sound clear at all volume levels. Moreover, the D-CONTOUR feature adjusts the sound automatically, depending on whether you use the speaker for main sound or monitoring.

In addition, Yamaha added advanced protection circuits. Therefore, the speaker stays safe from overload, heat, and power issues, even during long use.

Key Features

• 2-way bi-amped powered loudspeaker

• 700W Class-D amplifier for clean and efficient power

• 10″ woofer + 1.4″ HF compression driver

• FIR-X™ tuning for smooth and accurate sound

• Rotatable HF horn for flexible installation

• Plywood cabinet with durable polyurea finish

• Built-in 2-channel mixer

• D-CONTOUR modes for FOH or monitor use

• Pole mount and rigging points included

• Optional UB-DXRDHR10 U-bracket available

Specifications – Yamaha DHR10

Speaker Type:
2-way bi-amped powered loudspeaker (bass-reflex)

Frequency Range (-10 dB):
52 Hz – 20 kHz

Maximum SPL:
128 dB SPL

Coverage Angle:
90° (H) × 60° (V), rotatable

Drivers:

• LF: 10″ cone

• HF: 1.4″ compression driver

Amplifier Type:
Class-D

Power Output:

• Peak: 700 W

• Continuous: 325 W

DSP Functions:

• FIR-X™ tuning

• HPF: OFF / 100 Hz / 120 Hz

• D-CONTOUR: FOH / Monitor / Off

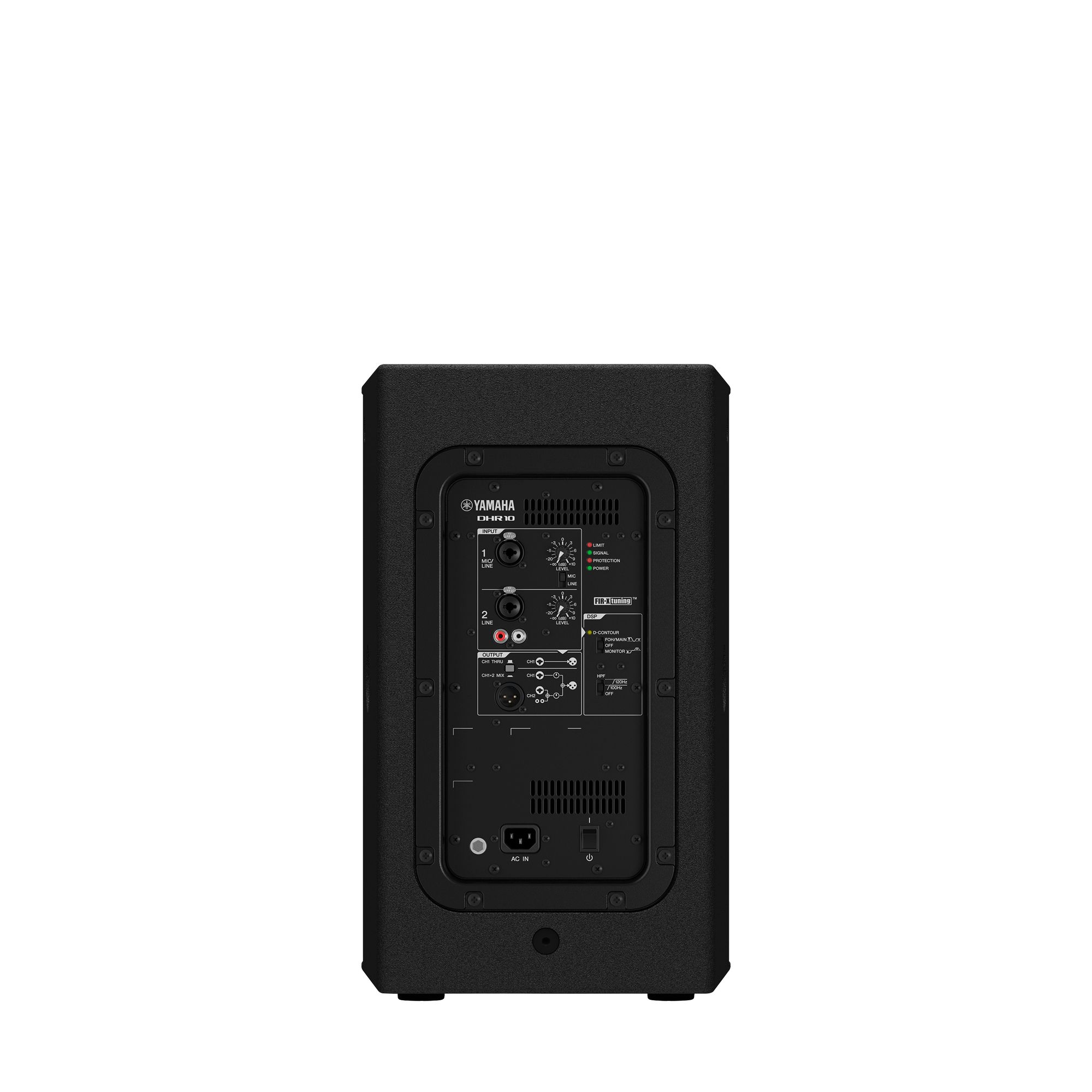

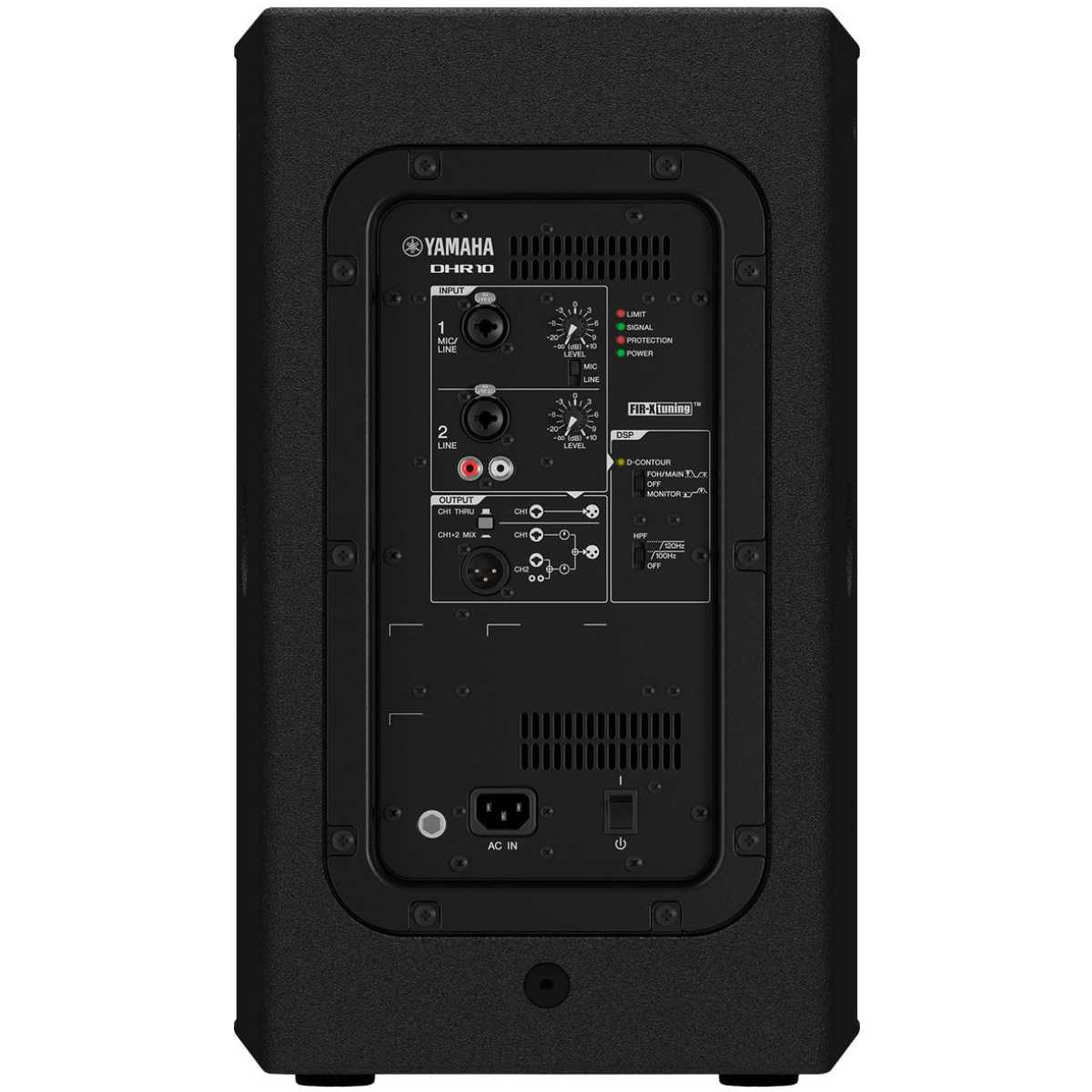

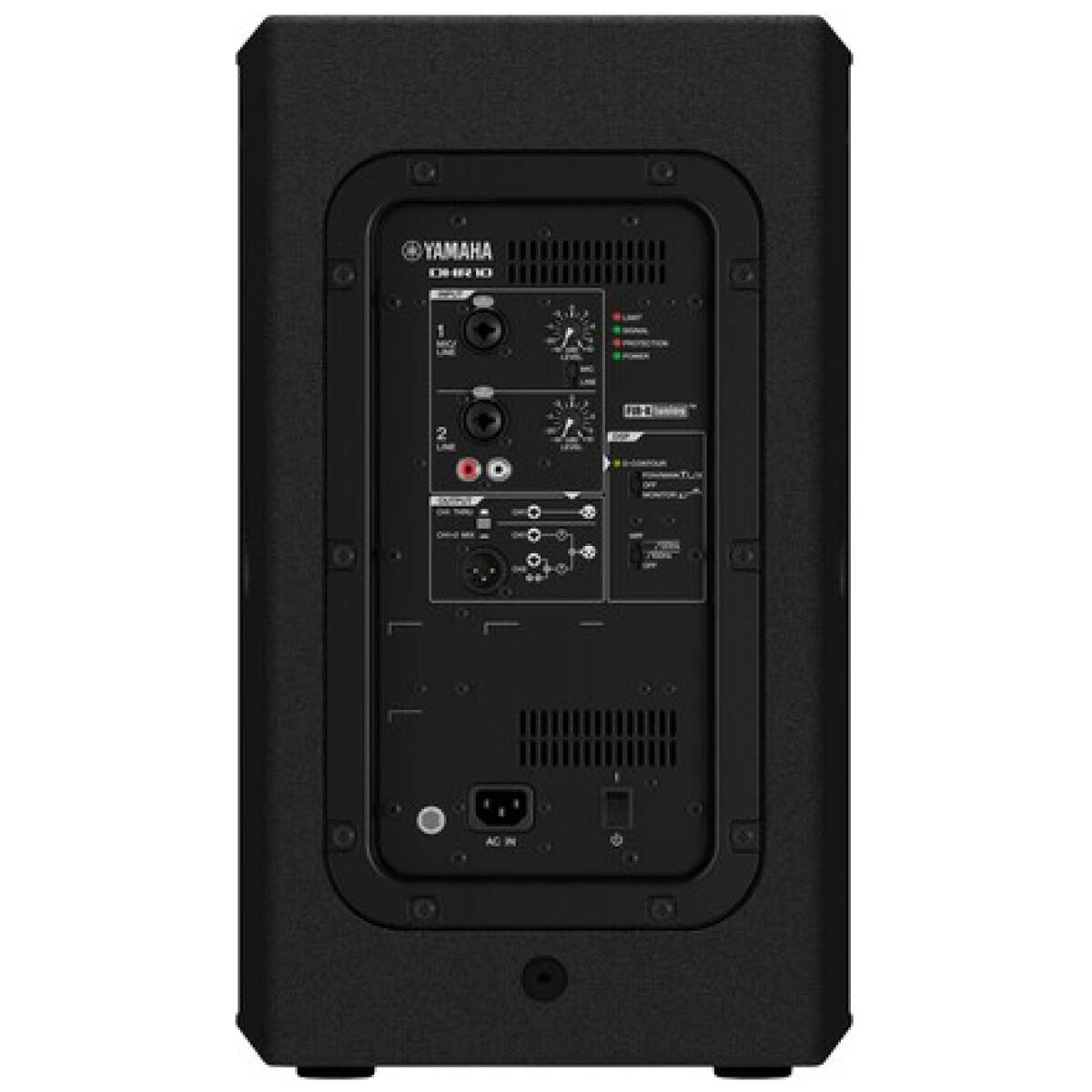

Inputs / Outputs:

• INPUT 1: XLR / TRS combo

• INPUT 2: XLR / TRS combo + RCA

• OUTPUT: XLR (THRU or MIX)

Cabinet:
Plywood with black polyurea coating

Mounting Options:

• 35 mm pole mount

• Rigging points (M10)

• Optional U-bracket

Dimensions (W × H × D):
305 × 494 × 300 mm

Weight:
15.0 kg
