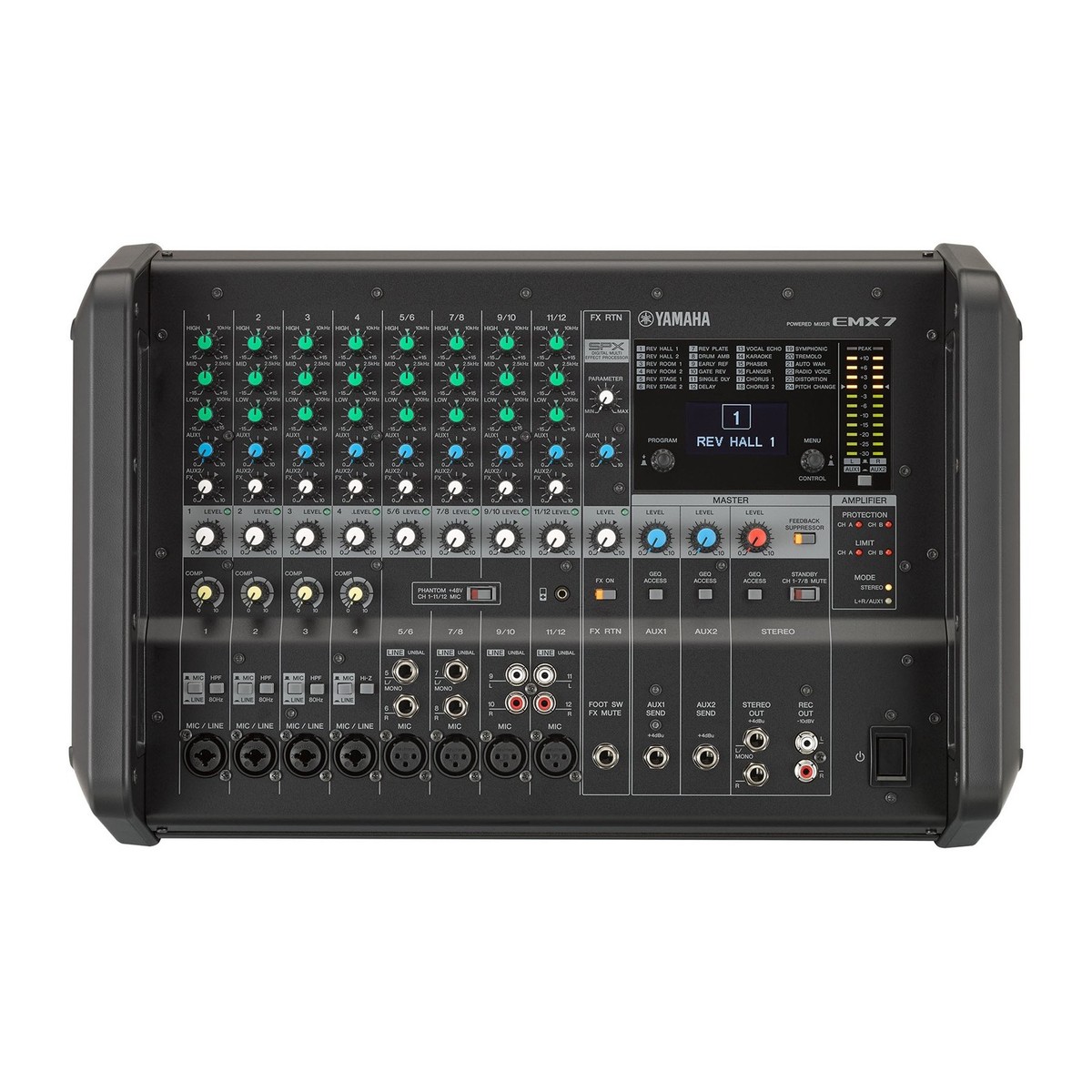

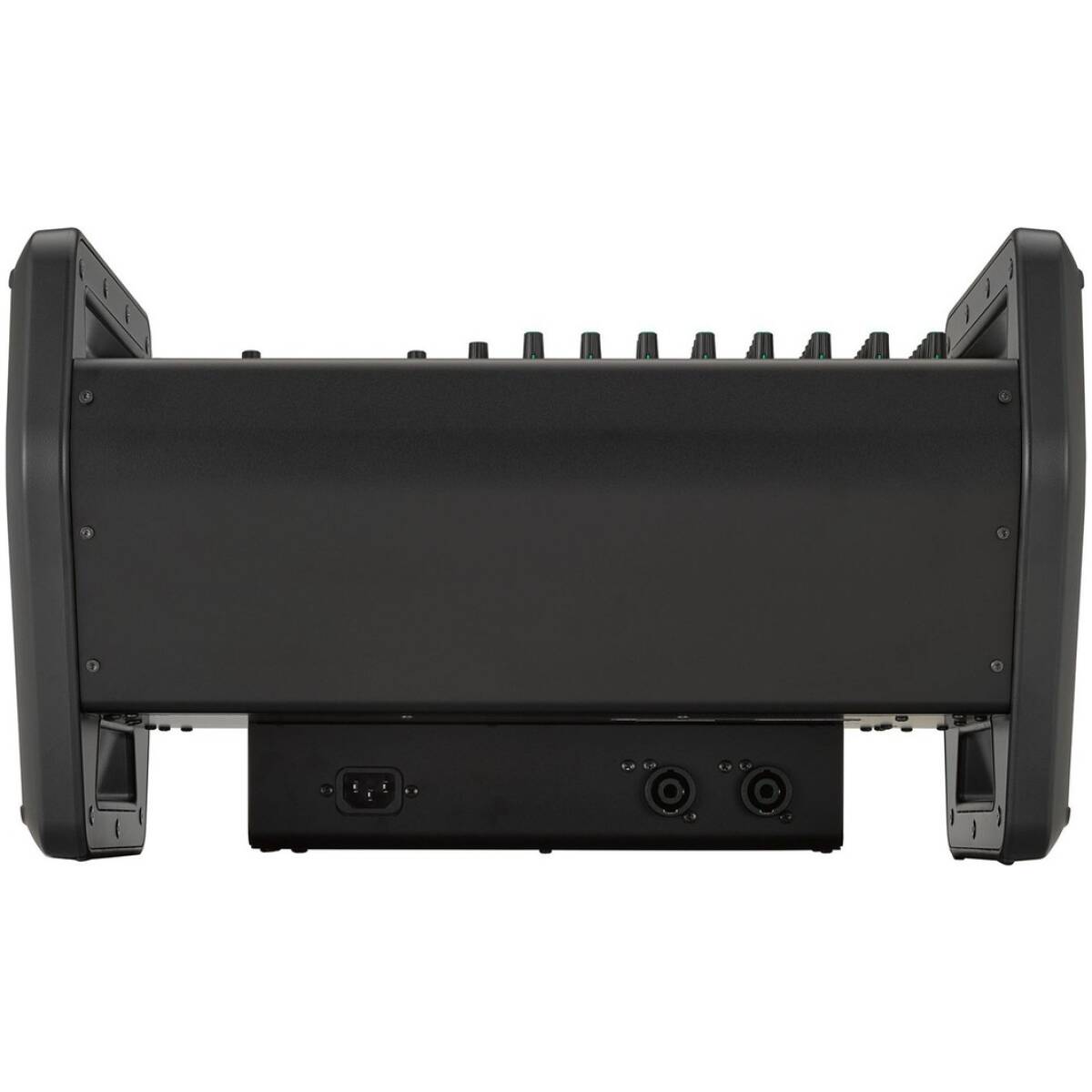

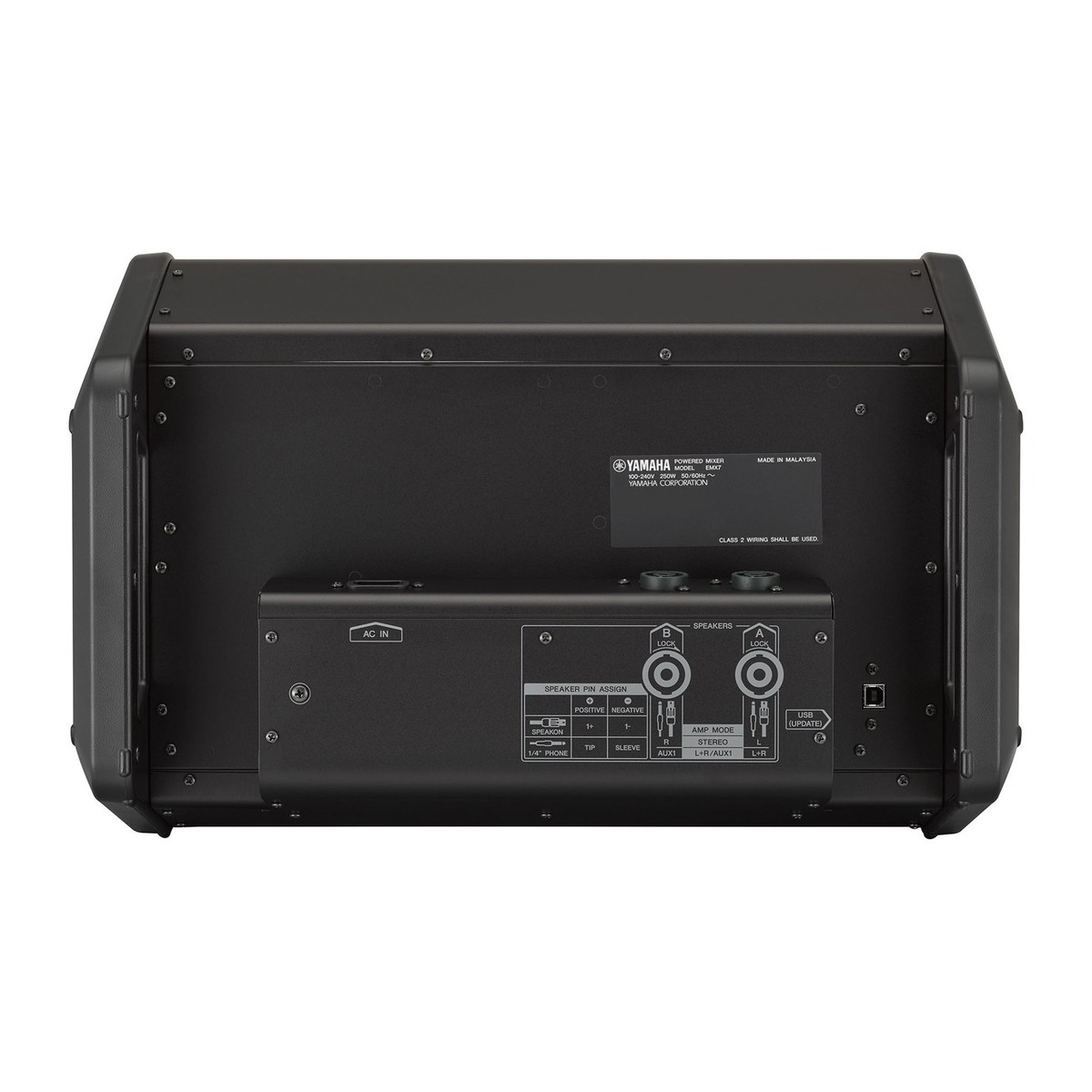

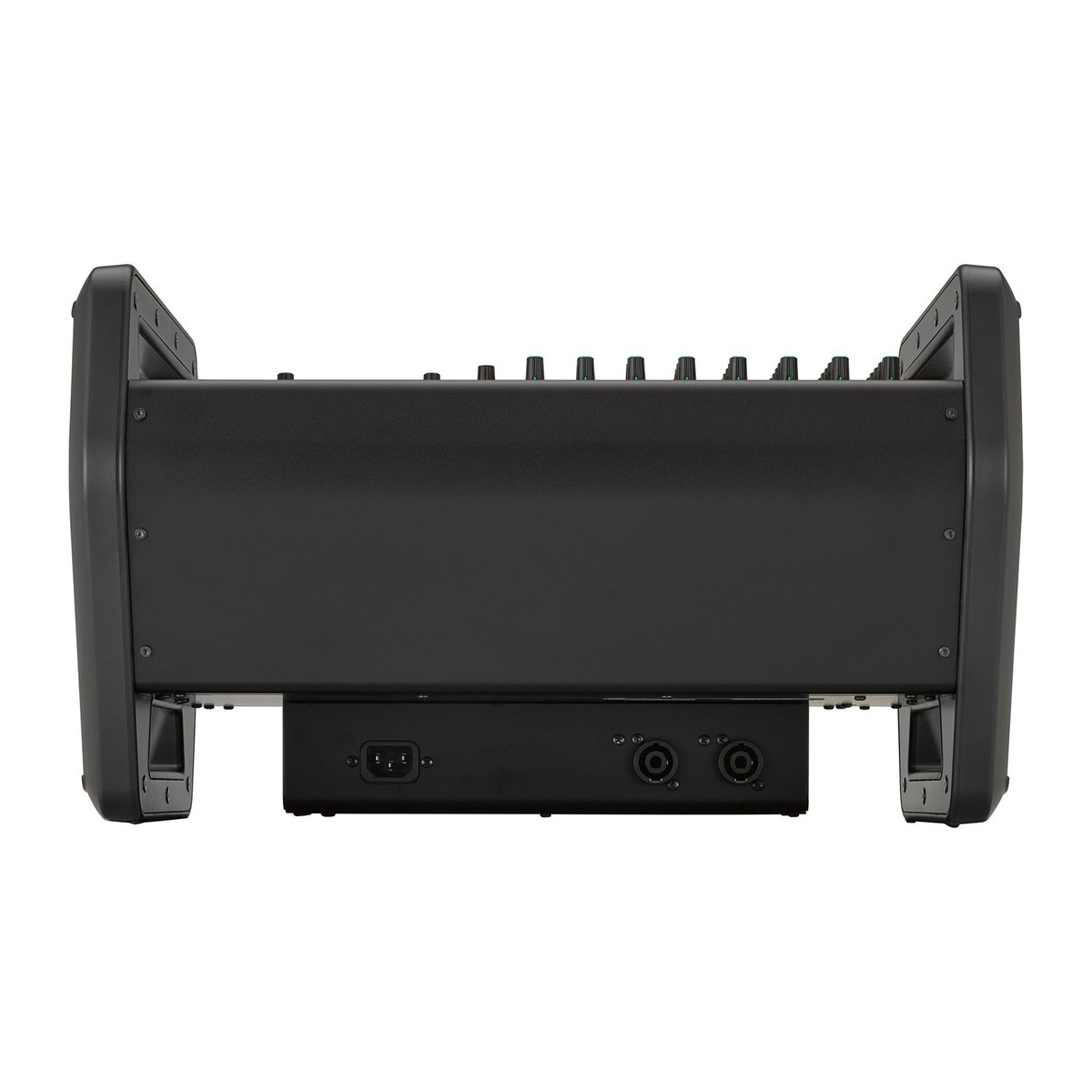

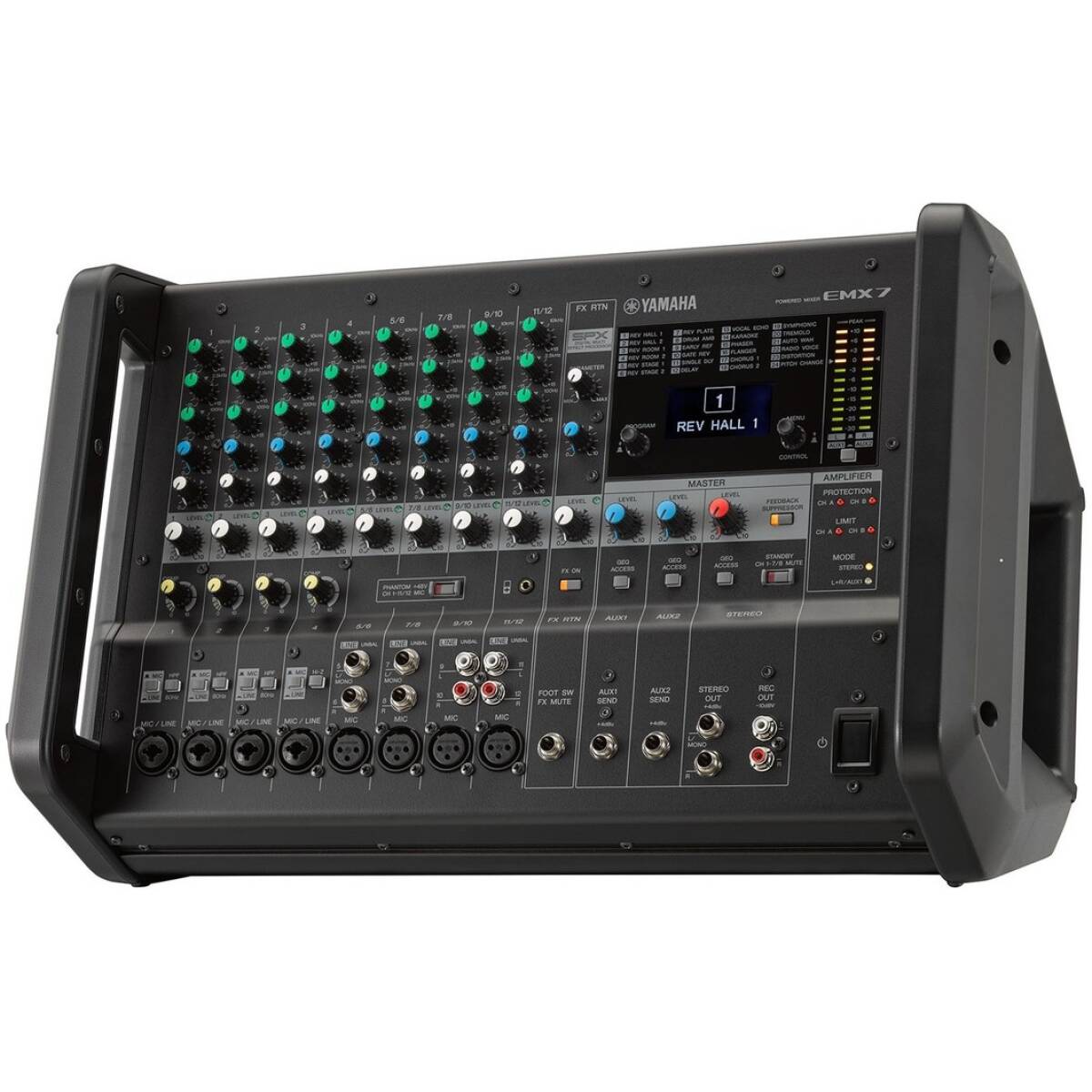

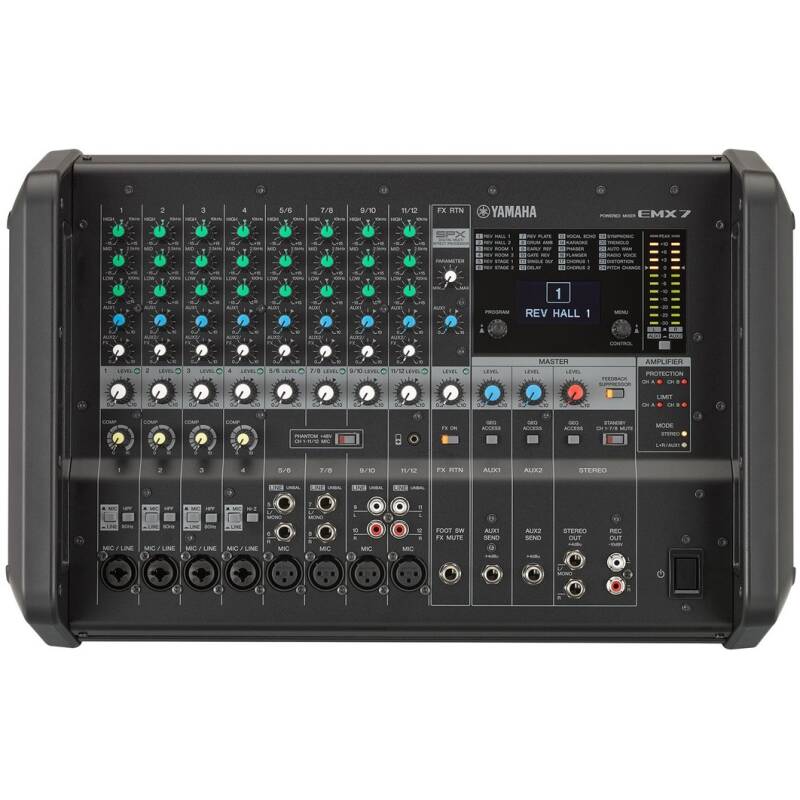

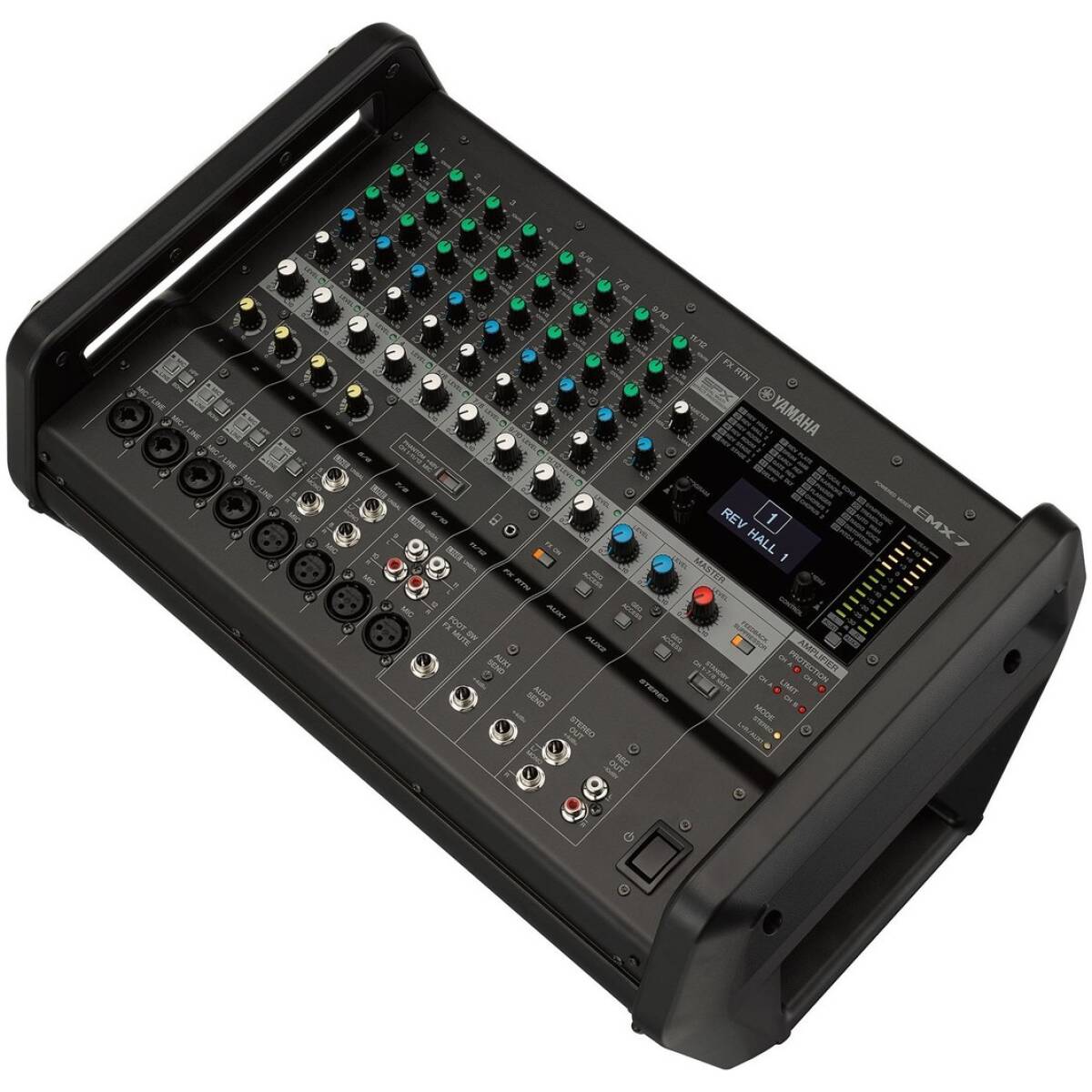

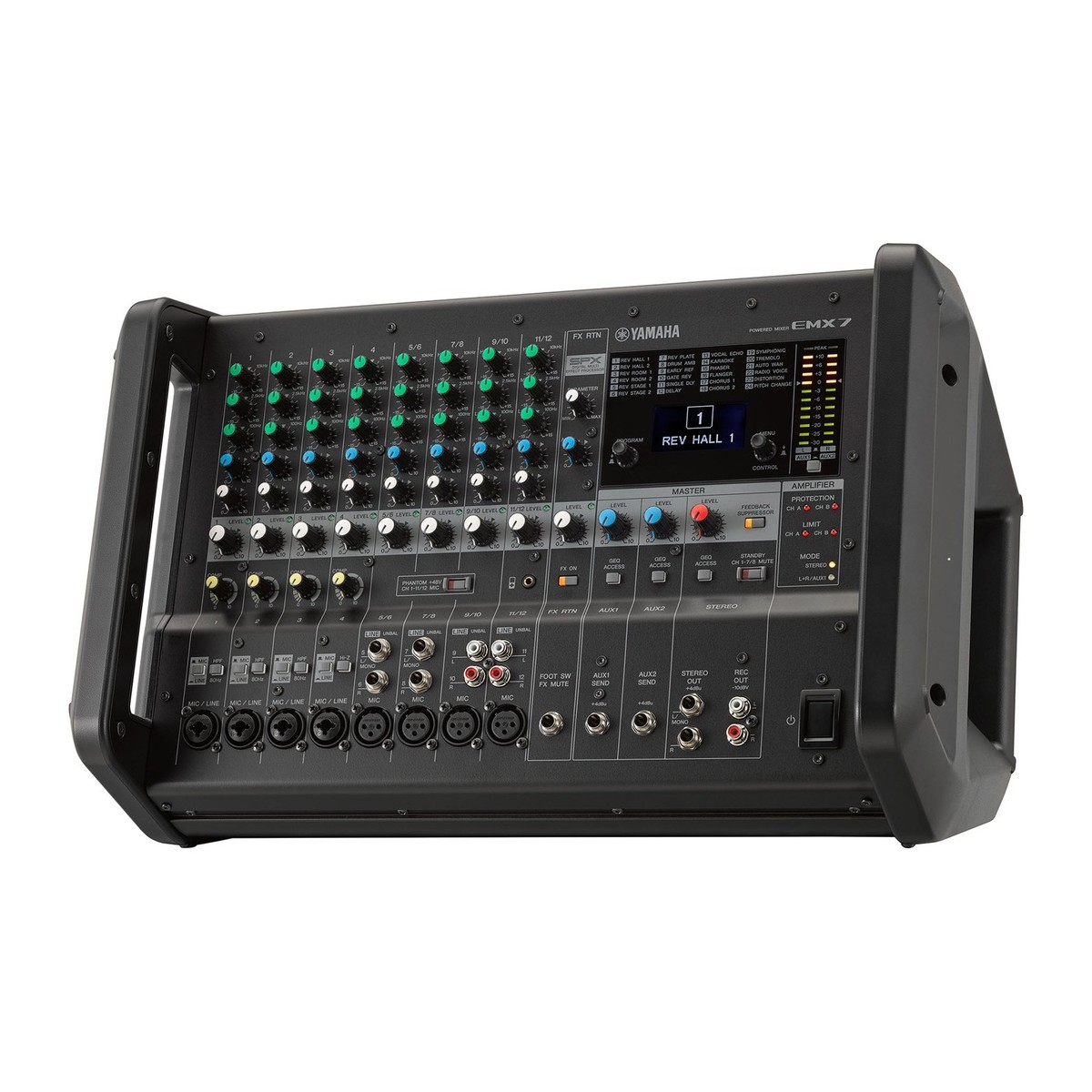

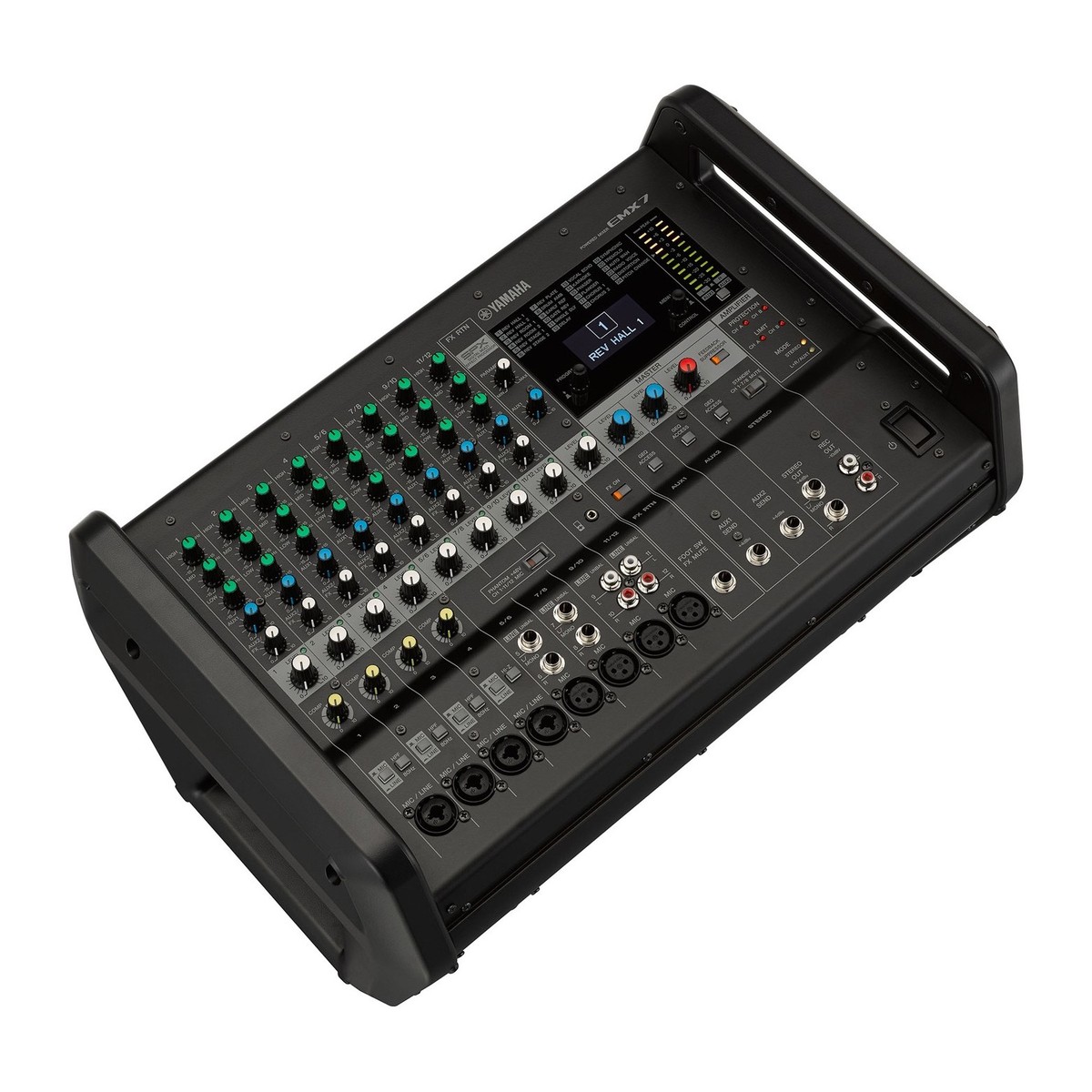

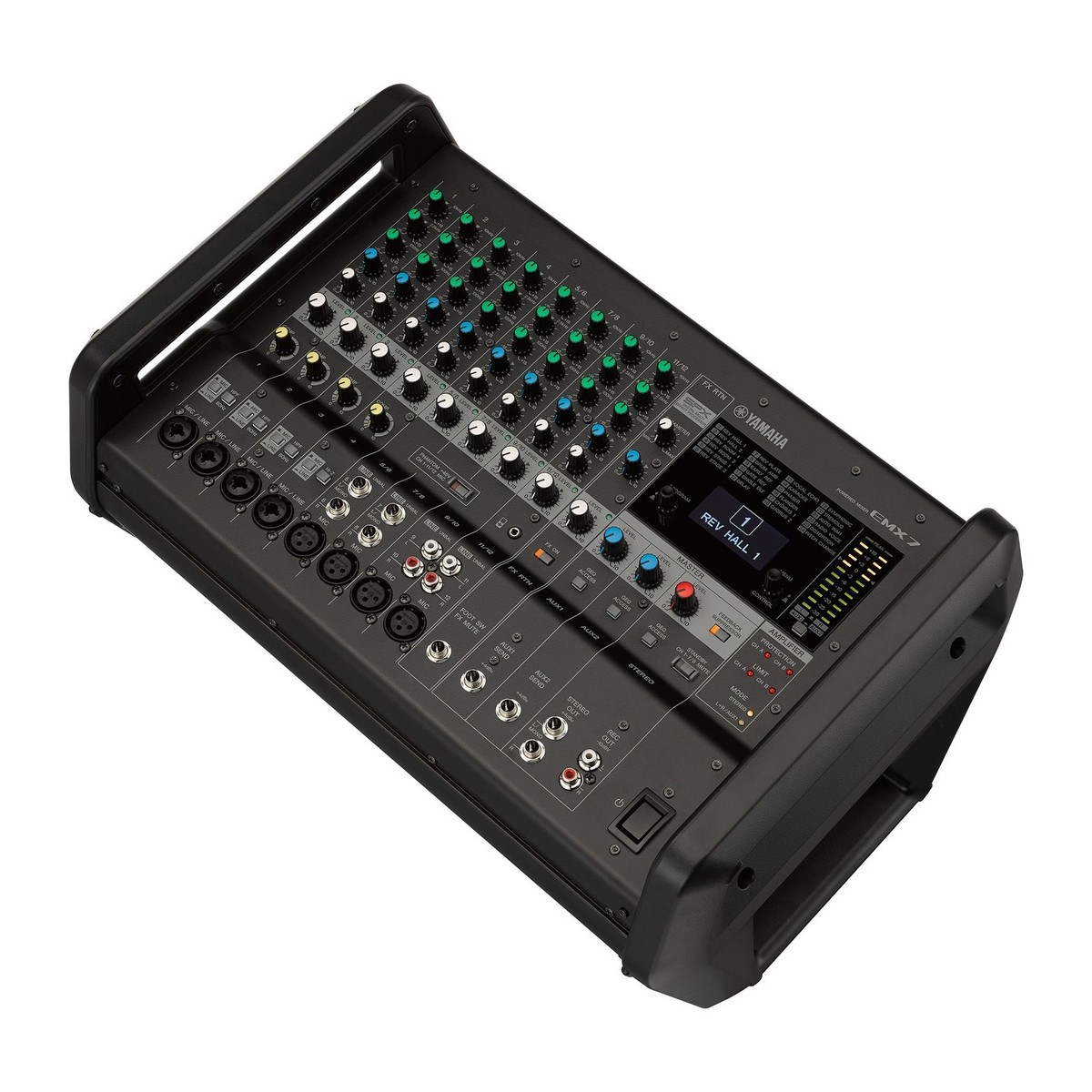

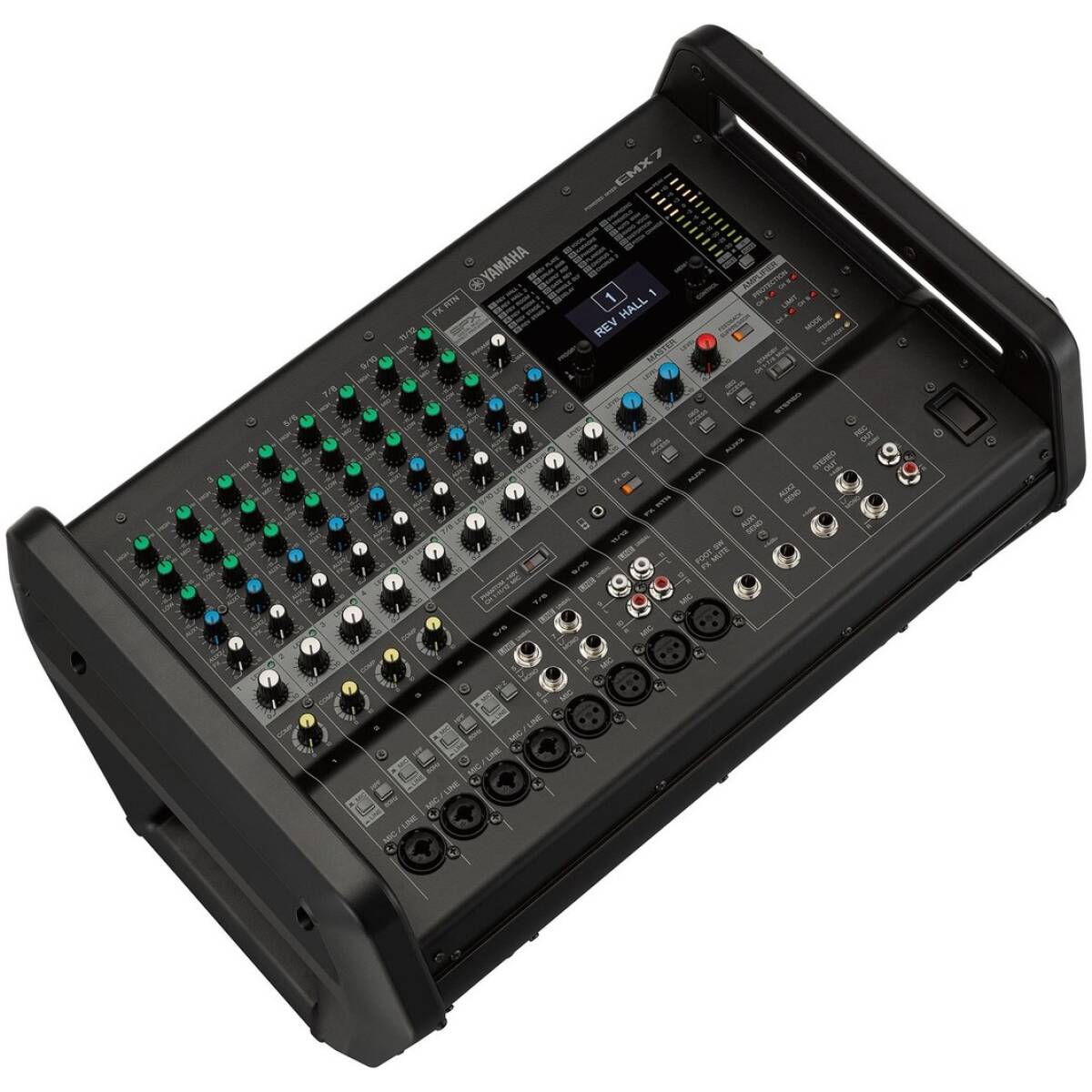

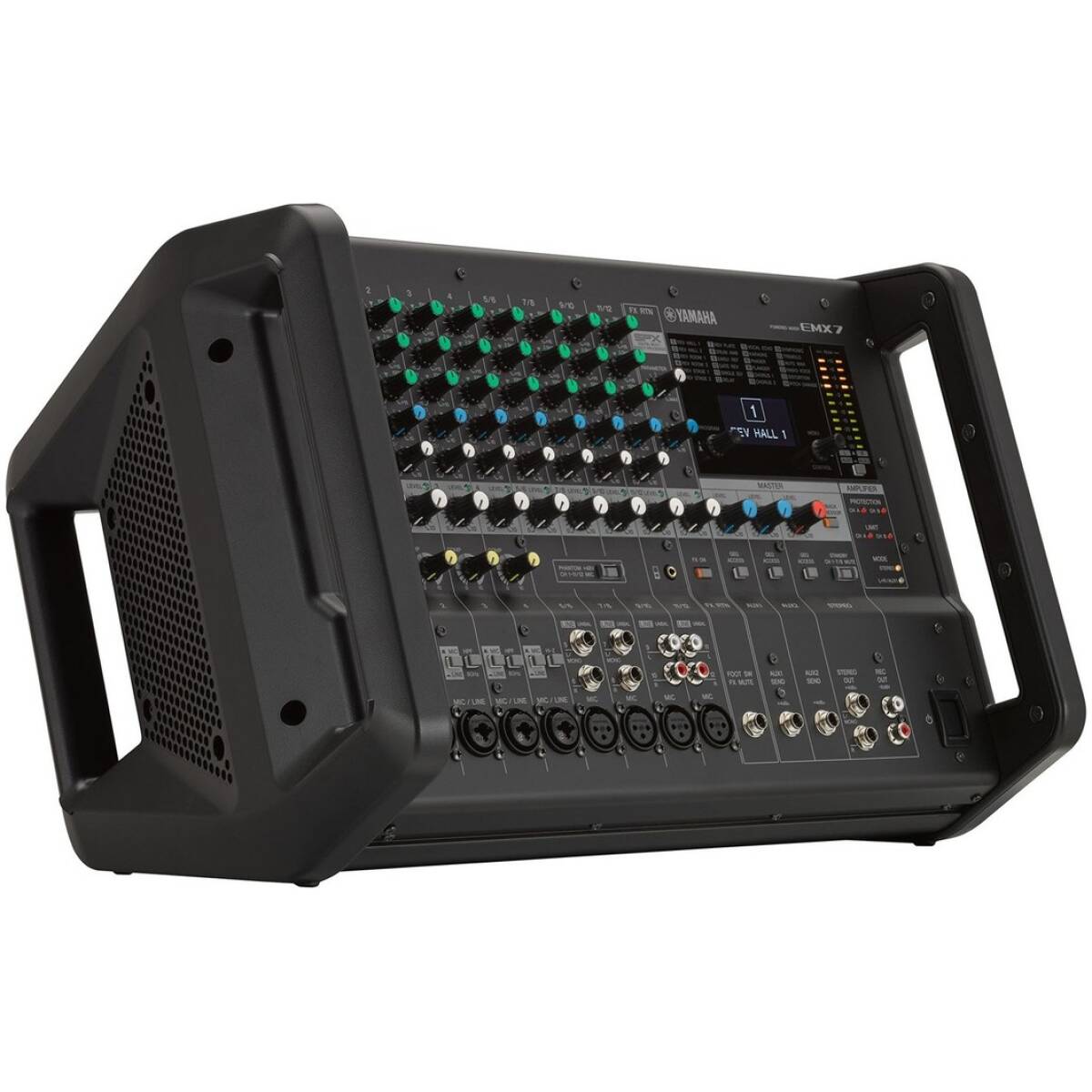

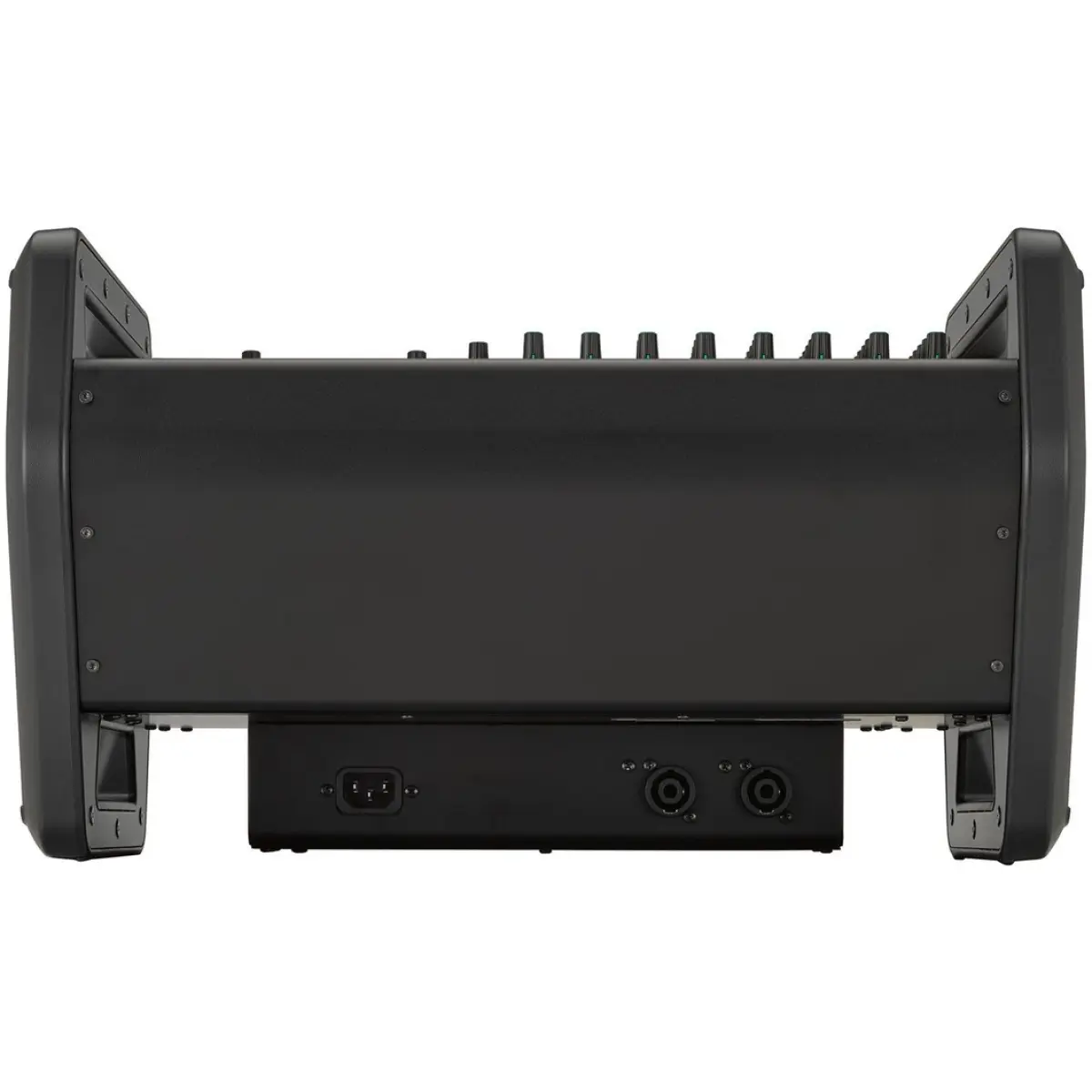

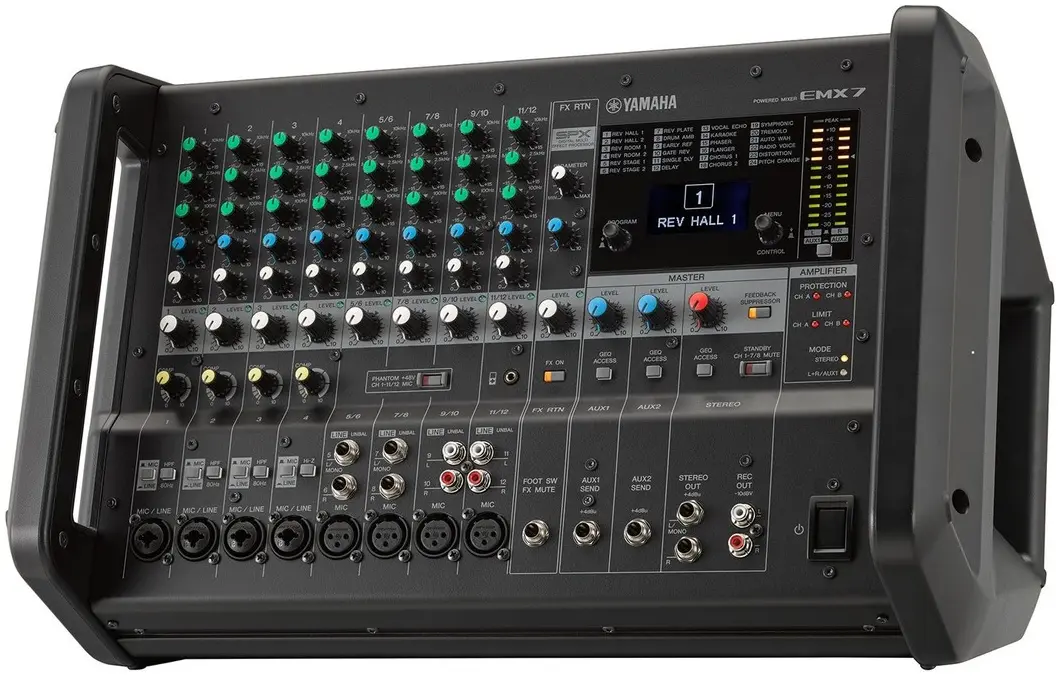

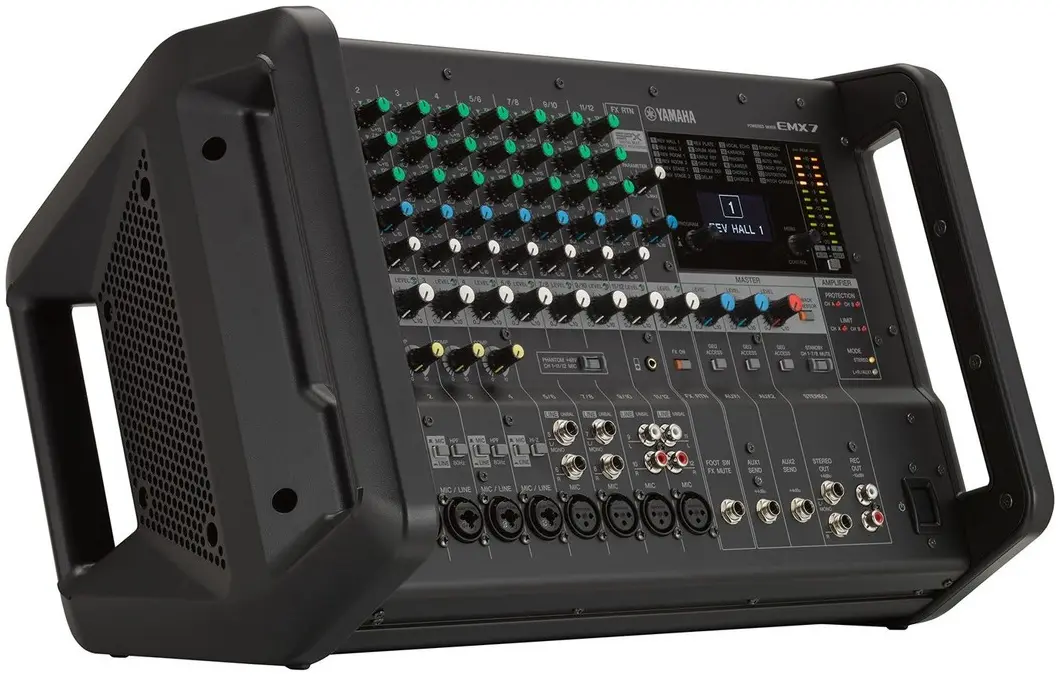

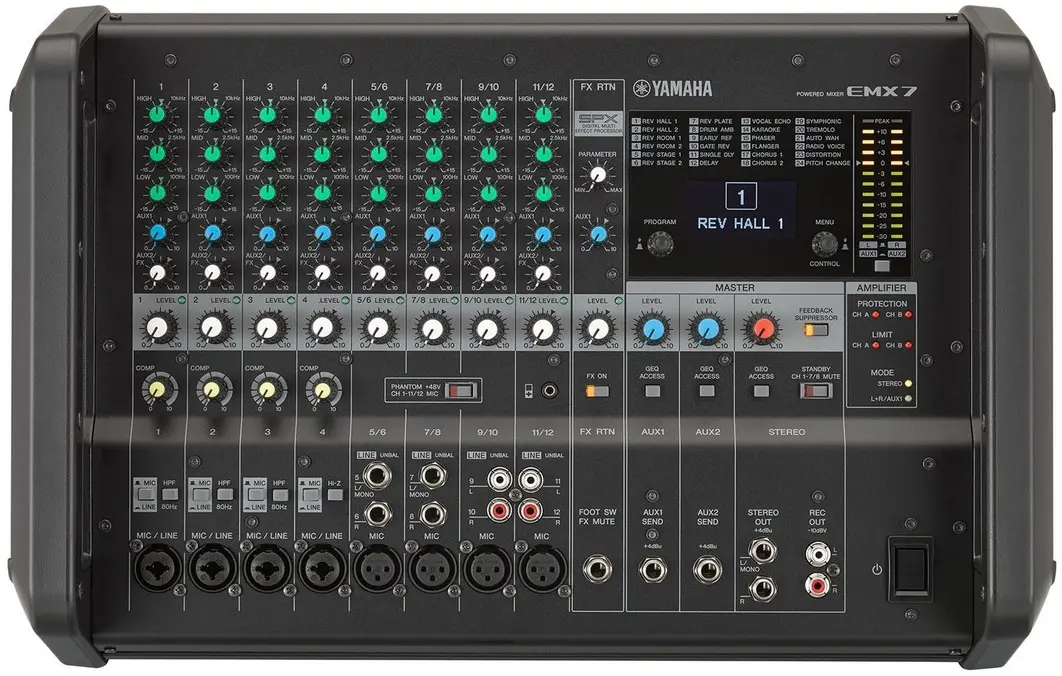

Yamaha EMX7 Powered Mixer

The Yamaha EMX7 Powered Analog Mixer gives you an ultra-efficient Class-D power amplifier complete with a high-quality analog mixer in one handy format. Delivering 2 x 710W of power at 4 Ohms, the EMX7 gives you plenty of punch to drive your system. Plus, you can take advantage of a comprehensive array of effects, equalisation, and integrated feedback suppression.

The EMX7 has been designed specifically for musicians and performers looking for pro-grade sound combined with an intuitive design. With a flexible range of connectivity, as well as a flex-type graphic EQ and 1-knob compressor, you can experience phenomenal system performance night after night, year after year.

Features

• 2 x 710W output at 4 Ohms and 2 x 500W output at 8 Ohms (1kHz THD+N less than 10 CEA2006)
• 2 x 600W output at 4 Ohms and 2 x 400W output at 8 Ohms (1kHz THD+N less than 1 CEA2006)
• Powerful and highly-efficient Class-D amplifier
• 12 Line inputs; 8 mono and 4 stereo
• High-Z input for connecting guitar and basses directly
• Flex 9 graphic EQ
• Onboard feedback suppressor
• 24 professional effects
• Yamaha speaker presets
• Robust metal chassis
• Large handles for portability and protection
• Optional rack-mount kit available – sold separately

Specifications

• Inputs: 12 Channels Total
  • Mic/Line: 8 Mono
  • Line: 4 Stereo
• Phantom Power: +48V

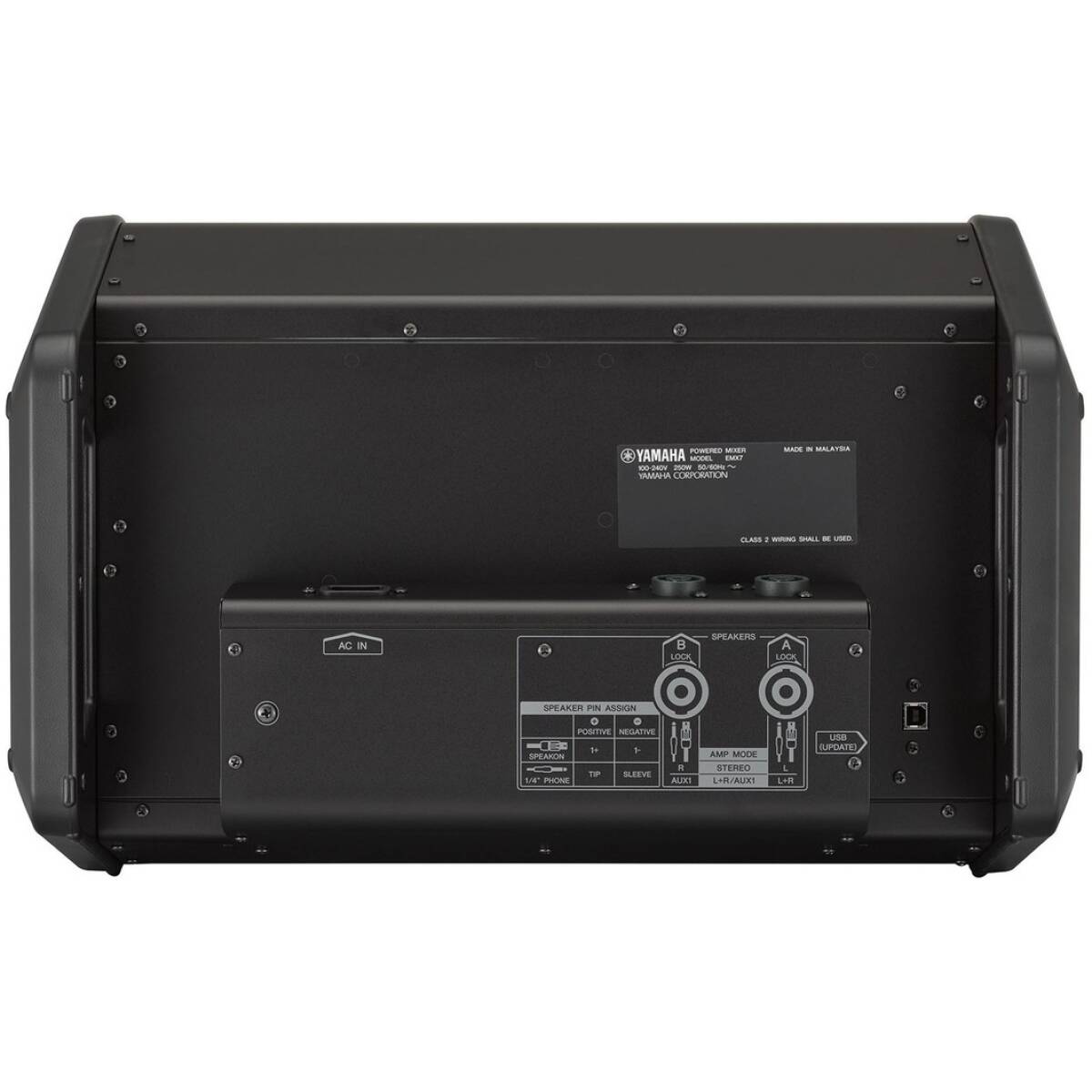

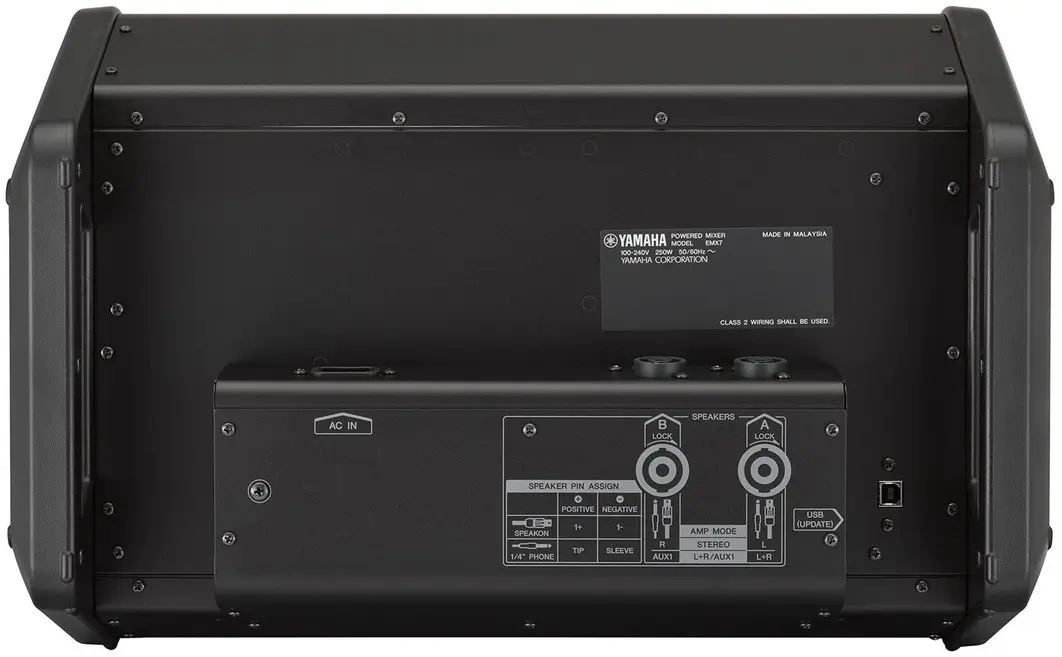

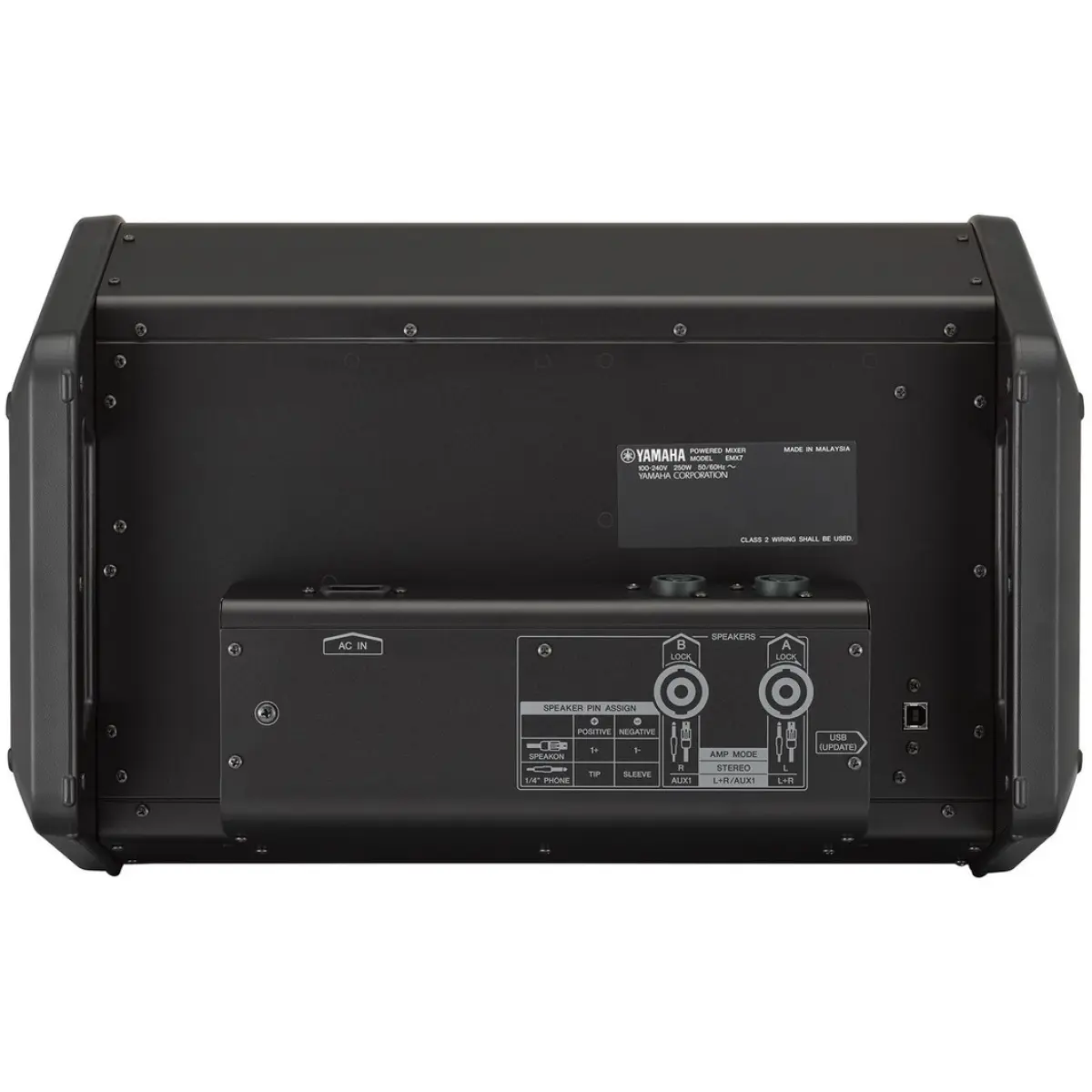

• Outputs:
  • Speakers [A, B]
  • Aux 1 Send
  • Aux 2 Send
  • Stereo Out [L, R]
  • Rec Out [L, R]
• Controls: Foot Switch
• Bus: 1 x Stereo and 2 x Aux (Including FX)
• Input Channel Function:
  • PAD: 30dB (Channel 1-4)
  • Hi-Z: Supported on Channel 4
  • HPF: 80Hz, -12dB/Oct. (Channel 1-3)
  • Comp: 1-Knob Comp (Channel 1-4)
  • EQ High: 10kHz ±15dB (Shelving)
  • EQ Mid: 2.5kHz ±15dB (Peaking)
  • EQ Low: 100Hz ±15dB (Shelving)
• On-Board DSP Processor: SPX Algorithm 24 Programms, Feedback suppressor, Graphic EQ, Speaker Processor
• Maximum Power Output at 4 Ohms: 710 W + 710 W, 1kHz THD+N less than 10% (CEA2006)
  • 600 W + 600 W, 1kHz THD+N less than 1% (CEA2006)
• Maximum Power Output at 8 Ohms: 500 W + 500 W, 1kHz THD+N less than 10% (CEA2006)
  • 400 W + 400 W, 1kHz THD+N less than 1% (CEA2006)
• Level Meter: 2 x 12-Point LED Meter (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, Peak)
• Dimensions: 465mm x 308mm x 325mm (W x H x D)
• Weight: 9.5kg / 20.9lbs
