Built for working musicians, the MODX M Series combines expressive control, streamlined workflow, and exceptional sound in a lightweight design perfect for stage or studio.
- Exceptional Sound: 3 powerful engines recreate classic analog synths, modern FM synths, and realistic instruments for a variety of sounds
- Expressive Control: Intuitive performance controls, including 8 physical faders and Super Knob, give you real-time hands-on expression
- Optimized Workflow: Upgraded navigation enables quick, intuitive sound editing and operation with features like a color touchscreen and 6 dedicated display knobs
- Improved Keyboard Action: 61 semi-weighted keys deliver faster, more substantial feeling synth action for improved playability when compared to MODX+
- Stage and Studio Integration: Expanded Softsynth Plugin (ESP) replicates MODX M in your favorite DAW – create, edit and mix sounds anywhere
ELEVATE EXPRESSION EVERYWHERE

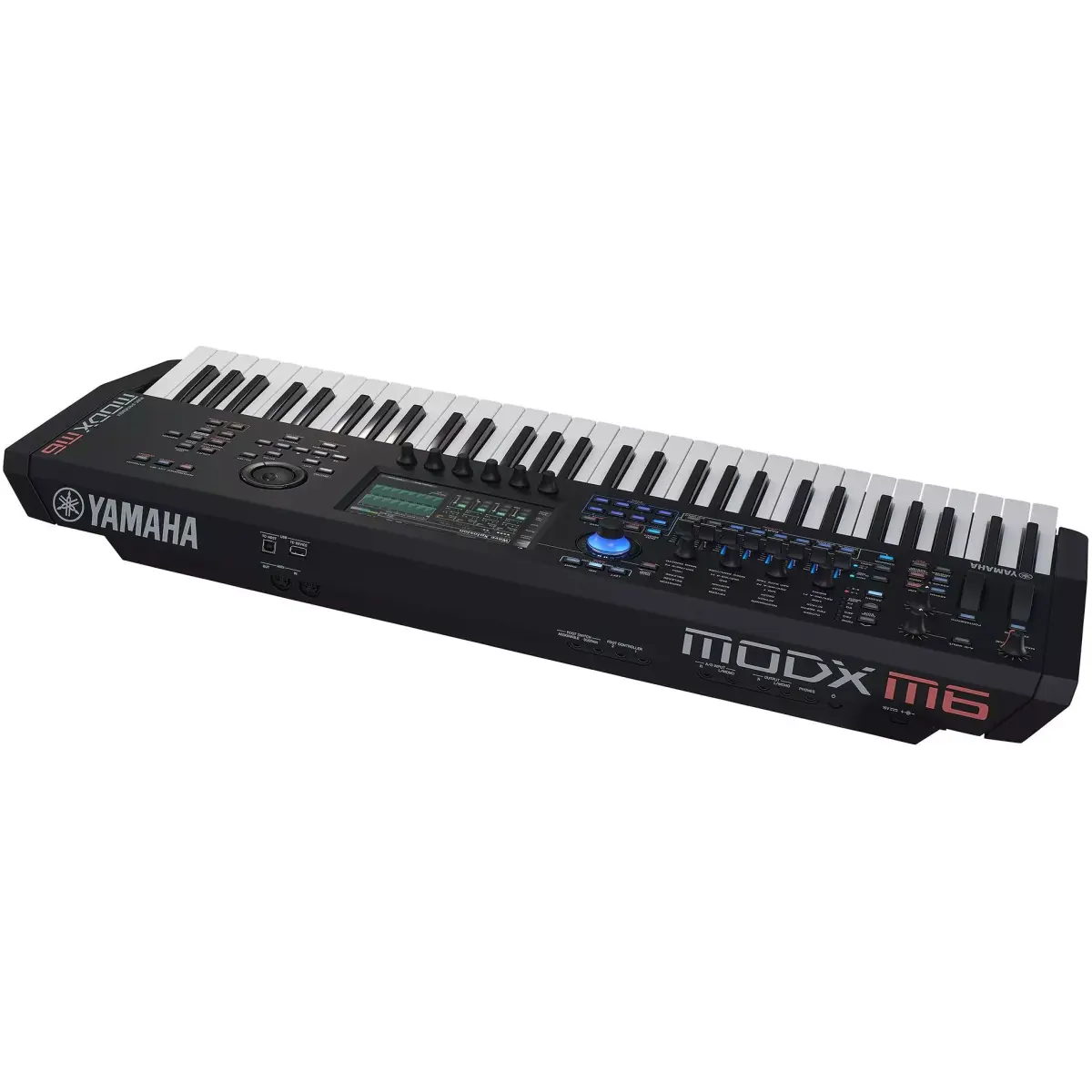

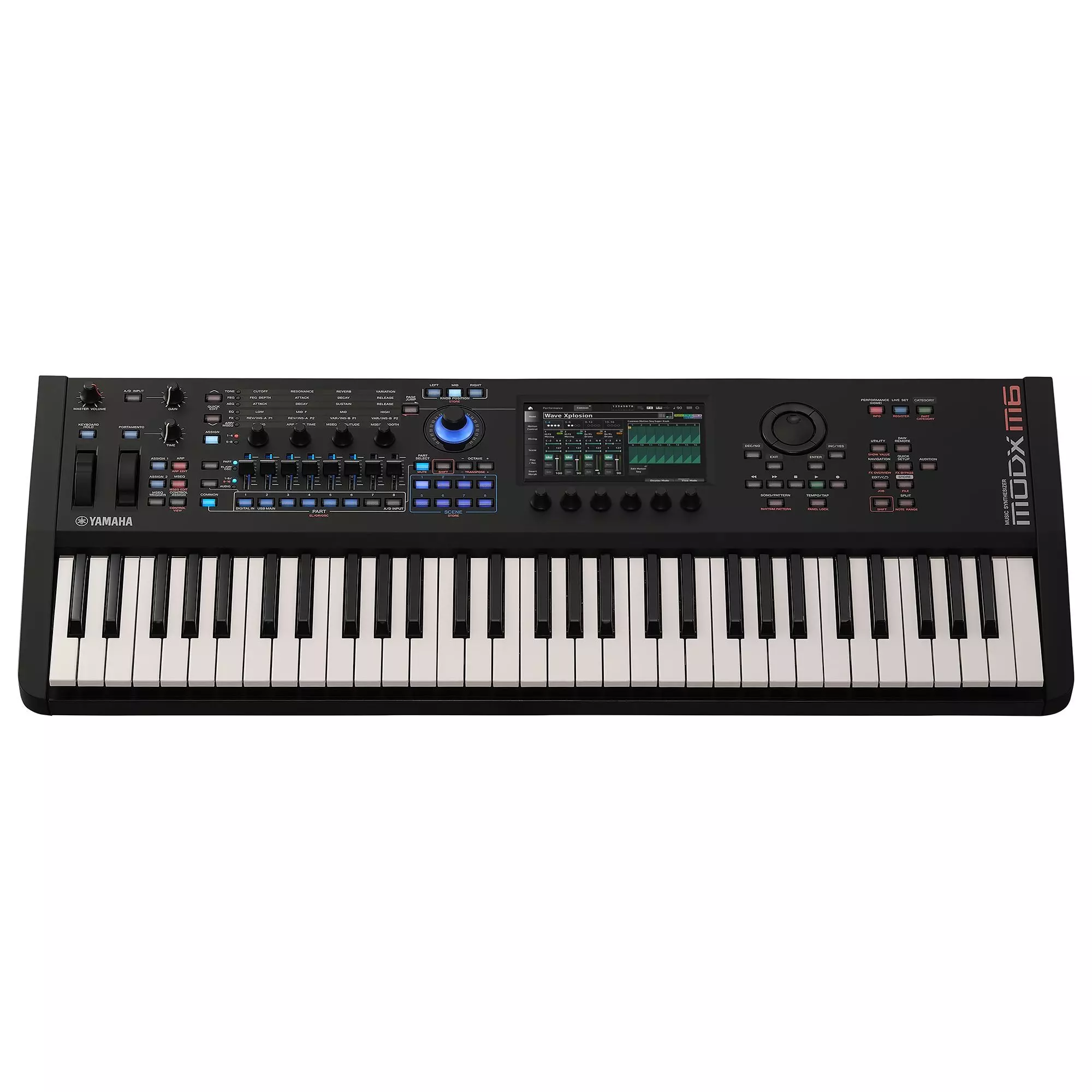

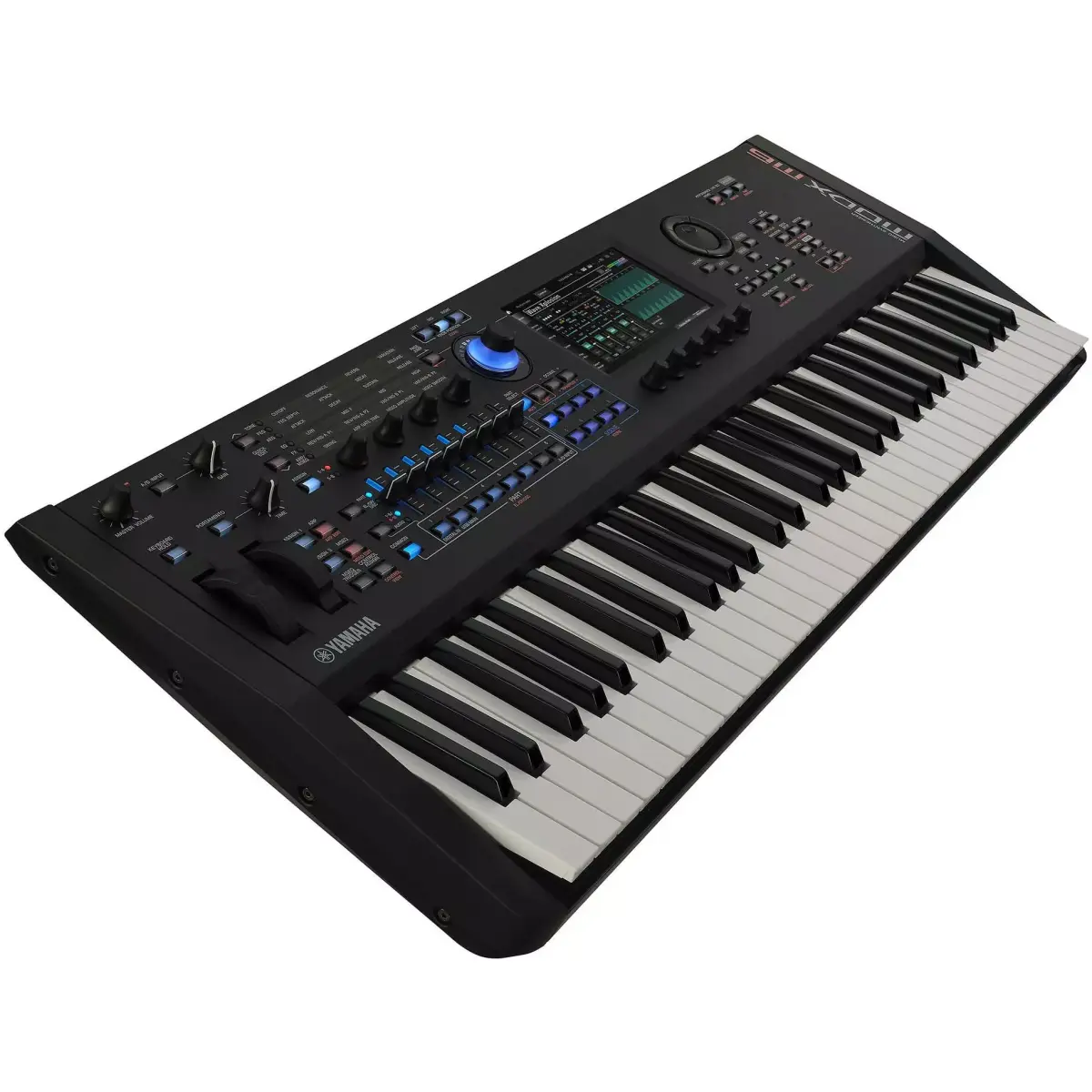

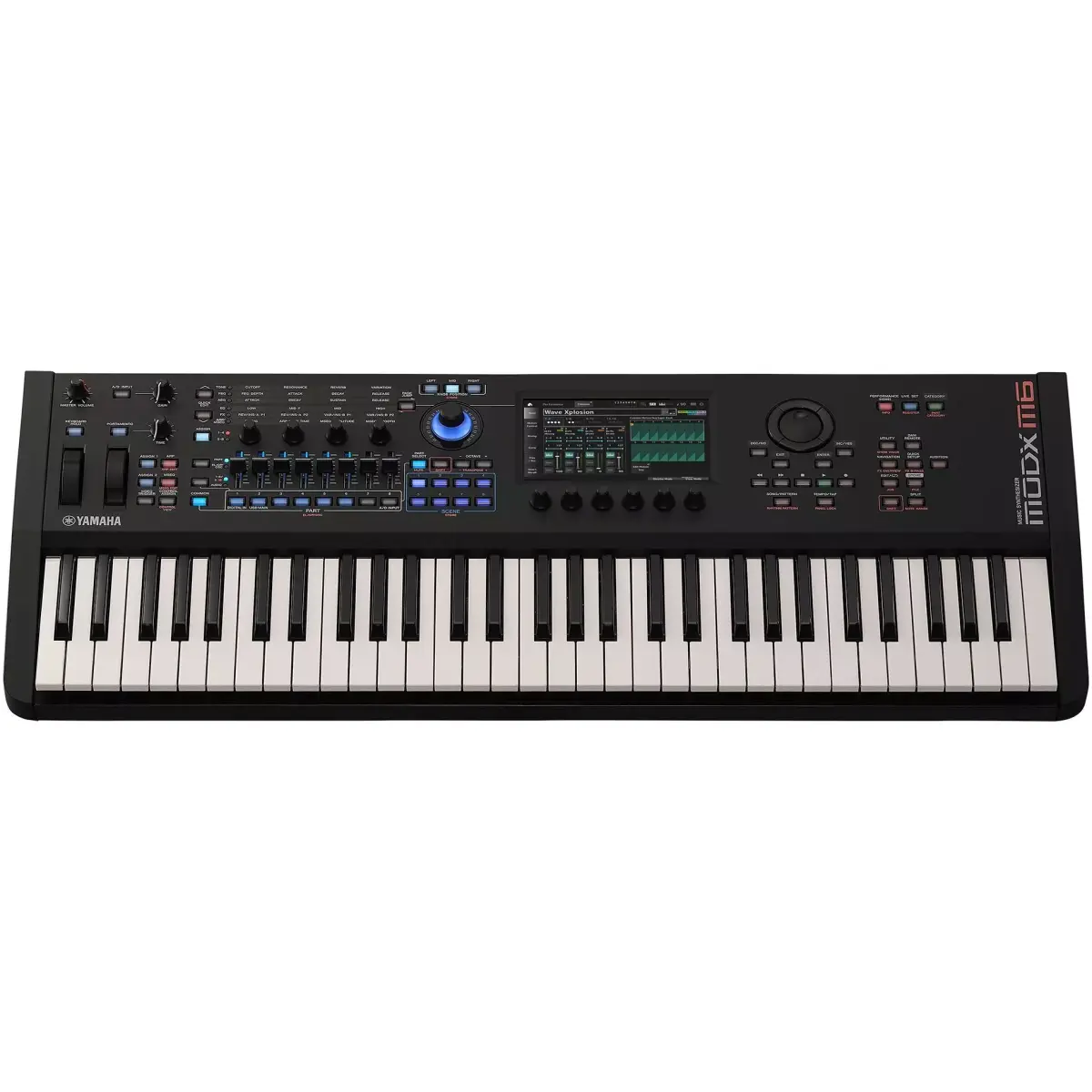

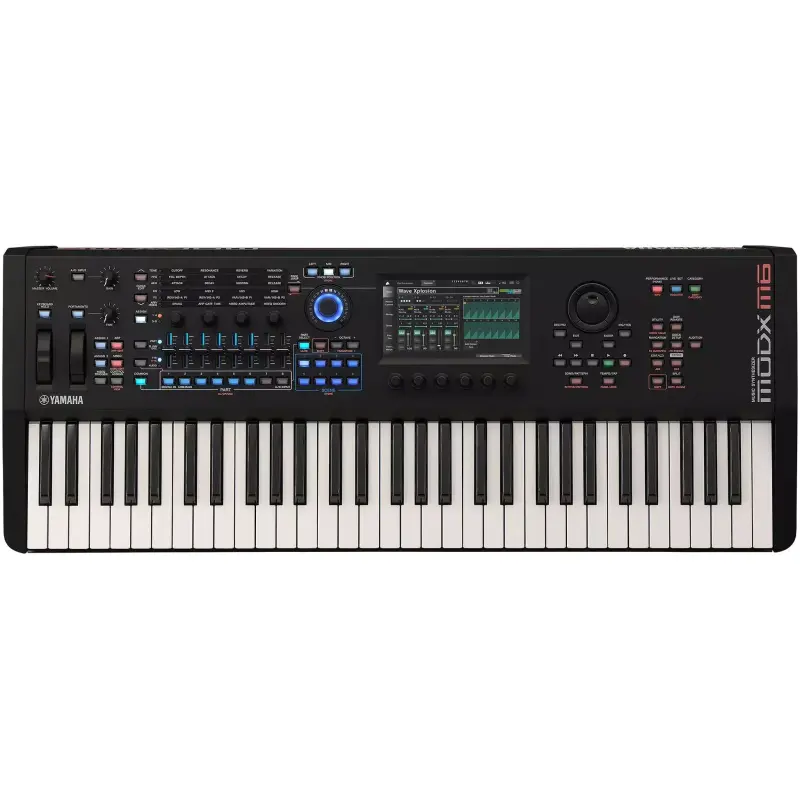

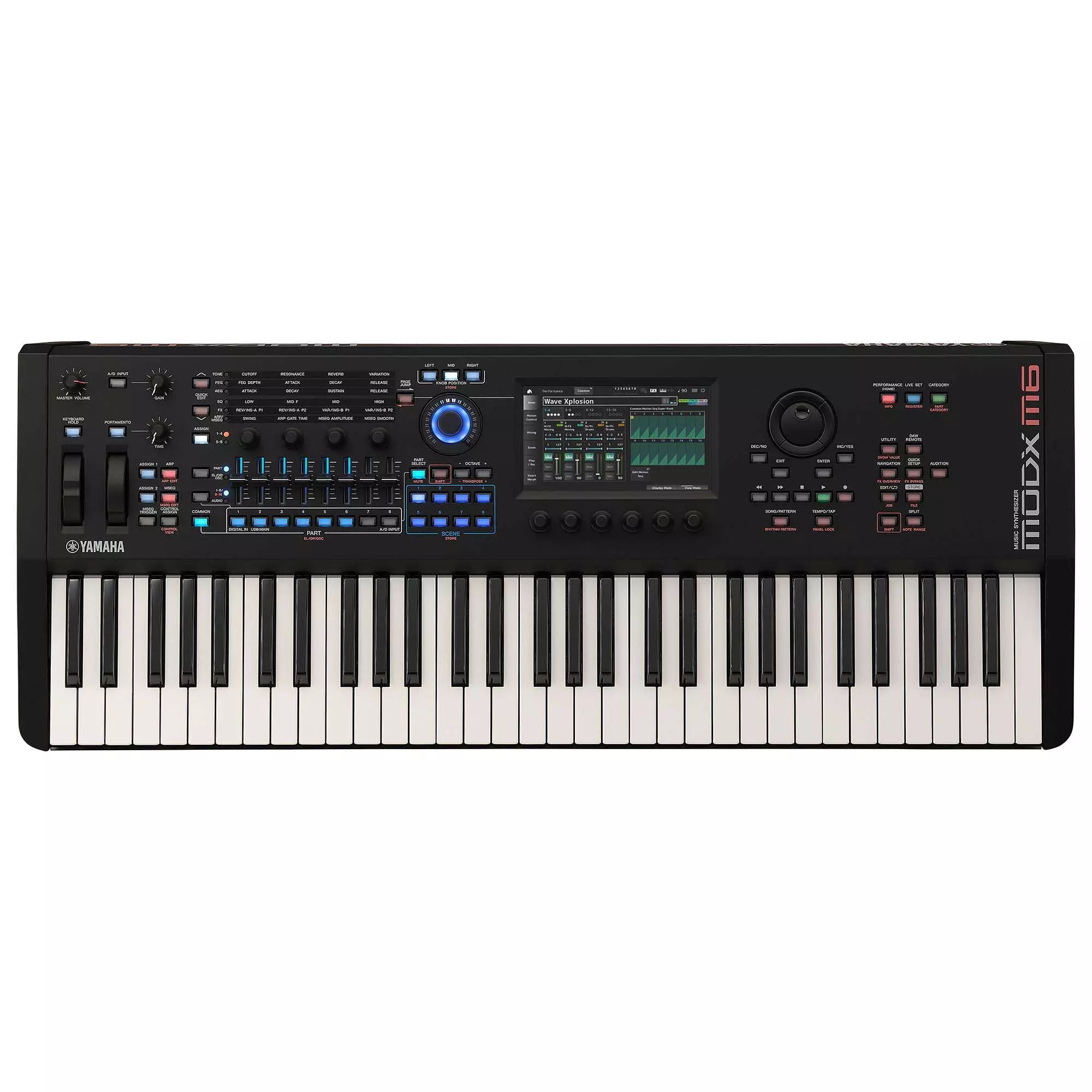

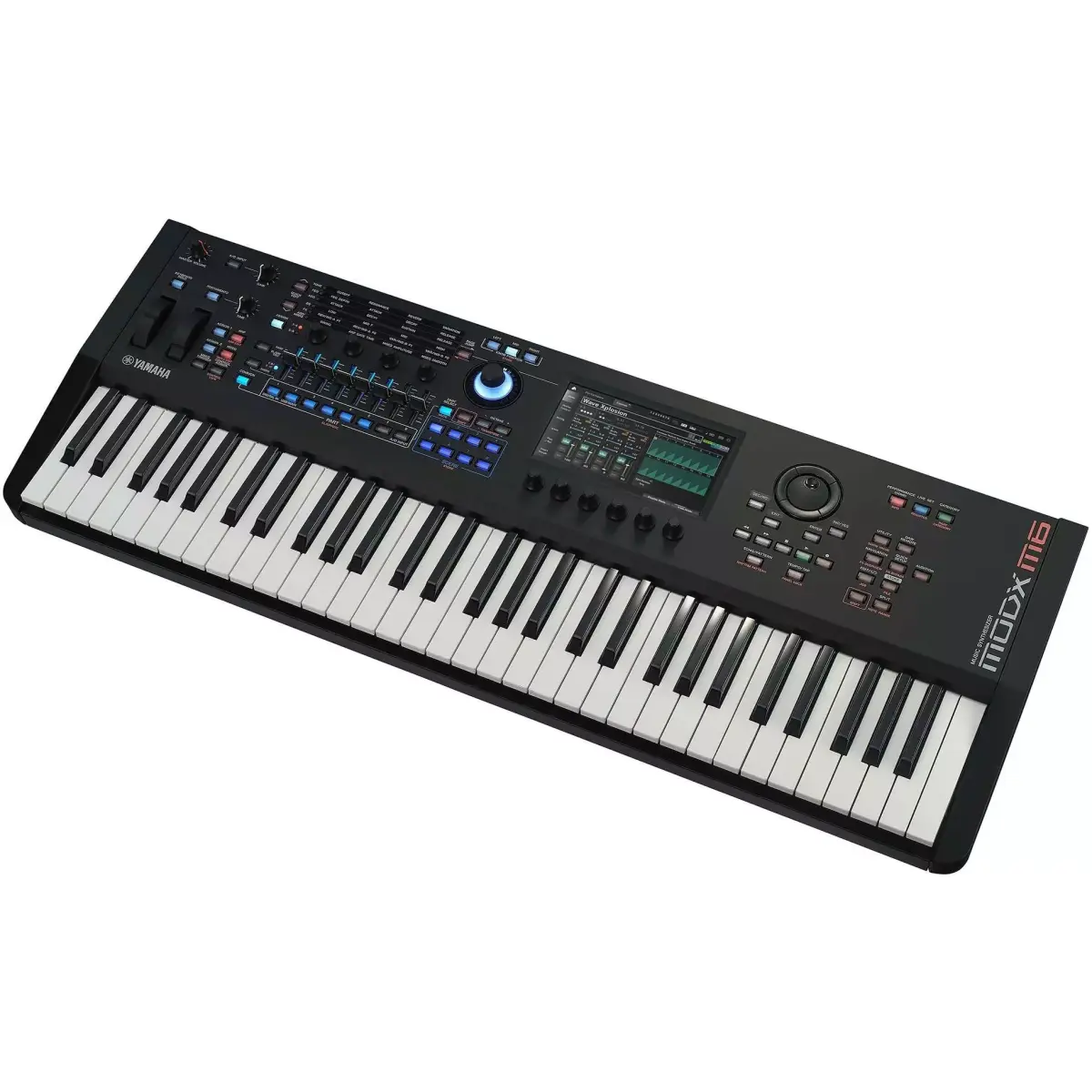

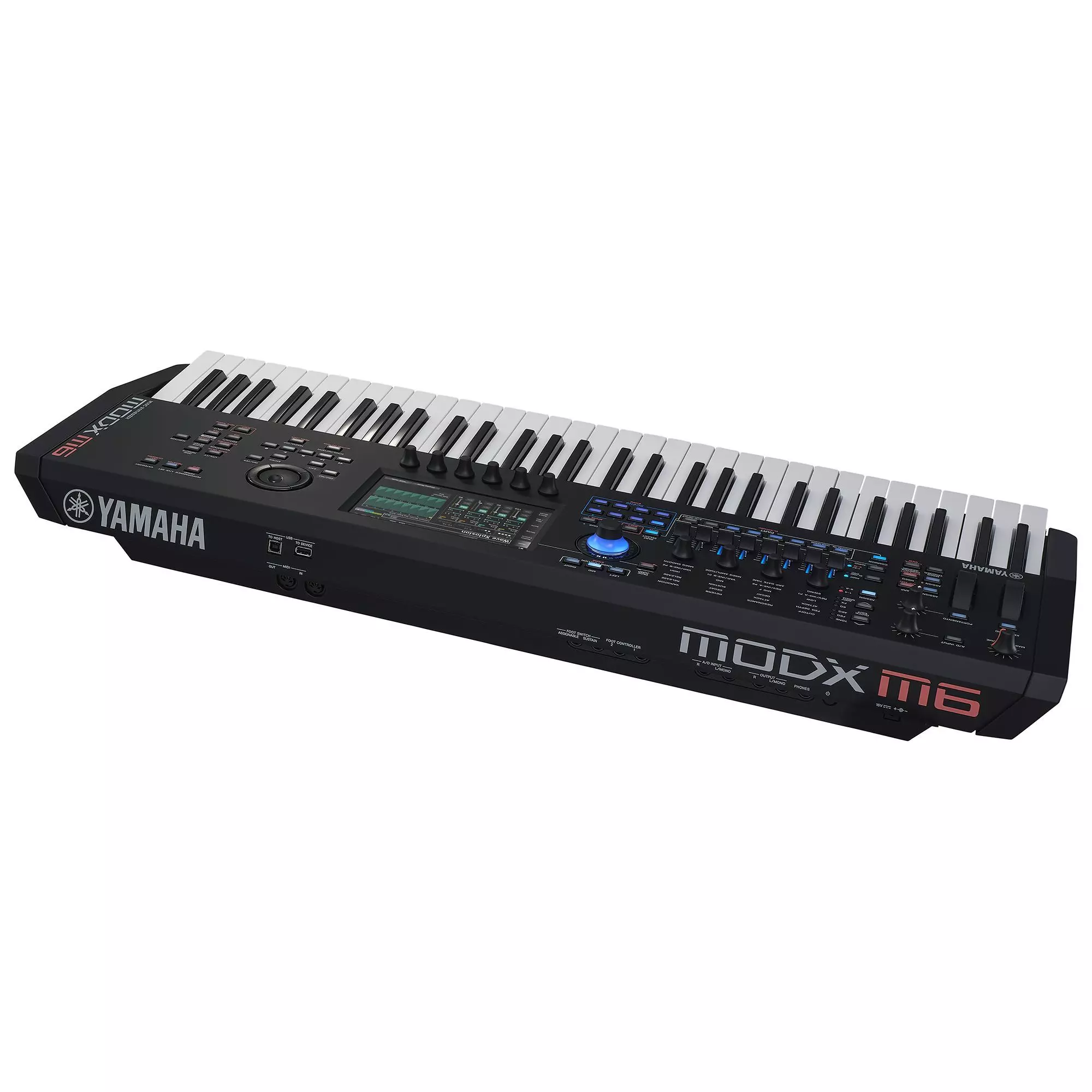

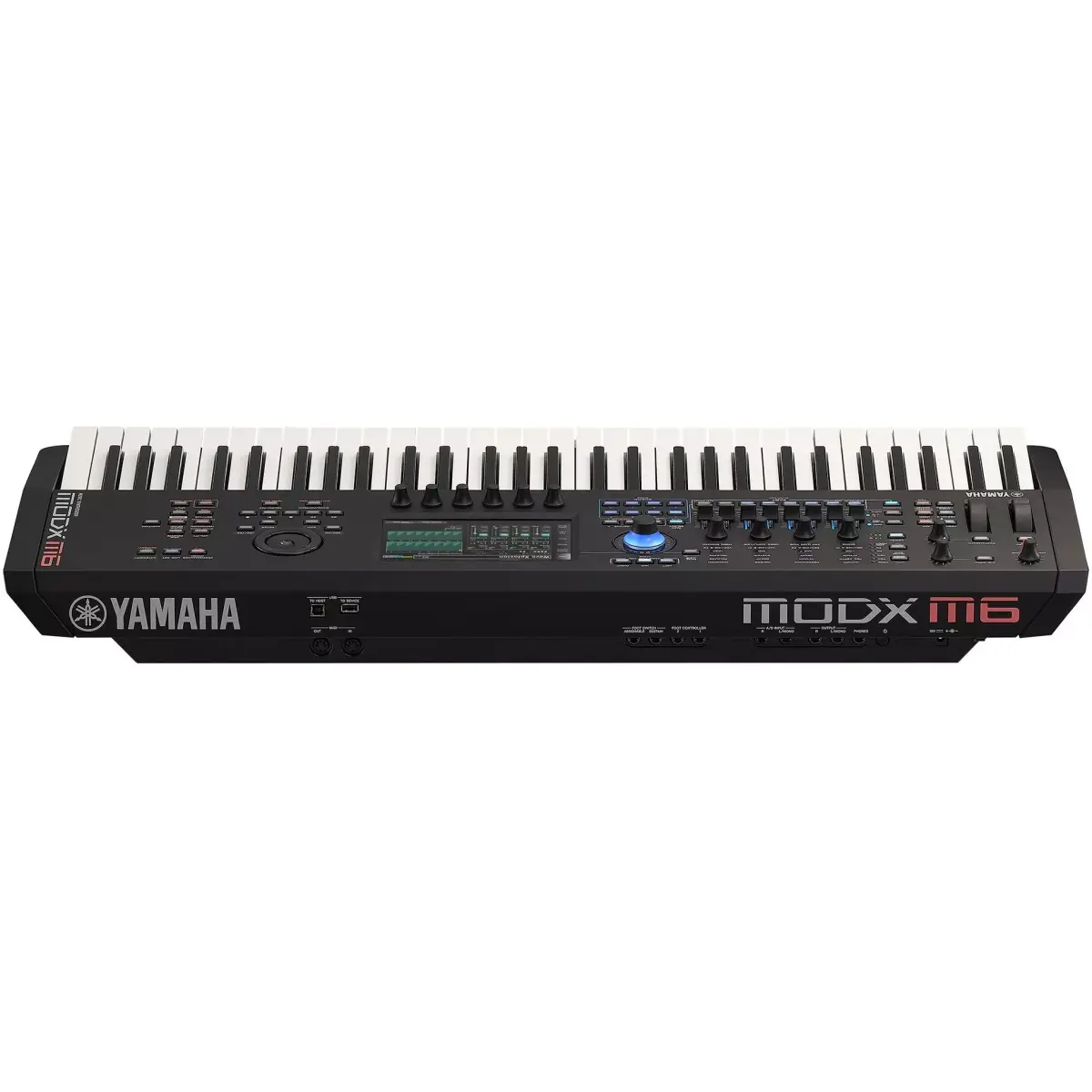

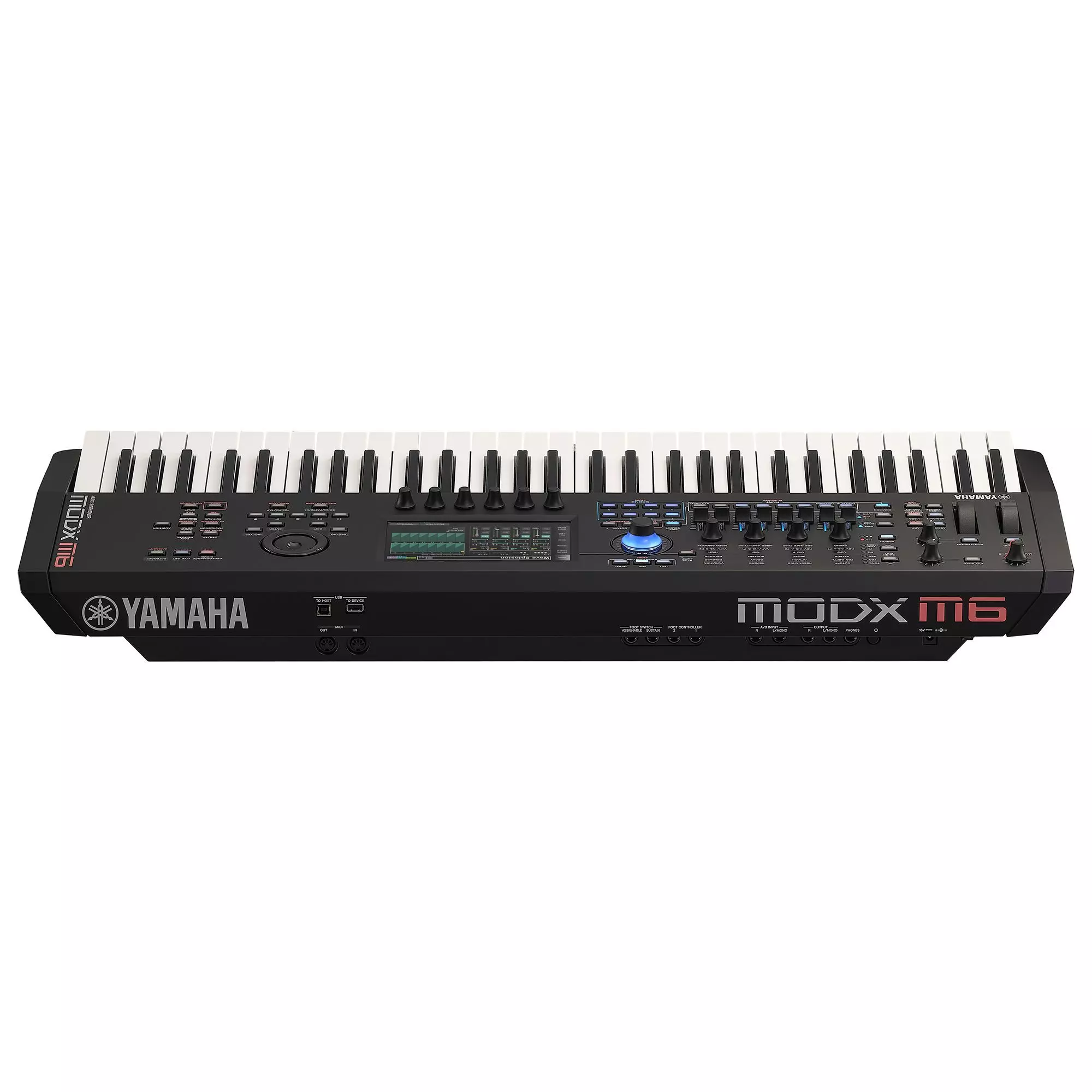

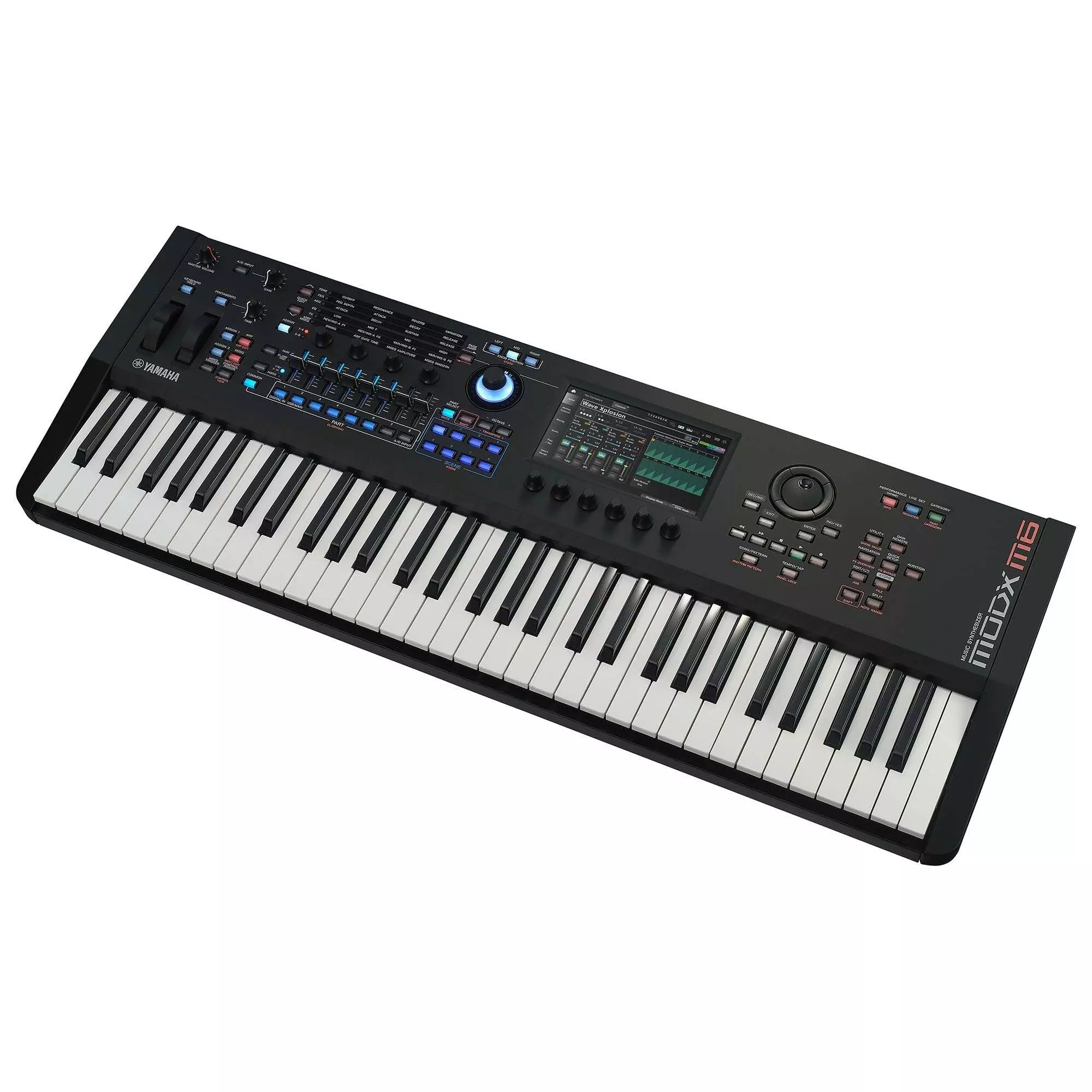

Built for synthesists, the 61-key MODX M6 delivers exceptional sound, expressive control and optimized workflow in a lightweight, portable design.
Dimensions
| Width | 882 mm (34-3/4″) |
| Height | 117 mm (4-5/8″) |
| Depth | 347 mm (13-11/16″) |
Weight
| Weight | 6.6 kg (14 lb, 9 oz) |
Keyboard
| Number of Keys | 61 |
| Type | Semi-weighted FSB Keyboard |
| Initial Touch | Yes |
| Aftertouch | No |
Tone Generator
| Motion Control Synthesis Engine AMW2: 128 Elements (max.), FM-X: 8 Operators, 88 Algorithms, AN-X: 3 Oscillators, 1 Noise |
Maximum Polyphony
| AWM2: 128 (max.; stereo/mono waveforms), FM-X: 128 (max.), AN-X: 12 (max.) |
Multi Timbral Capacity
| 16 Parts (internal), Audio Input Parts (A/D*1, USB*1) *1 stereo Part |
Wave
| Preset: 10.7 GB (when converted to 16-bit linear format), User: 1.9 GB |
Performance
| 3,427 |
Filter
| 18 types |
Effects
| Reverb x 13 types, Variation x 88 types, Insertion A x 88 types*2, Insertion B x 89 types*3, Master Effect x 26 type, *2 A/D part insertion x 83 types *3 Part 2~16: 88 type, A/D part insertion x 83 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands) |
Note Capacity
| 1 Song/Pattern: Approx. 130,000 notes, Store area: Approx. 520,000 notes (Pattern); approx. 520,000 notes (Song) |
Note Resolution
| 480 ppq (parts per quarter note) |
Tempo (BPM)
| 5 – 300 |
Sequence formats
| MONTAGE M/MODX M original format, SMF formats 0, 1 |
Arpeggio
| Parts: 8 Parts simultaneous (max.), Preset: 10,922 types or more, User: 256 types |
Patterns
| 128 patterns |
Pattern tracks
| 16 Sequence tracks |
Pattern Recording type
| Real time replace, Real time overdub |
Songs
| 128 songs |
Song tracks
| 16 Sequence tracks, Tempo track, Scene track |
Song recording type
| Real time replace, Real time overdub, Real time punch in/out |
USB audio interface
| [Sampling Frequency = 44.1 kHz] Input: 4 channels (2 stereo channels), Output: 10 channels (5 stereo channels) [Sampling Frequency = 44.1kHz / 48kHz / 96kHz] Input: 2 channels (1 stereo channel), Output: 2 channels (1 stereo channel) |
Controllers
| Master Volume, A/D Input Gain knob, Pitch Bend wheel, Modulation wheel, Control Slider x 8, Knob x 4, Super knob, Display knob x 6, Portamento knob, Data Dial, Assignable swich x 2, MSEQ trigger switch, Portamento switch, Keyboard hold switch |
Display
| 7″ TFT Color Wide VGA LCD touchscreen |

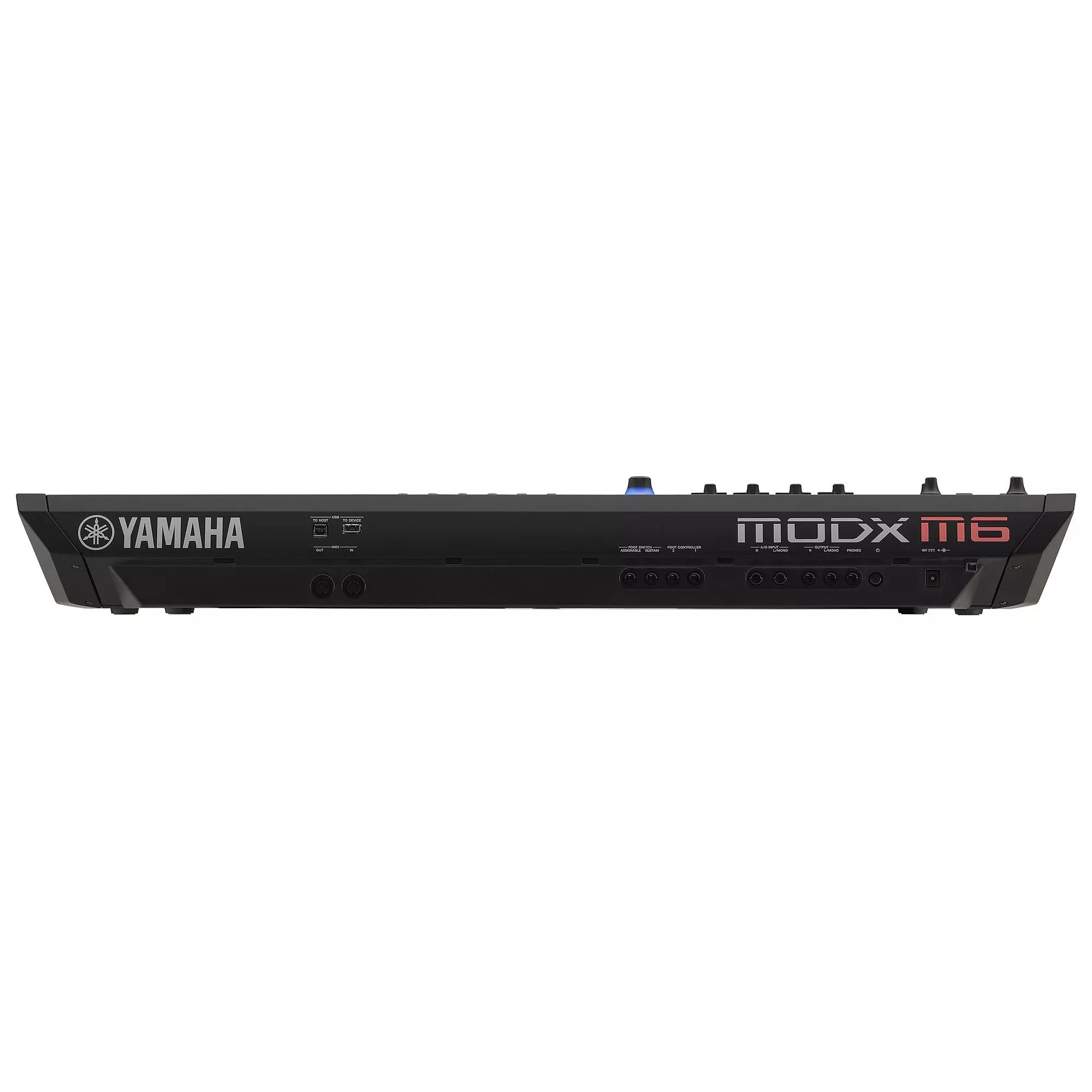

Connectors
| USB [TO DEVICE], USB [TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [SUSTAIN]/[ASSIGNABLE], OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks) |
Power Consumption
| 19 W (When using PA-300C AC adaptor) |
Accessories
| AC adaptor: PA-300C, Quick guide, Cubase AI Download Information, Expanded Softsynth Plugin for MONTAGE M/MODX M Download Information, About downloading manuals, Welcome card |
Live Sets
| Preset: 256, User: 2,048 |
