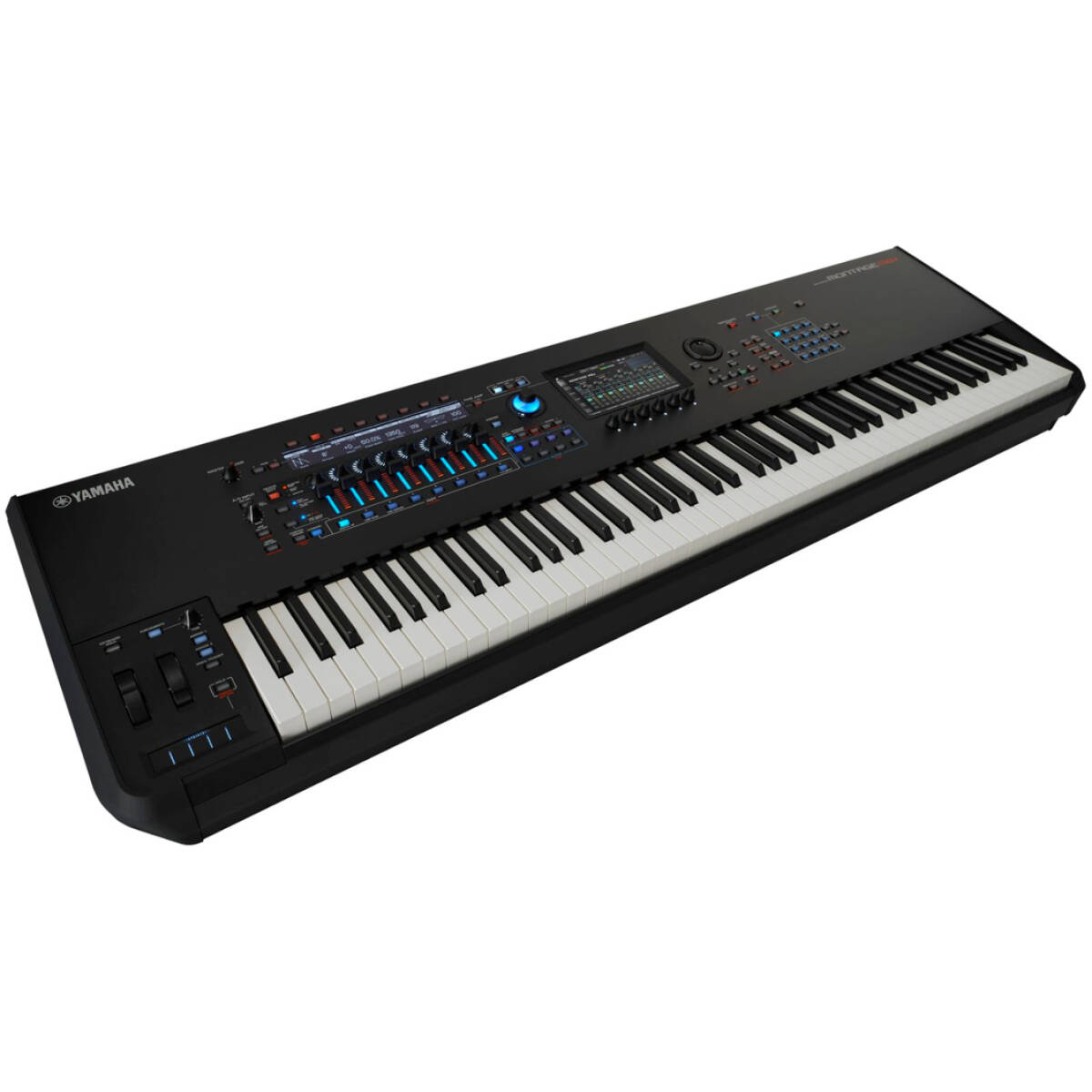

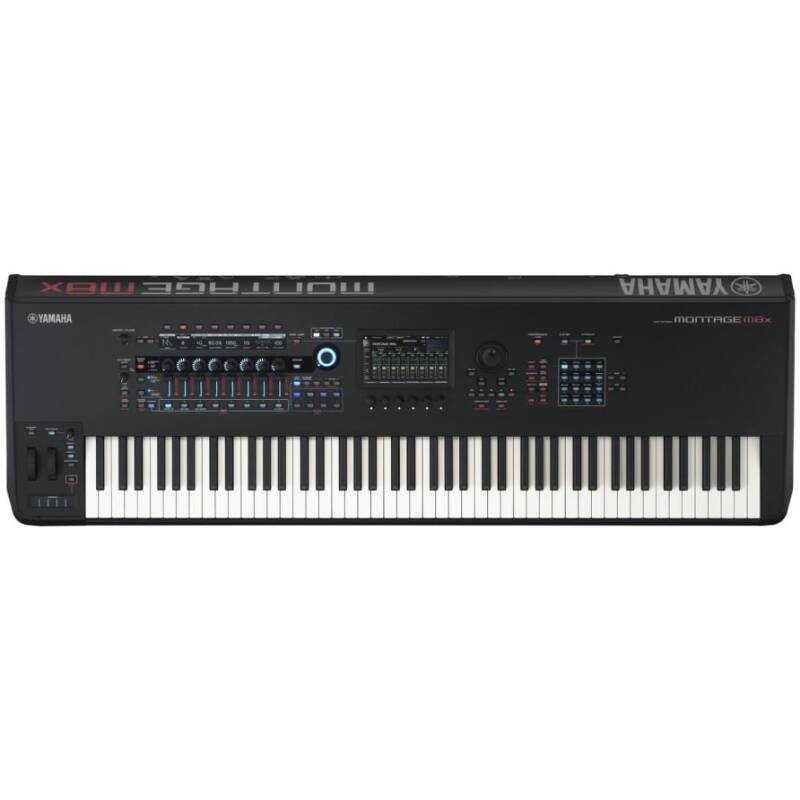

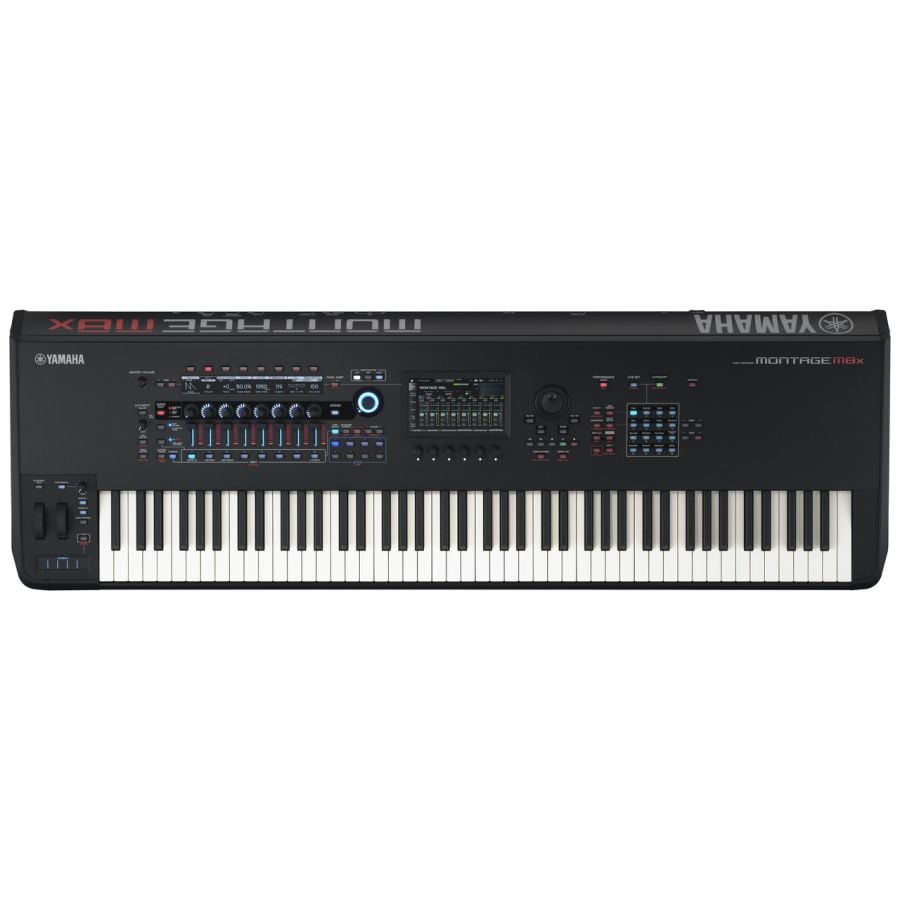

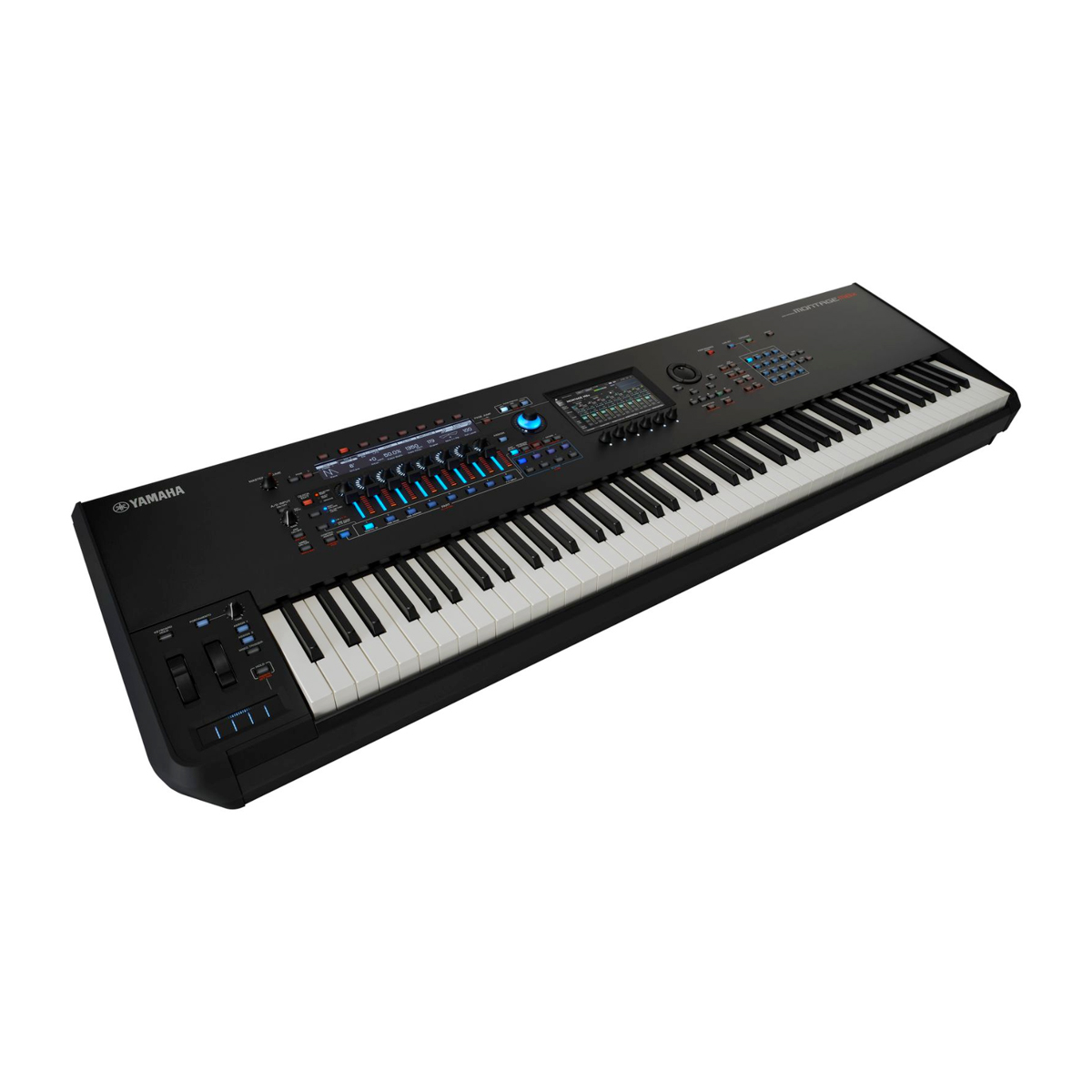

88-key Synthesizer with Fully Weighted GEX Keyboard, Polyphonic Aftertouch, Ribbon Controller; AN-X, AWM2, and FM-X Sound Engines; 7-inch Color Touchscreen, USB-MIDI, and Multichannel Audio Interface
FEATURES:
- Fully weighted GEX keyboard with polyphonic aftertouch
- AN-X, AWM2, and FM-X sound engines
- AN-X models classic analog synthesizer sound and behavior
- AWM2 with 128-element architecture delivers more articulations, dynamics, and high-definition sound
- FM-X 8-operator FM synthesis generates modern, dynamic synth sounds
- Pure Analog Circuit 2 provides clear harmonic reproduction
- 5-segment ribbon controller with dedicated Hold button
- Keyboard Hold button lets you sustain chords while tweaking knobs
- Portamento on/off button and dedicated Portamento Time knob
- Dedicated Keyboard, Part, and Scene control buttons provide control over 16 Parts per Performance
- VCM Rotary Speaker effect and realistic drawbar behavior for authentic organ sound and control
- 16 Library slots for thousands of custom user Performances and waveforms
- 400-note polyphony (AWM2 Preset: 128, AWM2 User: 128, FM-X: 128, AN-X: 16)
- 9.97GB Wave ROM Preset memory, 3.8GB Flash ROM User memory
- E.S.P. Extended Soft Synth plug-in (VST3/AU) replicates the Montage M in your favorite DAW — available early 2024
- 7-inch TFT color touchscreen offers highly detailed editing control
- Fast, intuitive navigation via Navigation button, Quick Edit screen, 6 touchscreen display knobs, and Page Jump button
- USB-MIDI and multichannel 6-in/32-out audio interface
- Suite of dedicated accessories available separately
SPECIFICATIONS:
| Type | Keyboard Synth |
|---|---|
| Sound Engine | AWM2, FM-X, AN-X |
| Analog/Digital | Digital |
| Number of Keys | 88 |
| Type of Keys | GEX Weighted |
| Aftertouch | Yes, Polyphonic |
| Velocity Sensitive | Yes |
| Other Controllers | Pitchbend, Mod wheel, Ribbon Controller |
| Polyphony | AWM2: 256 notes, FM-X: 128 notes, AN-X: 16 notes |
| Number of Presets | 3369 factory |
| Oscillators | 128 Elements (AMW2), 8 operators, 88 algorithms (FM-X), 3 x oscilators, 1 x noise (AN-X) |
| Filters | 18 types |
| Effects Types | 14 x Reverb, 9 x Delay, 15 x Modulation, 7 x Trem/Rotary, 12 x Dist, 6 x Compressor, 3 x wah, 4 x Lo-Fi, 17 x Tech, 13 x Misc |
| Arpeggiator | 8 part simultaneous |
| Sequencer | 16-track |
| Memory | 9.97 GB Preset Memory, 3.8GB User Memory |
| Audio Inputs | 2 x 1/4″ TS (A/D input: L/Mono, R) |
| Audio Outputs | 2 x 1/4″ TRS (Assignable output: L, R), 2 x 1/4″ TRS (Output: L/Mono, R) |
| Headphones | 1 x 1/4″ TRS |
| USB | 2 x Type A (Device), 1 x Type B (Host) |
| MIDI I/O | In, Out, Thru, USB |
| Pedal Inputs | 2 x 1/4″ (assignable, sustain), 2 x 1/4″ (Foot Controller 1, 2) |
| Power Source | Standard IEC AC Cable |
| Height | 6.68″ |
| Width | 56.93″ |
| Depth | 18.12″ |
| Weight | 61.9 lbs. |
| Manufacturer Part Number | MONTAGE M8X 889025147675 |
