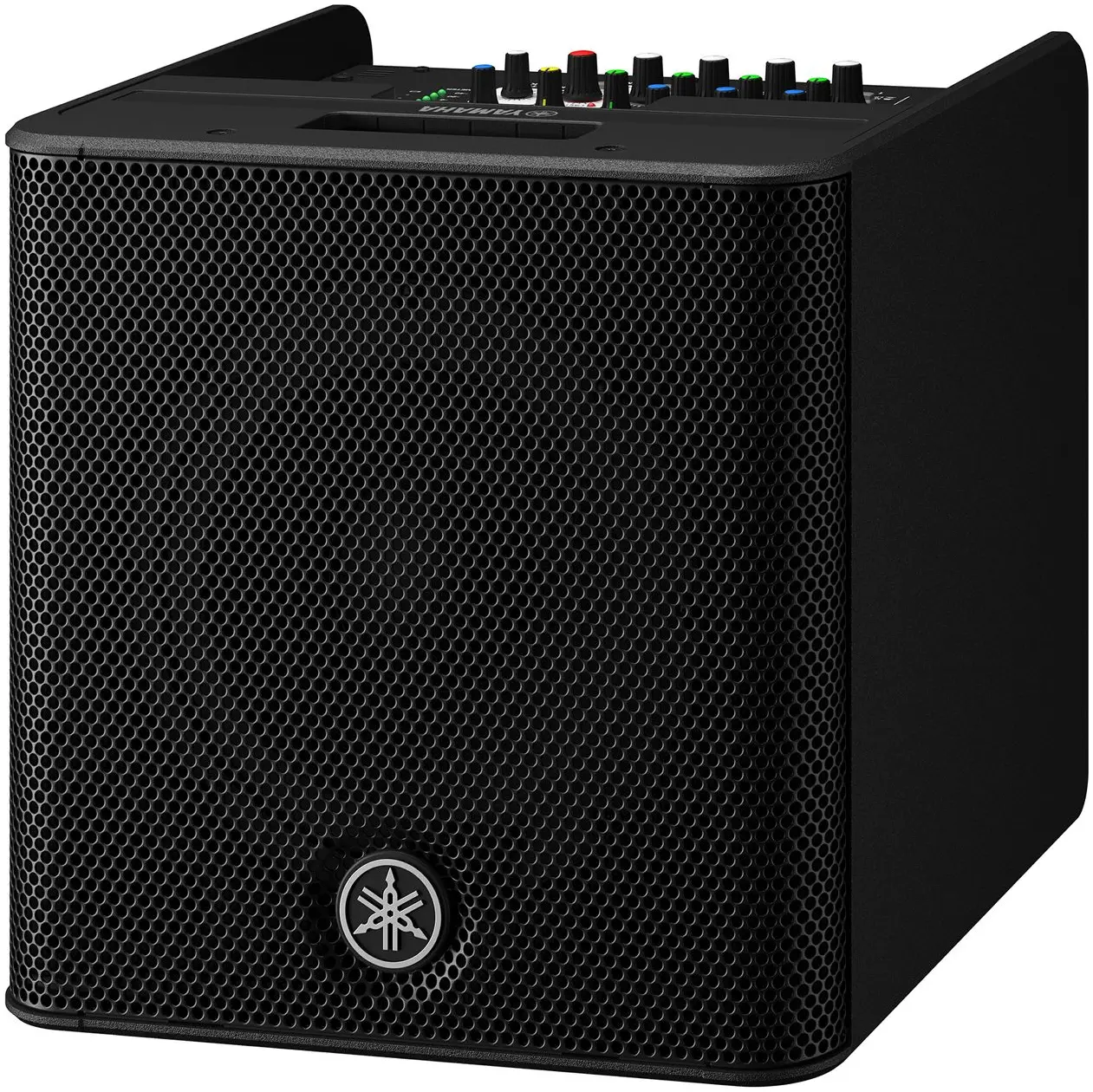

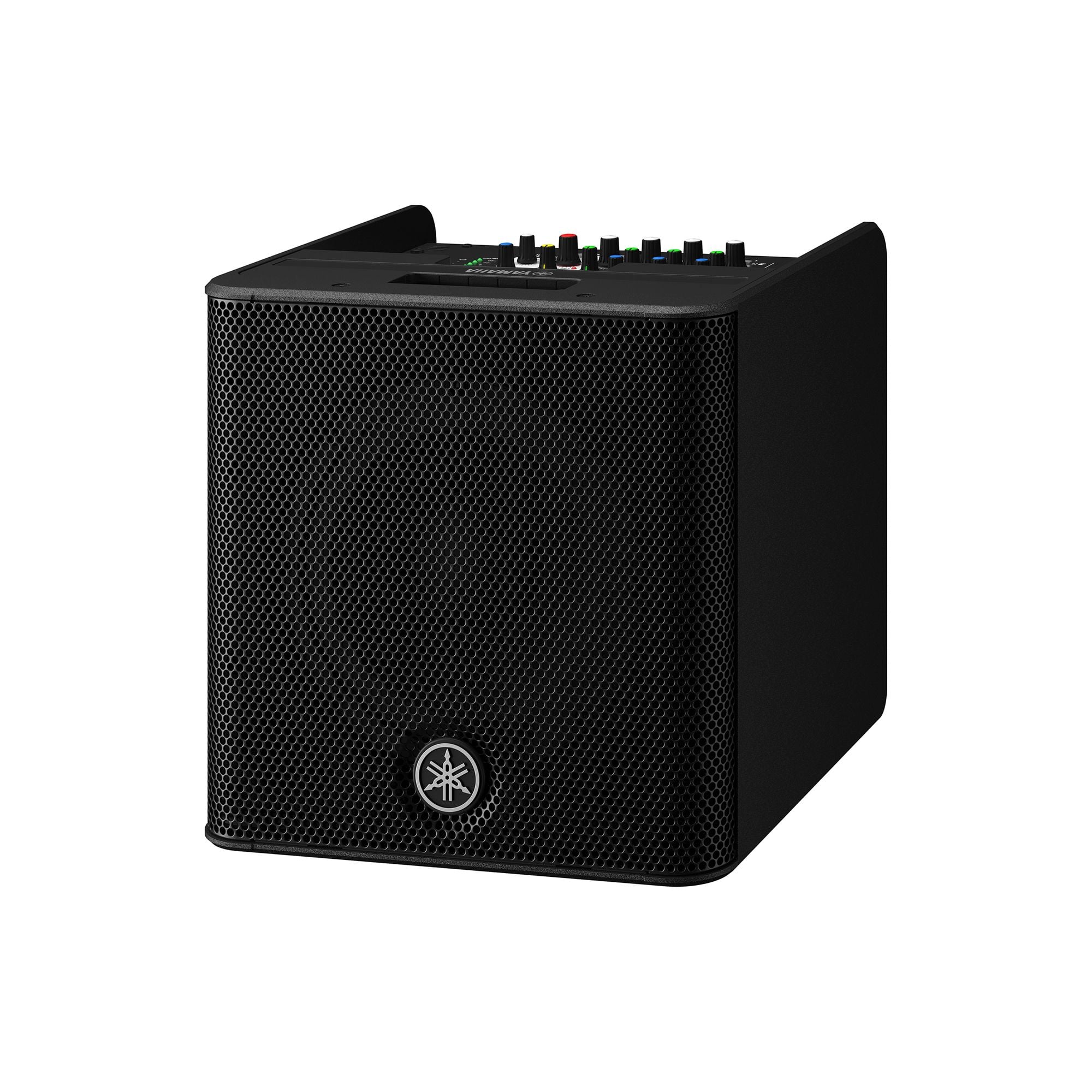

A portable PA system equipped with a 180 W power amp, coaxial compression driver with 1.4” voice coil HF and 8” cone LF, a 5-channel digital mixer, and sold together with a high-capacity lithium-ion battery.
- 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
- 1.4” HF + 8” LF high-quality coaxial compression driver

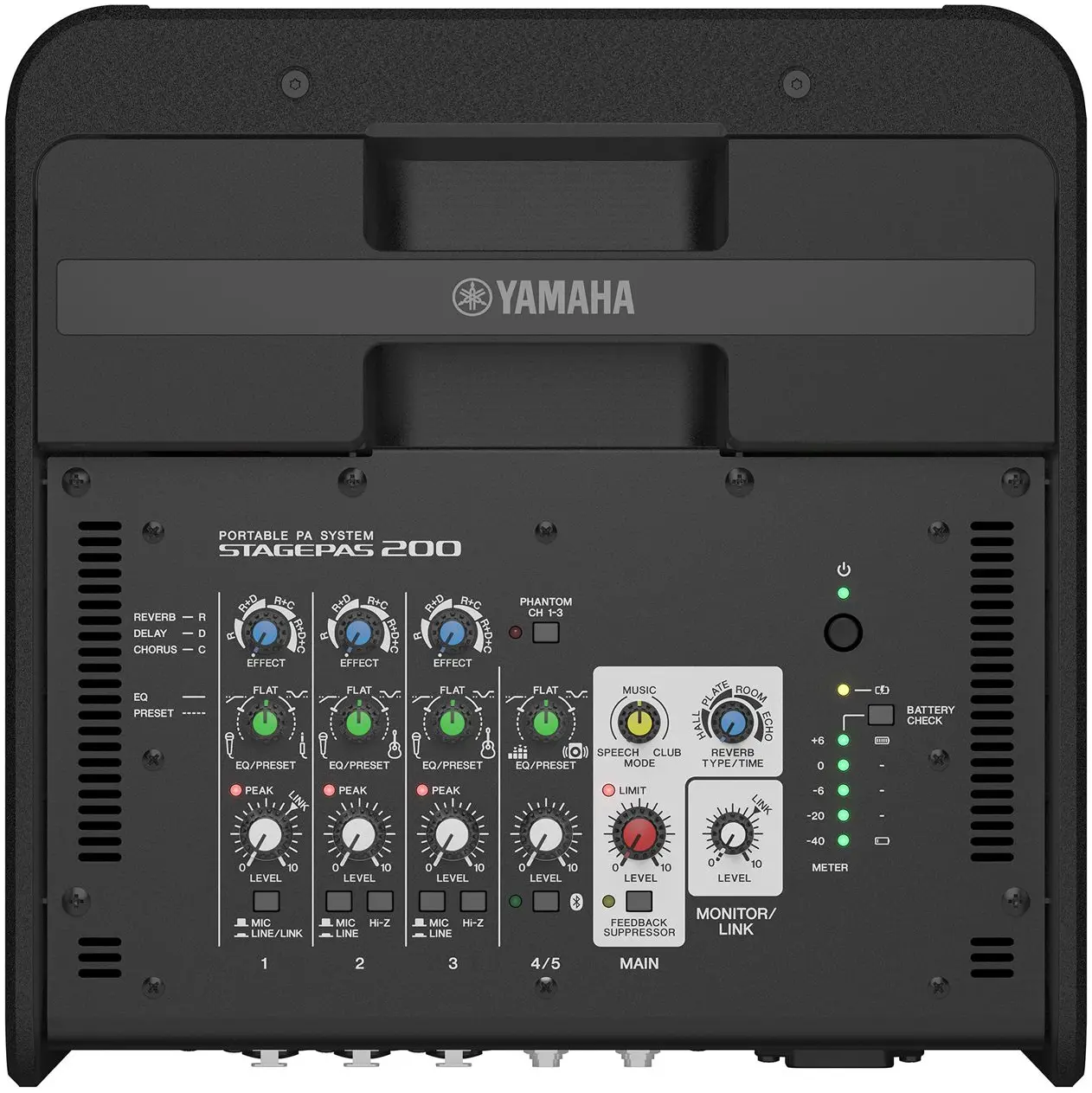

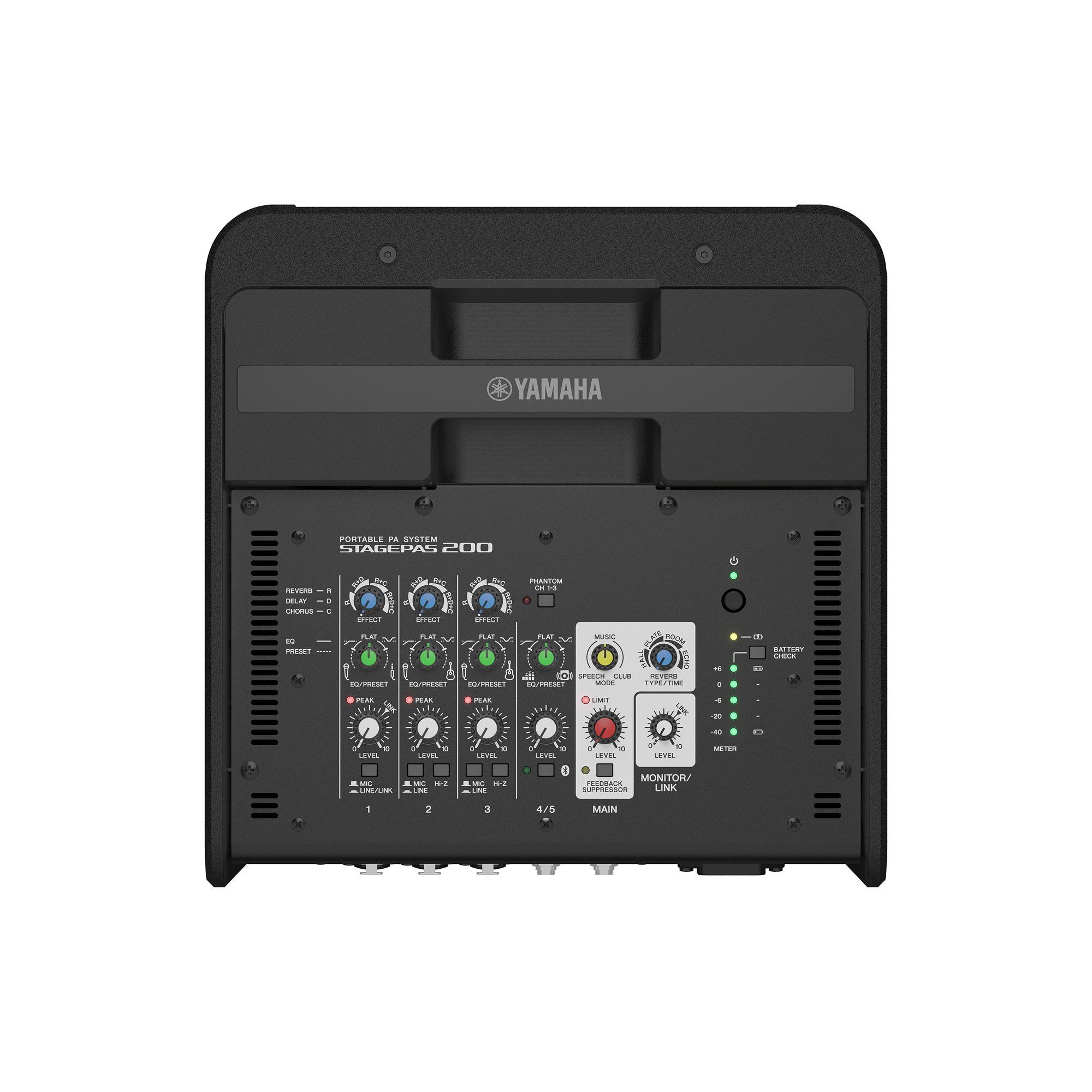

- 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
- Main output multi-band compressor “MODE”
- 1-knob EQ/preset for each channel
- High-grade SPX digital reverb (4 program, parameter control), delay, chorus
- Hi-Z input
- Equipped with link-out/monitor out

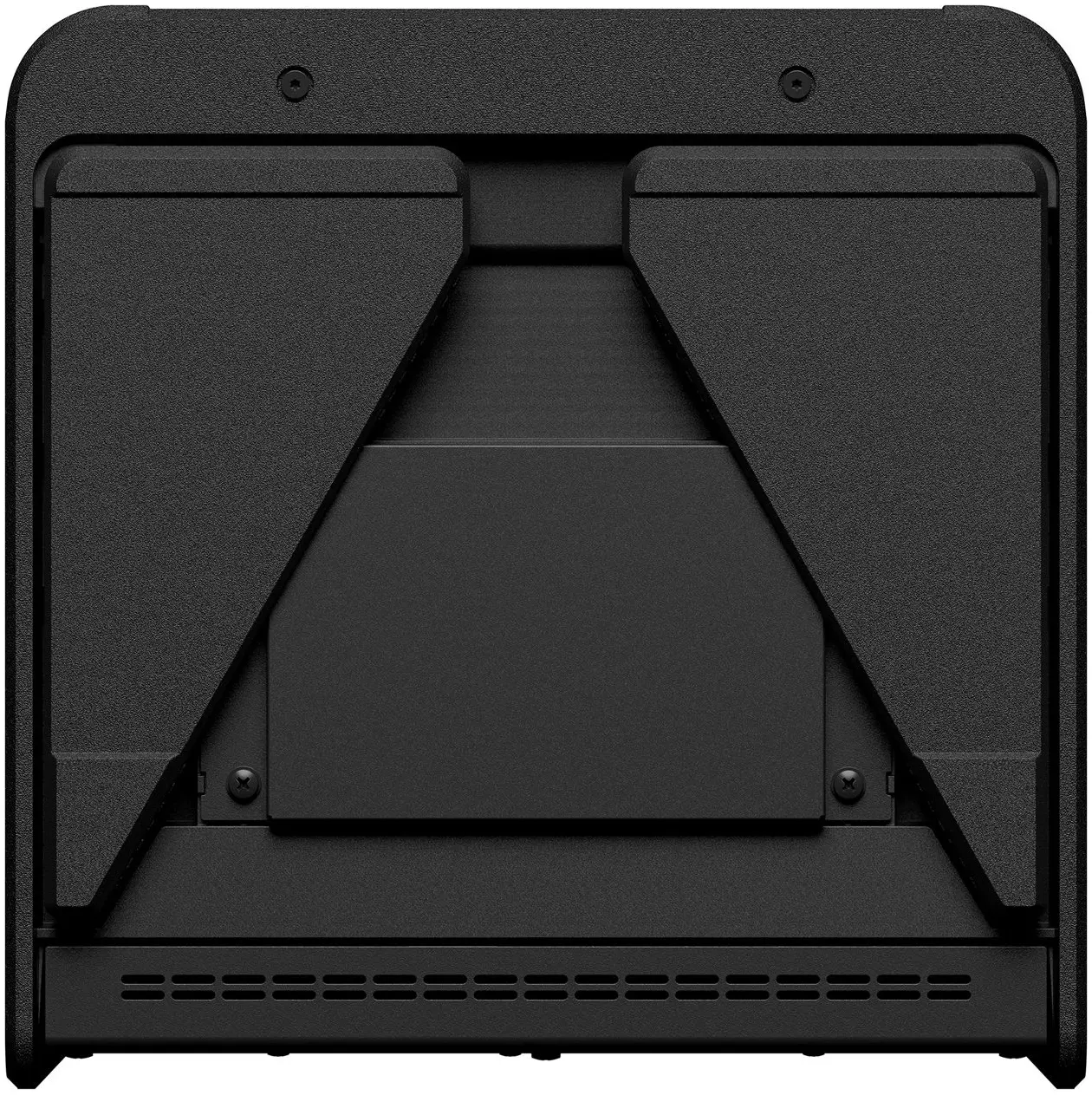

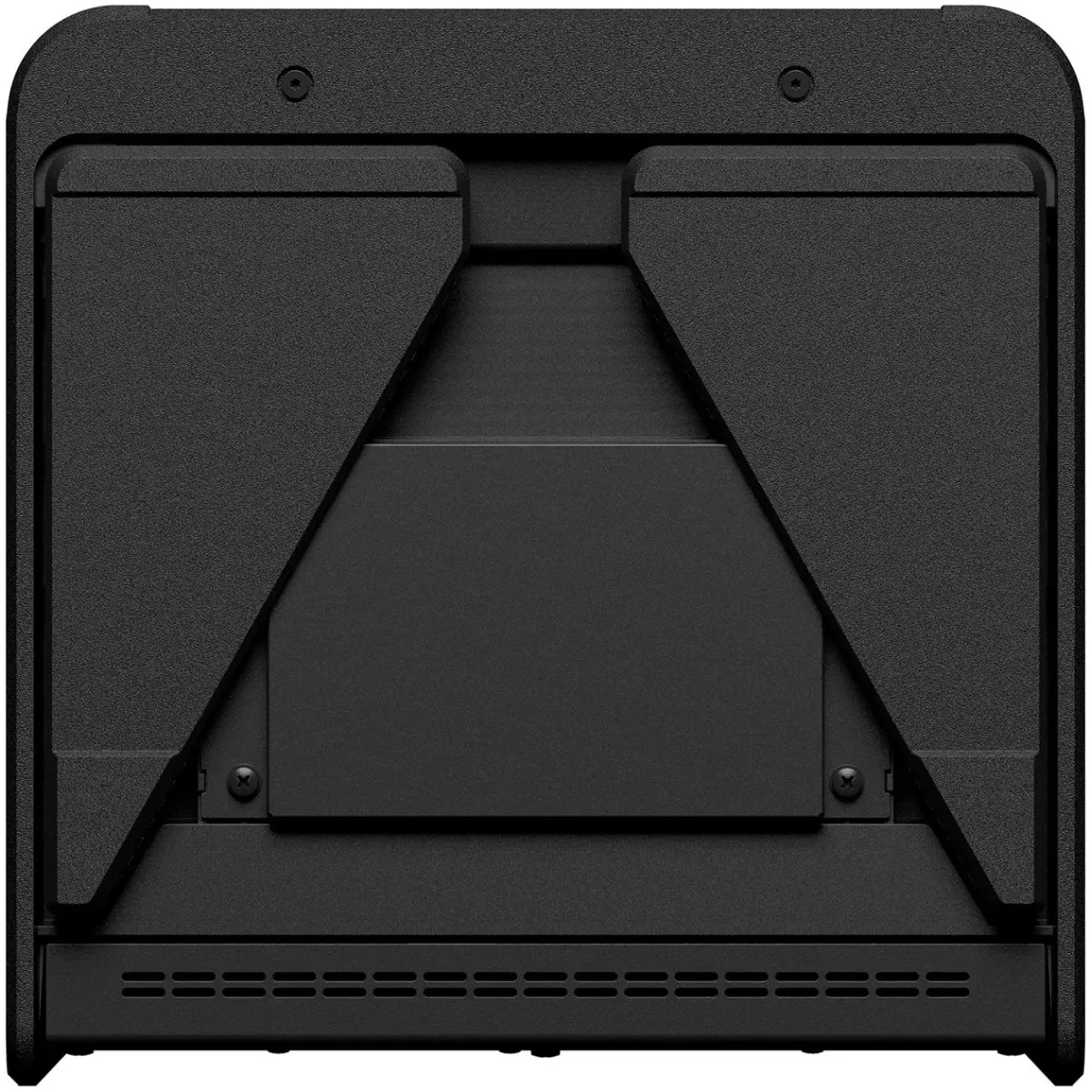

- Supplied rubber stand allows inclining at 30 or 60 degrees
- Compatible with audio streaming via Bluetooth
- Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
- Optional BTR-STP200 battery included
- Optional CASE-STP200 carry case for convenient carrying
| STAGEPAS 200BTR | ||
| Type | 2-way Bi-amp Powered Speaker with mixer | |
| Mixing capability | Mixing channels | 5 (Mono x3 + Stereo x1) |
| Input channel functions | Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST | |
| Output channel functions | MODE (SPEECH/MUSIC/CLUB) | |

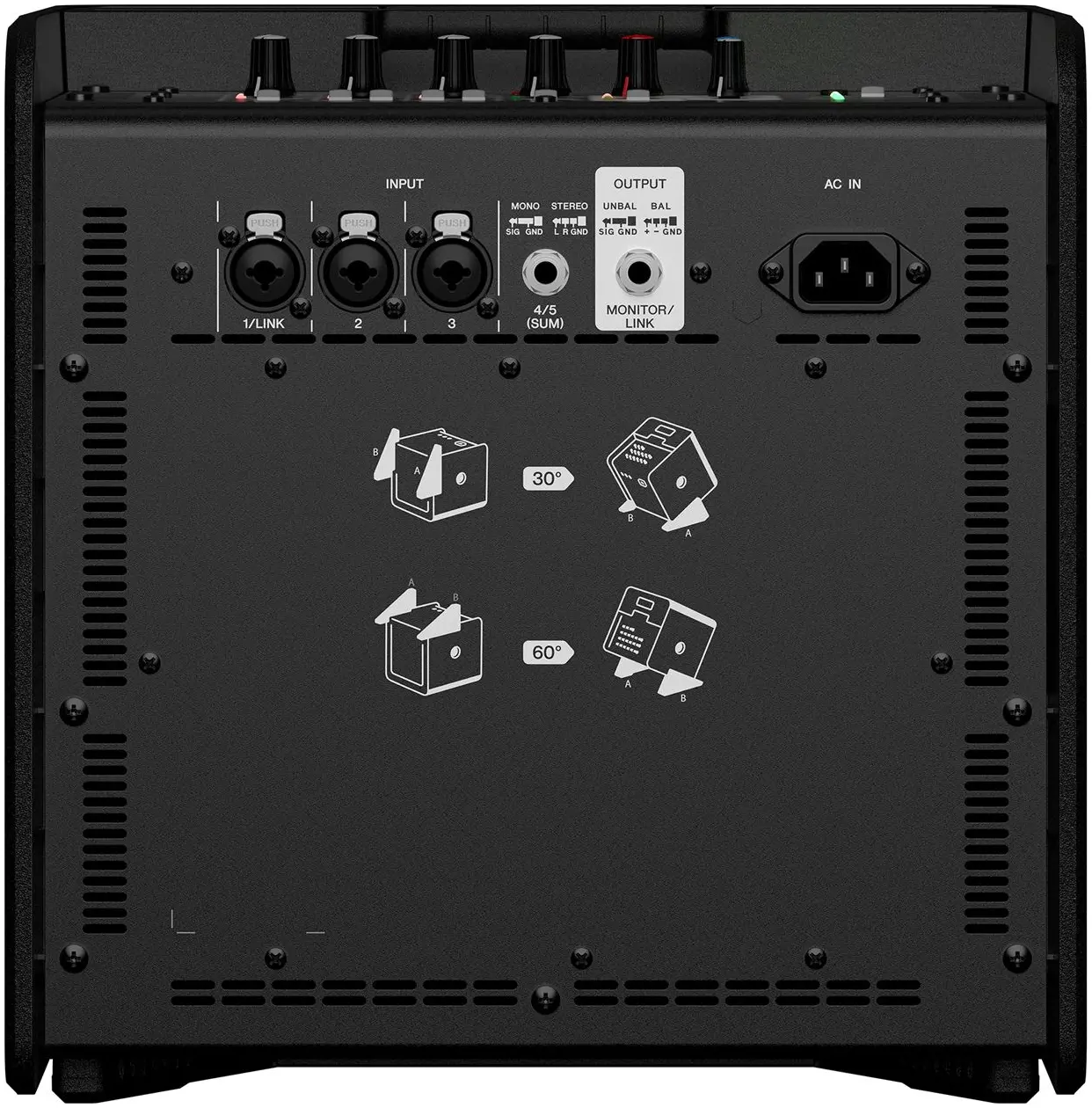

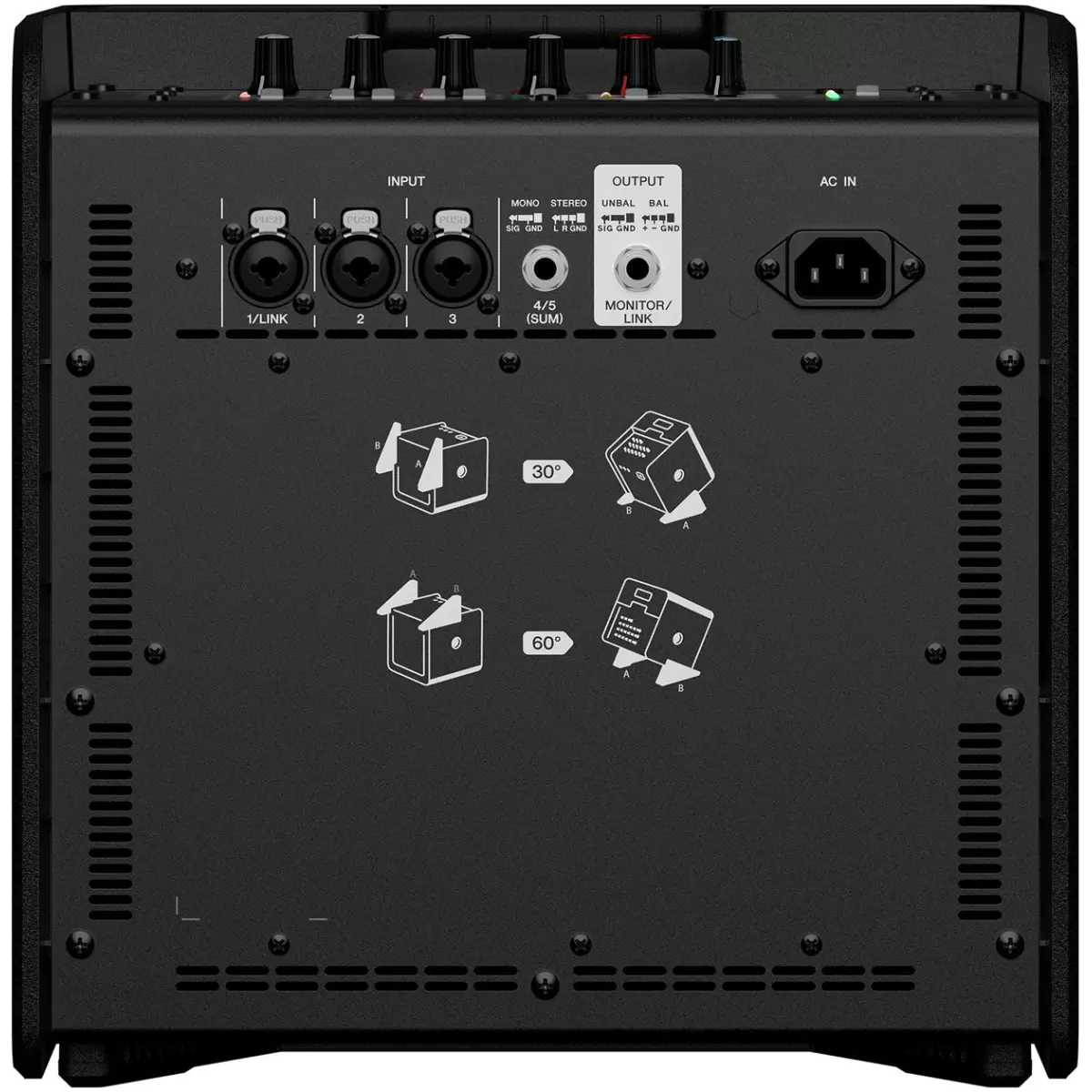

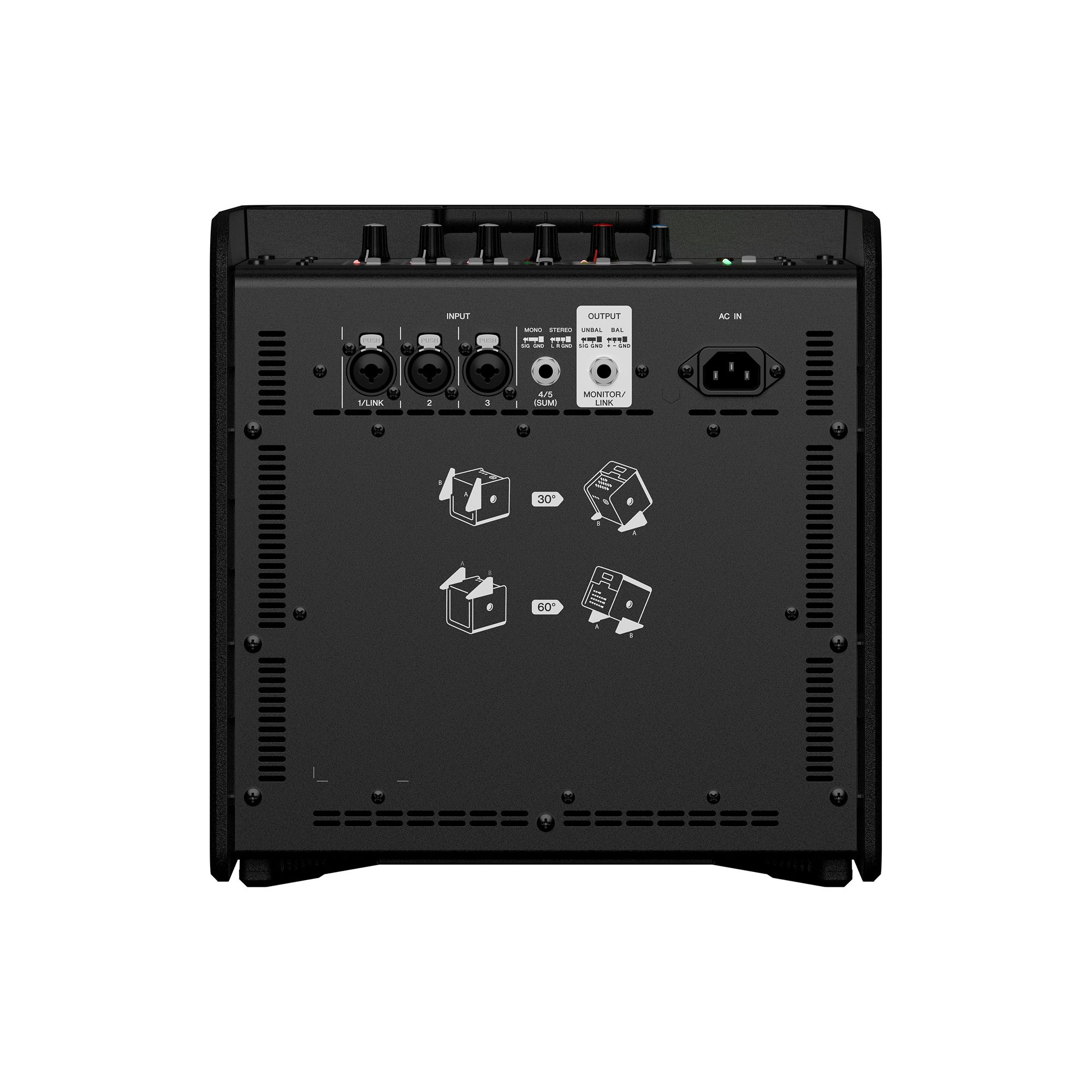

| I/O | Inputs | Mono x3 (mic/line) + Stereo/Mono x1 (line) |
| Outputs | Monitor/Link out x1 | |
| Bluetooth | Ver.5.0, A2DP (SBC, AAC), Class 1 | |
| Control and others | STAGEPAS Controller (iOS/Android app) | |
| On-board processors | DSP | SPX digital reverb (4 program, parameter control), delay, chorus |

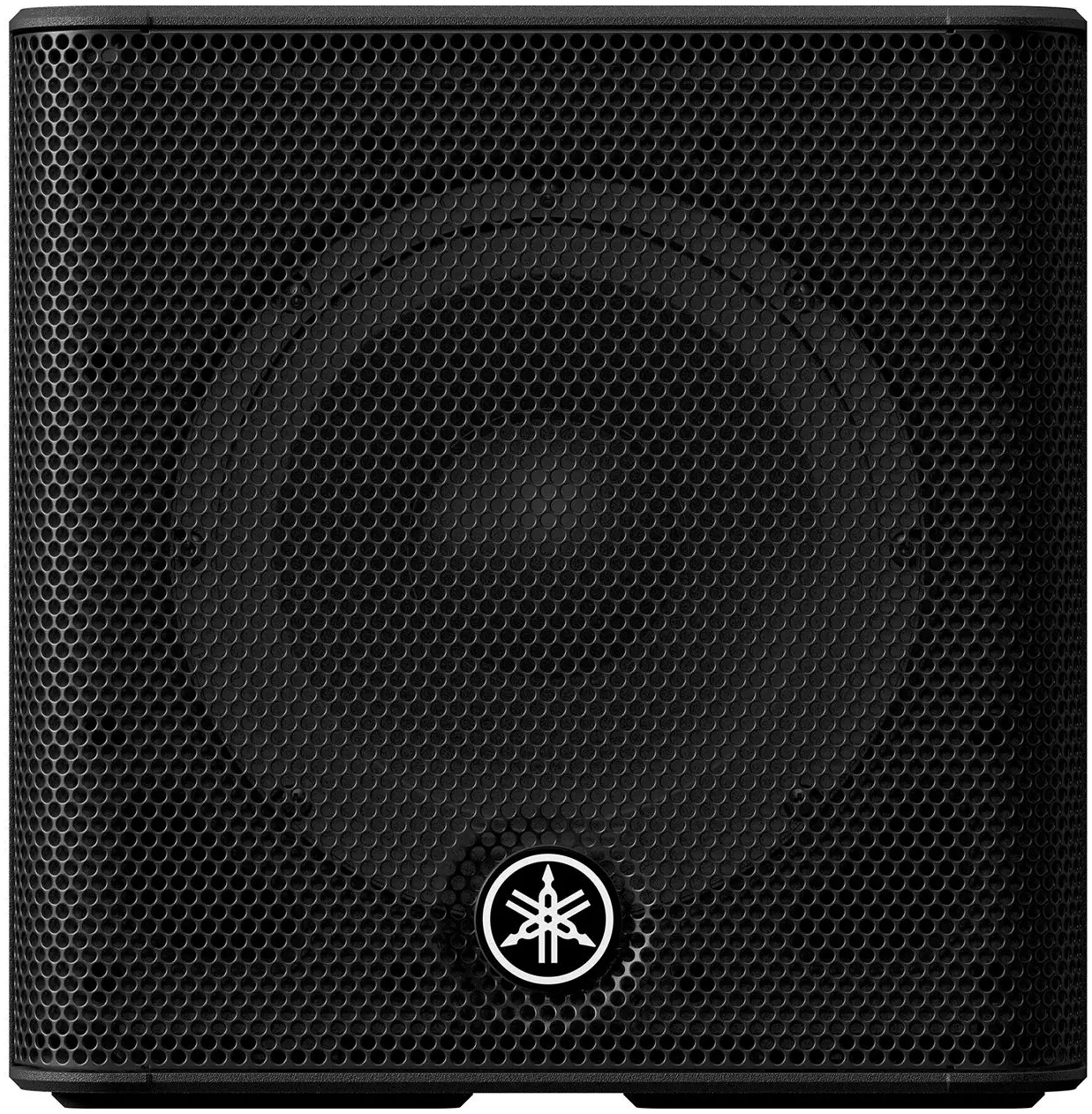

| Speaker type | Coaxial speaker with compression driver | |
| Frequency range (-10dB) | 60 Hz – 20 kHz | |
| Coverage area | H90ﾟ x V90ﾟ | |
| Crossover | 2.0 kHz | |
| Maximum output level (1m; on axis) | 125 dB SPL *1 | |
| Components | LF | 8″ Cone, 2.0″ voice coil |
| HF | 1″ throat compression driver, 1.4″ voice coil | |
| Amplifier class | Class-D | |
| Power rating | Dynamic | 180 W (LF: 150 W, HF: 30 W) |
| Cooling | Natural convection (no fan) | |
| Power consumption | 10 W (Idle), 20 W (1/8 power) | |
| Power requirements | 100-240 V 50/60 Hz, or 29.6 Vdc | |
| Battery | Type | Rechargeable Lithium ion battery pack |
| Capacity | 79.92 Wh (2700 mAh, 29.6 V) | |
| Operating Time | Maximum 10 hours, 1/16 power continuous 8 hours | |
| Charging Time | Approx. 4 hours | |
| Cabinet material | Plastic (ABS) | |
| Handle | Top x1 | |

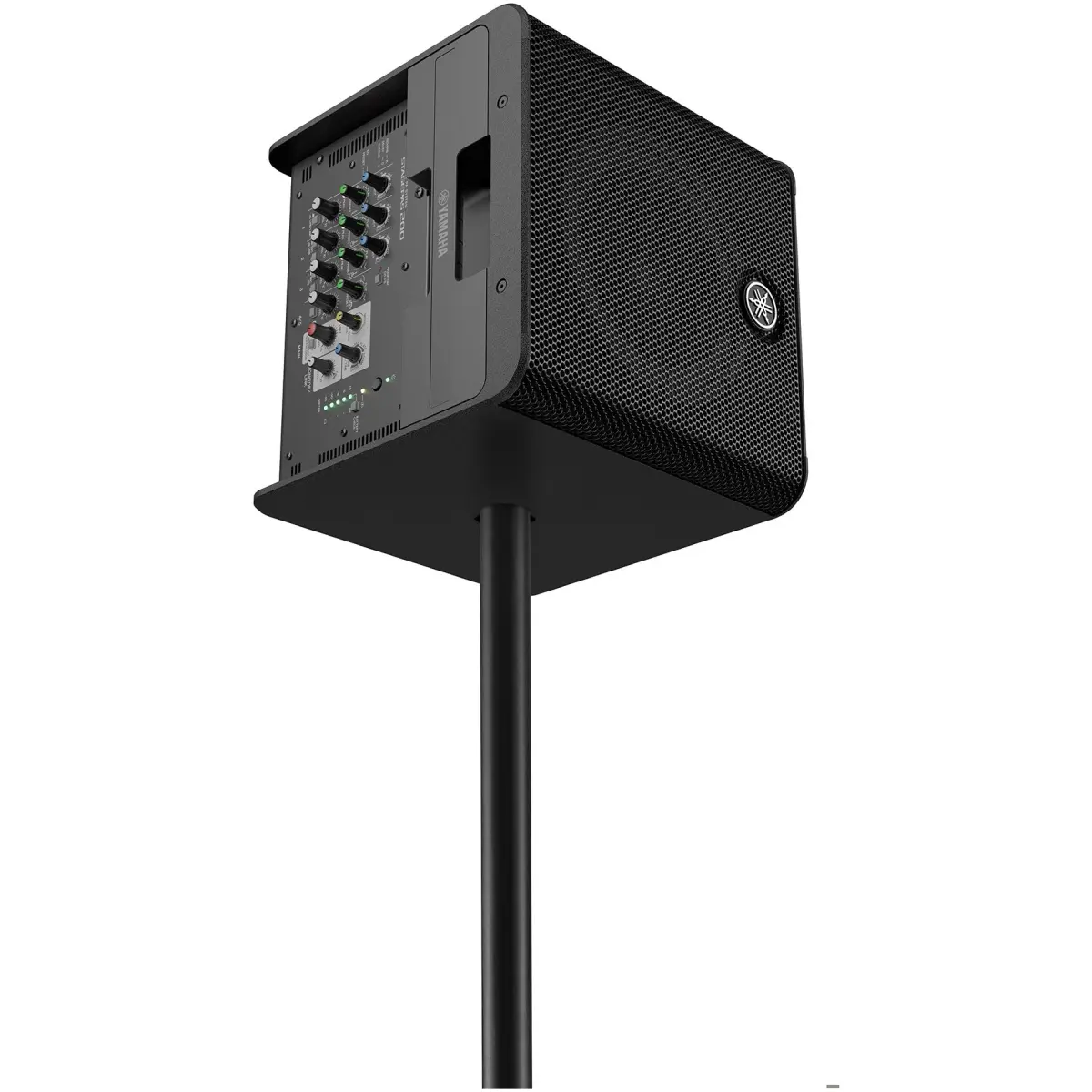

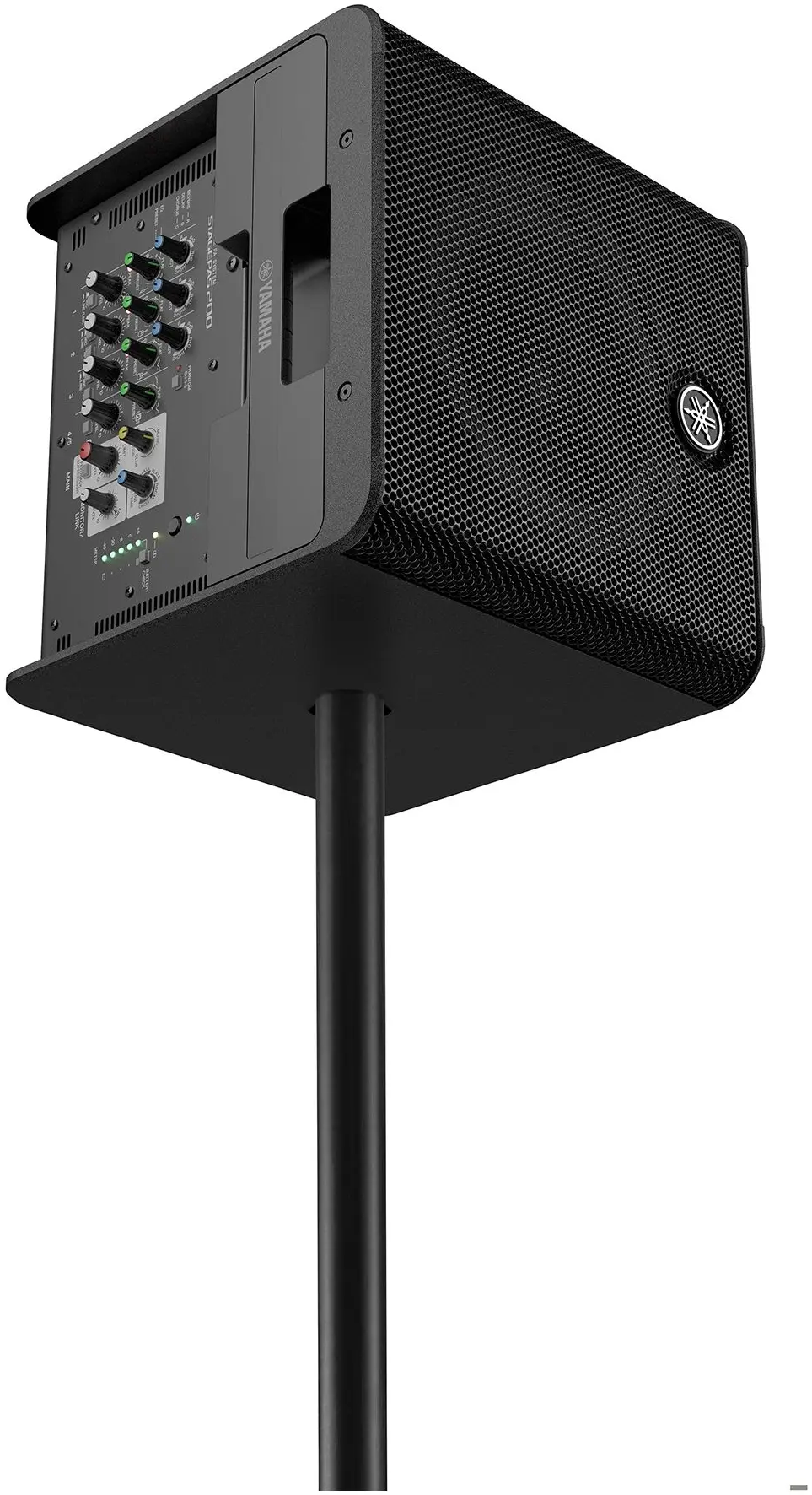

| Pole socket | Φ35 mm x1 (Side) | |

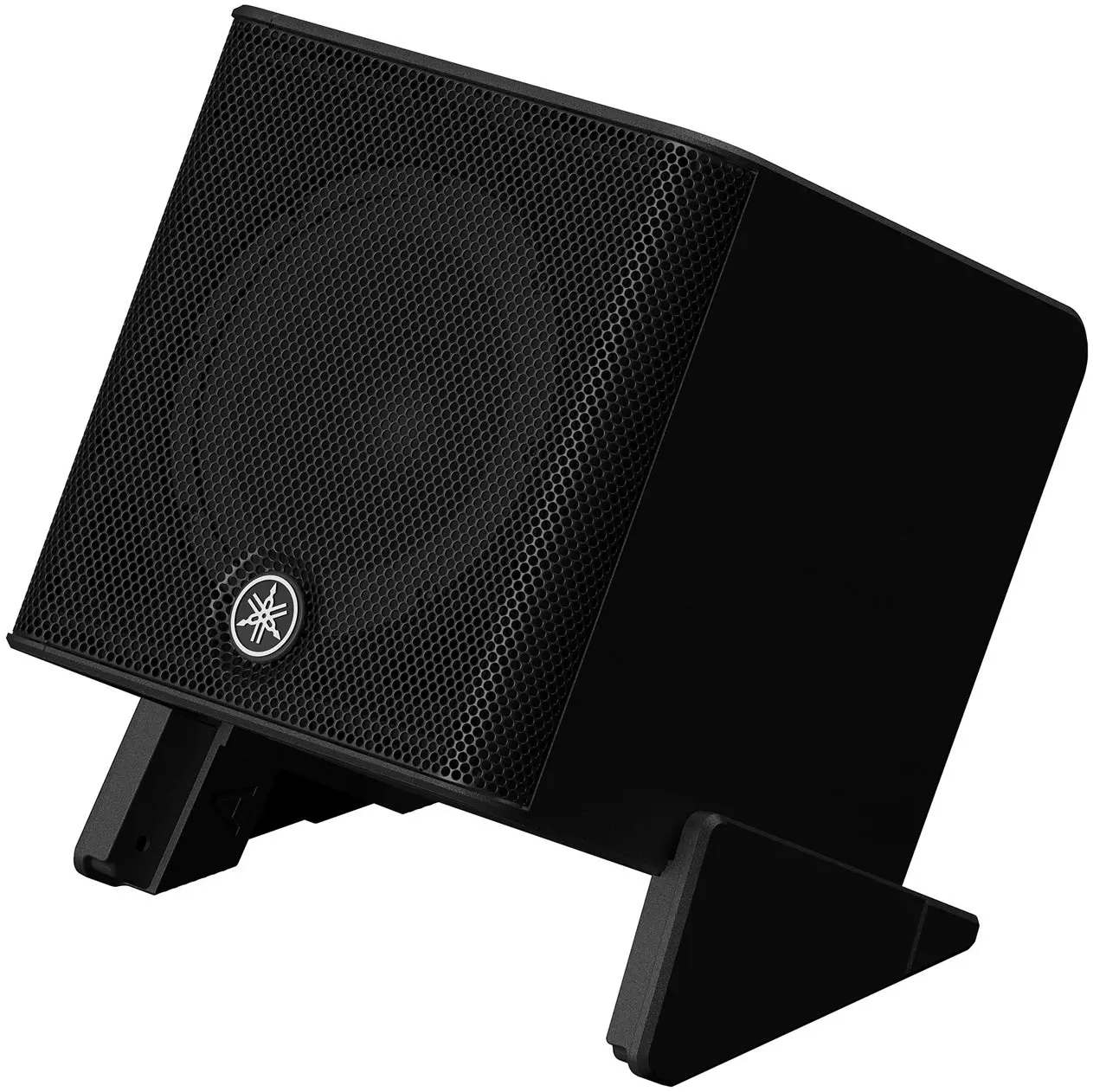

| Floor Monitor Angle | 30° or 60° | |
| Dimensions (W x H x D) | 300 x 308 x 301 mm (11.8″ x 12.1″ x 11.9″) | |
| Weight | 12.5 kg (27.6 lbs) (Including battery) | |
| Accessories | Power cord x 1, Battery x 1 | |
| Options | Battery: BTR-STP200, Carry case: CASE-STP200 | |
