Yamaha STAGEPAS200 Portable PA System

SPECIFICATIONS

• Type: –

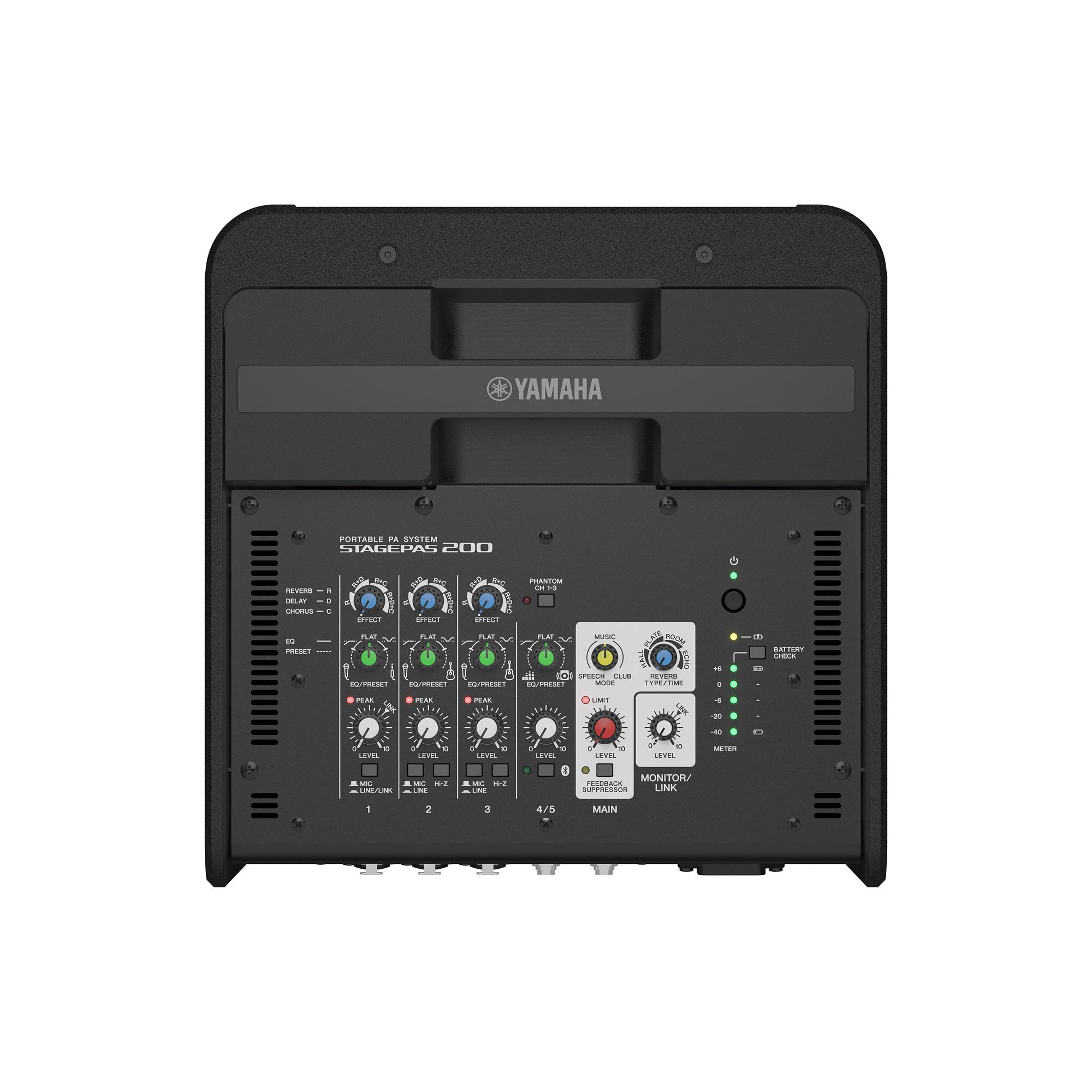

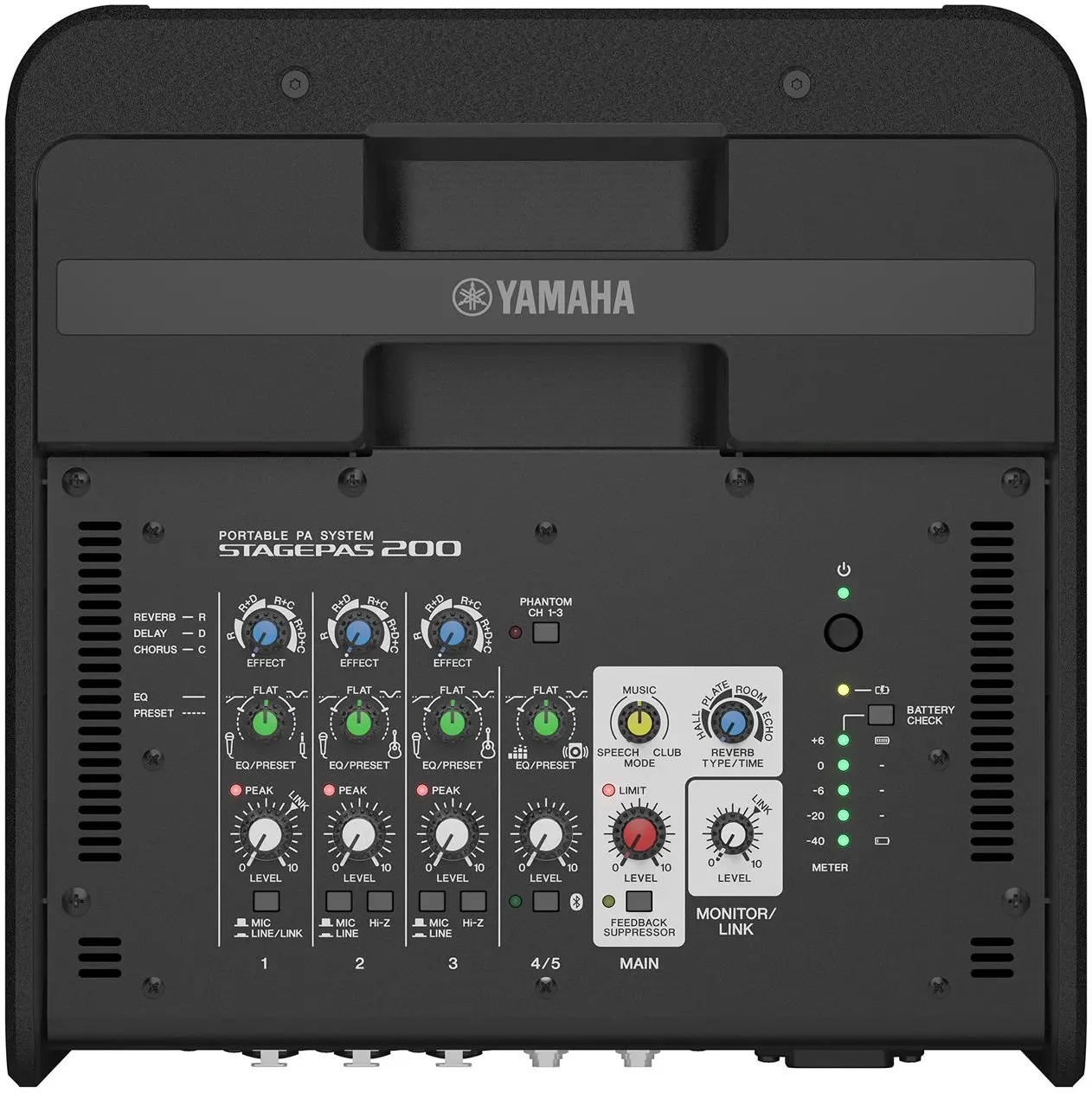

• Mixing channels: 5 (Mono x3 + Stereo x1)
• Input channel functions: Hi-Z
• 1-knob EQ/Preset: CH1-3/ST
• Output channel functions: MODE (SPEECH/MUSIC/CLUB)

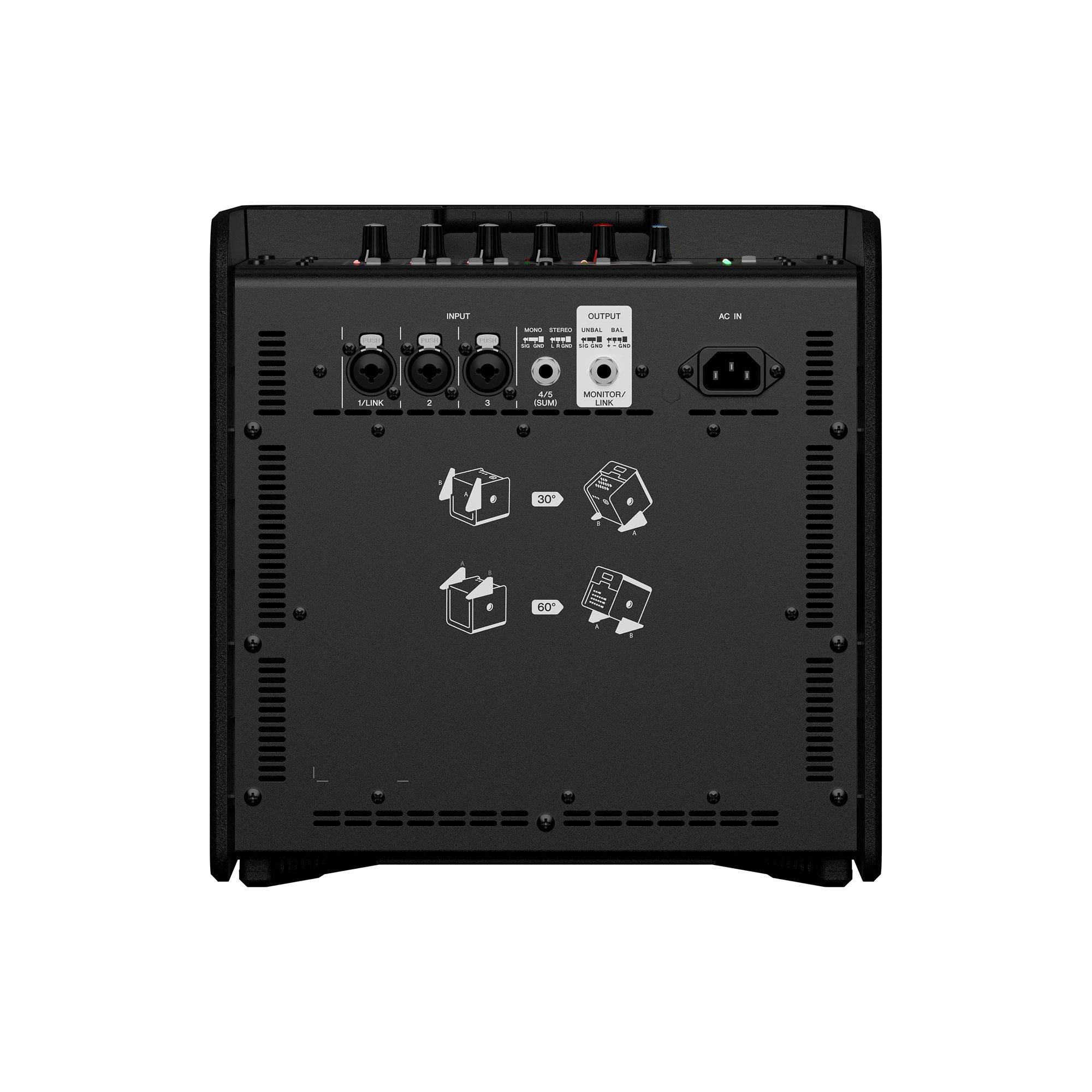

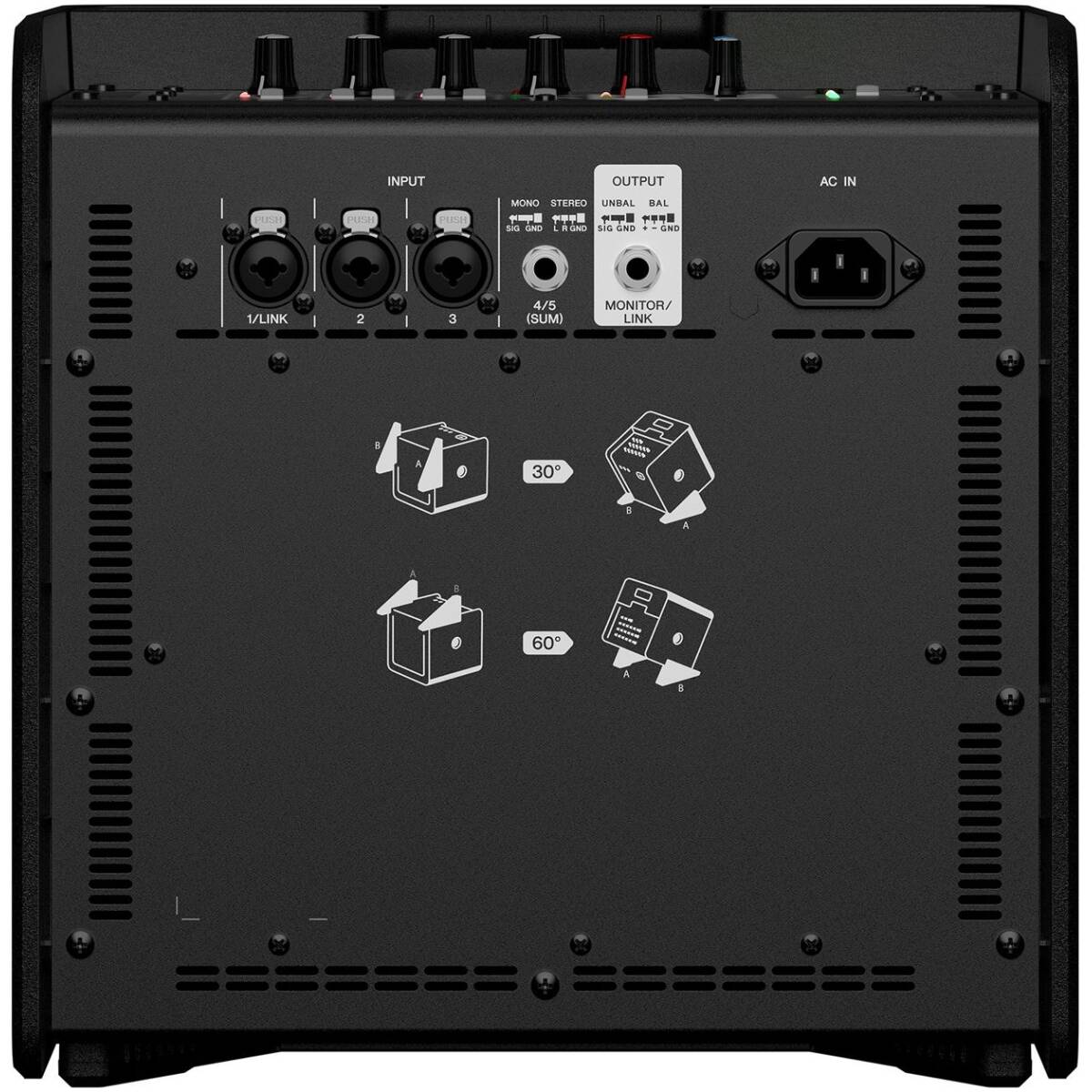

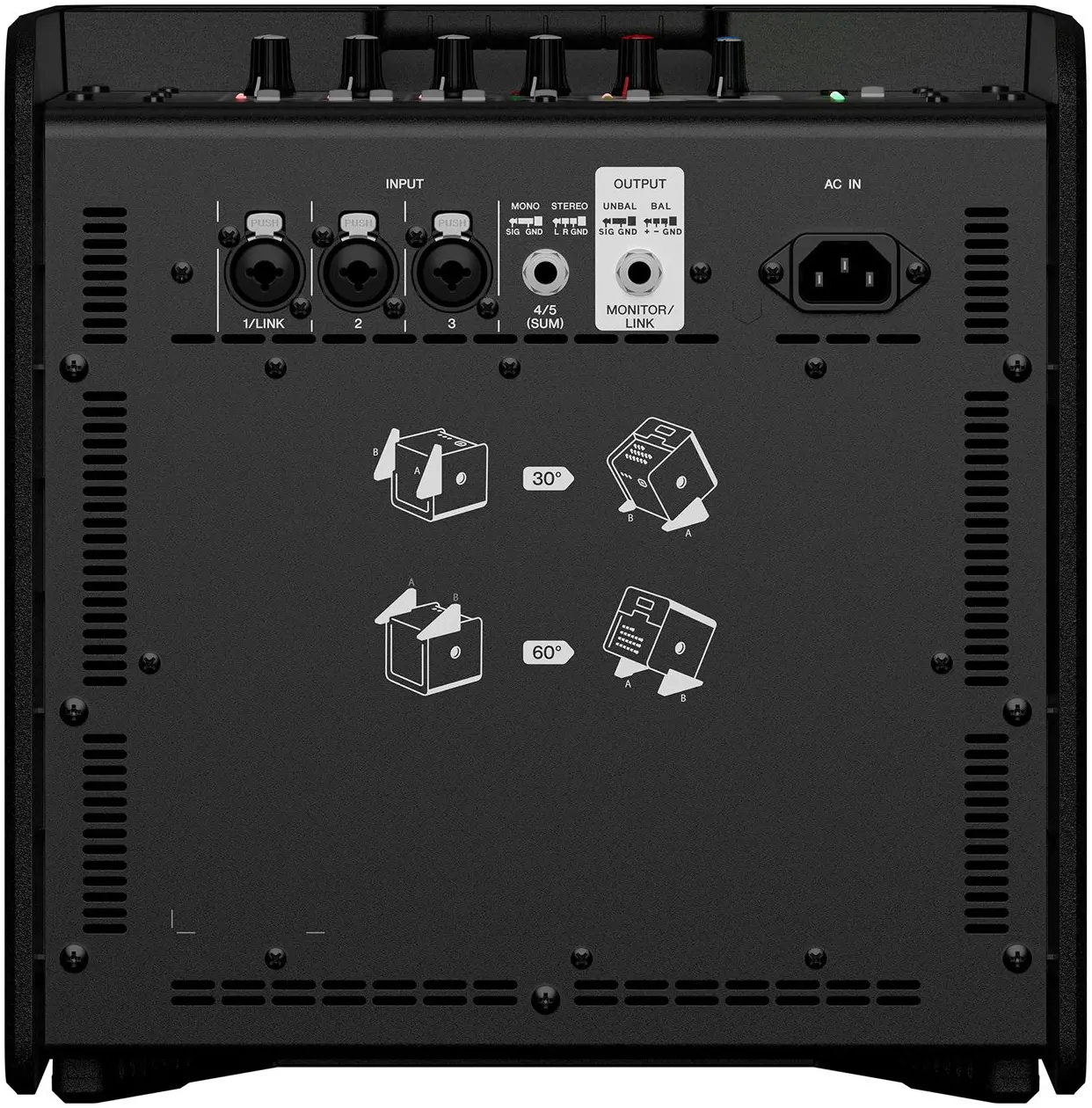

• Inputs: Mono x3 (mic/line) + Stereo/Mono x1 (line)
• Outputs: Monitor/Link out x1
• Bluetooth: Ver.5.0
• A2DP (SBC, AAC):
• Class 1:
• Control and others: STAGEPAS Controller (iOS/Android app)
• DSP: SPX digital reverb (4 program, parameter control)
• delay:
• chorus:
• Speaker type: Coaxial speaker with compression driver
• Frequency range (-10dB): 60 Hz – 20 kHz
• Coverage area: H90 degree x V90 degree
• Crossover: 2.0 kHz
• Maximum output level (1m; on axis): 125 dB SPL *1
• LF: 8″ Cone
• 2.0″ voice coil:
• HF: 1″ throat compression driver
• 1.4″ voice coil:
• Amplifier class: Class-D
• Dynamic: 180 W (LF
• Cooling: Natural convection (no fan)
• Power consumption: 10 W (Idle)
• 20 W (1/8 power):
• Power requirements: 100-240 V 50/60 Hz
• or 29.6 Vdc *2:
• Capacity: –
• Operating Time: –
• Charging Time: –
• Cabinet material: Plastic (ABS)
• Handle: Top x1

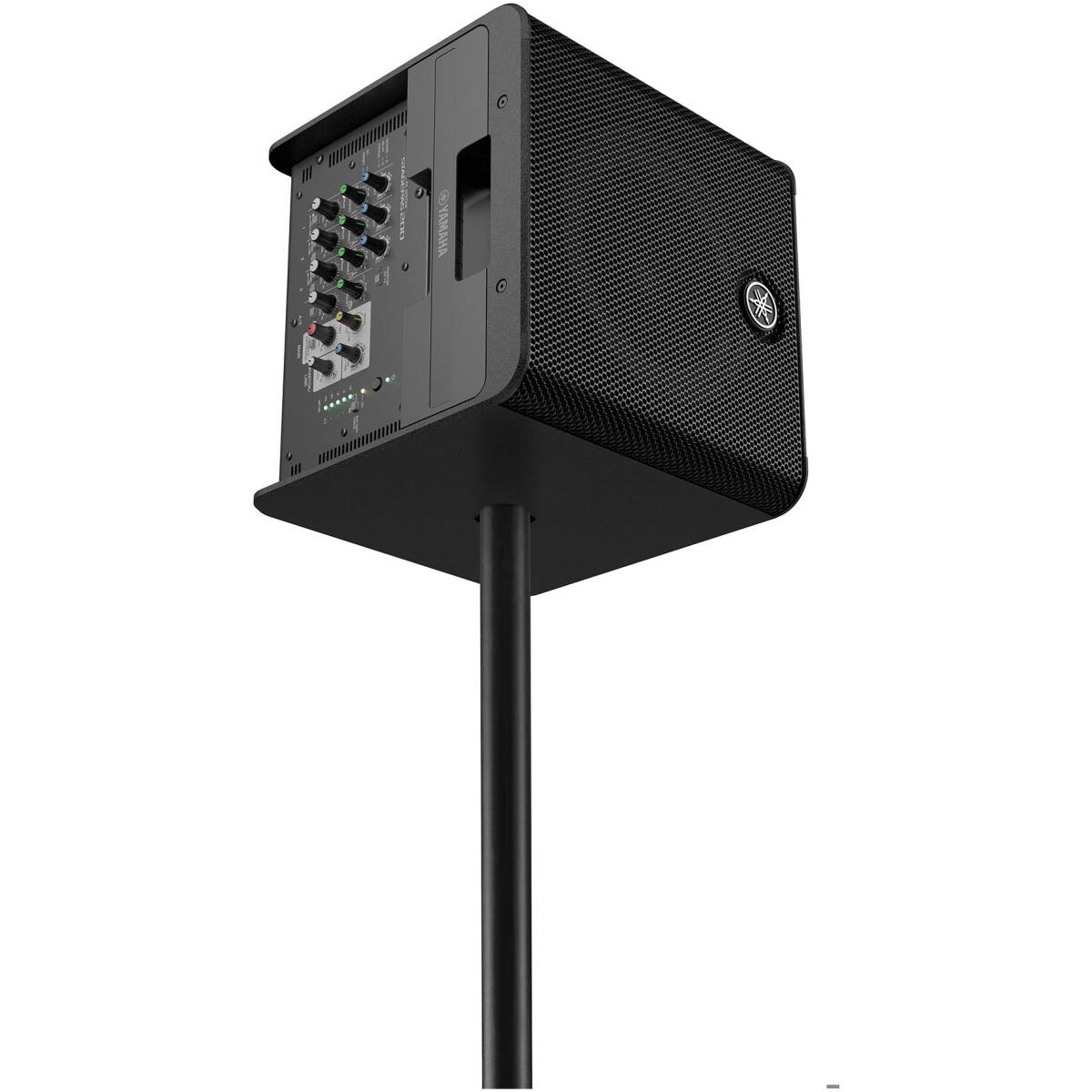

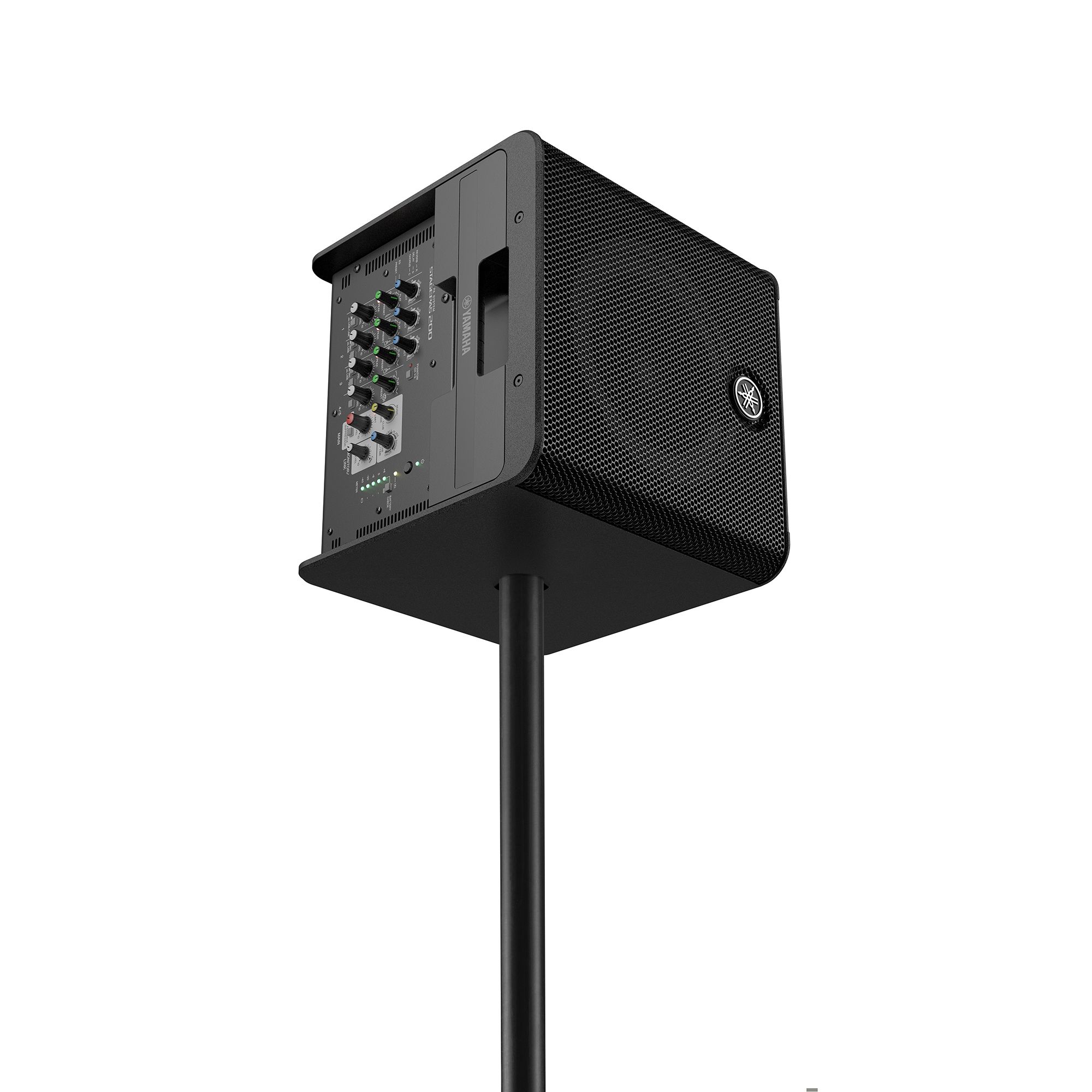

• Pole socket: phi 35 mm x1 (Side)

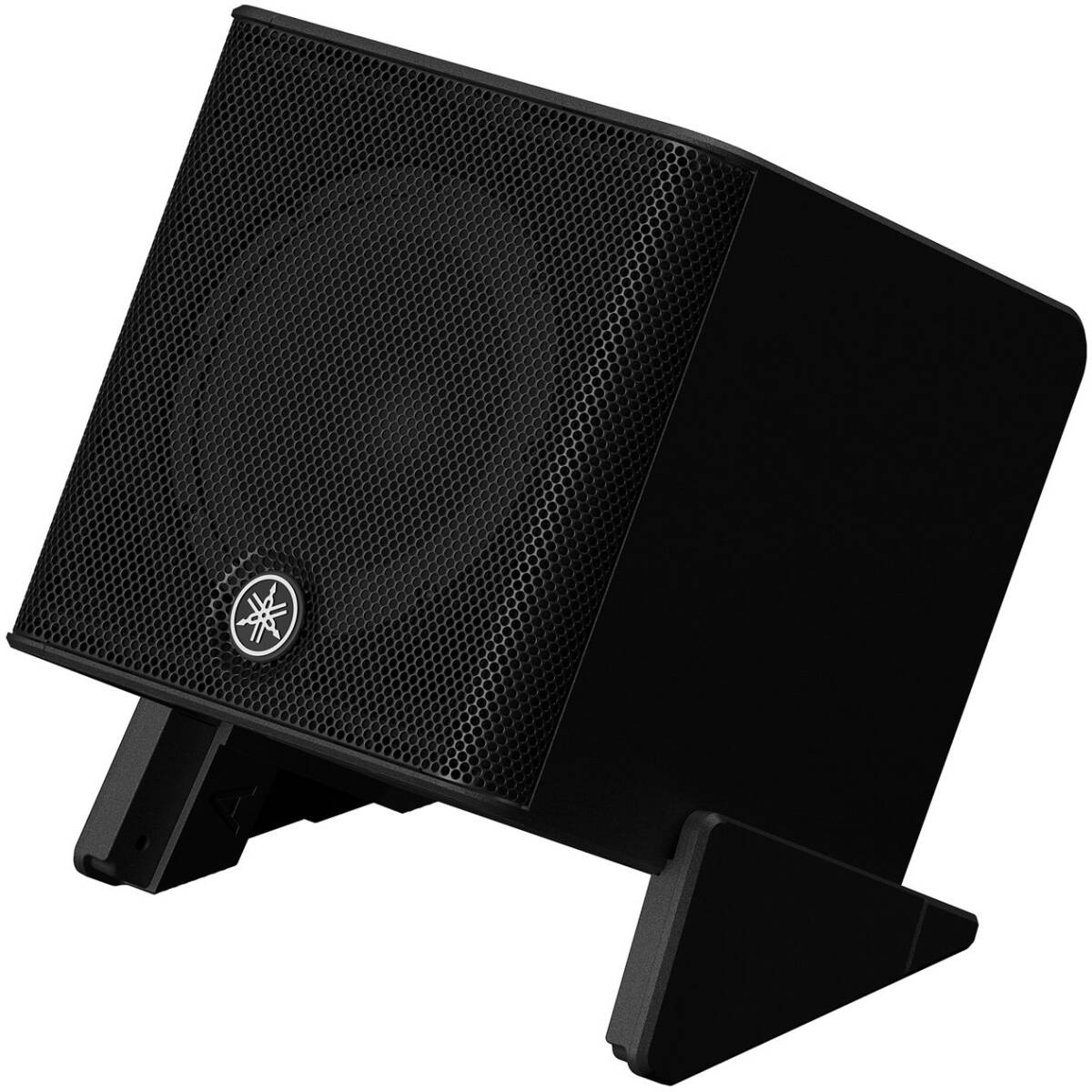

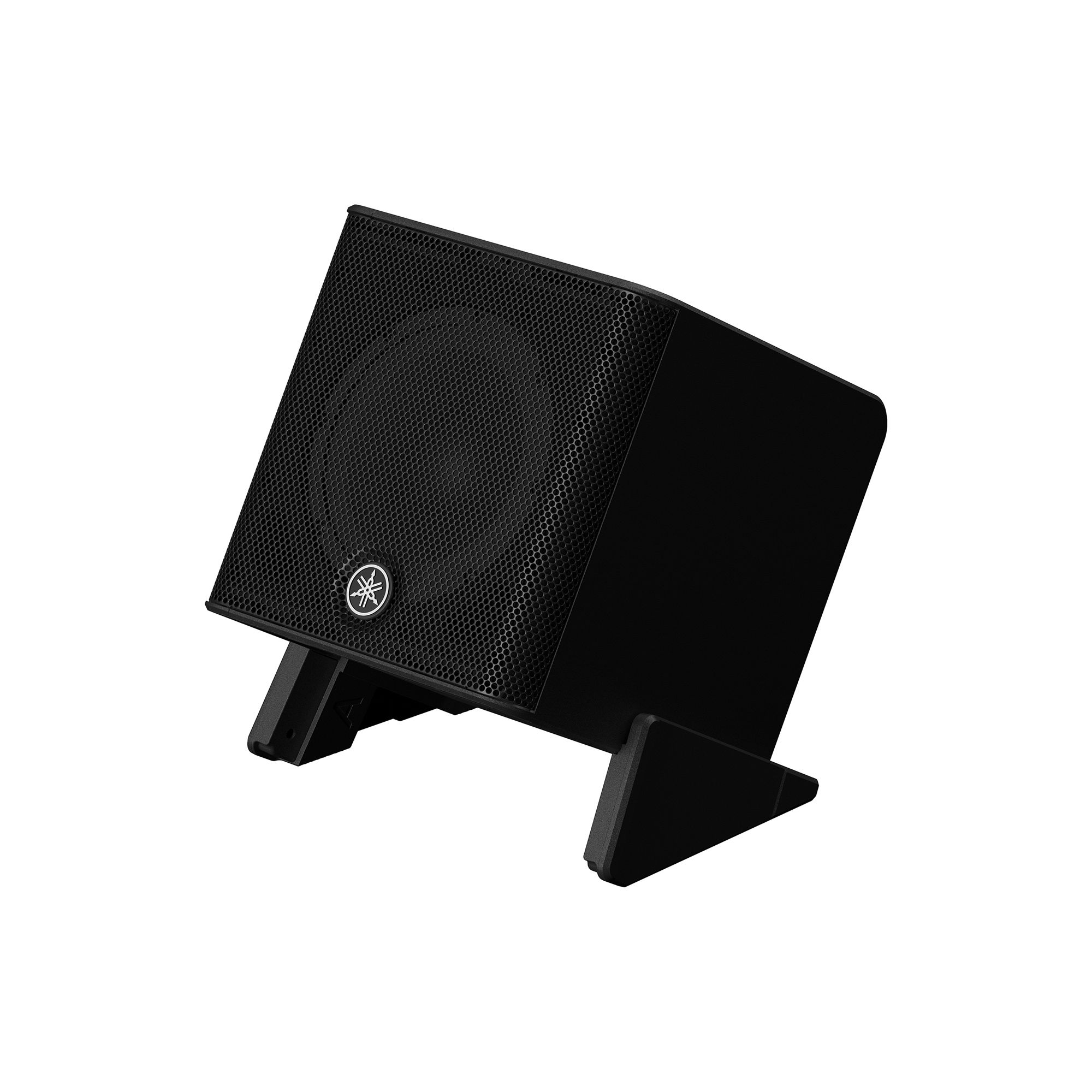

• Floor Monitor Angle: 30 degree or 60 degree
• Dimensions (W x H x D): 300 x 308 x 301 mm (11.8″ x 12.1″ x 11.9″)
• Weight: 12.0 kg (26.5 lbs)
• Accessories: Power cord x 1
• Options: Battery
