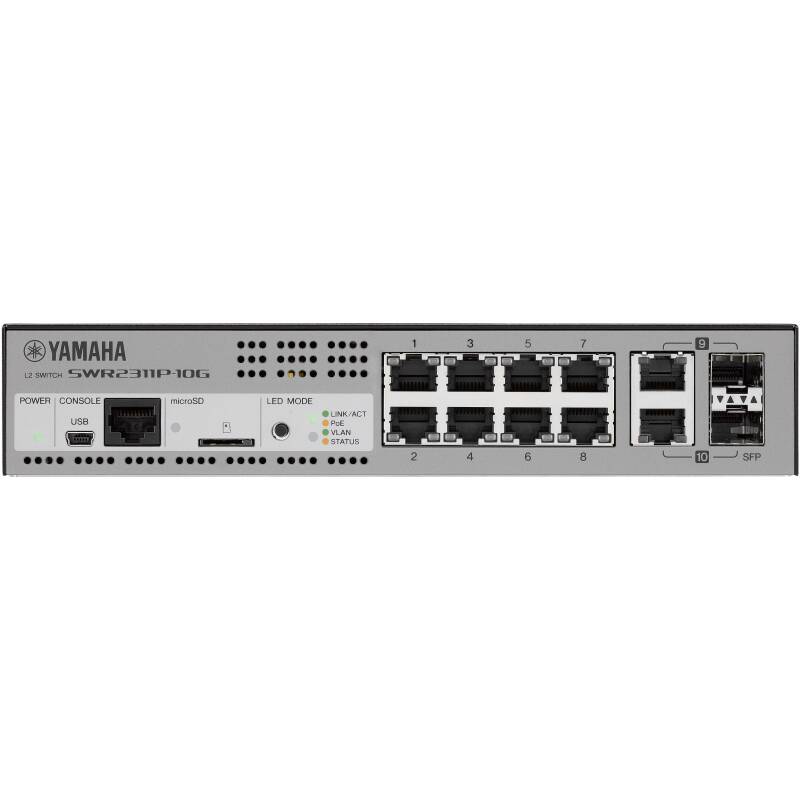

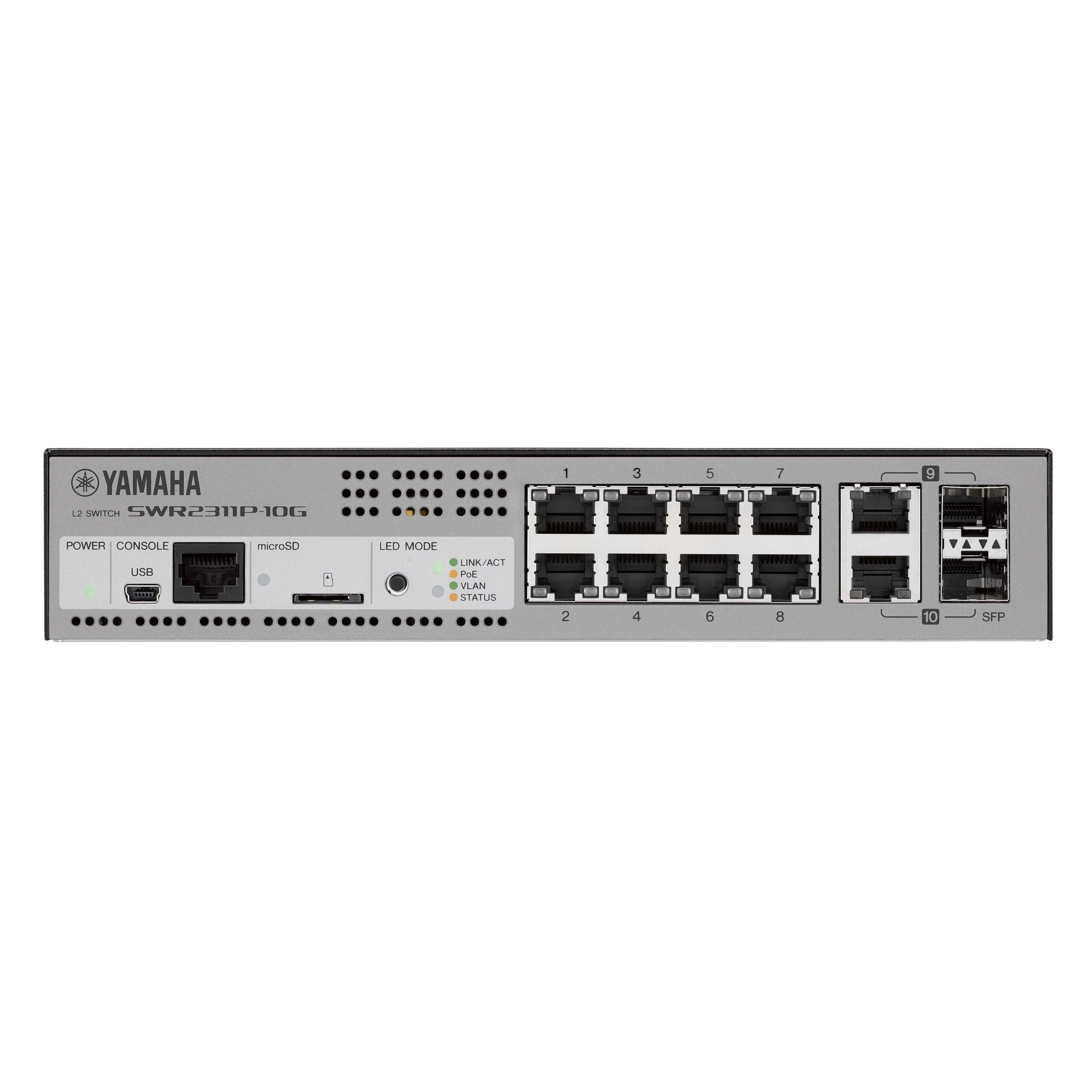

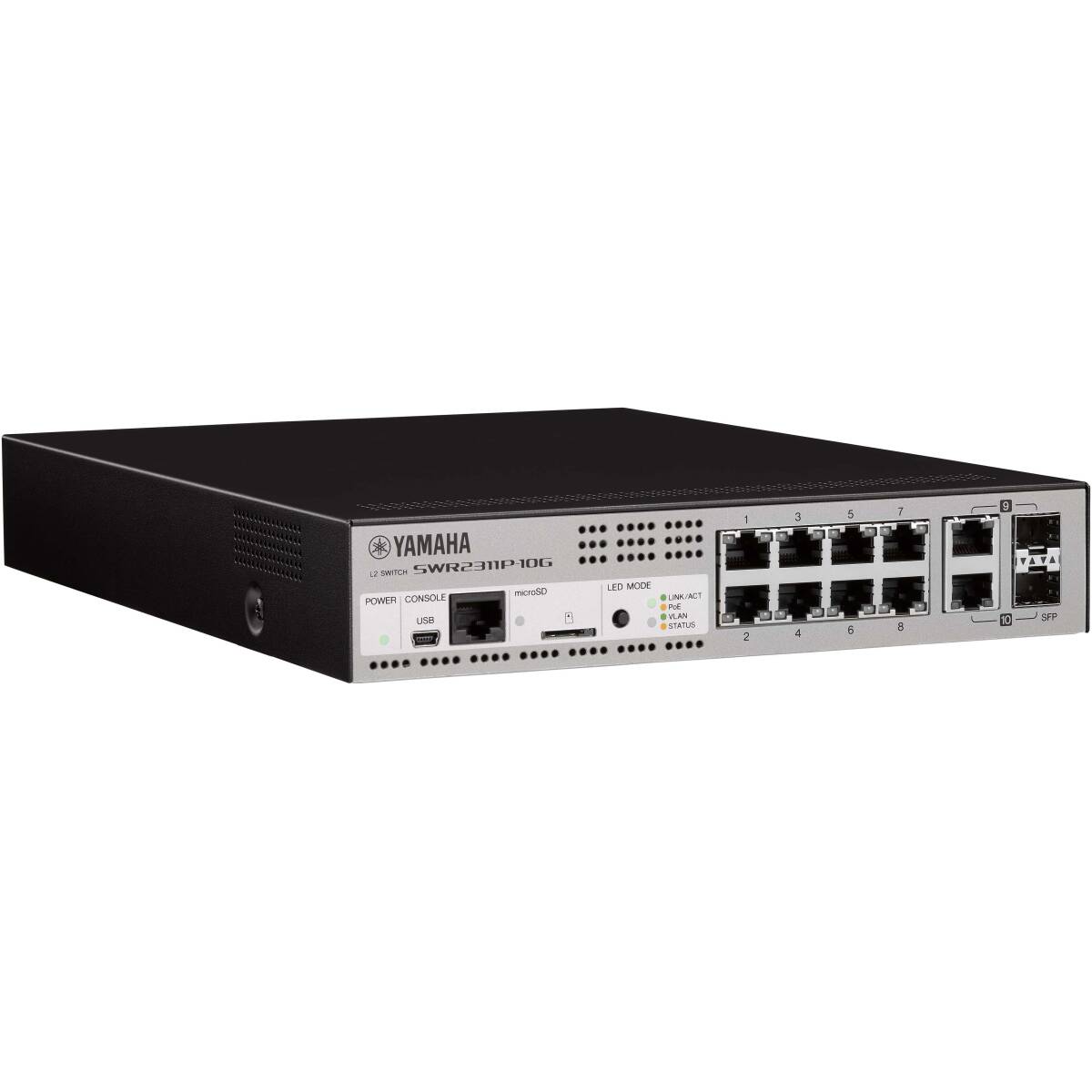

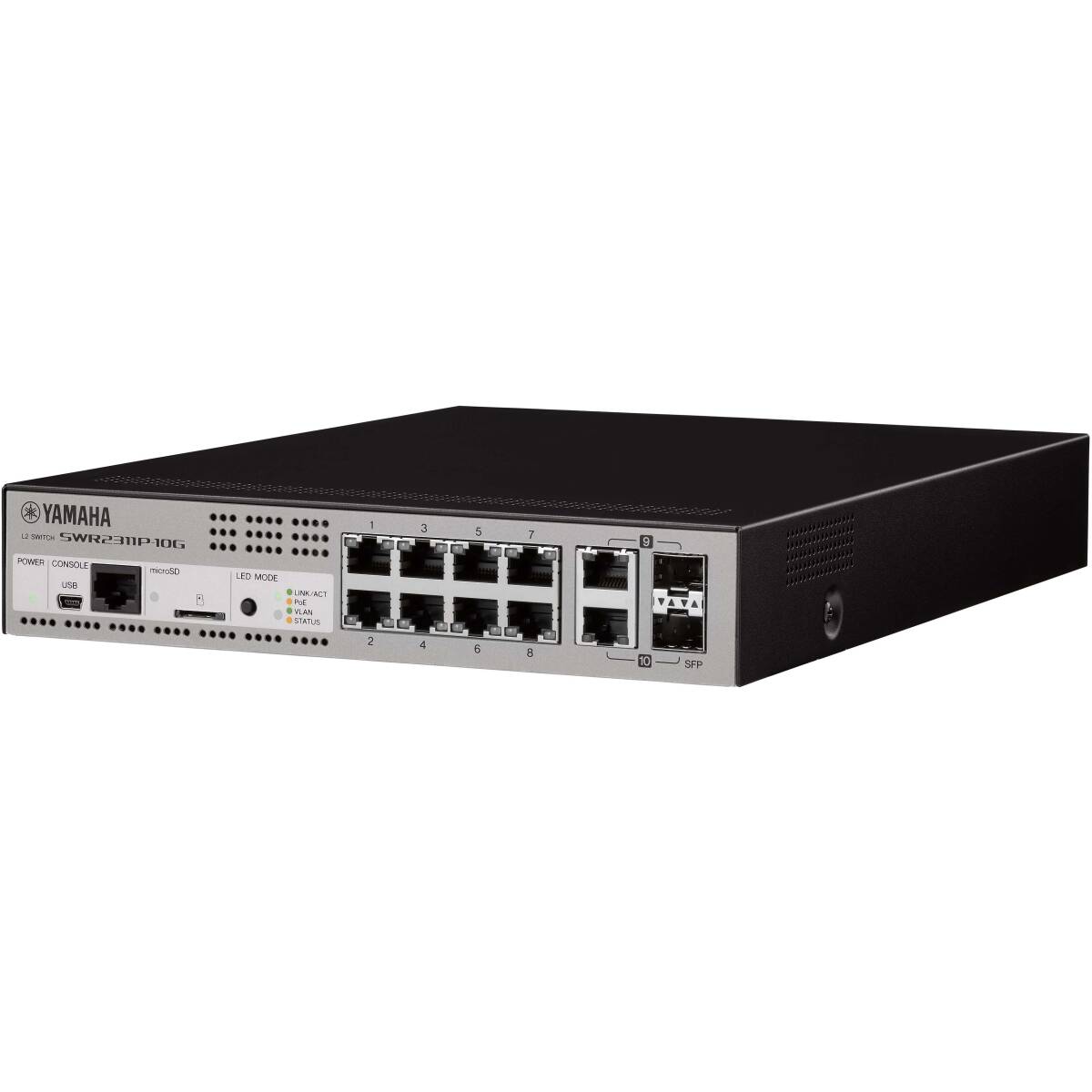

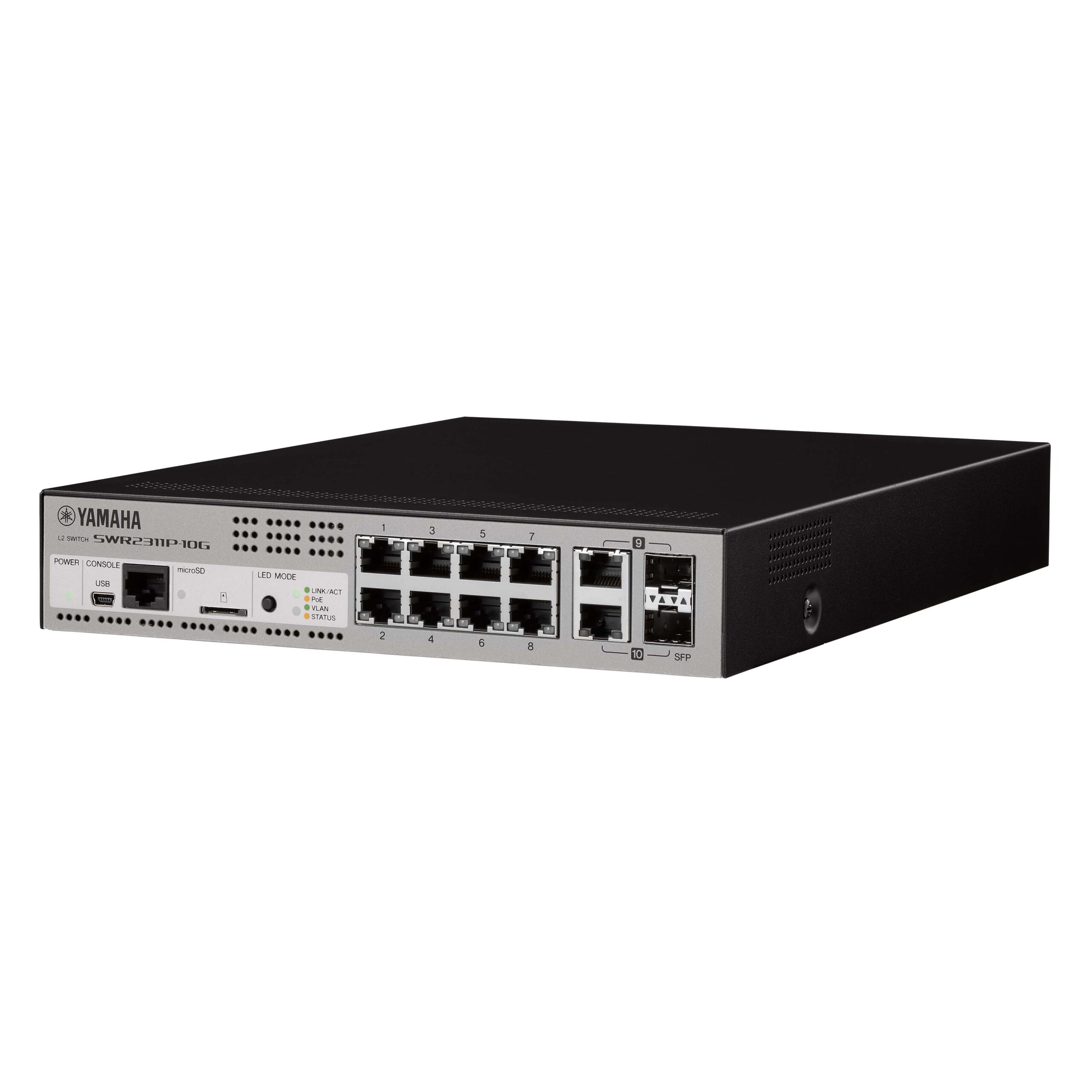

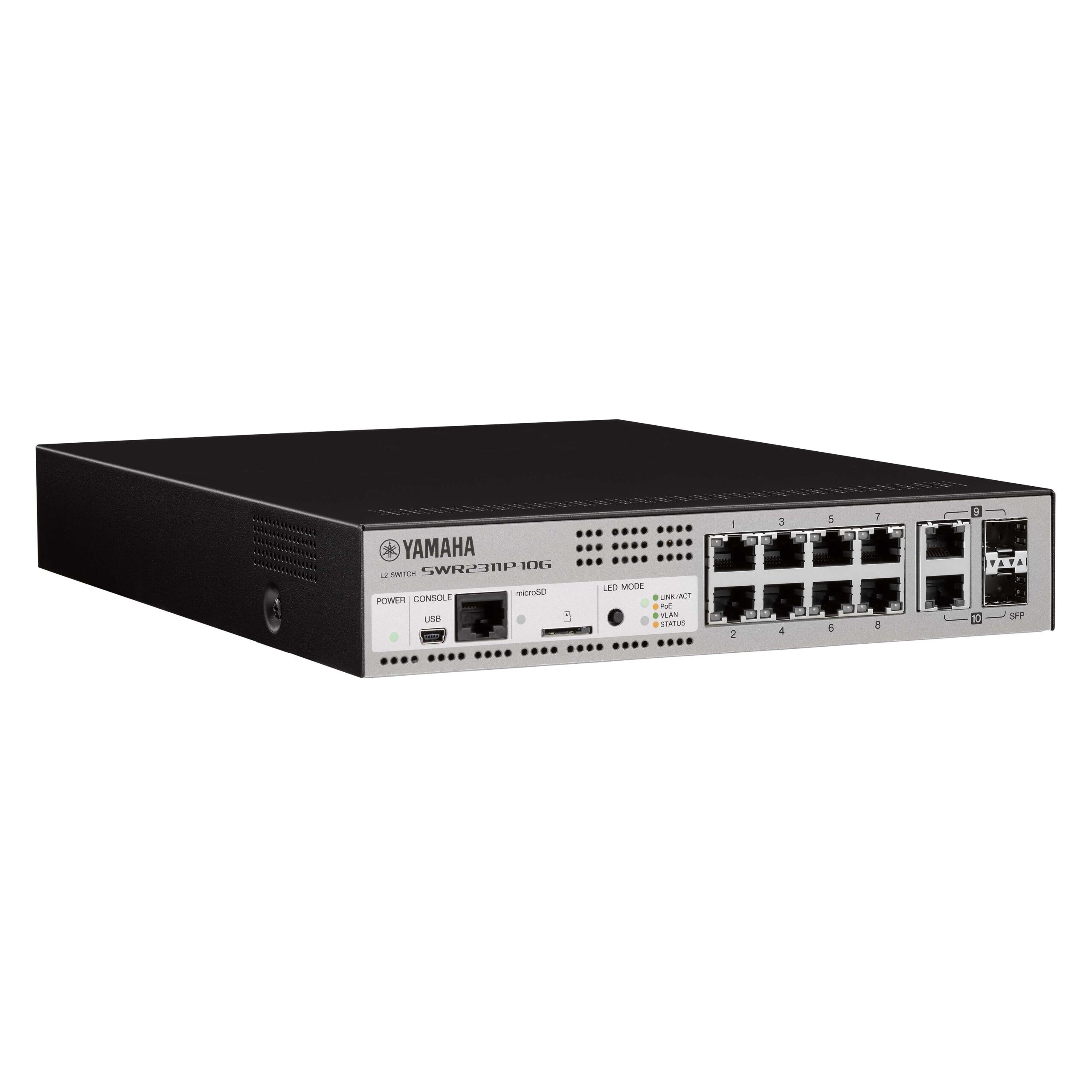

Yamaha SWR2311P-10G //E L2 Network Switch

The Yamaha SWR2311P-10G is a high-performance Layer 2 managed network switch with PoE+ support, designed for professional Dante audio and AV-over-IP systems. It combines reliable data switching with power delivery, making it ideal for powering and connecting devices such as microphones, DSP processors, control panels, and networked amplifiers.

Featuring Gigabit Ethernet ports and 10G uplink capability, the SWR2311P-10G ensures fast, low-latency data transmission for demanding installations. Yamaha’s built-in Dante optimization simplifies setup and guarantees stable audio networking performance.

With advanced management features such as VLAN, QoS, and network monitoring, this switch is well-suited for medium to large-scale installations requiring both performance and flexibility.

LAN Ports

• Standard: IEEE 802.3 (10BASE-T / 100BASE-TX / 1000BASE-T)
• Number of Ports: 10
• Communication Mode: Auto negotiation
• Connector Type: RJ-45
• MAC Address: Printed on top surface label
• Polarity: Automatic detection of straight/cross or fixed straight

Combo Ports

• LAN Ports: 2 × IEEE 802.3 (1000BASE-T) (shared with SFP)
• SFP Ports: 2 × SFP (shared with LAN ports)
• SFP Standard: IEEE 802.3z (1000BASE-SX / 1000BASE-LX)
• Number of SFP Ports: 2

Console Ports

• Standard: RS-232C, USB 2.0
• Connector Type: RJ-45, USB mini-B (5-pin)
• Data Transmission Speed: 9600 bit/s

PoE (Power over Ethernet)

• Ports Available for PoE: 8 ports (1–8)
• PoE Standard: IEEE 802.3at (PoE+)
• Power Supply System: Alternative A
• Maximum Power per Port: 30 W
• Total Power Budget: 240 W

Storage

• microSD Slot: 1
• Standard: microSD / microSDHC (microSDXC not supported)
• File System: FAT / FAT32

Indicators

• POWER
• microSD
• LAN Ports (LINK/ACT, SPEED)
• SFP Ports (LINK/ACT, SPEED)

Environmental Conditions

• Operating Temperature: 0 to 40 °C
• Operating Humidity: 15–80% (non-condensing)
• Storage Temperature: -20 to 50 °C
• Storage Humidity: 10–90% (non-condensing)

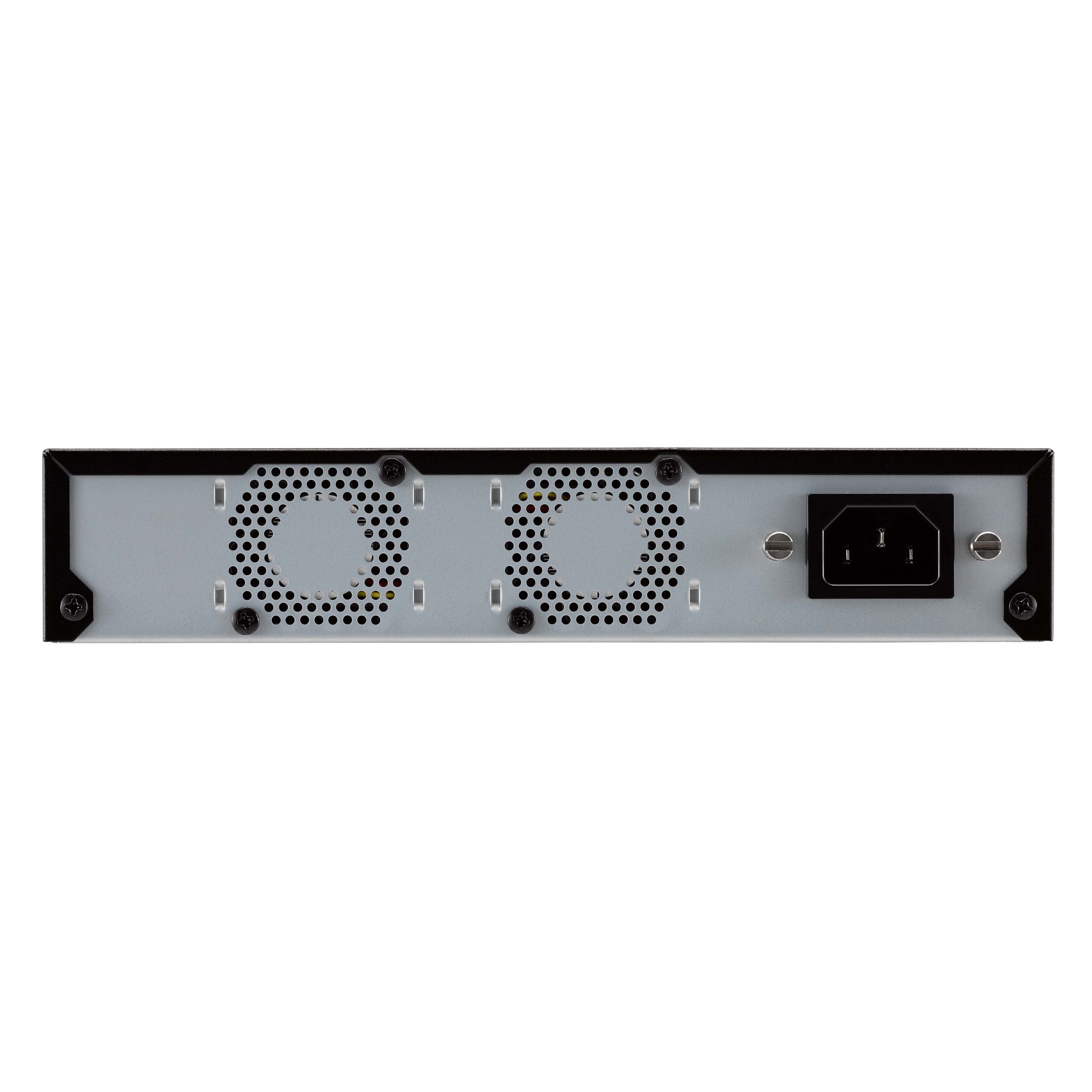

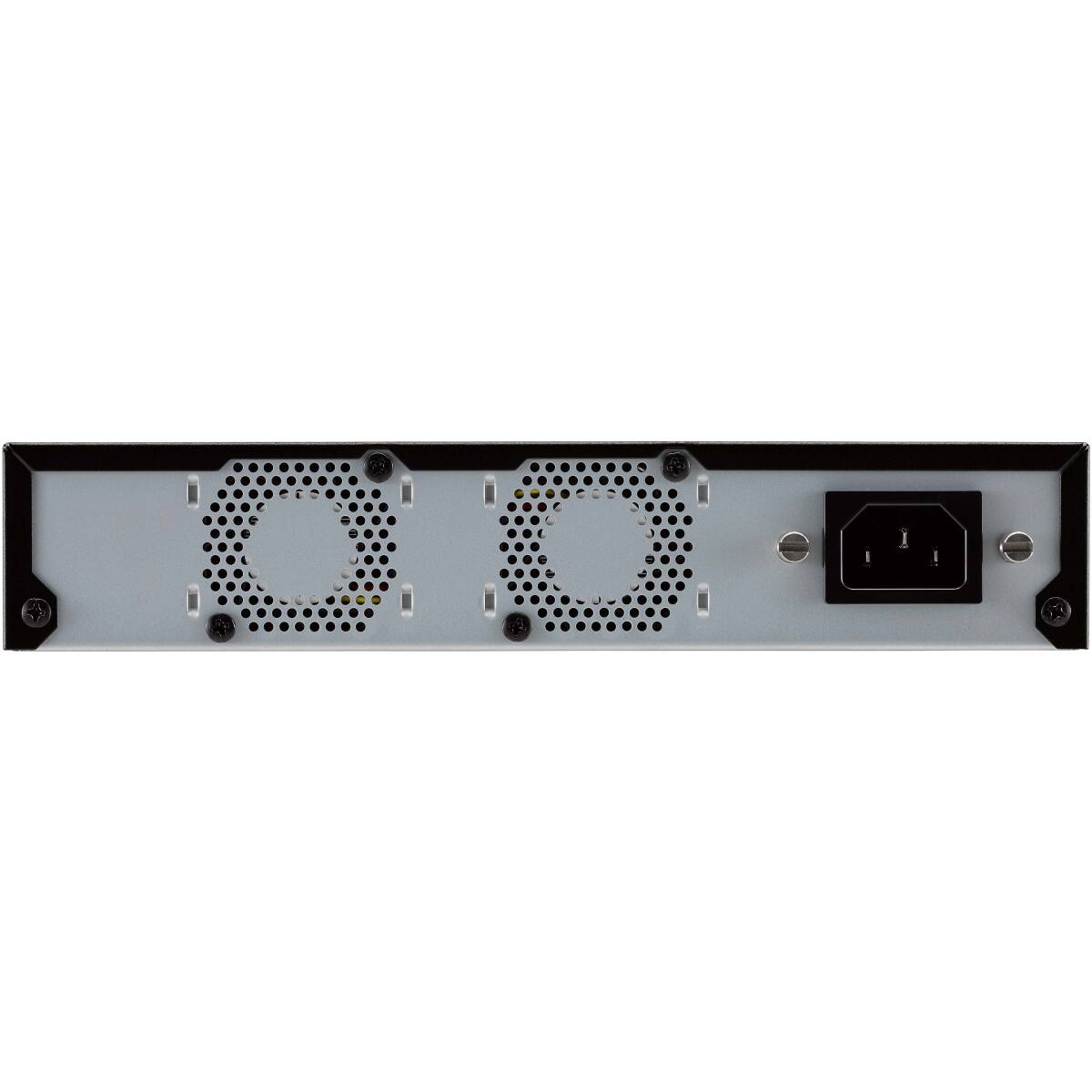

Power

• Input Voltage: AC 100–240V
• Frequency: 50/60 Hz
• Maximum Power Consumption: 280 W

Physical Specifications

• Dimensions (W × H × D): 220 × 294 × 42.4 mm
• Weight: 2.3 kg
