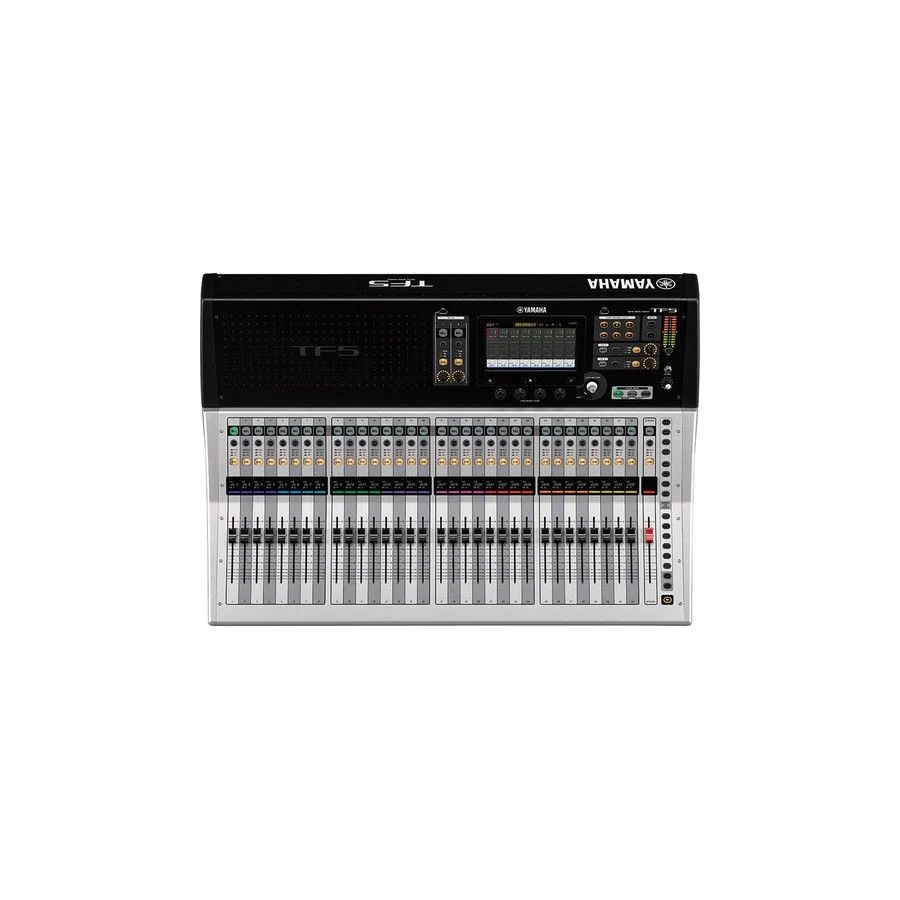

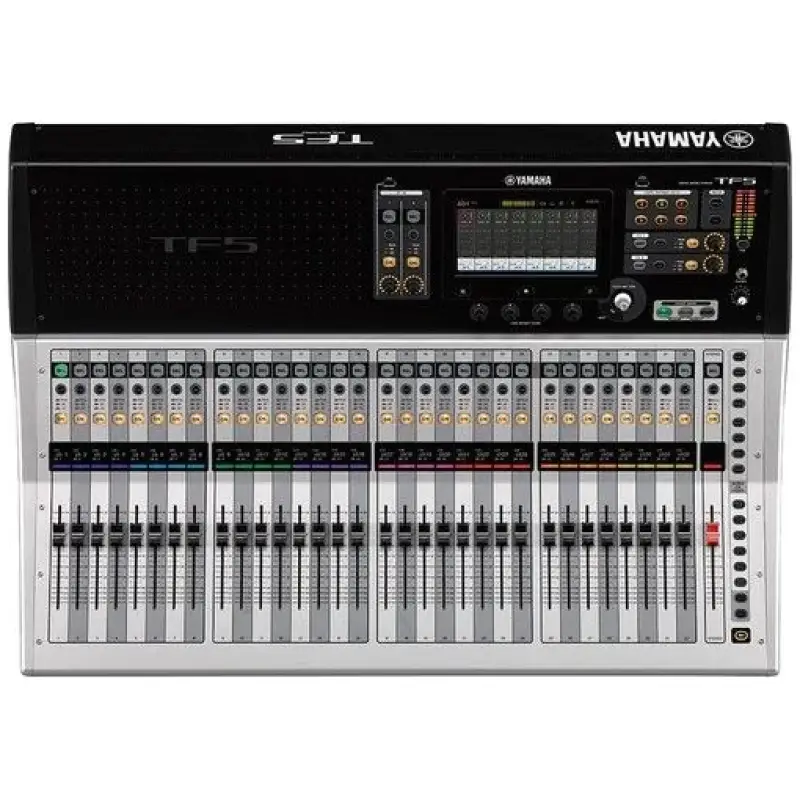

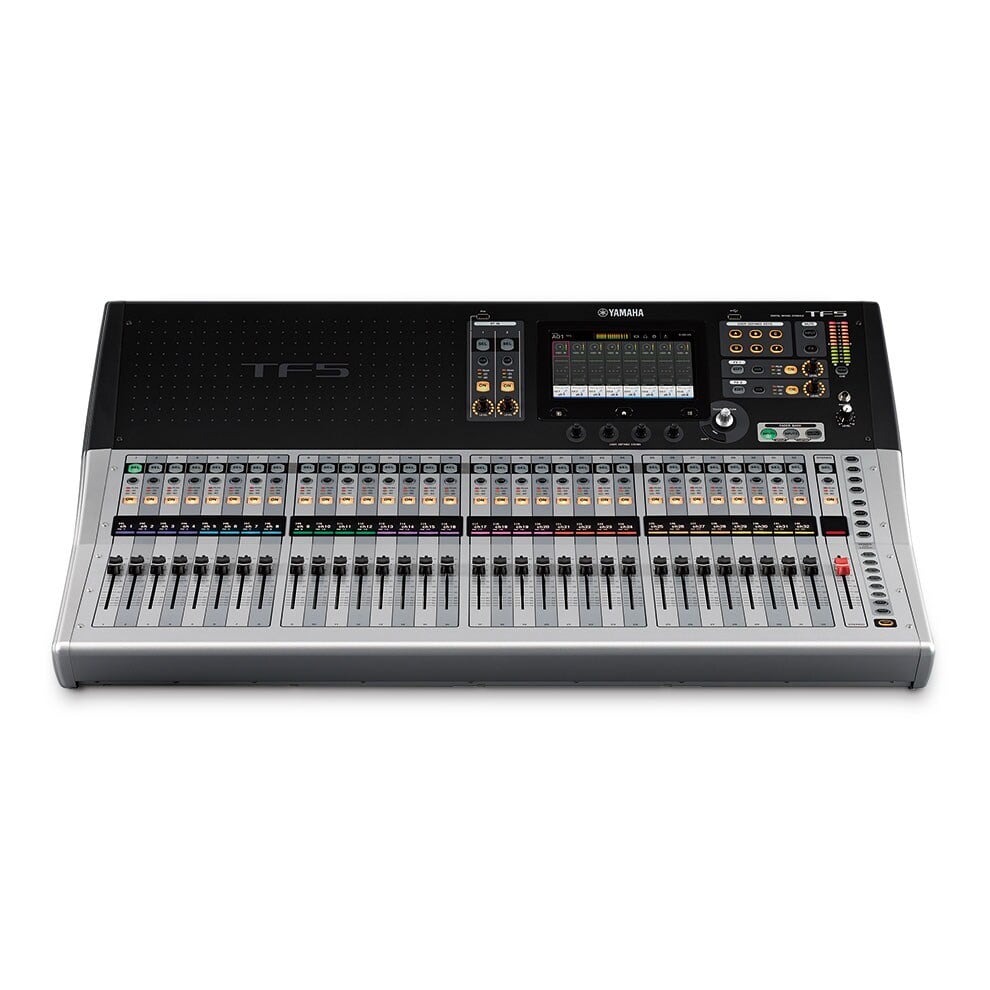

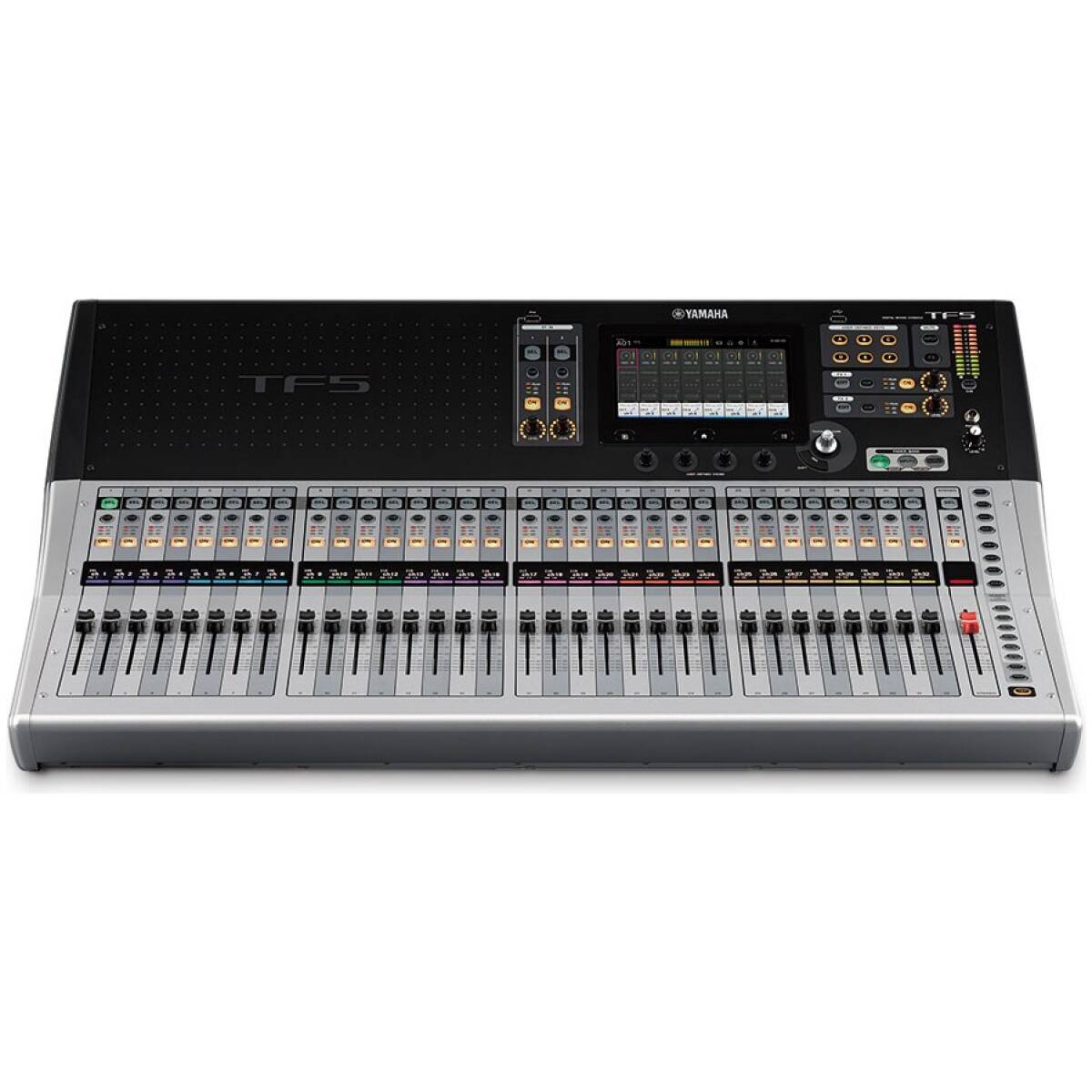

Yamaha TF5 Digital Mixer

Yamaha TF5 TF Series 32-Channel Digital Mixing Console

The Yamaha TF5 is the flagship of the TF Series, offering the highest input capacity and fader count for demanding live sound applications. Designed for larger venues, touring, houses of worship, and production environments, the TF5 combines powerful processing, intuitive control, and Yamaha’s renowned sound quality in a compact yet robust console.

Key Features

• High-capacity digital mixing console for large-scale applications

• 33 motorized faders (32 channels + 1 master)

• TouchFlow Operation™ with intuitive touch-screen workflow

• 48 input mixing channels (40 mono + 2 stereo + 2 return)

• 20 Aux buses (8 mono + 6 stereo) plus Stereo and Sub buses

• 8 DCA groups with roll-out

• 32 mic/line XLR/TRS combo inputs

• 2 stereo RCA line inputs

• 16 XLR analog outputs

• 34 × 34 USB 2.0 audio interface for multitrack recording/playback

• 2-track recording and playback via USB storage device

• Expansion slot for NY64-D Dante audio interface card

Description

Yamaha designed the TF5 to stay closely connected to the real needs of sound engineers. Drawing on the success of the CL, QL, and RIVAGE PM series, the TF5 removes technical barriers and allows creativity to flow freely during live performances.

The TouchFlow Operation™ interface enables fast, natural mixing that responds instantly to on-stage activity. With a balance of tactile motorized faders and a responsive touch screen, both experienced engineers and newcomers can achieve professional results quickly and confidently.

Sound Quality & Processing

At the heart of the TF5 are Yamaha’s recallable D-PRE™ microphone preamplifiers, delivering clean, natural sound with excellent headroom and clarity. Carefully refined circuitry ensures faithful reproduction of live sound, providing a solid foundation for creative mixing.

• 8 onboard multi-effects processors

• 10 graphic EQs for system tuning and feedback control

Presets, Scenes & Applications

The TF5 includes practical channel presets and scene memories developed with leading microphone manufacturers and professional engineers. These presets cover gain, EQ, dynamics, channel naming, and color coding—saving time and ensuring consistent sound quality.

Dedicated applications expand control options:

• TF Editor for offline setup

• TF StageMix for wireless mixing

• MonitorMix for personal monitor control

Recording & Playback

The TF5 supports everything from simple stereo recording to full multitrack production. Supplied with Steinberg Nuendo Live, it can record up to 34 tracks simultaneously via USB 2.0. USB playback supports MP3 and WAV files, making the TF5 ideal for virtual sound checks, rehearsals, backing tracks, and BGM playback.

Specifications

Fader Configuration
32 + 1 (Master), 100 mm motorized

Mixing Capacity
48 Input Channels (40 mono + 2 stereo + 2 return)

Buses
20 Aux (8 mono + 6 stereo), Stereo, Sub
8 DCA Groups

I/O
Inputs: 32 Mic/Line (XLR/TRS combo) + 2 Stereo RCA
Outputs: 16 XLR

USB Audio
34 × 34 USB Audio Interface
2-track recording/playback via USB storage

Effects & Processing
8 Effects, 10 GEQ

Sampling Rate
48 kHz

Dimensions (W × H × D)
866 × 225 × 599 mm

Weight
Approx. 20.0 kg

Power Requirements
100–240 V AC, 50/60 Hz
