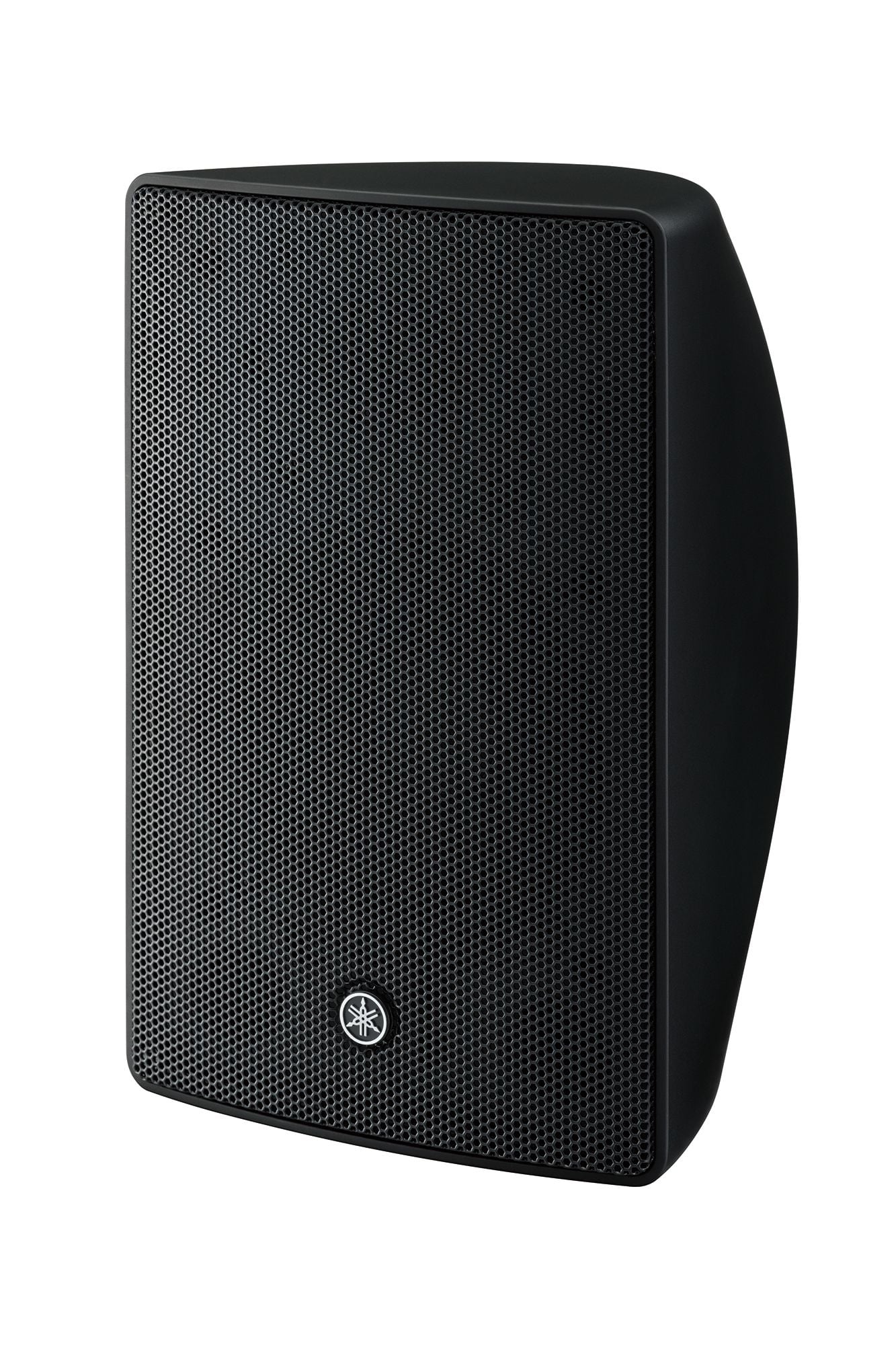

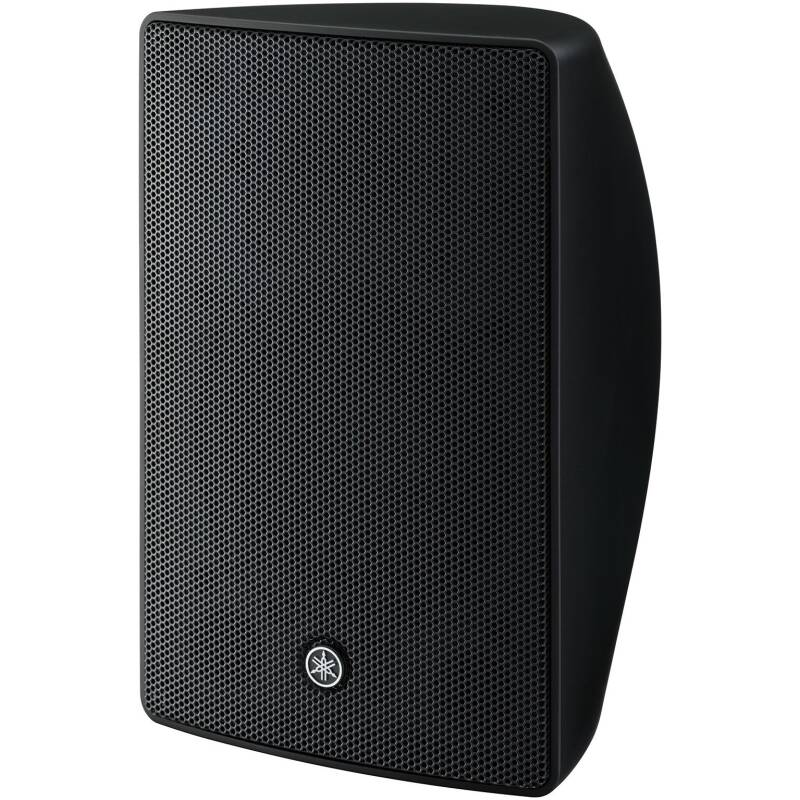

Yamaha VXS5 Black Surface Mount Speaker (Pair)

5,25-inch woofer with 0,75-inch dome tweeter. Yamaha has developed the new VXC and VXS series of speakers to meet the demands of today’s installation market. These carefully engineered speakers not only meet Yamaha’s high sound standards, but also allow for quick and reliable installation. The VXC and VXS series speakers come in a wide range of models that can be mounted on either a horizontal or vertical surface, are available in white or black, and can also be repainted in any color to best match the interior of the room. The VXS speaker lineup features two full-range speakers and two subwoofers, allowing you to select the optimal model for a particular room, and also combine it with a subwoofer where dense low-frequency sound is needed. The VXS series full-range loudspeakers have a built-in transformer, with a control on the rear panel, which allows operation with both high and low impedance. Also, the full-range loudspeakers have IP35 protection, which guarantees reliable operation outdoors.

Item: suspended passive acoustic system
Purpose: wall/ceiling
Configuration: two-lane
Frequency range (-10 dB): 62 Hz – 20 kHz
Coverage angle: height 120°, vertical 120°
Speakers: LF: 5.25”, HF: 0.75”
Crossover: 3 kHz
Nominal output power:
Noise: 75 W
Software: 150 W
Nominal impedance: 8 ohm
Network 70V: 30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ)
Network 100V: 30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ)
Sensitivity (1 W; 1 m on axis): 89 dB SPL (Half-space)
Maximum sound pressure: 114 dB Peak (Estimated)
Inputs/Outputs: 1x Euroblock (4P) (Input: + / -, Loop Thru: + / -)
Case material: ABS plastic
Overload protection system: offers
Dimensions: 176x280x163 mm
The weight: 3.6 kg
Color: black
