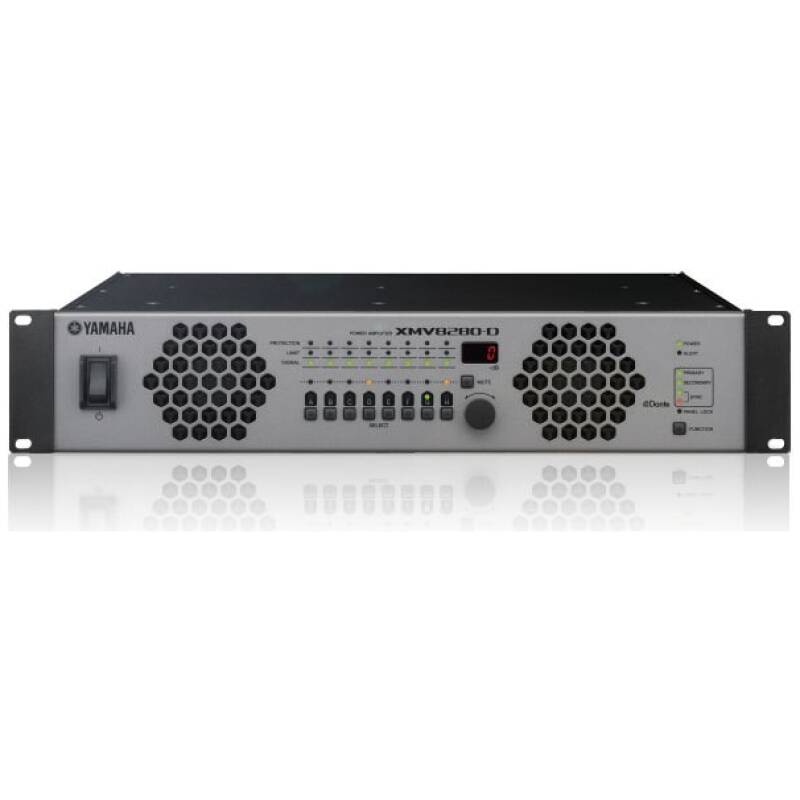

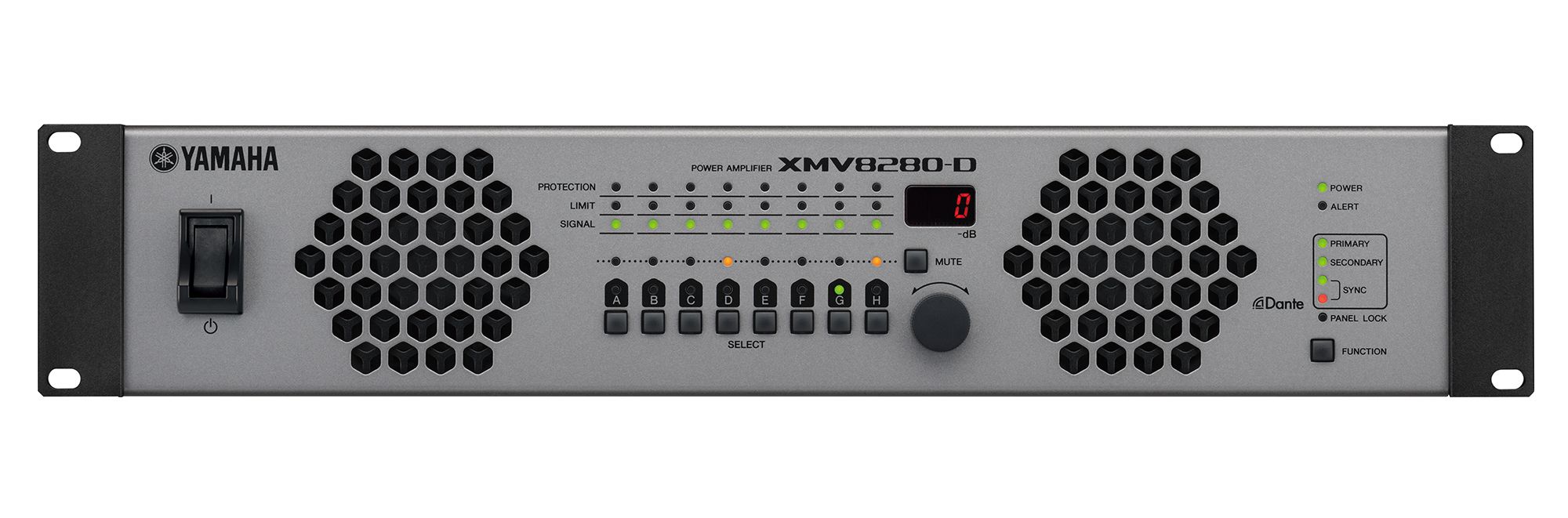

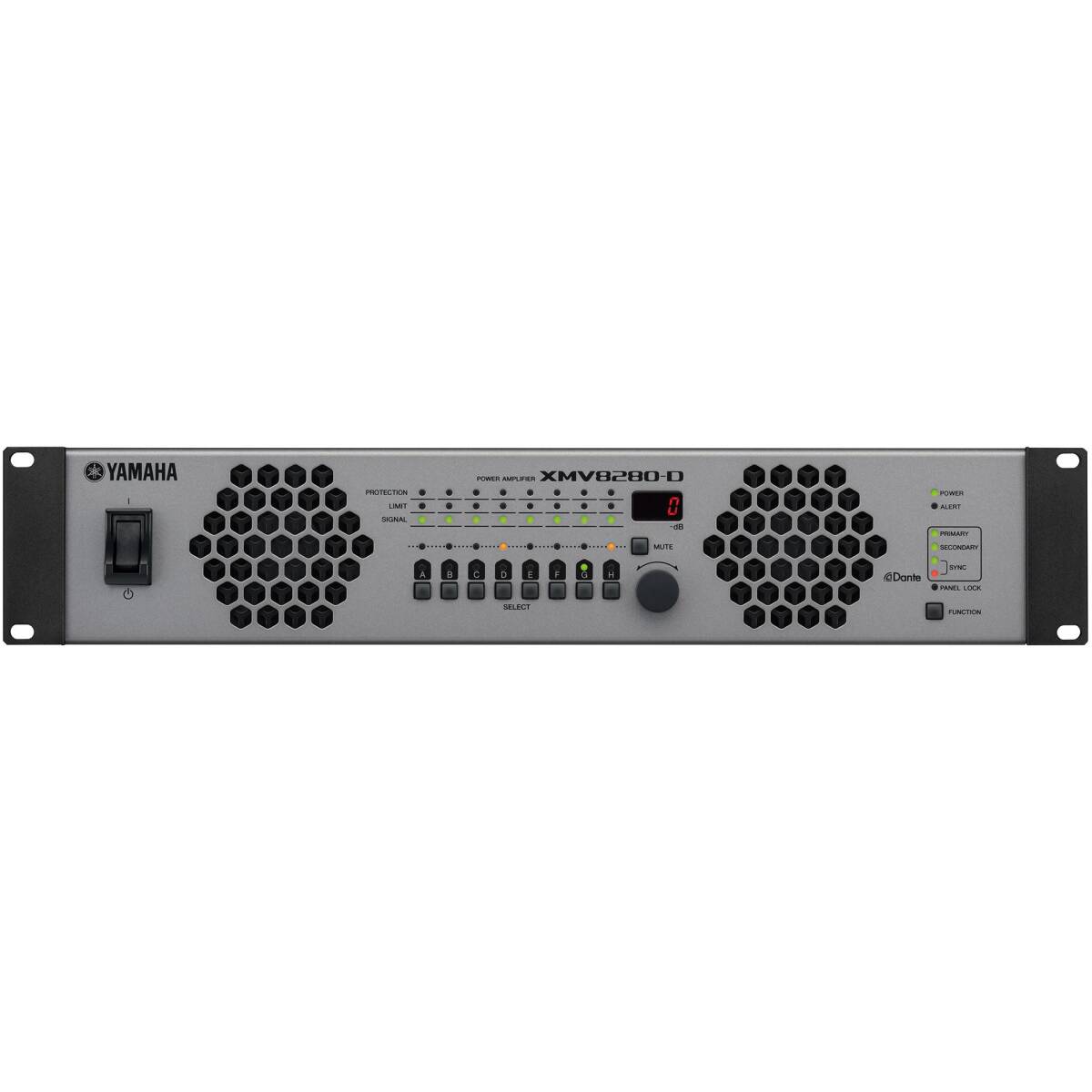

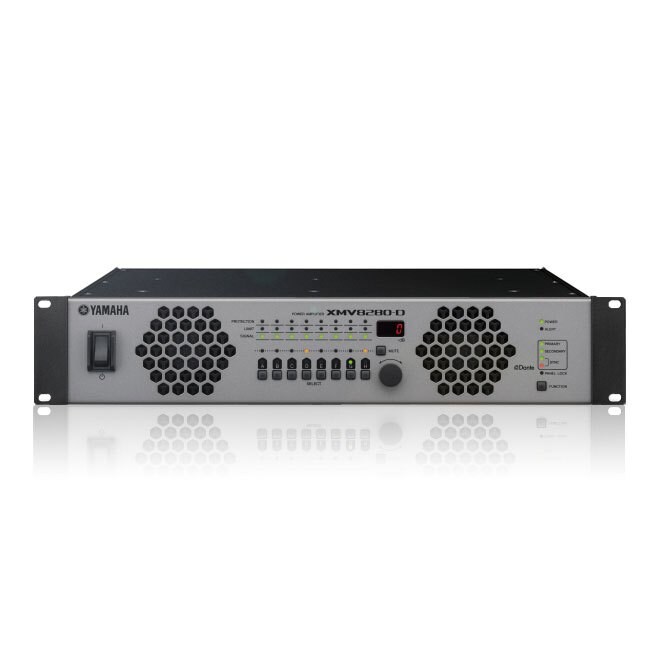

Yamaha XMV8280-D Power Amplifier

The Yamaha XMV8280-D is a high-power, high-density 8-channel Class-D amplifier with built-in Dante networking, designed for large-scale commercial and AV installations. Delivering 280W per channel, it is ideal for demanding multi-zone systems that require both high output and centralized network audio distribution.

Supporting both low-impedance and high-impedance (70V/100V) speaker systems, the XMV8280-D offers maximum flexibility for distributed audio setups. Its integrated DSP processing—including EQ, crossover, delay, and Yamaha speaker presets—ensures optimized sound performance and reliable system protection.

With Dante connectivity, audio can be transmitted over standard network infrastructure, reducing cabling complexity and enabling scalable system design. Its compact 1U rack format allows installers to maximize power and channel count while minimizing rack space.

Key Features

• 8-channel Class-D power amplifier
• Built-in Dante network audio
• High output power (280W per channel)
• Lo-Z and Hi-Z (70V/100V) operation
• High channel density for large systems
• Integrated DSP (EQ, crossover, delay)
• Yamaha speaker presets
• Compact 1U rack-mount design

Technical Specifications

Amplifier

• Channels: 8
• Amplifier Class: Class-D
• Output Modes:
  • Low impedance (Lo-Z)
  • High impedance (70V / 100V line)

Power Output

• 280 W × 8 @ 8Ω
• 280 W × 8 @ 4Ω
• 250 W × 8 @ 3Ω
• Hi-Z: 280 W × 8 (70V/100V)

Networking

• Dante Audio: Yes
• Network Ports: RJ45
• Audio over IP support

DSP & Processing

• Parametric EQ
• Crossover (HPF/LPF)
• Delay
• Limiter and protection
• Speaker presets (Yamaha series)

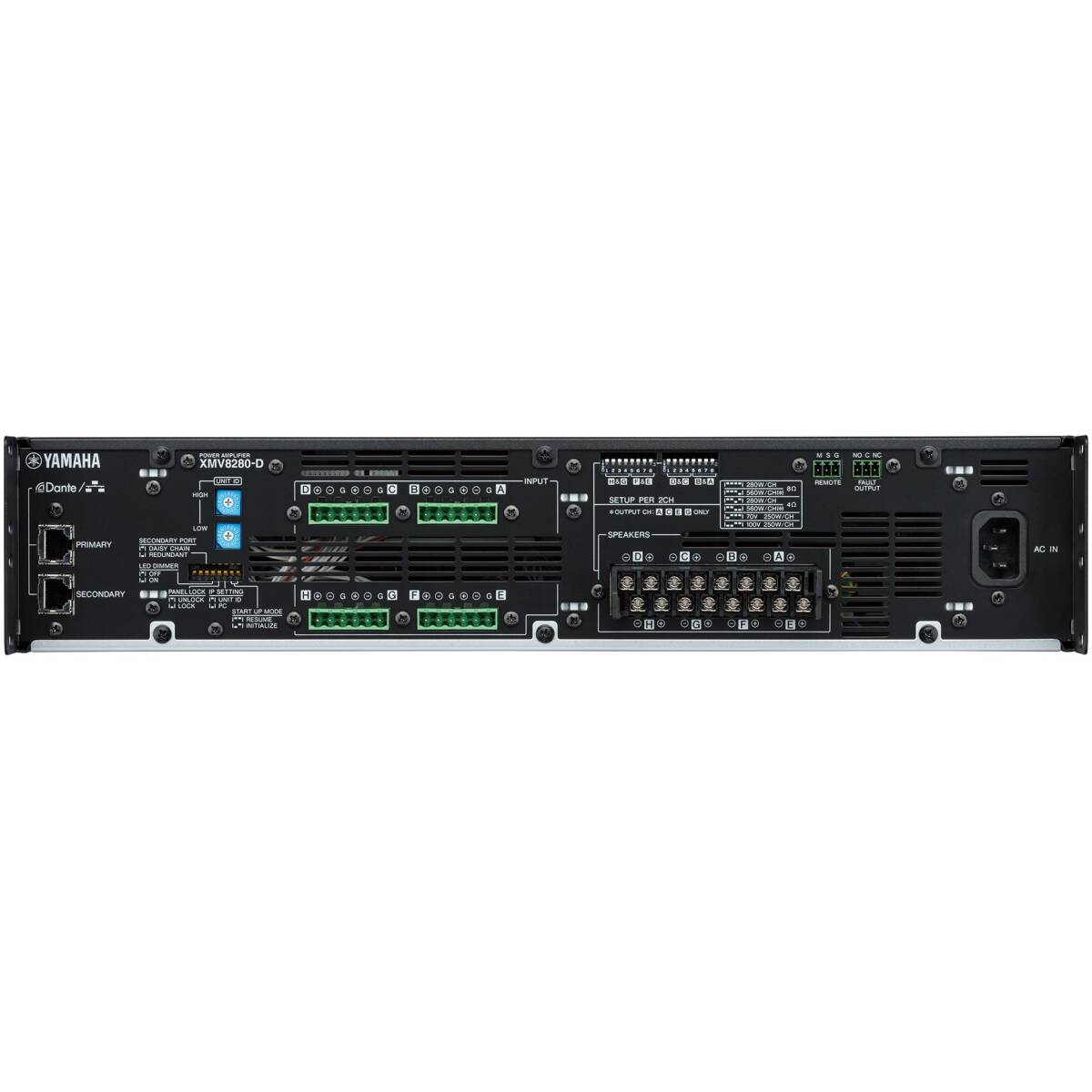

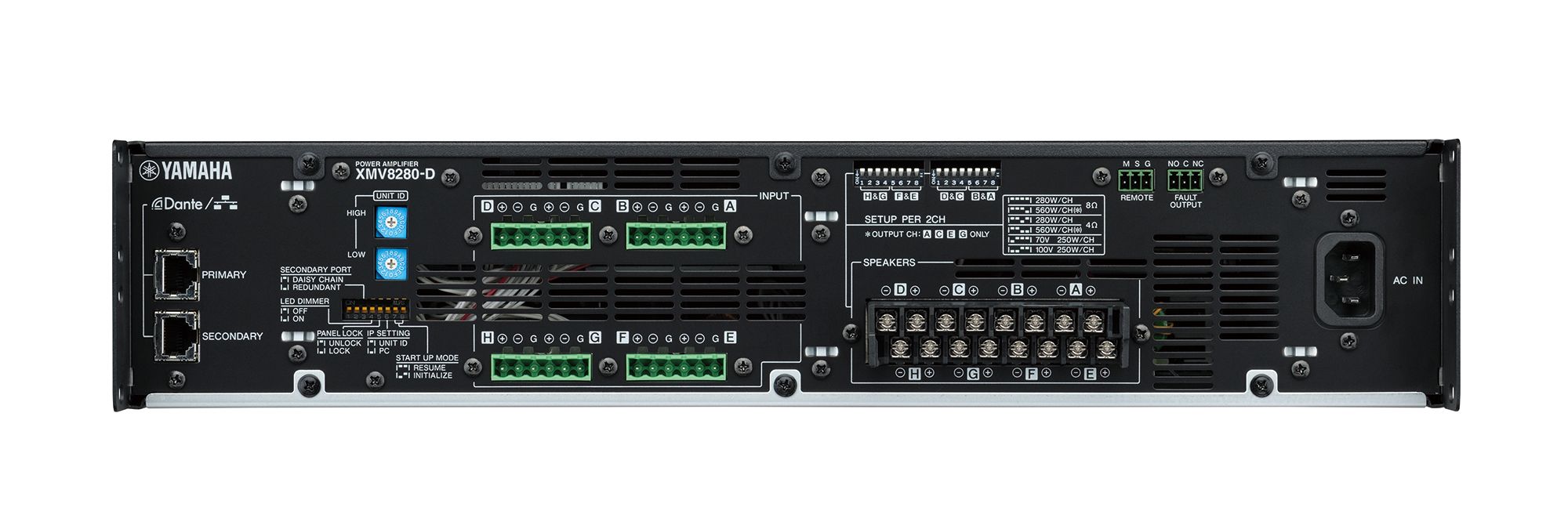

Connectivity

• Inputs: Dante network input
• Outputs: Euroblock connectors
• Control: Yamaha MTX/MRX integration

General

• Rack Size: 1U
• Cooling: Forced air cooling (fan)
• Design: High-power, high-density amplifier
