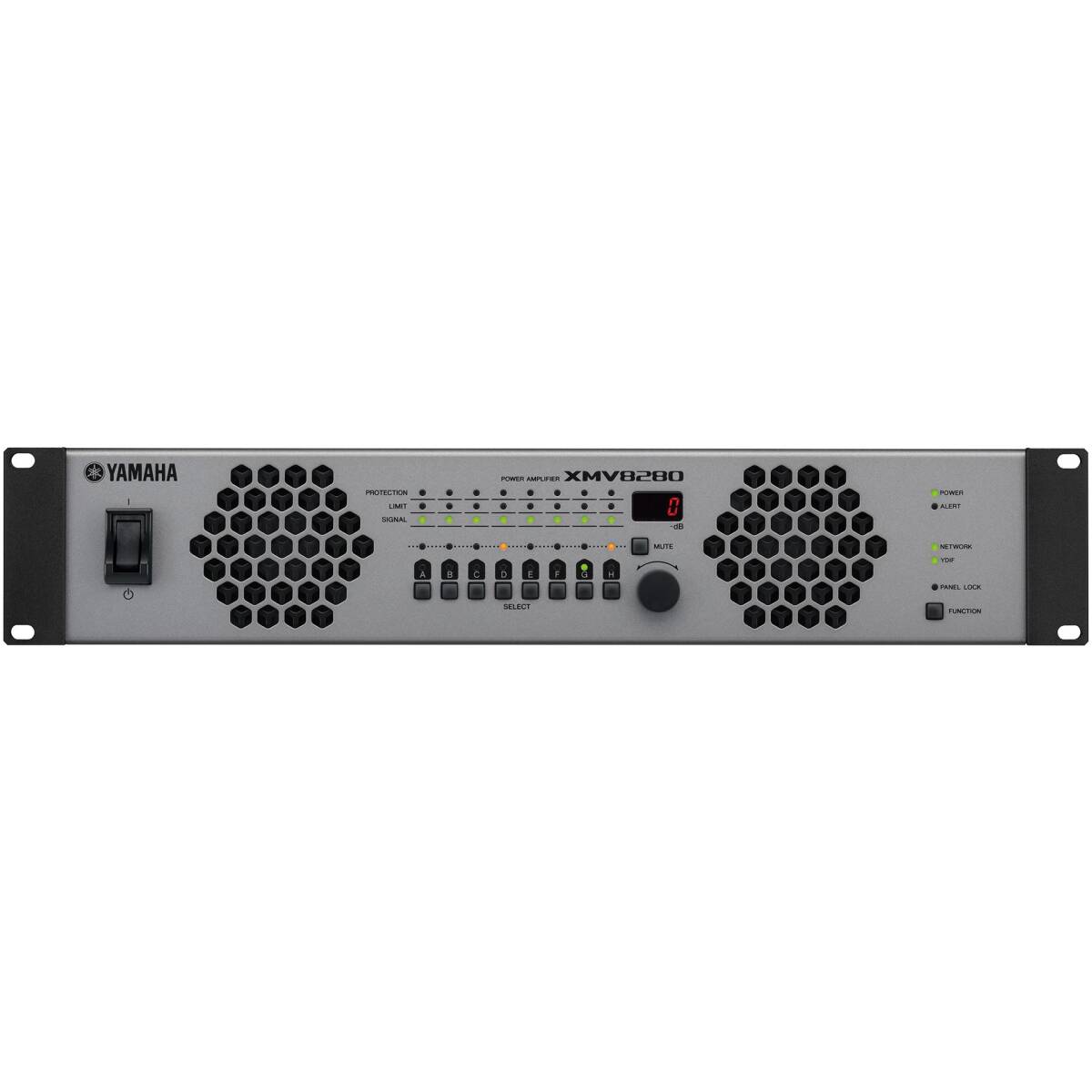

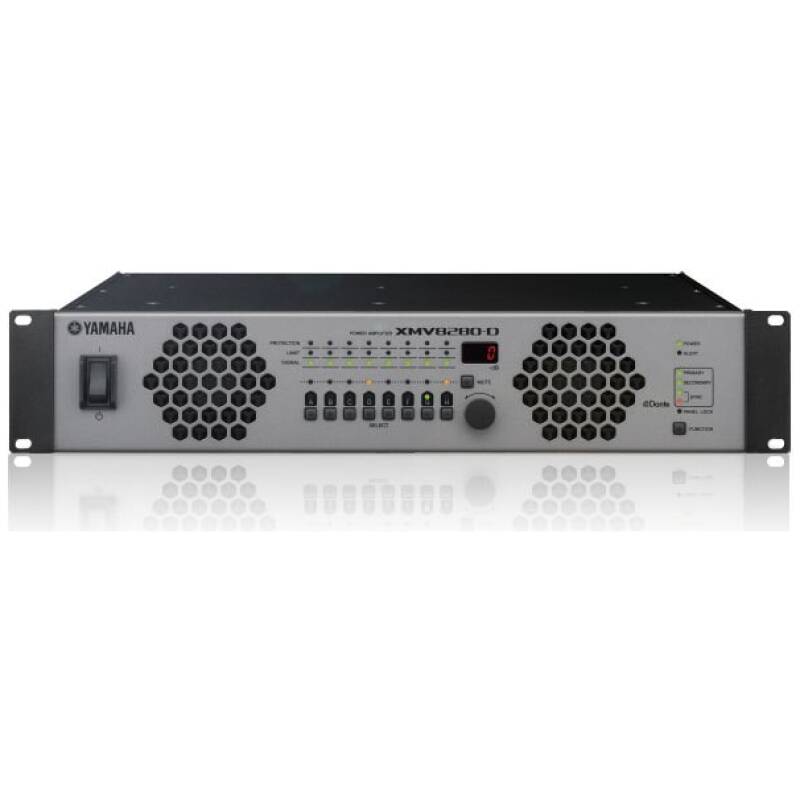

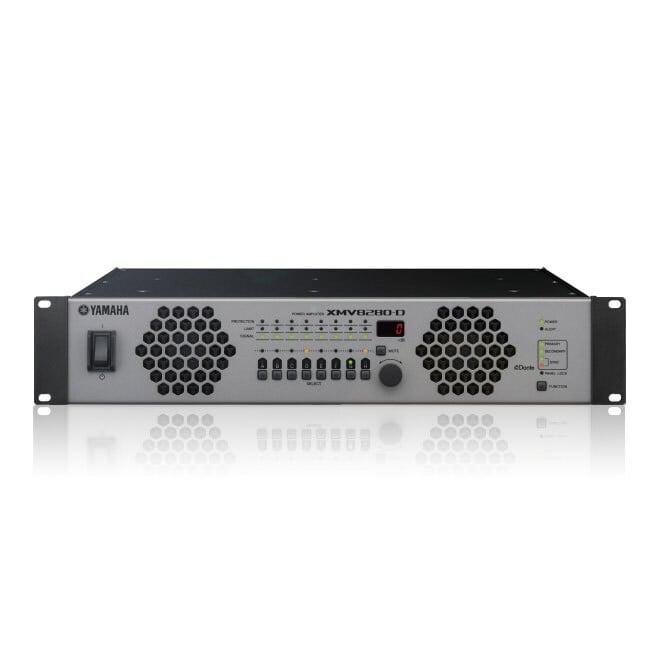

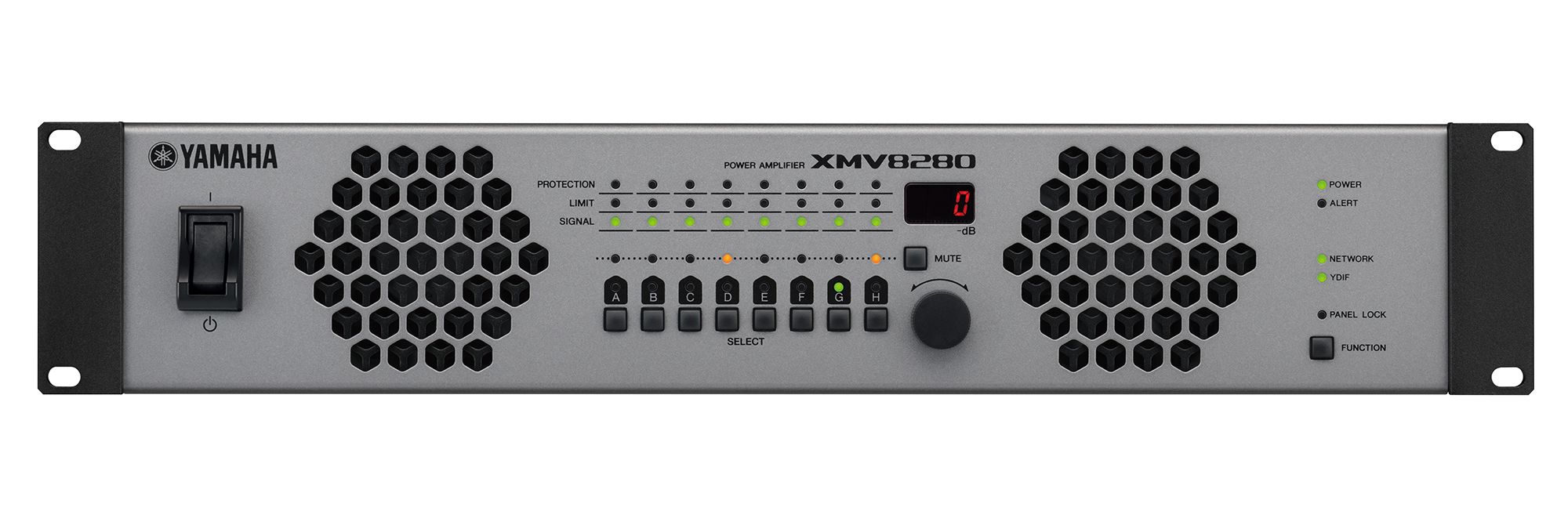

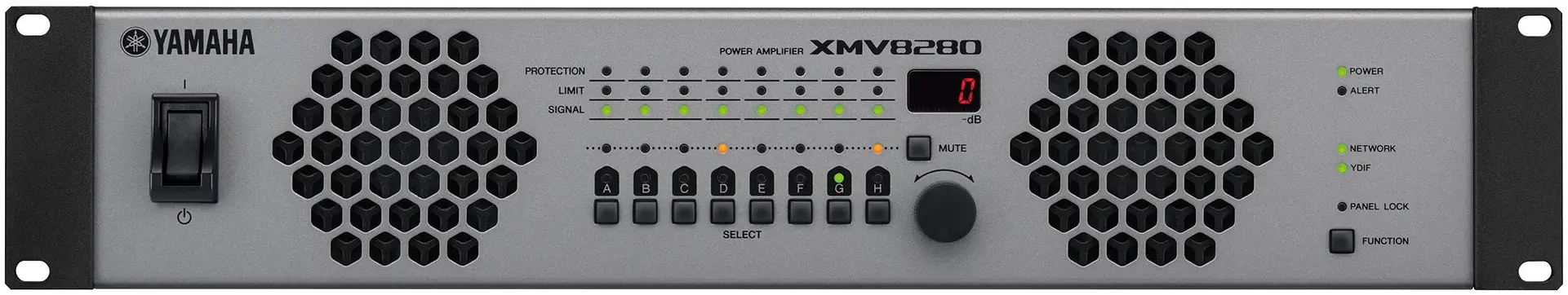

Yamaha XMV8280 //E Power Amplifier

The Yamaha XMV8280 is a high-power 8-channel Class-D amplifier designed for large-scale commercial and installation audio systems. Delivering 280W per channel, it provides both high output and high channel density, making it ideal for multi-zone environments requiring more power.

Supporting both low-impedance and high-impedance (70V/100V) speaker systems, the XMV8280 offers maximum flexibility for distributed audio setups. Its integrated DSP processing—including EQ, crossover, delay, and Yamaha speaker presets—ensures optimal performance, system tuning, and protection.

With an efficient 1U rack design, the XMV8280 allows installers to power multiple zones from a single unit while saving valuable rack space.

Key Features

• 8-channel Class-D power amplifier
• High output power (280W per channel)
• Lo-Z and Hi-Z (70V/100V) operation
• High channel density for large systems
• Built-in DSP (EQ, crossover, delay)
• Yamaha speaker presets
• Compact 1U rack-mount design
• Efficient and reliable performance

Technical Specifications

Amplifier

• Channels: 8
• Amplifier Class: Class-D
• Output Modes:
  • Low impedance (Lo-Z)
  • High impedance (70V / 100V line)

Power Output

• 280 W × 8 @ 8Ω
• 280 W × 8 @ 4Ω
• 250 W × 8 @ 3Ω
• Hi-Z: 280 W × 8 (70V/100V)

DSP & Processing

• Parametric EQ
• Crossover (HPF/LPF)
• Delay
• Limiter and protection
• Speaker presets (Yamaha series)

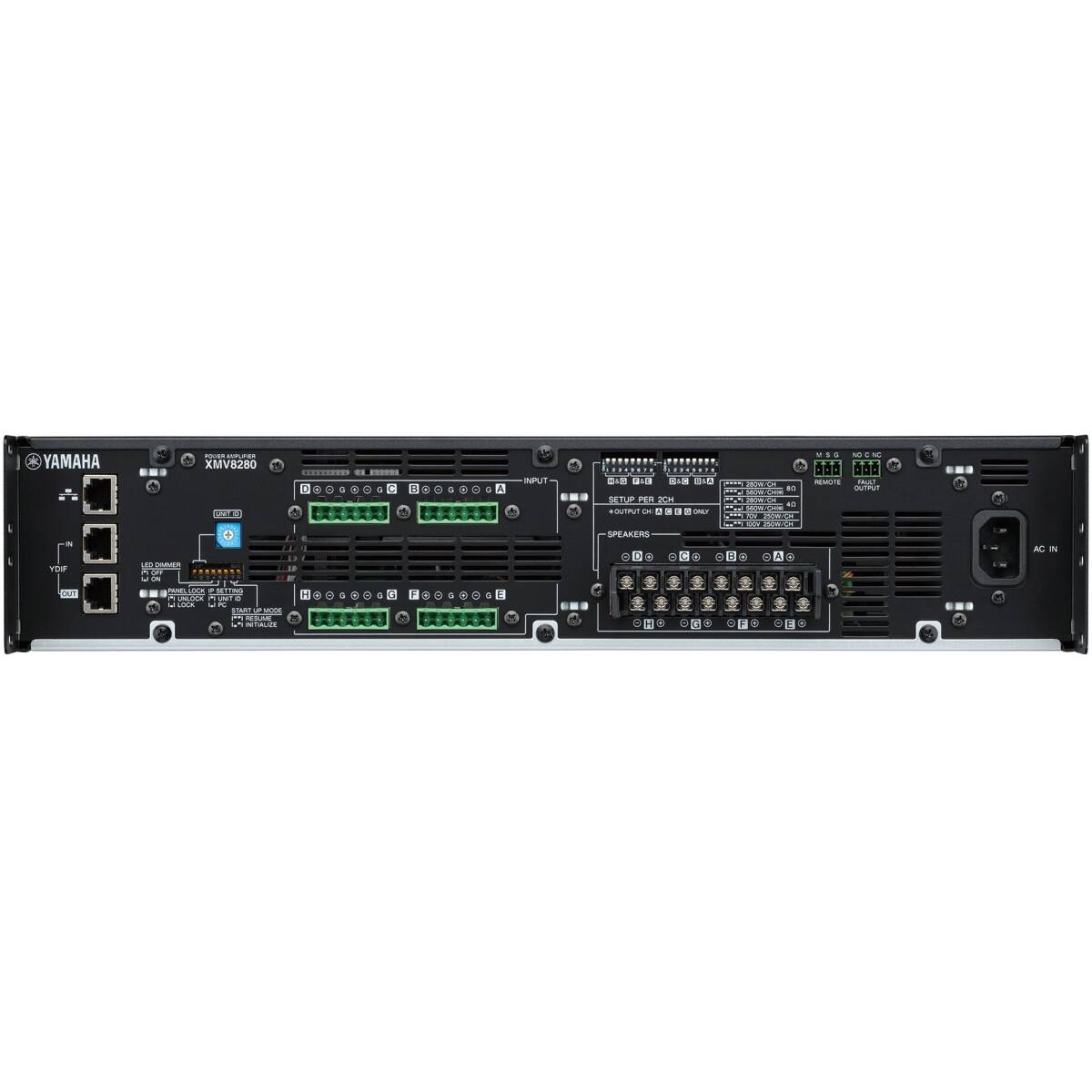

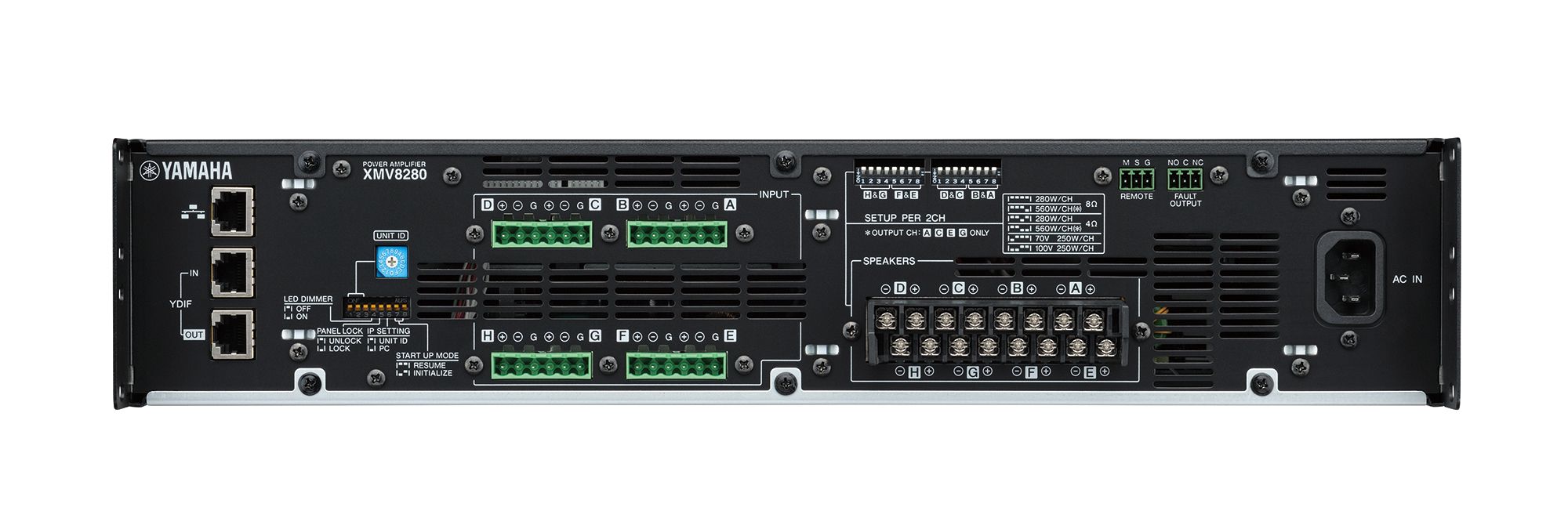

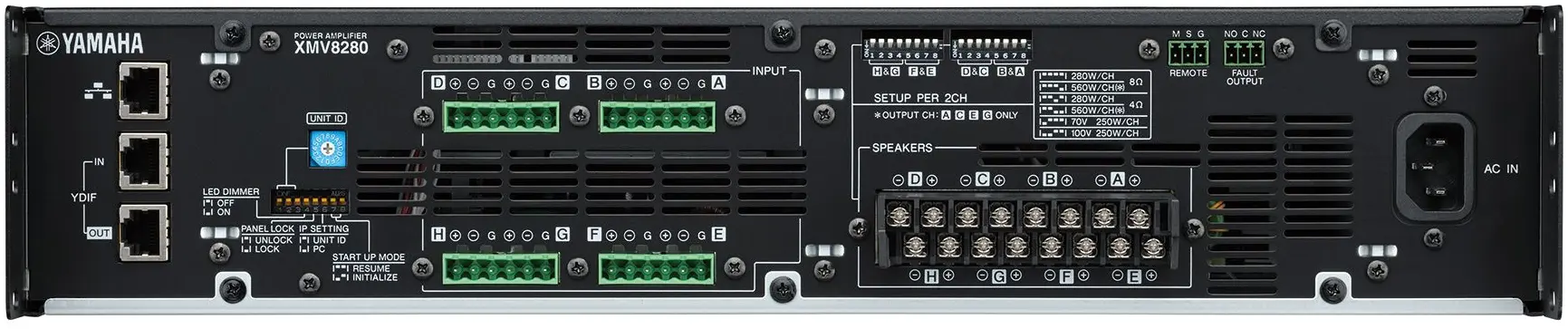

Connectivity

• Inputs: Euroblock connectors
• Outputs: Euroblock connectors
• Control: Compatible with Yamaha MTX/MRX systems

General

• Rack Size: 1U
• Cooling: Forced air cooling (fan)
• Design: High-power, high-density amplifier
