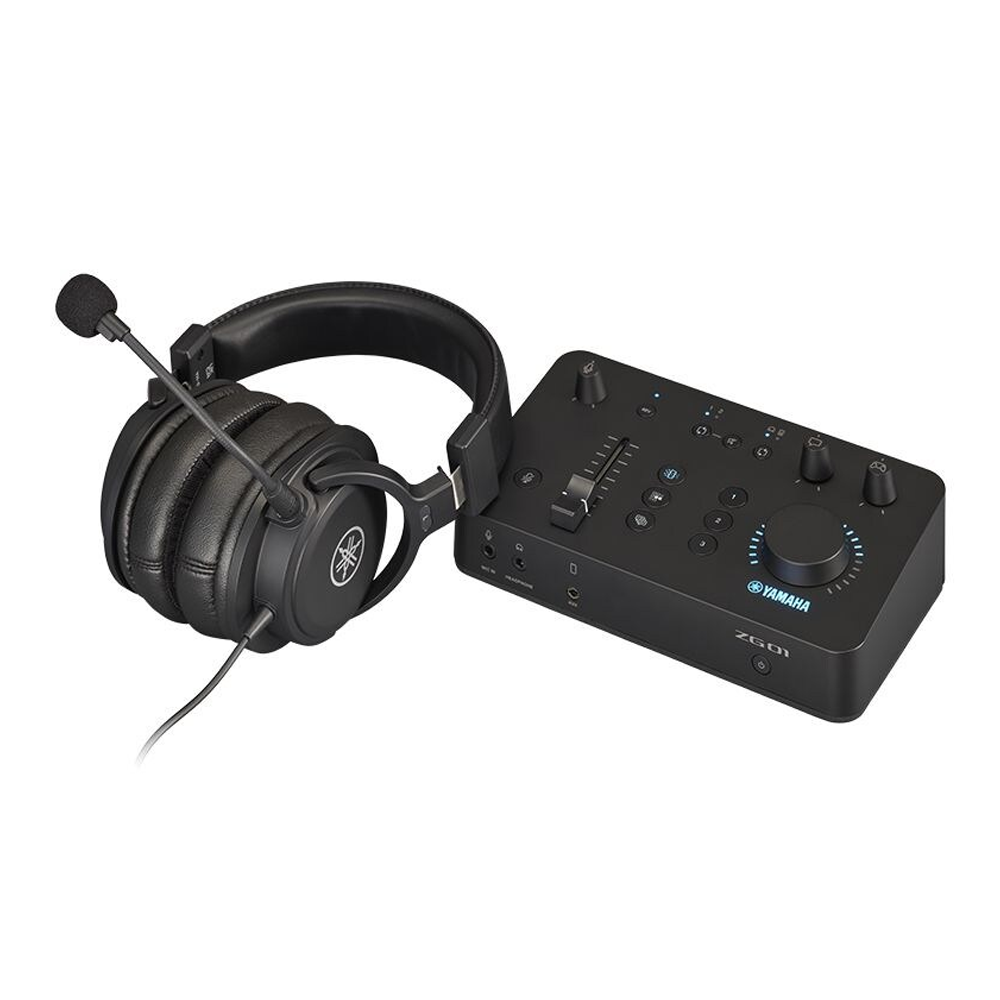

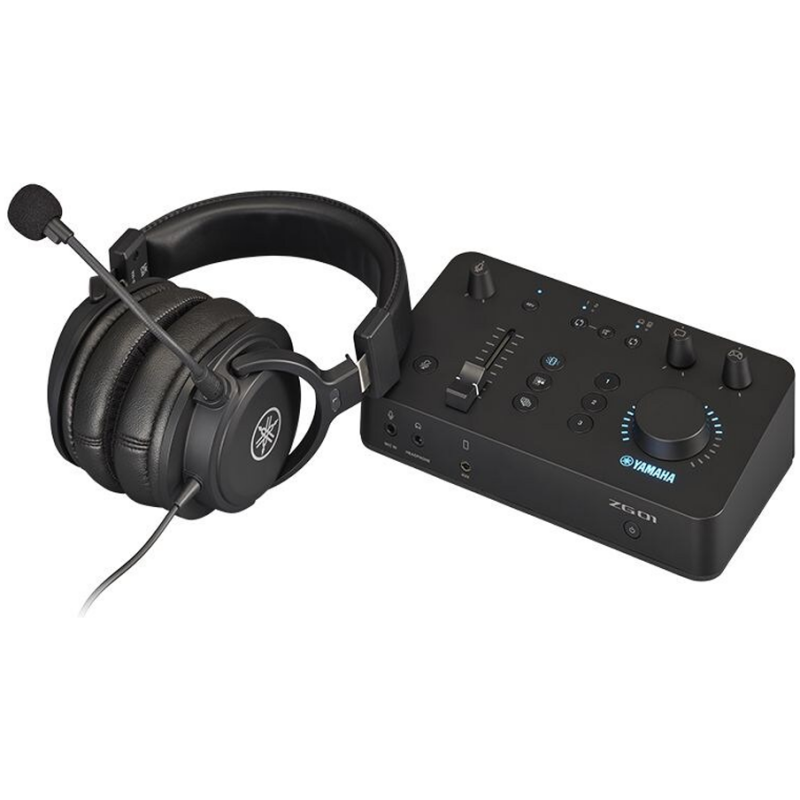

Yamaha ZG01 Pack Gaming Mixer & Headset Pack

The ZG01 PACK is an all-in-one gaming audio solution, combining the ZG01 gaming mixer with the YH-G01 gaming headset. It provides full control over game audio, chat, and vocal levels, plus immersive 3D surround sound and creative mic effects. The headset offers studio-quality audio, a high-performance condenser mic, and ergonomic comfort for extended gaming sessions.

Features

• Full command of game sound, voice chat, and microphone levels

• ZG Sound Processing: ZG SURROUND, FOCUS MODE/EQ, 3D CHAT SPACE, voice/game effects

• Six effect buttons (3 for voice, 3 for game sounds)

• HDMI 2-in / 1-out with audio pass-through

• USB audio with Windows/Mac virtual device support

• Smartphone input/output via 4-pole TRRS

• Mute and monitor output buttons

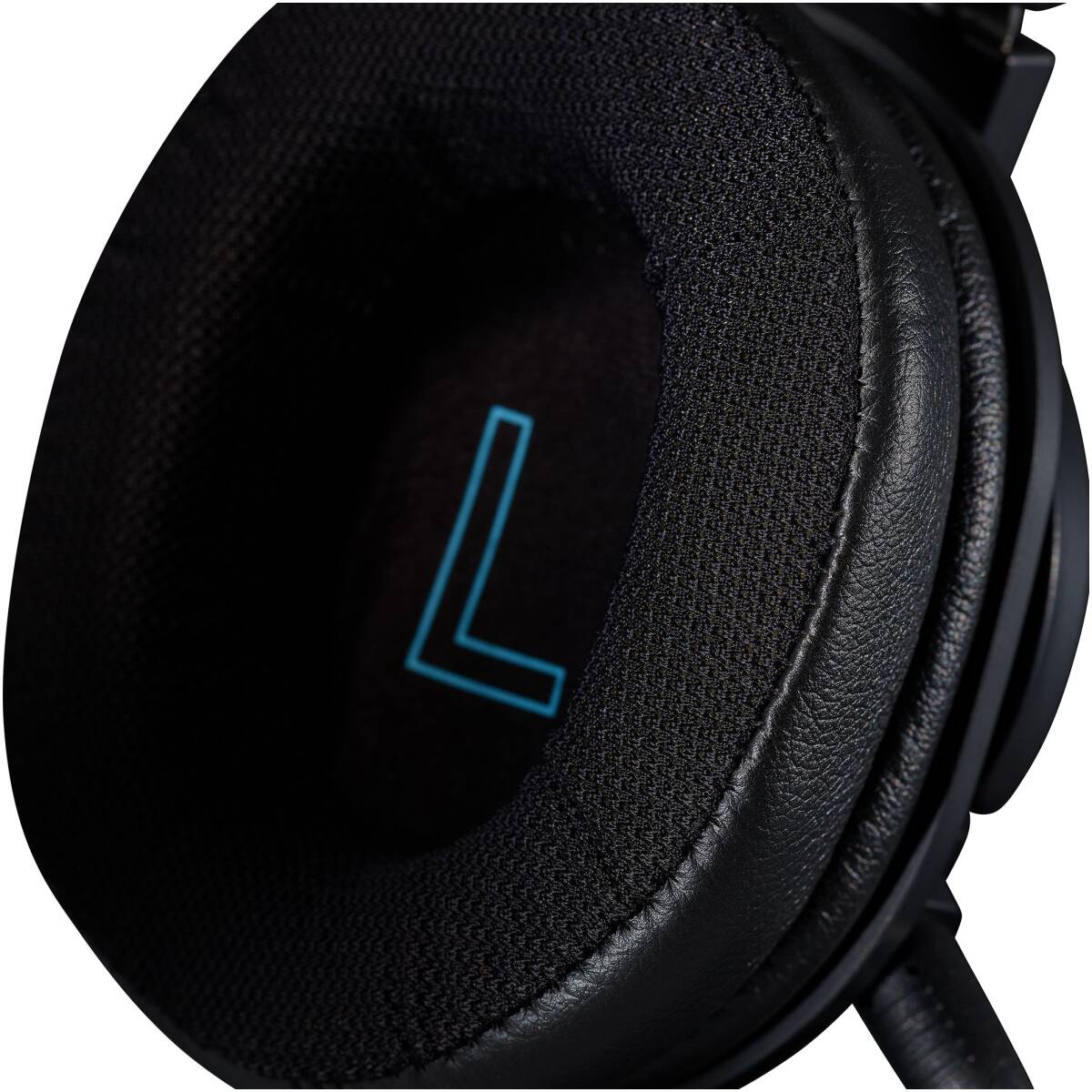

• Lightweight, ergonomic headset with studio-quality sound

• Comfortable for long gaming sessions

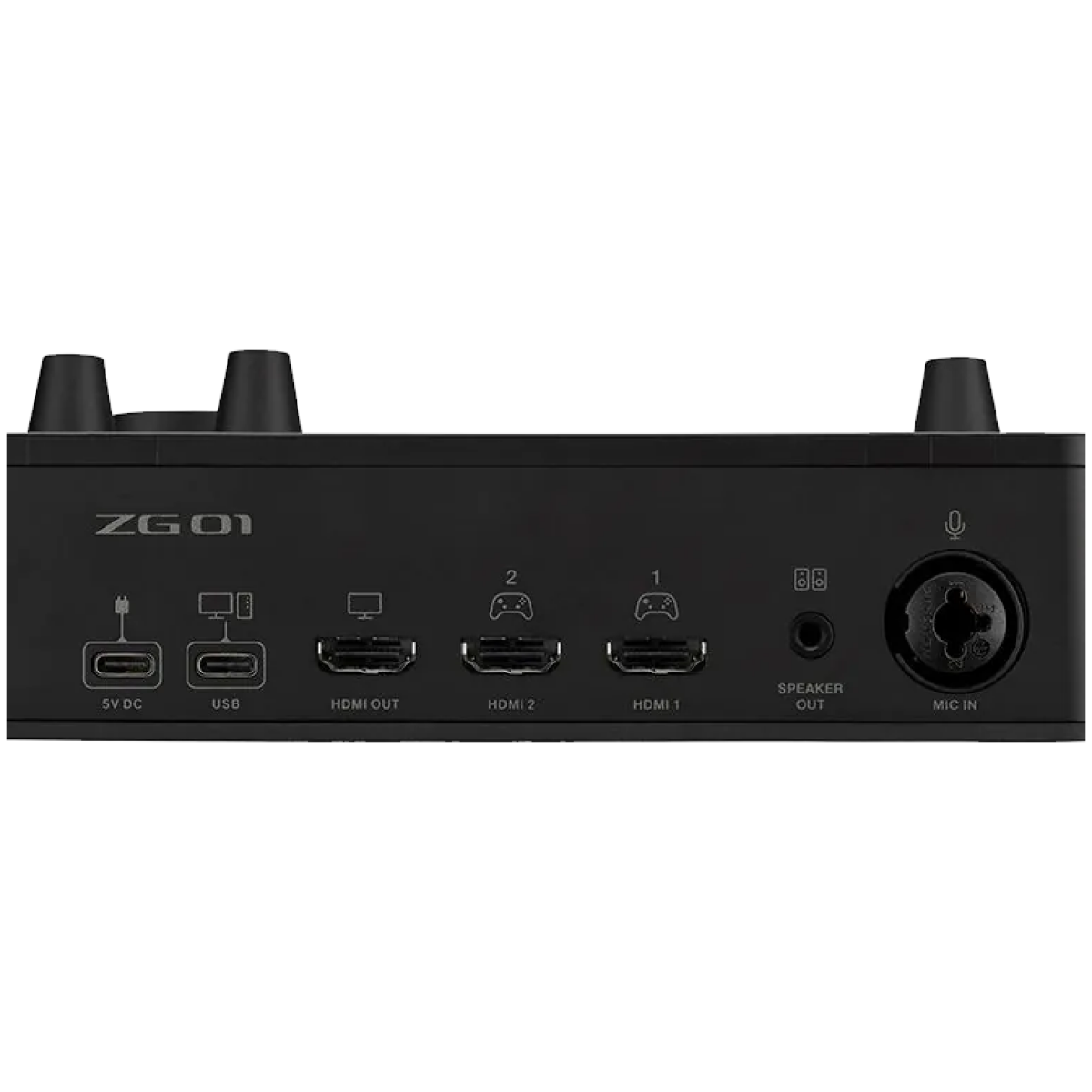

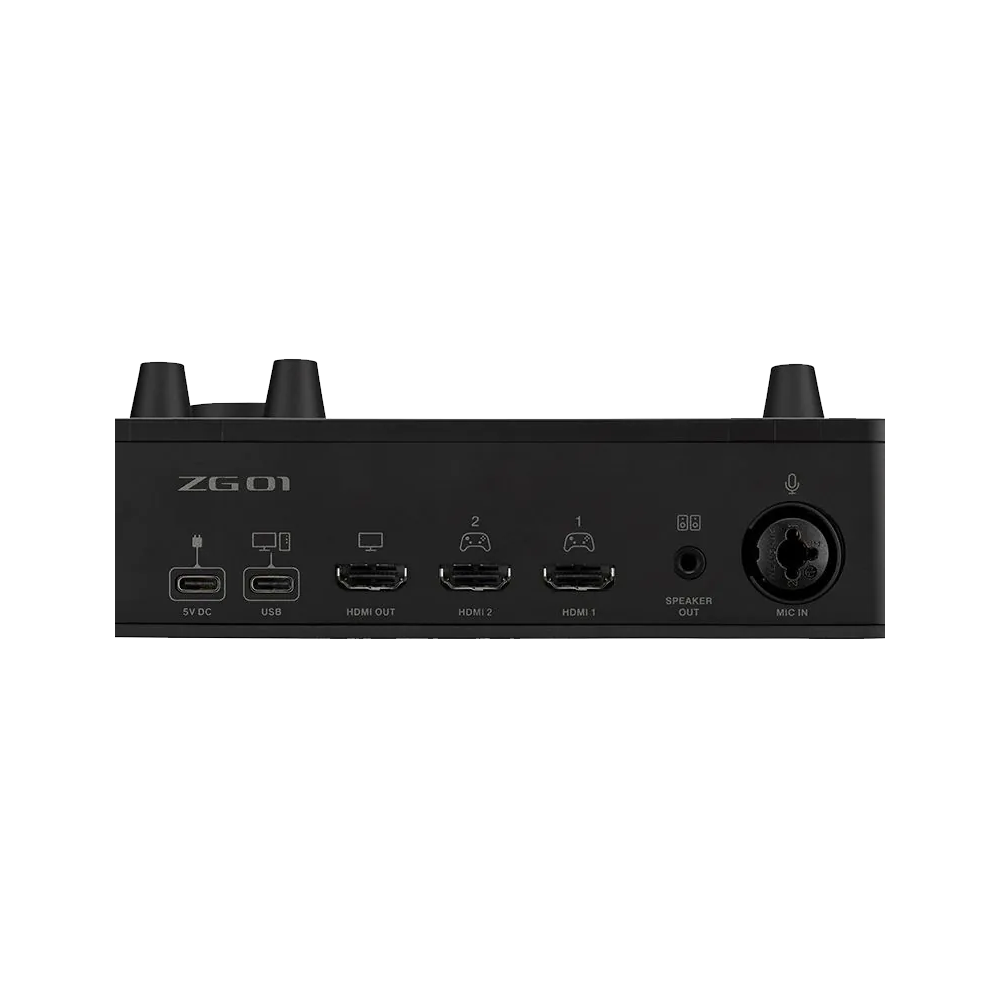

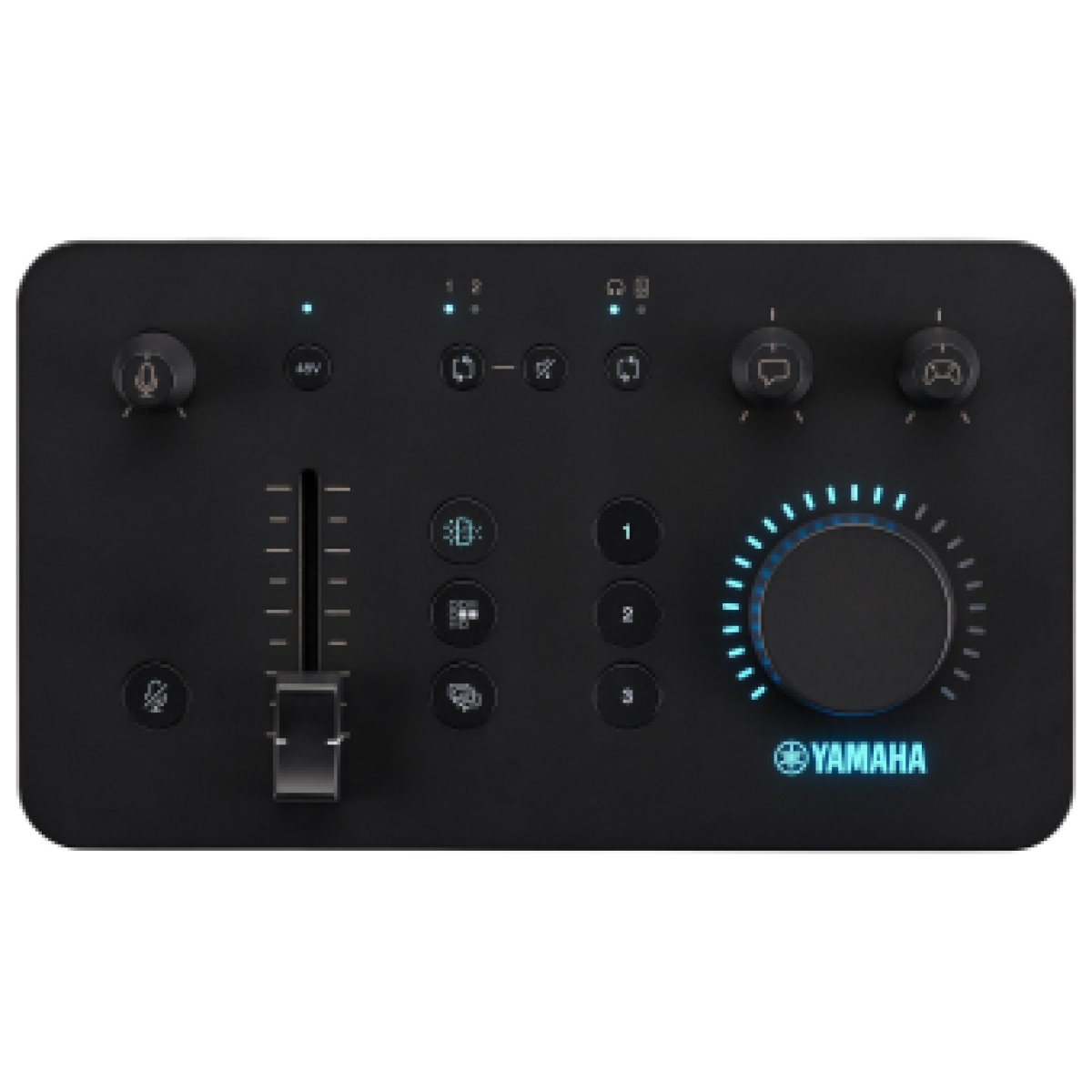

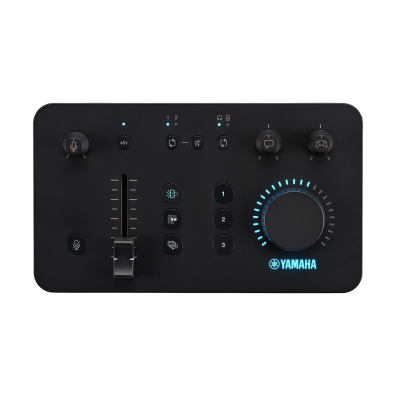

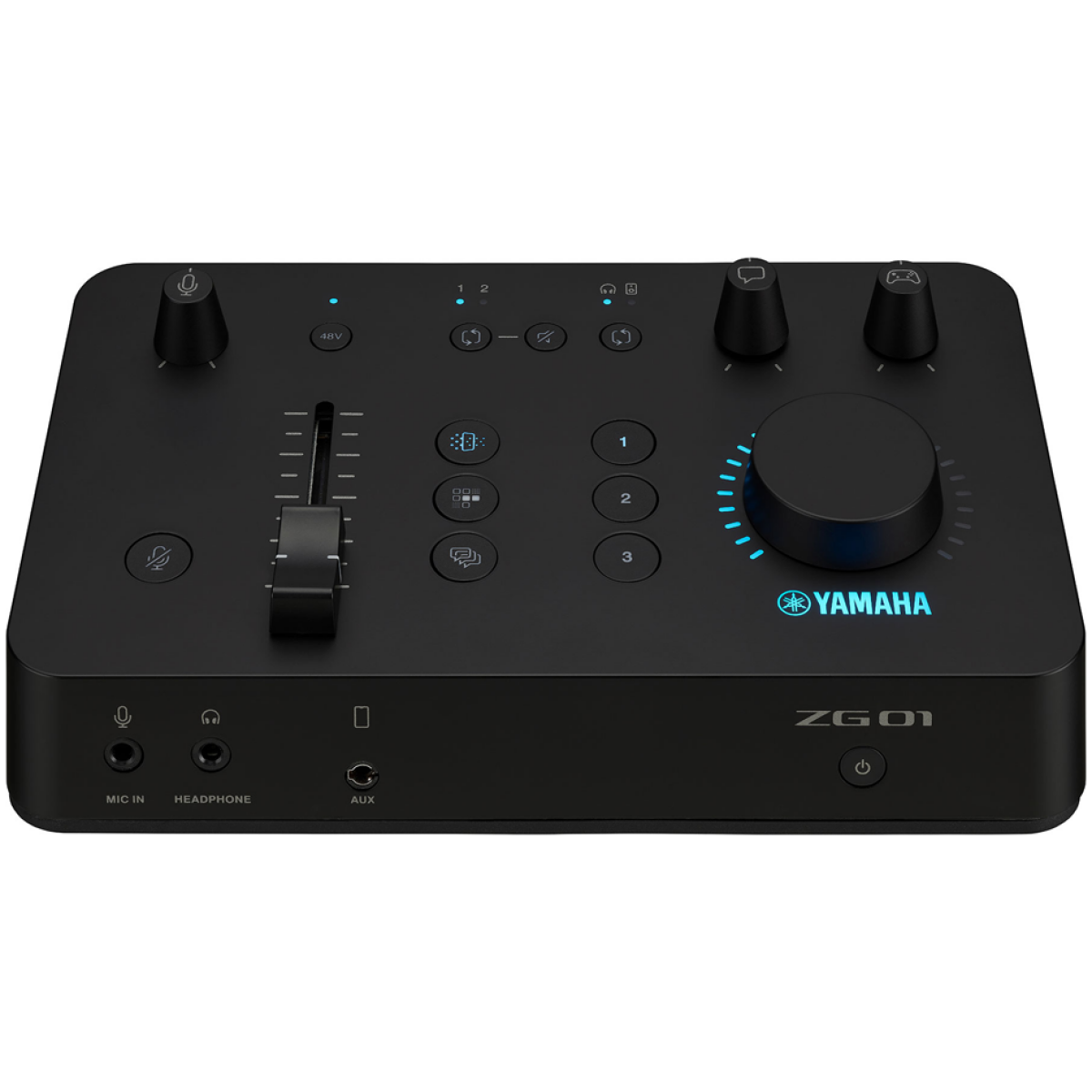

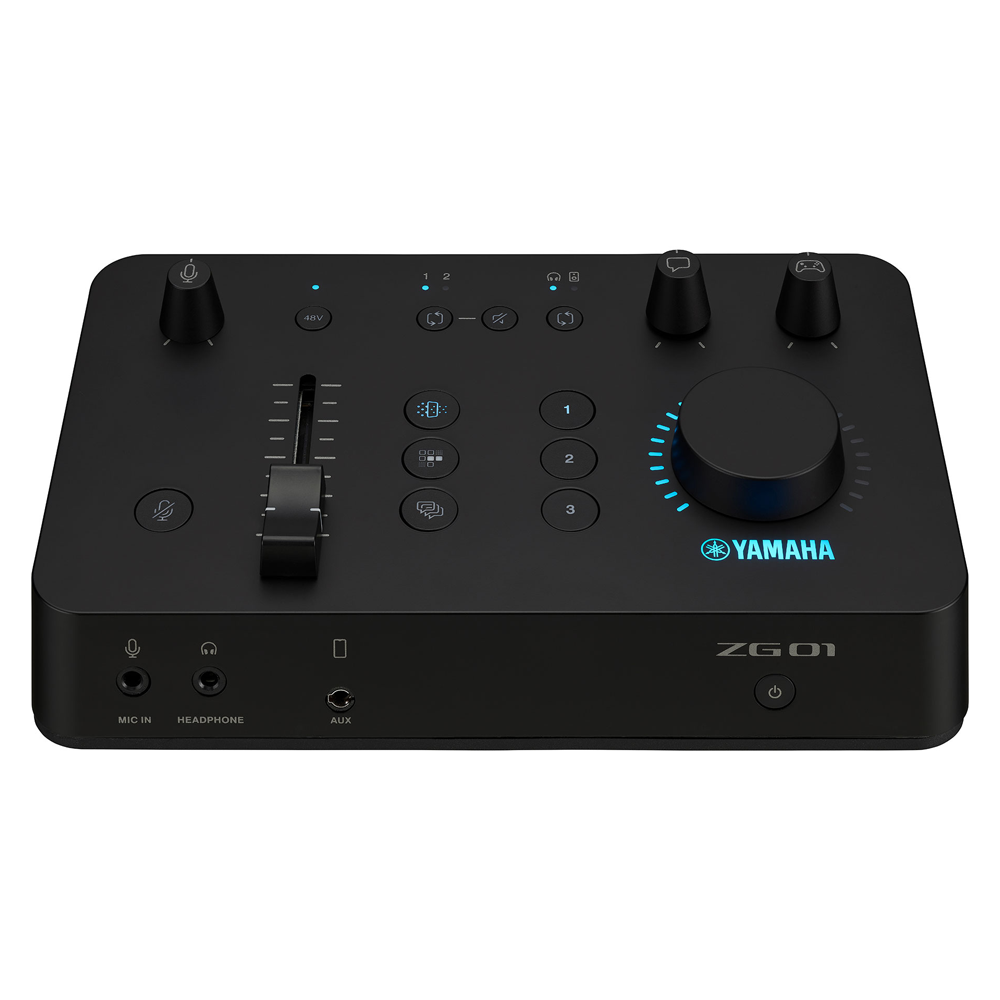

Specifications – ZG01 Mixer

• Input Channels:

  • Microphone: 1 combo (Mic +48 V phantom), 3.5 mm mini (headset mic) – cannot be used simultaneously

  • Smartphone: 1 × TRRS

  • HDMI: 2 switchable inputs (Audio 2ch 24-bit/192 kHz max, video pass-through)

  • USB: 2 virtual devices (Voice, Streaming)

• Output Channels:

  • PHONES: 1 × 3.5 mm stereo mini

  • Smartphone: 1 × TRRS

  • MONITOR OUT: 1 × stereo mini

  • HDMI: 1 × audio out 2ch 24-bit/48 kHz fixed, video pass-through

  • USB: 2 virtual devices (Voice, Speaker)

• On-board DSP: ZG SURROUND, FOCUS MODE/EQ, 3D VOICE CHAT, voice/game effects (controlled via ZG Controller software)

• USB Audio: 24-bit / 48 kHz max, Type-C

• Power Requirements: 5 V DC, 1.5 A

• Power Consumption: Max 7.5 W

• Dimensions: 195 × 47.5 × 110 mm

• Net Weight: 0.8 kg (1.8 lbs)

• Included Accessories: USB-C to USB-C cable (1.5 m), USB-A to USB-C cable (1.5 m), Start Guide, Safety Guide

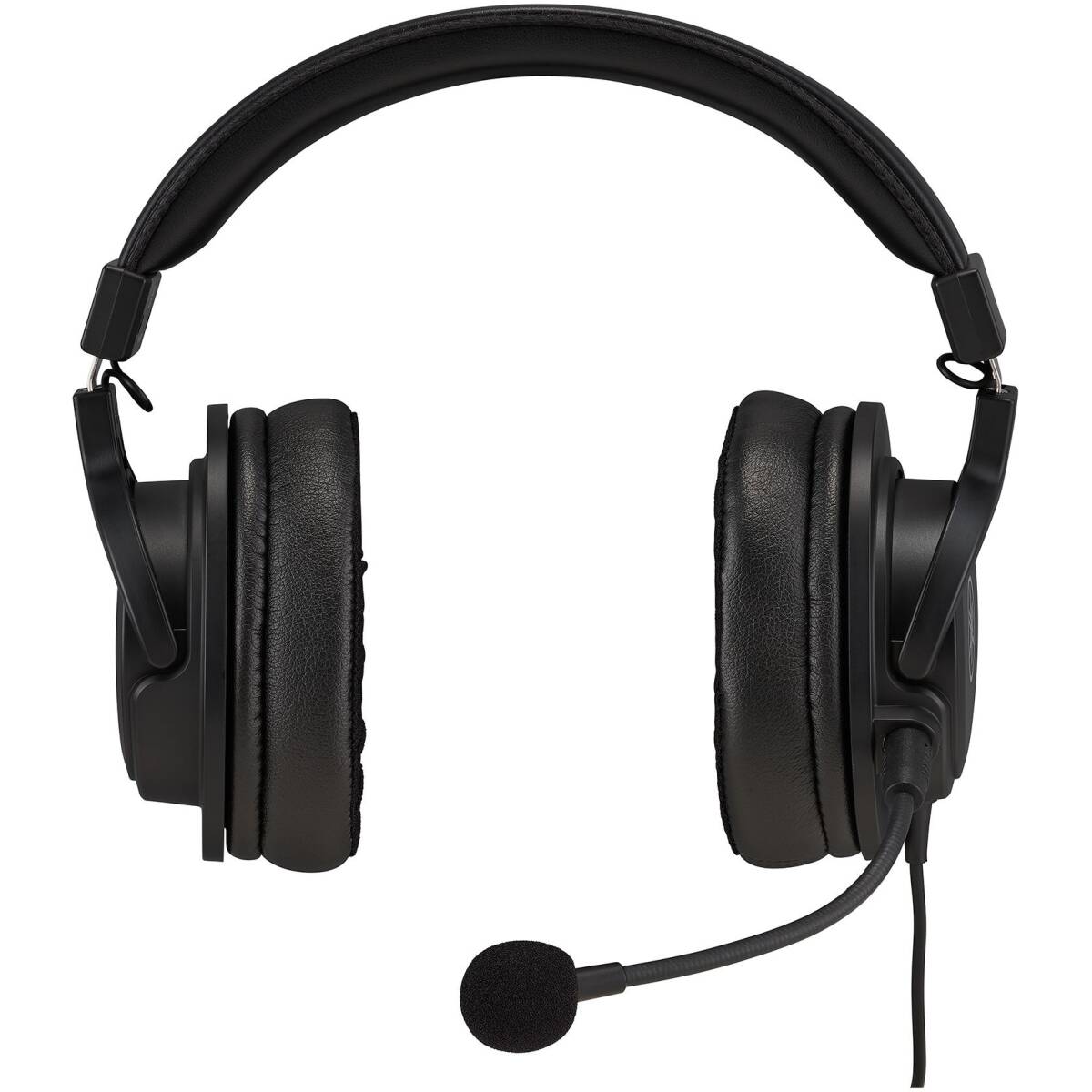

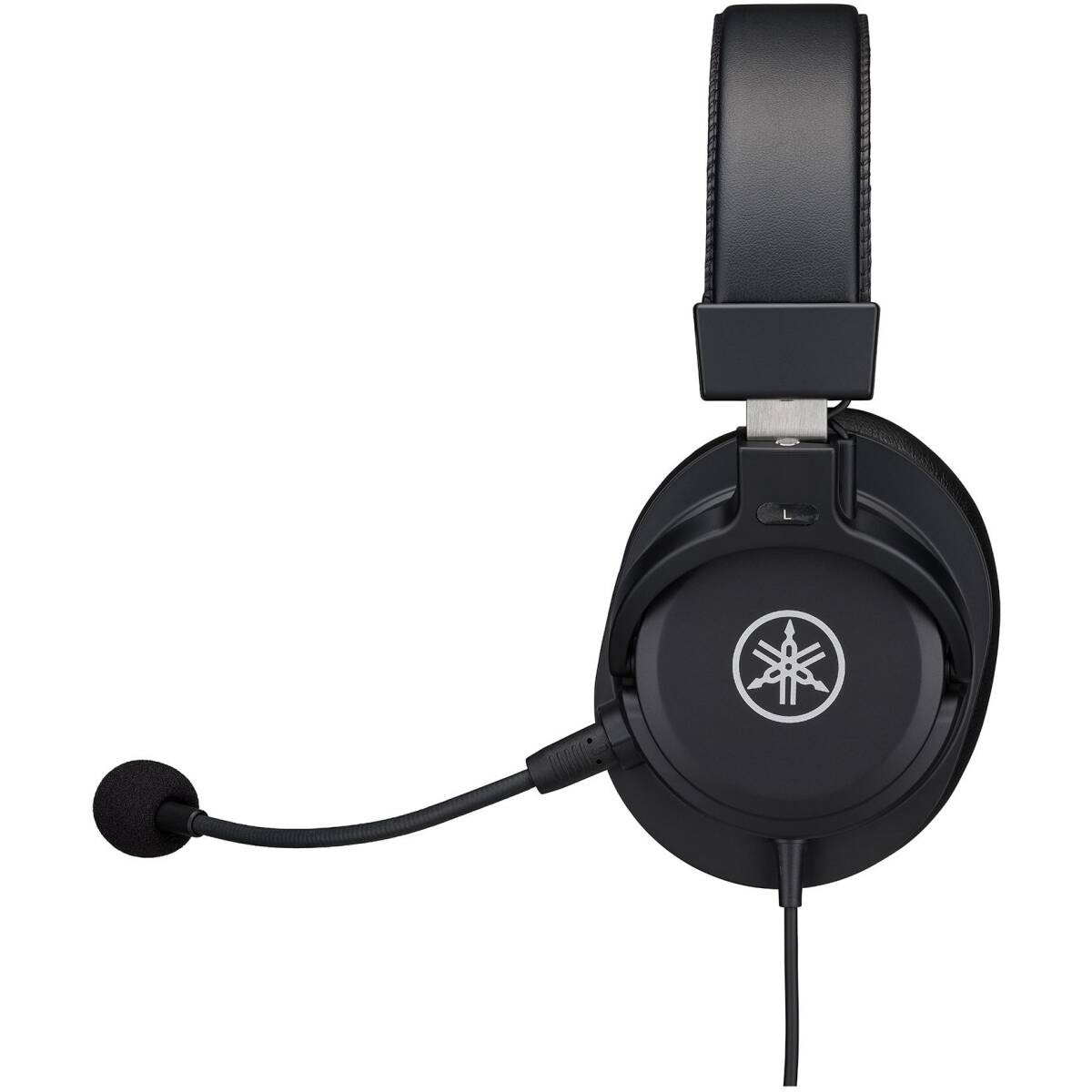

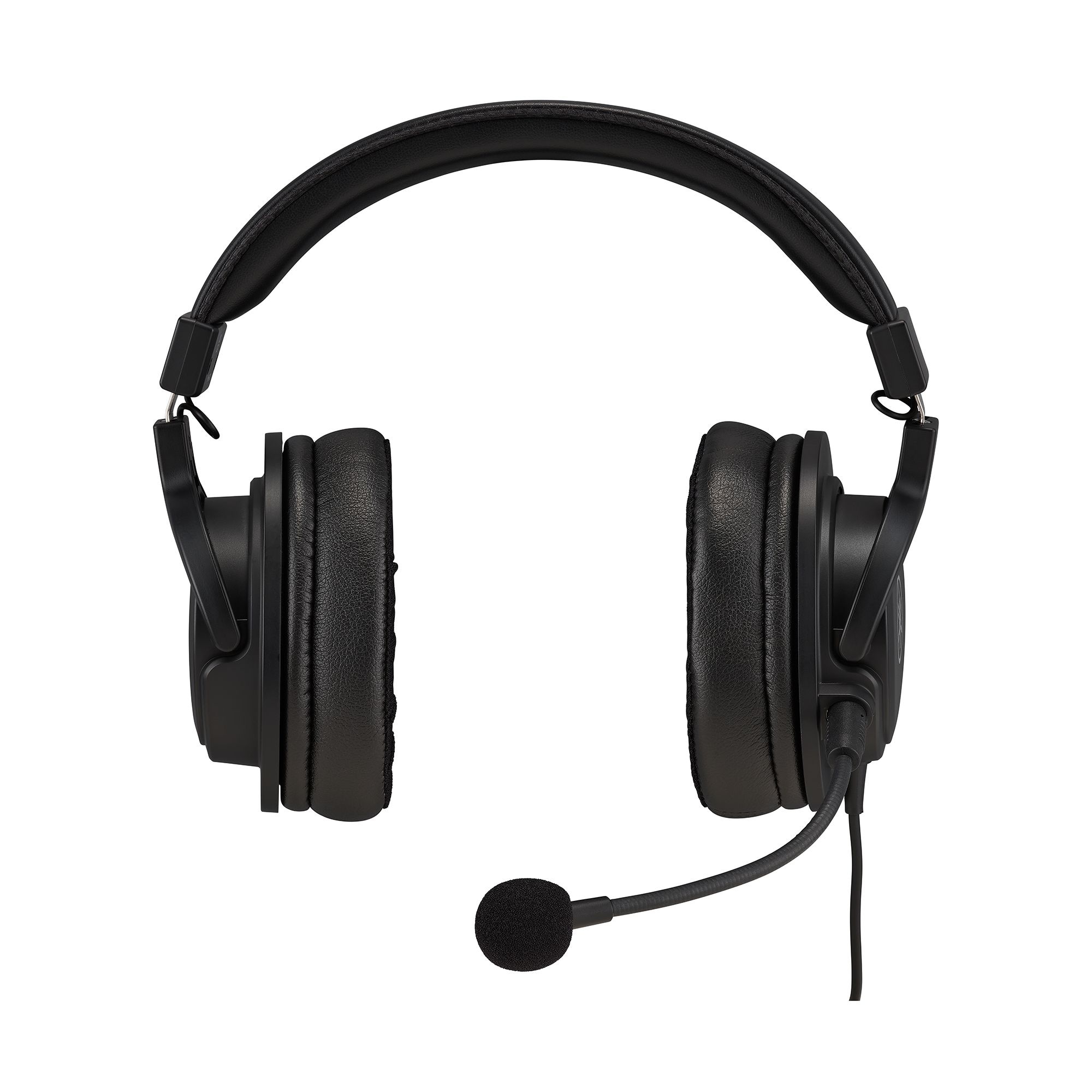

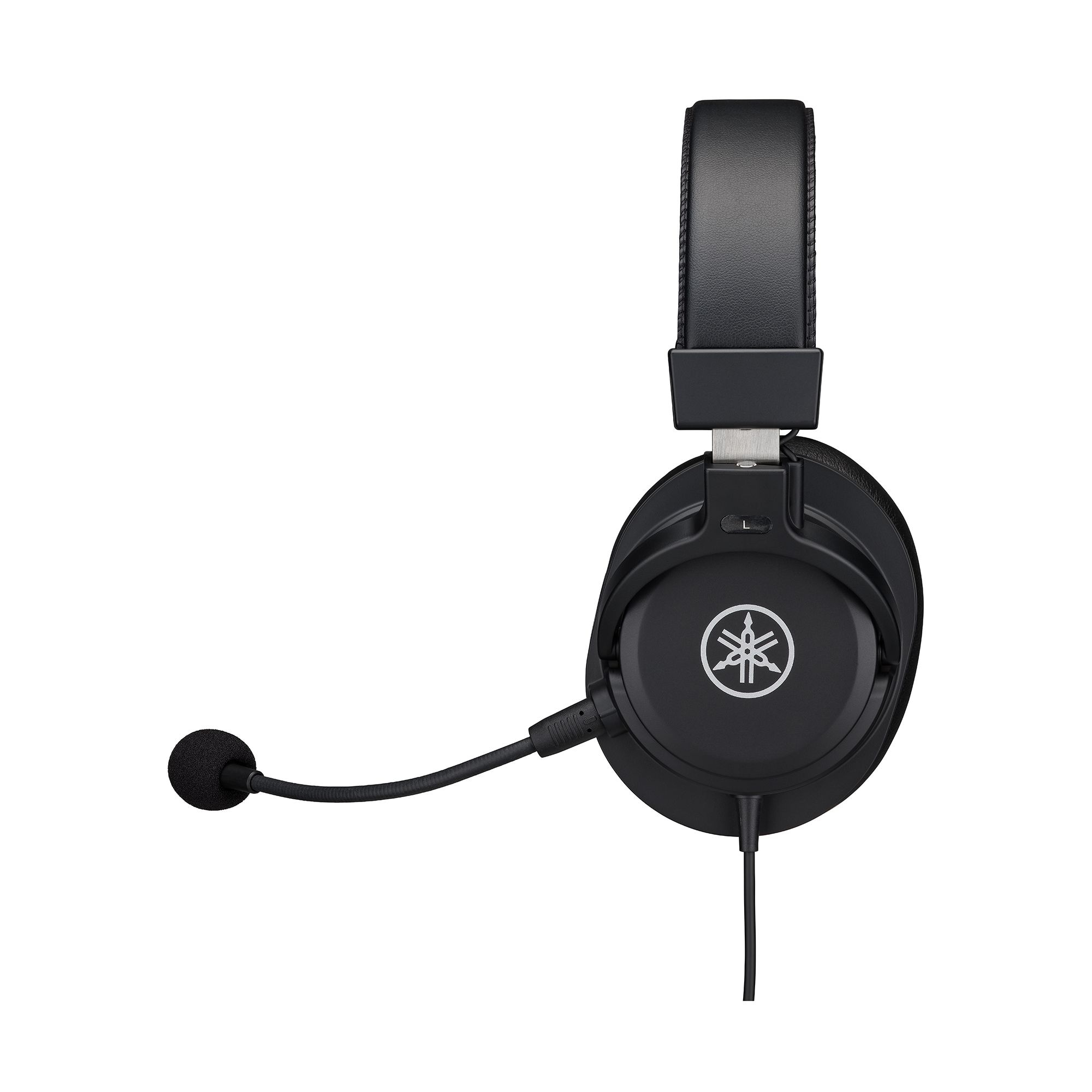

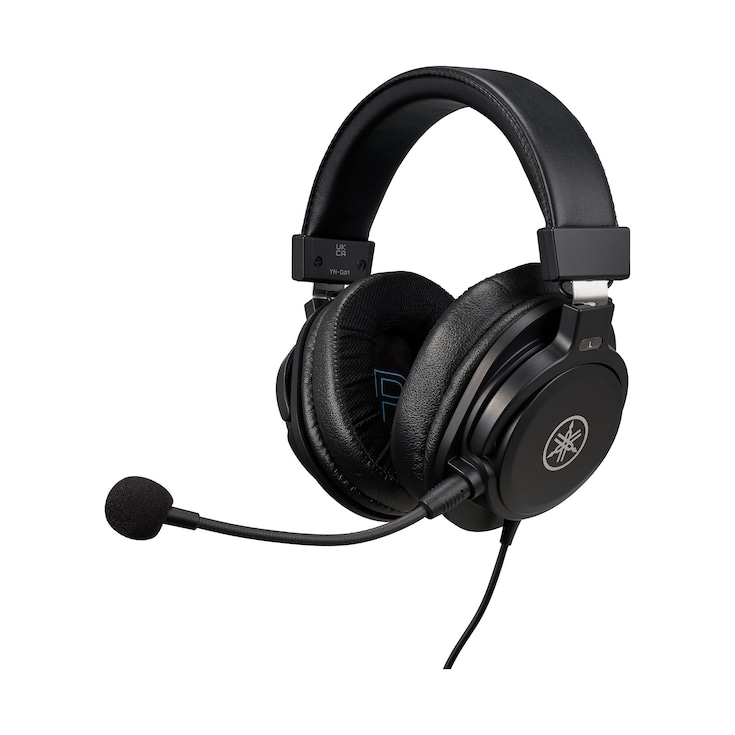

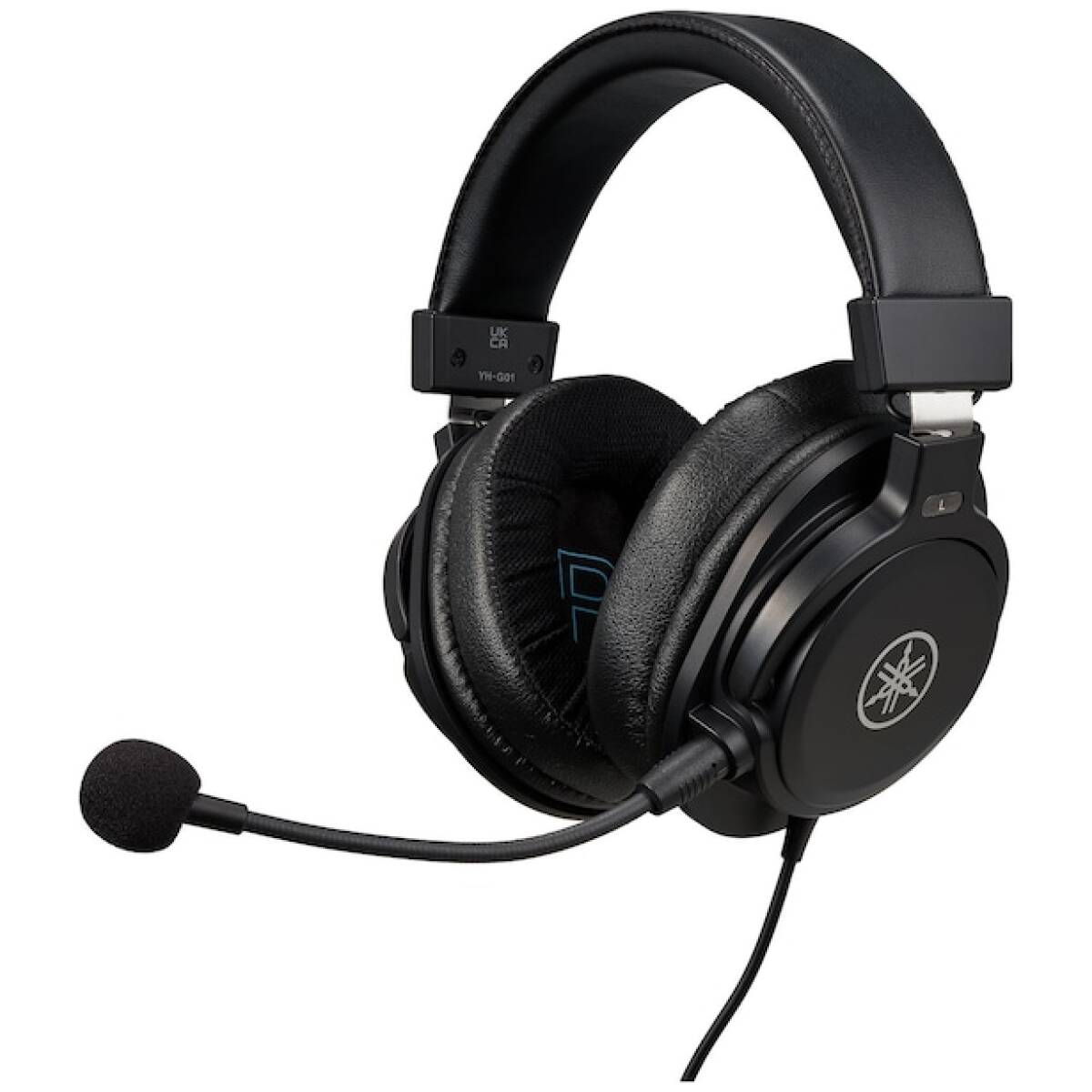

Specifications – YH-G01 Headset

• Frequency Response: 20 Hz – 20 kHz

• Impedance: 35 Ω

• Sensitivity (SPL): 94.4 dB/mW

• Microphone: Electret condenser microphone

• Connector: 1/8″, 4-pole stereo mini (TRRS)

• Cable Length: 2 m (6.6 ft.)

• Weight: 240 g (0.5 lbs, without cable & plug)

• Included Accessories: Microphone ×1, headset audio splitter cable ×1, owner’s manual

Other

• Operating Temperature: 0 to +40 ℃

• HDMI Video Format Support: VGA, 480i/p, 576i/p, 720p, 1080i/p, 4K (various frame rates up to 60 Hz)
