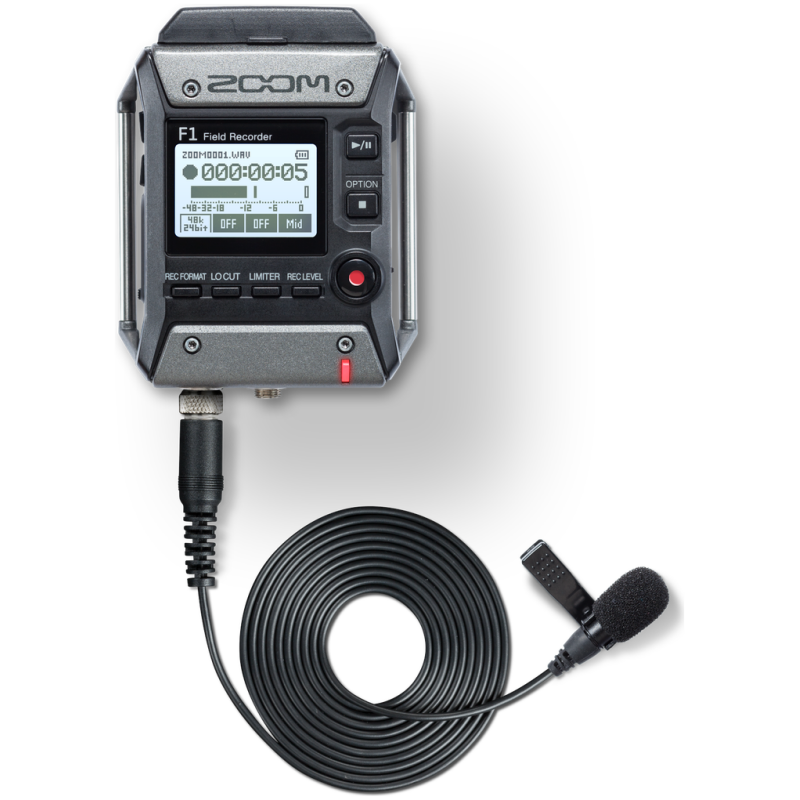

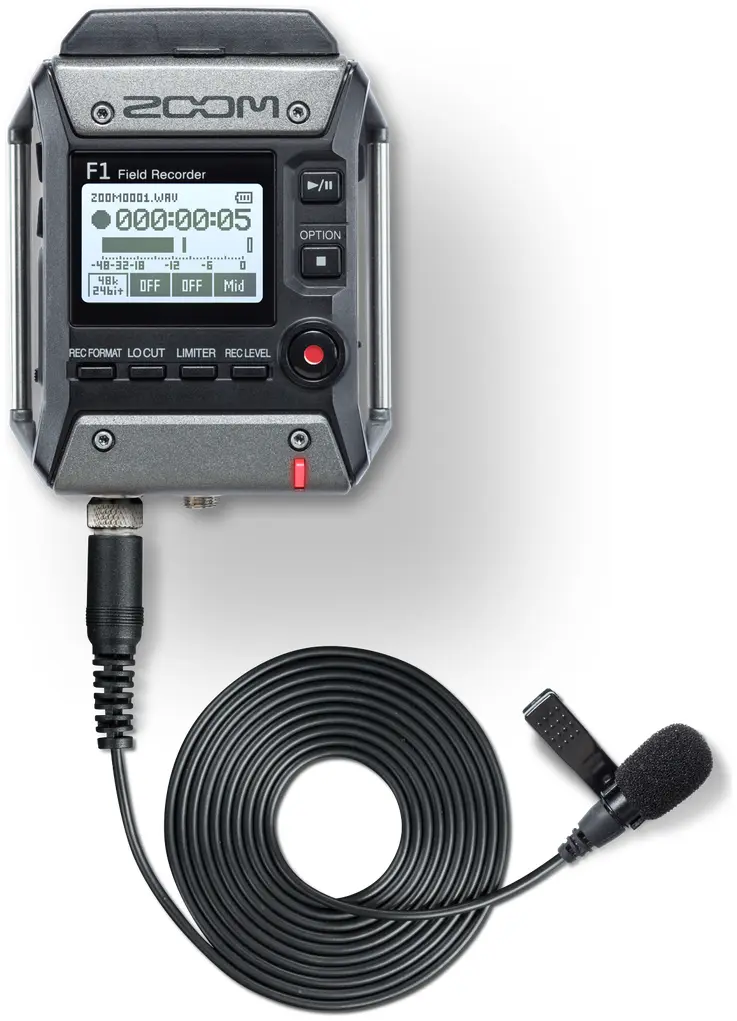

Features of the F1-LP
- Two-channel audio recorder
- Compatible with Zoom microphone capsules
- Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
- One-touch button controls
- 1.25” monochrome LCD display
- Rec Hold function to avoid accidental operation of buttons
- Stereo ⅛” Mic/Line In mini phone jack with Plug-in power (2.5V)
- Stereo ⅛” Phone/Line Output jack with dedicated volume control
- Built in limiter and auto level control to avoid clipping
- Pre-Record function
- Tone generator for calibrating audio levels between the F1 and a DSLR or video camera without the need for an attenuator cable
- Sound marker function that outputs quick tone to make syncing audio and video easy
- Records directly to micro SD and SDHC cards up to 32 GB
- Micro USB port for data exchange to and from computer and use as an audio interface with computer or iOS device
- Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
- Up to 10 hours of operation with alkaline batteries (when using lavalier)
*Camera not included
Specs
| Recording media: | microSD/microSDHC cards |
| (Class 4 or higher, up to 32 GB) | |
| Recording formats: | WAV |
| 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit | |
| MP3 | |
| 48 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps | |
| Mono/stereo ID3v1 tags supported | |
| Display: | 1.25″ monochrome LCD |
INPUTS
| MIC IN : | ZOOM mic capsule input |
| MIC/LINE IN: | Connector: 3.5 mm stereo mini (with screw lock) |
| Supports plug-in power (2.5 V) | |
| Input gain: −12 dB – +36 dB | |
| Input impedance: 2 kΩ or more | |
| Lavalier mic : | Plug: 3.5 mm stereo mini (with screw lock) |
| Directionality: Omnidirectional | |
| Sensitivity: -32 dB/1 Pa at 1kHz | |
| Maximum sound pressure input: 115 dB spl | |
| Cable length: 160 cm |
OUTPUTS
| PHONE OUT : | Connector: 3.5 mm stereo mini (with screw lock) |
| Maximum output level: 11 mW + 11 mW (into 32 Ω load) | |
| USB: | microUSB |
| Mass storage operation: USB 2.0 High Speed | |
| Audio interface operation: USB class compliant | |
| 44.1kHz/16-bit, 48kHz/16-bit, 2-in/2-out | |
| Transfer method: asynchronous |
POWER
| 2 AAA batteries (alkaline, NiMH or lithium) | |
| AC adapter (ZOOM AD-17): DC 5V/1A | |
| Recording time using batteries: | Lavalier mic (48 kHz/24-bit, mono, plug-in power on): |
| Alkaline batteries: about 10 hours | |
| NiMH batteries 750 mAh): about 9 hours | |
| Lithium batteries: about 16 hours | |
| *The above values are approximate. | |
| Dimensions: | 64 mm (W) x 79.8 mm (D) x 33.3 mm (H) |
| Weight: | 120 g (without batteries) |
