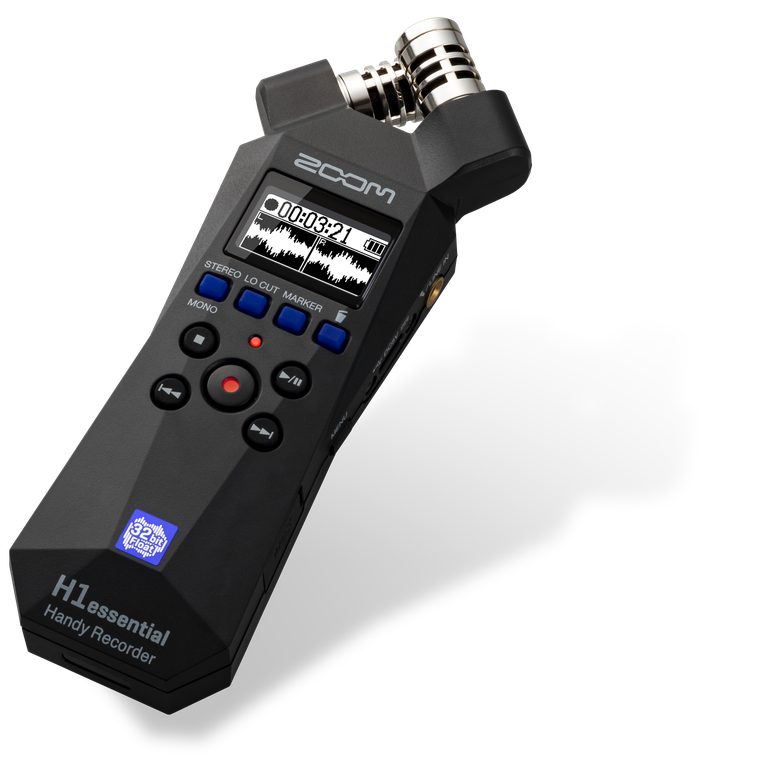

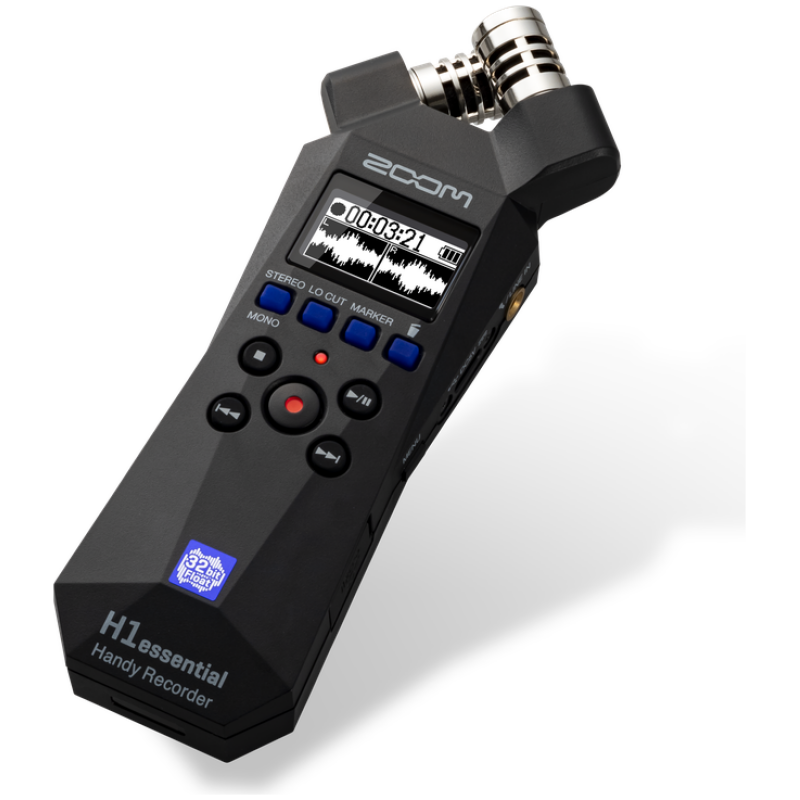

Zoom H1essential 32-Bit Float Stereo Recorder

Features & Specs
32-bit float recording: perfect audio with no need to set gain
120 dB SPL 90º XY Mics
Records up to 96kHZ sample rate
New OLED Display
Overdubbing, auto record, pre-record and timer functions
USB Microphone Function
Audio guidance function for the blind and visually impaired
10 hours of battery life on 2 AAA Batteries or USB-C Bus power
Specs
INPUTS
Built-in mic 90º XY stereo format

Directionality Unidirectional

Sensitivity –37 dB/1 Pa at 1 kHz

Maximum sound pressure input 120 dB SPL
MIC/LINE IN jack Connector Stereo mini jack

Input impedance 2 kΩ or more

Plug-in power 2.5 V

Built-in mic 90º XY stereo format

Directionality Unidirectional
OUTPUTS
PHONE / LINE OUT jack Connector Stereo mini jack

Maximum output level 20 ｍW + 20 ｍW(into 32Ω load)

Output impedance 10 Ω or less
Built-in speaker Type 20 x 30mm oval dynamic speaker

Practical maximum output 250mW

RECORDER
Recording formats WAV

44.1/48/96 kHz、32-bit Float

Stereo / Mono

BWF and iXML formats supported
Recording media 4–32GB cards compatible with the microSDHC specification

64GB–1TB cards compatible with the microSDXC specification

DISPLAY
OLED 128 x 64

USB
Connector USB Type-C

• Use a USB cable that supports data transfer.
USB Mic USB 2.0 High Speed

48 kHz, 24-bit
File transfer USB 2.0 High Speed

POWER
2 AAA batteries Alkaline, Lithium, or Rechargeable NiMH
AC adapter ZOOM AD-17: DC 5 V/1 A

• USB bus power is supported.

ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES
Alkaline batteries About 10 hours
NiMH batteries (800 mAh) About 9 hours
Lithium batteries About 18 hours

Stereo recording, 48kHz/32-bit float, no headphones, Power Save 1min
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.

Power consumption 5 W maximum
Dimensions 53.9 mm (W) × 136.6 mm (D) × 29.0 mm (H)
Weight (including batteries) 92 g

Note: 0 dBu = 0.775 Vrms
