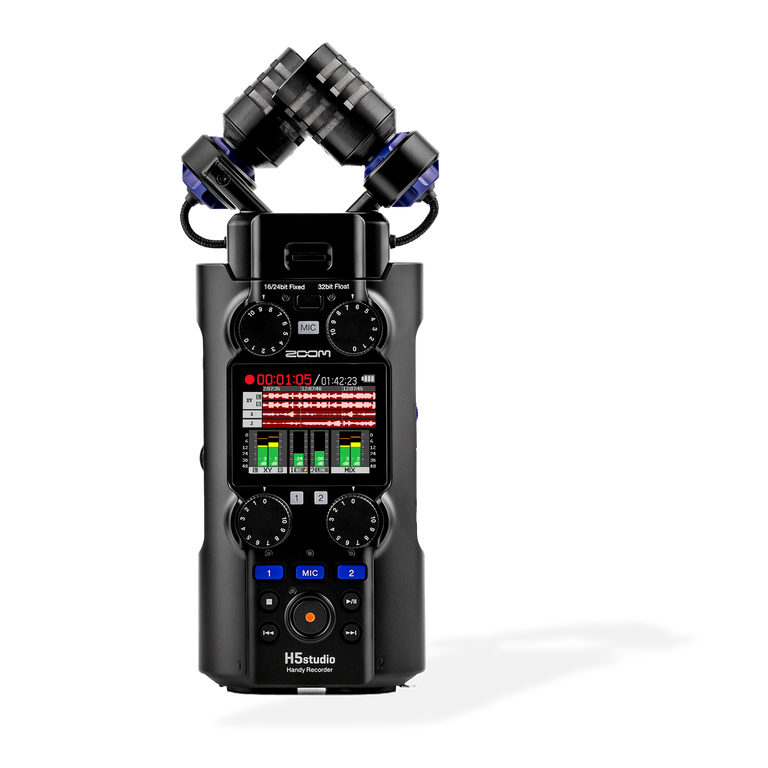

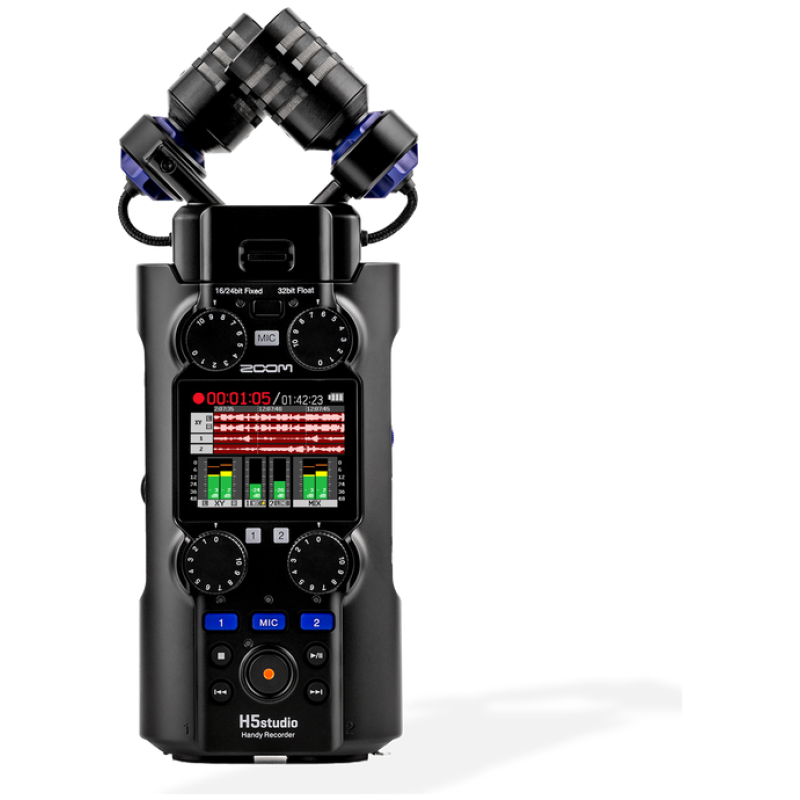

Zoom H5Studio Recorder with Interchangeable Mics

Specs
INPUT AND OUTPUT CHANNELS
Inputs Mic capsule 1

MIC/LINE (mono) 2
Outputs LINE OUT 1

Headphone 1

Built-in speaker (mono) 1

INPUTS
XY mic: XYH-5s 90º XY stereo format

Pickup pattern Unidirectional

Sensitivity –41 dB/Pa at 1 kHz

Maximum sound pressure input 140 dB SPL
MIC/LINE IN: XYH-5s Connector 1 stereo mini jack

Input gain −∞ – +60 dB

Input impedance 2 kΩ or more

Plug-in power 2.5 V
MIC/LINE (mono) Connectors 2 XLR/TRS combo jacks

(XLR：2 HOT TRS：TIP HOT）

Input gain −∞ – +60 dB

Input impedance MIC: 3 kΩ or more

LINE: 3 kΩ or more

Maximum input level MIC: +4 dBu

LINE: +24 dBu

Phantom power +48 V

Equivalent input noise –127 dBu or less (IHF-A) at 150Ω input

OUTPUTS
LINE OUT Connector 1 stereo mini jack

Maximum output level +1 dBu

Output impedance 110 Ω or less
Headphone Connector 1 stereo mini jack

Maximum output level 20 ｍW + 20 ｍW（when 32 Ω load）

Output impedance 10 Ω or less
Built-in speaker Type 20 mm x 30 mm elliptical dynamic speaker

Effective maximum output 250 mW

RECORDER
Maximum simultaneous recording tracks 6
Maximum simultaneous playback tracks 4
Recording formats WAV

44.1/48/96/192 kHz,

16-bit/24-bit/32-bit float

mono/stereo

BWF and iXML formats supported
Recording media microSDHC memory cards

microSDXC memory cards

DISPLAY
2.00″ full-color LCD 320 x 240

USB
Connector
USB Type-C

• Use a USB cable that supports data transfer.
Audio Interface
USB 2.0 High Speed

Input and output channels 4 in / 2 out (Multi)

2 in / 2 out (Stereo)

Sampling frequencies 44.1/48/96 kHz (audio interface only)

44.1/48 kHz (audio interface + onboard recording)

Bit depths 24-bit, 32-bit float
File transfer
USB 2.0 High Speed

REMOTE
Dedicated wireless adapter ZOOM BTA-1

POWER
4 AA batteries Alkaline, lithium or rechargeable NiMH batteries
AC Adapter ZOOM AD-17 (DC 5 V/1 A)

• USB bus power is supported.

ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track (XYH-5s) recording
Alkaline batteries About 15 hours
NiMH batteries (1900 mAh) About 13 hours
Lithium batteries About 21 hours

48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 4-track (XYH-5s and inputs 1–2) recording
Alkaline batteries About 6 hours
NiMH batteries (1900 mAh) About 6 hours
Lithium batteries About 11.5 hours

48 kHz/32-bit float with phantom power off, headphones used (33Ω load), no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.

Power consumption 5 W maximum
Dimensions 86.0 mm (W) × 206.0 mm (D) × 54.6 mm (H)
Weight 410 g (including batteries)

Note: 0 dBu = 0.775 Vrms
