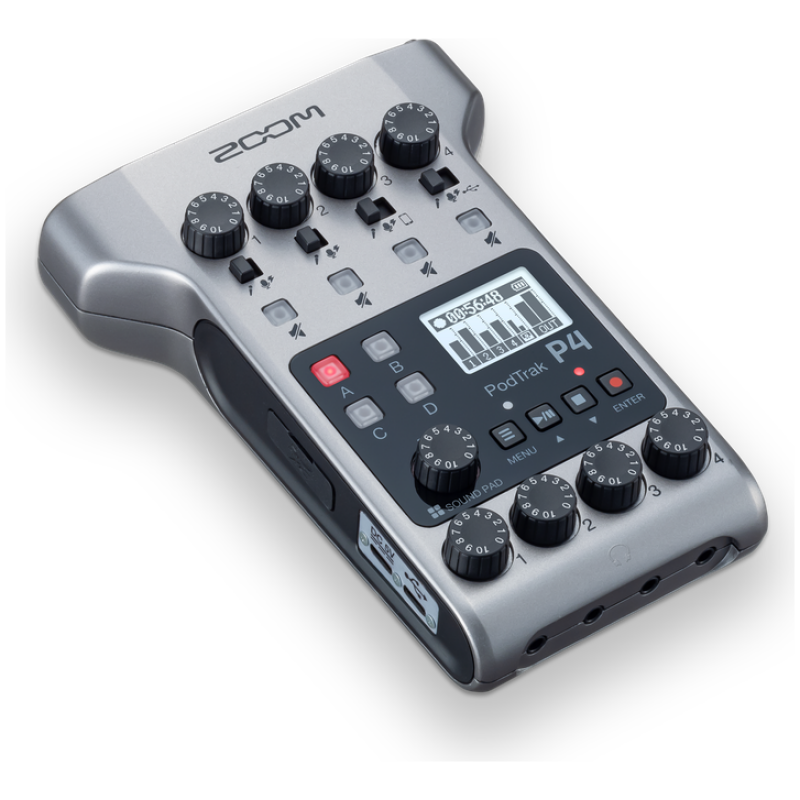

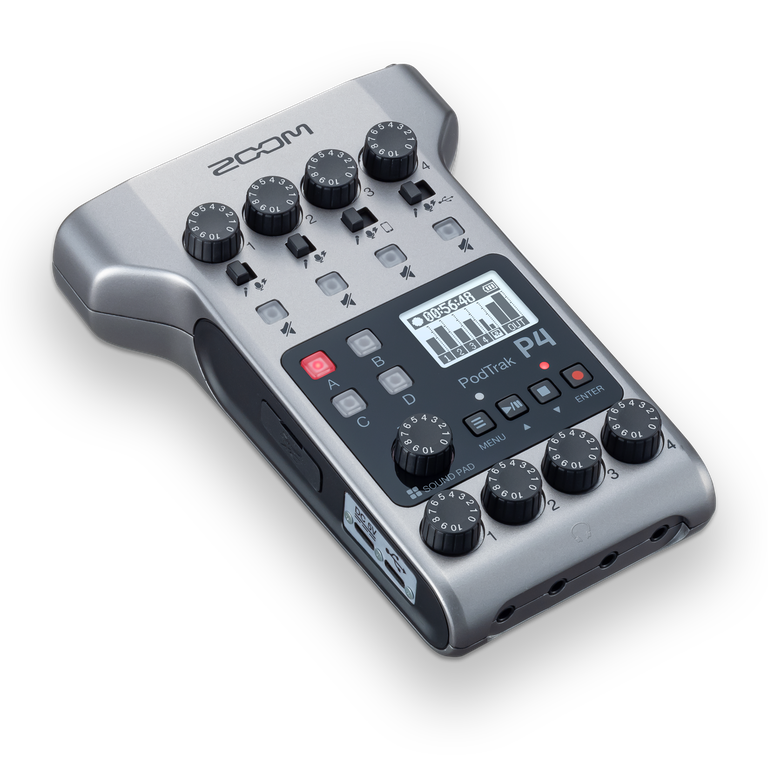

PodTrak P4 Features
- Four mic inputs with XLR connectors
- Four headphone outputs with individual volume control
- Gain control knobs and mute buttons for each input
- Phantom power for all XLR inputs
- Automatically prevent feedback from call audio using the Mix-Minus function
- Easily connect your phone using the TRRS connection
- Trigger sound effects using four assignable Sound Pads with 11preset sounds
- All input sources can be recorded on separate tracks
- 16-bit /44.1kHz audio WAV
- Records directly to SD, SDHC and SDXC cards up to 1 TB
- 2-input, 2-output USB audio interface
- Class-compliant mode for iOS compatibility
- Up to 3 hours of use with just two AA batteries or a USB power supply
-
XLR Inputs
-
Input Gain Controls
-
Phantom Power Switches / TRRS Input Switch / USB Audio Switch
-
Mute Buttons
-
Sound Pads & Sound Pad Volumn Control
-
Transport Controls
-
Headphone Volumn Controls
-
Headphone Inputs
-
TRRS Input / BTA-2 Input
-
Power Button
-
SD Card Slot
-
USB Power DC 5V / USB Port
Specs
INPUTS & OUTPUTS
| Number of input channels | 4 (mono/stereo) |
| Number of output channels | 1 (headphone x 4) |
CONNECTORS
| MIC | XLR jacks (2: HOT) |
| Smartphone connection jack | TRRS mini jack (4 contacts, TIP: L, RING1: R,RING2: GND, SLEEVE: MIC) |
| USB | USB Type-C (audio interface and mass storage functions) |
| Note: Use a USB cable that supports data transfer. USB bus power is supported. | |
| DC 5 V | USB Type-C (for power supply) |
| Headphones | 3.5 mm stereo mini |
PHANTOM POWER
| Phantom power | +48 V |
RECORDER
| Recorder | Formats: WAV 44.1 kHz, 16-bit, mono/stereo |
| Recording media: 4 GB − 32 GB SDHC-compliant cards (Class 10 or higher); | |
| 64 GB − 1 TB SDXC-compliant cards (Class 10 or higher) |
AUDIO INTERFACE
| Audio interface | 44.1 kHz, 16-bit, 2-in/2-out |
POWER
| Power | 2 AA batteries (alkaline, NiMH or lithium) |
| • We recommend using NiMH | |
| AC adapter (ZOOM AD-17): DC 5 V/1 A (USB bus power is supported.) | |
| Est. continuous operation time using batteries | Recording 44.1 kHz/16-bit/4ch audio to SD card (when 48 V is OFF and headphone impedance is 63 Ω) |
| Alkaline batteries: about 3 hours | |
| NiMH batteries (1900 mAh): about 3.5 hours | |
| Lithium batteries: about 8 hours | |
| • The above values are approximate. | |
| • Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. |
MISC.
| External dimensions | 112 mm (W) x 155 mm (D) x 47 mm (H) |
| Weight (unit only) | 290 g |
