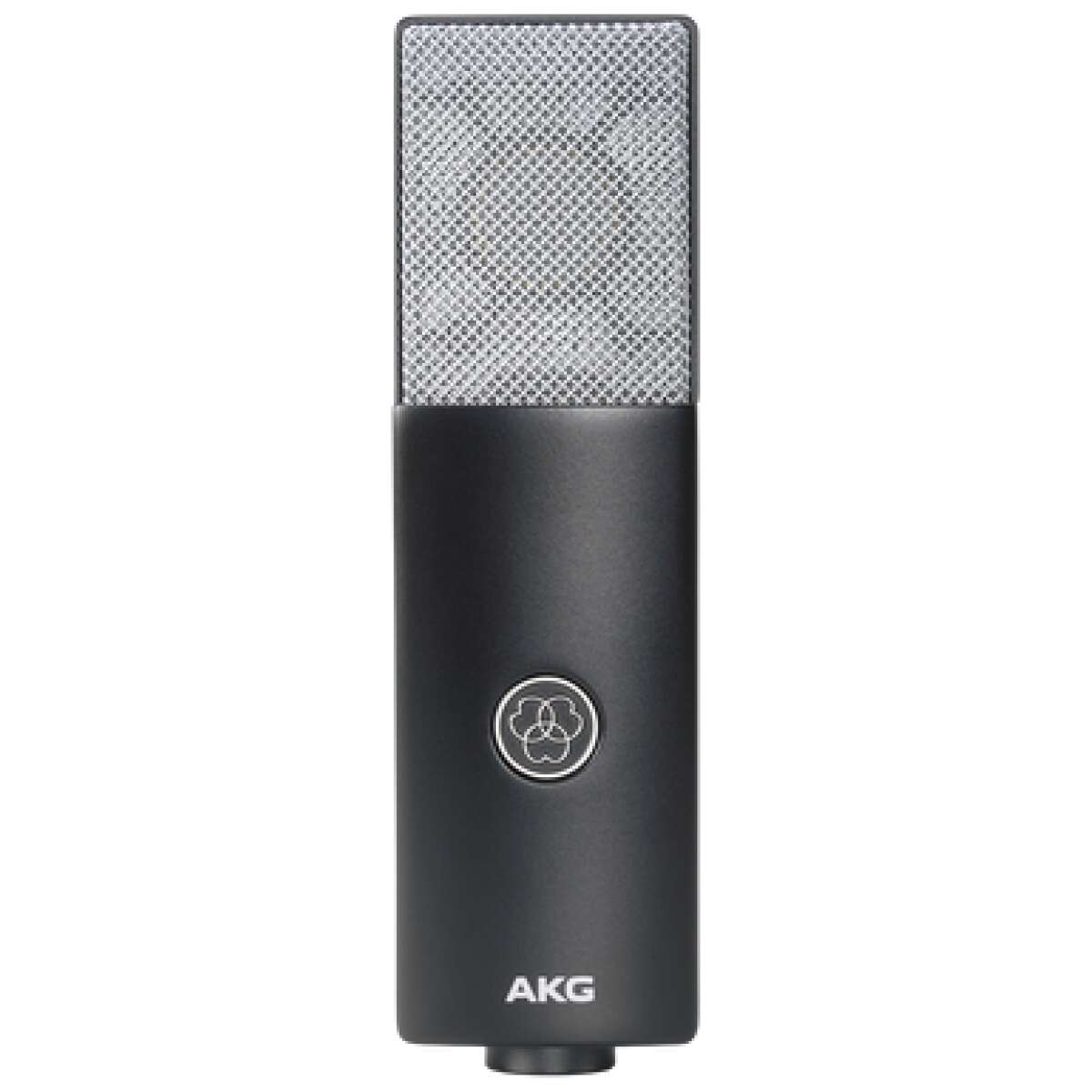

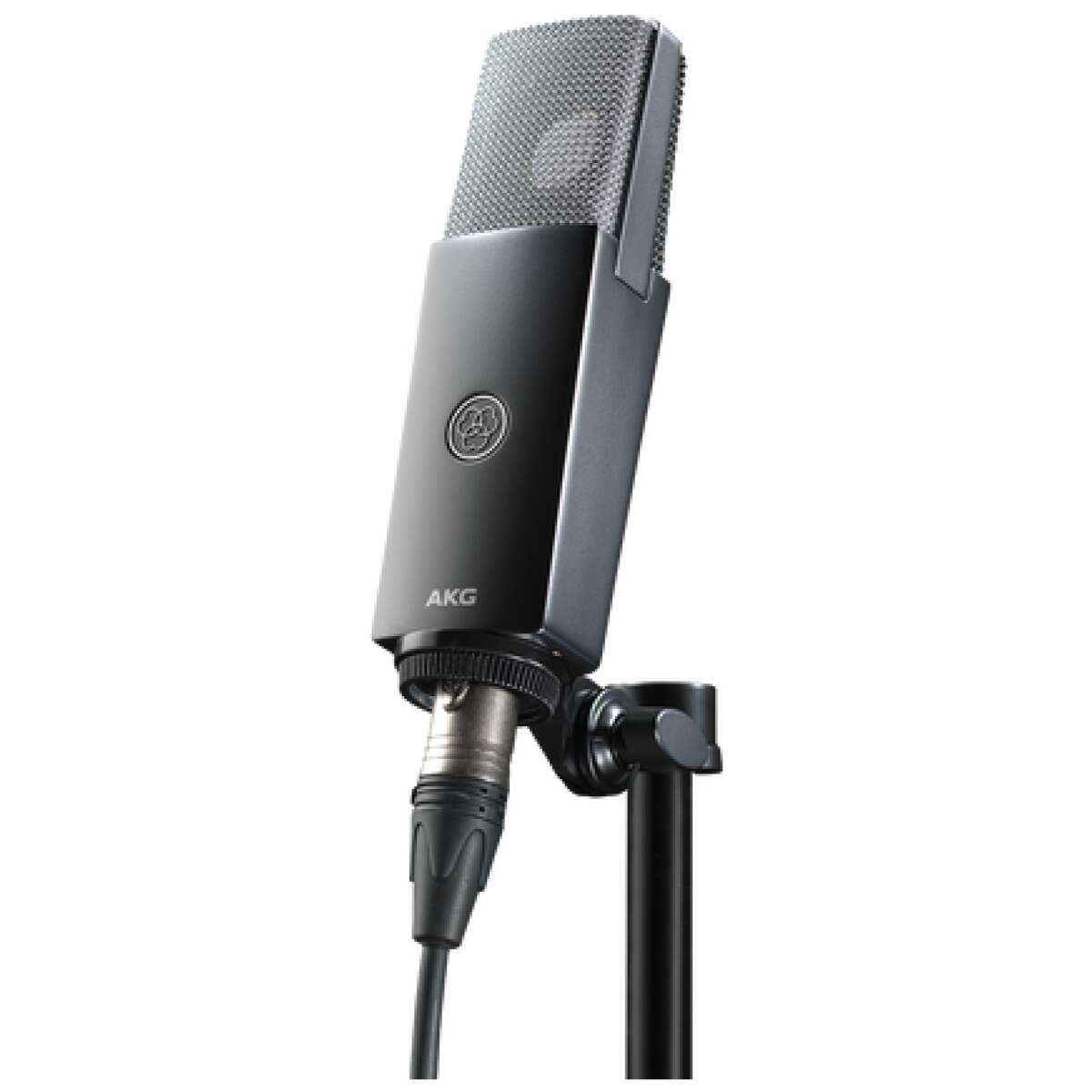

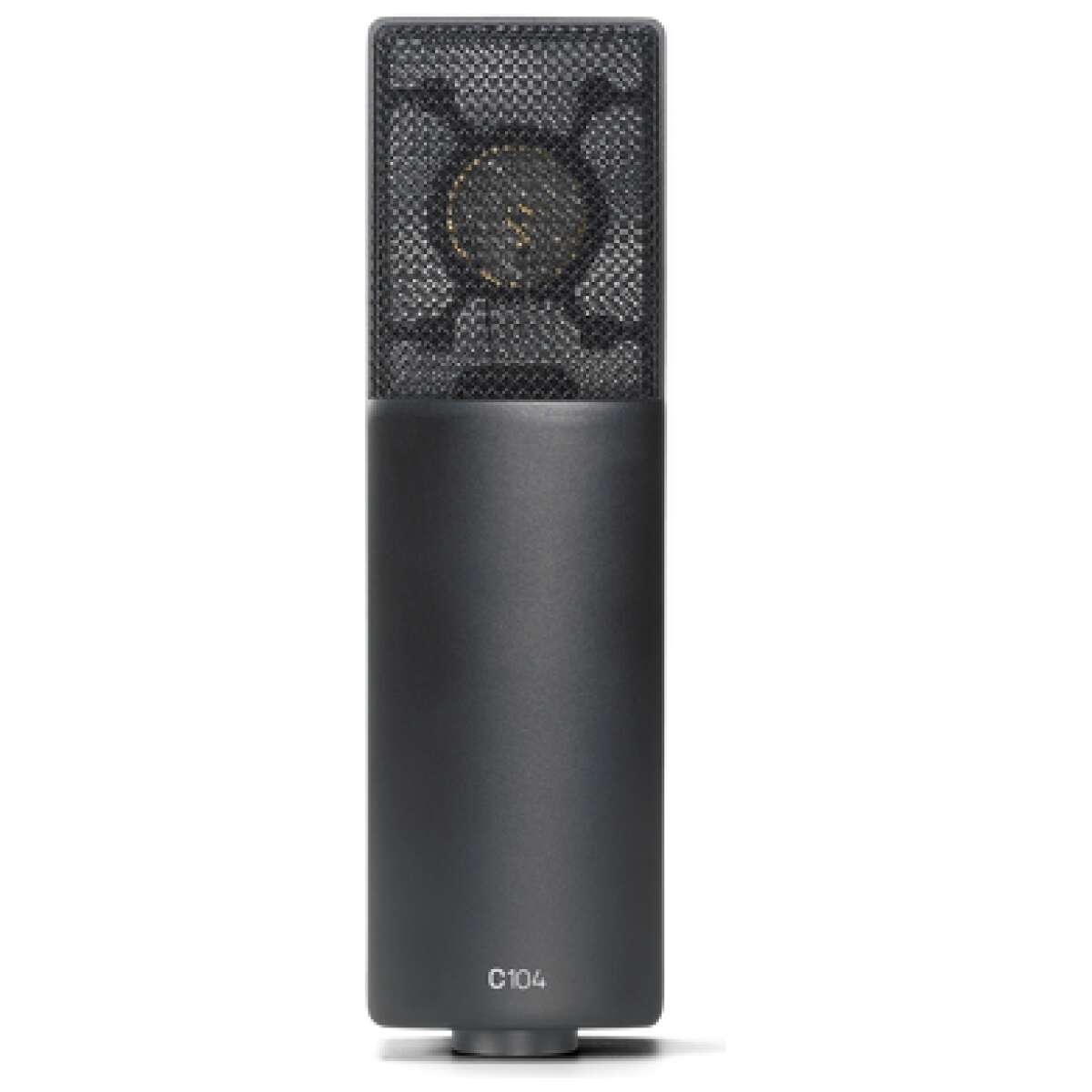

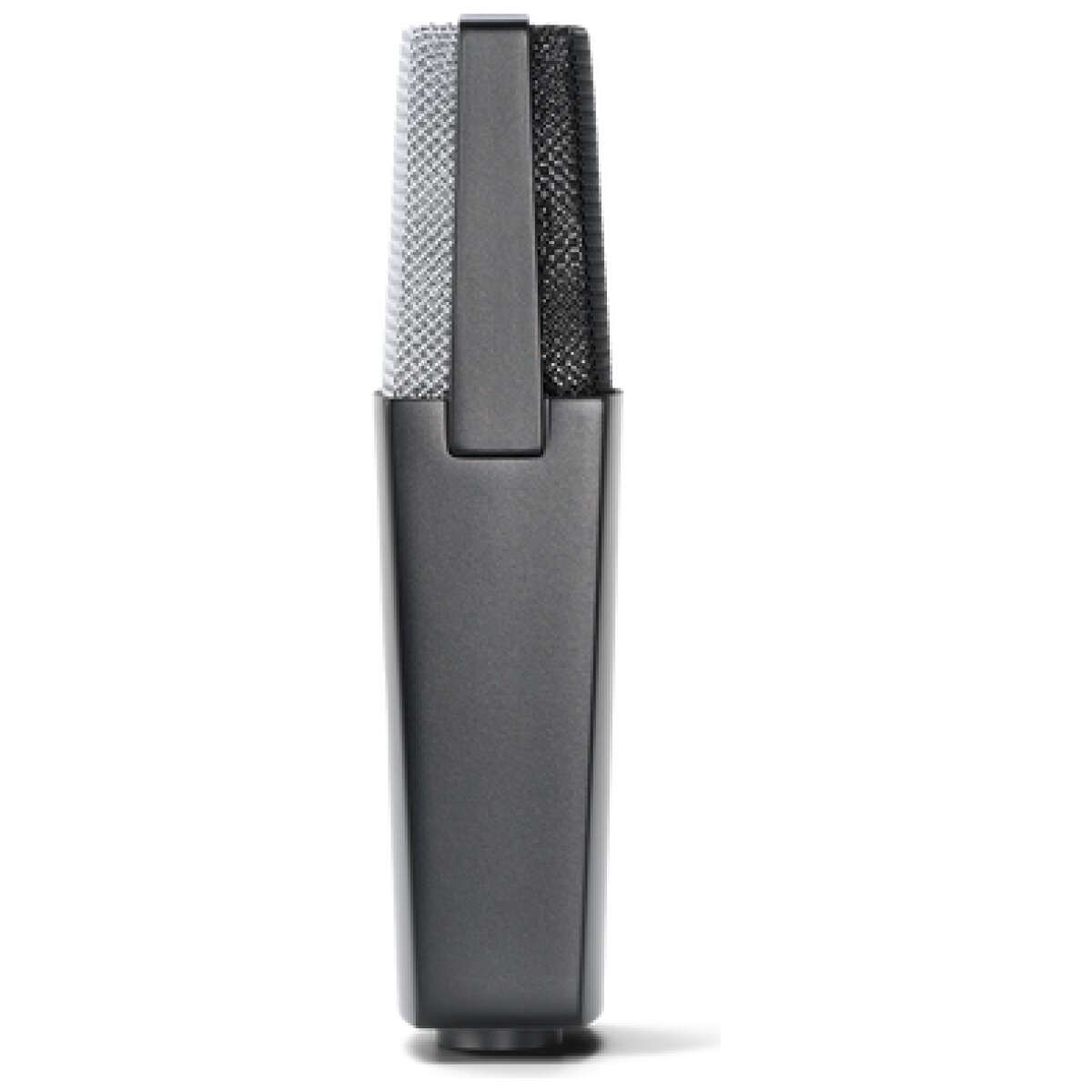

AKG C104 Large-Diaphragm Cardioid Condenser Microphone

The AKG C104 is a professional cardioid condenser microphone designed for musicians, podcasters, streamers, YouTubers, broadcasters and content creators. It captures vocals, speech and instruments with excellent clarity, low noise and a wide dynamic range.

Its precision 22 mm electret condenser capsule delivers a detailed and natural sound across the full 20 Hz to 20 kHz frequency range. The cardioid polar pattern focuses on sound directly in front of the microphone while reducing unwanted sound from the sides and rear.

An optimised transformerless FET circuit provides a low self-noise level of only 14 dB(A), making the C104 suitable for quiet vocal recordings, podcasts and acoustic instruments. With a maximum sound pressure level of 143 dB, it can also handle louder sources such as drums, brass instruments and guitar amplifiers.

The microphone operates using standard 48V phantom power and connects through a professional 3-pin XLR output. Its modern body is manufactured using 100% recycled post-industrial recycled metals and alloys, combining dependable performance with a more environmentally responsible design.

Key Features

• Professional cardioid condenser microphone
• 22 mm electret condenser diaphragm
• Full 20 Hz to 20 kHz frequency response
• Low 14 dB(A) self-noise level
• High maximum SPL of 143 dB
• Transformerless FET circuitry
• Clear and detailed vocal reproduction
• Suitable for speech, instruments and ambient recording
• Professional 3-pin XLR connection
• Requires 48V phantom power
• Body manufactured from 100% recycled PIR metals and alloys
• Suitable for studio, broadcast and content-creation applications

Specifications

• Brand: AKG
• Model: C104
• Microphone Type: Condenser
• Capsule Type: 22 mm electret condenser diaphragm
• Polar Pattern: Cardioid
• Frequency Response: 20 Hz – 20 kHz
• Sensitivity: 13.5 mV/Pa, -37.5 dBV
• Electrical Impedance: 200Ω or less
• Recommended Load Impedance: 1000Ω or greater
• Self-Noise Level: 14 dB(A) SPL
• Signal-to-Noise Ratio: 80 dB referenced to 1 Pa
• Maximum SPL: 143 dB SPL at 0.5% THD
• Phantom Power: 48V ±4V, IEC 61938
• Current Consumption: 5 mA or less
• Connector: 3-pin XLR, pin 2 hot
• Operating Temperature: -5°C to 50°C
• Length: 15.8 cm
• Width: 4.7 cm
• Height: 3.5 cm
• Net Weight: 0.375 kg
• Wired or Wireless: Wired
