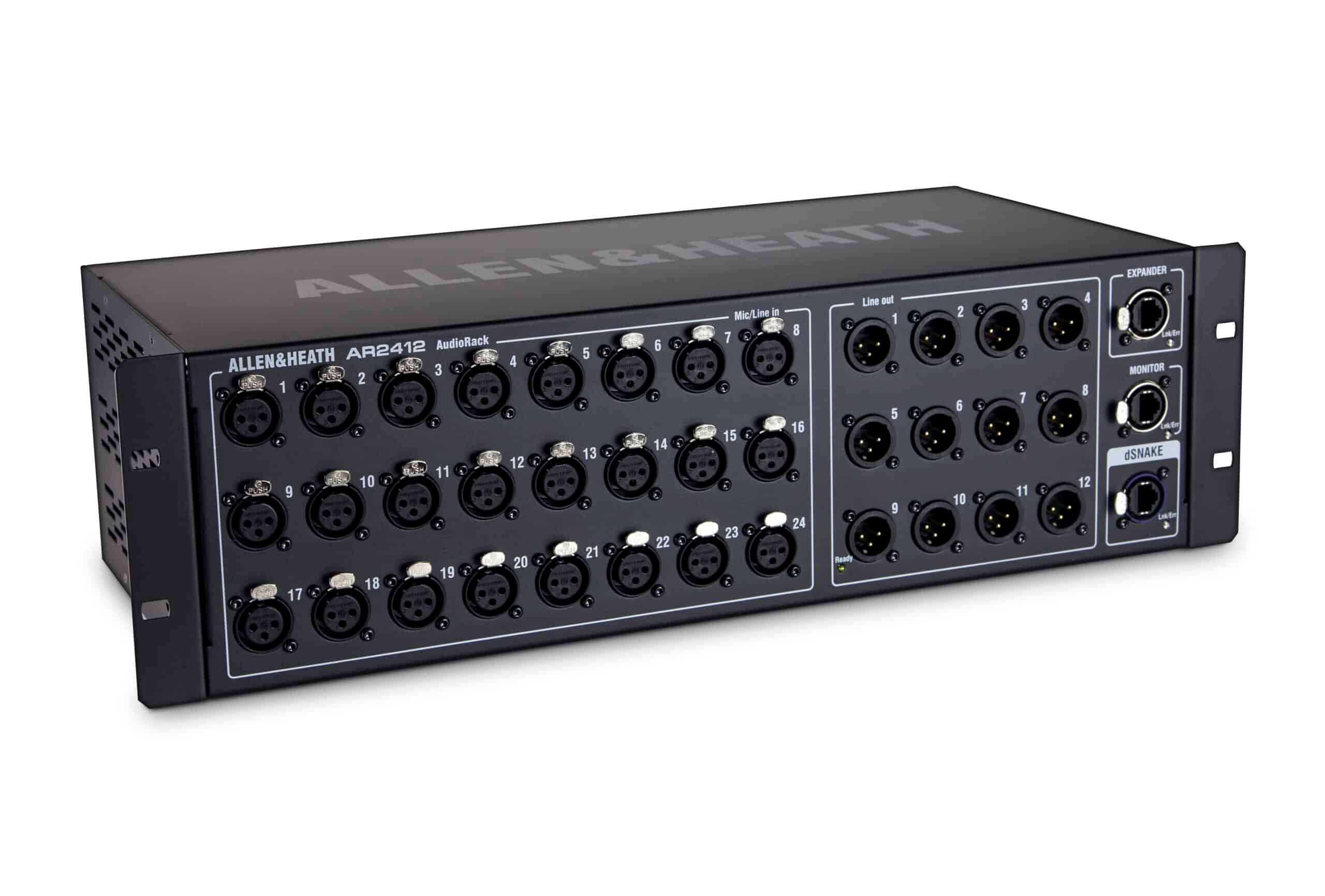

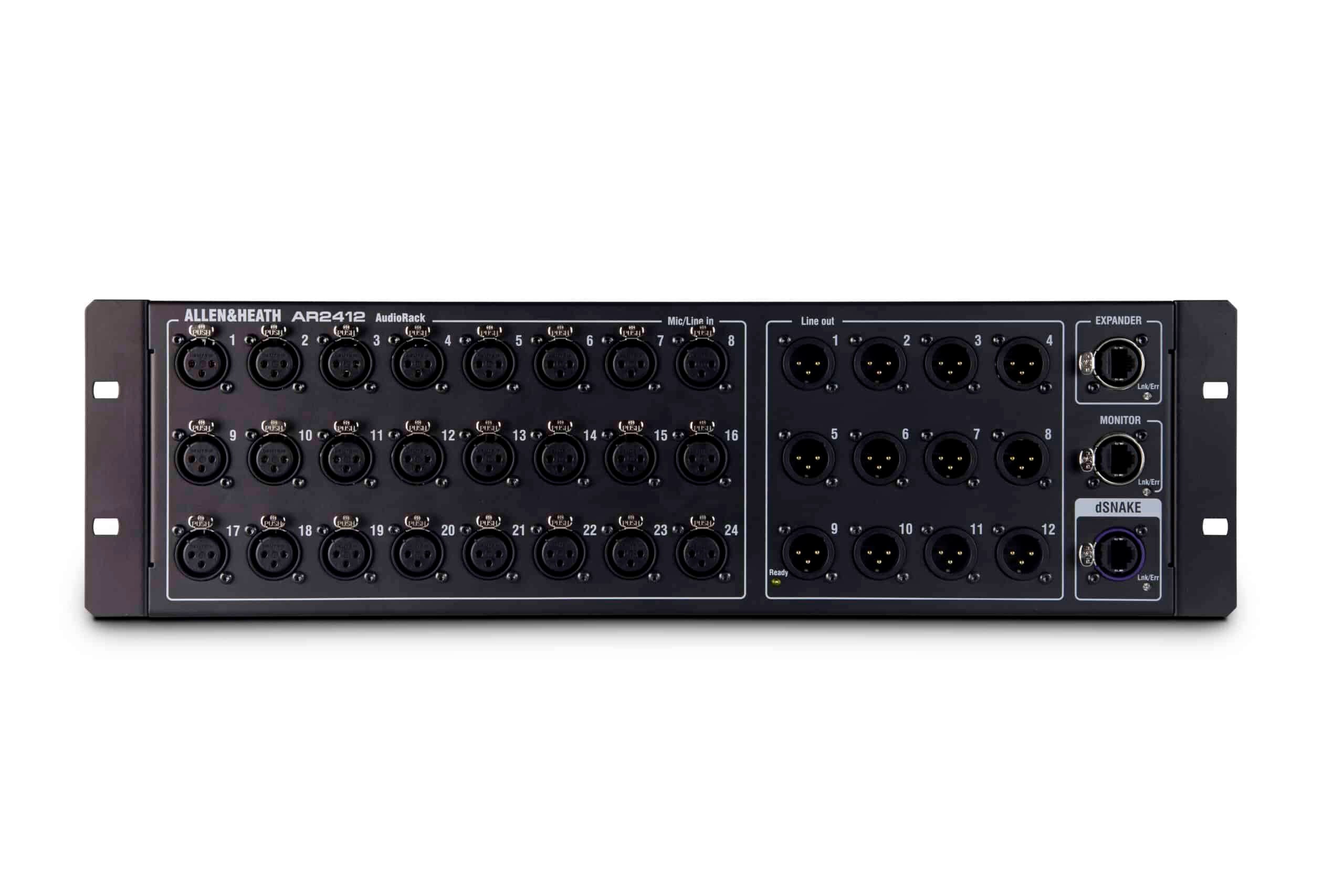

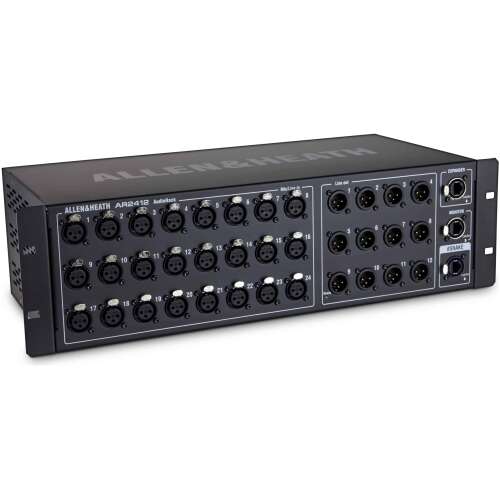

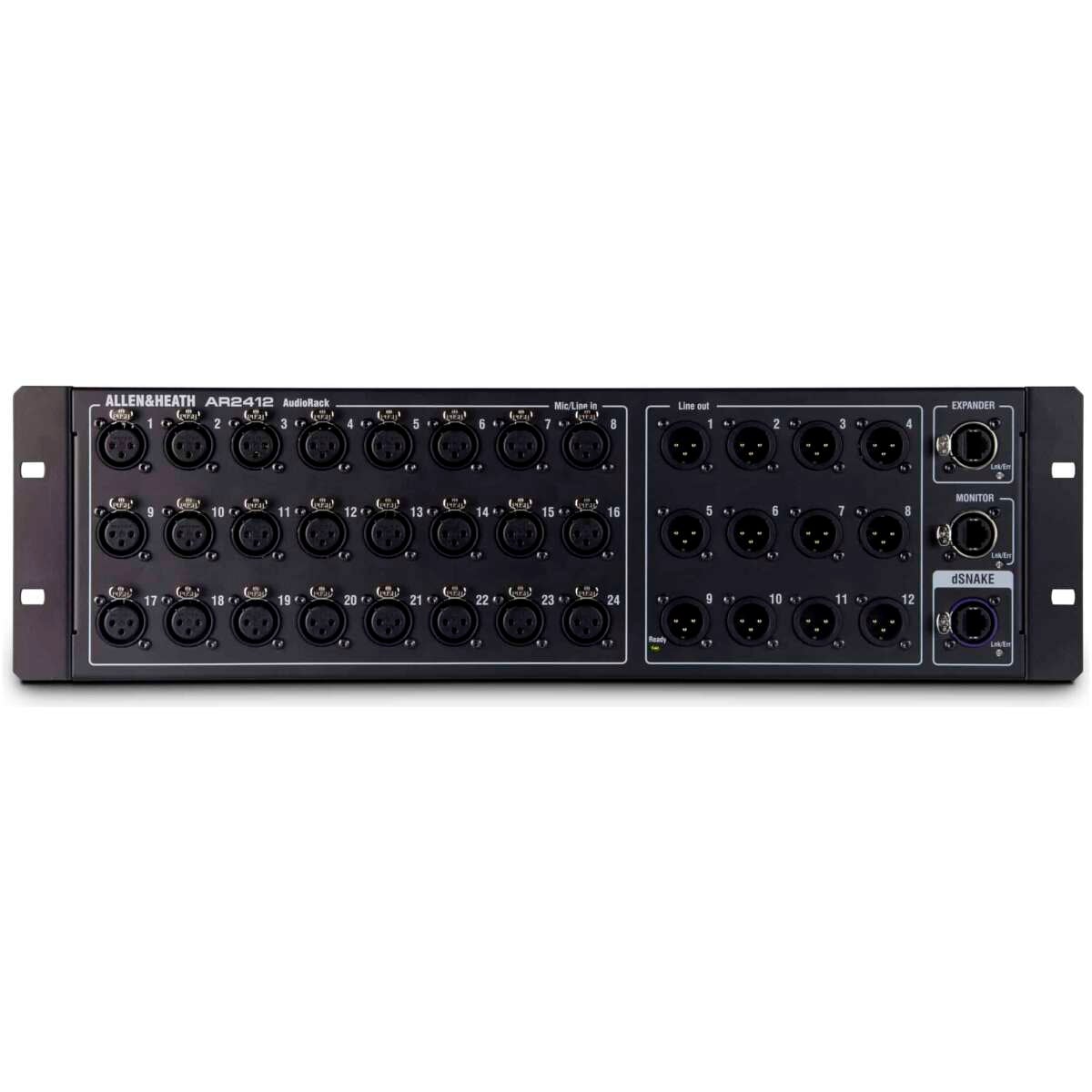

The Allen & Heath AR2412 is a professional 24-input and 12-output remote audio rack designed for Allen & Heath digital mixing systems. It provides a reliable stagebox solution for live sound, churches, venues, studios, conference setups, and professional AV installations.

The AR2412 allows you to place your inputs and outputs closer to the stage while connecting back to the mixer using a single Cat5e cable. This helps reduce long analogue cable runs, keeps the setup cleaner, and makes live sound systems easier to manage.

Features

24 XLR mic/line inputs
12 balanced XLR line outputs
Remote-controlled mic preamps
Connects to the mixer using Allen & Heath dSNAKE
Single Cat5e cable connection for audio and control
Suitable for Allen & Heath Qu and GLD digital mixers
Also compatible with selected SQ, Avantis, and AHM systems
Dedicated Expander port for adding an AR84 or AB168
Dedicated Monitor port for Allen & Heath ME personal monitoring systems
19-inch rackmount design
3U rack height
Ideal for stage, venue, church, studio, and live event use

Specifications

Product Type: Digital Audio Rack / Stagebox
Brand: Allen & Heath
Model: AR2412
Inputs: 24 × XLR Mic/Line Inputs
Outputs: 12 × XLR Line Outputs
Sample Rate: 48kHz
Connection Protocol: dSNAKE
Cable Type: Cat5e STP or higher
Maximum Cable Length: Up to 100 m
Rack Size: 19-inch
Rack Height: 3U
Power Supply: Built-in power supply
Power Requirement: 100–240V AC, 50/60Hz
Power Consumption: 70W max
Dimensions: 48.3 cm × 22 cm × 13.7 cm
Weight: 5 kg
