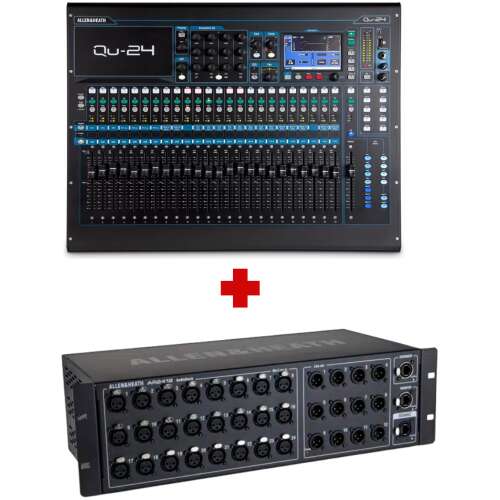

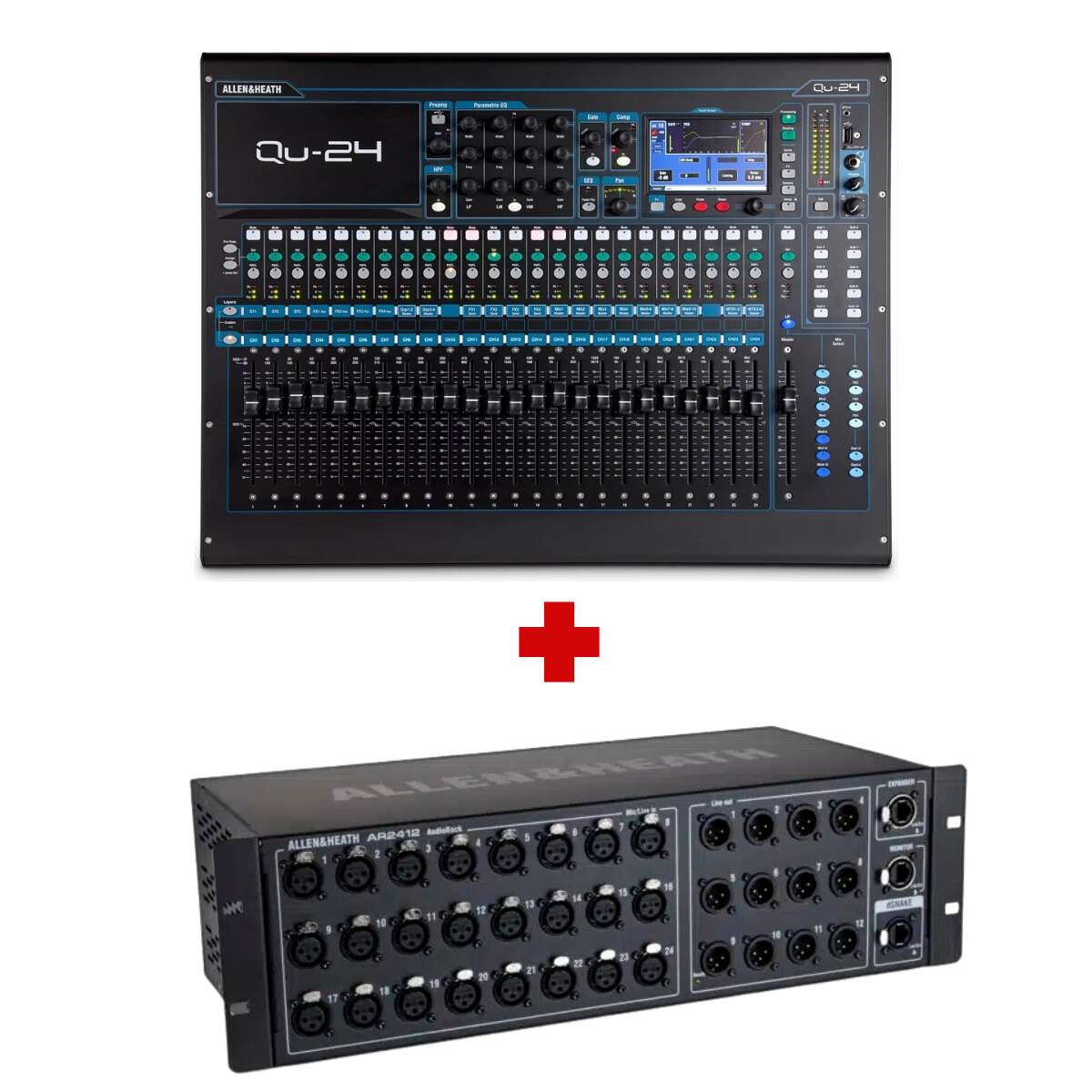

Allen & Heath Qu-24C Digital Mixer And GLD AR2412 Audio Rack Bundle

The Allen & Heath Qu-24C with AR2412 Audio Rack is a professional digital mixing system designed for live sound, churches, venues, studios, event production, and AV installations. This bundle combines the power of the Qu-24C digital mixer with the flexibility of the AR2412 stagebox, allowing you to run audio inputs and outputs from the stage using a single Cat5e cable.

The Qu-24C provides hands-on digital mixing control with motorised faders, touchscreen operation, built-in effects, scene recall, USB recording, and remote audio support. The AR2412 adds 24 remote XLR inputs and 12 XLR outputs, making it ideal for clean stage setups and professional live sound systems.

Features

Includes Allen & Heath Qu-24C digital mixer
Includes Allen & Heath AR2412 24×12 Audio Rack
24 mono mic/line input channels on the mixer
3 stereo input channels
25 motorised faders
5-inch colour touchscreen
20 mix outputs
4 stereo FX engines
4 DCA groups
4 mute groups
10 soft keys
Automatic Mic Mixing
Built-in Qu-Drive stereo and multitrack recording
USB audio streaming for Mac and Windows
dSNAKE connection for remote audio
Scene recall and user permissions
Fanless design for quiet operation
Professional live sound and installation system

AR2412 Audio Rack Features

24 XLR mic/line inputs
12 balanced XLR line outputs
48kHz operation
Remote-controlled mic preamps
Connects to the Qu-24C using dSNAKE
Single Cat5e cable connection
Can be placed up to 100 m from the mixer
Expander port for additional compatible I/O
Monitor port for Allen & Heath ME personal monitoring systems
3U 19-inch rackmount design
Plug-and-play operation with compatible Allen & Heath mixers

Specifications

Mixer Model: Allen & Heath Qu-24C
Mixer Type: Digital Mixing Console
Input Capacity: 30 Inputs
Output Capacity: 24 Outputs
Mono Inputs: 24
Stereo Inputs: 3
Motorised Faders: 25
Touchscreen: 5-inch colour touchscreen
FX Engines: 4 Stereo FX
DCA Groups: 4
Mute Groups: 4
SoftKeys: 10
USB Audio Interface: 32 out / 30 in
Recording: Qu-Drive stereo and multitrack recording
Remote Audio: dSNAKE
Power Requirement: 100–240V AC, 50/60Hz

Audio Rack Model: Allen & Heath AR2412
Audio Rack Type: Digital Stagebox / AudioRack
Inputs: 24 × XLR Mic/Line Inputs
Outputs: 12 × XLR Line Outputs
Sample Rate: 48kHz
Connection: dSNAKE over Cat5e cable
Maximum Distance: Up to 100 m
