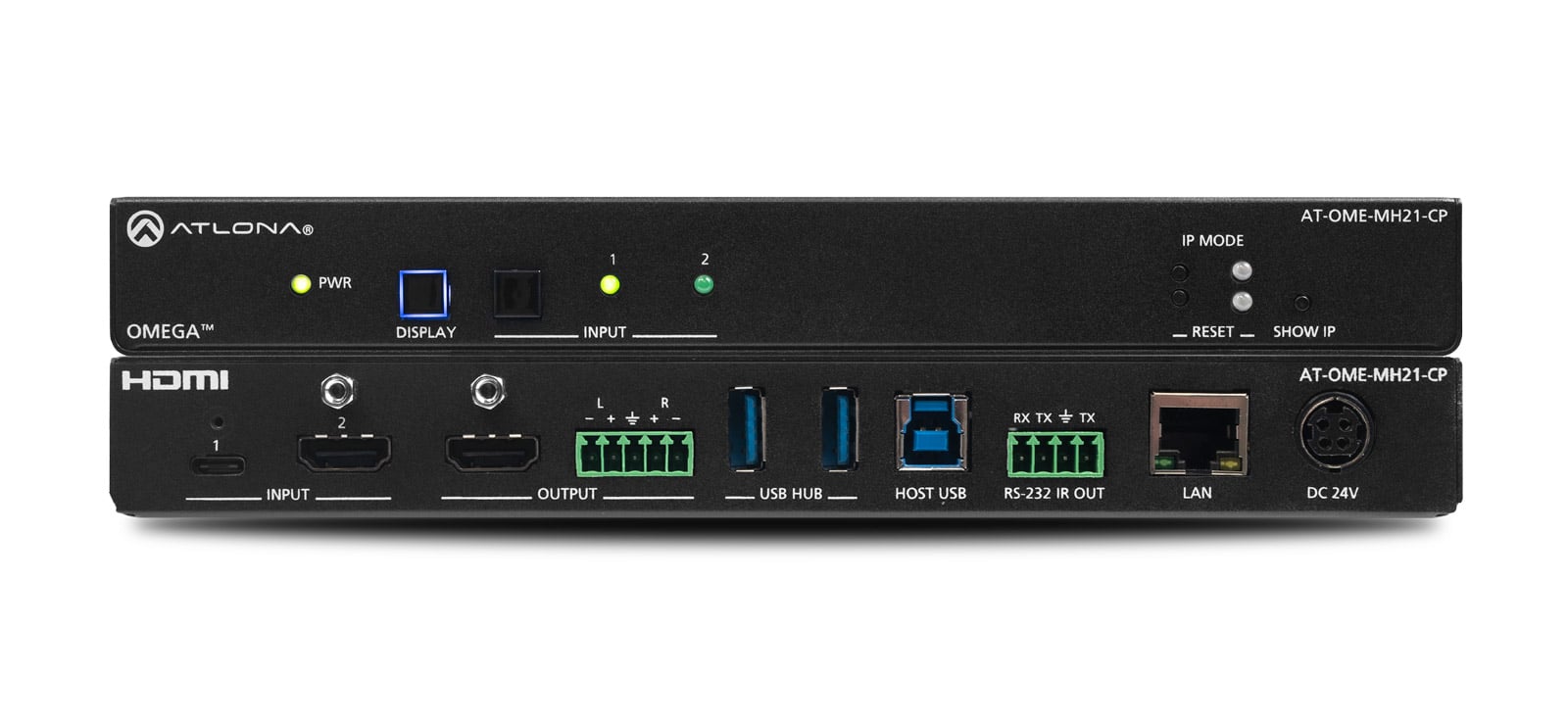

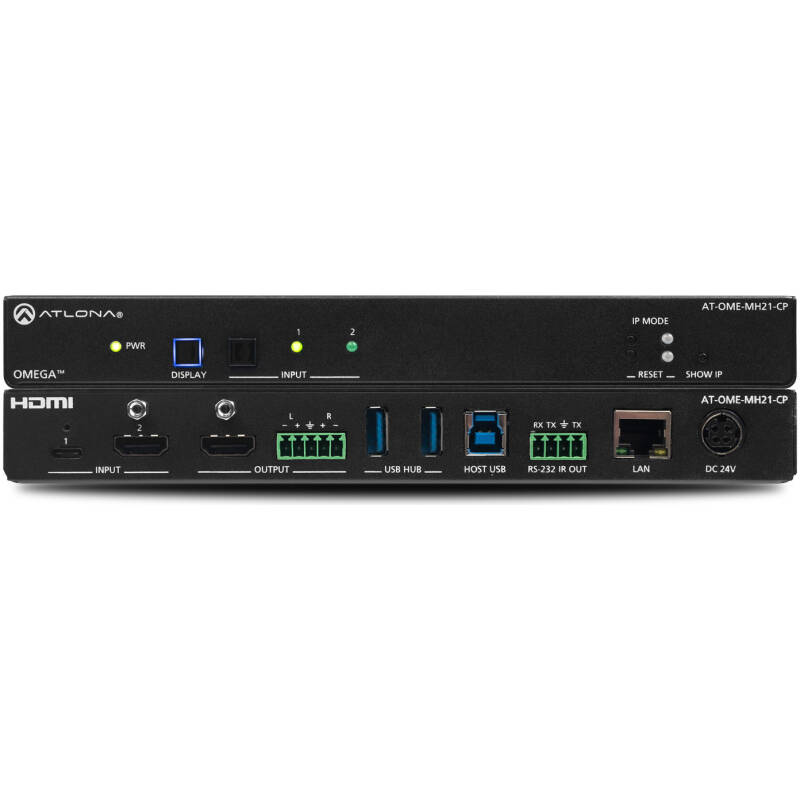

Atlona AT-OME-MH21-CP – 2×1 HDMI & USB-C Switcher With HDBaseT Output And Control Processor

The Atlona AT-OME-MH21-CP is a compact 2×1 switcher featuring HDMI and USB-C inputs with an integrated control processor and HDBaseT output. Designed for meeting rooms, huddle spaces, and classrooms, it enables simple connectivity for laptops and presentation devices while extending video, audio, Ethernet, and control signals over a single category cable to a remote receiver or display.

The built-in control processor supports automation of displays and other AV equipment, making it ideal for simplified room control systems.

Technical Features

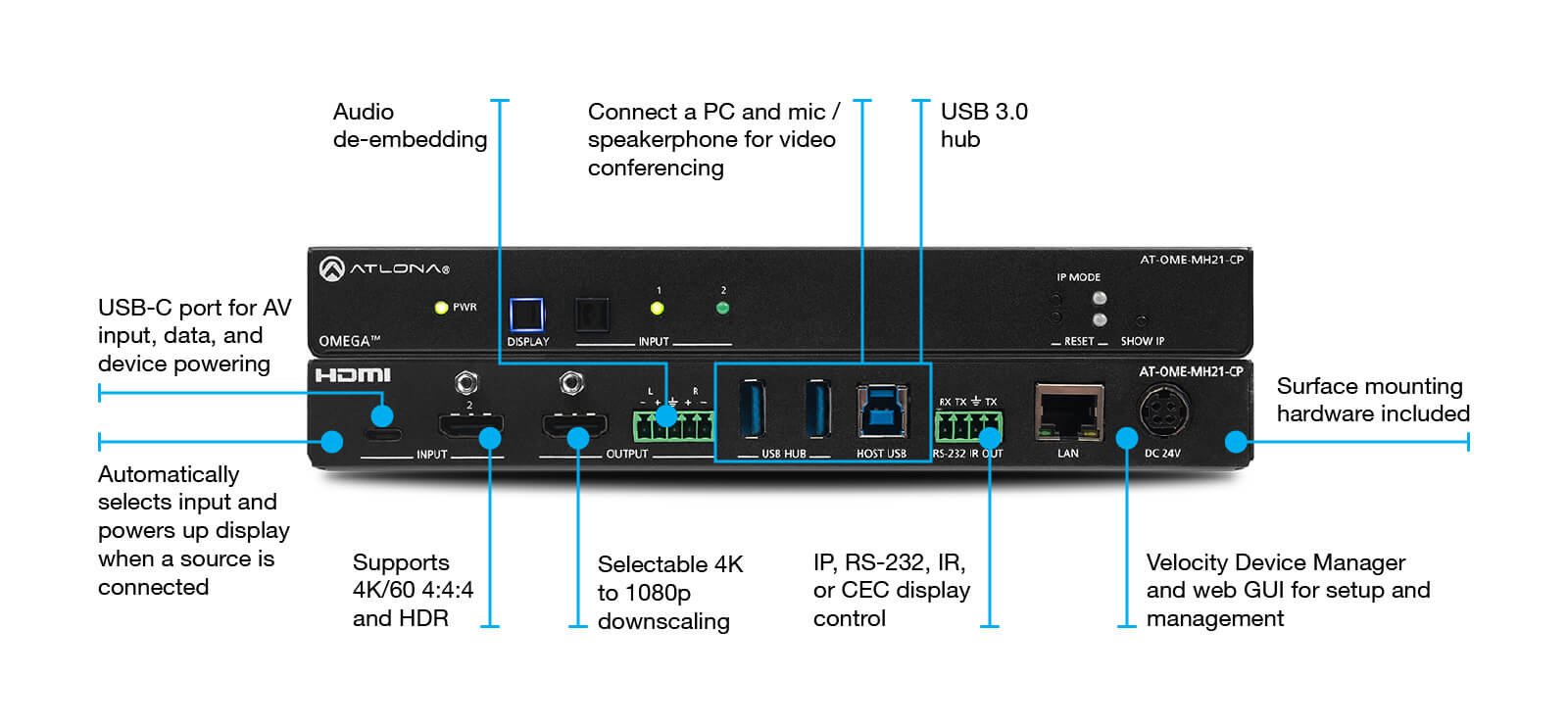

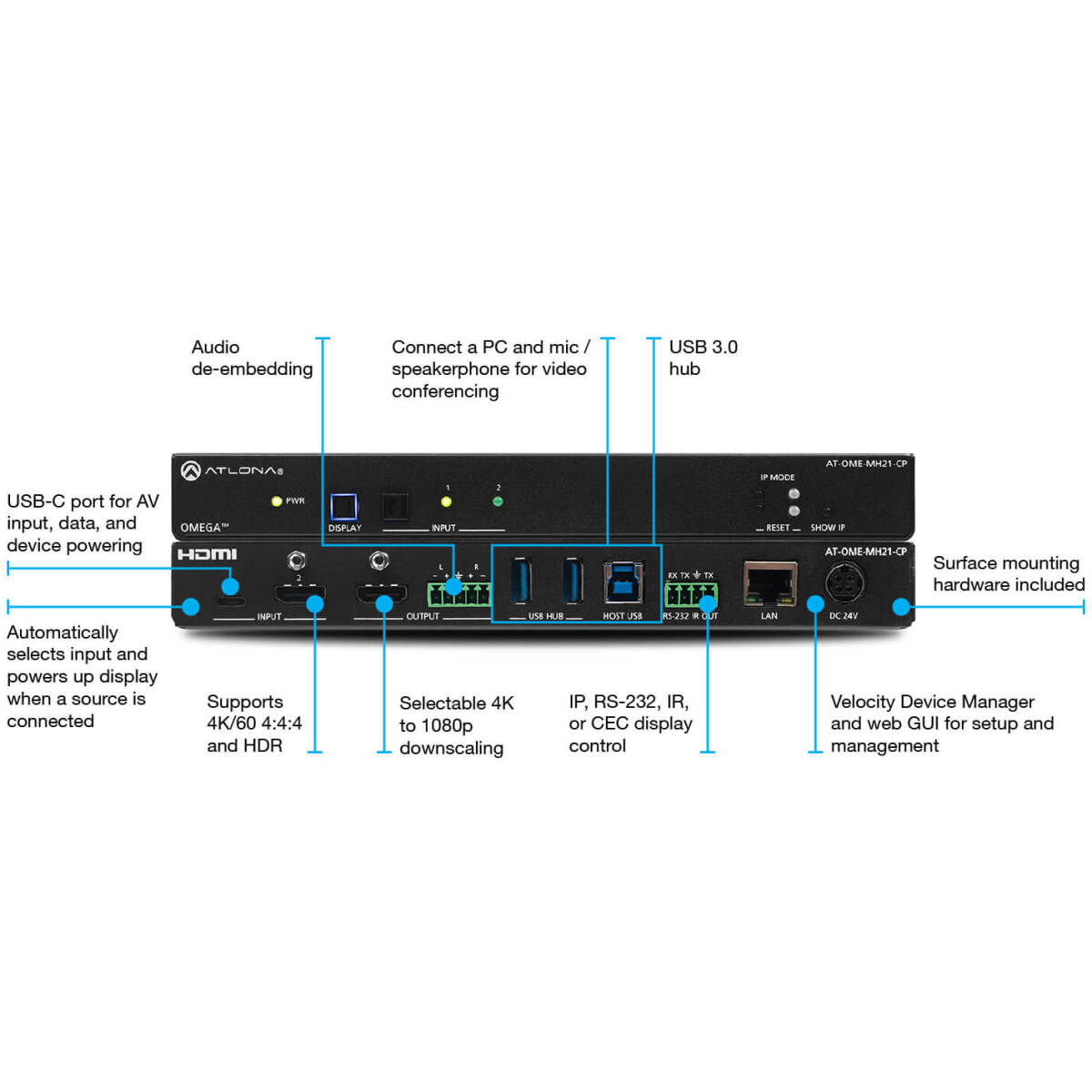

Two-input AV switcher with USB-C and HDMI inputs

• No need to provide an adapter for USB-C to HDMI video

USB-C input for AV, USB data, and device charging (up to 60 watts)

• Provides compatibility with laptops and tablets with USB-C ports supporting AV output.
  Allows clutter-free, single cable connectivity to a PC for video conferencing and collaboration.

Integrated USB 3.0 hub

USB type B interface for connection to a host PC, plus two USB type A ports for a peripheral device such as a microphone, speakerphone, camera, or touch display
USB-C input is also available for data connection to a host PC
Provides an ideal USB integration solution for software video conferencing and other applications

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats

Ideal for new and emerging 4K/UHD and HDR-capable sources and displays
Compatible with 4K HDR10 @ 60 Hz and Dolby Vision™ @ 60 Hz, as well as HLG (Hybrid Log-Gamma) for 60p HDR broadcast services

HDCP 2.2 compliant

Adheres to latest specification for High-bandwidth Digital Content Protection
Allows protected content stream to pass between authenticated devices

Selectable 4K to 1080p downscaling

Integrated video processing available for down-converting 4K/UHD @ 60, 30, or 24 Hz to 1080p
Downscaling can be bypassed to allow pass-through up to 4K/60 4:4:4 and 4K HDR
Ideal for applications with 1080p displays

Automatic display controlntrol of consumer displays (as supported by the display manufacturer).

Includes an adjustable lamp cooldown mode to avoid prematurely powering up a projector after shutdown
Enables effortless, automated system operation without the need for an external control system

Automatic input selection using hot plug detect and video detection technology

Selects active input when sources are connected or if there is a change in source power status
Enables simplified, automatic system operation without user intervention

Audio de-embedding

De-embeds two channel PCM audio and delivers to a balanced, analog audio output*
Provides direct interfacing into an external audio system

Automatically changes display power state based on active or standby mode of the switcher. Control signals to display are transmitted via IP, RS-232, IR, or CEC.
Embedded, comprehensive selection of display drivers from the Velocity™ System driver database
Enables display and volume control. CEC enables co

* Mute control is available for analog audio output (but not volume control).

Multi-channel audio compliant

Passes through multi-channel audio formats from the HDMI or USB-C inputs
Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
