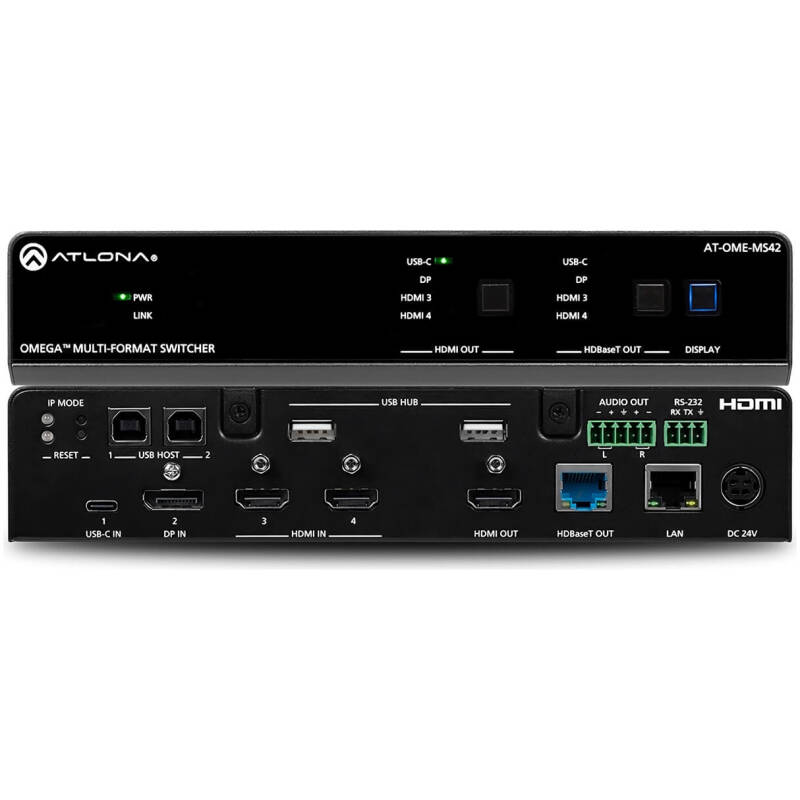

Atlona AT-OME-MS42 4×2 Matrix Switcher With USB Hub

The Atlona AT-OME-MS42 is a compact 4×2 matrix switcher designed for modern meeting rooms and collaboration spaces. It features multiple HDMI and USB-C inputs and provides both HDMI and HDBaseT outputs for flexible display connectivity. The switcher allows seamless switching and routing of sources to displays while supporting high-resolution video, Ethernet extension, and control integration.

Key Features

• 4×2 matrix switcher for flexible source routing

• Inputs include HDMI and USB-C for laptops and media devices

• HDMI and HDBaseT outputs for display connectivity

• Supports 4K/UHD video up to 60 Hz (4:2:0)

• HDBaseT transmission up to 100 m over Cat6/6A cable

• Automatic input switching for easy operation

• Ethernet pass-through for network connectivity

• Bi-directional RS-232 and IR control

• Ideal for conference rooms, classrooms, and presentation systems

Technical Specifications

Video Inputs

• 3 × HDMI Type-A

• 1 × USB-C (video and data)

Video Outputs

• 1 × HDMI Type-A

• 1 × RJ45 HDBaseT

Control

• 1 × RS-232

• 1 × IR

Ethernet

• 1 × RJ45 LAN

Maximum Resolution

• Up to 4K/UHD 3840 × 2160 @ 60 Hz (4:2:0)

Transmission Distance (HDBaseT)

• Up to 100 m over Cat6/6A cable

Power

• External 24 V DC power supply
