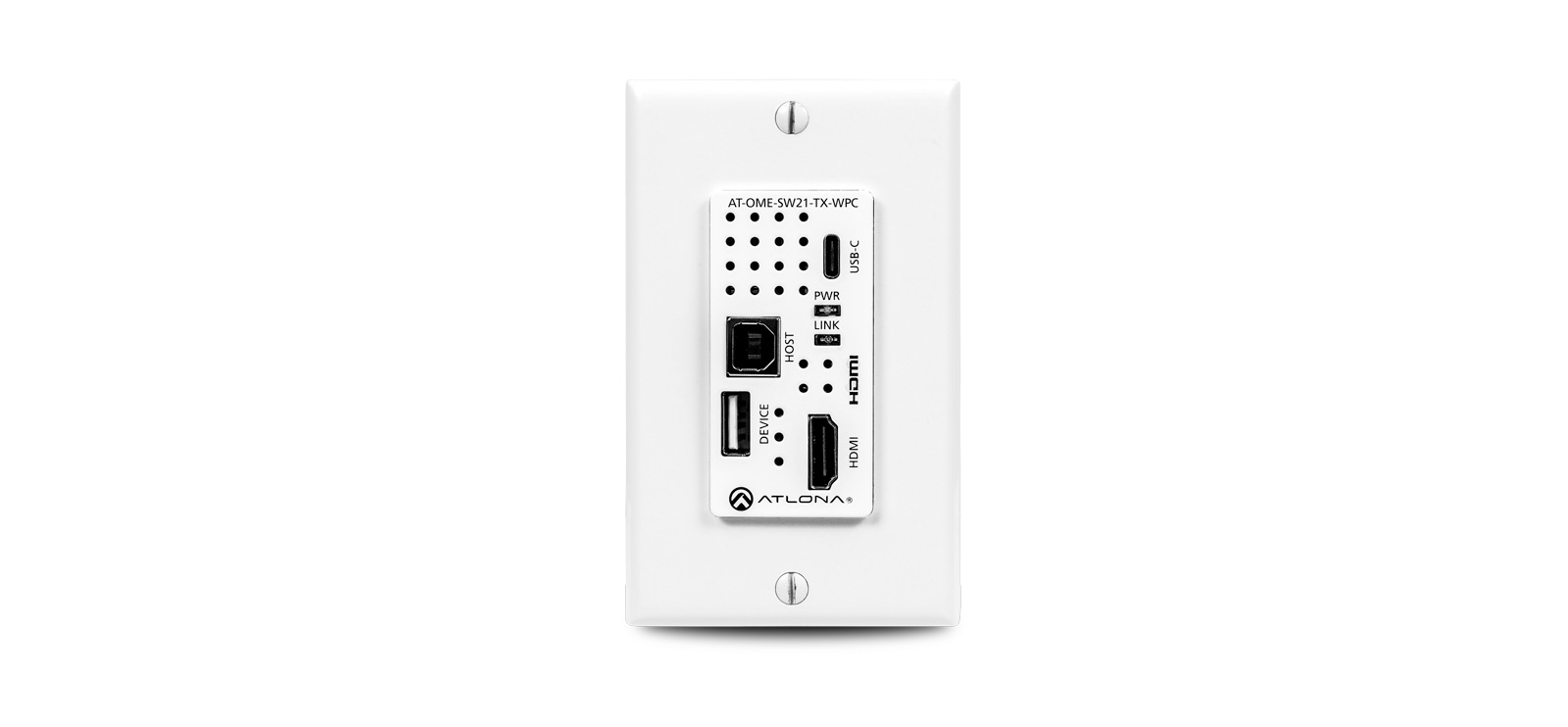

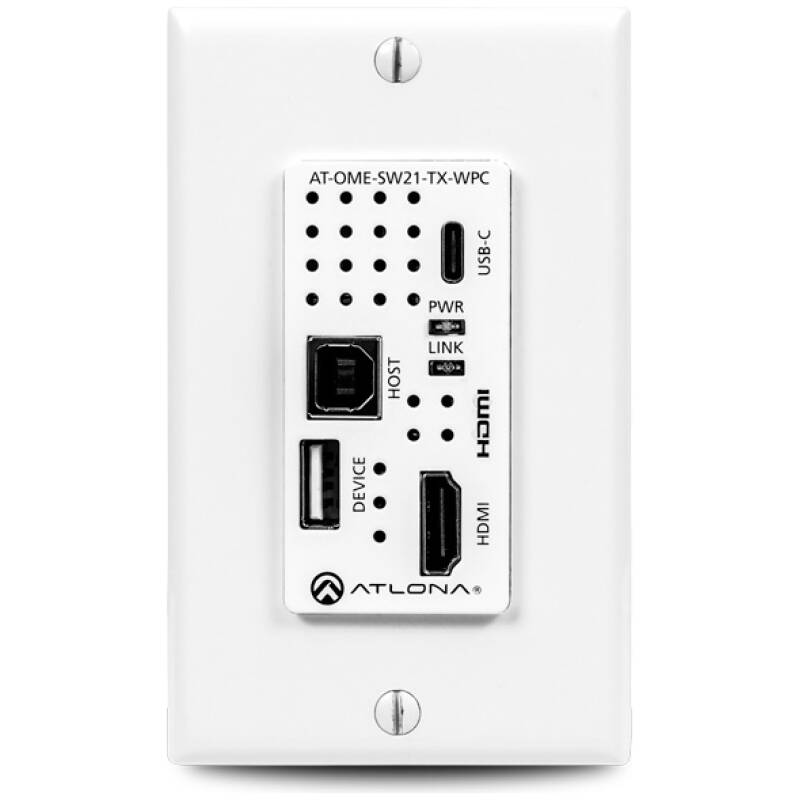

Atlona AT-OME-SW21-TX-WPC OMEGA Wallplate 2×1 HDMI Switcher With HDBaseT Transmitter

The Atlona AT-OME-SW21-TX-WPC is a wallplate-mounted 2×1 presentation switcher with an integrated HDBaseT transmitter, designed for conference rooms, classrooms, and collaboration spaces. It allows users to connect devices through HDMI or USB-C, automatically switching between sources and transmitting the signal to a remote display via a single Cat6a/7 cable.

Part of the Atlona OMEGA Series, this wallplate switcher simplifies AV installations by combining source switching, video extension, laptop charging, and control integration into a compact wall-mounted unit.

Key Features

• 2×1 presentation switcher with HDBaseT output
• Inputs: HDMI and USB-C
• Wallplate design for in-wall installation
• Supports 4K/UHD up to 4K/60 4:2:0
• Automatic input switching
• USB-C laptop charging
• Transmission distance up to 70 m over Cat6a/7 cable
• RS-232 and IR pass-through
• Ethernet extension over HDBaseT

Technical Specifications

Video Inputs

• 1 × HDMI input
• 1 × USB-C input

Video Output

• 1 × HDBaseT output (RJ45)

Maximum Resolution

• 4K/UHD @ 60 Hz (4:2:0)

Transmission

• Technology: HDBaseT
• Maximum Distance:
• 70 m for 1080p
• 40 m for 4K
• Cable Type: Cat6a / Cat7

USB-C

• Supports DisplayPort Alt Mode video
• Laptop charging via USB-C

Control

• Automatic input switching
• RS-232 pass-through
• IR pass-through
• Ethernet extension

Power

• Powered via PoE from compatible Atlona receiver
