Audac TRM124 Black 70/100V Transformer Module

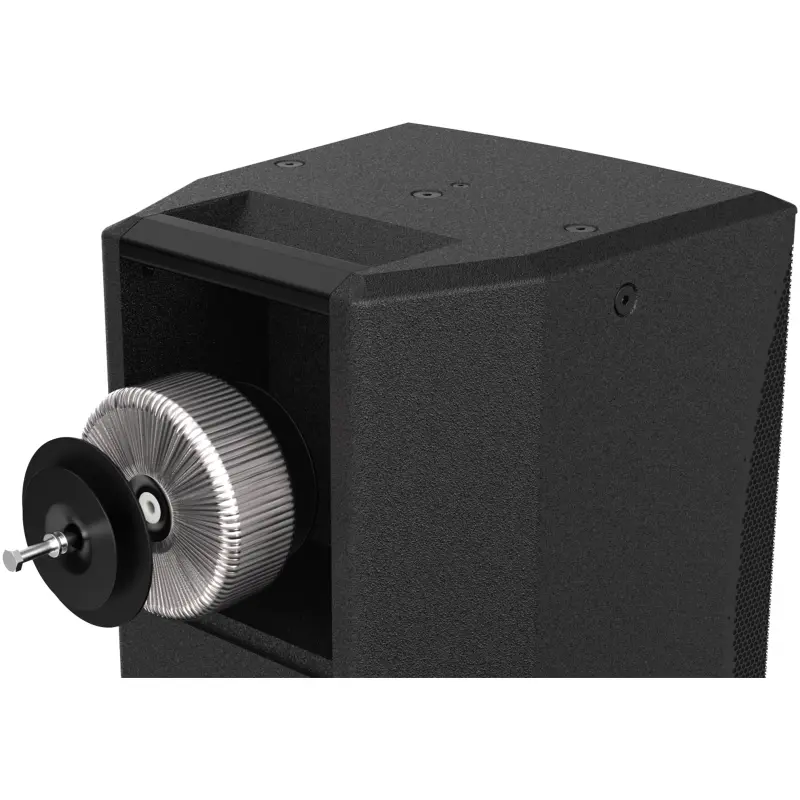

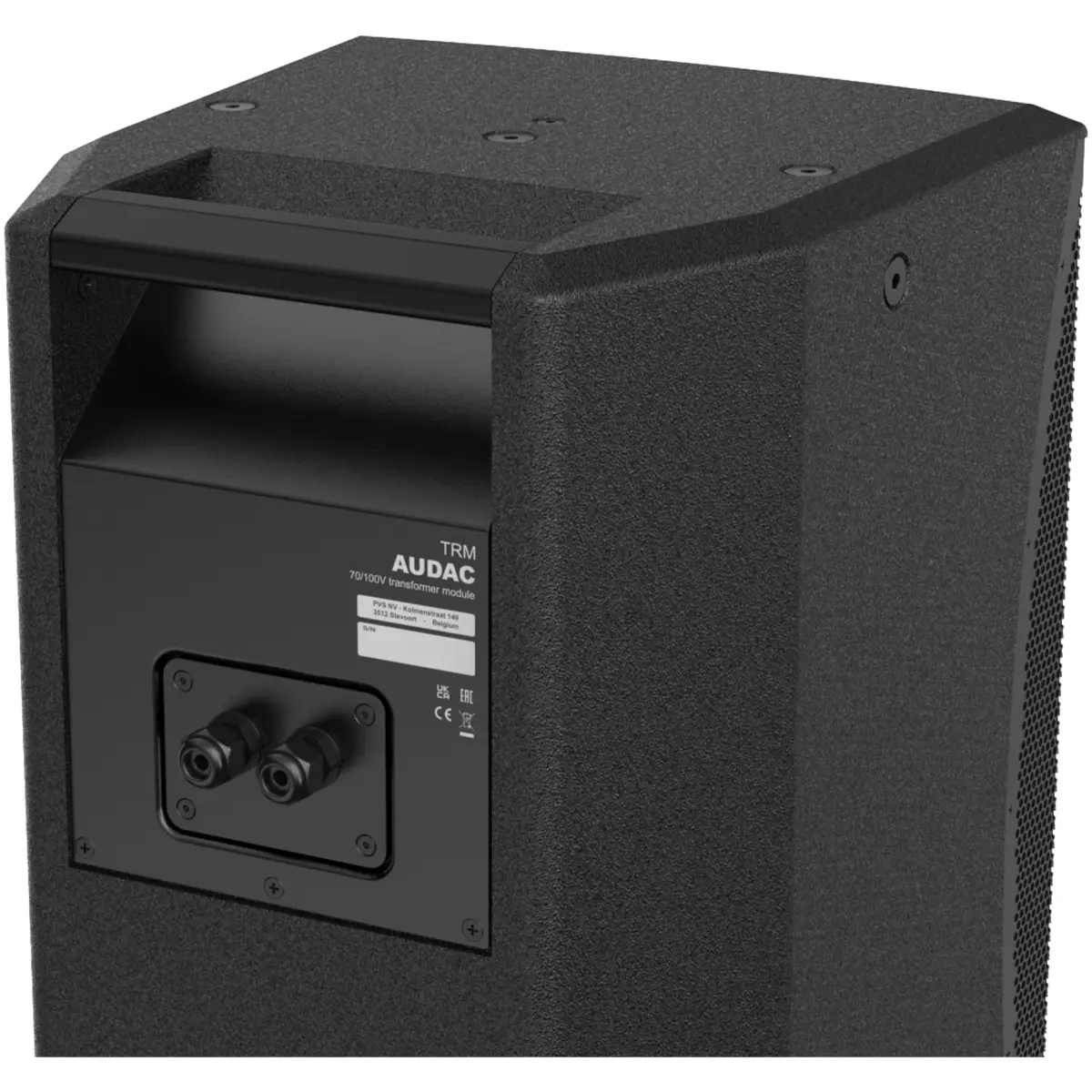

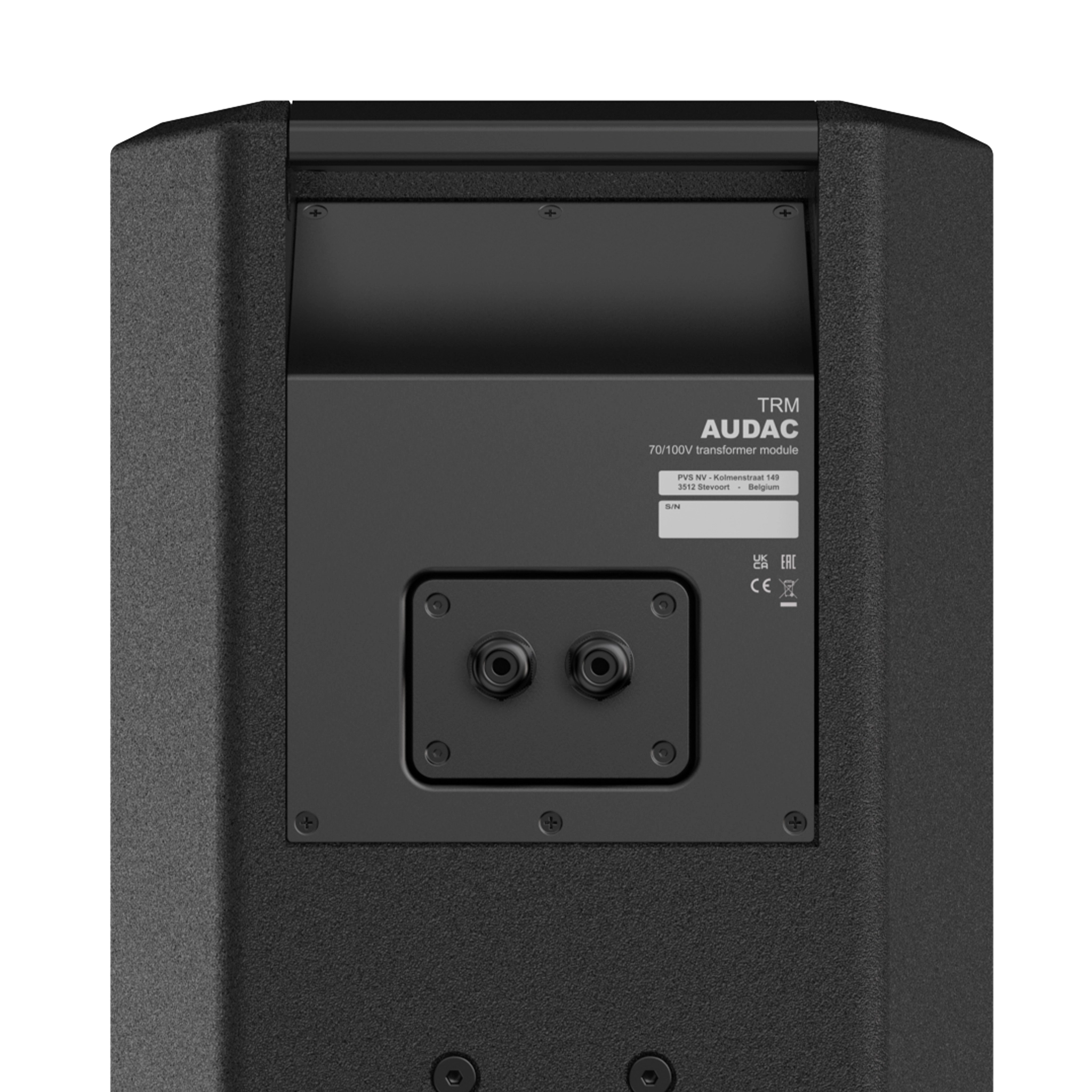

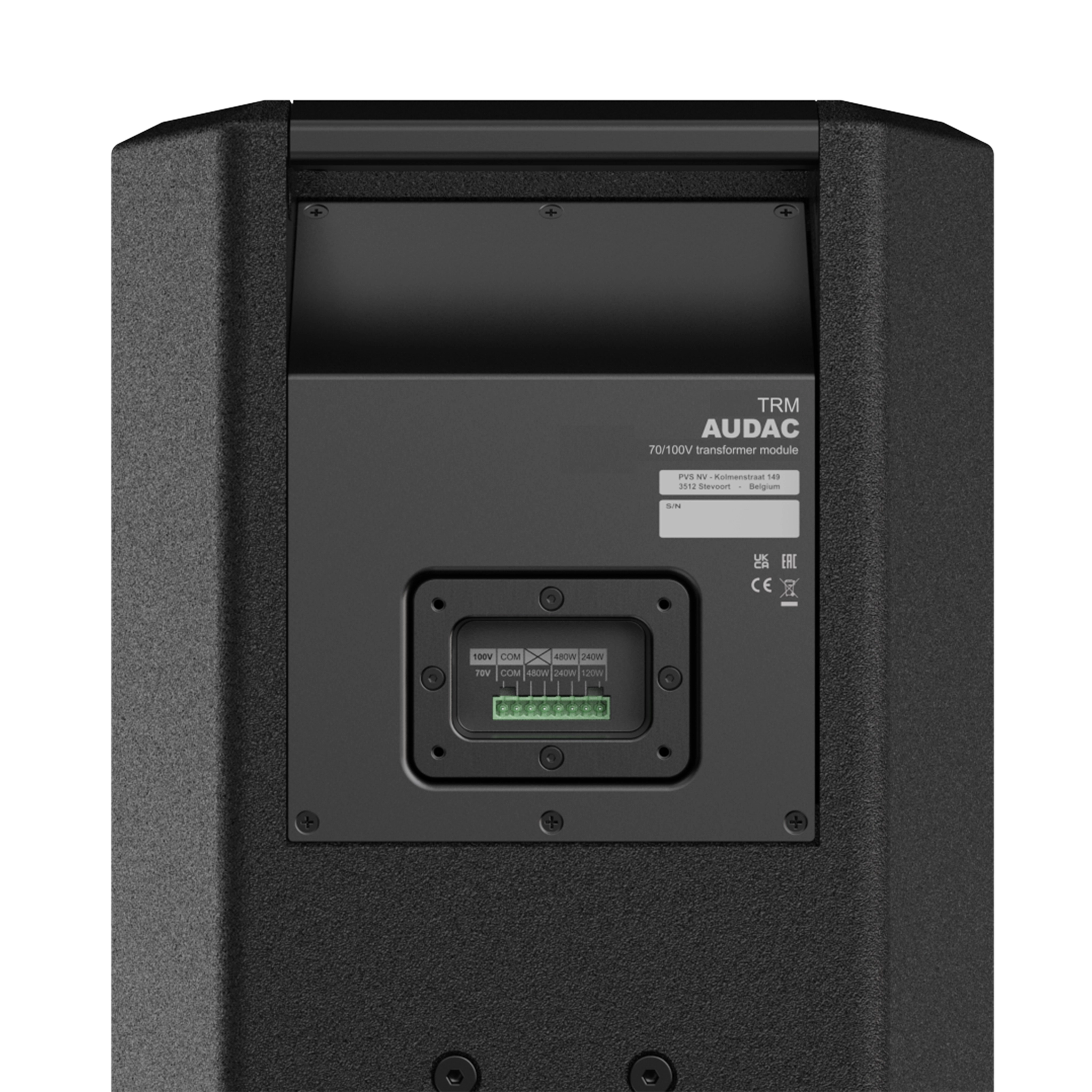

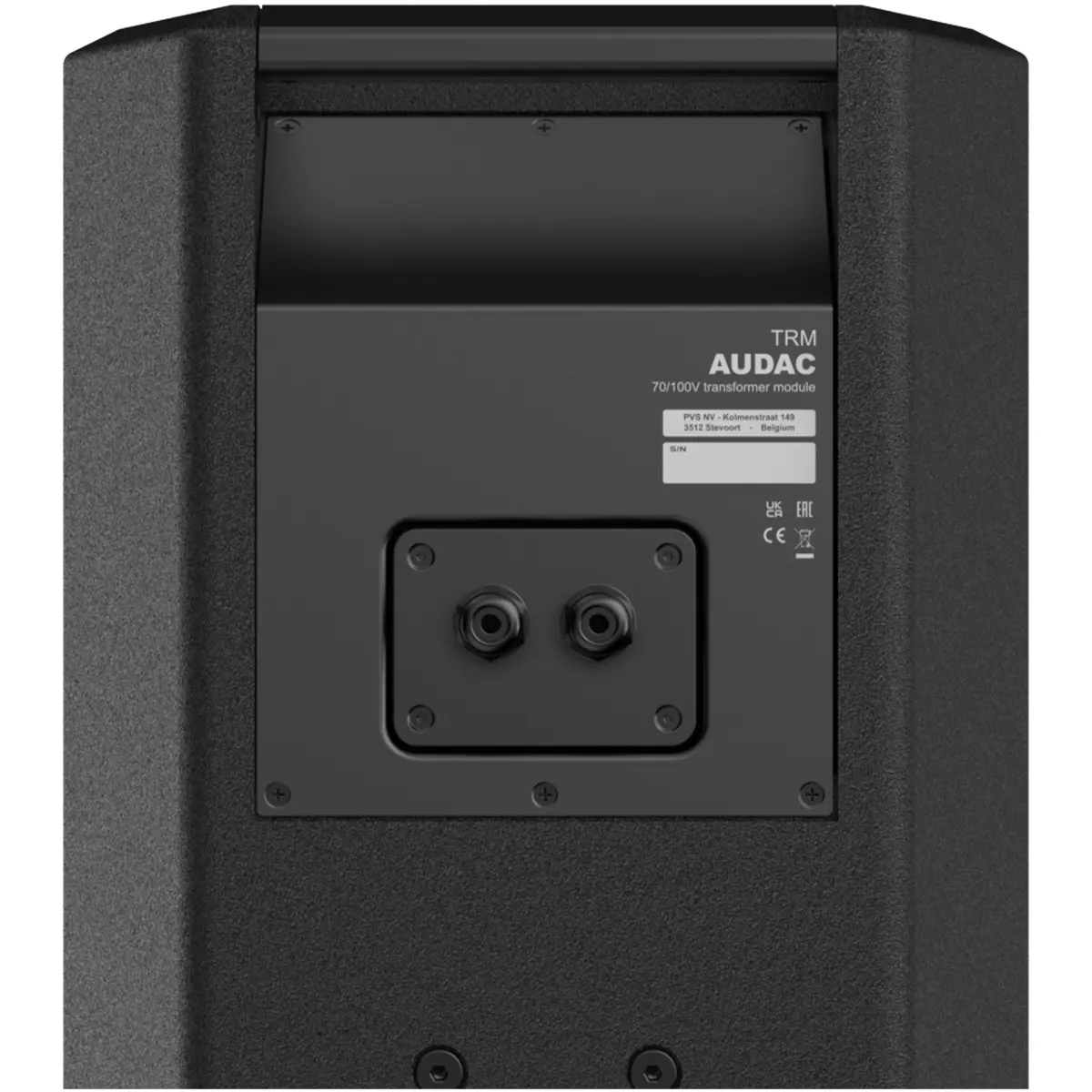

The TRM series are 70/100V line transformers that can be optionally implemented in the passive variants of the VEXO series. Installation is done by removing the backplate of the VEXO series (passive variants only) and replacing it with a 70/100V backplate on which the module is integrated. Like this the high-performance loudspeaker is able to be implemented in 70/100V systems.

Technical specifications
Available models
TRM124/B Black version – VEXO110 – 240W & 120W power taps
TRM124/W White version – VEXO110 – 240W & 120W power taps
System specifications
Line Transformer Tappings 1 20.83 Ω – 100 V / Not used – 70 V / 240 W
2 41.67 Ω – 100 V / 240 W – 70 V / 120 W
3 83.33 Ω – 100 V / 120 W – 70 V / 60 W
Impedance 8 Ω (Secondary)

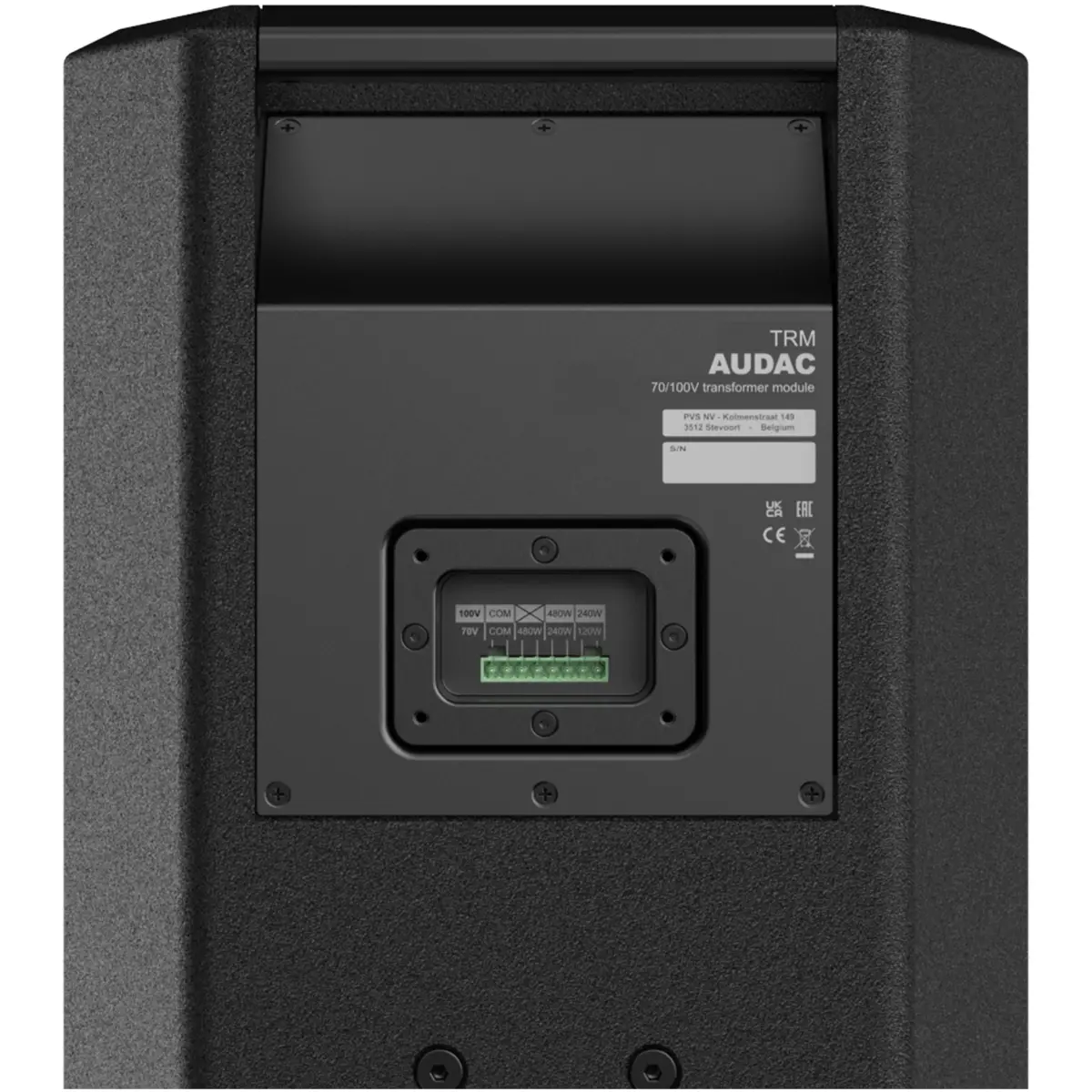

Connection External (to amplifier) – 8-pin terminal block
Internal (to speaker) – 2-pin connector
Frequency Response (± 3 dB) 50 Hz – 20 kHz
Product Features
Construction Aluminium backplate

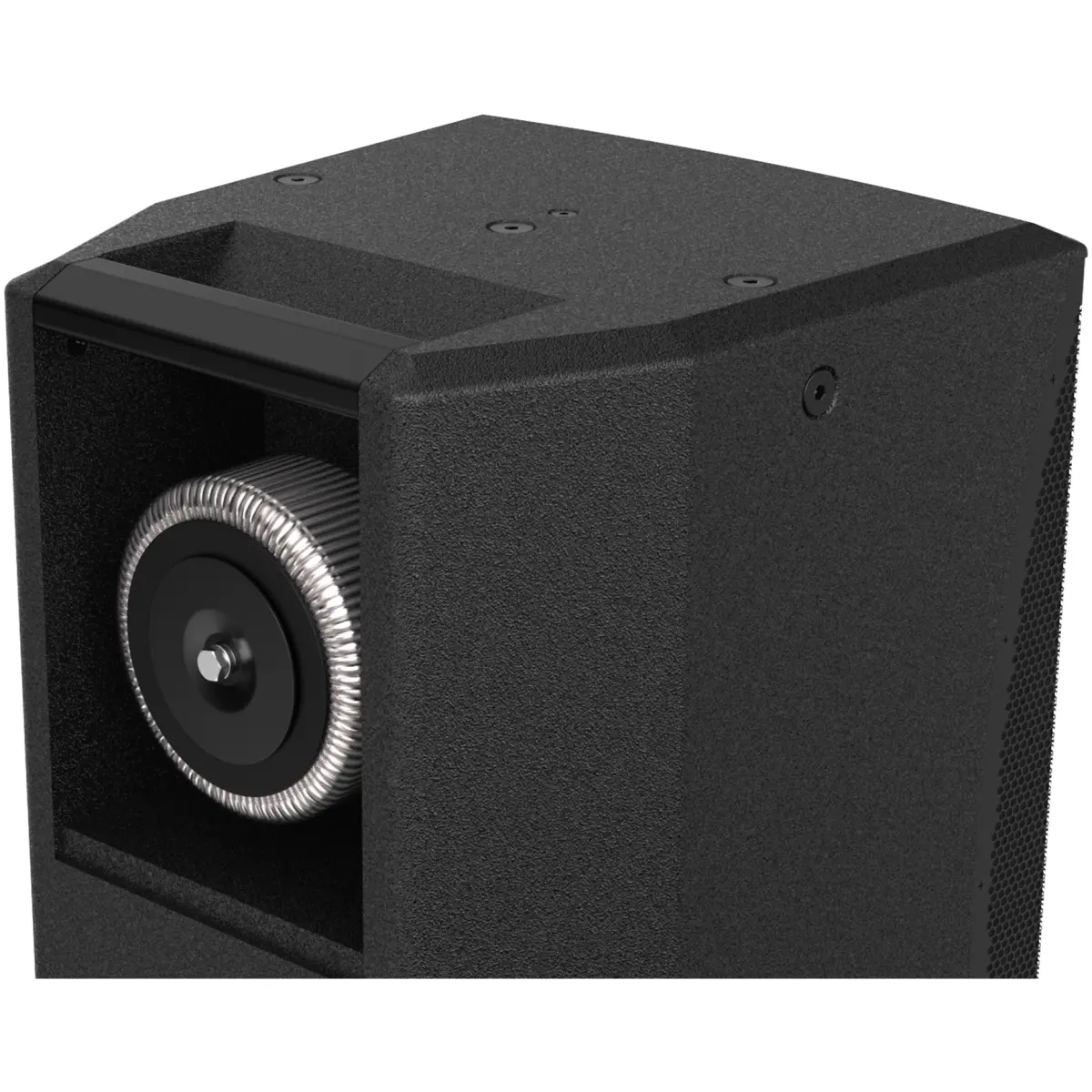

Copper toroidal transformer
Colours Black (RAL9005)
White (RAL9003)
Compatible devices VEXO110
Accessories Included M8 x 80 mm (Mounting bolt)
Ø 90 mm metal washer
Rubber washer
M8 washer
M8 spring washer
