Atlona AT-OME-TX11-WP OMEGA Wallplate HDBaseT Transmitter

The Atlona AT-OME-TX11-WP is a wallplate-mounted HDBaseT transmitter designed for Atlona OMEGA Series AV systems. It allows a laptop or source device to connect through HDMI or USB-C and transmit video, audio, and control signals to a compatible HDBaseT receiver over a single category cable.

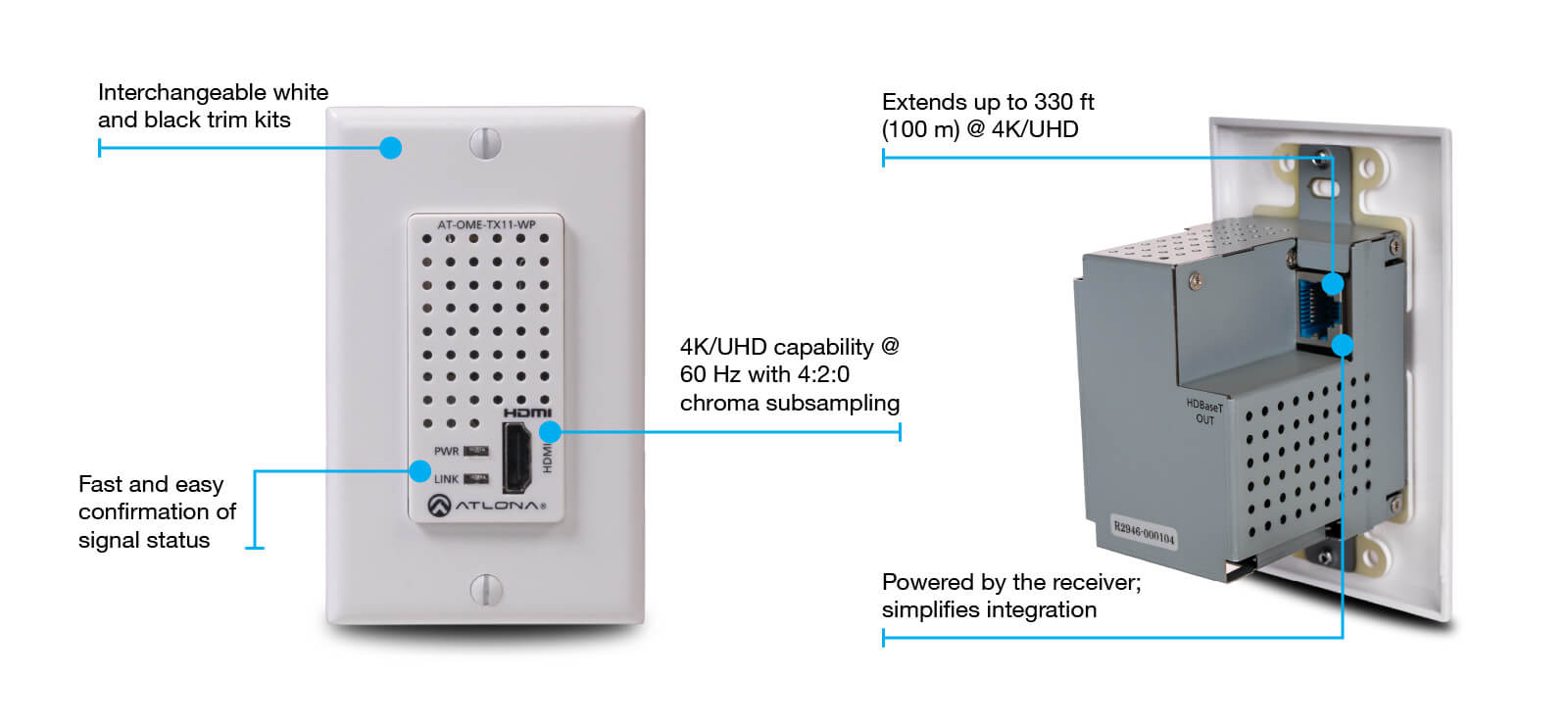

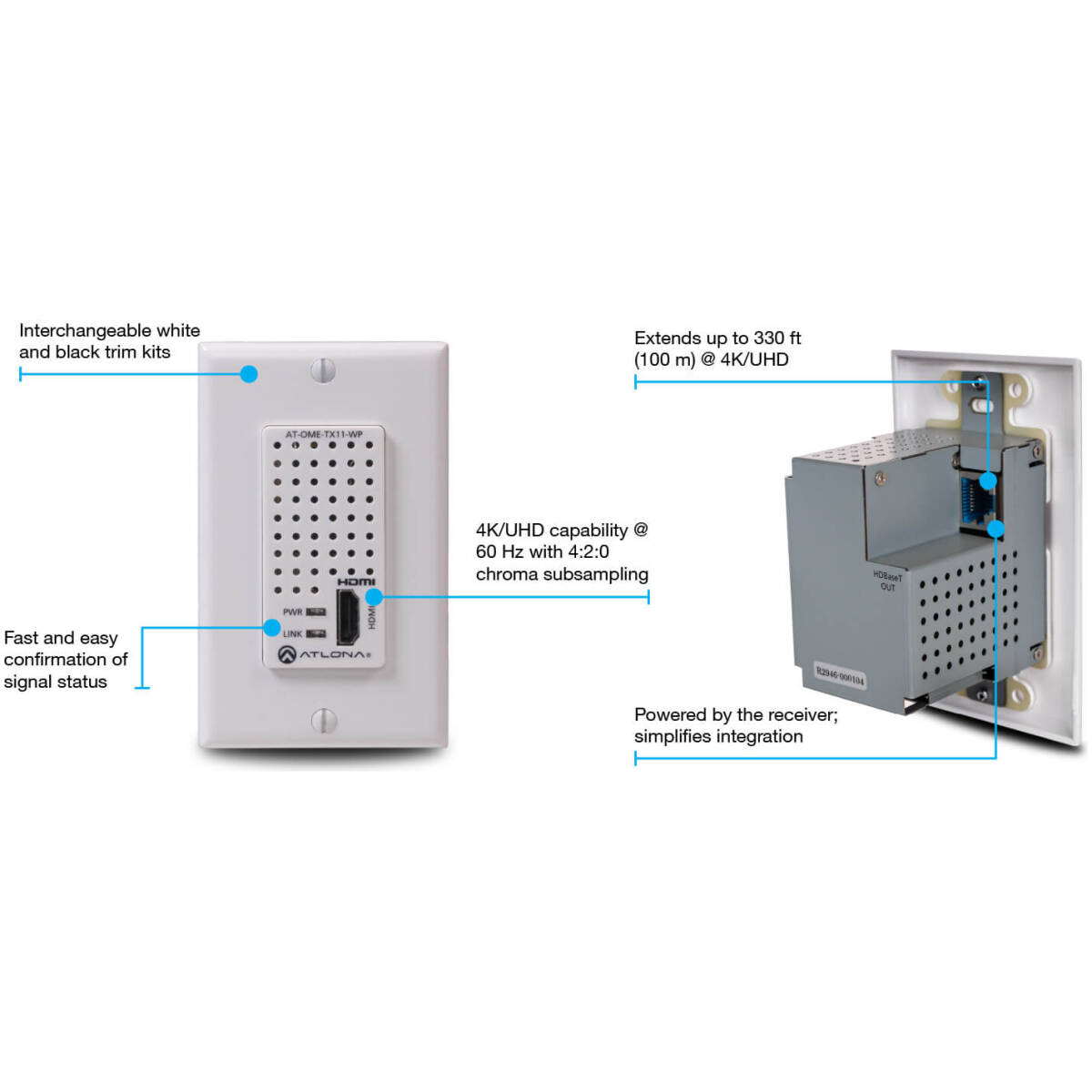

This compact wallplate solution is ideal for conference tables, classrooms, lecture halls, and collaboration spaces, providing simple connectivity for users while keeping AV equipment installed remotely in a rack or behind a display.

Key Features

• Wallplate HDBaseT transmitter
• Inputs: HDMI and USB-C
• Supports 4K/UHD up to 4K/60 4:2:0
• USB-C laptop charging
• Automatic input switching
• Transmission distance up to 70 m over Cat6a/7 cable
• RS-232 and IR pass-through
• Ethernet extension over HDBaseT
• Single-gang in-wall installation design

Technical Specifications

Video Inputs

• 1 × HDMI input
• 1 × USB-C input

Video Output

• 1 × HDBaseT output (RJ45)
• Maximum Resolution
• 4K/UHD @ 60 Hz (4:2:0)

Transmission

• Technology: HDBaseT
• Maximum Distance:
• 70 m for 1080p
• 40 m for 4K
• Cable Type: Cat6a / Cat7

USB-C

• Supports DisplayPort Alt Mode video
• Laptop charging capability

Control

• RS-232 pass-through
• IR pass-through
• Ethernet extension

Power

• Powered via PoE from compatible Atlona receiver
