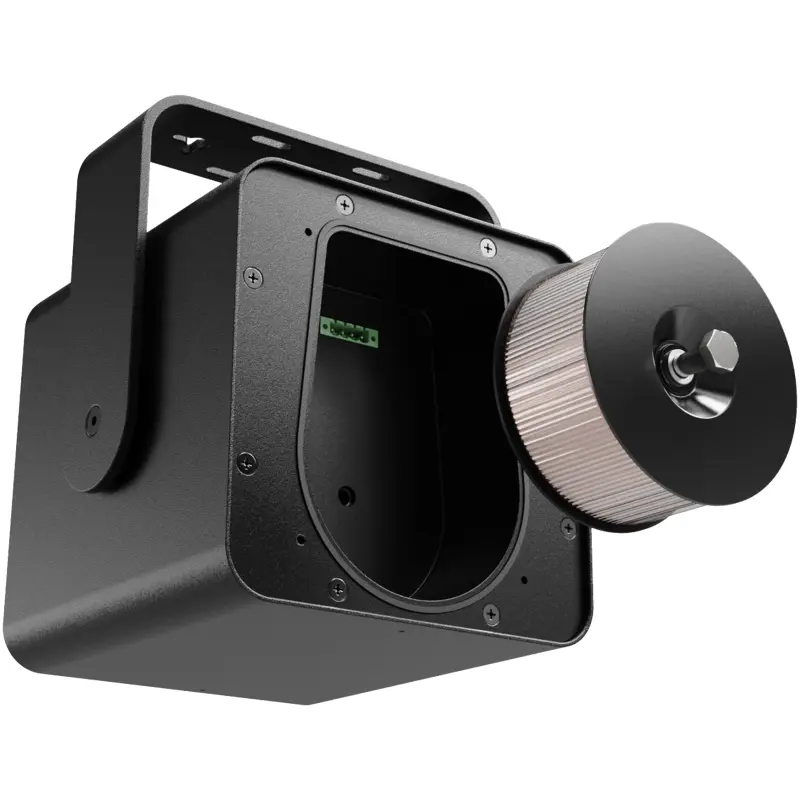

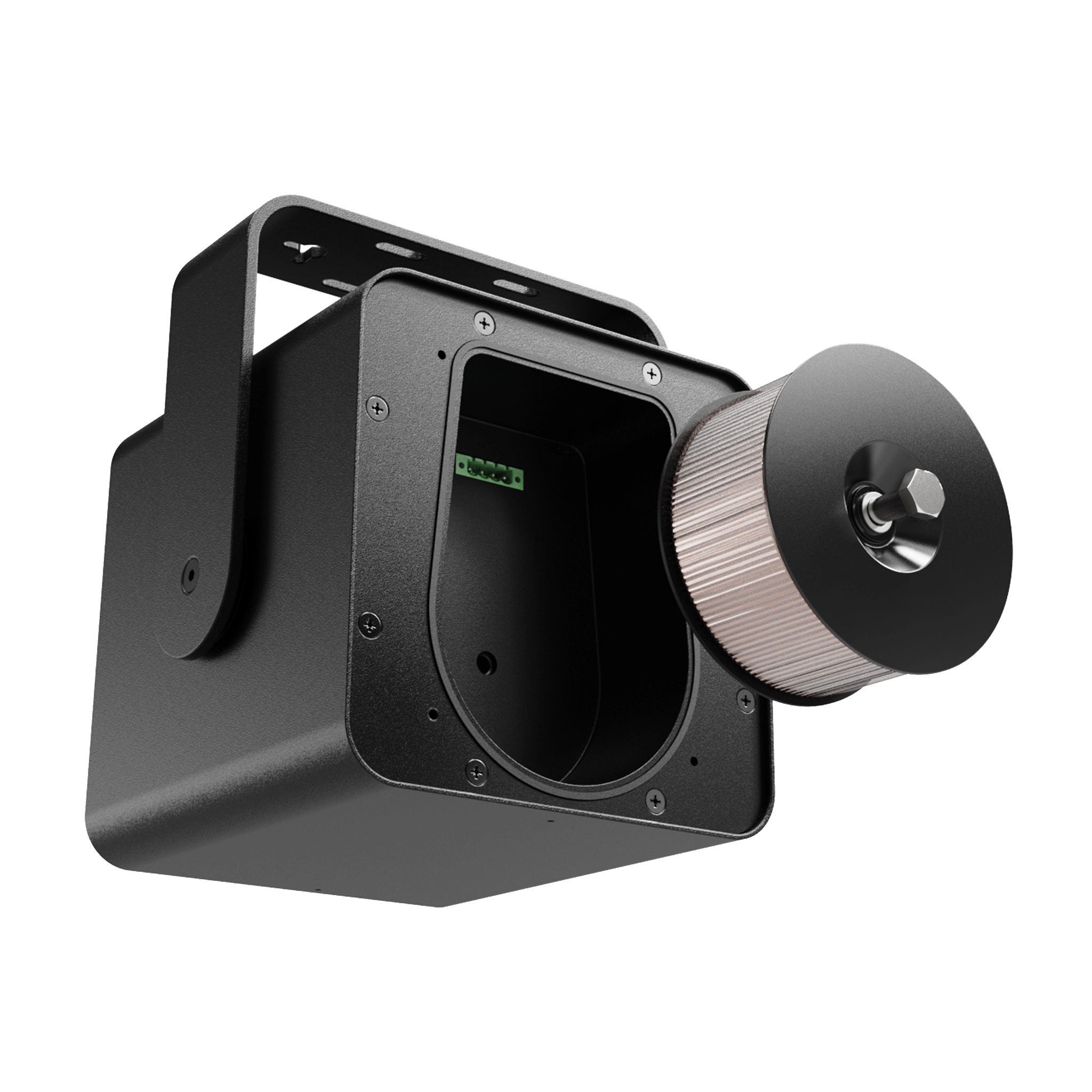

The TRV106 transformer designed for use with the VIRO5(D). This transformer can be used for converting VIRO5 speakers allowing them to be fitted in 70/100V installations where long cable runs can be used.
Technical specifications
System specifications
Line Transformer Tappings 1 83 Ω – 100 V / Not used – 70 V / 60 W
2 167 Ω – 100 V / 60 W – 70 V / 30 W
3 333 Ω – 100 V / 30 W – 70 V / 15 W
Impedance 8 Ω
16 Ω
Connection SnapConnect™
Stipped & tinned wires
Frequency Response (± 3 dB) 50 Hz – 20 kHz
Product Features
Weight 1.4 kg
Construction Copper
Accessories Included Mounting bolt, nut and washer
